Selecting Items in WPF Accordion (SfAccordion)

24 Oct 202422 minutes to read

Items can be selected programmatically using the properties SelectedIndex, SelectedItem and SelectedItems.

Selecting item using SelectedIndex

SelectedIndex property is used to select an item using its index. It contains the index of most recently selected item in case of OneOrMore, ZeroOrMore SelectionModes.

XAML
C#
<layout:SfAccordion SelectedIndex="2" Width="500" Height="200">
       <layout:SfAccordionItem Header="WPF"
       Content="WPF is a framework for building rich Windows desktop applications"/>
       <layout:SfAccordionItem Header="UWP"
       Content="UWP is a framework for building cross-platform Windows applications."/>
       <layout:SfAccordionItem Header="WinUI"
       Content="WinUI is a modern framework for building Windows desktop applications."/>
       <layout:SfAccordionItem Header="Windows Forms"
       Content="Windows Forms is a UI framework for building classic Windows desktop applications."/>
       <layout:SfAccordionItem Header="Metro Studio"
       Content="Metro Studio is an icon library with customizable flat and wireframe icon templates."/>
    </layout:SfAccordion>
// Create SfAccordion control
SfAccordion accordion = new SfAccordion();
accordion.Width = 500;
accordion.Height = 200;

// Create SfAccordionItems
SfAccordionItem wpfItem = new SfAccordionItem
{
    Header = "WPF",
    Content = "WPF is a framework for building rich Windows desktop applications"
};
SfAccordionItem uWPItem = new SfAccordionItem
{
    Header = "UWP",
    Content = "UWP is a framework for building cross-platform Windows applications."
};

SfAccordionItem winUIItem = new SfAccordionItem
{
    Header = "WinUI",
    Content = "WinUI is a modern framework for building Windows desktop applications."
};

SfAccordionItem windowsFormsItem = new SfAccordionItem
{
    Header = "Windows Forms",
    Content = "Windows Forms is a UI framework for building classic Windows desktop applications."
};

SfAccordionItem metroStudioItem = new SfAccordionItem
{
    Header = "Metro Studio",
    Content = "Metro Studio is an icon library with customizable flat and wireframe icon templates."
};

// Add the items to the accordion
accordion.Items.Add(wpfItem);
accordion.Items.Add(uWPItem);
accordion.Items.Add(winUIItem);
accordion.Items.Add(windowsFormsItem);
accordion.Items.Add(metroStudioItem);
accordion.SelectedIndex = 2;

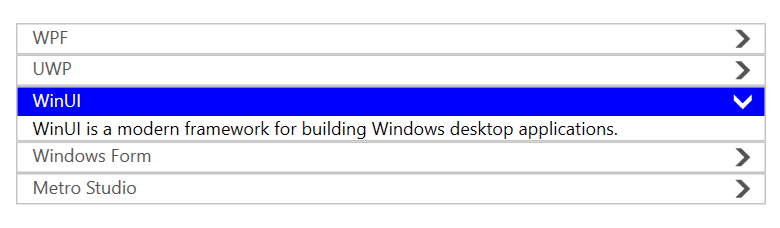

WPF Accordion item selection using SelectedIndex

Selecting item using SelectedItem

SelectedItem property is used to select an item using its instance. It contains the instance of most recently selected item in case of OneOrMore, ZeroOrMore SelectionModes.

XAML
C#
<Grid>
     <Grid.DataContext>
         <local:AccordionViewModel/>
     </Grid.DataContext>
     <StackPanel>
     <layout:SfAccordion ItemsSource="{Binding Items}" SelectedItem="{Binding SelectedAccordionItem, Mode=TwoWay}" Width="500" Height="200" Margin="50">
         <layout:SfAccordion.HeaderTemplate>
             <DataTemplate>
                 <TextBlock Text="{Binding Name}"/>
             </DataTemplate>
         </layout:SfAccordion.HeaderTemplate>
         <layout:SfAccordion.ContentTemplate>
             <DataTemplate>
                 <TextBlock Text="{Binding Description}"/>
             </DataTemplate>
         </layout:SfAccordion.ContentTemplate>
     </layout:SfAccordion>
     </StackPanel>
 </Grid>
public class AccordionViewModel
  {
      private object _selectedItem;
      public object SelectedItem
      {
          get { return _selectedItem; }
          set
          {
              _selectedItem = value;
              OnPropertyChanged(nameof(SelectedItem));
          }
      }

      private ObservableCollection<AccordionItem> _items;
      public ObservableCollection<AccordionItem> Items
      {
          get { return _items; }
          set
          {
              _items = value;
              OnPropertyChanged(nameof(Items));
          }
      }

      public AccordionViewModel()
      {
          Items = new ObservableCollection<AccordionItem>
        {
           new AccordionItem { Name = "WPF", Description = "WPF is a framework for building rich Windows desktop applications."},
           new AccordionItem { Name = "UWP", Description = "UWP is a framework for building cross-platform Windows applications." },
           new AccordionItem { Name = "WinUI", Description = "WinUI is a modern framework for building Windows desktop applications." },
           new AccordionItem { Name = "Windows Form", Description = "Windows Forms is a UI framework for building classic Windows desktop applications." },
           new AccordionItem { Name = "Metro Studio", Description = "Metro Studio is an icon library with customizable flat and wireframe icon templates." }
        };

        SelectedItem = Items[4];
      }
  }

  public class AccordionItem
  {
      public string Name { get; set; }
      public string Description { get; set; }
  }

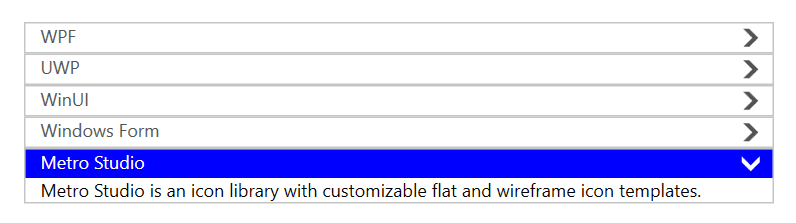

WPF Accordion item selection using SelectedItem

Retrieving the selected items

SelectedItems property contains a collection of selected items instances for all the SelectionModes. It is a read only property and it cannot be set.

Retrieving the selected item indices

SelectedIndices property contains a collection of selected items indices for all the SelectionModes. It is a read only property and it cannot be set.

Here is an example showing the functioning of these properties in which items are selected in run time by touch:

XAML
<Grid>

    <StackPanel>

    <TextBlock x:Name="selectedItem"/>

    <TextBlock x:Name="selectedIndex"/>

    <TextBlock x:Name="selectedItems"/>

    <TextBlock x:Name="selectedIndices"/>

    <layout:SfAccordion SelectionMode="ZeroOrMore" x:Name="accordion"
                        SelectedItemsChanged="accordion_SelectedItemsChanged">

    <layout:SfAccordionItem Header="WPF" Content="Essential Studio for WPF"/>

    <layout:SfAccordionItem Header="Silverlight" Content="Essential Studio for Silverlight"/>

    <layout:SfAccordionItem Header="WinRT" Content="Essential Studio for WinRT"/>

    <layout:SfAccordionItem Header="Windows Phone" Content="Essential Studio for Windows Phone"/>

    <layout:SfAccordionItem Header="Universal" Content="Essential Studio for Universal"/>

    </layout:SfAccordion>

    </StackPanel>

    </Grid>

C#
VB.NET
private void accordion_SelectedItemsChanged(object sender, System.Collections.Specialized.NotifyCollectionChangedEventArgs e)

    {

    string items = string.Empty;

    string indices = string.Empty;

    foreach (var item in accordion.SelectedItems)

    items += (item as SfAccordionItem).Header + " , ";

    foreach (var item in accordion.SelectedIndices)

    indices += item + " , ";

    selectedItem.Text = "SelectedItem is : " + (accordion.SelectedItem as SfAccordionItem).Header;

    selectedIndex.Text = "SelectedIndex is : " + accordion.SelectedIndex;

    selectedItems.Text = "SelectedItems are : " + items;

    selectedIndices.Text = "SelectedIndices are : " + indices;

    }
Option Infer On

    Private Sub accordion_SelectedItemsChanged(ByVal sender As Object, ByVal e As System.Collections.Specialized.NotifyCollectionChangedEventArgs)

    Dim items As String = String.Empty

    Dim indices As String = String.Empty

    For Each item In accordion.SelectedItems

    items &= (TryCast(item, SfAccordionItem)).Header & " , "
    Next item

    For Each item In accordion.SelectedIndices

    indices &= item & " , "
    Next item

    selectedItem.Text = "SelectedItem is : " & (TryCast(accordion.SelectedItem, SfAccordionItem)).Header

    selectedIndex.Text = "SelectedIndex is : " & accordion.SelectedIndex

    selectedItems.Text = "SelectedItems are : " & items

    selectedIndices.Text = "SelectedIndices are : " & indices

    End Sub

WPF Accordion Selected Item Customization

Selecting item using IsSelected

SfAccordionItem has a property IsSelected that determines whether the item is expanded or collapsed. More than one accordion item can have IsSelected as True based on the SelectionMode.

IsSelected=true – Item is expanded
IsSelected=false – Item is collapsed

XAML
<layout:SfAccordion>

    <layout:SfAccordionItem Header="Linda" IsSelected="True" Content="Description about Linda">

    </layout:SfAccordion>

C#
VB.NET
SfAccordion accordion = new SfAccordion();

    accordion.Items.Add(new SfAccordionItem() { Header = "Linda",
    Content = "Description about Linda" , IsSelected = true });
Dim accordion As New SfAccordion()

    accordion.Items.Add(New SfAccordionItem() With {
        .Header = "Linda",
        .Content = "Description about Linda",
        .IsSelected = True
    })

Here is an example showing the behavior of this property by binding SfAccordionItem.IsSelected property to CheckBox.IsChecked property in Two-way.

XAML
<Grid>

    <StackPanel>

    <CheckBox Content="WPF" IsChecked="{Binding ElementName=wpf,Path=IsSelected,Mode=TwoWay}"/>

    <CheckBox Content="Silverlight" IsChecked="{Binding ElementName=silverlight,Path=IsSelected,Mode=TwoWay}"/>

    <CheckBox Content="WinRT" IsChecked="{Binding ElementName=winrt,Path=IsSelected,Mode=TwoWay}"/>

    <CheckBox Content="Windows Phone" IsChecked="{Binding ElementName=phone,Path=IsSelected,Mode=TwoWay}"/>

    <CheckBox Content="Universal" IsChecked="{Binding ElementName=universal,Path=IsSelected,Mode=TwoWay}"/>

    <layout:SfAccordion SelectionMode="ZeroOrMore">

    <layout:SfAccordionItem x:Name="wpf"  Header="WPF" Content="Essential Studio for WPF"/>

    <layout:SfAccordionItem x:Name="silverlight" Header="Silverlight"

    Content="Essential Studio for Silverlight"/>

    <layout:SfAccordionItem x:Name="winrt" Header="WinRT" Content="Essential Studio for WinRT"/>

    <layout:SfAccordionItem x:Name="phone" IsSelected="True" Header="Windows Phone"

    Content="Essential Studio for Windows Phone"/>

    <layout:SfAccordionItem x:Name="universal" Header="Universal"

    Content="Essential Studio for Universal"/>

    </layout:SfAccordion>

    </StackPanel>

    </Grid>

WPF Accordion Selecting Items

Checking the lock state of an item

SfAccordionItem provides a read-only property IsLocked to check whether an item is locked or not. An accordion item is said to be locked when it cannot be unselected/collapsed.
For example: In One SelectionMode, the selected item cannot be collapsed directly by clicking on its header, it is locked. It can be unlocked by selecting another accordion item, now the newly selected item is locked.

Select All Items

SfAccordion provides a method SelectAll to select all the items. In One and ZeroOrOne SelectionModes, only the last item is selected.

C#
VB.NET
accordion.SelectAll();
accordion.SelectAll()

Unselect All Items

SfAccordion provides a method UnselectAll to unselect all the items. In One SelectionMode, there is no change in calling this method. In OneOrMore SelectionMode, the element which has higher index remains selected whereas others are unselected.

C#
VB.NET
accordion.UnselectAll();
accordion.SelectAll()

Notifying selected item change

SelectedItemChanged event is fired whenever an item is expanded or collapsed. The arguments of the event are

S.No	Argument	Item expanded	Item collapsed
1	OldStartingIndex	-1	Index of collapsed item
2	OldItems	null	Instance of collapsed
3	NewStartingIndex	SelectedIndex	-1
4	NewItems	SelectedItem	null

Here is an example to demonstrate the values of event arguments:

XAML
<Grid>

    <StackPanel>

    <TextBlock x:Name="oldStartingIndex"/>

    <TextBlock x:Name="oldItems"/>

    <TextBlock x:Name="newStartingIndex"/>

    <TextBlock x:Name="newItems"/>

    <TextBlock x:Name="selectedIndex"/>

    <TextBlock x:Name="selectedItem"/>

    <layout:SfAccordion SelectionMode="ZeroOrMore" x:Name="accordion"
                        SelectedItemsChanged="accordion_SelectedItemsChanged">

    <layout:SfAccordionItem Header="WPF" Content="Essential Studio for WPF"/>

    <layout:SfAccordionItem Header="Silverlight"

    Content="Essential Studio for Silverlight"/>

    <layout:SfAccordionItem Header="WinRT" Content="Essential Studio for WinRT"/>

    <layout:SfAccordionItem Header="Windows Phone" Content="Essential Studio for Windows Phone"/>

    <layout:SfAccordionItem Header="Universal" Content="Essential Studio for Universal"/>

    </layout:SfAccordion>

    </StackPanel>

    </Grid>

C#
VB.NET
private void accordion_SelectedItemsChanged(object sender, System.Collections.Specialized.NotifyCollectionChangedEventArgs e)

    {

    string olditems = string.Empty;

    string newitems = string.Empty;

    if (e.OldItems != null)

    {

    foreach (var item in e.OldItems)

    olditems += (item as SfAccordionItem).Header + " , ";

    }

    else

    olditems = "null";

    if (e.NewItems != null)

    {

    foreach (var item in e.NewItems)

    newitems += (item as SfAccordionItem).Header + " , ";

    }

    else

    newitems = "null";

    oldStartingIndex.Text = "OldStartingIndex is : " + e.OldStartingIndex;

    newStartingIndex.Text = "NewStartingIndex is : " + e.NewStartingIndex;

    selectedIndex.Text = "SelectedIndex is : " + accordion.SelectedIndex;

    selectedItem.Text = "SelectedItem is : " + ((accordion.SelectedItem == null)? "null":(accordion.SelectedItem as SfAccordionItem).Header);

    oldItems.Text = "OldItems are : " + olditems;

    newItems.Text = "NewItems are : " + newitems;

    }
Option Infer On

    Private Sub accordion_SelectedItemsChanged(ByVal sender As Object, ByVal e As System.Collections.Specialized.NotifyCollectionChangedEventArgs)

    Dim olditems As String = String.Empty

    Dim newitems As String = String.Empty

    If e.OldItems IsNot Nothing Then

    For Each item In e.OldItems

    olditems &= (TryCast(item, SfAccordionItem)).Header & " , "
    Next item

    Else

    olditems = "null"
    End If

    If e.NewItems IsNot Nothing Then

    For Each item In e.NewItems

    newitems &= (TryCast(item, SfAccordionItem)).Header & " , "
    Next item

    Else

    newitems = "null"
    End If

    oldStartingIndex.Text = "OldStartingIndex is : " & e.OldStartingIndex

    newStartingIndex.Text = "NewStartingIndex is : " & e.NewStartingIndex

    selectedIndex.Text = "SelectedIndex is : " & accordion.SelectedIndex

    selectedItem.Text = "SelectedItem is : " & (If(accordion.SelectedItem Is Nothing, "null", (TryCast(accordion.SelectedItem, SfAccordionItem)).Header))

    oldItems.Text = "OldItems are : " & olditems

    newItems.Text = "NewItems are : " & newitems

    End Sub

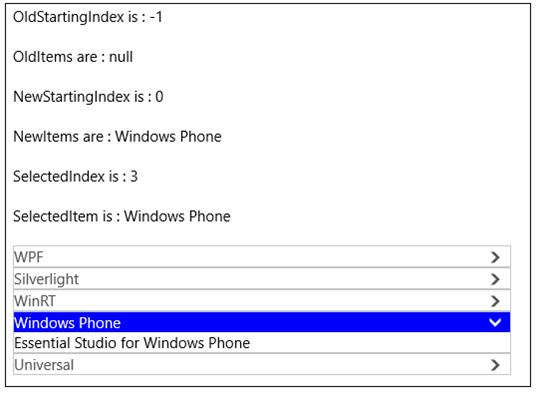

Expand the item with header Windows Phone

Collapse the item with header Windows Phone

Notifying an item selection

SfAccordionItem.Selected event is fired whenever the item is selected/expanded.

XAML
<layout:SfAccordionItem x:Name="wpf" Selected="Selected"
                        Header="WPF" Content="Essential Studio for WPF"/>

C#
VB.NET
private void Selected(object sender, RoutedEventArgs e)
    {

    }
Private Sub Selected(ByVal sender As Object, ByVal e As RoutedEventArgs)

    End Sub

Notifying an item un-selection

SfAccordionItem.Unselected event is fired whenever the item is unselected/collapsed.

XAML
<layout:SfAccordionItem x:Name="wpf" Unselected="Unselected"
                        Header="WPF" Content="Essential Studio for WPF"/>

C#
VB.NET
private void Unselected(object sender, RoutedEventArgs e)

    {

    }
Private Sub Unselected(ByVal sender As Object, ByVal e As RoutedEventArgs)


    End Sub

Notifying selection change

SelectionChanged event fires when an item is selected and unselected. It behaves same as that of SelectedItemChanged event.
The difference between these two events are the event argument parameters. The parameters of SelectionChanged event are AddedItems and RemovedItems.Added items have the list of recently selected items whereas RemovedItems have the list of recently unselected items.
