Modal Window in .NET MAUI Popup (SfPopup)

15 Jul 20265 minutes to read

You can use the popup as a modal window by enabling the built-in close icon. The SfPopup.StaysOpen property prevents interaction with your application until you close the window.

Modal: A modal window loads over the parent window surrounded by an overlay which prevents clicking anywhere else on the screen except on the control of the modal.

A modal popup does not require any user action to open. It opens in the same window and provides Opening and Closing callbacks.

In the following example, the popup will only close when the close icon is clicked.

<ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:sfPopup="clr-namespace:Syncfusion.Maui.Popup;assembly=Syncfusion.Maui.Popup"
             x:Class="PopupMauiModalWindow.MainPage">
  <ContentPage.Content>
    <StackLayout Padding="20">
        <Button x:Name="clickToShowPopup" Text="ClickToShowPopup"
                VerticalOptions="Start" HorizontalOptions="Center"
                Clicked="ClickToShowPopup_Clicked" />
        <sfPopup:SfPopup x:Name="sfPopup"
                         StaysOpen="True"
                         HeaderTitle="Modal Window"
                         ShowCloseButton="True"
                         WidthRequest="312"
                         HeightRequest="180"
                         HeaderHeight="72">
            <sfPopup:SfPopup.ContentTemplate>
                <DataTemplate>
                    <Label Text="A modal window disables the parent window while the user interacts with the child (modal) window before they return to the parent application."
                            LineBreakMode="WordWrap" LineHeight="1.2"
                            TextColor="#49454E" FontSize="14"
                            FontFamily="Roboto"/>
                </DataTemplate>
            </sfPopup:SfPopup.ContentTemplate>
        </sfPopup:SfPopup>
    </StackLayout>
  </ContentPage.Content>
</ContentPage>
using Microsoft.Maui.Controls;
using Syncfusion.Maui.Popup;

public partial class MainPage : ContentPage
{
    SfPopup sfPopup;
    DataTemplate contentTemplateView;
    public MainPage()
    {
        InitializeComponent();
        clickToShowPopup.Clicked += ClickToShowPopup_Clicked;
        sfPopup = new SfPopup();
        sfPopup.StaysOpen = true;
        sfPopup.ShowCloseButton = true;
        sfPopup.HeaderTitle = "Modal Window";
        sfPopup.WidthRequest = 312;
        sfPopup.HeightRequest = 180;
        sfPopup.HeaderHeight = 72;
        contentTemplateView = new DataTemplate(()=>
        {
            var popupContent = new Label();
            popupContent.Text = "A modal window disables the parent window while the user interacts with the child (modal) window before they return to the parent application.";
            popupContent.LineBreakMode = LineBreakMode.WordWrap;
            popupContent.LineHeight = 1.2;
            popupContent.FontSize = 14;
            popupContent.FontFamily = "Roboto";
            popupContent.TextColor = Color.FromArgb("#49454E");
            return popupContent;
        });

        sfPopup.ContentTemplate = contentTemplateView;
    }
}
private void ClickToShowPopup_Clicked(object sender, EventArgs e)
{
    sfPopup.IsOpen = true;
}

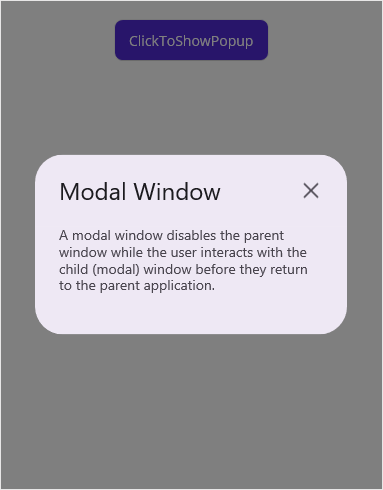

Syncfusion .NET MAUI Popup as modal window
