Types of Axis in .NET MAUI Chart

10 Jan 202524 minutes to read

Cartesian chart supports the following types of chart axis.

  • NumericalAxis
  • CategoryAxis
  • DateTimeAxis
  • LogarithmicAxis

Numerical Axis

NumericalAxis is used to plot numerical values to the chart. NumericalAxis can be defined for both XAxes and YAxes.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.XAxes>
    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
    . . .
    // Create a numerical axis for the X-axis
    NumericalAxis primaryAxis = new NumericalAxis();
    // Add the primary axis to the chart's XAxes collection
    chart.XAxes.Add(primaryAxis);

    // Create a numerical axis for the Y-axis
    NumericalAxis secondaryAxis = new NumericalAxis();
    // Add the secondary axis to the chart's YAxes collection
    chart.YAxes.Add(secondaryAxis);

    this.Content = chart;

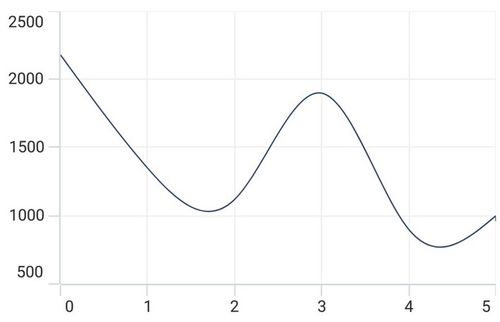

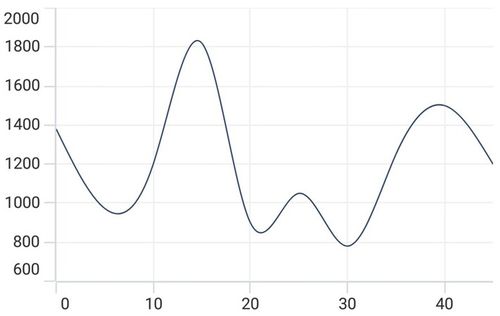

NumericalAxis interval support in MAUI Chart

Interval

Axis interval can be customized by using the Interval property. By default, interval will be calculated based on the minimum and maximum value of the provided data.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:NumericalAxis Interval="10"/>
    </chart:SfCartesianChart.XAxes>
    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
// Configure the primary axis for the X-axis with an interval of 10 units.
NumericalAxis primaryAxis = new NumericalAxis()
{
    Interval = 10,
};
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

NumericalAxis interval support in MAUI Chart

Customizing the Range

Maximum and Minimum properties of axis is used for setting the maximum and minimum value of the axis range respectively.

NOTE

If minimum or maximum value is set, the other value is calculated by default internally.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
      <chart:NumericalAxis Maximum="2750" Minimum="250" Interval="250"/>
    </chart:SfCartesianChart.YAxes>

</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

NumericalAxis secondaryAxis = new NumericalAxis()
{
    Maximum = 2750, // Set the maximum value for the axis
    Minimum = 250,  // Set the minimum value for the axis
    Interval = 250  // Set the interval between major tick marks on the axis
};
chart.YAxes.Add(secondaryAxis);

 this.Content = chart;

Category Axis

The CategoryAxis is an indexed based axis that plots values based on the index of the data point collection. The points are equally spaced here.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis/>
    </chart:SfCartesianChart.XAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
// Create a new instance of CategoryAxis, which will be used as the X-axis for the chart
CategoryAxis primaryAxis = new CategoryAxis();
// Add the primaryAxis to the chart's XAxes collection
chart.XAxes.Add(primaryAxis);

 this.Content = chart;

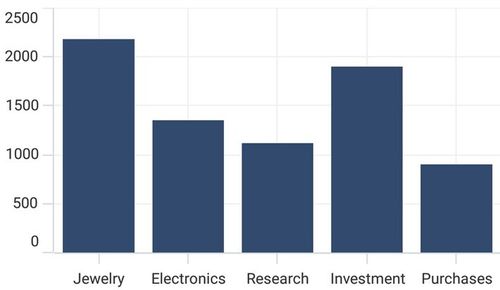

CategoryAxis support in MAUI Chart

Label placement

The LabelPlacement property in CategoryAxis is used to placed the axis labels based on ticks and between ticks. The default value of LabelPlacement is OnTicks.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis LabelPlacement="BetweenTicks"/>
    </chart:SfCartesianChart.XAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
CategoryAxis primaryAxis = new CategoryAxis()
{
     // Set the label placement to `BetweenTicks` to improve readability.
    LabelPlacement = LabelPlacement.BetweenTicks
};
chart.XAxes.Add(primaryAxis);

 this.Content = chart;

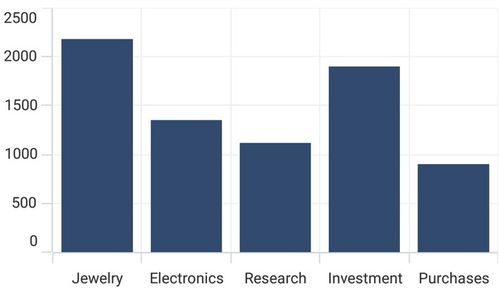

Axis label placement support in MAUI Chart

Interval

By default, the CategoryAxis axis labels are display with fixed interval 1. It can customized by using the Interval property of axis.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis Interval="2"/>
    </chart:SfCartesianChart.XAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
CategoryAxis primaryAxis = new CategoryAxis()
{
    // Set the Interval property to 2, meaning that labels on the axis are displayed for every 2 categories.
    Interval = 2,
};
chart.XAxes.Add(primaryAxis);

this.Content = chart;

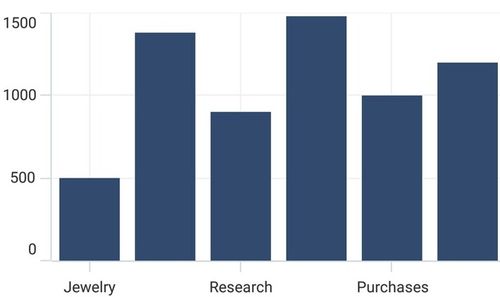

CategoryAxis interval support in MAUI Chart

Indexed category axis

In Cartesian Charts, the ArrangeByIndex property is used to determine how the items in a category axis are arranged.

If ArrangeByIndex is set to true, then the items in the category axis will be arranged according to their index values.

If ArrangeByIndex is set to false, then the items in the category axis will be arranged according to their values. By default, ArrangeByIndex is true.

The following code illustrates how to define the property ArrangeByIndex in chart.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis ArrangeByIndex="False"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>

    <chart:ColumnSeries ItemsSource="{Binding Data1}"
                        XBindingPath="Year"
                        YBindingPath="Value"/>

    <chart:ColumnSeries ItemsSource="{Binding Data2}"
                        XBindingPath="Year"
                        YBindingPath="Value"/>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
// Configure the primary X-axis as a CategoryAxis
CategoryAxis primaryAxis = new CategoryAxis()
{
    ArrangeByIndex = false, // Indicates that categories will be ordered based on their occurrence in the data
};
chart.XAxes.Add(primaryAxis); // Add the primary X-axis to the chart

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

ColumnSeries series1 = new ColumnSeries();
series1.ItemsSource = (new ViewModel()).Data1,
series1.XBindingPath = "Year";
series1.YBindingPath = "Value";

ColumnSeries series2 = new ColumnSeries();
series2.ItemsSource = (new ViewModel()).Data2,
series2.XBindingPath = "Year";
series2.YBindingPath = "Value";

chart.Series.Add(series1);
chart.Series.Add(series2);

this.Content = chart;

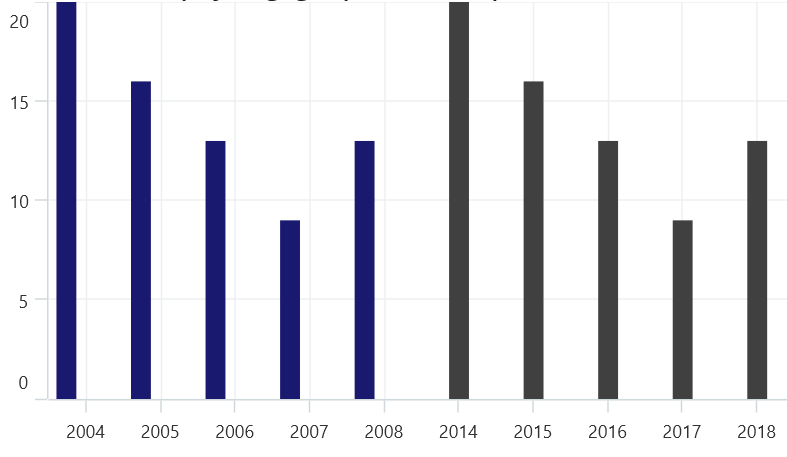

CategoryAxis ArrangeByIndex support in MAUI Chart

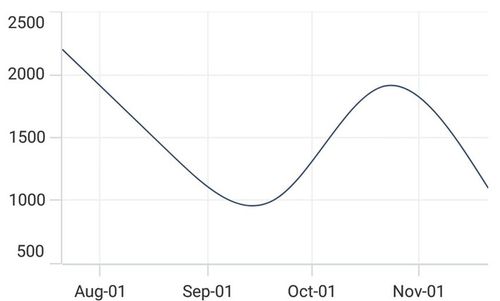

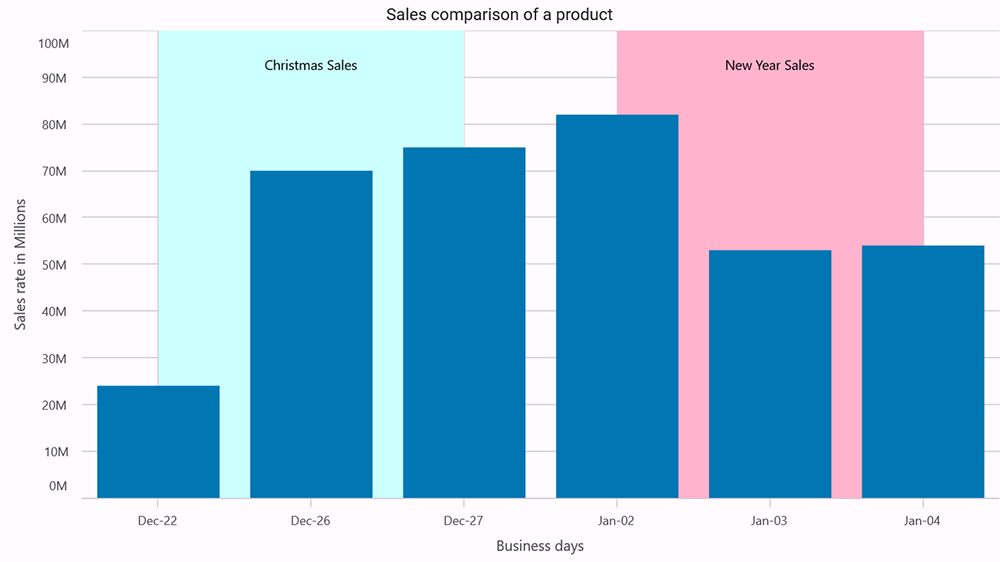

DateTime Axis

DateTimeAxis is used to plot DateTime values. The DateTimeAxis is widely used to make financial charts in places like the Stock Market, where index plotting is done every day.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:DateTimeAxis/>
    </chart:SfCartesianChart.XAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
// Create an instance of the DateTimeAxis, typically used for displaying date and time values on the X-axis
DateTimeAxis primaryAxis = new DateTimeAxis();
// Add the DateTimeAxis instance to the chart's XAxes collection
chart.XAxes.Add(primaryAxis);

 this.Content = chart;

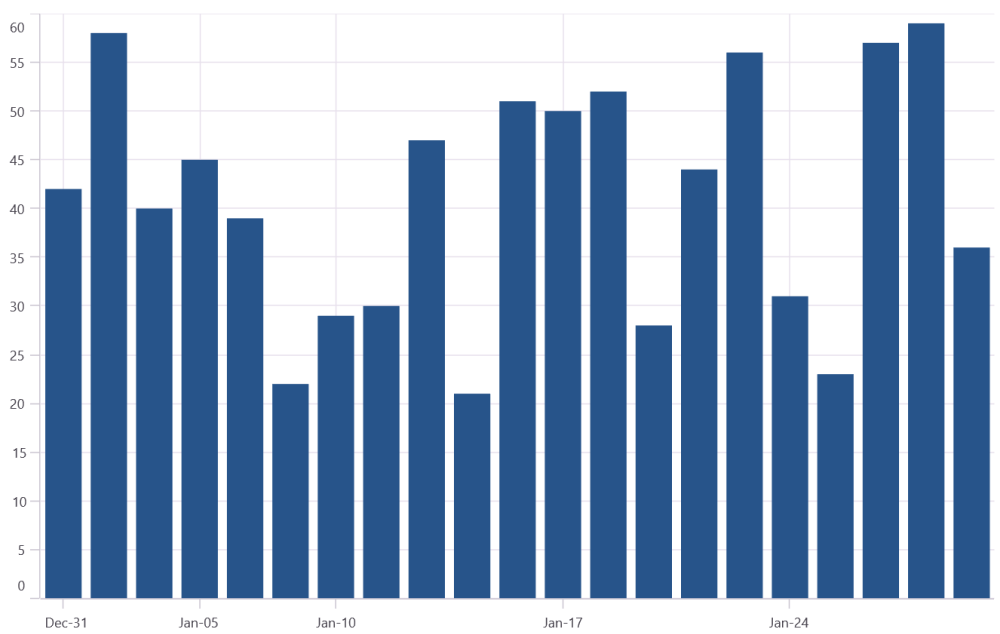

Interval

In DateTimeAxis, intervals can be customized by using the Interval and IntervalType properties. For example, setting Interval as 6 and IntervalType as Months will consider 6 months as interval.

<chart:SfCartesianChart>
    ...
    <chart:SfCartesianChart.XAxes>
        <chart:DateTimeAxis Interval="6" IntervalType="Months"/>
    </chart:SfCartesianChart.XAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
DateTimeAxis primaryAxis = new DateTimeAxis()
{
    // Set the interval to 6 units, and each unit is represented as a 'Month'.
    Interval = 6,
    IntervalType = DateTimeIntervalType.Months
};
chart.XAxes.Add(primaryAxis);

 this.Content = chart;

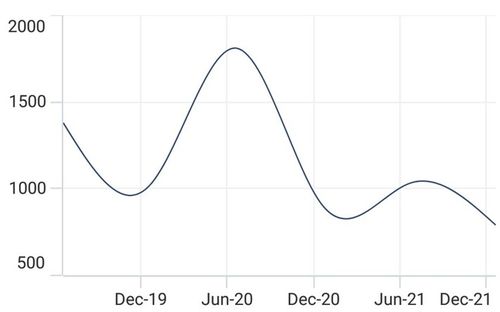

DateTimeAxis interval support in MAUI Chart

Customizing the Range

Minimum and Maximum properties behavior is same as in NumericalAxis instead of setting numerical value, have to set date time values.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.XAxes>
        <chart:DateTimeAxis Minimum="2021/05/10" Maximum="2021/11/01"/>
    </chart:SfCartesianChart.XAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
DateTimeAxis primaryAxis = new DateTimeAxis()
{
    // Set the minimum date value for the axis
    Minimum = new DateTime(2021,05,10),
    // Set the maximum date value for the axis
    Maximum = new DateTime(2021,11,01),
};
chart.XAxes.Add(primaryAxis);

this.Content = chart;

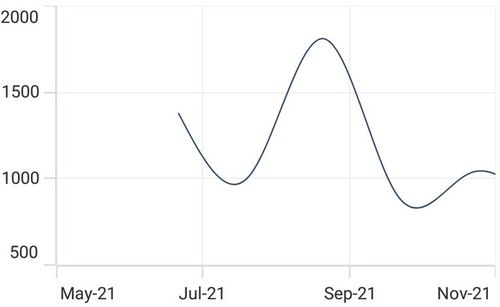

DateTimeAxis range customization support in MAUI Chart

Logarithmic Axis

The LogarithmicAxis uses a logarithmic scale, and it is very useful in visualizing data when the given data range has a big difference. It can be used either on the x-axis or the chart’s y-axis.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
        <chart:LogarithmicAxis/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
// Create a logarithmic axis for the Y-axis
LogarithmicAxis secondaryAxis = new LogarithmicAxis();
// Add the logarithmic axis to the chart's Y-axes collection
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

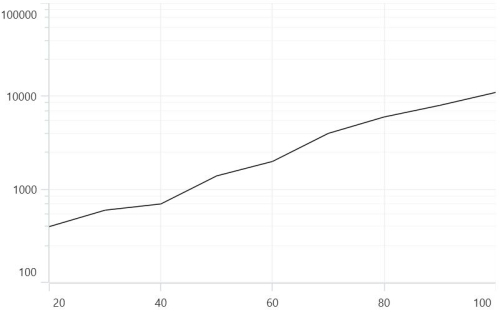

LogarithmicAxis support in MAUI Chart

Interval

Axis interval can be customized using the Interval property of the axis. By default, interval will be calculated based on the minimum and maximum value of the provided data. And the default value of the interval is 1.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
        <chart:LogarithmicAxis Interval="2"/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
LogarithmicAxis secondaryAxis = new LogarithmicAxis()
{
    Interval = 2 // Sets the interval for the axis, determining the spacing between major ticks
};
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

Range customization

To customize the range of the log axis, you can use the Minimum, Maximum properties of the LogarithmicAxis. By default, an excellent range will be calculated automatically based on the provided data.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
        <chart:LogarithmicAxis Minimum="100" Maximum="10000"/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
// Instantiate a logarithmic axis for the Y-axis with defined minimum and maximum values.
LogarithmicAxis secondaryAxis = new LogarithmicAxis()
{
    Minimum = 100, // Set the minimum value of the axis to 100.
    Maximum = 10000 // Set the maximum value of the axis to 10000.
};
chart.YAxes.Add(secondaryAxis); // Add the configured logarithmic axis to the YAxes collection of the chart.

this.Content = chart;

Base customization

The logarithmic axis base can be customized using the LogarithmicBase property of the axis. By default, the base value is 10.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
        <chart:LogarithmicAxis LogarithmicBase="5"/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
LogarithmicAxis secondaryAxis = new LogarithmicAxis()
{
     // Set the base of the logarithm to 5 for the logarithmic scale
    LogarithmicBase = 5
};
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

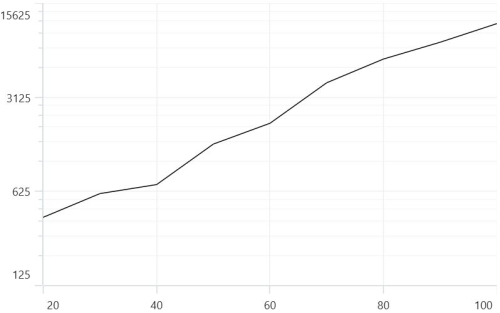

LogarithmicAxis base customization in MAUI Chart

Inversed

Axis can be inverted by using the IsInversed property. The default value of this property is False.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis IsInversed="True"/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
NumericalAxis secondaryAxis = new NumericalAxis();
secondaryAxis.IsInversed = true; // Set the IsInversed property to true, making the axis values inverted.
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

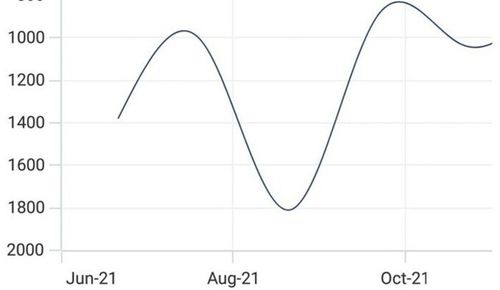

Inversed axis support in MAUI Chart

Axis Visibility

Axis visibility can be controlled using the IsVisible property of axis. Default value of IsVisible property is True.

<chart:SfCartesianChart>
    . . .
    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis IsVisible="False"/>
    </chart:SfCartesianChart.YAxes>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
. . .
NumericalAxis secondaryAxis = new NumericalAxis()
{
	IsVisible = false // Set the IsVisible property to false, making this axis hidden/not visible in the chart
};
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

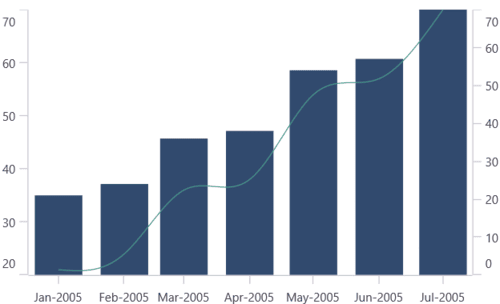

Multiple Axes

Cartesian charts provides support to arrange the multiple series inside the same chart area with specified x-axis and y-axis. There are two properties XAxisName and YAxisName in all the Cartesian series type, which is used to provide multiple axes support. These axes can be arranged in a stacking order or in a side by side pattern.

By default, The 0th index value of XAxes and YAxes is used to plot all of the series.

<chart:SfCartesianChart>
        . . .
        <chart:SfCartesianChart.XAxes>
            <chart:DateTimeAxis ShowMajorGridLines="False"/>
        </chart:SfCartesianChart.XAxes>

        <chart:SfCartesianChart.YAxes>
            <chart:NumericalAxis ShowMajorGridLines="False"/>
            <chart:NumericalAxis Name="series_YAxis" CrossesAt="{Static x:Double.MaxValue}" ShowMajorGridLines="False"/>
        </chart:SfCartesianChart.YAxes>

        <chart:ColumnSeries ItemsSource="{Binding Data1}"
                            XBindingPath="Date"
                            YBindingPath="Value" YAxisName="series_YAxis"/>
        <chart:SplineSeries ItemsSource="{Binding Data2}"
                            XBindingPath="Date"
                            YBindingPath="Value"/>
    </chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

DateTimeAxis primaryAxis = new DateTimeAxis()
{
    ShowMajorGridLines = false
};
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis1 = new NumericalAxis()
{
    ShowMajorGridLines = false
};
chart.YAxes.Add(secondaryAxis1);

NumericalAxis secondaryAxis2 = new NumericalAxis()
{
    CrossesAt = double.MaxValue,
    ShowMajorGridLines = false
};
secondaryAxis2.Name = "series_YAxis"; // Name the second Y-axis to associate with a specific series
chart.YAxes.Add(secondaryAxis2);

// Bind this series to the second Y-axis using its name
ColumnSeries series1 = new ColumnSeries()
{
    ItemsSource = new ViewModel().Data1,
    XBindingPath = "Date",
    YBindingPath = "Value",
    YAxisName = "series_YAxis"
};

SplineSeries series2 = new SplineSeries()
{
    ItemsSource = new ViewModel().Data2,
    XBindingPath = "Date",
    YBindingPath = "Value",
};

chart.Series.Add(series1);
chart.Series.Add(series2);

this.Content = chart;

Mulitipe axis support in MAUI Chart

In the above image, the ColumnSeries is plotted based on additional axes of YAxes collection, and SplineSeries is plotted based on axis of the collection’s 0th index.

Axis Crossing

The chart allows you to customize the origin, by default the axis will be rendered with (0,0) as the origin in x and y-axes. An axis can be positioned anywhere in the chart area by using the CrossesAt property. This property specifies where the horizontal axis intersects or crosses the vertical axis, and vice versa. The default value of the CrossesAt property is double.NaN.

<chart:SfCartesianChart>

    <chart:SfCartesianChart.XAxes>
        <chart:NumericalAxis CrossesAt="0"
			                 Minimum="-8"
                             Maximum="8"
                             ShowMajorGridLines="False"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis CrossesAt="0"
			                 Minimum="-8"
			                 Maximum="8"
			                 ShowMajorGridLines="False"/>
    </chart:SfCartesianChart.YAxes>

</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

NumericalAxis primaryAxis = new NumericalAxis();
primaryAxis.CrossesAt = 0; // Sets the point where the axis crosses the other axis at 0
primaryAxis.Minimum = -8; // Sets the minimum value of the axis to -8
primaryAxis.Maximum = 8; // Sets the maximum value of the axis to 8
primaryAxis.ShowMajorGridLines = false;
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
secondaryAxis.CrossesAt = 0; // Sets the point where this axis crosses the other axis at 0
secondaryAxis.Minimum = -8; // Sets the minimum value of the axis to -8
secondaryAxis.Maximum = 8; // Sets the maximum value of the axis to 8
secondaryAxis.ShowMajorGridLines = false;
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

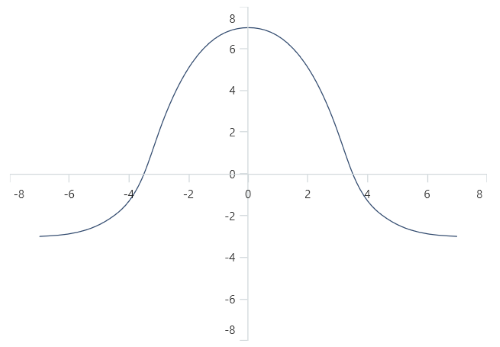

Axis crossing support in MAUI Chart

Positioning the axis elements while crossing

The RenderNextToCrossingValue property is used to determine whether the crossing axis should be placed at crossing position or not. The default value of RenderNextToCrossingValue property is true.

<chart:SfCartesianChart>

    <chart:SfCartesianChart.XAxes>
        <chart:NumericalAxis CrossesAt="0" RenderNextToCrossingValue="False"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis CrossesAt="0"/>
    </chart:SfCartesianChart.YAxes>

</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

NumericalAxis primaryAxis = new NumericalAxis();
primaryAxis.CrossesAt = 0;
primaryAxis.RenderNextToCrossingValue = false; // Ensure the X-axis is not rendered next to its crossing value
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
secondaryAxis.CrossesAt = 0;
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

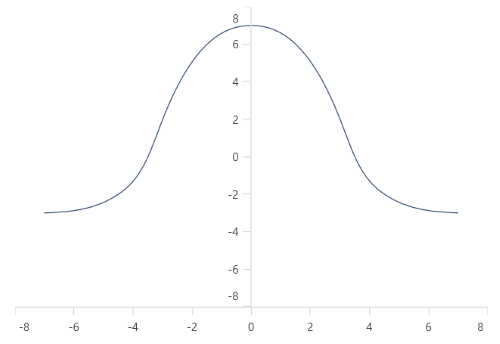

RenderNextToCrossingValue support in MAUI Chart

Crossing the date-time axis

For the crossing in date time horizontal axis, date object should be provided as value for CrossesAt property of vertical axis.

<chart:SfCartesianChart>

    <chart:SfCartesianChart.XAxes>
        <chart:DateTimeAxis CrossesAt="2021/01/01"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.yAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.yAxes>

</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

DateTimeAxis primaryAxis = new DateTimeAxis();
primaryAxis.CrossesAt = new DateTime(2021, 01, 01); // Set the primary X-axis to start with a specific date
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

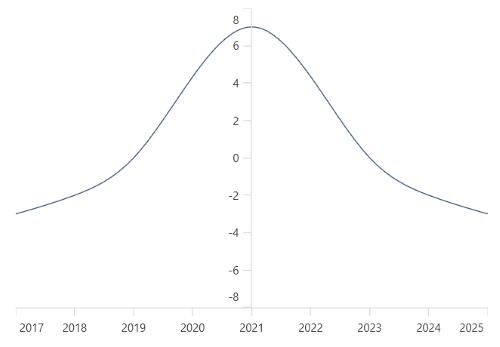

DateTimeAxis crossing support in MAUI Chart

Opposite Side Axis with CrossesAt

The chart allows you to position the axis to opposed position by setting the value as double.MaxValue to the CrossesAt property.

<chart:SfCartesianChart>

    <chart:SfCartesianChart.XAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis CrossesAt="{Static x:Double.MaxValue}"/>
    </chart:SfCartesianChart.YAxes>

</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

NumericalAxis primaryAxis = new NumericalAxis();
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
secondaryAxis.CrossesAt = double.MaxValue;
chart.YAxes.Add(secondaryAxis);

this.Content = chart;

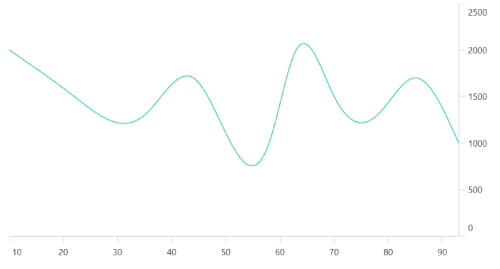

Axis opposite position in MAUI Chart

Events

ActualRangeChanged

The ActualRangeChanged event is triggered when the actual range of the axis is changed. The argument contains the following information:

  • ActualMinimum - used to get the actual minimum value of the axis.
  • ActualMaximum - used to get the actual maximum value of the axis.

NOTE

The actual range is changed by specifying the ZoomPosition and ZoomFactor properties or zooming the chart interactively.

LabelCreated

The LabelCreated event is triggered when the axis label is created. The argument contains the following information:

  • Label - Used to get or set the text of axis label.
  • Position - Used to get the position of label.
  • LabelStyle - Used to customize the appearance of axis labels.
