Import annotations in JavaScript PDF Viewer

12 Feb 20263 minutes to read

Annotations can be imported into the PDF Viewer using the built-in UI or programmatically. The UI accepts JSON and XFDF files from the Comments panel; programmatic import accepts an annotation object previously exported by the viewer.

Import using the UI (Comments panel)

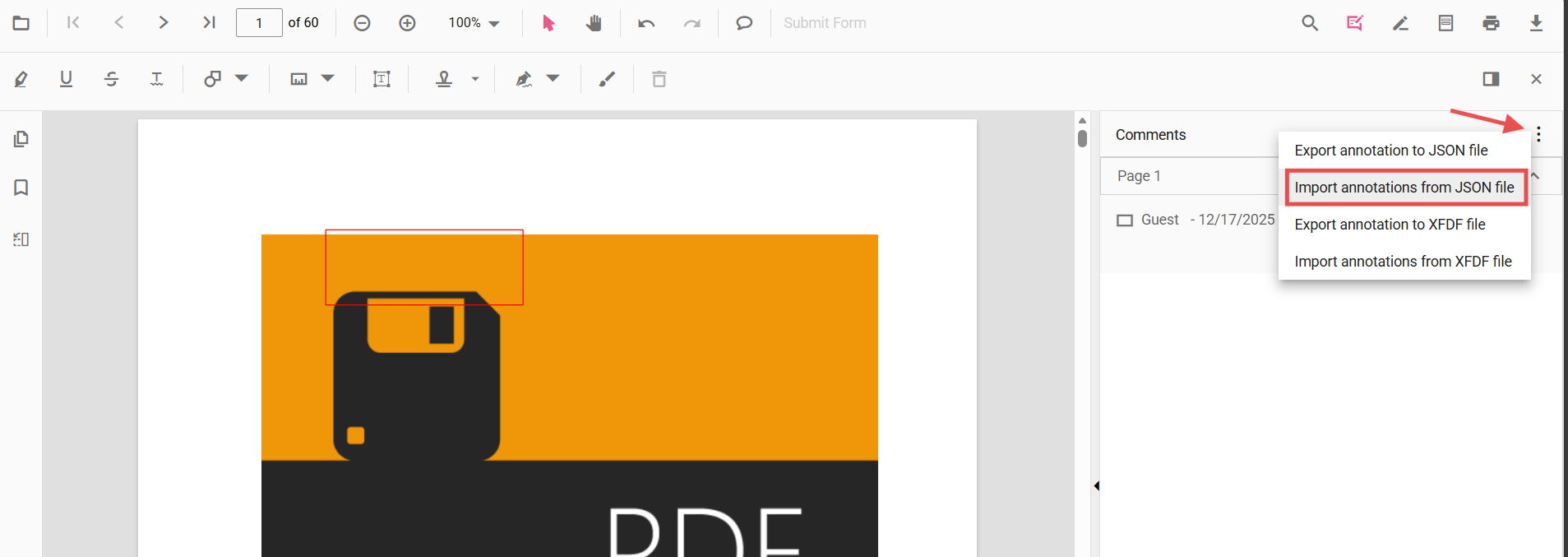

The Comments panel provides import options in its overflow menu:

  • Import annotations from JSON file
  • Import annotations from XFDF file

Steps:

  1. Open the Comments panel in the PDF Viewer.
  2. Click the overflow menu (three dots) at the top of the panel.
  3. Choose the appropriate import option and select the file.

All annotations in the selected file are applied to the current document.

Import annotations

Import programmatically (from object)

Import annotations from an object previously exported using exportAnnotationsAsObject(). Only objects produced by the viewer can be re-imported with the importAnnotation method (importAnnotation documentation: https://ej2.syncfusion.com/javascript/documentation/api/pdfviewer/index-default#importannotation).

Example: HTML markup for export/import buttons and the viewer container.

<button id="ExportAsObject">Export as Object</button>
<button id="ImportFromObject">Import from Object</button>
<div id="pdfViewer" style="height:650px;"></div>

Example: initialize the viewer and wire export/import handlers.

// Inject required modules (ES5/vanilla JS using global ej namespace)
ej.pdfviewer.PdfViewer.Inject(
  ej.pdfviewer.Toolbar,
  ej.pdfviewer.Magnification,
  ej.pdfviewer.Navigation,
  ej.pdfviewer.LinkAnnotation,
  ej.pdfviewer.ThumbnailView,
  ej.pdfviewer.BookmarkView,
  ej.pdfviewer.TextSelection,
  ej.pdfviewer.TextSearch,
  ej.pdfviewer.Print,
  ej.pdfviewer.Annotation,
  ej.pdfviewer.FormFields,
  ej.pdfviewer.FormDesigner
);

// Initialize the viewer
var viewer = new ej.pdfviewer.PdfViewer();
viewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
viewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
viewer.appendTo('#pdfViewer');

// Exported annotation as object
var exportedObject = null;
var btnObject = document.getElementById('ExportAsObject');
if (btnObject) {
  btnObject.addEventListener('click', function () {
    viewer.exportAnnotationsAsObject().then(function (value) {
      // Persist or transmit the object as needed (DB/API). Keep for future import.
      console.log('Exported annotation object:', value);
      exportedObject = value; // keep as object
    });
  });
}

// Import from the previously exported object
var btnImport = document.getElementById('ImportFromObject');
if (btnImport) {
  btnImport.addEventListener('click', function () {
    if (exportedObject) {
      viewer.importAnnotation(exportedObject);
    }
  });
}

NOTE

Only objects produced by the viewer (for example, by exportAnnotationsAsObject()) are compatible with importAnnotation. Persist exported objects in a safe storage location (database or API) and validate them before import.

Common use cases

  • Restore annotations saved earlier (for example, from a database or API)
  • Apply reviewer annotations shared as JSON/XFDF files via the Comments panel
  • Migrate or merge annotations between documents or sessions
  • Support collaborative workflows by reloading team annotations

View sample on GitHub

See also
