Area annotation in JavaScript PDF Viewer

14 Jan 202621 minutes to read

Area is a measurement annotation used to measure the surface of a closed region in the PDF.

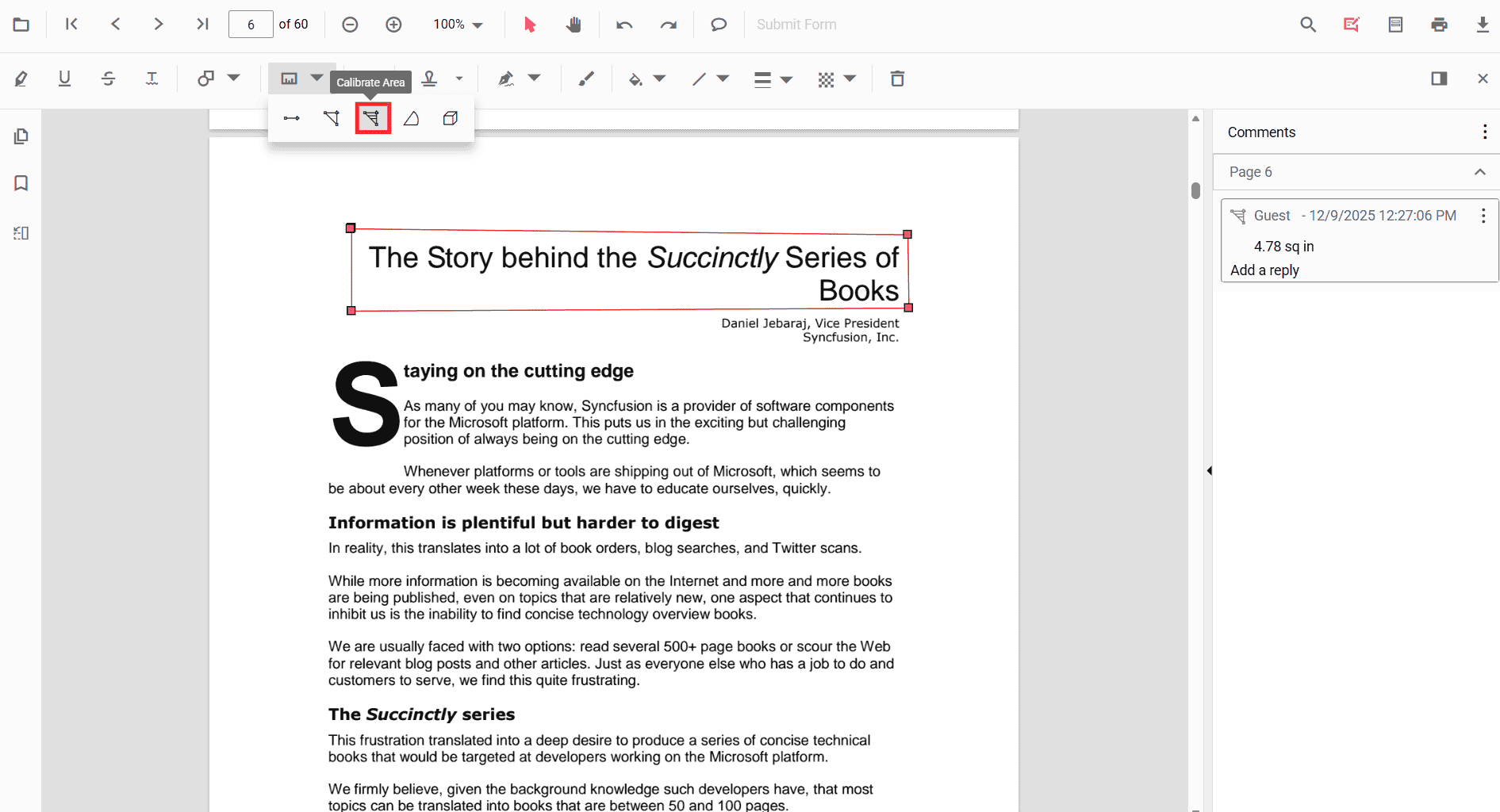

Area annotations overview

Add Area Annotation

Add area annotation via UI

Use the annotation toolbar:

  • Click the Edit Annotation button in the PDF Viewer toolbar.
  • Click the Measurement Annotation dropdown.
  • Choose Area, then draw the region on the page.

NOTE

When in pan mode, selecting a measurement annotation switches the viewer to text select mode.

Measurement toolbar

Enable area mode

The PDF Viewer library allows drawing measurement annotations programmatically after enabling area mode in button clicks.

<button id="areaMode">Area</button>
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('areaMode').addEventListener('click', function () {
    pdfviewer.annotationModule.setAnnotationMode('Area');
});
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('areaMode').addEventListener('click', function () {
    pdfviewer.annotationModule.setAnnotationMode('Area');
});

Add an area annotation programmatically

The PDF Viewer library allows adding measurement annotations programmatically using the addAnnotation() method.

<button id="addAreaAnnotation">Add Area annotation Programmatically</button>
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";

pdfviewer.appendTo('#PdfViewer');

document.getElementById('addAreaAnnotation').addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Area', {
        offset: { x: 200, y: 500 },
        pageNumber: 1,
        vertexPoints: [
            { x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }
        ]
    });
});
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';

pdfviewer.appendTo('#PdfViewer');

document.getElementById('addAreaAnnotation').addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Area', {
        offset: { x: 200, y: 500 },
        pageNumber: 1,
        vertexPoints: [
            { x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }
        ]
    });
});

Edit Area Annotation

Edit Area Annotation in UI

You can select, move, and resize Area annotations directly in the viewer:

  • Select an Area to show its vertex handles.
  • Move: drag inside the shape to reposition it on the page.
  • Resize/reshape: drag any vertex handle to adjust the polygon points and size.
  • Delete or access more options from the context menu.

Use the toolbar to change appearance:

  • Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools.

See the sections below for screenshots and details.

Edit the properties of area annotations

The fill color, stroke color, thickness, and opacity can be edited using the Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

Edit fill color

The fill color of the annotation can be edited using the color palette provided in the Edit Color tool.

CalibrateFillColor

Edit stroke color

The stroke color of the annotation can be edited using the color palette provided in the Edit Stroke Color tool.

CalibrateStrokeColor

Edit thickness

Edit border thickness using the range slider provided in the Edit Thickness tool.

CalibrateThickness

Edit opacity

The opacity of the annotation can be edited using the range slider provided in the Edit Opacity tool.

CalibrateOpacity

Edit an existing area annotation programmatically

To modify an existing area annotation programmatically, use the editAnnotation() method.

Here is an example of using editAnnotation():

<button id="editAreaAnnotation">Edit Area annotation Programmatically</button>
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

var editAreaAnnotation = document.getElementById('editAreaAnnotation');
if (editAreaAnnotation) {
    editAreaAnnotation.addEventListener('click', function () {
        for (var i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Area calculation") {
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle";
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    });
}
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

var editAreaAnnotation = document.getElementById('editAreaAnnotation');
if (editAreaAnnotation) {
    editAreaAnnotation.addEventListener('click', function () {
        for (var i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === "Area calculation") {
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle";
                pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    });
}

Default area settings during initialization

Set default areaSettings before creating the control.

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";

pdfviewer.areaSettings = { fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange' };
pdfviewer.appendTo('#PdfViewer');
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";

pdfviewer.areaSettings = { fillColor: 'yellow', opacity: 0.6, strokeColor: 'orange' };
pdfviewer.appendTo('#PdfViewer');

Set properties while adding Individual Annotation

Set properties for individual annotation before creating the control using AreaSettings.

After editing default color and opacity using the Edit Color and Edit Opacity tools, the values update to the selected settings.

Refer to the following code snippet to set the default Area settings.

<button id="Area">Add Area</button>
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/form-designer.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');
// Apply Area settings while adding individual annotation
document.getElementById('Area')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Area', {
        offset: { x: 200, y: 500 },
        pageNumber: 1,
        vertexPoints: [
            { x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }
        ],
        fillColor: 'yellow',
        opacity: 0.6,
        strokeColor: 'orange'
    });
});
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/form-designer.pdf';
pdfviewer.appendTo('#PdfViewer');
// Apply Area settings while adding individual annotation
document.getElementById('Area')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Area', {
        offset: { x: 200, y: 500 },
        pageNumber: 1,
        vertexPoints: [
            { x: 200, y: 500 }, { x: 288, y: 499 }, { x: 289, y: 553 }, { x: 200, y: 500 }
        ],
        fillColor: 'yellow',
        opacity: 0.6,
        strokeColor: 'orange'
    });
});

Editing scale ratio and unit of the area measurement annotation

The scale ratio and unit of measurement can be modified using the scale ratio option provided in the context menu of the PDF Viewer control.

CalibrateScaleRatio

The Units of measurements support for the measurement annotations in the PDF Viewer are

  • Inch
  • Millimeter
  • Centimeter
  • Point
  • Pica
  • Feet

CalibrateScaleDialog

Setting default scale ratio settings during control initialization

The properties of scale ratio for measurement annotation can be set before creating the control using ScaleRatioSettings as shown in the following code snippet,

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.measurementSettings = { scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm' };
pdfviewer.appendTo('#PdfViewer');
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.measurementSettings = { scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm' };
pdfviewer.appendTo('#PdfViewer');

View Sample on GitHub

See also
