Export annotations in JavaScript PDF Viewer

14 Jan 20264 minutes to read

PDF Viewer provides support to export annotations. You can export annotations from the PDF Viewer in two ways:

  • Using the built-in UI in the Comments panel (JSON or XFDF file)
  • Programmatically (JSON, XFDF, or as an object for custom handling)

Export using the UI (Comments panel)

The Comments panel provides export actions in its overflow menu:

  • Export annotation to JSON file
  • Export annotation to XFDF file

Follow the steps to export annotations:

  1. Open the Comments panel in the PDF Viewer.
  2. Click the overflow menu (three dots) at the top of the panel.
  3. Choose Export annotation to JSON file or Export annotation to XFDF file.

This generates and downloads the selected format containing all annotations in the current document.

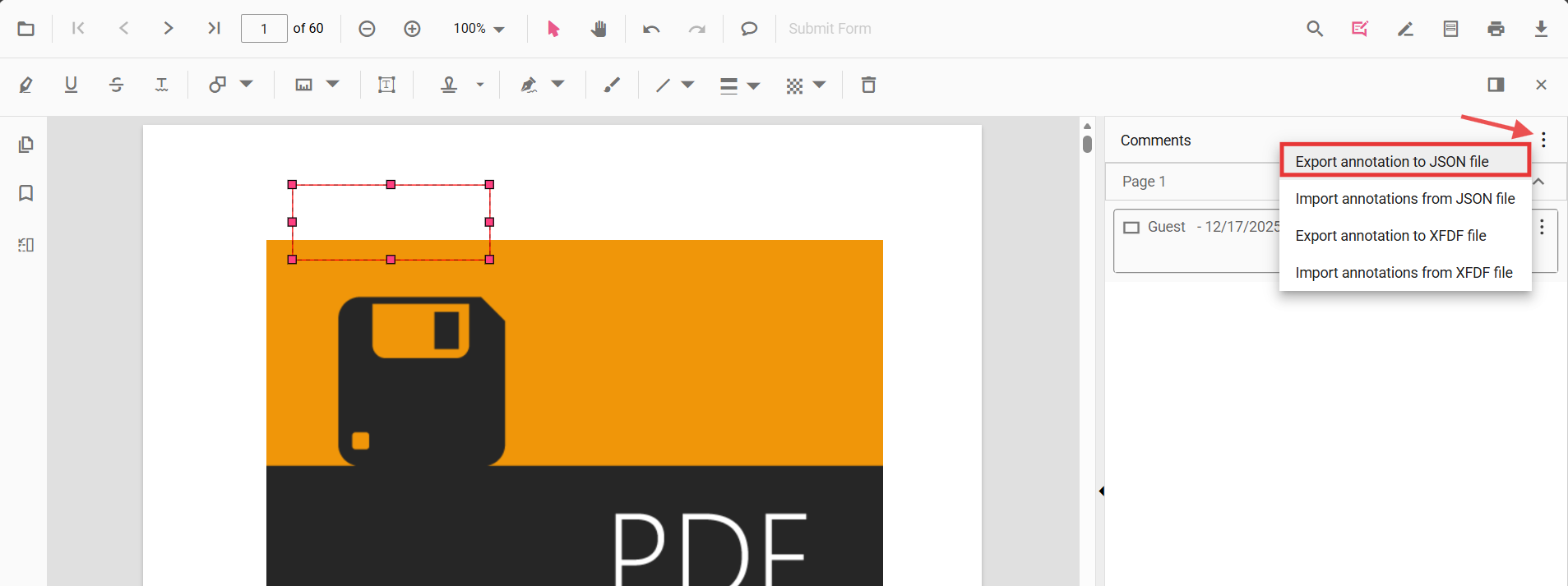

Export Annotation

Export programmatically

You can export annotations from code using exportAnnotation ,exportAnnotationsAsObject and exportAnnotationsAsBase64String APIs.

Use the following end-to-end example to initialize the viewer and export annotations as JSON, XFDF, or as an object.

<!-- Container and action buttons -->
<div id="pdfViewer" style="height:650px;"></div>
<div style="margin-top: 12px; display: flex; gap: 8px;">
  <button id="ExportJSON">Export JSON</button>
  <button id="ExportXfdf">Export XFDF</button>
  <button id="ExportAsObject">Export as Object</button>
  <button id="ExportAsBase64">Export as Base 64</button>
</div>
// Ensure you have included the Syncfusion EJ2 PDF Viewer scripts/styles via CDN before this script.
// Inject required modules for ES5 using the global ej namespace
ej.pdfviewer.PdfViewer.Inject(
  ej.pdfviewer.Toolbar,
  ej.pdfviewer.Magnification,
  ej.pdfviewer.Navigation,
  ej.pdfviewer.LinkAnnotation,
  ej.pdfviewer.ThumbnailView,
  ej.pdfviewer.BookmarkView,
  ej.pdfviewer.TextSelection,
  ej.pdfviewer.TextSearch,
  ej.pdfviewer.Print,
  ej.pdfviewer.Annotation,
  ej.pdfviewer.FormFields,
  ej.pdfviewer.FormDesigner
);

// Initialize the viewer (ES5/JavaScript)
var viewer = new ej.pdfviewer.PdfViewer();
viewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
viewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
viewer.appendTo('#pdfViewer');

// Wire up export actions

// Export Annotation as JSON
var btnJson = document.getElementById('ExportJSON');
if (btnJson) {
  btnJson.addEventListener('click', function () {
    viewer.exportAnnotation(ej.pdfviewer.AnnotationDataFormat.Json);
  });
}

// Export Annotation as XFDF
var btnXfdf = document.getElementById('ExportXfdf');
if (btnXfdf) {
  btnXfdf.addEventListener('click', function () {
    viewer.exportAnnotation(ej.pdfviewer.AnnotationDataFormat.Xfdf);
  });
}

// Export Annotation as Object
var btnObject = document.getElementById('ExportAsObject');
if (btnObject) {
  btnObject.addEventListener('click', function () {
    viewer.exportAnnotationsAsObject().then(function (value) {
      // Persist or transmit the object as needed (DB/API). Keep for future import.
      console.log('Exported annotation object:', value);
    });
  });
}

// Export Annotation as Base64
var exportObject1;
var btnBase64 = document.getElementById('ExportAsBase64');
if (btnBase64) {
  btnBase64.addEventListener('click', function () {
    viewer.exportAnnotationsAsBase64String(ej.pdfviewer.AnnotationDataFormat.Json).then(function (value) {
      exportObject1 = value;
      console.log(exportObject1);
    });
  });
}

Common use cases

  • Archive or share annotations as portable JSON/XFDF files
  • Save annotations alongside a document in your storage layer
  • Send annotations to a backend for collaboration or review workflows
  • Export as object for custom serialization and re-import later
