Comments in JavaScript PDF Viewer control

14 Jan 202610 minutes to read

The PDF Viewer control provides options to add, edit, and delete comments for the following annotations in PDF documents:

  • Shape annotation
  • Stamp annotation
  • Sticky note annotation
  • Measurement annotation
  • Text markup annotation
  • Free text annotation
  • Ink annotation

Comment panel overview

Adding a comment to the annotation in UI

Annotation comments, replies, and status can be managed in the PDF document using the comment panel.

Comment panel

Annotation comments can be added to the PDF using the comment panel. The comment panel can be opened in the following ways:

  1. Using the annotation menu

    • Click the Edit Annotation button in the PDF Viewer toolbar. A toolbar appears below it.
    • Click the Comment Panel button. The comment panel opens.

  2. Using Context menu

    • Select the annotation in the PDF document and right-click it.
    • Select Comment from the context menu.

  3. Using the Mouse click

    • Select the annotation in the PDF document and double-click it. The comment panel opens.

If the comment panel is already open, select the annotation and add comments using the panel.

Adding comments

  • Select the annotation in the PDF document.
  • The corresponding comment thread is highlighted in the comment panel.
  • Add comments and replies using the comment panel.

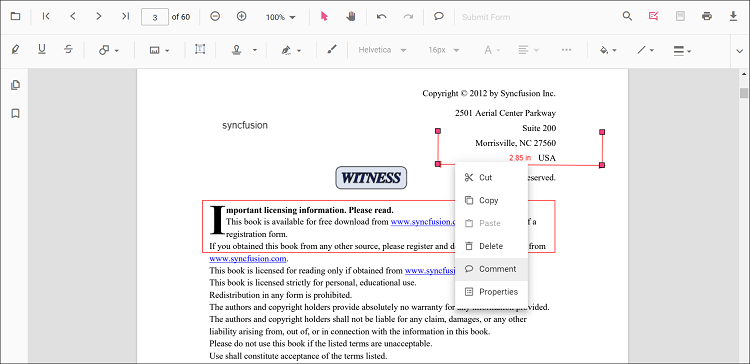

Adding comments to a sticky note annotation

Adding Comment Replies

  • Multiple replies can be added to a comment.
  • After adding a comment, add replies as needed.

Adding Comment or Reply Status

  • Select the annotation comment in the comment panel.
  • Click More options in the comment or reply container.
  • Select Set Status from the context menu.
  • Choose a status for the comment.

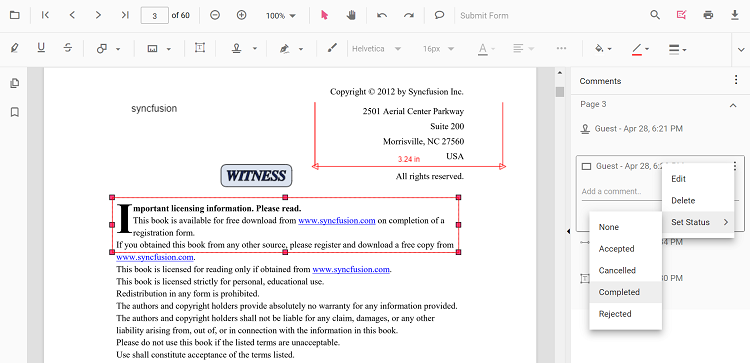

Set status for a comment

Editing the comments and comments replies of the annotations

Comments, replies, and status can be edited using the comment panel.

Editing the Comment or Comment Replies

Edit comments and replies in the following ways:

  1. Using the Context menu

    • Select the annotation comment in the comment panel.
    • Click More options in the comment or reply container.
    • Select Edit from the context menu.
    • An editable text box appears. Change the content of the comment or reply.

  2. Using the Mouse Click

    • Select the annotation comment in the comment panel.
    • Double-click the comment or reply content.
    • An editable text box appears. Change the content of the comment or reply.

Editing Comment or Reply Status

  • Select the annotation comment in the comment panel.
  • Click More options in the comment or reply container.
  • Select Set Status from the context menu.
  • Choose a status for the comment.
  • None is the default state. Selecting None clears the status indicator; the comment or reply remains visible.

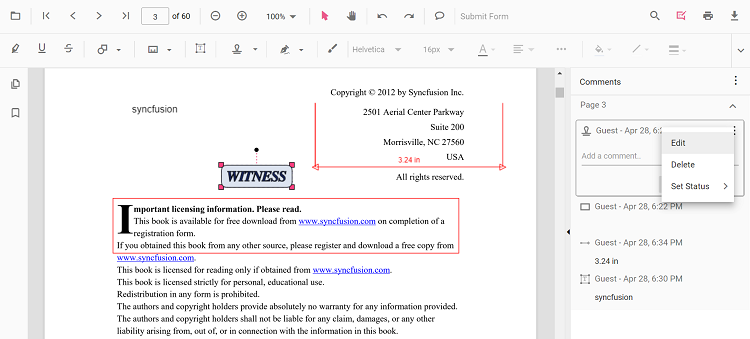

Edit comments and replies

Delete Comment or Comment Replies

  • Select the annotation comment in the comment panel.
  • Click More options in the comment or reply container.
  • Select Delete from the context menu.

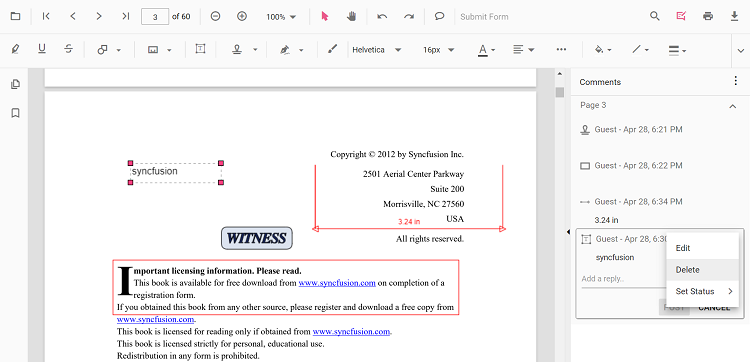

Delete comments or replies

Deleting the root comment from the comment panel also deletes the associated annotation.

Add Comments to the annotation Programmatically

How to Add Commnets and Replies programmatically

Comments can be added to the PDF document programmatically using the editAnnotation property.

The following example Shows how to add comments and reply in response to a button click.

<button id="addComment">Add Comments</button>
<button id="addReply">Add Reply</button>
ej.pdfviewer.PdfViewer.Inject(ej.pdfviewer.Toolbar, ej.pdfviewer.Magnification, ej.pdfviewer.Navigation, ej.pdfviewer.Annotation, ej.pdfviewer.LinkAnnotation, ej.pdfviewer.ThumbnailView, ej.pdfviewer.BookmarkView, ej.pdfviewer.TextSelection, ej.pdfviewer.TextSearch, ej.pdfviewer.FormFields, ej.pdfviewer.FormDesigner, ej.pdfviewer.PageOrganizer);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');

//for adding Comments programmatically
document.getElementById("addComment")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "add";
           annot.note = "New Comment";
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });
//for adding reply programmatically
document.getElementById("addReply")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "add";
           annot.replyComment = ["Reply Comment"];
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });
ej.pdfviewer.PdfViewer.Inject(ej.pdfviewer.Toolbar, ej.pdfviewer.Magnification, ej.pdfviewer.Navigation, ej.pdfviewer.Annotation, ej.pdfviewer.LinkAnnotation, ej.pdfviewer.ThumbnailView, ej.pdfviewer.BookmarkView, ej.pdfviewer.TextSelection, ej.pdfviewer.TextSearch, ej.pdfviewer.FormFields, ej.pdfviewer.FormDesigner, ej.pdfviewer.PageOrganizer);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

//for adding Comments programmatically
document.getElementById("addComment")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "add";
           annot.note = "New Comment";
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });
//for adding reply programmatically
document.getElementById("addReply")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "add";
           annot.replyComment = ["Reply Comment"];
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });

How to Edit Comments programmatically

Comments can be edited in the PDF document programmatically using the editAnnotation property.

The following example Shows how to edit comments and reply in response to a button click.

<button id="editComment">Edit Comments</button>
<button id="editReply">Edit Reply</button>
ej.pdfviewer.PdfViewer.Inject(ej.pdfviewer.Toolbar, ej.pdfviewer.Magnification, ej.pdfviewer.Navigation, ej.pdfviewer.Annotation, ej.pdfviewer.LinkAnnotation, ej.pdfviewer.ThumbnailView, ej.pdfviewer.BookmarkView, ej.pdfviewer.TextSelection, ej.pdfviewer.TextSearch, ej.pdfviewer.FormFields, ej.pdfviewer.FormDesigner, ej.pdfviewer.PageOrganizer);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');

//for Editing Comments programmatically
document.getElementById("editComment")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "edit";
           annot.note = "Edited Comment";
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });

//for Editing reply programmatically
document.getElementById("editReply")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "edit";
           annot.replyComment = ["Edited Reply Comment"];
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });
ej.pdfviewer.PdfViewer.Inject(ej.pdfviewer.Toolbar, ej.pdfviewer.Magnification, ej.pdfviewer.Navigation, ej.pdfviewer.Annotation, ej.pdfviewer.LinkAnnotation, ej.pdfviewer.ThumbnailView, ej.pdfviewer.BookmarkView, ej.pdfviewer.TextSelection, ej.pdfviewer.TextSearch, ej.pdfviewer.FormFields, ej.pdfviewer.FormDesigner, ej.pdfviewer.PageOrganizer);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');

//for Editing Comments programmatically
document.getElementById("editComment")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "edit";
           annot.note = "Edited Comment";
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });

//for Editing reply programmatically
document.getElementById("editReply")?.addEventListener("click", function() {
       let annot = pdfviewer.annotationCollection[0];
       if (annot) {
           annot.commentType = "edit";
           annot.replyComment = ["Edited Reply Comment"];
           pdfviewer.annotation.editAnnotation(annot);
           console.log(pdfviewer.annotationCollection[0]);
       }
   });

How to check the comments added by the user

Comments added to the PDF document can be read using the annotation’s comments property.

The following example logs comments in response to a button click.

<button id="checkComments">Check the Comments</button>
var pdfviewer = new ej.pdfviewer.PdfViewer({
                    documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
                    resourceUrl : "https://cdn.syncfusion.com/ej2/31.2.2/dist/ej2-pdfviewer-lib";
                });
ej.pdfviewer.PdfViewer.Inject(ej.pdfviewer.TextSelection, ej.pdfviewer.TextSearch, ej.pdfviewer.Print, ej.pdfviewer.Navigation, ej.pdfviewer.Toolbar,
                              ej.pdfviewer.Magnification, ej.pdfviewer.Annotation, ej.pdfviewer.FormDesigner, ej.pdfviewer.FormFields, ej.pdfviewer.PageOrganizer);
pdfviewer.appendTo('#PdfViewer');
var pdfviewer = new ej.pdfviewer.PdfViewer({
                    documentPath: "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf",
                    serviceUrl: 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer'
                });
ej.pdfviewer.PdfViewer.Inject(ej.pdfviewer.TextSelection, ej.pdfviewer.TextSearch, ej.pdfviewer.Print, ej.pdfviewer.Navigation, ej.pdfviewer.Toolbar,
                              ej.pdfviewer.Magnification, ej.pdfviewer.Annotation, ej.pdfviewer.FormDesigner, ej.pdfviewer.FormFields, ej.pdfviewer.PageOrganizer);
pdfviewer.appendTo('#PdfViewer');
//Method to check the comments added in the PDF document.
document.getElementById('checkComments').addEventListener('click', function () {
    var annotationCollections = pdfviewer.annotationCollection;
    for (var x = 0; x < annotationCollections.length; x++) {
      //Prints the annotation id in the console window.
      console.log("annotation Id : " +annotationCollections[x].annotationId);
      var comments = annotationCollections[x].comments;
      for (var y = 0; y < comments.length; y++) {
        var comment = comments[y];
        //Prints the PDF document's comments in the console window.
        console.log("comment" + "[" + y + "] :" + comment.note);
      }
      var note = annotationCollections[x].note;
      console.log("note : " + note);
    }
});
