Connectors in .NET MAUI Diagram

Connectors establish relationships between nodes and define the flow of information within a diagram. They are commonly used in flowcharts, workflow diagrams, process diagrams, organizational charts, and network diagrams.

A connector can connect nodes, ports, or specific points within the diagram surface.

Prerequisites

Refer to the Getting started page to create a project, install the package, and register the handler. Connector examples assume that the Nodes and Connectors collections have been assigned to an SfDiagram instance.

Create Connector

A connector is created using the Connector class and added to the SfDiagram.Connectors collection.

using Syncfusion.Maui.Diagram;

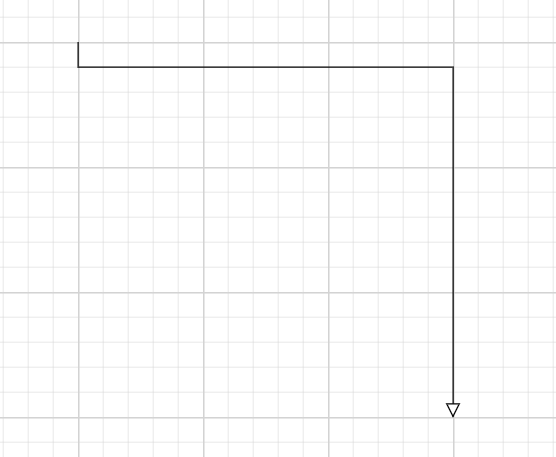

Connector connector = new Connector
{
    Id = "connector",
    SourcePoint = new Point(100, 100),
    TargetPoint = new Point(400,400),
};

diagram.Connectors.Add(connector);

Connector properties

Property Description
Id Unique identifier for the connector.
SourceID ID of the source node, source port’s parent node, or used together with SourcePoint.
TargetID ID of the target node, target port’s parent node, or used together with TargetPoint.
SourcePortID ID of the source port. Requires the matching port on the source node.
TargetPortID ID of the target port. Requires the matching port on the target node.
SourcePoint Starting point when the connector is not attached to a node.
TargetPoint Ending point when the connector is not attached to a node.
Type Routing algorithm, set through ConnectorSegmentType.
Style Visual style for the connector line.
Annotations Collection of PathAnnotation labels.
SourceDecorator Decorator shown at the start of the connector.
TargetDecorator Decorator shown at the end of the connector.

Note: DiagramPoint is not implemented in the current release. Verify the supported point type for connector endpoint coordinates before using SourcePoint and TargetPoint.

Connector

Create connection between nodes

The connector can be created between nodes to display the relationship between them. The SourceID and TargetID properties allows you to represent the nodes to be connected.

Connector connector = new Connector
{
    Id = "connector1",
    SourceID = "node1",
    TargetID = "node2"
};

Create connection between nodes

Connector types

The Diagram control supports two routing styles configured through ConnectorSegmentType. The diagram supports two types.

  • Straight
  • Orthogonal

Straight connector

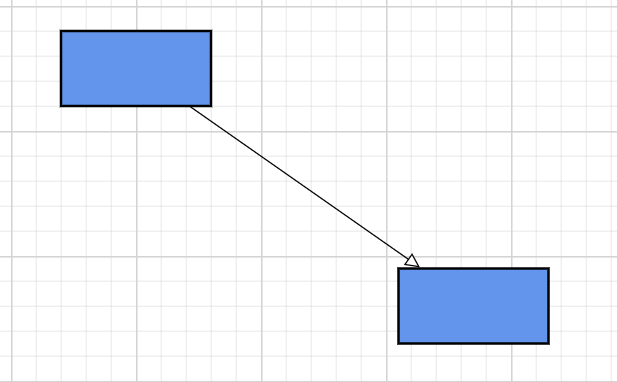

A straight connector establishes the shortest direct path between two points.

Connector connector = new Connector
{
    Id = "connector1",
    SourceID = "node1",
    TargetID = "node2",
    Type = ConnectorSegmentType.Straight
};

Use straight connectors for process diagrams, network diagrams, and entity-relationship diagrams.

Create connection between nodes

Orthogonal connector

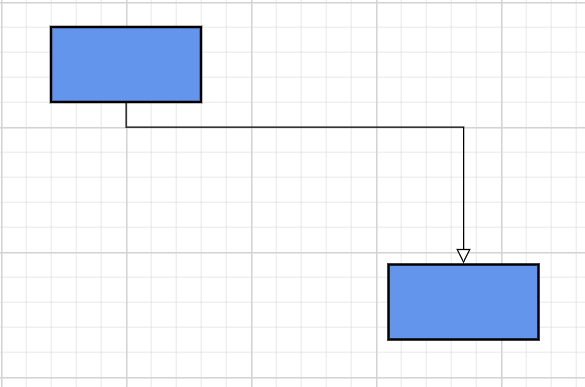

An orthogonal connector creates right-angle segments between the source and target points.

Connector connector = new Connector
{
    Id = "connector1",
    SourceID = "node1",
    TargetID = "node2",
    Type = ConnectorSegmentType.Orthogonal
};

Use orthogonal connectors for flowcharts, workflow designers, and business-process diagrams.

Create connection between nodes

Connect using ports

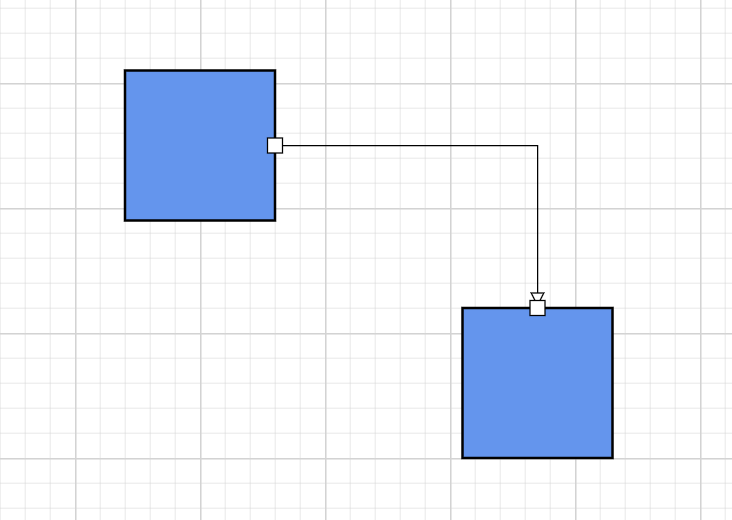

Ports define explicit connection points on a node. Using ports instead of node-to-node connections keeps connector routing predictable, which is especially useful for workflow designers, flowcharts, and process diagrams. The connection between any specific point of source and target nodes can be achieved with ports.

var connector = new Connector
{
    Id = "connector1",
    SourceID = "node1",
    SourcePortID = "RightPort",
    TargetID = "node2",
    TargetPortID = "LeftPort"
};

Create connection between nodes

Connector endpoint points

When a connector is not attached to a node, use SourcePoint and TargetPoint to specify the line endpoints.

Note: DiagramPoint is not implemented in the current release. Use the point type documented for your package version.

Connector connector = new Connector
{
    Id = "connector",
    SourcePoint = new Point(100, 200),
    TargetPoint = new Point(400,500),
};

diagram.Connectors.Add(connector);

Connector

Style connectors

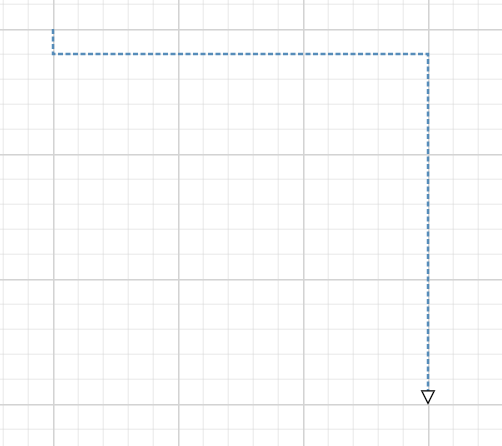

Use the Style property to customize a connector’s appearance like StrokeColor, StrokeWidth, opacity, and StrokeDashArray. The conceptual styling properties are listed below.

Property Description
StrokeColor Line color.
StrokeWidth Line thickness.
Opacity Line transparency from 0 to 1.
StrokeDashArray Dash pattern. The accepted value format depends on the package version.
Connector connector = new Connector
{
    Id = "connector",
    SourcePoint = new Point(100, 200),
    TargetPoint = new Point(400,500),
};

connector.Style = new ShapeStyle
{
    StrokeColor = Colors.SteelBlue,
    StrokeWidth = 2,
    Opacity = 0.9,
    StrokeDashArray = "4,2"
};

Connector

Connector decorators

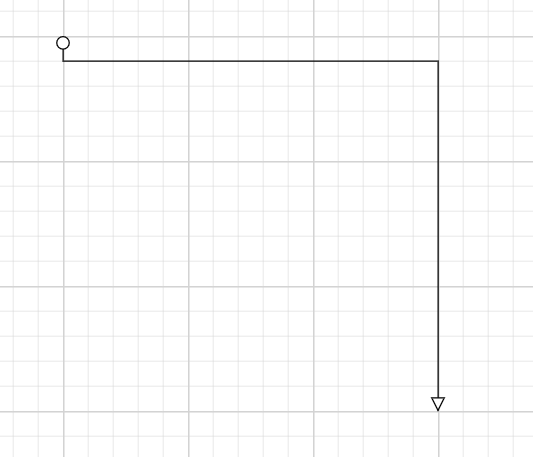

Decorators indicate direction and are commonly displayed at the source or target end of a connector. The source and target points of a connector can be decorated with some customizable shapes like arrows, circles, diamond, or any path. You can decorate the connection end points using the SourceDecorator and TargetDecorator properties of connector. They are configured through DecoratorSettings, which supports Shape, Width, Height, and Style.

Connector connector = new Connector
{
    Id = "connector",
    SourcePoint = new Point(100, 200),
    TargetPoint = new Point(400,500),
};

connector.TargetDecorator = new DecoratorSettings
{
    Shape = DecoratorShape.Arrow
};

connector.SourceDecorator = new DecoratorSettings
{
    Shape = DecoratorShape.Circle
};

Connector decorators

Supported decorator shapes

The Diagram control supports the following decorator shapes through the DecoratorShapes enumeration.

Enumerator Description
Arrow Filled arrowhead.
OpenArrow Open arrowhead.
Diamond Diamond endpoint (commonly used in UML aggregation).
Circle Circular endpoint.
Square Square endpoint.
Fletch Fletch-style arrowhead.
OpenFletch Open fletch endpoint.
IndentedArrow Indented arrowhead.
OutdentedArrow Outdented arrowhead.
DoubleArrow Double arrowhead.
None Removes the decorator.

Connector annotations

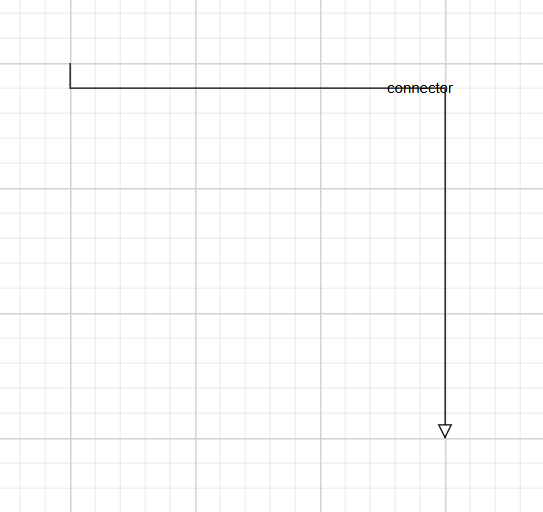

Annotation is used to textually represent an object with a string that can be edited at run time. Annotations display text along a connector through the PathAnnotation class. Connector labels describe the relationship between connected nodes. They help visualize decision branches, transitions, and conditions.

connector.Annotations.Add(
    new PathAnnotation
    {
        Content = "Approved"
    });

Connector annotations

Multiple Annotations

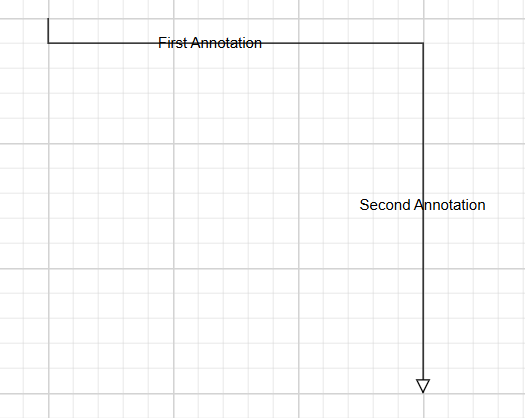

Multiple labels can be displayed on the same connector:

connector.Annotations.Add(
    new PathAnnotation
    {
        Content = "First Annotation",
        Offset = 0.25,
    });

connector.Annotations.Add(
    new PathAnnotation
    {
        Content = "Second Annotation",
        Offset = 0.75,
    });

Note: DiagramPoint is not implemented in the current release. Confirm whether offset coordinates use the supported point type before using this property.

Connector decorators

Best practices

  • Assign meaningful, unique IDs to every connector.
  • Use orthogonal connectors in business workflows and flowcharts.
  • Use a target decorator (such as Arrow) to indicate flow direction.
  • Use connector annotations to label decision outcomes.
  • Use ports for precise and predictable connections.
  • Apply consistent connector styling across the diagram.
