Annotations in .NET MAUI Diagram

Annotation is used to textually represent an object with a string that can be edited at run time on the nodes and connectors. They help describe diagram elements and improve the readability of a diagram.

The Diagram control supports two annotation types:

Annotations can be customized using the TextStyle class and alignment options.

Note: The TextAlign property on TextStyle and the TextDecoration property on TextStyle are scheduled for a future release. They are not available in the current package version.

Prerequisites

Refer to the Getting started page to create a project, install the package, and register the handler. Annotation examples assume that the host node or connector has been assigned to an SfDiagram instance.

Node annotations

Node annotations display text within or around a node. They are added through the Node.Annotations collection.

using Syncfusion.Maui.Diagram;

Node node = new Node
{
    Id = "ProcessNode",
    OffsetX = 200,
    OffsetY = 150,
    Width = 120,
    Height = 60
};

node.Annotations.Add(
    new ShapeAnnotation
    {
        Content = "Process Order"
    });

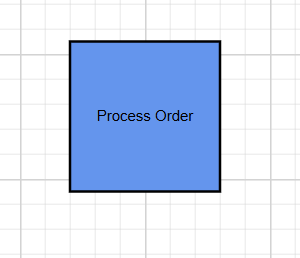

Node_annotation

Multiple annotation

A node can contain multiple annotations:

node.Annotations.Add(
    new ShapeAnnotation
    {
        Id = "title",
        Content = "Order Processing",
        Offset = new DiagramPoint(0, 0.5),
    });

node.Annotations.Add(
    new ShapeAnnotation
    {
        Id = "status",
        Content = "Pending",
        Offset = new DiagramPoint(1, 0.5),
    });

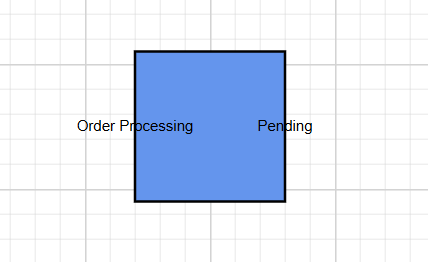

Node_multiple_annotation

Connector annotations

Connector annotations display text along a connector path. They are added through the Connector.Annotations collection.

var connector = new Connector
{
    Id = "connector1",
    SourceID = "node1",
    TargetID = "node2"
};

connector.Annotations.Add(
    new PathAnnotation
    {
        Content = "connector"
    });

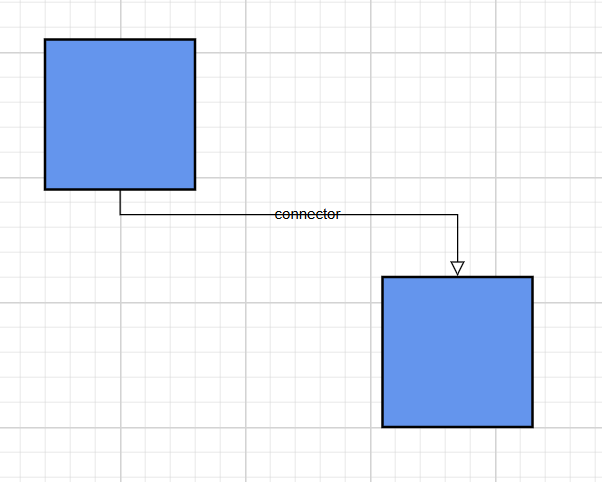

Connector_annotation
—

Annotation properties

The following properties apply to both ShapeAnnotation and PathAnnotation.

Property Description
Id Unique identifier for the annotation.
Content Display text for the annotation.
Style Text style based on the TextStyle class.
Offset Position of the annotation. Node annotations use node-relative coordinates; connector annotations use path-relative coordinates.
HorizontalAlignment Horizontal alignment through the AnnotationHorizontalAlignment enumeration.
VerticalAlignment Vertical alignment through the AnnotationVerticalAlignment enumeration.

Note: The Offset property on ShapeAnnotation exposes OffsetX and OffsetY values. The point type used by PathAnnotation.Offset should be verified against the package version you use.

Horizontal and vertical alignment

Horizontal Vertical
Left Top
Center Center
Right Bottom
Stretch Stretch
Auto Auto

Style annotations

Use the Style property to customize a node’s appearance like FontFamily, FontSize, Color, and Bold. The conceptual styling properties are listed below.

Property Description
FontFamily Font family for the annotation text.
FontSize Text size in device-independent units.
Color Text color.
Fill Background color behind the text.
Bold true for bold text. false otherwise.
Italic true for italic text. false otherwise.

Example

node.Annotations.Add(
    new ShapeAnnotation
    {
        Content = "Process",
        Style = new TextStyle
        {
            FontFamily = "Arial",
            FontSize = 14,
            Color = Colors.Black,
            Fill = Colors.LightYellow,
            Bold = true,
            Italic = false
        }
    });

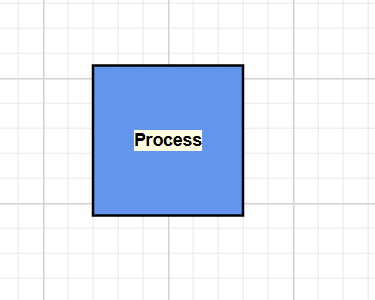

Annotation_style
—

Positioning

Node annotation

For ShapeAnnotation, the Offset value uses node-relative coordinates.

Position Offset values
Top center Offset = new DiagramPoint(0.5, 0)
Left center Offset = new DiagramPoint(0, 0.5)
Right center Offset = new DiagramPoint(1, 0.5)
Bottom center Offset = new DiagramPoint(0.5, 1)
Center Offset = new DiagramPoint(0.5, 0.5)

For example, to place an annotation at the bottom-center of a node:

node.Annotations.Add(
    new ShapeAnnotation
    {
        Content = "diagram",
        Offset = new DiagramPoint(0.5, 1),
    });

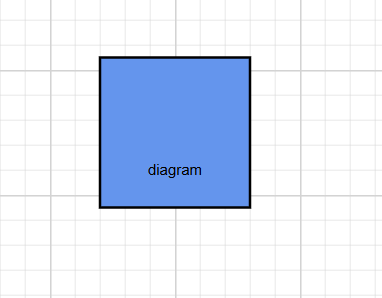

Node_annotation_positioning

Connector annotation

For PathAnnotation, the Offset value specifies the relative position of the annotation along the connector path. The value is normalized from 0 to 1, where:

  • 0 places the annotation at the source end of the connector.
  • 0.5 places the annotation at the midpoint of the connector.
  • 1 places the annotation at the target end of the connector.

Note: Connector annotations support only a single offset value that determines the position along the path. A separate perpendicular offset is not supported.

Connector_annotation_positioning
