#Getting Started

Before we start with the RangeNavigator, please refer this page for general information regarding integrating Syncfusion widget’s.

Adding JavaScript and CSS Reference

To render the RangeNavigator control, the following list of external dependencies are needed,

  • jQuery - 1.7.1 and later versions
  • Angular - Angular latest versions

The other required internal dependencies are tabulated below,

Files Description/Usage
ej.core.min.js It is referred always before using all the JS controls.
ej.data.min.js Used to handle data operation and is used while binding data to the JS controls.
ej.rangenavigator.min.js RangeNavigator core script file which includes RangeNavigator related scripts files.
ej.globalize.min.js It is referred when using localization in RangeNavigator.
ej.scroller.min.js It is referred when scrolling is used in the RangeNavigator.

NOTE

RangeNavigator uses one or more script files, therefore refer the ej.web.all.min.js (which encapsulates all the ej controls and frameworks in a single file) in the application instead of referring all the above specified internal dependencies.

To get the real appearance of the RangeNavigator, the dependent CSS file ej.web.all.min.css (which includes styles of all the widgets) should also needs to be referred.

Preparing HTML document

Create an HTML page and add the scripts references in the order mentioned in the following code example.

  • html
  • <html>
        <head>
        <title>Angular RangeNavigator</title>

        <!-- Essential Studio for JavaScript  theme reference -->
        <link rel="stylesheet" href="http://cdn.syncfusion.com/17.3.0.9/js/web/flat-azure/ej.web.all.min.css" />

        <!-- Angular related script references -->
        <!-- 1. Load libraries -->
             <!-- Polyfill(s) for older browsers -->
        <script src="node_modules/core-js/client/shim.min.js"></script>
        <script src="node_modules/zone.js/dist/zone.js"></script>
        <script src="node_modules/reflect-metadata/Reflect.js"></script>
        <script src="node_modules/systemjs/dist/system.src.js"></script>

        <!-- Essential Studio for JavaScript  script references -->
        <script src="https://code.jquery.com/jquery-1.10.2.min.js"></script>
        <script src="http://cdn.syncfusion.com/17.3.0.9/js/web/ej.web.all.min.js"> </script>
        <script src="http://cdn.syncfusion.com/17.3.0.9/js/common/ej.angular2.min.js"></script>

        <!-- 2. Configure SystemJS -->
        <script src="systemjs.config.js"></script>
        <script>
          System.import('app')
                .then(null, console.error.bind(console));
        </script>

        </head>
        <!-- 3. Display the application -->
        <body>
        <ej-app>
    		    <div class="splash">
    			      <div class="message">Angular Syncfusion Components App</div>
    			      <div class="spinner"></div>
    		    </div>
    	  </ej-app>
        </body>
        </html>

    NOTE

    Uncompressed version of library files are also available which is used for development or debugging purpose and can be generated from the custom script here.

    Control Initialization

    • Copy RangeNavigator Syncfusion Angular source component(s) from the below build location and add it in src/ej folder (For ex., consider the rangenavigator component).
  • javascript
  • (Installed Location)\Syncfusion\Essential Studio\14.3.0.49\JavaScript\assets-src\angular2\

    NOTE

    core.ts file is mandatory for all Syncfusion JavaScript Angular components. The repository having the source file from Essential Studio for JavaScript v14.3.0.49.

    • Create rangenavigator folder inside src folder.

    • Create rangenavigator.component.html view file inside src/rangenavigator folder and render ejRangeNavigator Angular component using the below code example.

  • html
  • <ej-rangenavigator id="rangenavigator" [sizeSettings.height]="100" [sizeSettings.width]="400">
    </ej-rangenavigator>
    • Create rangenavigator.component.ts model file inside the folder src/rangenavigator and create sample component using the below code example.
  • ts
  • import { Component, ViewEncapsulation } from '@angular/core';

    @Component({
      selector: 'ej-app',
      templateUrl: 'src/rangenavigator/rangenavigator.component.html'
    })
    export class RangeNavigatorComponent {

    }

    Configure the routes for the Router

    Before adding router configuration for above created ejRangeNavigator component, we recommend you to go through the Angular Routing configuration to get the deeper knowledge about Angular routing.

    • Now, we are going to configure the route navigation link for created rangenavigator sample in src/app.component.html file.
  • html
  • <div>
    	<ul class="nav navbar-nav">
    		<li><a data-toggle="collapse" data-target="#skeleton-navigation-navbar-collapse.in"
         href="#rangenavigator" [routerLink]="['/rangenavigator']">rangenavigator </a></li>
    	</ul>
    </div>
    <main>
    	<router-outlet></router-outlet>
    </main>
    • Import the ejRangeNavigator sample component and define the route in src/app.routes.ts file.
  • ts
  • import { Routes } from '@angular/router';
    . . . .
    import { RangeNavigatorComponent } from './rangenavigator/rangenavigator.component';

    export const rootRouterConfig: Routes = [
        { path: '', redirectTo: 'home', pathMatch: 'full' },
        . . . .
        { path: 'rangenavigator', component: RangeNavigatorComponent }
    ];
    • Import and declare the Syncfusion source component and ejRangeNavigator sample component into app.module.ts like the below code snippet.
  • ts
  • import { NgModule, enableProdMode, ErrorHandler } from '@angular/core';
    . . . . .
    import { EJ_RANGENAVIGATOR_COMPONENTS } from './ej/rangenavigator.component';
    import { RangeNavigatorComponent } from './rangenavigator/rangenavigator.component';

    import { rootRouterConfig } from './app.routes';
    . . . .
    @NgModule({
      imports: [BrowserModule, FormsModule, HttpModule, RouterModule.forRoot(rootRouterConfig, { useHash: true })],
      declarations: [. . . . , EJ_RANGENAVIGATOR_COMPONENTS, RangeNavigatorComponent],
      bootstrap: [AppComponent]
    })
    export class AppModule { }

    Running the application

    • To run the application, execute below command.
  • javascript
  • npm start
    • Browse to http://localhost:3000 to see the application. And navigate to rangenavigator tab. The component is rendered as like the below screenshot. You can make changes in the code found under src folder and the browser should auto-refresh itself while you save files.

    Configure RangeNavigator

    Getting started with your ej-rangenavigator is simple. You can initialize the ej-rangenavigator by setting its range values.

    You can create an HTML file as shown in the following code example.

    1. Create a <div> tag with an id.
    2. Set ej-rangenavigator attribute to render RangeNavigator control and add e-rangeSettings for customize the rangeSettings.
  • html
  • <ej-rangenavigator rangeSettings.start="2011/1/1" rangeSettings.end="2011/12/31">
    </ej-rangenavigator>

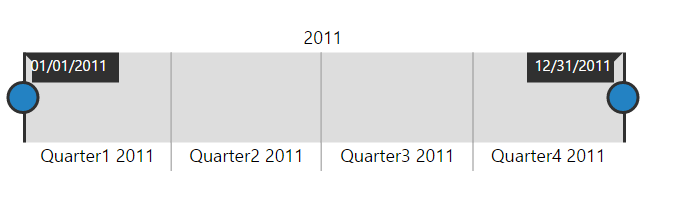

    The following screen shot displays the RangeNavigator with a range from 2010, January 1st to December 31st.

    Add series

    To add series to ej-rangenavigator, you need to set dataSource property of ej-rangenavigator as shown in the following code example.

    You can create a folder service and add data.service.ts file to give data source for RangeNavigator as follows.

  • ts
  • export class DataService{
    rangeData():Array<any>{
            return[
                { "xDate": new Date(2011, 0, 1), "yValue": 10 },
                { "xDate": new Date(2011, 2, 1), "yValue": 5 },
                { "xDate": new Date(2011, 4, 1), "yValue": 15 },
                { "xDate": new Date(2011, 6, 1), "yValue": 25 },
                { "xDate": new Date(2011, 8, 1), "yValue": 10 },
                { "xDate": new Date(2011, 10, 1), "yValue": 5 },
                { "xDate": new Date(2011, 12, 1), "yValue": 15 }
                ];
        }
    }

    Now, add the dataSource to the RangeNavigator and provide the field name to get the values from the dataSource in xName and yName options.

  • javascript
  • <ej-rangenavigator [dataSource]="dataRange" xName="xDate" yName="yValue">
    </ej-rangenavigator>
  • ts
  • import { Component, ViewEncapsulation} from '@angular/core';
    import { DataService} from '../service/data.service';

    @Component({
    selector:"ej-app",
    templateUrl:"src/rangenavigator/rangenavigator.component.html",
    providers:[DataService]
    })
    export class RangenavigatorComponent{
    dataRange:any;
        constructor(dataService:DataService){
            this.dataRange=dataService.rangeData();
        }
    }

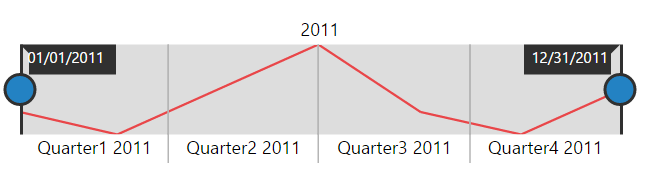

    The following screenshot displays a RangeNavigator with the default “Line” series type.

    Enable tooltip

    You can customize Tooltip for RangeNavigator using tooltip option. You can use tooltipDisplayMode option in tooltip,to display the tooltip “always” or “ondemand” (displays tooltip only while dragging the sliders). You can also specify label format for tooltip using labelFormat.

    The following code sample shows how to enable a Tooltip.

  • html
  • <ej-rangenavigator [tooltipSettings.visible]="true" tooltipSettings.labelFormat="MMM/yyyy"
                                tooltipSettings.tooltipDisplayMode="always">
    </ej-rangenavigator>

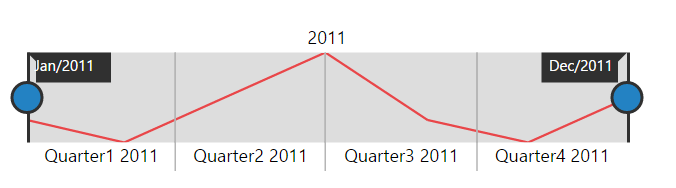

    The following screenshot displays the label format Tooltip in RangeNavigator:
