Appearance in .NET MAUI Circular Chart

21 Oct 202411 minutes to read

The appearance of the SfCircularChart can be customized by using the predefined palettes, custom palettes, and gradient which allows enriching the application.

Custom PaletteBrushes

The SfCircularChart provides support to define own brushes for series with preferred order by using the PaletteBrushes property as shown in the following code example.

XAML

<chart:SfCircularChart>
    . . .
    <chart:PieSeries
        ItemsSource="{Binding Data}"
        XBindingPath="XValue"
        YBindingPath="YValue"
        PaletteBrushes="{Binding CustomBrushes}"/>
</chart:SfCircularChart>

C#

public class ViewModel
{
    // Collection to hold the data for the chart
    public ObservableCollection<Model> Data { get; set; }

    // List to store custom brush colors for the chart
    public List<Brush> CustomBrushes { get; set; }

    public ViewModel()
    {
        // Initialize the CustomBrushes list
        CustomBrushes = new List<Brush>();

        // Add custom color brushes to the list
        CustomBrushes.Add(new SolidColorBrush(Color.FromRgb(38, 198, 218)));  // Light cyan
        CustomBrushes.Add(new SolidColorBrush(Color.FromRgb(0, 188, 212)));   // Cyan
        CustomBrushes.Add(new SolidColorBrush(Color.FromRgb(0, 172, 193)));   // Dark cyan
        CustomBrushes.Add(new SolidColorBrush(Color.FromRgb(0, 151, 167)));   // Darker cyan
        CustomBrushes.Add(new SolidColorBrush(Color.FromRgb(0, 131, 143)));   // Darkest cyan
    }

    // ... Other methods and properties ...
}

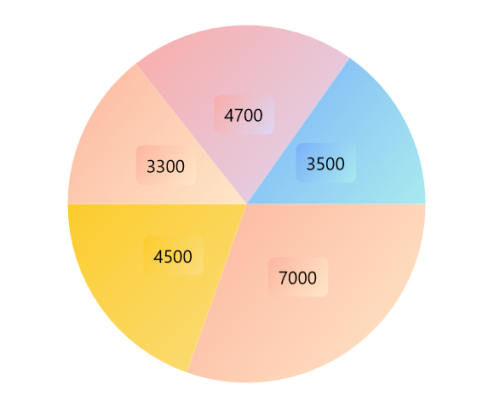

Applying Gradient

The gradient for the circular chart can be set by using the PaletteBrushes property of the series with the help of the LinearGradientBrush or RadialGradientBrush.

XAML

<chart:SfCircularChart>
	. . .
	<chart:PieSeries ItemsSource="{Binding Data}"
			 XBindingPath="XValue"
			 YBindingPath="YValue"
			 PaletteBrushes="{Binding CustomBrushes}"/>
</chart:SfCircularChart>

C#

public class ViewModel
{
    // Collection to hold data models
    public ObservableCollection<Model> Data { get; set; }

    // List to store custom brushes
    public List<Brush> CustomBrushes { get; set; }

    public ViewModel()
    {
        CustomBrushes = new List<Brush>();

        // Create and configure gradient brush 1
        LinearGradientBrush gradientColor1 = new LinearGradientBrush();
        gradientColor1.GradientStops = new GradientStopCollection()
        {
            new GradientStop() { Offset = 1, Color = Color.FromRgb(255, 231, 199) },
            new GradientStop() { Offset = 0, Color = Color.FromRgb(252, 182, 159) }
        };

        // Create and configure gradient brush 2
        LinearGradientBrush gradientColor2 = new LinearGradientBrush();
        gradientColor2.GradientStops = new GradientStopCollection()
        {
            new GradientStop() { Offset = 1, Color = Color.FromRgb(250, 221, 125) },
            new GradientStop() { Offset = 0, Color = Color.FromRgb(252, 204, 45) }
        };

        // Create and configure gradient brush 3
        LinearGradientBrush gradientColor3 = new LinearGradientBrush();
        gradientColor3.GradientStops = new GradientStopCollection()
        {
            new GradientStop() { Offset = 1, Color = Color.FromRgb(255, 231, 199) },
            new GradientStop() { Offset = 0, Color = Color.FromRgb(252, 182, 159) }
        };

        // Create and configure gradient brush 4
        LinearGradientBrush gradientColor4 = new LinearGradientBrush();
        gradientColor4.GradientStops = new GradientStopCollection()
        {
            new GradientStop() { Offset = 1, Color = Color.FromRgb(221, 214, 243) },
            new GradientStop() { Offset = 0, Color = Color.FromRgb(250, 172, 168) }
        };

        // Create and configure gradient brush 5
        LinearGradientBrush gradientColor5 = new LinearGradientBrush();
        gradientColor5.GradientStops = new GradientStopCollection()
        {
            new GradientStop() { Offset = 1, Color = Color.FromRgb(168, 234, 238) },
            new GradientStop() { Offset = 0, Color = Color.FromRgb(123, 176, 249) }
        };

        // Add all gradient brushes to the CustomBrushes list
        CustomBrushes.Add(gradientColor1);
        CustomBrushes.Add(gradientColor2);
        CustomBrushes.Add(gradientColor3);
        CustomBrushes.Add(gradientColor4);
        CustomBrushes.Add(gradientColor5);
    }
    // ... (other methods or properties)
}

Plotting Area Customization:

SfCircularChart allows you to add any view to the chart plot area, which is useful for adding any relevant data, a watermark, or a color gradient to the background of the chart.

XAML

<chart:SfCircularChart>
. . .
    <chart:SfCircularChart.PlotAreaBackgroundView>
      	<AbsoluteLayout>
       		<Border Stroke="red"
			StrokeThickness="2"
			AbsoluteLayout.LayoutBounds="0,0,1,1"
			AbsoluteLayout.LayoutFlags="All"/>
       		<Label Text="Copyright @ 2001 - 2022 Syncfusion Inc"
		       FontSize="18"
		       AbsoluteLayout.LayoutBounds="1,1,-1,-1"
		       AbsoluteLayout.LayoutFlags="PositionProportional"
		       Opacity="0.4"/>
       		<Label Text="CONFIDENTIAL"
		       Rotation="340"
		       FontSize="80"
		       FontAttributes="Bold,Italic"
		       TextColor="Gray"
		       Margin="10,0,0,0"
		       AbsoluteLayout.LayoutBounds="0.5,0.5,-1,-1"
		       AbsoluteLayout.LayoutFlags="PositionProportional"
	           Opacity="0.3"/>
    	</AbsoluteLayout>
    </chart:SfCircularChart.PlotAreaBackgroundView>
</chart:SfCircularChart>

C#

// Create a new SfCircularChart
SfCircularChart chart = new SfCircularChart();

// Create an AbsoluteLayout to hold custom elements
AbsoluteLayout absoluteLayout = new AbsoluteLayout();

// Create a border for the chart plot area
var border = new Border()
{
    Stroke = Colors.Red,
    StrokeThickness = 2
};

// Set the border to cover the entire chart area
AbsoluteLayout.SetLayoutBounds(border, new Rect(0, 0, 1, 1));
AbsoluteLayout.SetLayoutFlags(border, Microsoft.Maui.Layouts.AbsoluteLayoutFlags.All);
absoluteLayout.Children.Add(border);

// Create a copyright label
var copyRight = new Label()
{
    Text = "Copyright @ 2001 - 2022 Syncfusion Inc",
    FontSize = 18,
    Opacity = 0.4
};

// Position the copyright label at the bottom-right corner
AbsoluteLayout.SetLayoutBounds(copyRight, new Rect(1, 1, -1, -1));
AbsoluteLayout.SetLayoutFlags(copyRight, Microsoft.Maui.Layouts.AbsoluteLayoutFlags.PositionProportional);
absoluteLayout.Children.Add(copyRight);

// Create a watermark label
var watermark = new Label()
{
    Text = "CONFIDENTIAL",
    Rotation = 340,
    FontSize = 80,
    FontAttributes = FontAttributes.Bold,
    TextColor = Colors.Gray,
    Opacity = 0.3
};

// Position the watermark label at the center of the plot area
AbsoluteLayout.SetLayoutBounds(watermark, new Rect(0.5, 0.5, -1, -1));
AbsoluteLayout.SetLayoutFlags(watermark, Microsoft.Maui.Layouts.AbsoluteLayoutFlags.PositionProportional);
absoluteLayout.Children.Add(watermark);

// Set the custom AbsoluteLayout as the chart's background
chart.PlotAreaBackgroundView = absoluteLayout;

// Set the chart as the content of the current page/view
this.Content = chart;
