Perimeter annotation in TypeScript PDF Viewer

13 Feb 202618 minutes to read

Perimeter is a measurement annotation used to measure the length around a closed polyline in the PDF.

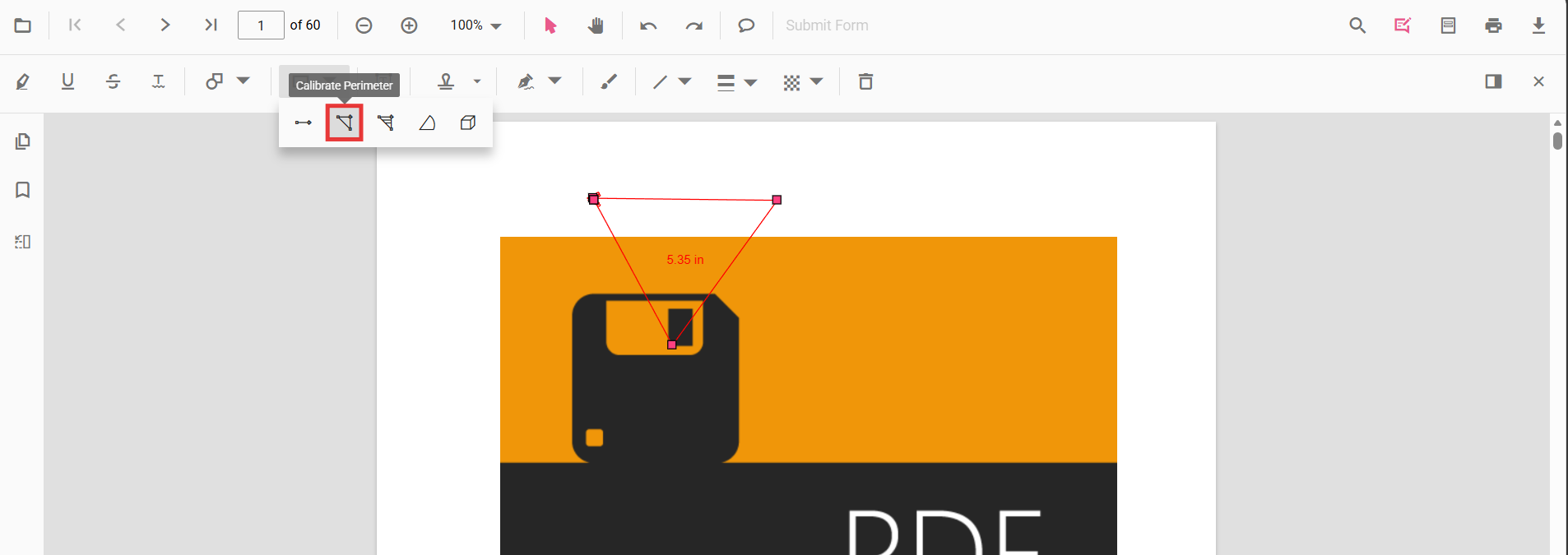

Measurement annotations overview

Add Perimeter Annotation

Add perimeter annotation via UI

Use the annotation toolbar to:

  • Click the Edit Annotation button in the PDF Viewer toolbar.
  • Open the Measurement Annotation dropdown.
  • Choose Perimeter, then draw the polyline on the page

NOTE

When in pan mode, selecting measurement annotations switches the viewer to text select mode.

Measurement toolbar

Enable perimeter mode

The PDF Viewer library allows drawing perimeter annotations programmatically after enabling perimeter mode via button clicks.

<button id="perimeterMode">Perimeter</button>
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('perimeterMode')?.addEventListener('click', function () {
    pdfviewer.annotationModule.setAnnotationMode('Perimeter');
});
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('perimeterMode')?.addEventListener('click', function () {
    pdfviewer.annotationModule.setAnnotationMode('Perimeter');
});

Add a perimeter annotation programmatically

The PDF Viewer library allows adding perimeter annotations programmatically using the addAnnotation() method.

<button id="addPerimeterAnnotation">Add Perimeter annotation Programmatically</button>
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer, PerimeterSettings } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";

pdfviewer.appendTo('#PdfViewer');

document.getElementById('addPerimeterAnnotation')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Perimeter', {
        offset: { x: 200, y: 350 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 350 }, { x: 285, y: 350 }, { x: 286, y: 412 }]
    } as PerimeterSettings);
});
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer, PerimeterSettings } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';

pdfviewer.appendTo('#PdfViewer');

document.getElementById('addPerimeterAnnotation')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Perimeter', {
        offset: { x: 200, y: 350 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 350 }, { x: 285, y: 350 }, { x: 286, y: 412 }]
    } as PerimeterSettings);
});

Edit Perimeter Annotation

Edit perimeter annotation in UI

Use the viewer to select, move, and resize Perimeter annotations:

  • Select a Perimeter to show its vertex handles.
  • Move: drag inside the shape to reposition it on the page.
  • Resize/reshape: drag any vertex handle to adjust the polyline points and size.
  • Delete or access more options from the context menu.

Edit the properties of Perimeter annotations

The fill color, stroke color, thickness, and opacity can be edited using the Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

Edit fill color

The fill color of the annotation can be edited using the color palette provided in the Edit Color tool.

CalibrateFillColor

Edit stroke color

The stroke color of the annotation can be edited using the color palette provided in the Edit Stroke Color tool.

CalibrateStrokeColor

Edit thickness

Edit border thickness using the range slider provided in the Edit Thickness tool.

CalibrateThickness

Edit opacity

The opacity of the annotation can be edited using the range slider provided in the Edit Opacity tool.

CalibrateOpacity

Edit an existing perimeter annotation programmatically

To modify an existing perimeter annotation programmatically, use the editAnnotation() method.

Here is an example of using editAnnotation():

<button id="editPerimeterAnnotation">Edit Perimeter annotation Programmatically</button>
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

let editPerimeterAnnotation = document.getElementById('editPerimeterAnnotation');
if (editPerimeterAnnotation) {
    editPerimeterAnnotation.addEventListener('click', function () {
        if (pdfviewer) {
            for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
                if (pdfviewer.annotationCollection[i].subject === "Perimeter calculation") {
                    pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle";
                    pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                    pdfviewer.annotationCollection[i].thickness = 2;
                    pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                    pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
                }
            }
        }
    });
}
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

let editPerimeterAnnotation = document.getElementById('editPerimeterAnnotation');
if (editPerimeterAnnotation) {
    editPerimeterAnnotation.addEventListener('click', function () {
        if (pdfviewer) {
            for (let i = 0; i < pdfviewer.annotationCollection.length; i++) {
                if (pdfviewer.annotationCollection[i].subject === "Perimeter calculation") {
                    pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = "Circle";
                    pdfviewer.annotationCollection[i].strokeColor = "#0000FF";
                    pdfviewer.annotationCollection[i].thickness = 2;
                    pdfviewer.annotationCollection[i].fillColor = "#FFFF00";
                    pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
                }
            }
        }
    });
}

Default perimeter settings during initialization

Set default perimeterSettings before creating the control.

import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";

pdfviewer.perimeterSettings = { fillColor: 'green', opacity: 0.6, strokeColor: 'blue' };
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer } from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";

pdfviewer.perimeterSettings = { fillColor: 'green', opacity: 0.6, strokeColor: 'blue' };
pdfviewer.appendTo('#PdfViewer');

Set properties while adding Individual Annotation

Set properties for individual annotations before creating the control using PerimeterSettings.

NOTE

After editing default color and opacity using the Edit Color and Edit Opacity tools, the values update to the selected settings.

Refer to the following code snippet to set the default Perimeter settings.

<button id="Perimeter">Add Perimeter</button>
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PerimeterSettings} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner);

const pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/form-designer.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');
//Apply Perimeter Settings while adding individual Annotation
document.getElementById('Perimeter')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Perimeter', {
        offset: { x: 200, y: 350 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 350 }, { x: 285, y: 350 }, { x: 286, y: 412 }],
        fillColor: 'green', opacity: 0.6, strokeColor: 'blue'
    } as PerimeterSettings);
});
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PerimeterSettings} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner);

const pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/form-designer.pdf';
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');
//Apply Perimeter Settings while adding individual Annotation
document.getElementById('Perimeter')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Perimeter', {
        offset: { x: 200, y: 350 },
        pageNumber: 1,
        vertexPoints: [{ x: 200, y: 350 }, { x: 285, y: 350 }, { x: 286, y: 412 }],
        fillColor: 'green', opacity: 0.6, strokeColor: 'blue'
    } as PerimeterSettings);
});

Editing scale ratio and unit of the perimeter measurement annotation

The scale ratio and unit of measurement can be modified using the scale ratio option provided in the context menu of the PDF Viewer control.

Scale ratio

The Units of measurements support for the measurement annotations in the PDF Viewer are

  • Inch
  • Millimeter
  • Centimeter
  • Point
  • Pica
  • Feet

Scale dialog

Setting default scale ratio settings during control initialization

The properties of scale ratio for measurement annotation can be set before creating the control using measurementSettings as shown in the following code snippet,

import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.measurementSettings={scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm'};
pdfviewer.appendTo('#PdfViewer');
import { PdfViewer, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer} from '@syncfusion/ej2-pdfviewer';

PdfViewer.Inject(Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, ThumbnailView, BookmarkView, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer);

let pdfviewer: PdfViewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.measurementSettings={scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm'};
pdfviewer.appendTo('#PdfViewer');

View Sample on GitHub
