Volume Annotation in JavaScript (ES5) PDF Viewer

21 Oct 202621 minutes to read

Volume is a measurement annotation used to calculate the volume of a rectangular prism area in the PDF.

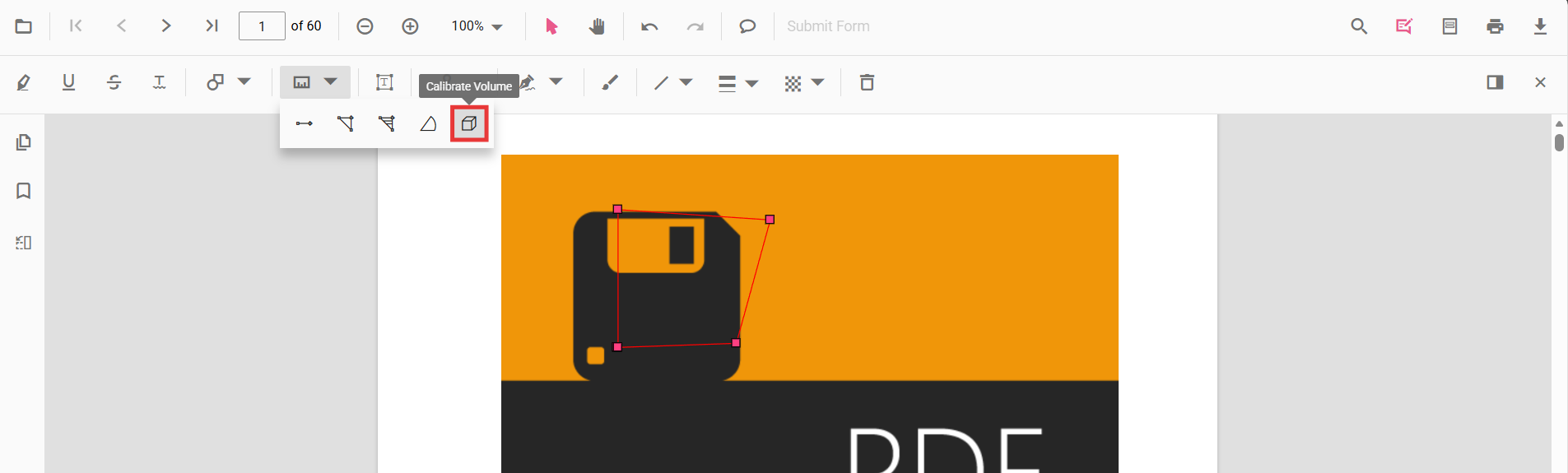

Volume annotations overview

Add Volume Annotation

Add volume annotation via UI

Use the annotation toolbar to:

  • Click the Edit Annotation button in the PDF Viewer toolbar.
  • Open the Measurement Annotation dropdown.
  • Choose Volume, then draw on the page.

When in pan mode, selecting measurement annotations switches the viewer to text select mode.

Measurement toolbar

Enable volume mode

The PDF Viewer component allows drawing volume annotations programmatically after enabling volume mode via button clicks.

<button id="volumeMode">Volume</button>
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');

var volumeModeBtn = document.getElementById('volumeMode');
if (volumeModeBtn) {
    volumeModeBtn.addEventListener('click', function () {
        pdfviewer.annotation.setAnnotationMode('Volume');
    });
}
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.appendTo('#PdfViewer');

var volumeModeBtn = document.getElementById('volumeMode');
if (volumeModeBtn) {
    volumeModeBtn.addEventListener('click', function () {
        pdfviewer.annotation.setAnnotationMode('Volume');
    });
}

Exit volume mode

<button id="setNone">Normal Mode</button>
var setNoneBtn = document.getElementById('setNone');
if (setNoneBtn) {
    setNoneBtn.addEventListener('click', function () {
        pdfviewer.annotation.setAnnotationMode('None');
    });
}

Add volume annotations programmatically

Add volume annotations programmatically using the addAnnotation method.

<button id="addVolumeAnnotation">Add Volume annotation programmatically</button>
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');

var addVolBtn = document.getElementById('addVolumeAnnotation');
if (addVolBtn) {
    addVolBtn.addEventListener('click', function () {
        pdfviewer.annotation.addAnnotation('Volume', {
            offset: { x: 200, y: 810 },
            pageNumber: 1,
            vertexPoints: [
                { x: 200, y: 810 }, { x: 200, y: 919 }, { x: 320, y: 919 }, { x: 320, y: 809 }, { x: 200, y: 810 }
            ]
        });
    });
}
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.appendTo('#PdfViewer');

var addVolBtn = document.getElementById('addVolumeAnnotation');
if (addVolBtn) {
    addVolBtn.addEventListener('click', function () {
        pdfviewer.annotation.addAnnotation('Volume', {
            offset: { x: 200, y: 810 },
            pageNumber: 1,
            vertexPoints: [
                { x: 200, y: 810 }, { x: 200, y: 919 }, { x: 320, y: 919 }, { x: 320, y: 809 }, { x: 200, y: 810 }
            ]
        });
    });
}

Edit Volume Annotation

Edit volume annotation in UI

Use the viewer to select, move, and resize Volume annotations:

  • Select a Volume measurement to show its handles.
  • Move: drag the shape to reposition it on the page.
  • Resize: drag the handles to adjust its size.
  • Delete or access more options from the context menu.

Edit the properties of volume annotations

The fill color, stroke color, thickness, and opacity can be edited using the Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

Edit fill color

The fill color of the annotation can be edited using the color palette provided in the Edit Color tool.

CalibrateFillColor

Edit stroke color

The stroke color of the annotation can be edited using the color palette provided in the Edit Stroke Color tool.

CalibrateStrokeColor

Edit thickness

Edit border thickness using the range slider provided in the Edit Thickness tool.

CalibrateThickness

Edit opacity

The opacity of the annotation can be edited using the range slider provided in the Edit Opacity tool.

CalibrateOpacity

Edit an existing volume annotation programmatically

Use editAnnotation on items from annotationCollection.

<button id="editVolumeAnnotation">Edit Volume annotation programmatically</button>
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');

var editVolBtn = document.getElementById('editVolumeAnnotation');
if (editVolBtn) {
    editVolBtn.addEventListener('click', function () {
        for (var i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === 'Volume calculation') {
                pdfviewer.annotationCollection[i].strokeColor = '#0000FF';
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].opacity = 0.8;
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    });
}
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.appendTo('#PdfViewer');

var editVolBtn = document.getElementById('editVolumeAnnotation');
if (editVolBtn) {
    editVolBtn.addEventListener('click', function () {
        for (var i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === 'Volume calculation') {
                pdfviewer.annotationCollection[i].strokeColor = '#0000FF';
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].opacity = 0.8;
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    });
}

Default volume settings during initialization

Set default volumeSettings before creating the control.

var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.volumeSettings = { fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow' };
pdfviewer.appendTo('#PdfViewer');
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.volumeSettings = { fillColor: 'pink', opacity: 0.6, strokeColor: 'yellow' };
pdfviewer.appendTo('#PdfViewer');

Supported Border Styles

In addition to the default Solid border, Volume annotations support the following additional border styles:

  • Cloud — scalloped cloud border.
  • Dashed — dashed line border.

Use BorderStyle values such as BorderStyle.Cloud and BorderStyle.Dashed together with the optional borderDashArray and cloudIntensity settings in the volumeSettings property.

Property Type Description
borderStyle BorderStyle Specifies the border style. Supported values: BorderStyle.Solid, BorderStyle.Cloud, and BorderStyle.Dashed.
borderDashArray number[] Specifies the dash pattern when borderStyle is BorderStyle.Dashed.
cloudIntensity number Specifies the cloud border intensity. Supported range: 1 to 2; default value: 1.

borderStyle, borderDashArray, and cloudIntensity are preserved during save, reload, import, and export.

Apply a Cloud Border

export enum BorderStyle {
    Solid = 'Solid',
    Dashed = 'Dashed',
    Cloud = 'Cloud'
}
ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.volumeSettings = {
    fillColor: 'yellow',
    strokeColor: 'orange',
    thickness: 2,
    opacity: 0.9,
    borderStyle: ej.pdfviewer.BorderStyle.Cloud,
    cloudIntensity: 2
  };
pdfviewer.appendTo('#PdfViewer');

Apply a Dashed Border

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.volumeSettings = {
    fillColor: 'yellow',
    strokeColor: 'orange',
    thickness: 2,
    opacity: 0.9,
    borderStyle: ej.pdfviewer.BorderStyle.Dashed,
    borderDashArray: [5, 5]
  };
pdfviewer.appendTo('#PdfViewer');

Scale ratio and units

You can modify scale ratio and units using the Scale Ratio option in the context menu.

Scale ratio

Supported units:

  • Inch, Millimeter, Centimeter, Point, Pica, Feet

Scale dialog

Set defaults via measurementSettings:

var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.measurementSettings = { scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm' };
pdfviewer.appendTo('#PdfViewer');
var PdfViewer = ej.pdfviewer.PdfViewer;
PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf';
pdfviewer.measurementSettings = { scaleRatio: 2, conversionUnit: 'cm', displayUnit: 'cm' };
pdfviewer.appendTo('#PdfViewer');

View Sample on GitHub

See also
