Circle annotation in JavaScript PDF Viewer

14 Jan 202617 minutes to read

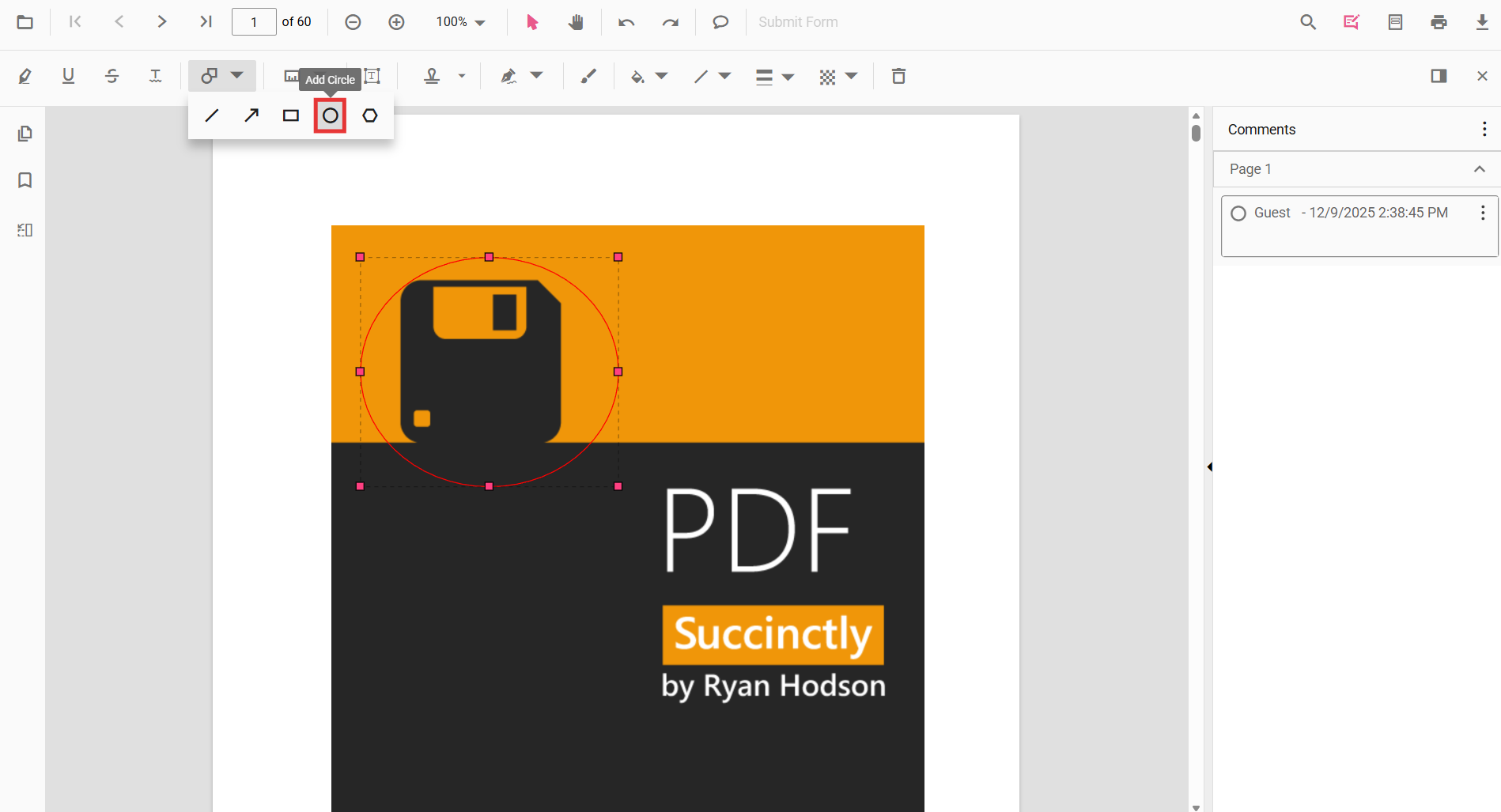

Circle is a shape annotation used to highlight circular regions or draw emphasis bubbles.

Add Circle Annotation

Add circle annotation via UI

Use the annotation toolbar:

• Click the Edit Annotation button in the PDF Viewer toolbar.
• Open the Shape Annotation dropdown.
• Choose Circle, then draw on the page.

NOTE

When in pan mode, selecting a shape annotation switches the viewer to text select mode.

Enable circle mode

The PDF Viewer library allows drawing Circle annotations programmatically after enabling Circle mode in button clicks.

<button id="circleMode">Circle</button>

Standalone

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('circleMode').addEventListener('click', function () {
    pdfviewer.annotationModule.setAnnotationMode('Circle');
});

Server-Backed

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('circleMode').addEventListener('click', function () {
    pdfviewer.annotationModule.setAnnotationMode('Circle');
});

Exit circle mode

<button id="setNone">Normal Mode</button>

Common

var setNone = document.getElementById('setNone');
if (setNone) {
    setNone.addEventListener('click', function () {
        pdfviewer.annotationModule.setAnnotationMode('None');
    });
}

Add a circle annotation programmatically

Add shape annotations programmatically using the addAnnotation() method.

<button id="addCircleAnnotation">Add Circle annotation programmatically</button>

Standalone

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('addCircleAnnotation').addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Circle', {
        offset: { x: 200, y: 620 },
        pageNumber: 1,
        width: 90,
        height: 90
    });
});

Server-Backed

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

document.getElementById('addCircleAnnotation').addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Circle', {
        offset: { x: 200, y: 620 },
        pageNumber: 1,
        width: 90,
        height: 90
    });
});

Edit Circle Annotation

Edit circle annotation in UI

You can select, move, and resize Circle annotations directly in the viewer:

• Select a Circle to show its handles.
• Move: drag inside the shape to reposition it on the page.
• Resize: drag the corner handles to adjust its diameter.
• Delete or access more options from the context menu.

Editing the properties of the circle annotation

The fill color, stroke color, thickness, and opacity of circle shape annotations can be edited using the Edit Color, Edit Stroke Color, Edit Thickness, and Edit Opacity tools in the annotation toolbar.

Editing fill color

The fill color of the annotation can be edited using the color palette provided in the Edit Color tool.

Editing stroke color

The stroke color of the annotation can be edited using the color palette provided in the Edit Stroke Color tool.

Editing thickness

The thickness of the border of the annotation can be edited using the range slider provided in the Edit Thickness tool.

Editing opacity

The opacity of the annotation can be edited using the range slider provided in the Edit Opacity tool.

Edit an existing circle annotation programmatically

Use editAnnotation on items from annotationCollection.

<button id="editCircleAnnotation">Edit Circle annotation programmatically</button>

Standalone

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.appendTo('#PdfViewer');

var editCircleAnnotation = document.getElementById('editCircleAnnotation');
if (editCircleAnnotation) {
    editCircleAnnotation.addEventListener('click', function () {
        for (var i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === 'Circle') {
                pdfviewer.annotationCollection[i].strokeColor = '#0000FF';
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = '#FFFF00';
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = 'Circle';
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    });
}

Server-Backed

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.appendTo('#PdfViewer');

var editCircleAnnotation = document.getElementById('editCircleAnnotation');
if (editCircleAnnotation) {
    editCircleAnnotation.addEventListener('click', function () {
        for (var i = 0; i < pdfviewer.annotationCollection.length; i++) {
            if (pdfviewer.annotationCollection[i].subject === 'Circle') {
                pdfviewer.annotationCollection[i].strokeColor = '#0000FF';
                pdfviewer.annotationCollection[i].thickness = 2;
                pdfviewer.annotationCollection[i].fillColor = '#FFFF00';
                pdfviewer.annotationCollection[i].annotationSelectorSettings.resizerShape = 'Circle';
                pdfviewer.annotation.editAnnotation(pdfviewer.annotationCollection[i]);
            }
        }
    });
}

Default circle settings during initialization

Set default circleSettings before creating the control.

Standalone

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.resourceUrl = "https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib";
pdfviewer.circleSettings = { fillColor: 'orange', opacity: 0.6, strokeColor: 'pink' };
pdfviewer.appendTo('#PdfViewer');

Server-Backed

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.documentPath = "https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf";
pdfviewer.circleSettings = { fillColor: 'orange', opacity: 0.6, strokeColor: 'pink' };
pdfviewer.appendTo('#PdfViewer');

Set properties while adding Individual Annotation

Set properties for individual annotation before creating the control using CircleSettings.

After editing default color and opacity using the Edit Color and Edit Opacity tools, the values update to the selected settings.

Refer to the following code snippet to set the default Circle settings.

<button id="Circle">Add Circle</button>

Standalone

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/form-designer.pdf';
pdfviewer.resourceUrl = 'https://cdn.syncfusion.com/ej2/31.1.23/dist/ej2-pdfviewer-lib';
pdfviewer.appendTo('#PdfViewer');
//Apply Circle Settings while adding individual Annotation
document.getElementById('Circle')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Circle', {
        offset: { x: 200, y: 480 },
        pageNumber: 1,
        width: 150,
        height: 75,
        opacity: 0.5,
        strokeColor: '#FF0000',
        fillColor: '#000fff#',
        author: 'User1'
    });
});

Server-Backed

ej.pdfviewer.PdfViewer.Inject(
    ej.pdfviewer.Toolbar,
    ej.pdfviewer.Magnification,
    ej.pdfviewer.Navigation,
    ej.pdfviewer.Annotation,
    ej.pdfviewer.LinkAnnotation,
    ej.pdfviewer.ThumbnailView,
    ej.pdfviewer.BookmarkView,
    ej.pdfviewer.TextSelection,
    ej.pdfviewer.TextSearch,
    ej.pdfviewer.FormFields,
    ej.pdfviewer.FormDesigner,
    ej.pdfviewer.PageOrganizer
);

var pdfviewer = new ej.pdfviewer.PdfViewer();
pdfviewer.documentPath = 'https://cdn.syncfusion.com/content/pdf/form-designer.pdf';
pdfviewer.serviceUrl = 'https://document.syncfusion.com/web-services/pdf-viewer/api/pdfviewer/';
pdfviewer.appendTo('#PdfViewer');
//Apply Circle Settings while adding individual Annotation
document.getElementById('Circle')?.addEventListener('click', function () {
    pdfviewer.annotation.addAnnotation('Circle', {
        offset: { x: 200, y: 480 },
        pageNumber: 1,
        width: 150,
        height: 75,
        opacity: 0.5,
        strokeColor: '#FF0000',
        fillColor: '#000fff#',
        author: 'User1'
    });
});

View Sample on GitHub

See also

• Annotation Overview
• Annotation Toolbar
• Create and Modify Annotation
• Customize Annotation
• Remove Annotation
• Handwritten Signature
• Export and Import Annotation
• Annotation in Mobile View
• Annotation Events
• Annotation API
