Getting Started with the PDF Viewer in a WPF Blazor Hybrid App

17 Jul 20268 minutes to read

This section explains how to add the Blazor PDF Viewer to a WPF Blazor Hybrid app using Visual Studio or Visual Studio Code. The result is a desktop (WPF) application that hosts Blazor UI inside a BlazorWebView control.

Prerequisites

Create a new WPF app in Visual Studio

  1. In Visual Studio 2022, choose Create a new project.
  2. Select the WPF Application (or WPF App (.NET)) template for C#, then choose Next.
  3. Set the project name (for example, WPFBlazorHybridApp) and the solution name, then choose Next.
  4. Set the Target framework to .NET 8.0 (Long-term support) and choose Create. The WPF project will host Blazor components through BlazorWebView.

For more details, see Microsoft Blazor tooling or the Syncfusion® Blazor Extension.

Install Blazor PDF Viewer NuGet packages

To add the Blazor PDF Viewer component, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), then install:

NOTE

Ensure the package Microsoft.AspNetCore.Components.WebView.Wpf is at least version 8.0.16.

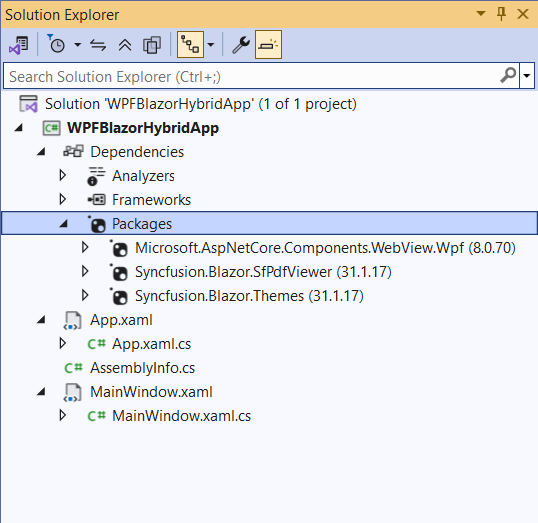

WPF Blazor App SfPdfViewer NuGet package reference

Prerequisites

Create a new WPF app in Visual Studio Code

Create a WPF desktop project using the .NET CLI. This WPF project will host the Blazor UI through BlazorWebView.

dotnet new wpf -n WPFBlazorHybridApp -f net8.0-windows

For guidance, see Microsoft templates or the Syncfusion® Blazor Extension.

Install Blazor PDF Viewer NuGet packages

Install the required NuGet packages in the WPF project that will host the Blazor UI.

  • Press Ctrl+` to open the integrated terminal in Visual Studio Code.
  • Ensure the current directory contains the WPF project .csproj file.
  • Run the following commands to install the required packages:
dotnet add package Syncfusion.Blazor.SfPdfViewer -v 34.1.29
dotnet add package Syncfusion.Blazor.Themes -v 34.1.29
dotnet add package Microsoft.AspNetCore.Components.WebView.Wpf -v 8.0.16
dotnet add package Microsoft.Extensions.Caching.Memory
dotnet restore

NOTE

  • Syncfusion® Blazor components are available on nuget.org. See NuGet packages for package details.
  • Ensure the package Microsoft.AspNetCore.Components.WebView.Wpf is at least version 8.0.16.

Configure the project file

The WPF project must target Windows, enable WPF, and use the Razor SDK. Open WPFBlazorHybridApp.csproj and make sure the project file contains the following:

<Project Sdk="Microsoft.NET.Sdk.Razor">

    ....

</Project>

Add the Razor imports file

Create an _Imports.razor file at the project root (next to the .csproj) with the following content. This makes the namespaces available to all .razor files in the project without re-declaring them.

@using Microsoft.AspNetCore.Components.Web
@using Syncfusion.Blazor
@using Syncfusion.Blazor.SfPdfViewer

Add the Syncfusion.Blazor namespace to the ~/MainWindow.xaml.cs file.

using Microsoft.Extensions.DependencyInjection;
using Syncfusion.Blazor;

Register Syncfusion Blazor services and BlazorWebView in ~/MainWindow.xaml.cs so that the WPF window can host Blazor components.

InitializeComponent();
ServiceCollection services = new ServiceCollection();
services.AddWpfBlazorWebView();
services.AddMemoryCache();
services.AddSyncfusionBlazor();
Resources.Add("services", services.BuildServiceProvider());

Create wwwroot folder and index.html file

  • Create a new folder named wwwroot in the WPF project root.

  • Inside wwwroot, create an index.html host page for the Blazor UI. This host page initializes the Blazor runtime and loads static assets (themes and scripts). A basic index.html might look like the following:

<!DOCTYPE html>
<html>
<head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no" />
    <title>WPF Blazor Hybrid App</title>
    <base href="/" />
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>
<body>
    <div id="app">Loading...</div>
    <script src="_framework/blazor.webview.js"></script>
    <script src="_content/Syncfusion.Blazor.SfPdfViewer/scripts/syncfusion-blazor-sfpdfviewer.min.js" type="text/javascript"></script>
</body>
</html>

NOTE

Ensure that the PDF Viewer static assets (themes and scripts) are loaded properly.

Add the Syncfusion PDF Viewer Razor component

Create a Razor component (for example, Main.razor) at the project root and add the Syncfusion PDF Viewer component. The _Imports.razor file you created earlier already provides the Syncfusion.Blazor.SfPdfViewer namespace, so an additional @using is not required.

<SfPdfViewer2 DocumentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

NOTE

If the DocumentPath property is not set, the PDF Viewer renders without loading a document. Users can use the Open toolbar option to browse and open a PDF.

Integrate Blazor into MainWindow.xaml

  1. Open MainWindow.xaml.
  2. Add the Microsoft.AspNetCore.Components.WebView.Wpf namespace and a local: namespace that points to your project’s root (this is used by the RootComponent mapping).
  3. Embed the BlazorWebView control, set HostPage to wwwroot/index.html, and map a RootComponent whose Selector matches the <div id="app"> element in index.html and whose ComponentType matches the Razor component class you created (for example, Main).
<Window x:Class="WPFBlazorHybridApp.MainWindow"
        ....
        xmlns:blazor="clr-namespace:Microsoft.AspNetCore.Components.WebView.Wpf;assembly=Microsoft.AspNetCore.Components.WebView.Wpf"
        ....
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <blazor:BlazorWebView HostPage="wwwroot\index.html" Services="{DynamicResource services}">
            <blazor:BlazorWebView.RootComponents>
                <blazor:RootComponent Selector="#app" ComponentType="{x:Type local:YourRazorFileName}" />
                <!-- Replace 'YourRazorFileName' with the actual Razor component class (e.g., Main) in your project's namespace -->
            </blazor:BlazorWebView.RootComponents>
        </blazor:BlazorWebView>
    </Grid>
</Window>

Run the app

Visual Studio: Press F5 (Debug) or Ctrl+F5 (Run without debugging).

Visual Studio Code: Run dotnet run from the project folder, or press F5 if you have the C# extension’s debugger configured.

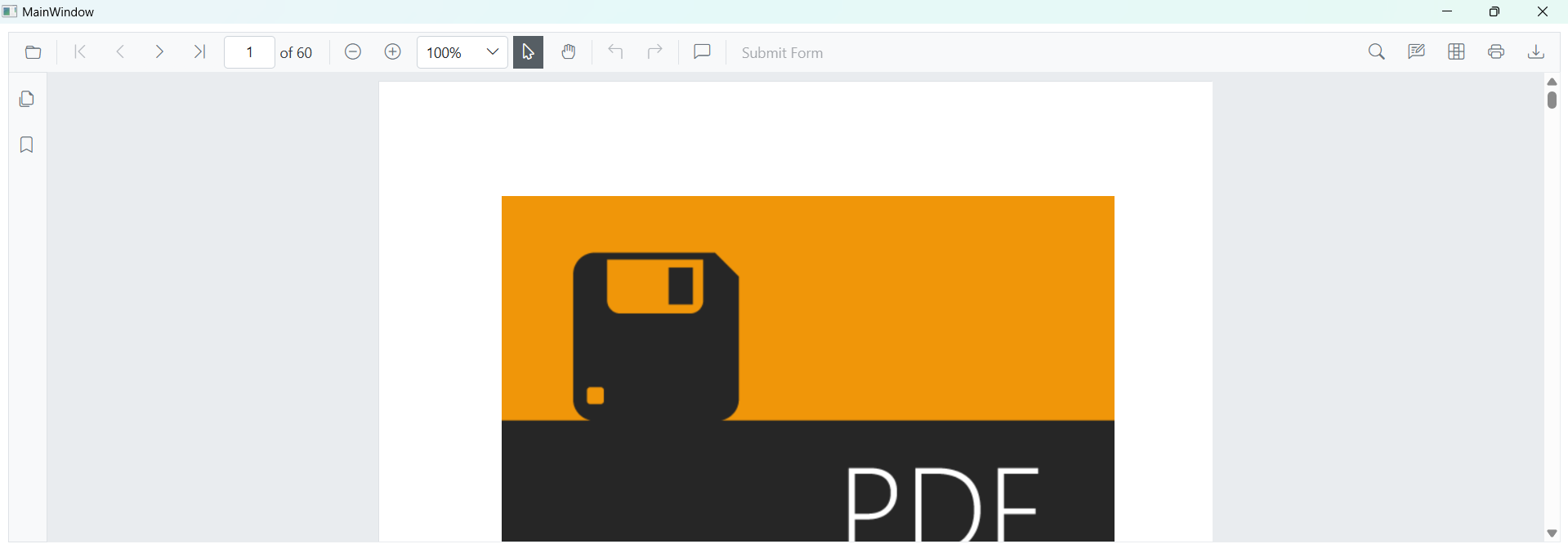

The WPF window opens and the Blazor PDF Viewer renders inside the BlazorWebView.

WPF Blazor HybridApp SfPdfViewer rendering in WPF window

Next steps

  • Looking for the full Blazor PDF Viewer component overview, features, and pricing? Visit the Blazor PDF Viewer page.

NOTE

View the sample on GitHub. Looking for the full Blazor PDF Viewer component overview, features, pricing, and documentation? Visit the Blazor PDF Viewer page.
