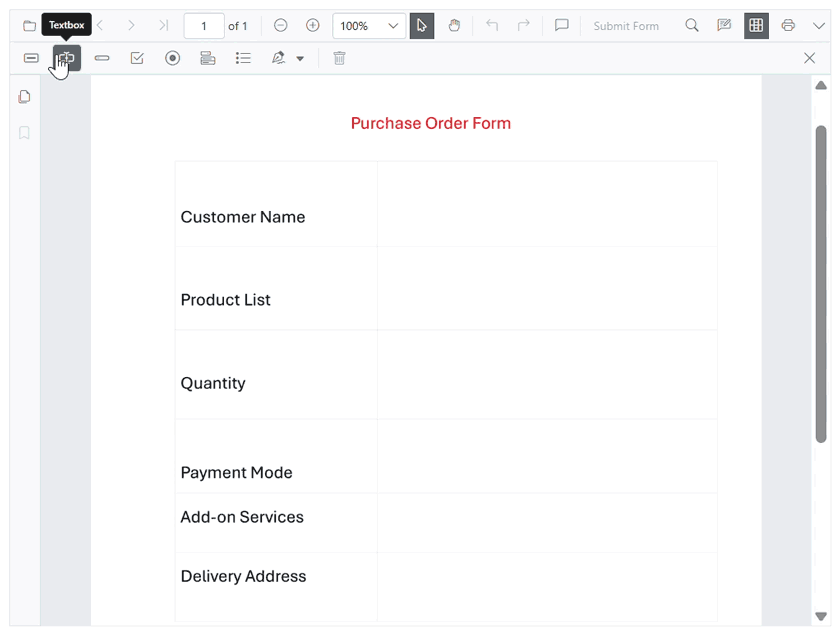

Overview of the Form Designer in Blazor SfPdfViewer Component

The Form Designer in SfPdfViewer enables creating, editing, and managing interactive form fields. It supports dynamic availability in the UI, so the designer can be shown or hidden while updating related toolbar elements. Form fields such as Textbox, Password, Radio Button, Check Box, Dropdown, List Box, Signature Field, and Button can be added with custom names, grouping, and consistent data across pages.

Fields retain their properties when downloaded or reloaded, even in large documents. Essential operations like cut, copy, paste, zoom, and resize work smoothly while preserving data integrity. Additional features include read-only and required field modes, validation, extensive customization, undo/redo functionality, and form submission controls.

Supported Form Fields

SfPdfViewer supports a range of interactive form fields for structured and dynamic data collection:

1. Textbox
2. Password
3. Check Box
4. Radio Button
5. List Box
6. Dropdown
7. Signature Field
8. Button

These fields ensure seamless interaction, customization, and data consistency, enabling the creation of well-structured and user-friendly PDF forms.

Form Field Management

The SfPdfViewer enables efficient form field management by supporting opening, saving, and printing PDFs while maintaining field integrity.

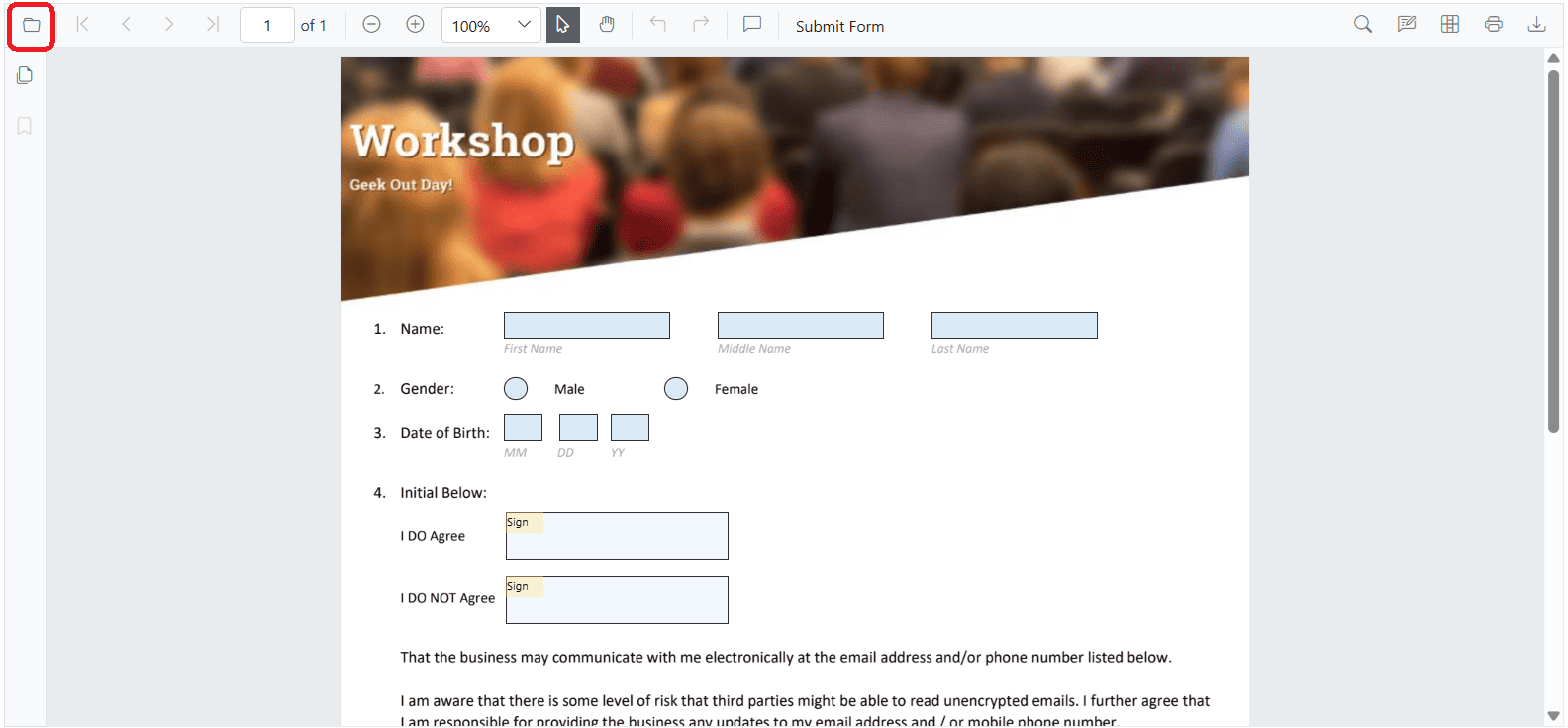

Open the PDF Documents with Interactive Form Fields

The SfPdfViewer component loads PDFs with interactive form fields while preserving properties and data. This enables modifications, validation, and data retention, even in large documents. A saved PDF with form fields can be opened using the Open icon in the toolbar. See the image below.

Also, see Open PDF files in SfPdfViewer for more details.

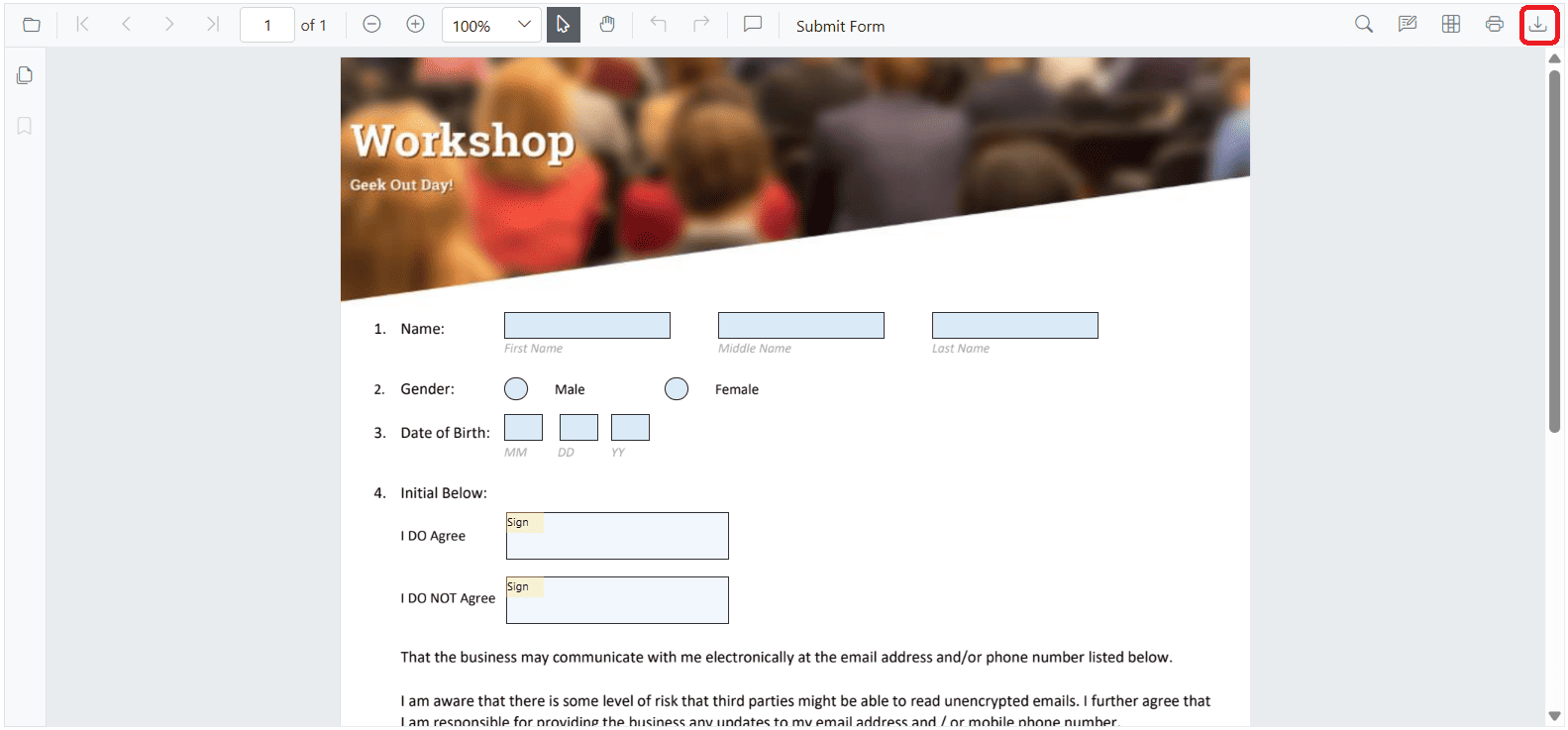

Saving Form Fields

The SfPdfViewer saves form fields within the PDF without modifying the original file. Selecting the Download icon preserves all field data and properties for future use. See the image below.

Also, see Saving PDF file in Blazor SfPdfViewer component for more details.

Printing Form Fields

In SfPdfViewer, form fields can have different visibility modes that control their appearance in the viewer and printed documents.

To control the Visibility of form fields in print mode, the VisibilityMode enum provides the following options:

Available Visibility Modes

Mode	Behavior
Visible	Always visible in both viewer and print.
Hidden	Completely hidden in both viewer and print.
VisibleNotPrintable	Visible in viewer but excluded from printing.
HiddenPrintable	Hidden in viewer but appears in print.

NOTE

The Visible mode is the default mode for form fields in SfPdfViewer.

This flexibility ensures precise control over which form fields are displayed or printed as needed.

The following code snippet shows how to add a form field that is visible in the viewer but excluded from printing in the SfPdfViewer component.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="AddVisibleNotPrintField">Add Visible Not Printable Textbox</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Fields_with_Visibility_Property.pdf"
                  Height="650px"
                  Width="100%">
    </SfPdfViewer2>
@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Adds a form field that appears in the viewer but is excluded from printing.
    private async void AddVisibleNotPrintField()
    {
        await PdfViewerInstance.AddFormFieldsAsync(
            [new TextBoxField {
                Name = "VisibleNotPrintable",
                Value = "VisibleNotPrintable",
                Bounds = new Bound { X = 270, Y = 620, Height = 30, Width = 200 },
                PageNumber = 1,
                Visibility = VisibilityMode.VisibleNotPrintable
            }]
        );
    }
}

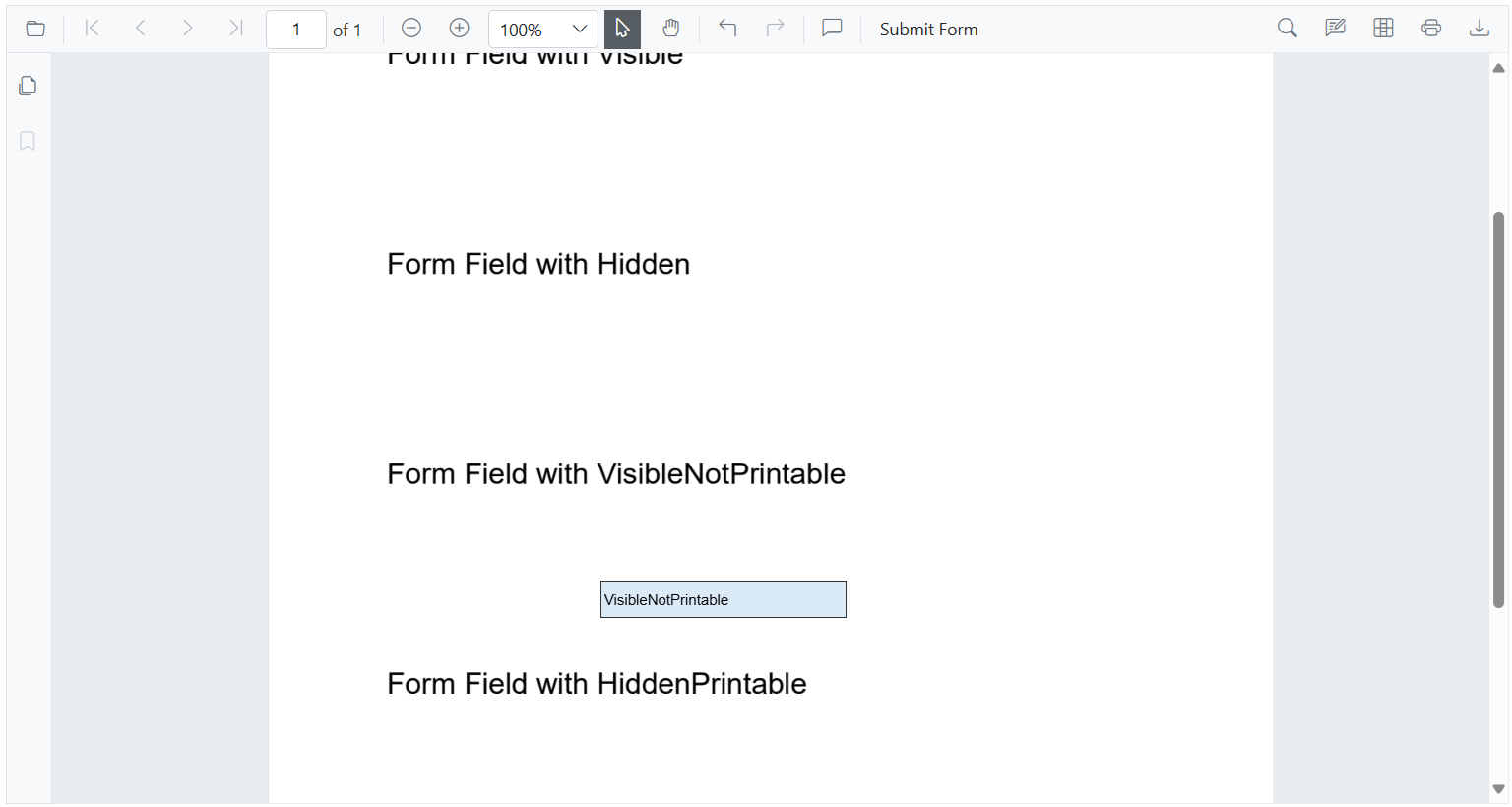

The following image shows the viewer.

The following image shows the print preview.

View sample in GitHub.

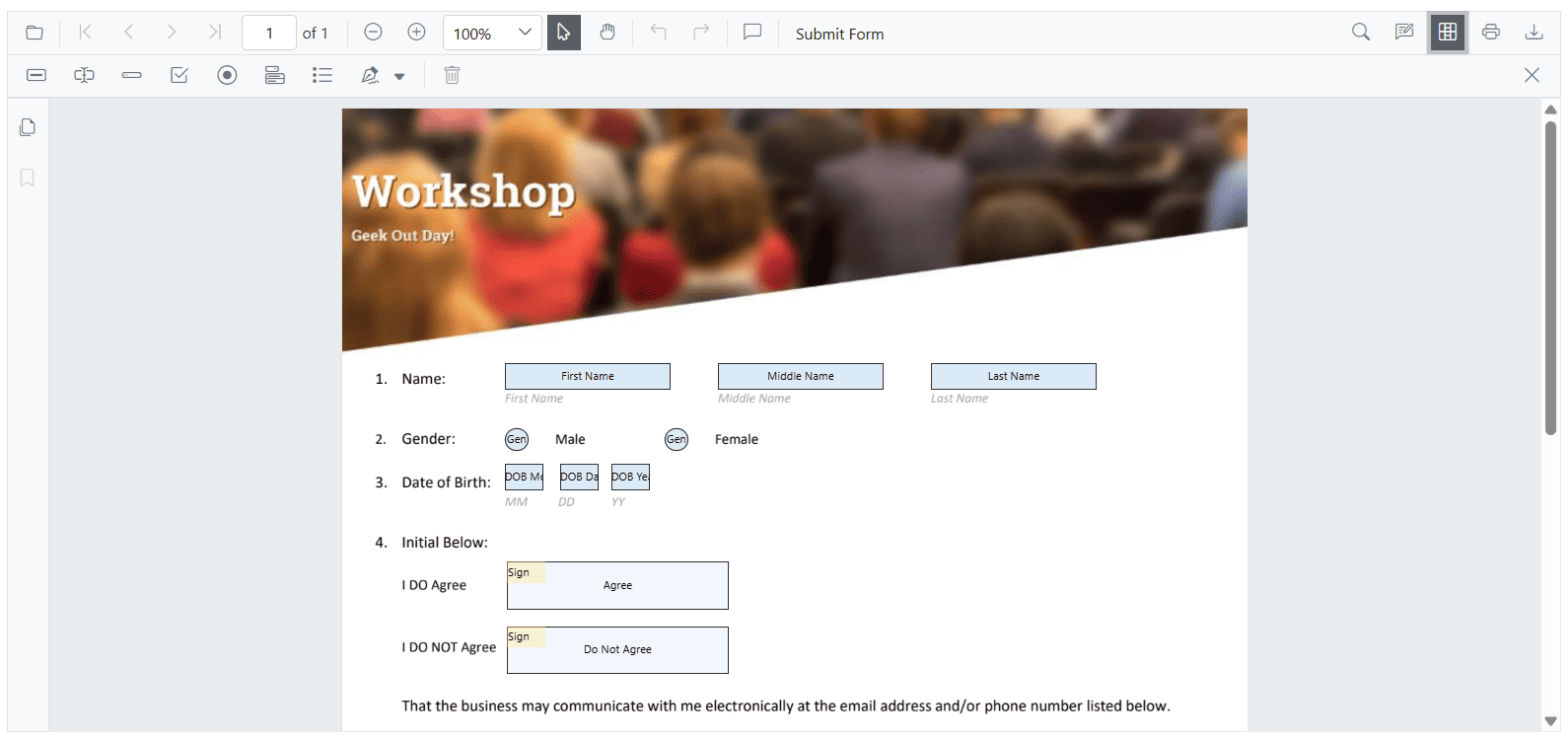

Enable or Disable Form Designer Module in SfPdfViewer

The Form Designer module in SfPdfViewer allows users to add and modify form fields within a PDF document.

To show the Form Designer icon on the toolbar in SfPdfViewer2, set the EnableFormDesigner property to true. No manual module injection is required in SfPdfViewer2.

If set to false, the PDF Viewer remains in Form Filling mode only, and the Form Designer feature is disabled.

NOTE

By default, EnableFormDesigner is true.

Example code for Injecting Form Designer Module

The following code snippet shows enabling the Form Designer toolbar in SfPdfViewer.

@using Syncfusion.Blazor.SfPdfViewer;

<!-- SfPdfViewer component with Form Designer enabled -->
<SfPdfViewer2 EnableFormDesigner = "true" DocumentPath="wwwroot/data/Form_Designer.pdf"
                  Height="650px"
                  Width="100%">
</SfPdfViewer2>

View sample in GitHub.

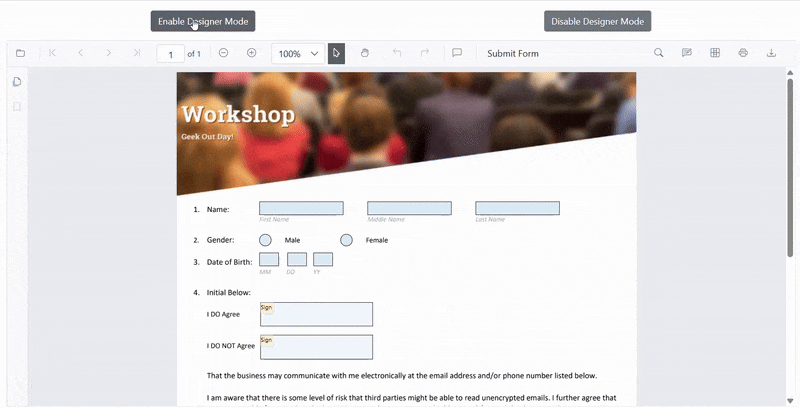

Enable or Disable Designer Mode in Form Designer

The Designer Mode in SfPdfViewer allows users to interact with form field design elements.

When Designer Mode is enabled, users can edit, move, and manipulate form fields within the PDF Viewer. If disabled, form fields remain static and can only be filled.

NOTE

By default, IsDesignerMode is set to false, meaning form fields can be filled but not modified.

The following example demonstrates how to Enable Designer Mode using SfButton components.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<!-- SfPdfViewer component with Designer Mode enabled -->
<SfPdfViewer2 IsDesignerMode="true"
                DocumentPath="wwwroot/data/Form_Designer.pdf"
                Height="650px"
                Width="100%">
</SfPdfViewer2>

View sample in GitHub.

Export and Import Form Fields Data

The SfPdfViewer control supports exporting and importing form field data in multiple formats.

This functionality allows saving, transferring, or restoring form field values efficiently using the following supported formats:

1. XML
2. FDF
3. XFDF
4. JSON
5. Object-based

The ExportFormFieldsAsync and ImportFormFieldsAsync methods allow you to export the form field data as a stream, which can later be used to import the saved data into another PDF document.

Types of Form Fields Export and Import

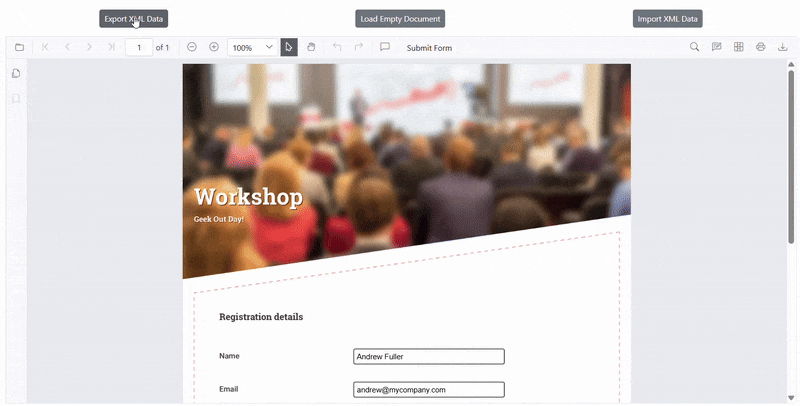

Export and Import as XML

Exports form field data in XML format and allows importing the same data back into a PDF document.

NOTE

Setting FormFieldDataFormat to Xml exports or imports form field data in XML format.

The following code shows how to export the form fields as an XML data stream and import that data from the stream into the current PDF document via a button click.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="ExportFormFieldData">Export Data</SfButton>
<SfButton OnClick="ImportFormFieldData">Import Data</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Filling_Document_With_Data.pdf"
              Height="650px"
              Width="100%">
</SfPdfViewer2>

@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Stream to store exported XML form field data
    Stream XMLStream = new MemoryStream();

    // List to store form field information
    List<FormFieldInfo> FormFields = new List<FormFieldInfo>();

    // Exports form field data from the PDF viewer to an XML stream
    private async Task ExportFormFieldData()
    {
        if (PdfViewerInstance != null)
        {
            // Retrieve form field information from the PDF viewer
            FormFields = await PdfViewerInstance.GetFormFieldsAsync();
            if (FormFields != null && FormFields.Count > 0)
            {
                // Export data to XML format
                XMLStream = await PdfViewerInstance.ExportFormFieldsAsync(FormFieldDataFormat.Xml);
            }
        }
    }

    // Imports form field data from the XML stream into the PDF viewer
    private async Task ImportFormFieldData()
    {
        if (PdfViewerInstance != null && XMLStream != null)
        {
            // Import XML data into the viewer
            await PdfViewerInstance.ImportFormFieldsAsync(XMLStream, FormFieldDataFormat.Xml);
        }
    }
}

View sample in GitHub.

Export and Import as FDF

Exports form field data in Forms Data Format (FDF) and allows importing the same data back into a PDF document.

NOTE

Setting FormFieldDataFormat to Fdf exports or imports form field data in FDF format.

The following code demonstrates exporting form fields as FDF to a stream and importing the data back into the current PDF document through a button click.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="ExportFormFieldData">Export Data</SfButton>
<SfButton OnClick="ImportFormFieldData">Import Data</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Filling_Document_With_Data.pdf"
              Height="650px"
              Width="100%">
</SfPdfViewer2>

@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Stream to store exported form field data in FDF format
    Stream FDFStream = new MemoryStream();

    // List to store form field information
    List<FormFieldInfo> FormFields = new List<FormFieldInfo>();

    // Exports form field data from the PDF viewer in FDF format
    private async void ExportFormFieldData()
    {
        // Retrieve form field information from the PDF viewer
        FormFields = await PdfViewerInstance.GetFormFieldsAsync();
        if (FormFields != null && FormFields.Count > 0)
        {
            // Export form fields as FDF data
            FDFStream = await PdfViewerInstance.ExportFormFieldsAsync(FormFieldDataFormat.Fdf);
        }
    }

    // Imports form field data from FDF format into the PDF viewer
    private async void ImportFormFieldData()
    {
        if (FDFStream != null)
        {
            // Import FDF data into the viewer
            await PdfViewerInstance.ImportFormFieldsAsync(FDFStream, FormFieldDataFormat.Fdf);
        }
    }
}

View sample in GitHub.

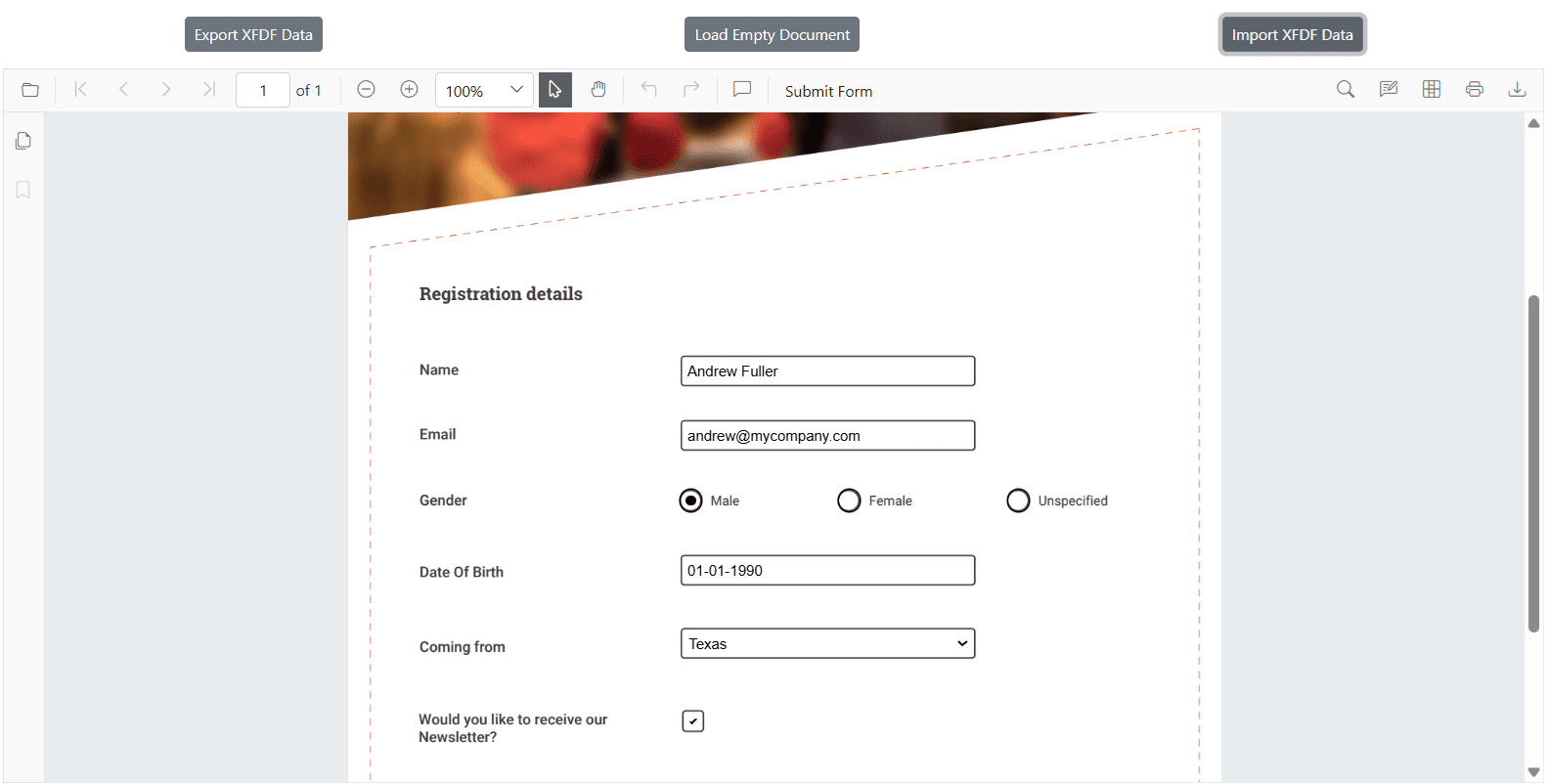

Export and Import as XFDF

Similar to FDF, but in XML-based format, XFDF ensures structured data handling for form fields.

NOTE

Setting FormFieldDataFormat to Xfdf exports or imports form field data in XFDF format.

The following code shows how to export the form fields as an XFDF data stream and import that data from the stream into the current PDF document via a button click.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="ExportFormFieldData">Export Data</SfButton>
<SfButton OnClick="ImportFormFieldData">Import Data</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Filling_Document_With_Data.pdf"
              Height="650px"
              Width="100%">
</SfPdfViewer2>

@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Stream to store exported XFDF form field data
    Stream XFDFStream = new MemoryStream();

    // List to store form field information
    List<FormFieldInfo> FormFields = new List<FormFieldInfo>();

    // Exports form field data from the PDF viewer to an XFDF stream
    private async void ExportFormFieldData()
    {
        // Retrieve form field information from the PDF viewer
        FormFields = await PdfViewerInstance.GetFormFieldsAsync();
        if (FormFields != null && FormFields.Count > 0)
        {
            // Export data to XFDF format
            XFDFStream = await PdfViewerInstance.ExportFormFieldsAsync(FormFieldDataFormat.Xfdf);
        }
    }
    // Imports form field data from the XFDF stream into the PDF viewer
    private async void ImportFormFieldData()
    {
        if (XFDFStream != null)
        {
            // Import XFDF data into the viewer
            await PdfViewerInstance.ImportFormFieldsAsync(XFDFStream, FormFieldDataFormat.Xfdf);
        }
    }
}

View sample in GitHub.

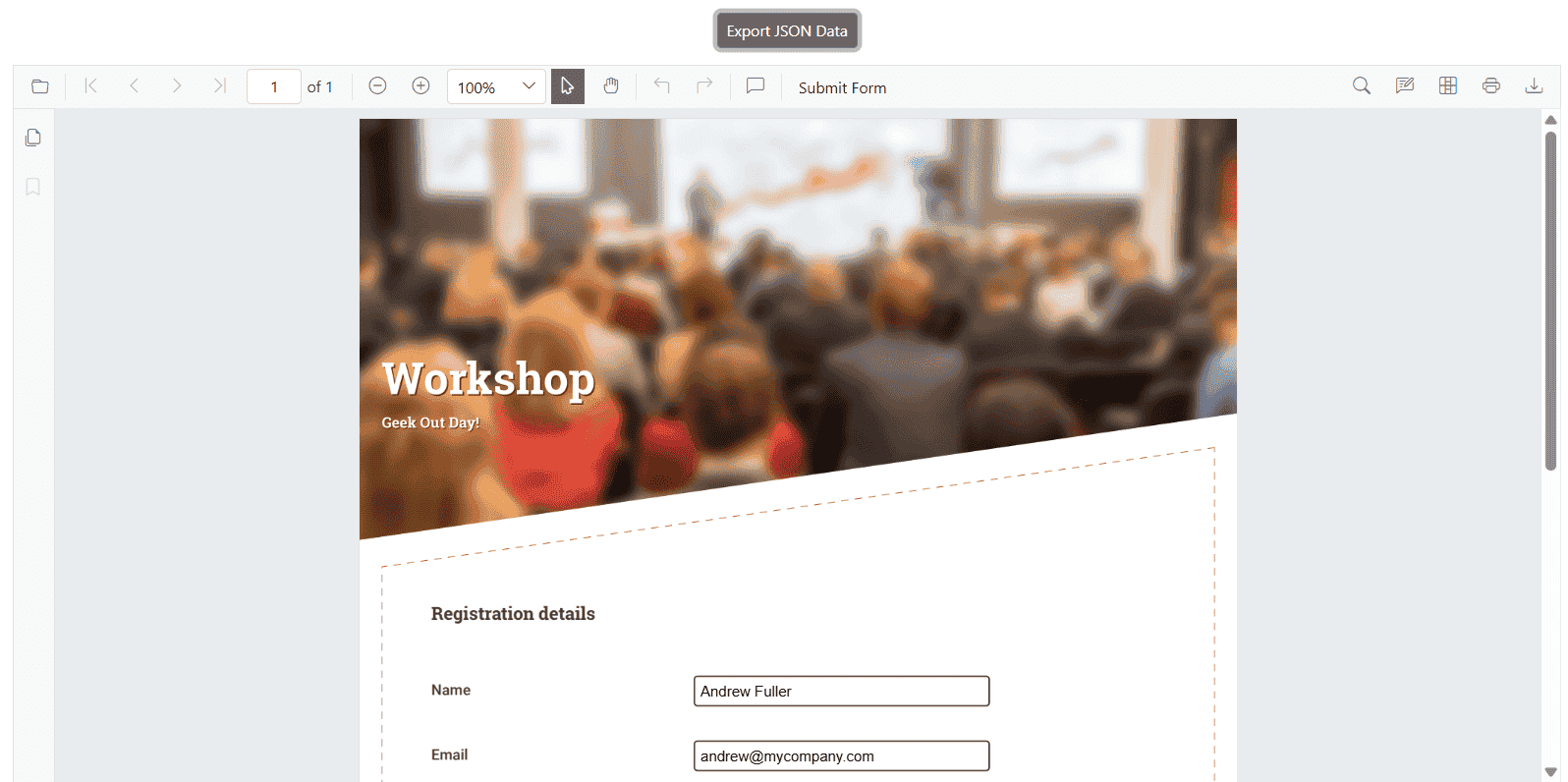

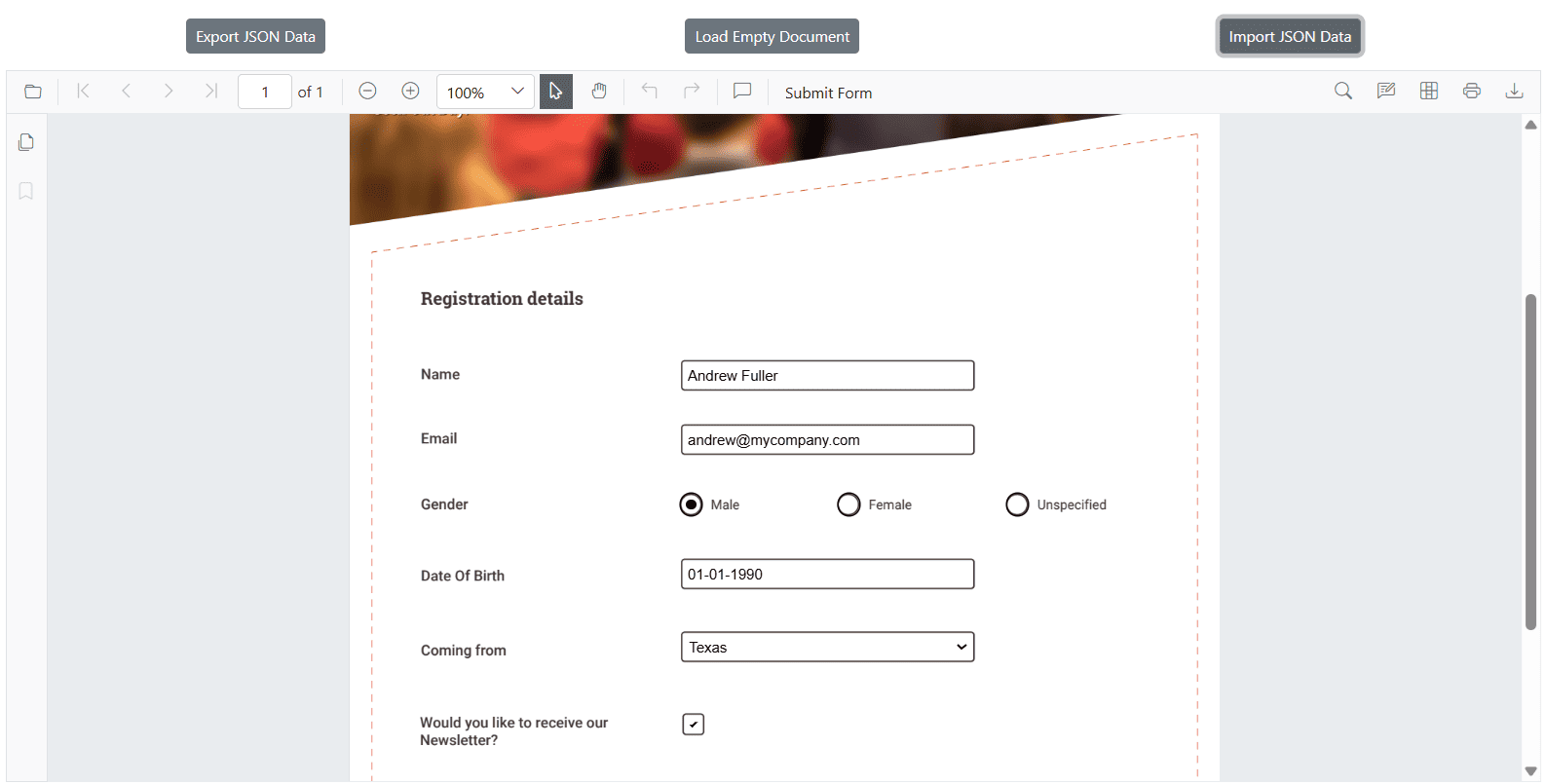

Export and Import as JSON

Exports form field data in JSON format, which can be easily read and imported back into the PDF Viewer.

NOTE

Setting FormFieldDataFormat to Json exports or imports form field data in JSON format.

The following code demonstrates exporting form fields as JSON to a stream and importing the data back into the current PDF document through a button click.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="ExportFormFieldData">Export Data</SfButton>
<SfButton OnClick="ImportFormFieldData">Import Data</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Filling_Document_With_Data.pdf"
              Height="650px"
              Width="100%">
</SfPdfViewer2>

@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Stream to store exported form field data in JSON format
    Stream JSONStream = new MemoryStream();

    // List to store form field information
    List<FormFieldInfo> FormFields = new List<FormFieldInfo>();

    // Exports form field data from the PDF viewer in JSON format
    private async void ExportFormFieldData()
    {
        // Retrieve form field information from the PDF viewer
        FormFields = await PdfViewerInstance.GetFormFieldsAsync();
        if (FormFields != null && FormFields.Count > 0)
        {
            // Export form fields as JSON data
            JSONStream = await PdfViewerInstance.ExportFormFieldsAsync(FormFieldDataFormat.Json);
        }
    }

    // Imports form field data from JSON format into the PDF viewer
    private async void ImportFormFieldData()
    {
        if (JSONStream != null)
        {
            // Import JSON data into the viewer
            await PdfViewerInstance.ImportFormFieldsAsync(JSONStream, FormFieldDataFormat.Json);
        }
    }
}

View sample in GitHub.

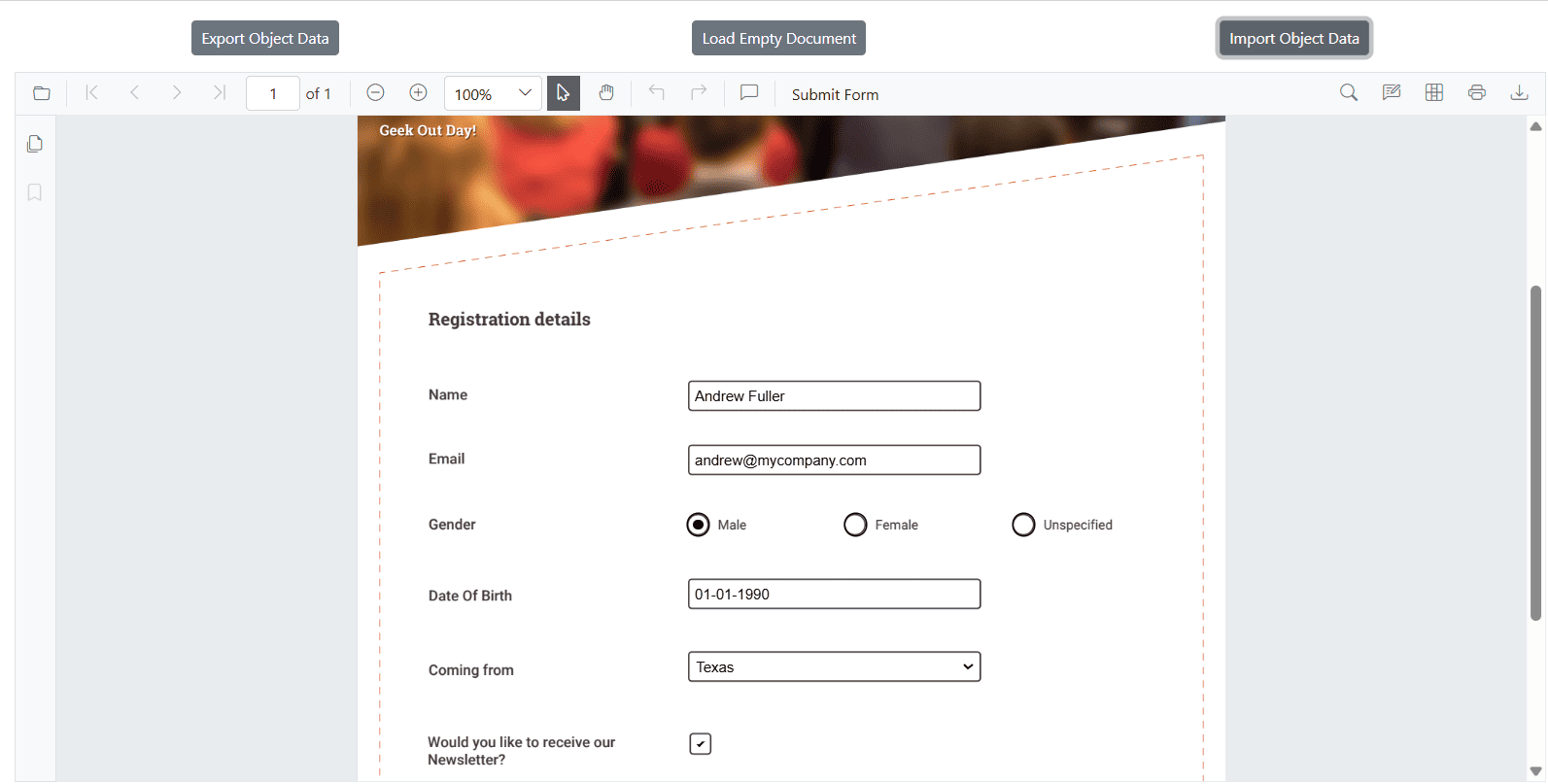

Export and Import as an Object

The Form fields can be exported and imported as an object, which is useful for in-memory processing and quick data manipulation.

The ExportFormFieldsAsObjectAsync and ImportFormFieldsAsync methods allow you to export the form field data as an Object, which can later be used to import the saved data into another PDF document.

The following code shows how to export form fields as an object and import that data into the current PDF document via a button click.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="ExportFormFieldData">Export Data</SfButton>
<SfButton OnClick="ImportFormFieldData">Import Data</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Filling_Document_With_Data.pdf"
              Height="650px"
              Width="100%">
</SfPdfViewer2>

@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Dictionary to store exported form field data as key-value pairs
    Dictionary<string, string> FormFieldsObject = new Dictionary<string, string>();

    // List to store form field information
    List<FormFieldInfo> FormFields = new List<FormFieldInfo>();

    // Exports form field data from the PDF viewer as an object (key-value pairs)
    private async void ExportFormFieldData()
    {
        // Retrieve form field information
        FormFields = await PdfViewerInstance.GetFormFieldsAsync();
        if (FormFields != null && FormFields.Count > 0)
        {
            // Export form fields as an object
            FormFieldsObject = await PdfViewerInstance.ExportFormFieldsAsObjectAsync();
        }
    }

    // Imports form field data from an object into the PDF viewer
    private async void ImportFormFieldData()
    {
        if (FormFieldsObject != null)
        {
            // Import object data into the viewer
            await PdfViewerInstance.ImportFormFieldsAsync(FormFieldsObject);
        }
    }
}

View sample in GitHub.

Export Form Fields as a JSON File

This method allows exporting the form field data and saving it as a JSON file, which can be stored or shared for future use.

NOTE

If ExportFormFieldsAsync is called with a string path (file name or path), the form field data is exported in JSON file format.

@using Syncfusion.Blazor.SfPdfViewer;
@using Syncfusion.Blazor.Buttons;

<SfButton OnClick="ExportFormFieldData">Export Data</SfButton>

<SfPdfViewer2 @ref="PdfViewerInstance" DocumentPath="wwwroot/data/Form_Filling_Document_With_Data.pdf"
              Height="650px"
              Width="100%">
</SfPdfViewer2>

@code {
    // Reference to the SfPdfViewer2 instance
    SfPdfViewer2 PdfViewerInstance { get; set; }

    // Exports form field data from the PDF viewer into a JSON file
    private async void ExportFormFieldData()
    {
        // Exports form fields and saves them as a JSON file
        await PdfViewerInstance.ExportFormFieldsAsync("");
    }
}

View sample in GitHub.

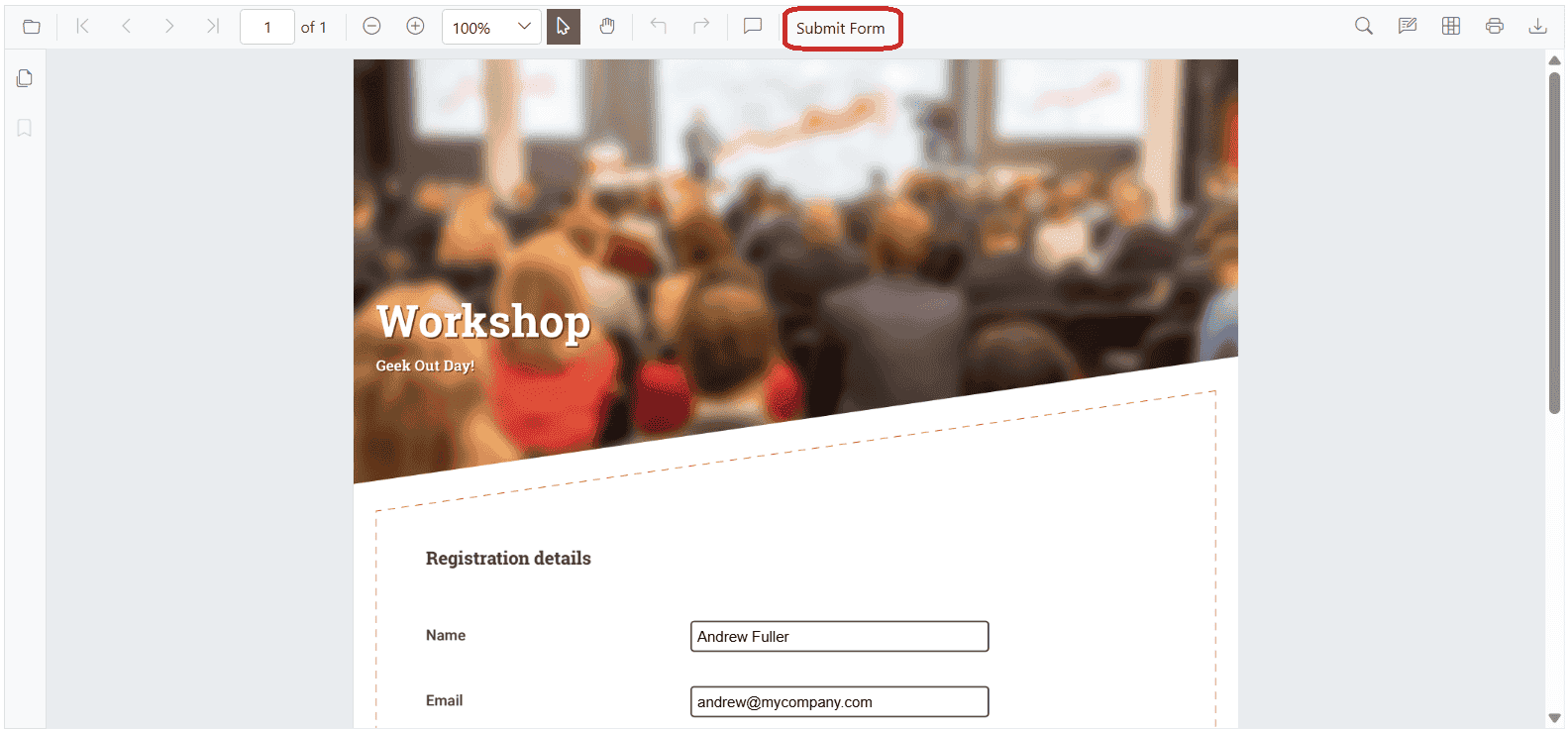

Additionally, the component provides a built-in Submit button that exports form field data as a JSON file directly from the PDF document. The following sections demonstrate multiple ways to export and import form field data.

See the image below.

See also

• UI interactions in form Designer
• Programmatic Support in Form Designer
• Custom Fonts in Form Designer
• Events in Form Designer
