Form Designer UI Interactions in Blazor PDF Viewer

The Form Designer in the Blazor PDF Viewer enables adding, editing, and manipulating form fields directly within a PDF document. It provides an intuitive interface to design interactive forms efficiently.

Form Field Interactions

Adding Form Fields

Click the Edit Form Fields icon on the toolbar, choose the required form field, and place it on the PDF document.

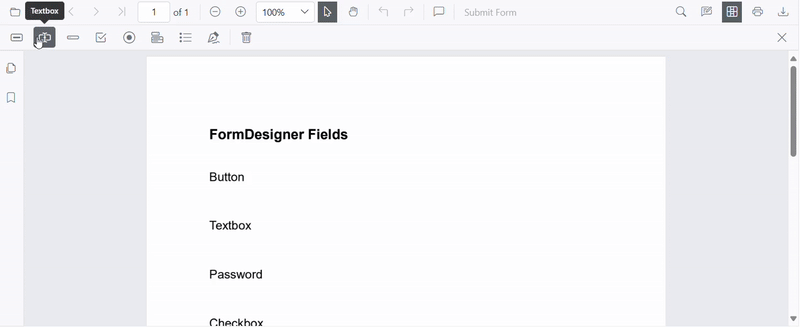

Add form fields using the Form Designer in SfPdfViewer

NOTE

Form fields can also be added programmatically in SfPdfViewer for advanced scenarios.
See Add form fields programmatically.

Dragging Form Fields

Drag form fields to reposition them anywhere within the document. Click and hold a form field to move it to the desired location; alignment guides help ensure precise placement before releasing the field.

Drag form fields in the Form Designer in SfPdfViewer

Resizing Form Fields

Resize form fields by dragging the resize handles at the edges or corners to fit the required dimensions within the document.

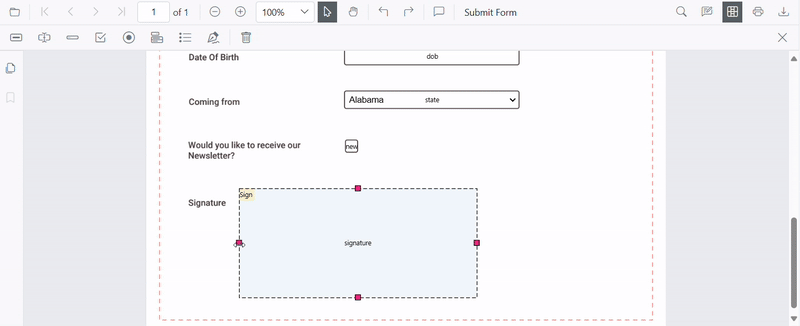

Resize form fields in the Form Designer in SfPdfViewer

Editing or Updating Form Fields

Edit form fields using the Form Field Properties panel. Open the panel by selecting the Properties option from the context menu that appears when right-clicking a form field.

The Form Field Properties panel consists of three tabs that provide customization options. Available options may vary by field type.

NOTE

Edit form fields can also be performed programmatically in SfPdfViewer for precise customization.
See Edit form fields programmatically.

General Tab

  • Modify the field name to assign a unique identifier.
  • Add a tooltip to provide additional information about the field.
  • Set or update the value of the field.
  • Configure the field’s visibility settings.
  • Enable or disable read-only mode to prevent user modifications.
  • Mark the field as required to ensure completion before form submission.
  • Enable multiline input for text fields to allow multiple lines of text.

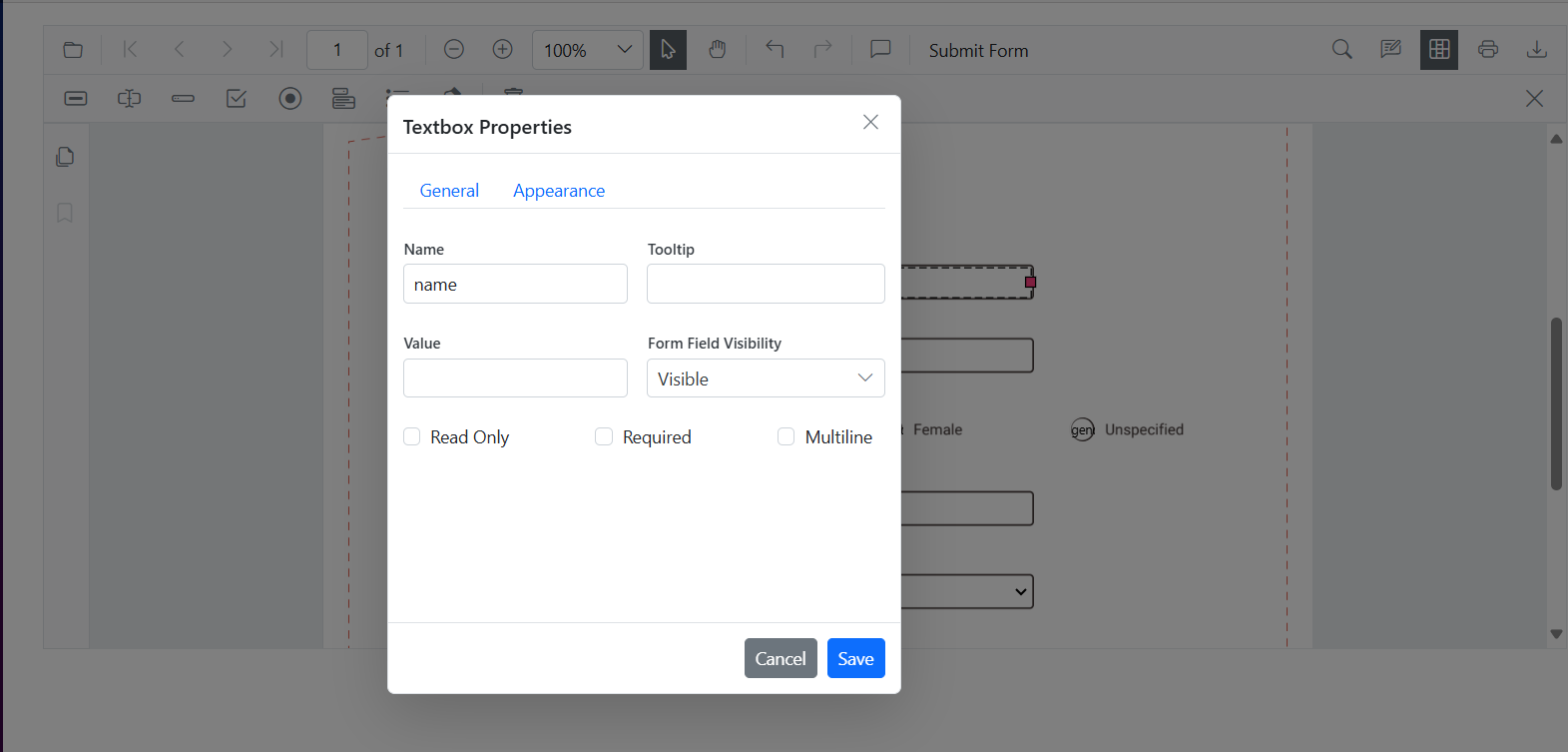

Edit properties in a textbox field

Appearance Tab

  • Customize the font family of the text.
  • Apply bold or italic styles.
  • Adjust the font size for better readability.
  • Set the border color and fill color for visual distinction.
  • Modify the border thickness to adjust the field’s outline.
  • Align text using the alignment settings.
  • Define the maximum length of text input.

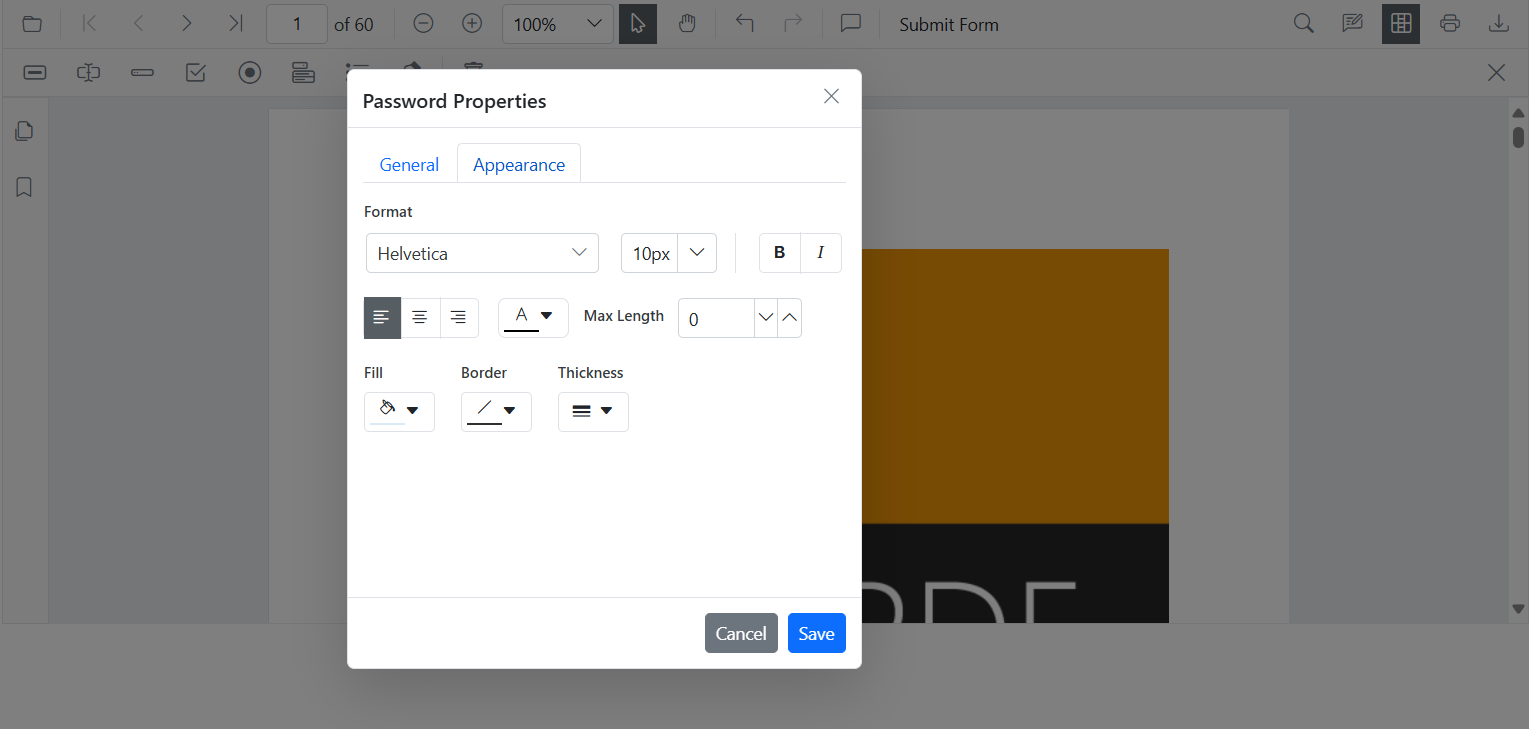

Edit appearance properties in a password field

Options Tab (For Dropdown and Listbox Fields)

  • Add, modify, or remove selectable options for dropdowns and list boxes.
  • Customize option lists to display the required choices for users.

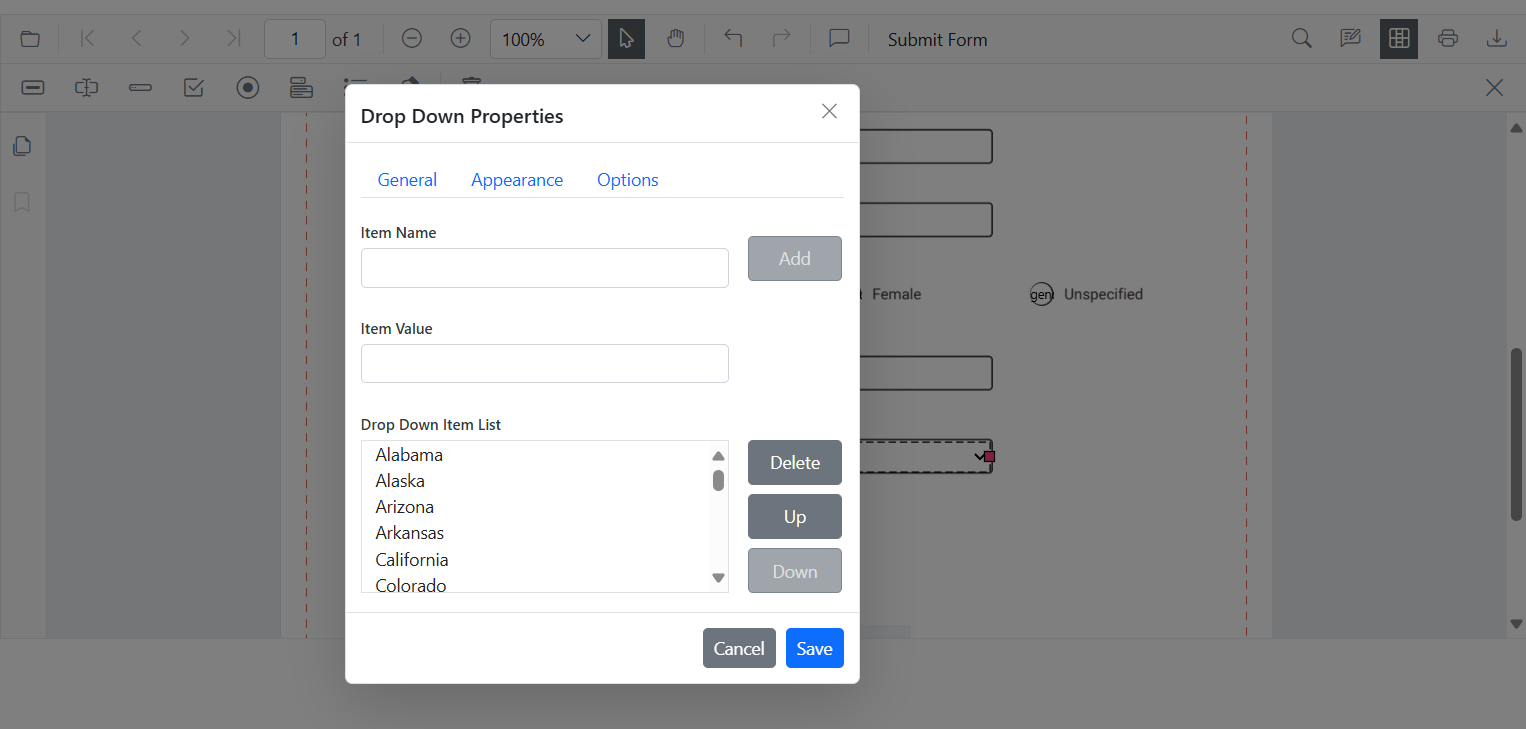

Edit options in a dropdown field

Form Field Operations

Manage form fields using copy, cut, paste, undo, and redo operations. Duplicate fields with Copy (Ctrl+C), move them with Cut (Ctrl+X), and insert them elsewhere with Paste (Ctrl+V).

Revert the last change with Undo (Ctrl+Z) or restore an undone action with Redo (Ctrl+Y) to streamline workflow adjustments.

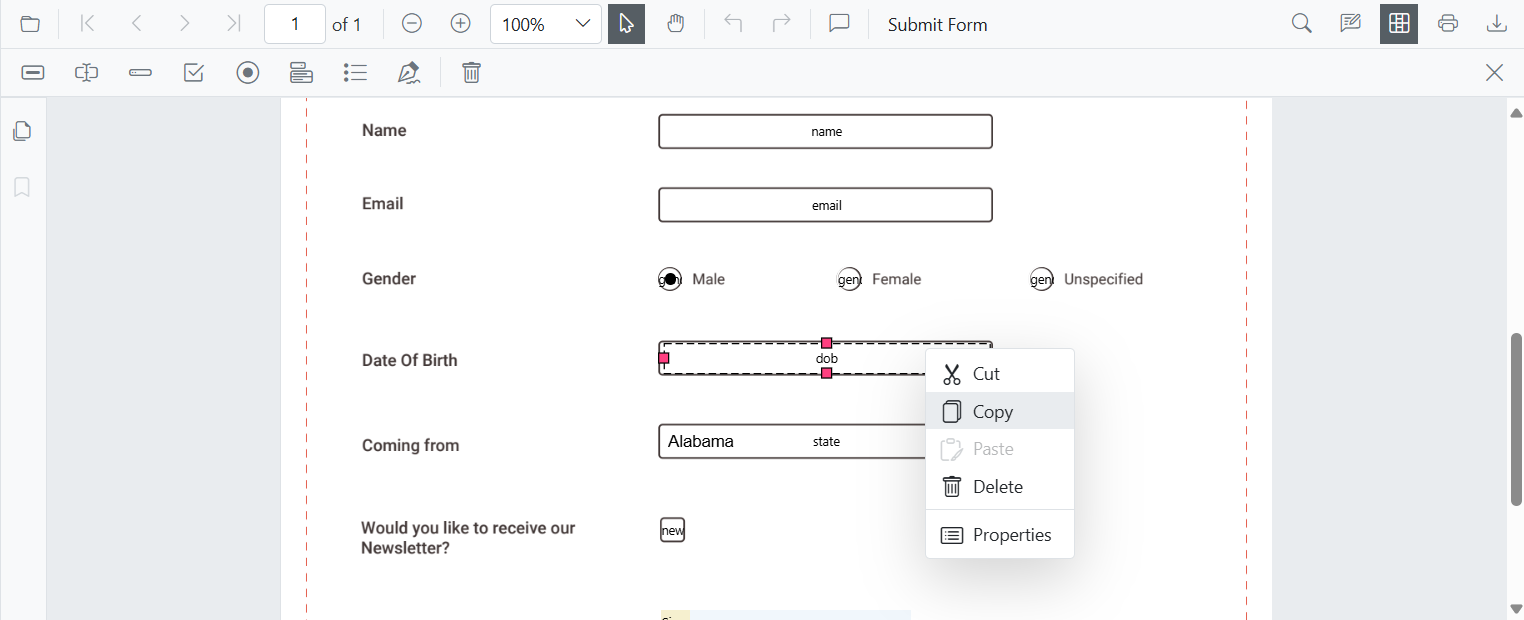

Form field operations using the context menu

Deleting a Form Field

Remove form fields by selecting the desired field and clicking the Delete icon in the Form Designer toolbar or by choosing Delete from the context menu.

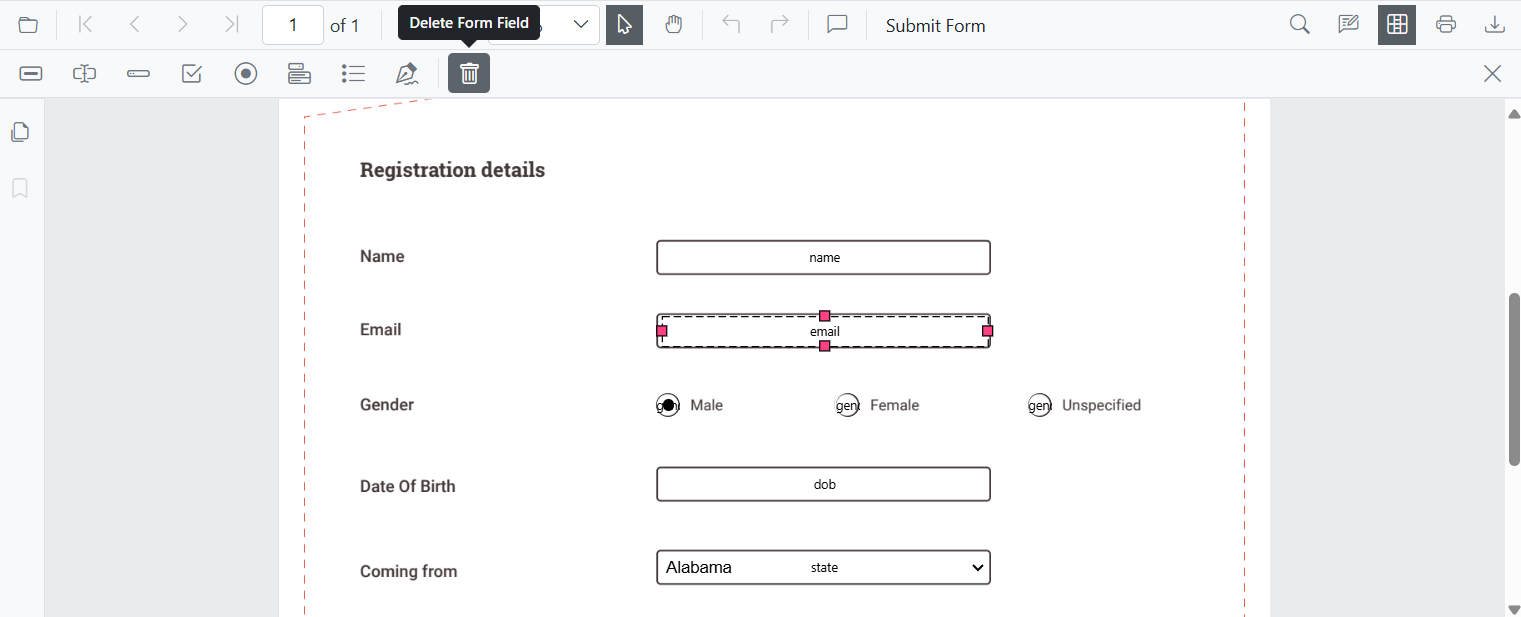

Delete a form field through the UI

NOTE

Form fields can also be deleted programmatically in SfPdfViewer.
See Delete form fields programmatically.
