Comments in ASP.NET Core PDF Viewer

28 Feb 20269 minutes to read

The PDF Viewer control provides comprehensive comment management capabilities for annotation discussions and collaboration. Add, reply, edit, and delete comments across multiple annotation types.

Supported annotation types

Comments can be added to the following annotation types in PDF documents:

• Shape annotation
• Stamp annotation
• Sticky note annotation
• Measurement annotation
• Text markup annotation
• Free text annotation
• Ink annotation

Adding a comment to the annotation

Annotation comments, replies, and status can be managed in the PDF document using the comment panel.

Comment panel

The comment panel provides a centralized interface for managing all annotation comments and discussions. The comment panel can be opened in multiple ways:

Opening the comment panel

Method 1: Using the annotation toolbar

1. Click the Edit Annotation button in the PDF Viewer toolbar
2. A secondary toolbar appears below the main toolbar
3. Click the Comment Panel button
4. The comment panel opens on the right side of the screen

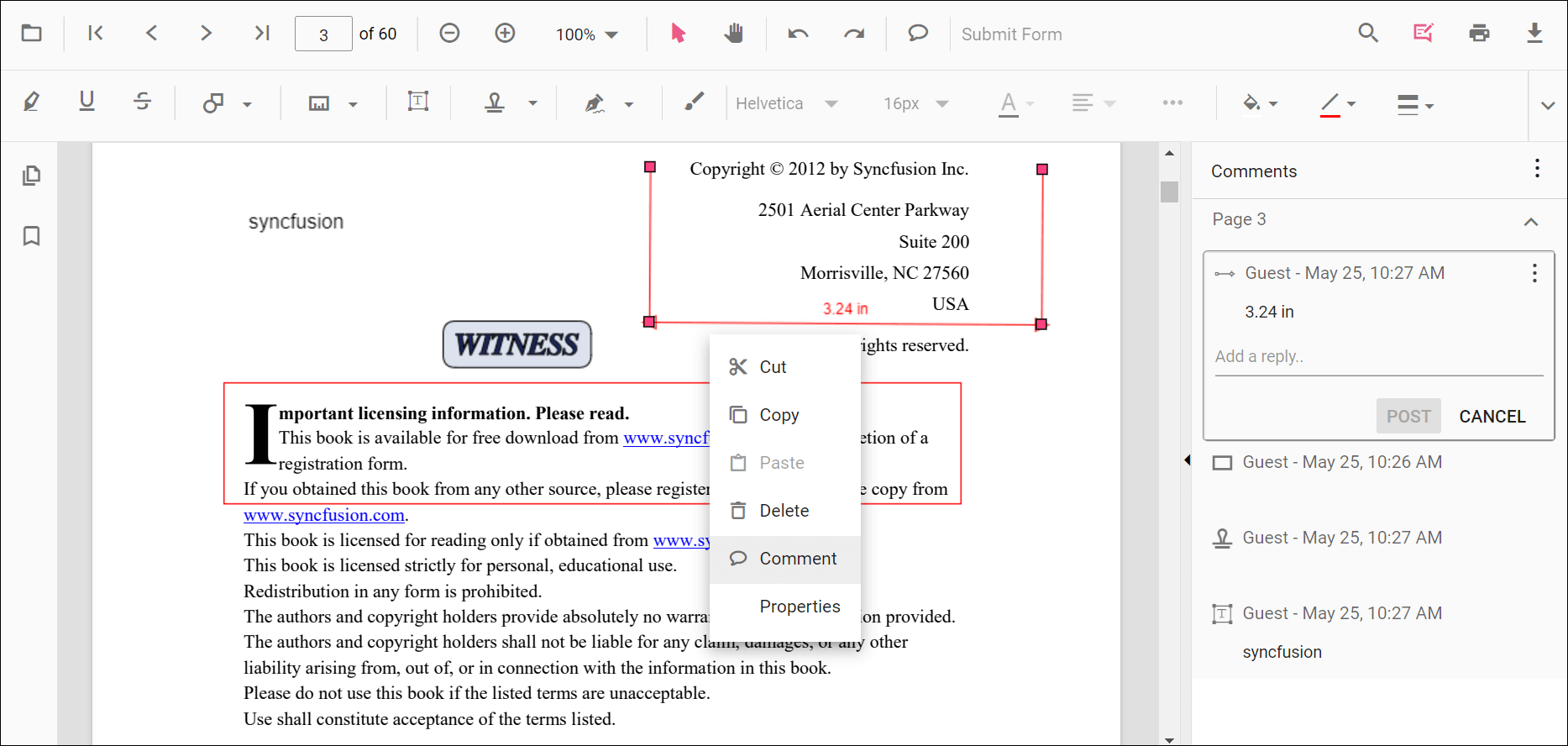

Method 2: Using context menu

1. Select an annotation in the PDF document
2. Right-click to open the context menu
3. Select Comment from the menu
4. The comment panel opens and shows that annotation’s thread

Method 3: Using double-click

1. Select an annotation in the PDF document
2. Double-click the annotation
3. The comment panel opens automatically

Working with the comment panel

Once the comment panel is open:

• The corresponding comment thread for the selected annotation is automatically highlighted
• Add new comments using the text input field
• View all replies to parent comments
• Edit or delete existing comments
• Change comment status from the options menu

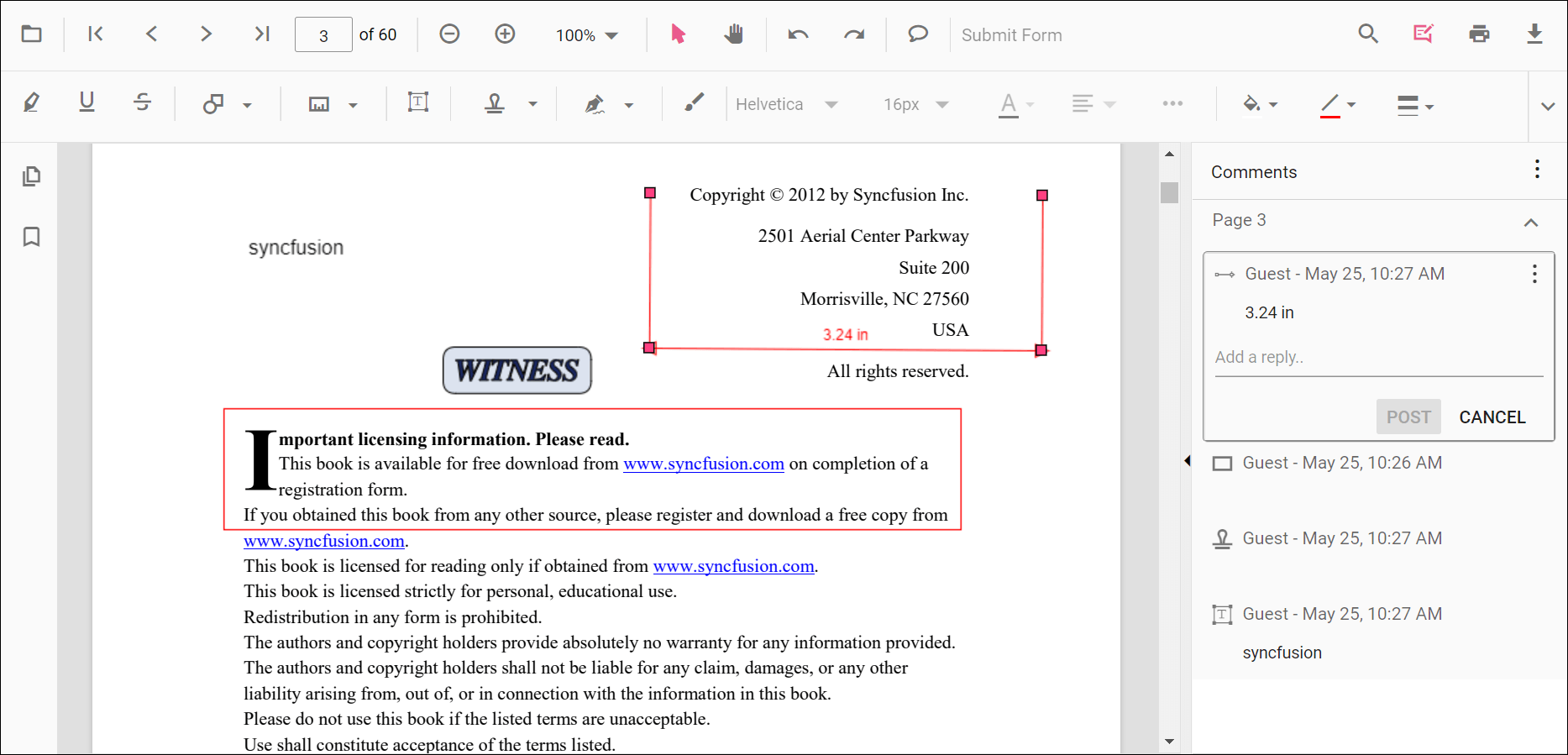

Adding comments

Step-by-step guide:

1. Select the annotation - Click on any annotation in the PDF document
2. View comment thread - The corresponding comment thread is automatically highlighted in the comment panel
3. Enter comment text - Type your comment in the text input field at the bottom of the thread
4. Submit comment - Press Enter or click the Post button to post the comment

Adding comment replies

Comments support threaded discussions through replies.

• Multiple replies can be added to a single comment
• Replies maintain the conversation context within the thread
• All replies are nested under the parent comment
• Edit and delete options available for each reply

Creating a reply:

1. Click an existing comment in the thread
2. Click the Add a reply button
3. Type your reply text in the reply input field
4. Press Enter or click submit to post the reply

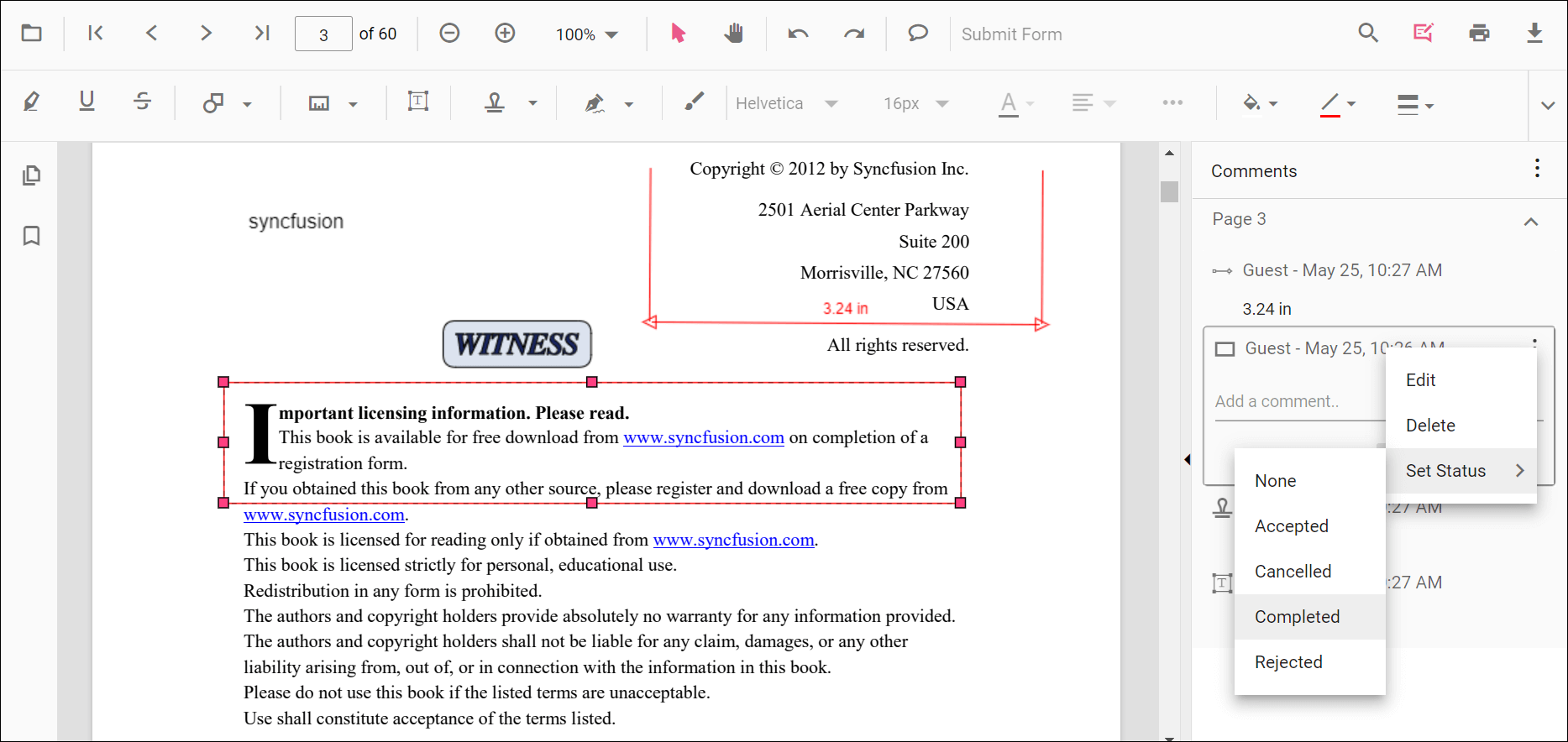

Adding comment or reply status

Comments and replies can have status indicators for workflow tracking.

Setting status:

1. Select the annotation comment in the comment panel
2. Click the More options menu (three dots) on the comment or reply container
3. Select Set Status from the context menu
4. Choose a status from the dropdown:
   • None - Default state
   • Accepted - Comment approved
   • Rejected - Comment rejected
   • Cancelled - Comment cancelled

Editing the comments and comments replies of the annotations

Comments, replies, and status can be edited at any time using the comment panel interface.

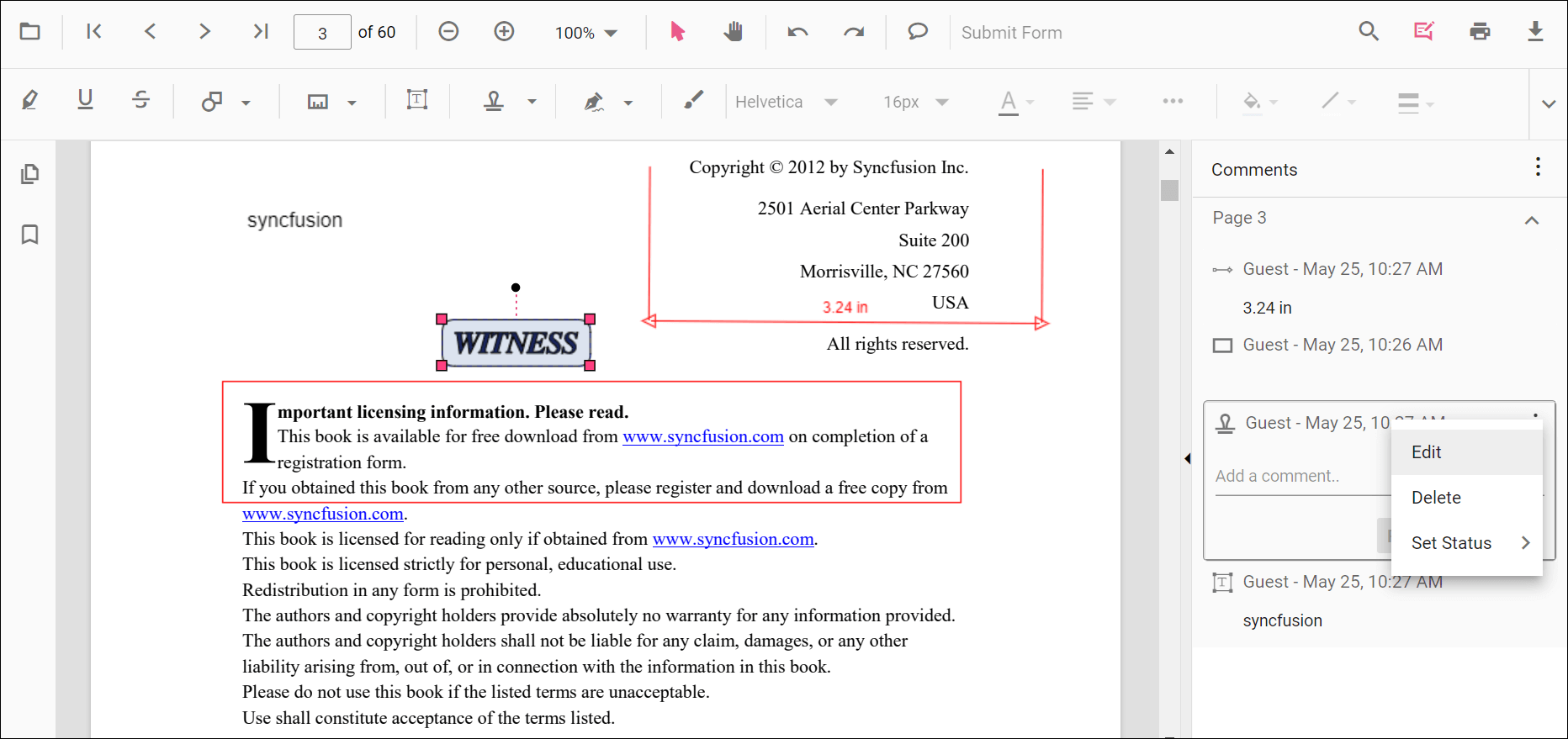

Editing comments or replies

Edit comments and replies using one of these methods:

Method 1: Using the context menu

1. Select the annotation comment in the comment panel
2. Click the More options menu on the comment or reply container
3. Select Edit from the context menu
4. An editable text box appears
5. Change the comment or reply content
6. Press Enter or click Post to confirm changes

Method 2: Using mouse click

1. Select the annotation comment in the comment panel
2. Double-click directly on the comment or reply text
3. The text becomes editable inline
4. Modify the content as needed
5. Press Enter to save or Escape to cancel

Editing comment or reply status

Status can be changed at any time:

1. Select the annotation comment in the comment panel
2. Click the More options menu on the comment or reply
3. Select Set Status from the context menu
4. Choose a new status from the dropdown

Status states:

• None
• Accepted
• Rejected
• Cancelled
• Completed

Delete comments or replies

Remove comments and replies from the discussion thread:

1. Select the annotation comment in the comment panel
2. Click the More options menu on the comment or reply
3. Select Delete from the context menu
4. The comment or reply is removed from the thread

NOTE

Deleting the root comment (the first comment in a thread) from the comment panel also deletes the associated annotation from the PDF document.

How to check the comments added by the user

Comments can be accessed and processed programmatically through the annotation’s comments property, enabling integration with external systems and custom workflows.

Example: Access and log comments from annotations

Standalone

<!--Element to check the comments added in the PDF document.-->
<button id="check" onclick="checkComments()">Check the Comments</button>
<div class="text-center">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
                   enableTextSelection="true">
    </ejs-pdfviewer>
</div>

<script>
    function checkComments() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        var annotationCollections = pdfviewer.annotationCollection;
        for (var x = 0; x < annotationCollections.length; x++) {
          //Prints the annotation id in the console window.
          console.log("annotation Id : " +annotationCollections[x].annotationId);
          var comments = annotationCollections[x].comments;
          for (var y = 0; y < comments.length; y++) {
            var comment = comments[y];
            //Prints the PDF document's comments in the console window.
            console.log("comment" + "[" + y + "] :" + comment.note);
          }
          var note = annotationCollections[x].note;
          console.log("note : " + note);
        }
    }
</script>

Server-Backed

<!--Element to check the comments added in the PDF document.-->
<button id="check" onclick="checkComments()">Check the Comments</button>
<div class="text-center">
    <ejs-pdfviewer id="pdfviewer"
                   style="height:600px"
                   serviceUrl="/api/PdfViewer"
                   documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
                   enableTextSelection="true">
    </ejs-pdfviewer>
</div>

<script>
    function checkComments() {
        var pdfviewer = document.getElementById('pdfviewer').ej2_instances[0];
        var annotationCollections = pdfviewer.annotationCollection;
        for (var x = 0; x < annotationCollections.length; x++) {
          //Prints the annotation id in the console window.
          console.log("annotation Id : " +annotationCollections[x].annotationId);
          var comments = annotationCollections[x].comments;
          for (var y = 0; y < comments.length; y++) {
            var comment = comments[y];
            //Prints the PDF document's comments in the console window.
            console.log("comment" + "[" + y + "] :" + comment.note);
          }
          var note = annotationCollections[x].note;
          console.log("note : " + note);
        }
    }
</script>
