Setting Sliding Panel size in Xamarin Navigation Drawer (SfNavigationDrawer)

17 May 20214 minutes to read

The size of side pane can be adjusted using DrawerHeight and DrawerWidth properties.

Drawer Height

DrawerHeight property is used to change the height of side pane when the Position is Top or Bottom.

<?xml version="1.0" encoding="utf-8"?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:NaviSample"
             xmlns:navigationdrawer="clr-namespace:Syncfusion.SfNavigationDrawer.XForms;assembly=Syncfusion.SfNavigationDrawer.XForms"
             x:Class="NaviSample.MainPage">
    <navigationdrawer:SfNavigationDrawer x:Name="navigationDrawer"
                                         DrawerHeight="40"
                                         Position="Top">
        <navigationdrawer:SfNavigationDrawer.DrawerHeaderView>
            <Label Text="This is a very short content used to demonstrate the DrawerHeight property "/>
        </navigationdrawer:SfNavigationDrawer.DrawerHeaderView>
    </navigationdrawer:SfNavigationDrawer>
</ContentPage>
Syncfusion.SfNavigationDrawer.XForms.SfNavigationDrawer navigationDrawer = new Syncfusion.SfNavigationDrawer.XForms.SfNavigationDrawer();

navigationDrawer.Position = Position.Top;

navigationDrawer.DrawerHeight = 40;

navigationDrawer.DrawerHeaderView = new Label()

{

    Text = "This is a very short content used to demonstrate the DrawerHeight property"

};

Content = navigationDrawer;

Drawer height

Drawer Width

DrawerWidth property is used to change the width of side pane when the Position is Left or Right.

<?xml version="1.0" encoding="utf-8"?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:NaviSample"
             xmlns:navigationdrawer="clr-namespace:Syncfusion.SfNavigationDrawer.XForms;assembly=Syncfusion.SfNavigationDrawer.XForms"
             x:Class="NaviSample.MainPage">
    <navigationdrawer:SfNavigationDrawer x:Name="navigationDrawer"
                                         DrawerWidth="200"
                                         Position="Left">
        <navigationdrawer:SfNavigationDrawer.DrawerHeaderView>
            <Label Text="This is a very short content used to demonstrate the DrawerHeight property "/>
        </navigationdrawer:SfNavigationDrawer.DrawerHeaderView>
    </navigationdrawer:SfNavigationDrawer>
</ContentPage>
using System;
using Syncfusion.SfNavigationDrawer.XForms;
using Xamarin.Forms;

namespace NaviSample
{
    public partial class MainPage : ContentPage
    {
        public MainPage()
        {
            InitializeComponent();
            SfNavigationDrawer navigationDrawer = new SfNavigationDrawer()
            {
                Position = Position.Left,
                DrawerWidth = 200,
                DrawerHeaderView = new Label()
                {
                    Text = "This is a very short content used to demonstrate the DrawerHeight property"
                }
            };

            Content = navigationDrawer;
        }
    }
}

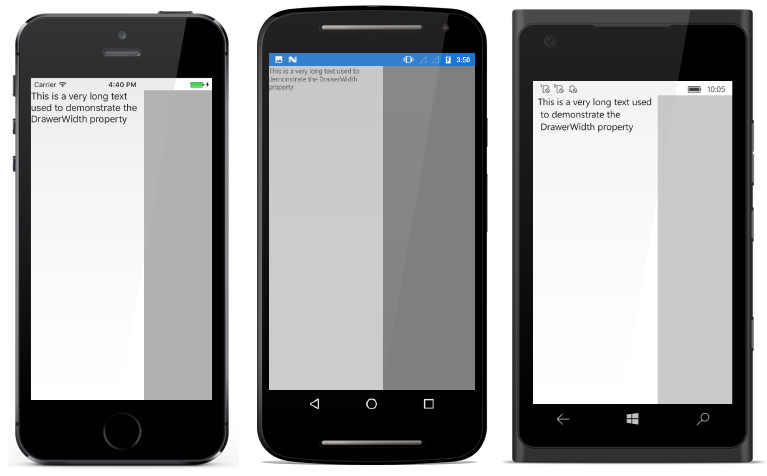

Drawer width
