Appearance and styling

The Uploadbox widget provides support to customize the dialog box text and button text.

Customizing Button Text

The following table contains the sub properties available under buttonText property. To customize the text, pass the alternate text with corresponding sub properties.

Sub-properties under buttonText property

Name Description Data Type
browse Sets the alternative text for browse button. String
upload Sets the alternative text for upload button. String
cancel Sets the alternative text for cancel button. String

The following steps explain the configuration of buttonText property in Uploadbox.

In the HTML page, add the <div> element to configure the Uploadbox element.

  • html
  • <div class="control">
        <div id="Uploadbox"></div>
    </div>
  • js
  • /// <reference path="../tsfiles/jquery.d.ts" />
    /// <reference path="../tsfiles/ej.web.all.d.ts" />

    module UploadboxComponent {
        // Initialize the control in JavaScript.
        $(function () {
            //Declaration.
            var sample = new ej.Uploadbox($("#Uploadbox"),{
                saveUrl: "saveFiles.ashx",
                removeUrl: "removeFiles.ashx",
                buttonText: { browse: "Choose File", upload: "Upload File", cancel: "Cancel Upload" }
            });
        });
    }

    For JS, configure saveFiles.ashx and removeFiles.ashx files as mentioned in the Save file action and Remove file action respectively.

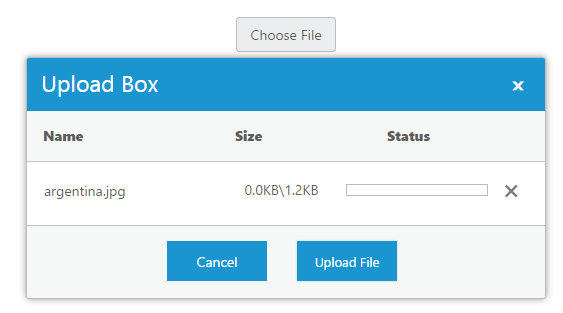

    The following screenshot displays the output.

    Customizing Upload Dialog

    The following table contains the sub properties available under Uploadbox’s DialogText property. To customize the text, pass the alternate text with corresponding sub properties.

    Sub properties under dialogText property.

    Name Description
    title Sets the alternative text for Title of Uploadbox dialog.
    name Sets the alternative text for Name column.
    size Sets the alternative text for Size column.
    status Sets the alternative text for status column.

    The following steps explain the configuration of dialogText property in Uploadbox.

    In the HTML page, add the <div> element to configure the Uploadbox element.

  • html
  • <div class="control">
        <div id="Uploadbox"></div>
    </div>
  • js
  • /// <reference path="../tsfiles/jquery.d.ts" />
    /// <reference path="../tsfiles/ej.web.all.d.ts" />

    module UploadboxComponent {
        // Initialize the control in JavaScript.
        $(function () {
            //Declaration.
            var sample = new ej.Uploadbox($("#Uploadbox"),{
                saveUrl: "saveFiles.ashx",
                removeUrl: "removeFiles.ashx",
                dialogText: { title: "Upload File List", name: "File Name", size: "File Size", status: "File Status" }
            });
        });
    }

    For JS, configure saveFiles.ashx and removeFiles.ashx files as mentioned in the Save file action and Remove file action respectively.

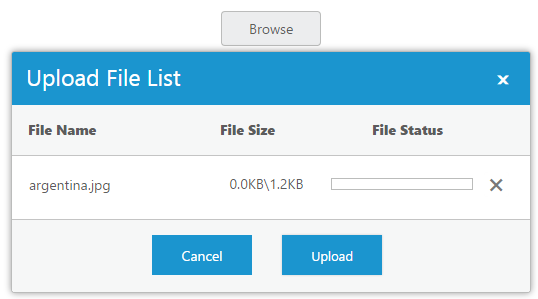

    The following screenshot displays the output.

    Show or Hide File details

    You have an option to show or hide file details in the uploaded file list dialog. By using this property, the uploaded file dialog does not display the file details once selected. To enable this, set showFileDetails to ‘false’. By default, its value is set to ‘true’. The data type is Boolean.

    The following steps explains the configuration of showFileDetails property in Uploadbox.

    In the HTML page, add the <div> element to configure the Uploadbox element.

  • html
  • <div class="control">
        <div id="Uploadbox"></div>
    </div>
  • js
  • /// <reference path="../tsfiles/jquery.d.ts" />
    /// <reference path="../tsfiles/ej.web.all.d.ts" />

    module UploadboxComponent {
        // Initialize the control in JavaScript.
        $(function () {
            //Declaration.
            var sample = new ej.Uploadbox($("#Uploadbox"),{
                saveUrl: "saveFiles.ashx",
                removeUrl: "removeFiles.ashx",
                showFileDetails: false
            });
        });
    }

    For JS, configure saveFiles.ashx and removeFiles.ashx files as mentioned in the Save file action and Remove file action respectively.

    Theme

    Uploadbox control’s style and appearance are controlled based on CSS classes. In order to apply styles to the Uploadbox control, you can refer to two files namely, ej.widgets.core.min.css and ej.theme.min.css. When the file ej.widgets.all.min.css is referred, then it is not necessary to include the files ej.widgets.core.min.css and ej.theme.min.css in your project, as ej.widgets.all.min.css is the combination of these both files.

    By default, there are 16-theme support available for Uploadbox control namely,

    • Default-theme
    • Flat-azure-dark
    • Fat-lime
    • Flat-lime-dark
    • Flat-saffron
    • Flat-saffron-dark
    • Gradient-azure
    • Gradient-azure-dark
    • Gradient-lime
    • Gradient-lime-dark
    • Gradient-saffron
    • Gradient-saffron-dark
    • high-contrast-01
    • high-contrast-02
    • material
    • office-365

    Custom CSS

    CSS class customizes the Uploadbox control’s appearance. Define a CSS class as per the requirement and assign the class name to cssClass property. The data type is string.

    The following steps explain the configuration of cssClass property in Uploadbox.

    In the HTML page, add the <div> element to configure the Uploadbox element.

  • html
  • <div class="control">
        <div id="Uploadbox"></div>
    </div>
  • js
  • /// <reference path="../tsfiles/jquery.d.ts" />
    /// <reference path="../tsfiles/ej.web.all.d.ts" />

    module UploadboxComponent {
        // Initialize the control in JavaScript.
        $(function () {
            //Declaration.
            var sample = new ej.Uploadbox($("#Uploadbox"),{
                saveUrl: "saveFiles.ashx",
                removeUrl: "removeFiles.ashx",
                cssClass: "custom"
            });
        });
    }

    In CSS, configure Custom Styles for the Uploadbox.

  • css
  • <style class="cssStyles">
      .custom.e-uploadbox.e-widget .e-selectpart.e-select{
            background-color: #FFFFCC;
            font-weight: bold;
            font-family: sans-serif;
        }
    </style>

    For JS, configure saveFiles.ashx and removeFiles.ashx files as mentioned in the Save file action and Remove file action respectively.

    The following screenshot displays the output.
