Getting Started

This section explains briefly about how to create an Uploadbox in your application with Typescript. Essential JavaScript Uploadbox widget provides support to upload files or photos within your web page. From the following guidelines, you can learn how to upload the files that are used in a Resume Upload scenario. This helps you to restrict some file extensions when you upload the resume in server by using Uploadbox control.

The following screenshot demonstrates the functionality of Uploadbox with the file extension.

In the above screenshot, you can upload a resume that allows .txt files. This helps you to avoid unsupported resume formats getting uploaded in a server.

NOTE

To get upload the file, you should either run this sample in Visual Studio IDE or host in local IIS.

Create Uploadbox in Typescript

Create an HTML page and add the scripts references in the order mentioned in the following code example.

  • html
  • <!DOCTYPE html>
          <html>
          <head>
            <link href="http://cdn.syncfusion.com/17.1.0.47/js/web/bootstrap-theme/ej.web.all.min.css" rel="stylesheet" />
            <script src="https://code.jquery.com/jquery-3.0.0.min.js"></script>
            <script src="http://cdn.syncfusion.com/17.1.0.47/js/web/ej.web.all.min.js" type="text/javascript"></script>
            <script src="app.js"></script>
          </head>
          <body>
          </body>
          </html>
  • html
  • <div id="targetElement">
            <div id="UploadDefault"></div>
        </div>

    Add the given styles to display the Uploadbox with margin alignments.

  • css
  • <style>
           #targetElement {
                width: 500px;
                height: 500px;
                margin: 0 auto;
            }

            #UploadDefault {
                margin: 0 auto;
            }
        </style>

    Create a new handler file (.ashx) and save it as saveFiles.ashx and then copy the following code into it.

  • c#
  • SaveFiles.ashx

        public void ProcessRequest(HttpContext context)
        {
            string targetFolder = HttpContext.Current.Server.MapPath("uploadfiles");
            if (!Directory.Exists(targetFolder))
            {
                Directory.CreateDirectory(targetFolder);
            }
            HttpRequest request = context.Request;
            HttpFileCollection uploadedFiles = context.Request.Files;
            if (uploadedFiles != null && uploadedFiles.Count > 0)
            {
                for (int i = 0; i < uploadedFiles.Count; i++)
                {
                    if (uploadedFiles[i].FileName != null && uploadedFiles[i].FileName != "")
                    {
                        string fileName = uploadedFiles[i].FileName;
                        int indx = fileName.LastIndexOf("\\");
                        if (indx > -1)
                        {
                            fileName = fileName.Substring(indx + 1);
                        }
                        uploadedFiles[i].SaveAs(targetFolder + "\\" + fileName);
                    }
                }
            }
        }

    Create a new handler file (.ashx) and save it as removeFiles.ashx and then copy the following code into it.

  • c#
  • removeFiles.ashx

        public void ProcessRequest(HttpContext context)
        {
            System.Collections.Specialized.NameValueCollection s = context.Request.Params;
            string fileName = s["fileNames"];
            string targetFolder = HttpContext.Current.Server.MapPath("uploadfiles");
            if (Directory.Exists(targetFolder))
            {
                string physicalPath = targetFolder + "\\" + fileName;
                if (System.IO.File.Exists(physicalPath))
                {
                    System.IO.File.Delete(physicalPath);
                }
            }
        }

    Add the following code example to assign saveUrl and removeUrl for Uploadbox

  • html
  • /// <reference path="tsfiles/jquery.d.ts" />
         /// <reference path="tsfiles/ej.web.all.d.ts" />

         module UploadComponent {

           $(function () {
               var sample = new ej.Uploadbox($("#UploadDefault"), {
                saveUrl: "saveFiles.ashx",
                removeUrl: "removeFiles.ashx"});

              });
           }

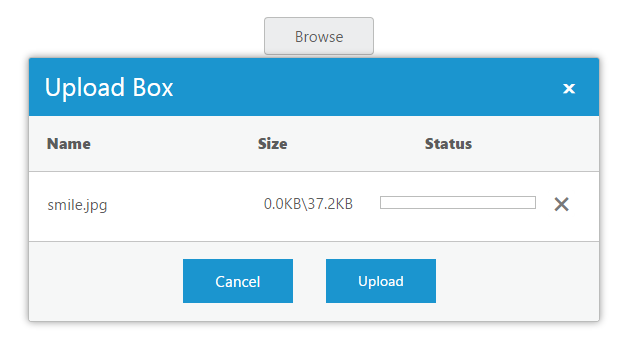

    The following screenshot displays an Uploadbox control.

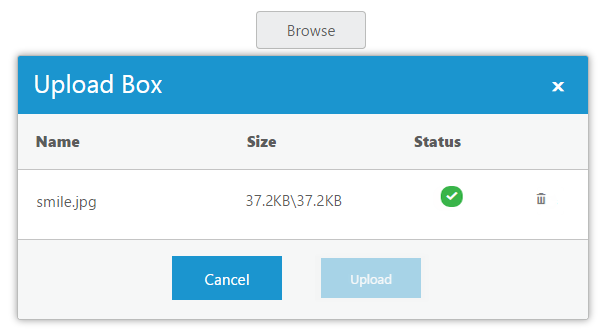

    After you upload the files, the following screen shot is displayed.

    NOTE

    The above screenshot displays the Uploadbox control that shows the files are uploaded successfully.

    Set Restriction for File Extension

    In a real-time scenario, some file extensions are restricted. You can allow files and restrict files by using the following two properties extensionsAllow and extensionsDeny enabled in Uploadbox.

    NOTE

    The SaveUrl and RemoveUrl are the same as above (see step 4)

    Add input elements to create elements for file extension.

    NOTE

    Add the following input elements and two button elements to give file extensions that should support uploading.

  • html
  • <div id="targetElement">
            <table id="uploadTable">
                <tr>
                    <td>
                        Extensions:
                    </td>
                    <td></td>
                </tr>
                <tr>
                    <td>
                        <input type="text" id="fileallow" class="ejinputtext" placeholder="Format" />
                        <input type="button" class="e-btn" id="upbutton1" value="Allow" />
                    </td>
                    <td></td>
                </tr>
                <tr>
                    <td>
                        <input type="text" id="filedeny" class="ejinputtext" placeholder="Format" />
                        <input type="button" class="e-btn" id="upbutton2" value="Deny" />
                    </td>
                    <td>
                        <div id="UploadDefault"></div>
                    </td>
                </tr>
            </table>
        </div>

    Add the following code example for click event

  • html
  • /// <reference path="tsfiles/jquery.d.ts" />
         /// <reference path="tsfiles/ej.web.all.d.ts" />

        module UploadComponent {

        $(function () {
            var sample = new ej.Uploadbox($("#UploadDefault"), {
                saveUrl: "saveFiles.ashx",
                removeUrl: "removeFiles.ashx"
            });
            var allowButton = new ej.Button($("#upbutton1"), {
                size: "normal", text: "Allow", click: function () {
                    var uploadobject = $("#UploadDefault").data("ejUploadbox");
                    uploadobject.option('extensionsAllow', $("#fileallow").val());
                    uploadobject.option('extensionsDeny', "");
                }
                });
            var denyButton = new ej.Button($("#upbutton2"), {
                    size: "normal", text: "Deny", click: function () {
                        var uploadobject = $("#UploadDefault").data("ejUploadbox");
                        uploadobject.option('extensionsAllow', "");
                        uploadobject.option('extensionsDeny', $("#filedeny").val());
                    }

                });

            });

    	  }

    Add the given styles to display the Uploadbox with margin alignments.

  • css
  • <style>
          #targetElement {
            width: 520px;
            height: 500px;
            margin: 0 auto;
           }
          #UploadDefault {
            float: right;
          }
          #uploadTable {
            width: 100%;
           }
          #fileallow, #filedeny {
            width: 150px;
            height: 20px;
            padding: 5px;
          }
        </style>

    NOTE

    You can restrict one or more files at a time by giving it as .html,.txt

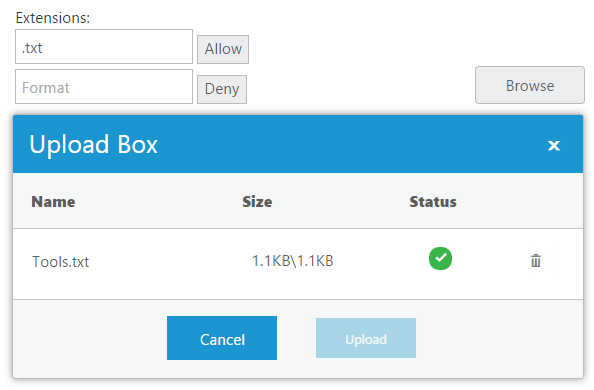

    The following screenshot displays an Uploadbox control with the file extension.

    The above screenshot shows the Uploadbox that allows “.txt” file formats. You can give number of file formats in both allow and deny textbox elements.

    Upload Multiple Files

    You can click the Browse button and select files to upload multiple files in Uploadbox control. You can see the selected files in Uploadbox control and you can upload all the files.

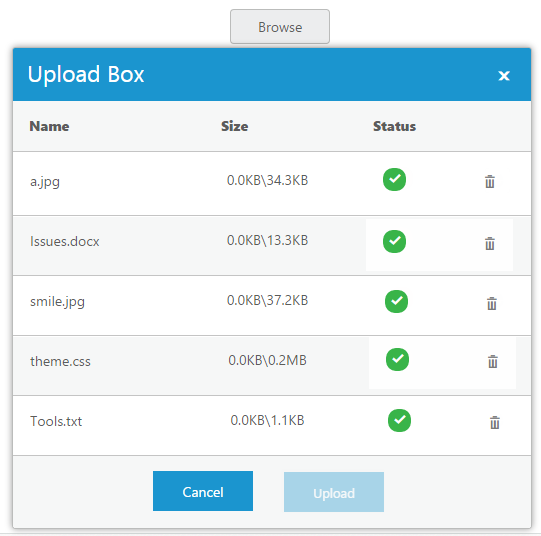

    The following screenshot displays an Uploadbox control with multiple files.
