SfTimeSelector in UWP TimePicker (SfTimePicker)

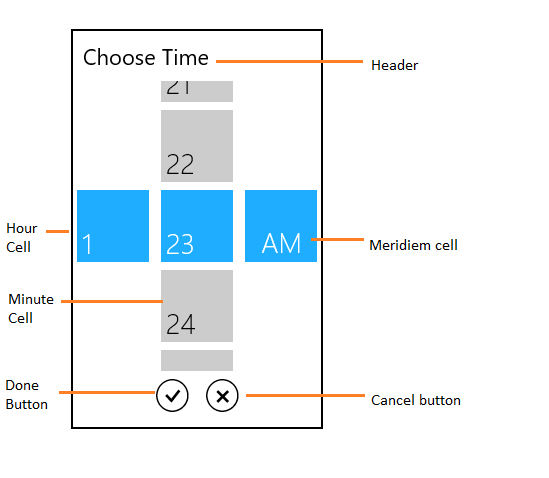

The SfTimeSelector control opens inside the popup window.

Features_img3

The visual elements of the time selector can be customized using the SelectorStyle property.

The Header property defines the top part of the time selector.

  • XAML
    • <Page
   ...
   xmlns:input="using:Syncfusion.UI.Xaml.Controls.Input">

    <syncfusion:SfTimePicker VerticalAlignment="Center"

                           HorizontalAlignment="Center"

                           Width="200">

           <syncfusion:SfTimePicker.SelectorStyle>

                    <Style TargetType="syncfusion:SfTimeSelector">

                        <Setter Property="Header" Value="Set your alarm"/>

                    </Style>

           </syncfusion:SfTimePicker.SelectorStyle>

    </syncfusion:SfTimePicker >

</Page>

    Features_img4

    HeaderTemplate

    The HeaderTemplate property is used to decorate the header.

  • XAML
    • <Page
   ...
   xmlns:input="using:Syncfusion.UI.Xaml.Controls.Input">

    <syncfusion:SfTimePicker VerticalAlignment="Center"

                                   HorizontalAlignment="Center"

                                   Width="200">

                <syncfusion:SfTimePicker.SelectorStyle>

                    <Style TargetType="syncfusion:SfTimeSelector">

                        <Setter Property="HeaderTemplate">

                            <Setter.Value>

                                <DataTemplate>

                                    <StackPanel Orientation="Horizontal">

                                        <TextBlock Text="&#xE170;"

                                               VerticalAlignment="Top"

                                               Margin="5"

                                               FontSize="22"

                                               FontFamily="Segoe UI Symbol"/>

                                        <TextBlock Text="Set your alarm"

                                               VerticalAlignment="Top"

                                               Margin="5"

                                               FontSize="22"

                                               />

                                    </StackPanel>

                                </DataTemplate>

                            </Setter.Value>

                        </Setter>

                    </Style>

                </syncfusion:SfTimePicker.SelectorStyle>        </syncfusion:SfTimePicker>

</Page>

    Features_img5

    Cell template

    The CellTemplate property is used to decorate the selection box with custom visuals.

    NOTE

    The DataContext of Selection box is Syncfusion.UI.Xaml.Primitives.DateTimeWrapper.

    HourCellTemplate

    The HourCellTemplate property is used to decorate the hour cell selection box.

  • XAML
    • <Page
   ...
   xmlns:input="using:Syncfusion.UI.Xaml.Controls.Input">

    <syncfusion:SfTimePicker VerticalAlignment="Center"

                                   HorizontalAlignment="Center"

                                   Width="200">

                <syncfusion:SfTimePicker.SelectorStyle>

                    <Style TargetType="syncfusion:SfTimeSelector">

                        <Setter Property="HourCellTemplate">

                            <Setter.Value>

                                <DataTemplate>

                                    <Grid>

                                        <TextBlock VerticalAlignment="Top"

                                                   HorizontalAlignment="Right"

                                                   Margin="5"

                                                   FontSize="22"

                                                   FontFamily="Segoe UI Symbol"

                                                   Text="&#xE170;"/>

                                        <TextBlock Text="{Binding HourNumber}"

                                                   VerticalAlignment="Bottom"

                                                   Margin="5"

                                                   FontSize="22"/>

                                    </Grid>

                                </DataTemplate>

                            </Setter.Value>

                        </Setter>

                    </Style>

                </syncfusion:SfTimePicker.SelectorStyle>         </syncfusion:SfTimePicker>

</Page>

    Features_img7

    MinuteCellTemplate

    The MinuteCellTemplate property is used to decorate the minute cell selection box.

  • XAML
    • <Page
   ...
   xmlns:input="using:Syncfusion.UI.Xaml.Controls.Input">

           <syncfusion:SfTimePicker VerticalAlignment="Center"

                                   HorizontalAlignment="Center"

                                   Width="200">

                <syncfusion:SfTimePicker.SelectorStyle>

                    <Style TargetType="syncfusion:SfTimeSelector">

                        <Setter Property="MinuteCellTemplate">

                            <Setter.Value>

                                <DataTemplate>

                                    <Grid>

                                        <TextBlock VerticalAlignment="Top"

                                                   HorizontalAlignment="Right"

                                                   Margin="5"

                                                   FontSize="22"

                                                   FontFamily="Segoe UI Symbol"

                                                   Text="&#xE170;"/>

                                        <TextBlock Text="{Binding MinuteNumber}"

                                                   VerticalAlignment="Bottom"

                                                   Margin="5"

                                                   FontSize="22"/>

                                    </Grid>

                                </DataTemplate>

                            </Setter.Value>

                        </Setter>

                    </Style>

                </syncfusion:SfTimePicker.SelectorStyle>        </syncfusion:SfTimePicker>

       </Page>

    Features_img8

    MeridiemCellTemplate

    The MeridiemCellTemplate property is used to decorate the meridiem cell selection box.

  • XAML
    • <Page
   ...
   xmlns:input="using:Syncfusion.UI.Xaml.Controls.Input">

    <syncfusion:SfTimePicker VerticalAlignment="Center"

                                   HorizontalAlignment="Center"

                                   Width="200">

                <syncfusion:SfTimePicker.SelectorStyle>

                    <Style TargetType="syncfusion:SfTimeSelector">

                        <Setter Property="MeridiemCellTemplate">

                            <Setter.Value>

                                <DataTemplate>

                                    <Grid>

                                        <TextBlock VerticalAlignment="Top"

                                                   HorizontalAlignment="Right"

                                                   Margin="5"

                                                   FontSize="22"

                                                   FontFamily="Segoe UI Symbol"

                                                   Text="&#xE170;"/>

                                        <TextBlock Text="{Binding AmPmString}"

                                                   VerticalAlignment="Bottom"

                                                   Margin="5"

                                                   FontSize="22"/>

                                    </Grid>

                                </DataTemplate>

                            </Setter.Value>

                        </Setter>

                    </Style>

                </syncfusion:SfTimePicker.SelectorStyle>        </syncfusion:SfTimePicker>

</Page>

    Features_img9

    Setting Incremental values

    To set minute and second values in the SfTimeSelector with incremental values, use the MinuteInterval and SecondsInterval properties respectively.

    MinuteInterval

    The MinuteInterval property is used to set the interval for minute values in the SfTimeSelector.

    SecondsInterval

    The SecondsInterval property is used to set the interval for second values in the SfTimeSelector.

    <Page
   ...
   xmlns:input="using:Syncfusion.UI.Xaml.Controls.Input">

    <syncfusion:SfTimeSelector FormatString="hh:mm:ss tt" MinuteInterval="2" SecondsInterval="10"/>

</Page>
    using Syncfusion.UI.Xaml.Controls.Input;
SfTimeSelector timeSelector = new SfTimeSelector();

timeSelector.FormatString = "hh:mm:ss tt";

timeSelector.MinuteInterval = 2;

timeSelector.SecondsInterval = 10;
    Imports Syncfusion.UI.Xaml.Controls.Input;

Dim timeSelector As New SfTimeSelector()

timeSelector.FormatString = "hh:mm:ss tt"

timeSelector.MinuteInterval = 2

timeSelector.SecondsInterval = 10

    Features_img10

    Features_img11
