Accessibility in .NET MAUI Time Picker (SfTimePicker)

18 Nov 20181 minute to read

The .NET MAUI Time Picker control exposes accessibility for the Header, Column Header, Footer, and Picker Items.

Header Layout

The SfTimePicker exposes the Header Text for screen readers through localization of header layout.

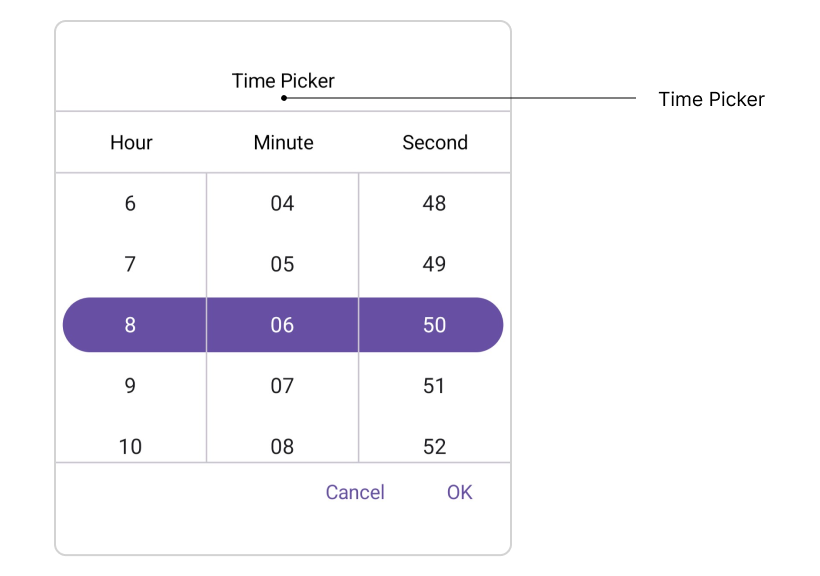

Header layout in .NET MAUI Time Picker.

Column Header Layout

The SfTimePicker exposes column header text through the TimePickerColumnHeaderView. It contains the HourHeaderText, MinuteHeaderText, SecondHeaderText, MilliSecondHeaderText, and MeridiemHeaderText properties. The default values are: HourHeaderText is “Hour”, MinuteHeaderText is “Minute”, SecondHeaderText is “Second”, MilliSecondHeaderText is “MilliSecond”, and MeridiemHeaderText is string.Empty.

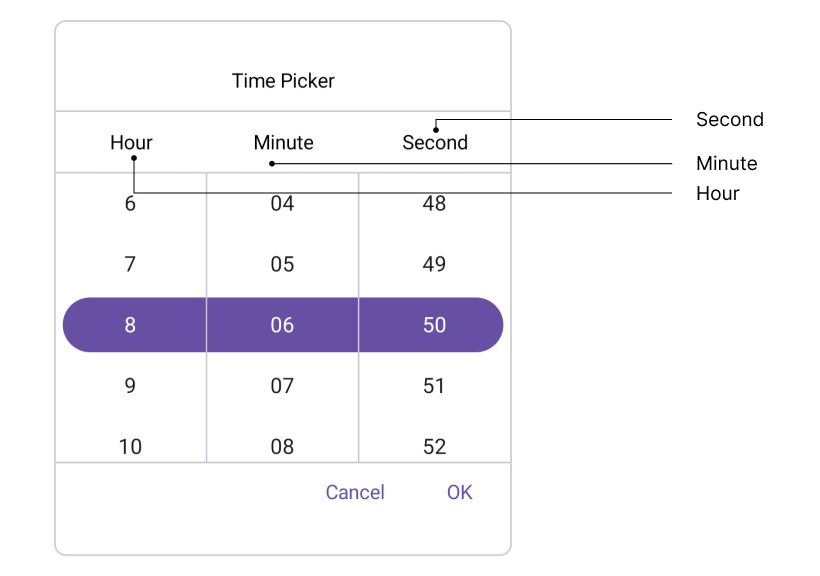

Column header layout in .NET MAUI Time Picker.

The SfTimePicker exposes the validation buttons (OK and Cancel) through the PickerFooterView. The default value of the OkButtonText property is “OK”, and CancelButtonText is “Cancel”.

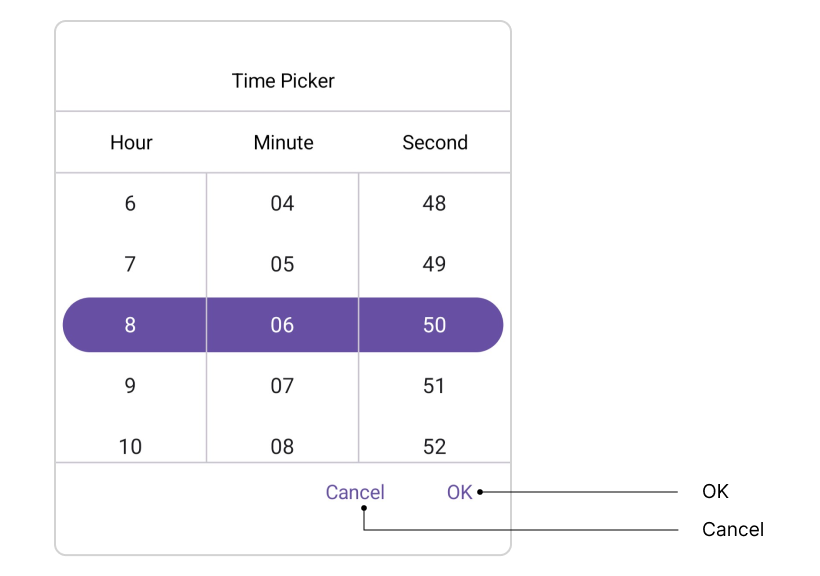

Footer layout in .NET MAUI Time Picker.

Picker Items

The SfTimePicker renders picker items based on the Time format. The screen reader announces each item based on the format, for example:

Format Example
h, H 1
hh, HH 01
mm, ss 01
tt AM/PM

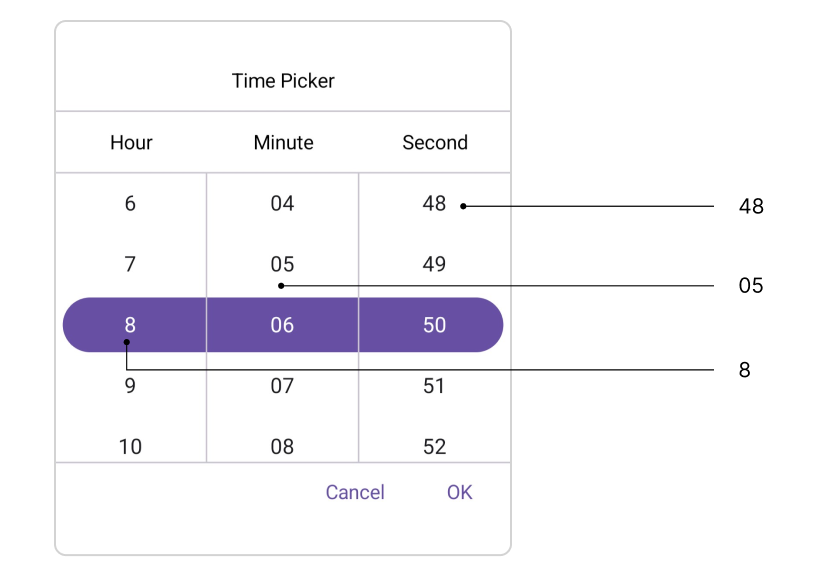

Picker items in .NET MAUI Time Picker.

Keyboard

SfTimePicker supports selection using keyboard interactions.

Key Description
Tab Focus the picker.
Enter Opens the selected picker.
DownArrow Selects an item from the currently expanded list by moving downwards.
UpArrow Selects an item from the currently expanded list by moving upwards.
RightArrow / Tab Navigates to the right within the picker.
LeftArrow / Shift+Tab Navigates to the left within the picker.
Esc / Enter Exit and commit selection.
