Appointment Editor in .NET MAUI Scheduler (SfScheduler)

18 Nov 201814 minutes to read

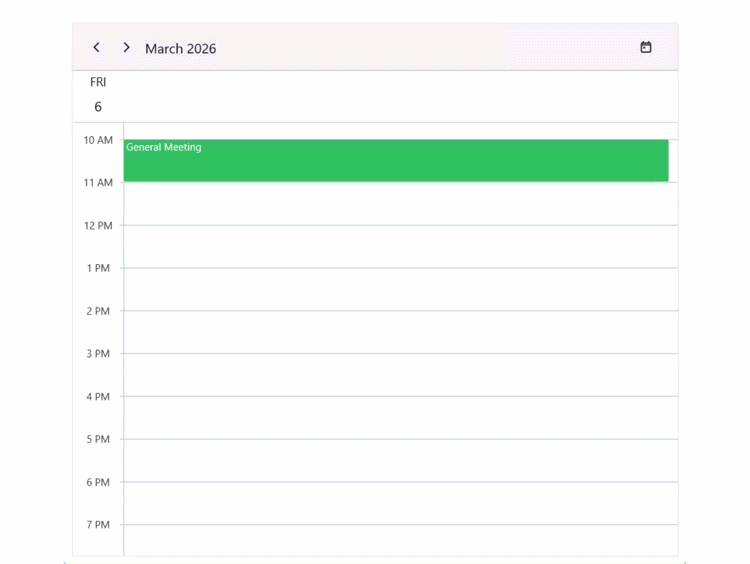

The Appointment Editor is a popup dialog used for adding, editing, or deleting appointments in the Scheduler. It provides fields for entering detailed event information, along with options for color customization, recurrence configuration, and timezone selection. The editor can be opened by double‑tapping a time slot or an existing appointment.

You can control when the editor is available by using the AppointmentEditorMode property:

  • Add – Allows users to create new appointments.
  • Edit – Allows users to modify existing appointments.
  • None – Disables the editor entirely.

By default, AppointmentEditorMode is set to None. To enable the Appointment Editor for user interaction, set the AppointmentEditorMode property to Add, Edit, or both.

<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="scheduler"
                           View="Day"
                           AppointmentEditorMode="Add,Edit">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        this.scheduler.AppointmentEditorMode = AppointmentEditorMode.Add | AppointmentEditorMode.Edit;
    }
}

Appointment-Editor-In-.NET-MAUI-SfScheduler

Adding Appointments

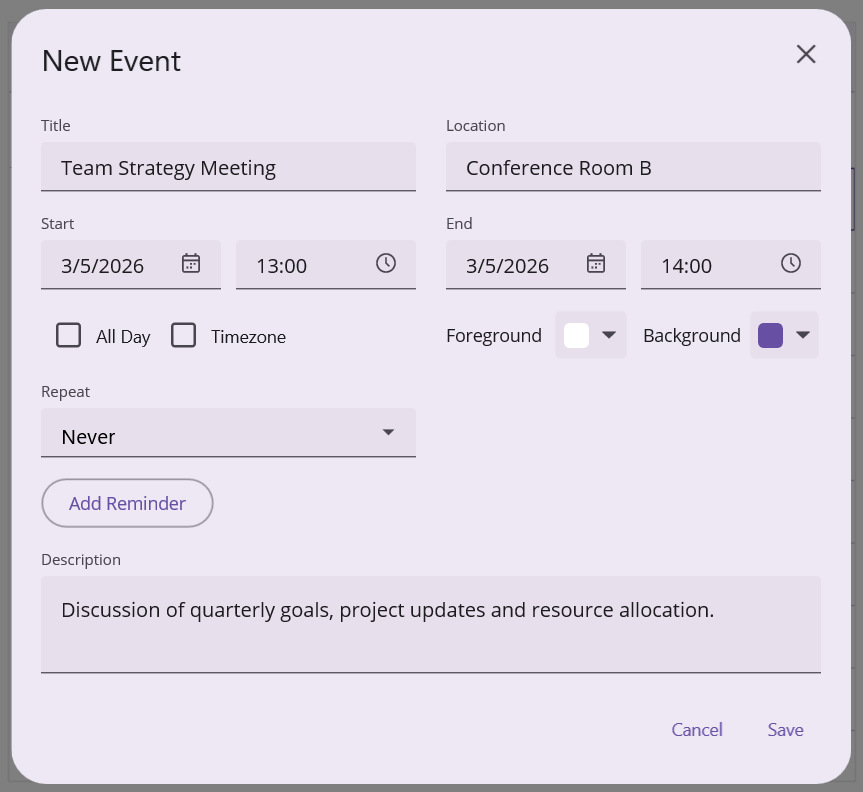

Appointments can be created using the appointment editor window.

Double-tapping a time slot opens the editor, where appointment details can be entered and saved.

To allow appointment creation, configure the AppointmentEditorMode property with the Add option. If the AppointmentEditorMode does not include Add, double‑tapping a time slot will not open the editor.

<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="scheduler"
                           View="Day"
                           AppointmentEditorMode="Add">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        this.scheduler.AppointmentEditorMode = AppointmentEditorMode.Add;
    }
}

Creating-Appointment-In-.NET-MAUI-SfScheduler

Editing Appointment

Existing appointments can be modified through the appointment editor. To allow editing, set the AppointmentEditorMode to Edit.

<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="scheduler"
                           View="Day"
                           AppointmentEditorMode="Edit">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        this.scheduler.AppointmentEditorMode = AppointmentEditorMode.Edit;
    }
}

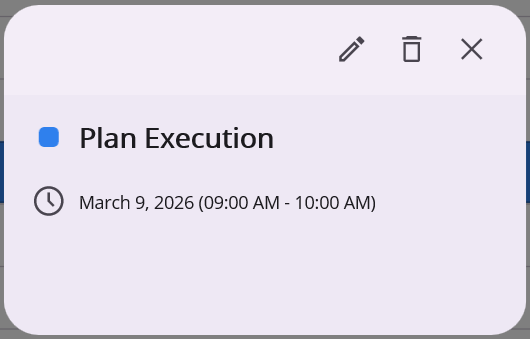

Double-tapping an appointment displays a dialog that shows the appointment details such as subject and time. The dialog includes the following options:

  • Edit – Opens the appointment editor to modify the appointment.
  • Delete – Deletes the appointment.
  • Close – Closes the dialog.

Editing-Appointment-In-.NET-MAUI-SfScheduler

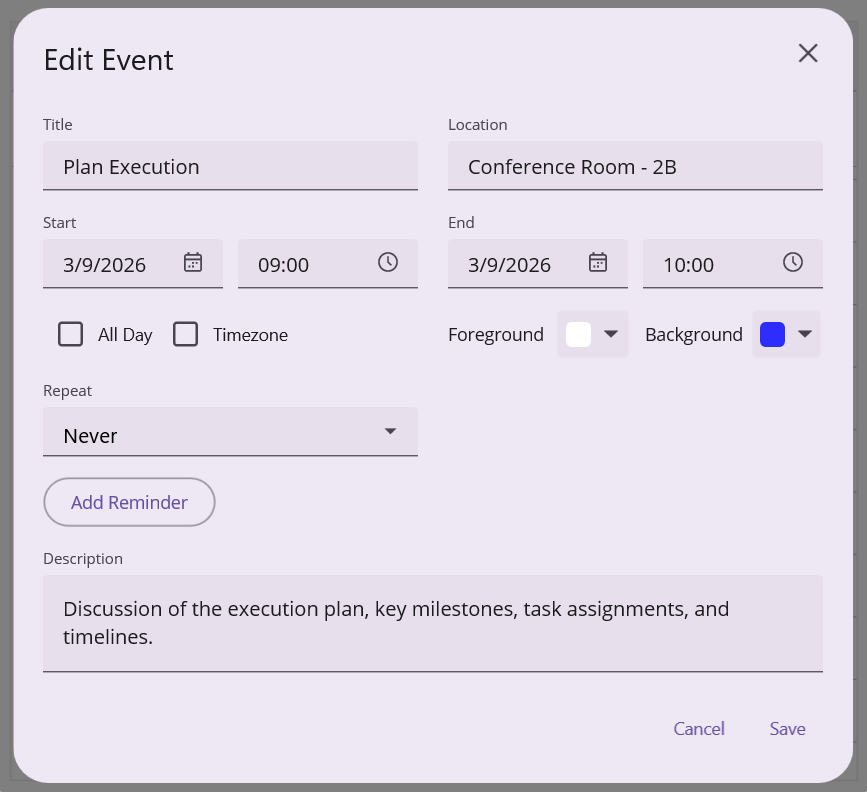

Selecting Edit opens the editor filled in with the current appointment details. After making changes, select Save to update the appointment or Cancel to discard changes.

Edit-Appointment-In-.NET-MAUI-SfScheduler

When the scheduler is bound to a data source, the updated values are automatically reflected in the underlying data object.

Editing recurring appointment

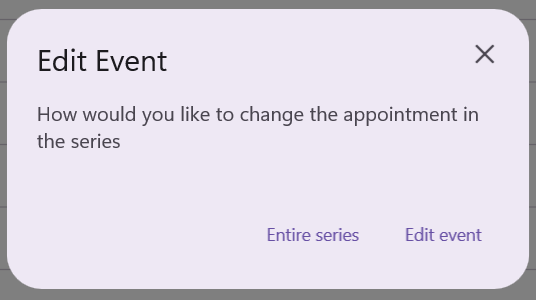

When editing a recurring appointment, a dialog appears requesting confirmation on whether to modify:

  • The entire series, or
  • Only the selected occurrence

Editing-Recurring-Appointment-In-.NET-MAUI-SfScheduler

After selecting the required option, the appointment editor opens with the corresponding appointment details. Changes can then be applied to either the entire series or the selected occurrence.

Events

Appointment Editor Opening

The AppointmentEditorOpening event is raised before the appointment editor dialog appears. It occurs when an appointment is double‑tapped for modification or when a time slot is double‑tapped to create a new appointment. Set the event args’ Cancel property to true to prevent the editor from opening.

<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="Scheduler"
                           View="Day"
                           AppointmentEditorMode="Add,Edit"
                           AppointmentEditorOpening="Scheduler_AppointmentEditorOpening">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
    }

    private void Scheduler_AppointmentEditorOpening(object? sender, AppointmentEditorOpeningEventArgs e)
    {
        e.Cancel = true;
    }
}

The AppointmentEditorOpeningEventArgs provides information about the editor opening operation.

  • Appointment : Retrieves the appointment that is being edited. The value will be null when the editor is opened to create a new appointment.
  • DateTime : Indicates the date and time of the selected time slot.
  • Resource : Returns the resource associated with the appointment. This is the single resource under the tapped time slot. When the editor is opened without a resource context, the value is null.
  • RecurringAppointmentEditMode : Specifies the edit mode applied when modifying a recurring appointment.
  • Cancel : Set to true to prevent the appointment editor from opening.
<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="Scheduler"
                           View="Day"
                           AppointmentEditorMode="Add,Edit"
                           AppointmentEditorOpening="Scheduler_AppointmentEditorOpening">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
    }

    private void Scheduler_AppointmentEditorOpening(object? sender, AppointmentEditorOpeningEventArgs e)
    {
        var appointment = e.Appointment;
        var dateTime = e.DateTime;
        var resource = e.Resource;
        var recurringAppointmentEditMode = e.RecurringAppointmentEditMode;
        // To prevent the editor from opening, uncomment the line below.
        // e.Cancel = true;
    }
}

Appointment Editor Closing

The AppointmentEditorClosing event is triggered when the appointment editor is about to close after performing an action such as Add, Edit, Delete, or Cancel. This event allows you to control the close operation and optionally handle the performed action. Set the event args’ Cancel property to true to stop the editor from closing.

<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="Scheduler"
                           View="Day"
                           AppointmentEditorMode="Add,Edit"
                           AppointmentEditorClosing="Scheduler_AppointmentEditorClosing">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
    }

    private void Scheduler_AppointmentEditorClosing(object? sender, AppointmentEditorClosingEventArgs e)
    {
        e.Cancel = true;
    }
}

The AppointmentEditorClosingEventArgs contains details about the operation performed in the editor.

  • Action : Indicates the action executed in the editor. Possible values are members of the AppointmentEditorAction enum: Add, Edit, Delete, or Cancel.
  • Appointment : Contains the appointment details associated with the performed action.
  • Resources : Provides the collection of resources assigned to the appointment. Note the difference from the Resource property of AppointmentEditorOpeningEventArgs — this is a collection that contains all resources linked to the appointment, not the single resource under a tapped slot.
  • Handled : Determines whether the scheduler should process the action automatically. When set to true, the scheduler skips its default add/edit/delete logic and the action must be persisted manually in the event handler (for example, by writing to a database or remote service).
  • Cancel : Set to true to keep the editor open and prevent it from closing.
<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="Scheduler"
                           View="Day"
                           AppointmentEditorMode="Add,Edit"
                           AppointmentEditorClosing="Scheduler_AppointmentEditorClosing">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
    }

    private void Scheduler_AppointmentEditorClosing(object? sender, AppointmentEditorClosingEventArgs e)
    {
        var appointment = e.Appointment;
        var action = e.Action;
        var resources = e.Resources;
    }
}

Recurring Appointment Beginning Edit

The RecurringAppointmentBeginningEdit event occurs when a recurring appointment is edited or deleted. This event lets you control how recurring appointments are modified.

The RecurringAppointmentBeginningEditEventArgs contains details about the editing behavior of a recurring appointment.

  • EditMode : Defines how the recurring appointment should be edited.

RecurringAppointmentEditMode Options

  • User : Displays a dialog prompting whether to edit a single occurrence or the entire series.
  • Occurrence : Edits only the selected occurrence in the series.
  • Series : Edits the entire recurring appointment series.
<ContentPage
    . . .
    xmlns:scheduler="clr-namespace:Syncfusion.Maui.Scheduler;assembly=Syncfusion.Maui.Scheduler">
    <scheduler:SfScheduler x:Name="scheduler"
                           View="Day"
                           AppointmentEditorMode="Add,Edit"
                           RecurringAppointmentBeginningEdit="Scheduler_RecurringAppointmentBeginningEdit">
    </scheduler:SfScheduler>
</ContentPage>
using Syncfusion.Maui.Scheduler;

. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
    }

    private void Scheduler_RecurringAppointmentBeginningEdit(object? sender, RecurringAppointmentBeginningEditEventArgs e)
    {
        var editMode = e.EditMode;
    }
}
