Liquid Glass Effect in .NET MAUI Date Time Picker (SfDateTimePicker)

18 Nov 20189 minutes to read

The Liquid Glass Effect introduces a modern, translucent design with adaptive color tinting and light refraction, creating a sleek, glass-like user experience that remains clear and accessible. This section explains how to enable and customize the effect in the Syncfusion® .NET MAUI Date Time Picker (SfDateTimePicker) control.

NOTE

Platform compatibility

  • Supported on macOS 26 or higher and iOS 26 or higher.
  • This feature is available only in .NET 10.

Apply liquid glass effect

Follow these steps to enable and configure the Liquid Glass Effect in the Date Time Picker control:

Step 1: Wrap the control inside a glass effect view

To apply the Liquid Glass Effect to the Syncfusion® .NET MAUI Date Time Picker control, wrap the control inside the SfGlassEffectView class. The EffectType property selects the glass style; valid values are:

  • Regular - Standard translucent glass with light refraction.
  • Clear - Fully transparent glass with minimal tint.

The default value is Regular.

For more details, refer to the Liquid Glass Getting Started documentation.

Step 2: Enable the liquid glass effect on Date Time Picker

Set the EnableLiquidGlassEffect property to true in the SfDateTimePicker control to apply the Liquid Glass Effect. When enabled, the effect is also applied to its dependent controls and provides responsive interaction for a smooth and engaging user experience.

Step 3: Customize the background

To achieve a glass-like background in the Date Time Picker, set the Background property to Transparent. The background is then treated as a tinted color, ensuring a consistent glass effect across the controls.

The following code snippet demonstrates how to apply the Liquid Glass Effect to the SfDateTimePicker control:

<ContentPage
    . . .
    xmlns:picker="clr-namespace:Syncfusion.Maui.Picker;assembly=Syncfusion.Maui.Picker"
    xmlns:core="clr-namespace:Syncfusion.Maui.Core;assembly=Syncfusion.Maui.Core"
    x:Class="AcrylicDateTimePickerPage">
    <Grid>
        <Grid.Background>
            <LinearGradientBrush StartPoint="0,0"
                                 EndPoint="0,1">
                <GradientStop Color="#0F4C75"
                              Offset="0.0"/>
                <GradientStop Color="#3282B8"
                              Offset="0.5"/>
                <GradientStop Color="#1B262C"
                              Offset="1.0"/>
            </LinearGradientBrush>
        </Grid.Background>
        <Grid>
            <core:SfGlassEffectView
                EffectType="Regular"
                CornerRadius="20"
                WidthRequest="350"
                HeightRequest="350">
                <picker:SfDateTimePicker x:Name="datetimepicker"
                                     EnableLiquidGlassEffect="True"
                                     Background="Transparent">
                    <picker:SfDateTimePicker.ColumnHeaderView>
                        <picker:DateTimePickerColumnHeaderView Background="Transparent"/>
                    </picker:SfDateTimePicker.ColumnHeaderView>
                    <picker:SfDateTimePicker.HeaderView>
                        <picker:DateTimePickerHeaderView Background="Transparent"/>
                    </picker:SfDateTimePicker.HeaderView>
                </picker:SfDateTimePicker>
            </core:SfGlassEffectView>
        </Grid>
    </Grid>
</ContentPage>
using Syncfusion.Maui.Picker;
. . .
public partial class MainPage : ContentPage
{
    public MainPage()
    {
        InitializeComponent();
        // Outer grid with gradient background
        var mainGrid = new Grid()
        {
            Background = new LinearGradientBrush()
            {
                StartPoint = new Point(0, 0),
                EndPoint = new Point(0, 1),
                GradientStops =
                {
                    new GradientStop { Color = Color.FromArgb("#0F4C75"), Offset = 0.0f },
                    new GradientStop { Color = Color.FromArgb("#3282B8"), Offset = 0.5f },
                    new GradientStop { Color = Color.FromArgb("#1B262C"), Offset = 1.0f }
                }
            }
        };

        // Inner grid container
        var innerGrid = new Grid();

        var glassView = new SfGlassEffectView()
        {
            EffectType = GlassEffectType.Regular,
            CornerRadius = 20,
            WidthRequest = 350,
            HeightRequest = 350
        };

        var dateTimePicker = new SfDateTimePicker()
        {
            EnableLiquidGlassEffect = true,
            Background = Colors.Transparent,
            WidthRequest = 350,
            HeightRequest = 350,
            ColumnHeaderView = new DateTimePickerColumnHeaderView()
            {
                Background = Colors.Transparent
            },
            HeaderView = new DateTimePickerHeaderView()
            {
                Background = Colors.Transparent
            }
        };

        glassView.Content = dateTimePicker;
        innerGrid.Children.Add(glassView);
        mainGrid.Children.Add(innerGrid);
        this.Content = mainGrid;
    }
}

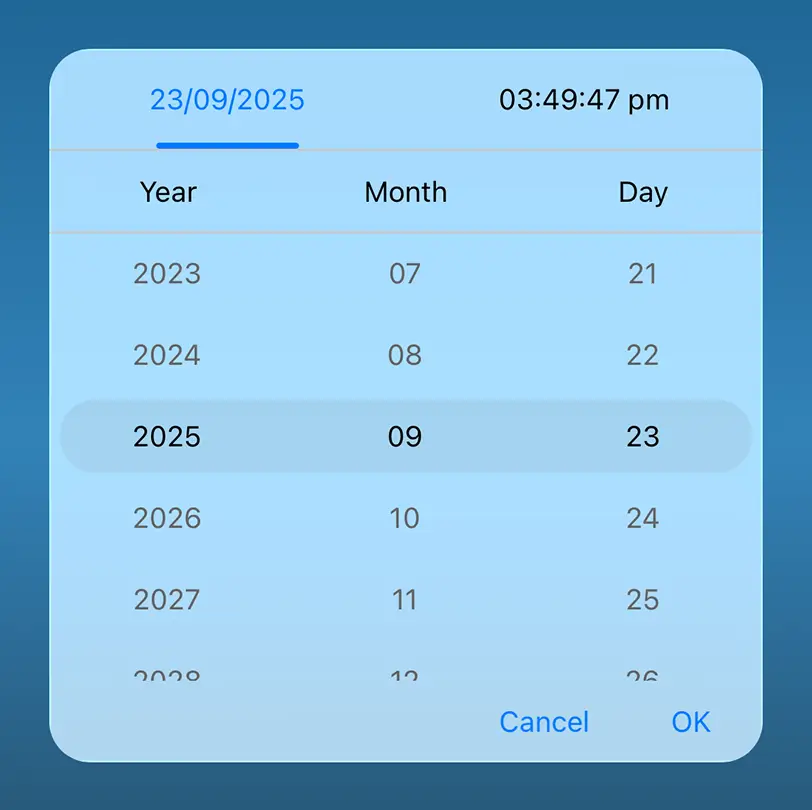

Liquid glass effect in .NET MAUI Date Time Picker
