Salesforce Integration in JavaScript Scheduler

This topic provides a step-by-step guide to integrating the JavaScript Scheduler into Salesforce.

Prerequisites

Before getting started, make sure the following prerequisite is installed:

• Salesforce CLI

Configuring Salesforce

To begin, configure Salesforce:

• If you don’t have a Salesforce developer account, sign up at https://www.salesforce.com/form/developer-signup/.
• Sign in at https://login.salesforce.com/.

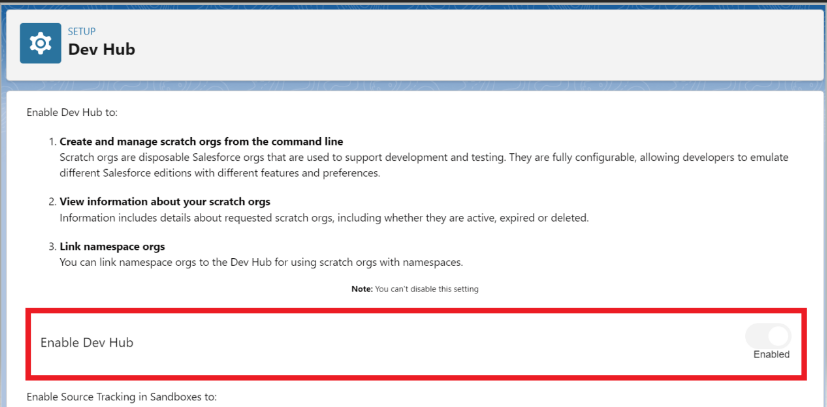

• In Setup, search for Dev Hub and enable the Enable Dev Hub option.

Creating a Salesforce project

With Salesforce configured, create a Salesforce project for the integration.

Create a base directory (for example, salesforceApp):

mkdir salesforceApp

Navigate to that directory and generate a Salesforce DX project:

sf project:generate -n scheduler-salesforce-app

Authorizing the Salesforce project

Before proceeding further, you need to authorize your Salesforce project by following these steps

Authorize the project with your Salesforce account in the browser:

sf org:login:web -d

Open the sfdx-project.json file located in salesforceApp/scheduler-salesforce-app and update the sfdcLoginUrl with the domain URL of your Salesforce account as shown in image (fig 2). You can obtain the domain URL from the My Domain setup tab in Salesforce as shown in image (fig 1).

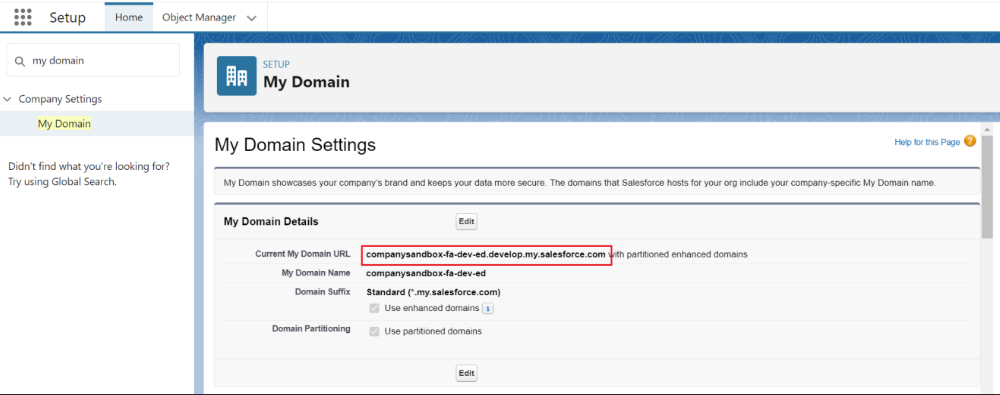

fig 1

fig 2

Create scratch organization

To facilitate development and testing, the creation of a scratch organization will be done using the following steps.

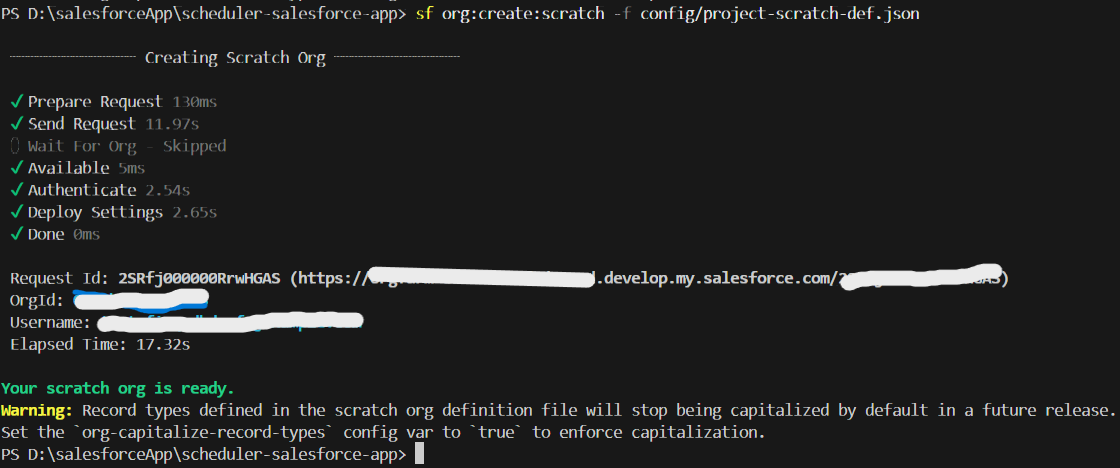

Create a scratch organization for development and testing:

sf org:create:scratch -f config/project-scratch-def.json

Adding static resources

To integrate the Syncfusion^® scripts and styles as static resource files within Salesforce, follow these steps.

Open the scratch org in the browser:

sf org:open -o <scratch_org_username>

Replace <scratch_org_username> with the username generated for your scratch org.

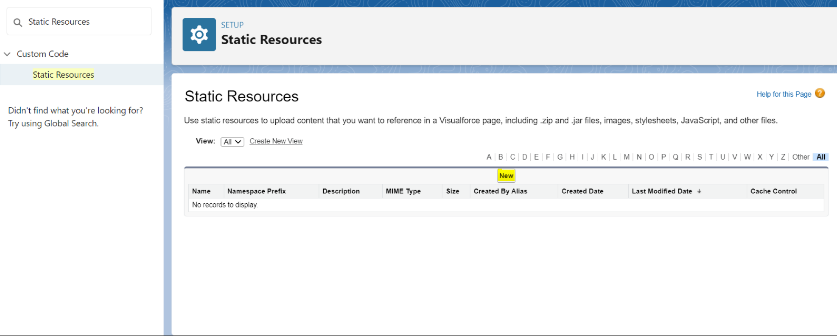

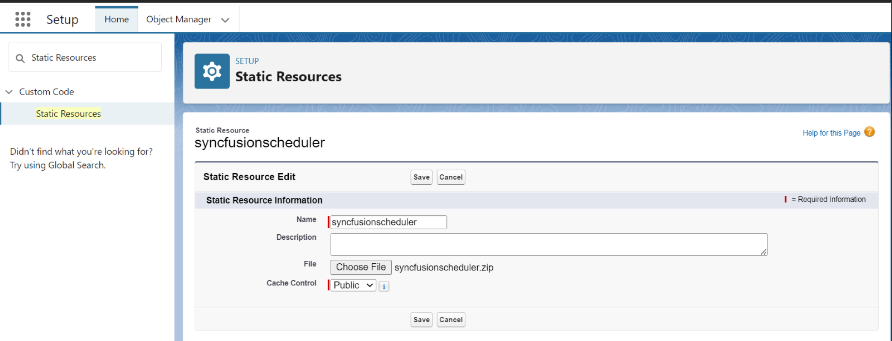

In the Salesforce setup menu, search for Static Resources and click on New button in the static resources tab.

Load the Syncfusion^® scripts and styles as a zip static resource (obtain from the CRG).

In the static resource tab, provide a name for the static resource files, upload the zip file, and change the cache control to Public. Click Save button to add the static resources to your Salesforce project.

Adding CSP trusted sites

To ensure seamless integration and prevent content security policy issues, follow these steps.

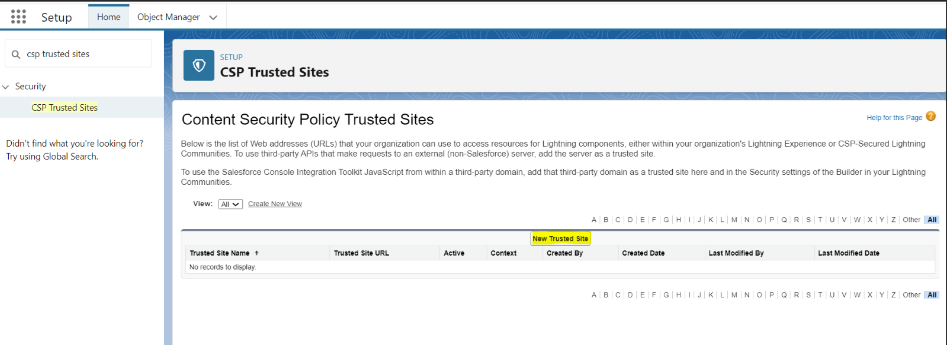

In the Salesforce setup menu, search for CSP Trusted Sites and click New Trusted Site button.

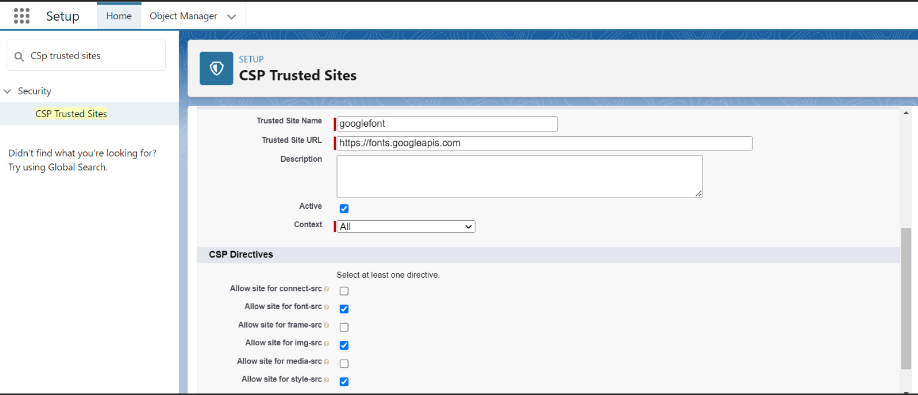

Enter the trusted site name and URL (for example, https://fonts.googleapis.com if required). Enable the following options and save:

• Allow site for font-src
• Allow site for style-src

Creating a data model for appointment

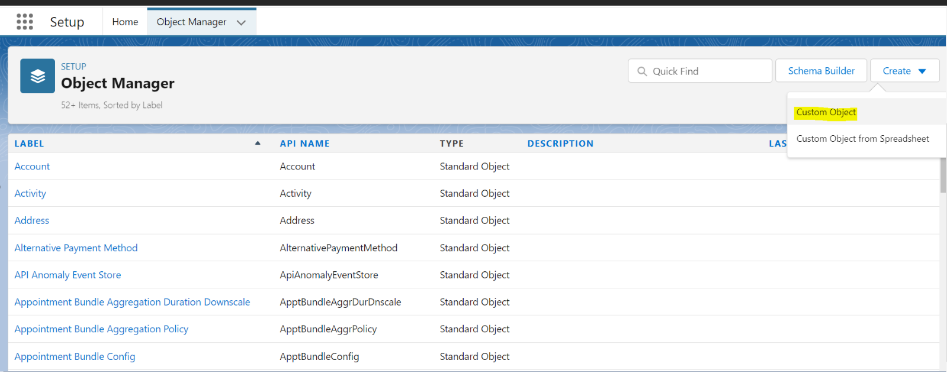

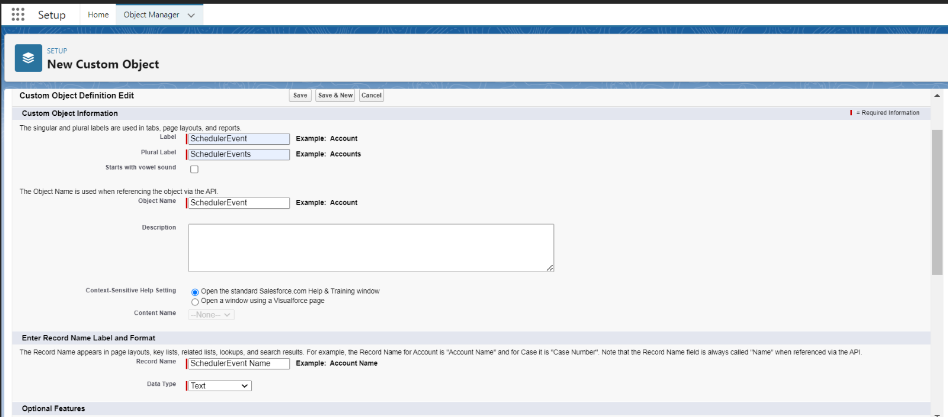

To begin, navigate to the Object Manager in Salesforce and select Create followed by Custom Object.

In the custom object section, enter a meaningful label for your custom object. For this example, let’s name it SchedulerEvent. Once done, click Save to create the custom object.

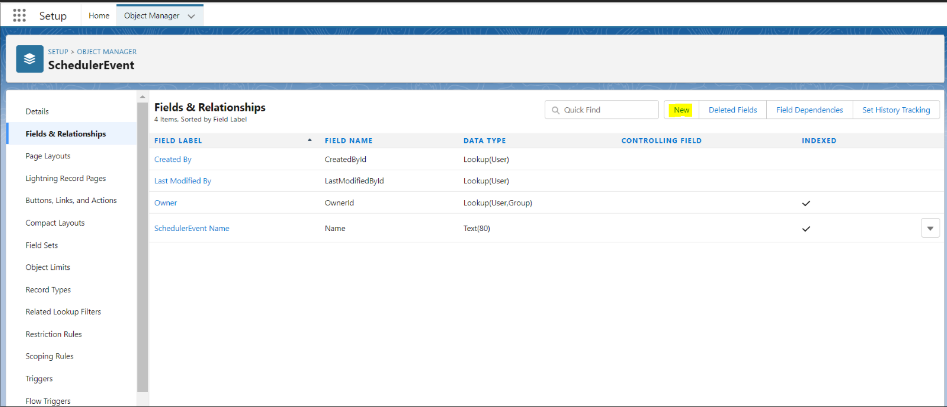

Defining fields and relationships

let’s configure the fields and relationships for the SchedulerEvent object. To do so click New button to create a new field.

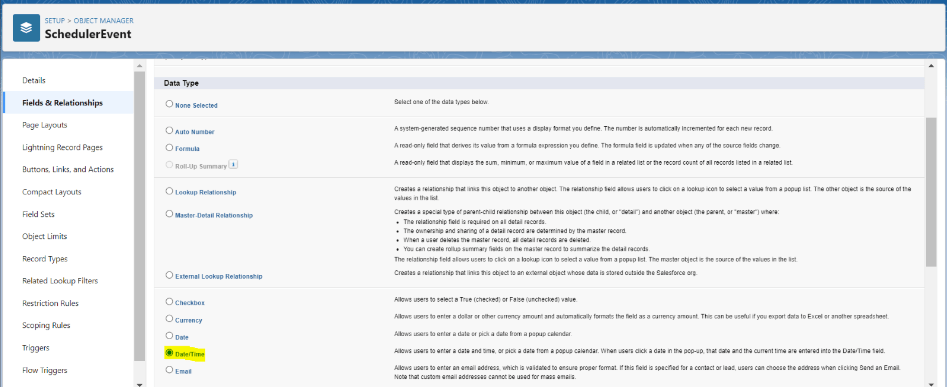

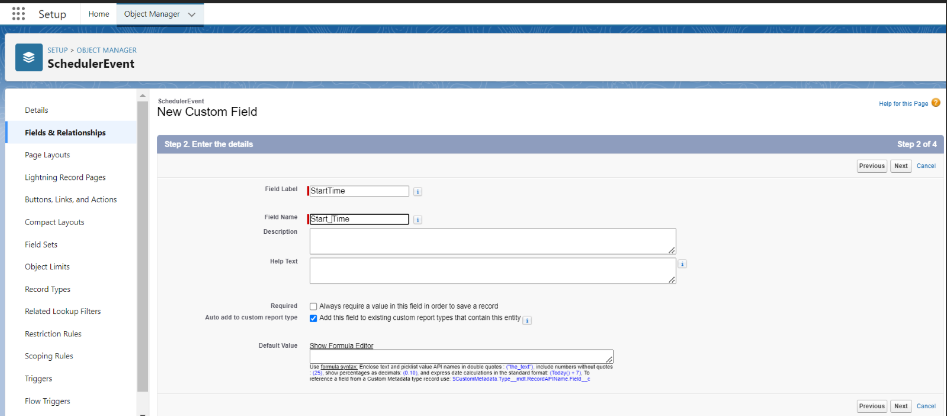

1. Setting the Data Type for StartTime. Choose DateTime as the data type for the StartTime field. This field will store the starting time of each appointment.

1. Provide a clear label for the StartTime field and click Next button. Once you’ve reviewed the settings, click Save & New button to proceed.

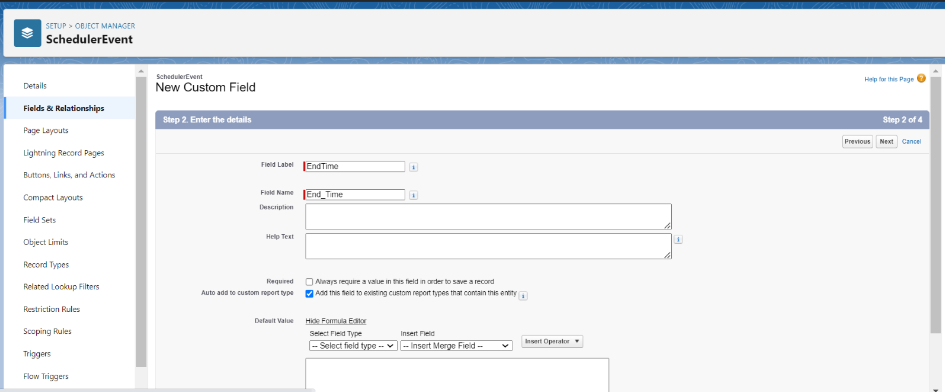

1. Repeat the same steps as above to create the EndTime field, which will store the ending time of each appointment. Creating the EndTime Field. Once you’ve reviewed the settings, click Save & New button to proceed.

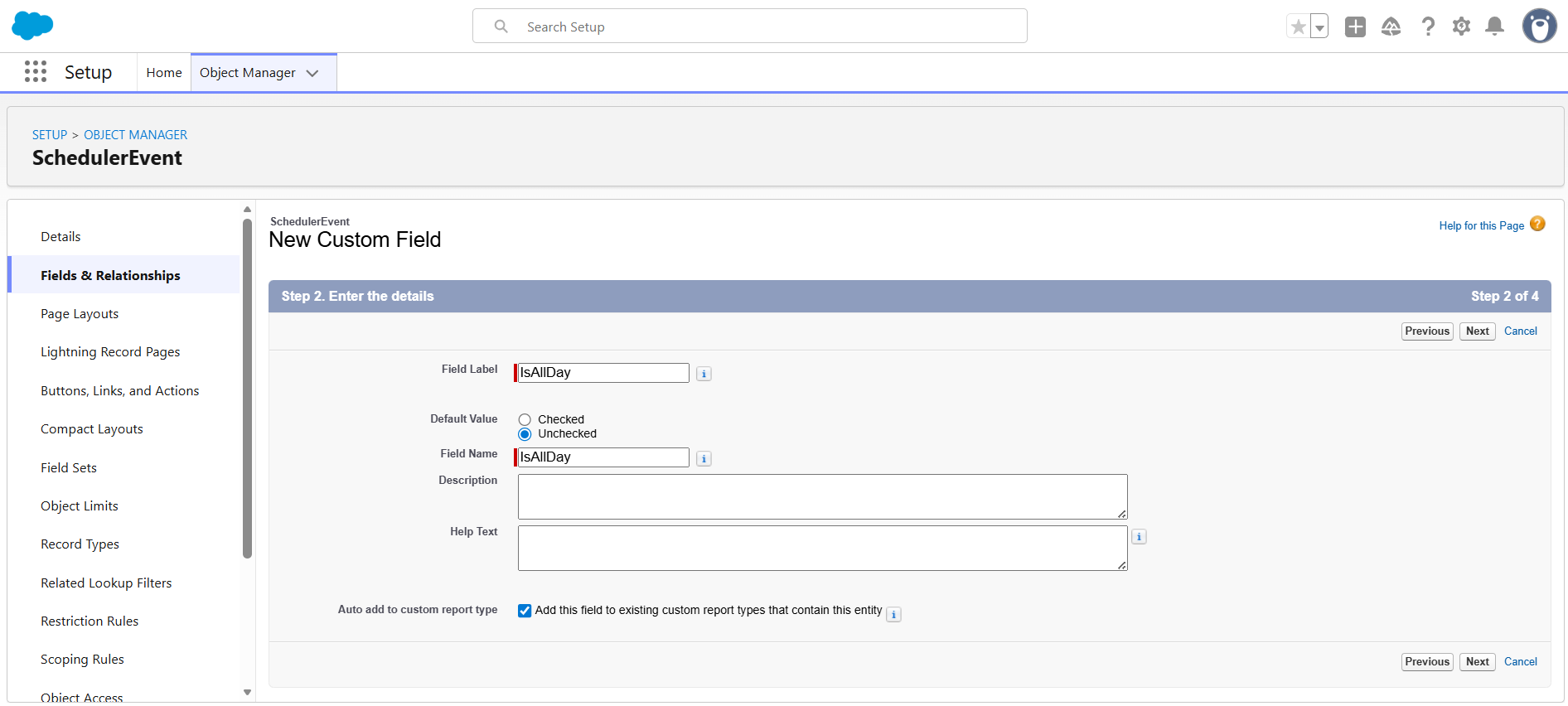

1. Choose Checkbox as the data type for the IsAllDay field. This field will be marked when an appointment is scheduled for the entire day.

1. Assign an appropriate label, such as IsAllDay, to the checkbox field. Click Next button to review the settings and then click Save & New button to proceed.

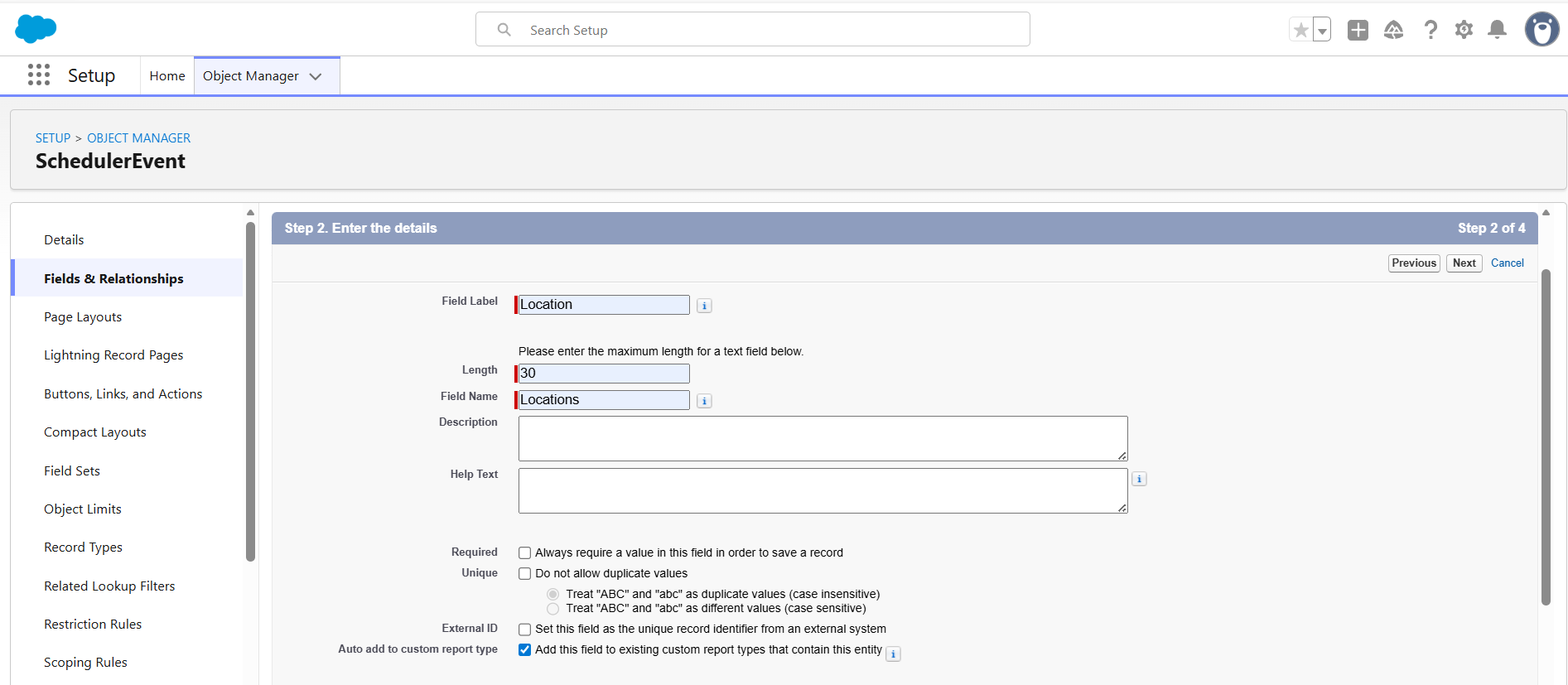

1. Choose Text as the data type for the Location/Recurrence Rule/Recurrence Id /Recurrence Exception field to store the location field and recurrence rule for each appointment as shown in the image respectively. Click Next to review the settings and then click Save button to proceed.

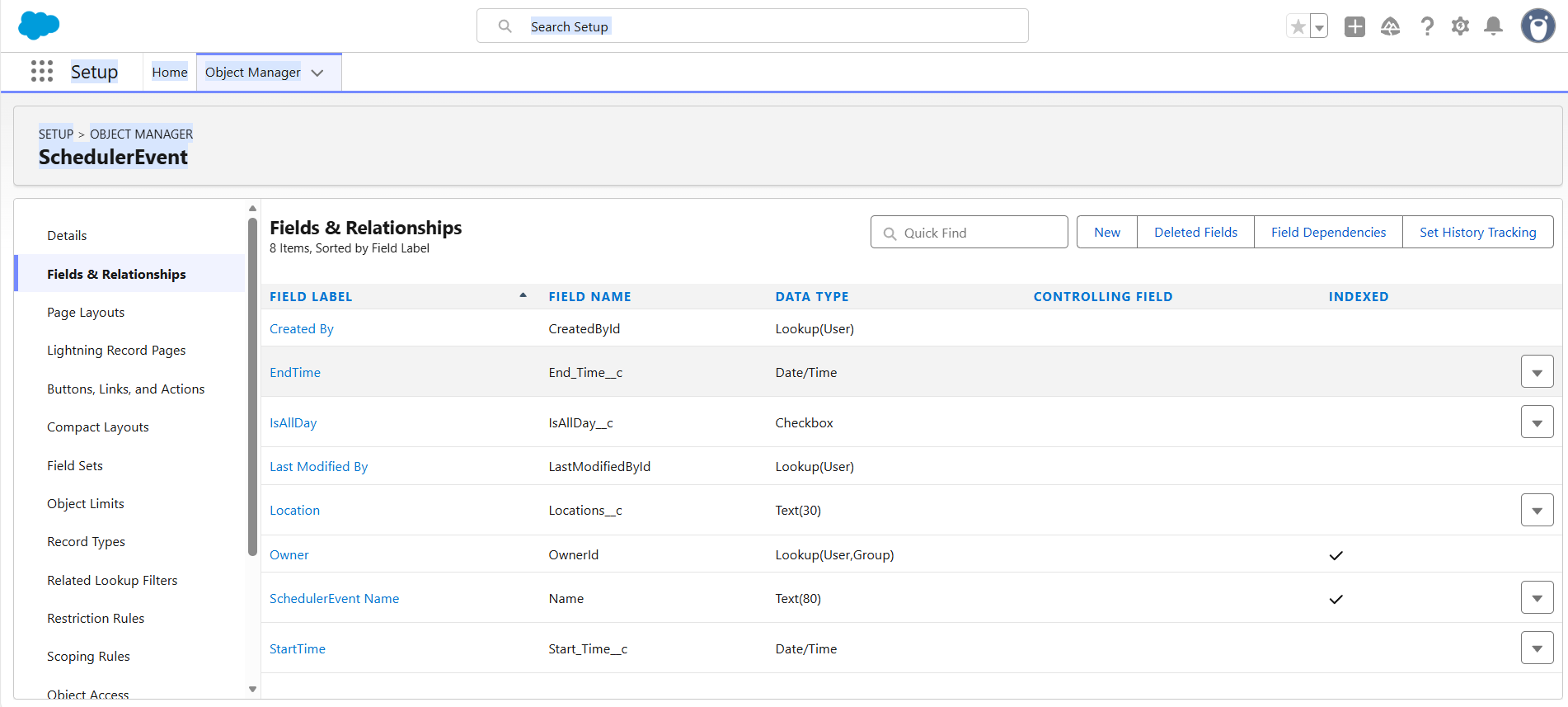

1. Based on your specific requirements, you can add more fields to the SchedulerEvent object by following the same steps outlined above.

Creating a Lightning web component

To integrate the JavaScript Scheduler into your Salesforce project, we will create a Lightning web component.

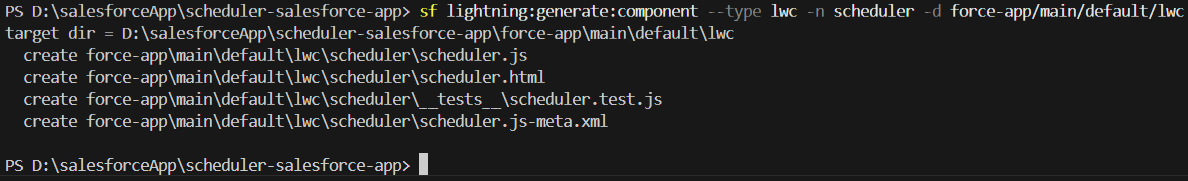

1. Generate an LWC named scheduler:

sf lightning:generate:component --type lwc -n scheduler -d force-app/main/default/lwc

1. Open the scheduler.js-meta.xml file located in force-app/main/default/lwc/scheduler and modify the component definition to expose it in the Lightning App Builder. Here’s an example of the modified file.

<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
  <apiVersion>57.0</apiVersion>
  <isExposed>true</isExposed>
  <targets>
    <target>lightning__AppPage</target>
  </targets>
  <targetConfigs>
    <targetConfig targets="lightning__AppPage">
      <property name="height" label="Height" type="Integer" default="800" />
    </targetConfig>
  </targetConfigs>
</LightningComponentBundle>

1. Open the scheduler.html file located in force-app/main/default/lwc/scheduler and add an element with a class name to append the scheduler. Here’s an example of the modified file.

<template>
  <div class="syncfusionscheduler" lwc:dom="manual" style="width:100%;"></div>
</template>

1. Open the scheduler.js file located in force-app/main/default/lwc/scheduler and implement the scheduler code in renderedCallback function. The static scripts and styles are loaded using the loadScript and loadStyle imports. Here’s an example of the modified file.

import { LightningElement, api } from 'lwc';
import { ShowToastEvent } from "lightning/platformShowToastEvent";
import { loadStyle, loadScript } from "lightning/platformResourceLoader";
import { createRecord, updateRecord, deleteRecord } from "lightning/uiRecordApi";
// Static resources
import schedulerFiles from "@salesforce/resourceUrl/syncfusionscheduler";

// Controllers
import getEvents from "@salesforce/apex/SchedulerData.getEvents";
function getEventsData(eventData) {
    const data = eventData.events.map((a) => ({
        Id: a.Id,
        Subject: a.Name,
        Location: a.Location__c,
        StartTime: a.Start_Time__c,
        EndTime: a.End_Time__c,
        IsAllDay: a.IsAllDay__c,
        RecurrenceRule: a.RecurrenceRule__c,
        RecurrenceID: a.Recurrence_Id__c,
        RecurrenceException: a.RecurrenceException__c
    }));
    return data;
}

export default class Scheduler extends LightningElement {
    static delegatesFocus = true;
    @api height;
    schedulerInitialized = false;
    renderedCallback() {
        if (this.schedulerInitialized) {
            return;
        }
        this.schedulerInitialized = true;
        Promise.all([
            loadScript(this, schedulerFiles + "/syncscheduler.js"),
            loadStyle(this, schedulerFiles + "/syncscheduler.css")
        ])
            .then(() => {
                this.initializeUI();
            })
            .catch((error) => {
                this.dispatchEvent(
                    new ShowToastEvent({
                        title: "Error loading scheduler",
                        message: error.message,
                        variant: "error"
                    })
                );
            });
    }
    initializeUI() {
        const root = this.template.querySelector(".syncfusionscheduler");
        root.style.height = this.height + "px";
        const scheduleOptions = {
            height: this.height + "px",
            selectedDate: new Date(),
            actionComplete: function (args) {
                //To perform CRUD in salesforce backend
                if (args.addedRecords && args.addedRecords.length > 0) {
                    var data = args.addedRecords[0];
                    var insert = {
                        apiName: "SchedulerEvent__c",
                        fields: {
                            Name: data.Subject,
                            Location__c: data.Location,
                            Start_Time__c: data.StartTime,
                            End_Time__c: data.EndTime,
                            IsAllDay__c: data.IsAllDay,
                            RecurrenceRule__c: data.RecurrenceRule,
                            Recurrence_Id__c: data.RecurrenceID,
                            RecurrenceException__c: data.RecurrenceException
                        }
                    };
                    createRecord(insert).then((res) => {
                        if (scheduleObj)
                        {
                            scheduleObj.eventSettings.dataSource[scheduleObj.eventSettings.dataSource.length - 1].Id = res.id;
                            scheduleObj.refreshEvents();
                        }
                        return { tid: res.id, ...res };
                    });
                }
                if (args.changedRecords && args.changedRecords.length > 0) {
                    var data = args.changedRecords[0];
                    var update = {
                        fields: {
                            Id: data.Id,
                            Name: data.Subject,
                            Location__c: data.Location,
                            Start_Time__c: data.StartTime,
                            End_Time__c: data.EndTime,
                            IsAllDay__c: data.IsAllDay,
                            RecurrenceRule__c: data.RecurrenceRule,
                            RecurrenceException__c: data.RecurrenceException,
                            Recurrence_Id__c: data.RecurrenceID
                        }
                    };
                    updateRecord(update).then(() => ({}));
                }
                if (args.deletedRecords && args.deletedRecords.length > 0) {
                    args.deletedRecords.forEach(event => {
                        deleteRecord(event.Id).then(() => ({}));
                    });
                }
            }
        };
        const scheduleObj = new ej.schedule.Schedule(scheduleOptions, root);
        getEvents().then((data) => {
            const eventData = getEventsData(data);
            scheduleObj.eventSettings.dataSource = eventData;
            scheduleObj.dataBind();
        });
    }
}

Creating apex class

Apex class that facilitates smooth interactions between your Lightning component and the data model. By following these steps, you will be able to fetch and manipulate data from the SchedulerEvent custom object effortlessly.

Use the following command to create Apex class with the name SchedulerData.

sf apex:generate:class -n SchedulerData -d force-app/main/default/classes

Open the SchedulerData.cls file located in force-app/main/default/classes/SchedulerData.cls.
This will fetch the event data from salesforce backend. Here’s an example of the modified file.

public with sharing class SchedulerData {
    @RemoteAction
    @AuraEnabled(cacheable=true)
    public static Map<String, Object> getEvents() {
        // fetching the Records via SOQL
        List<SchedulerEvent__c> Events = new List<SchedulerEvent__c>();
        Events = [SELECT Id, Name, Start_Time__c, End_Time__c, IsAllDay__c,
            Location__c, RecurrenceRule__c, Recurrence_Id__c, RecurrenceException__c FROM SchedulerEvent__c];
        Map<String, Object> result = new Map<String, Object>{'events' => Events };
        return result;
   }
}

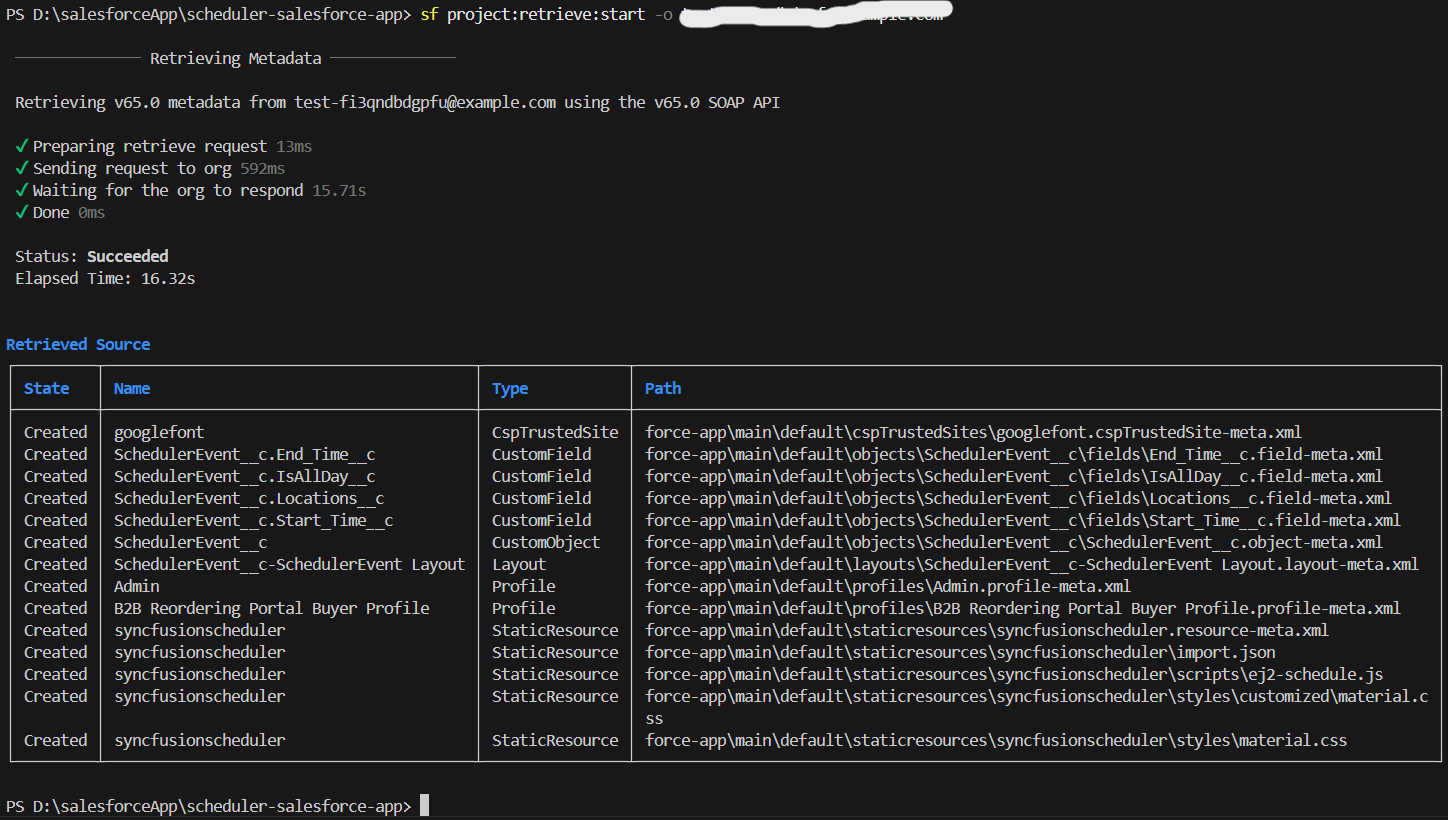

Pull scratch organization

To retrieve the changes made in the scratch organization and sync them with your local Salesforce project, use the following command.

sf project:retrieve:start -o <scratch org use name>

Replace with the username of your scratch organization.

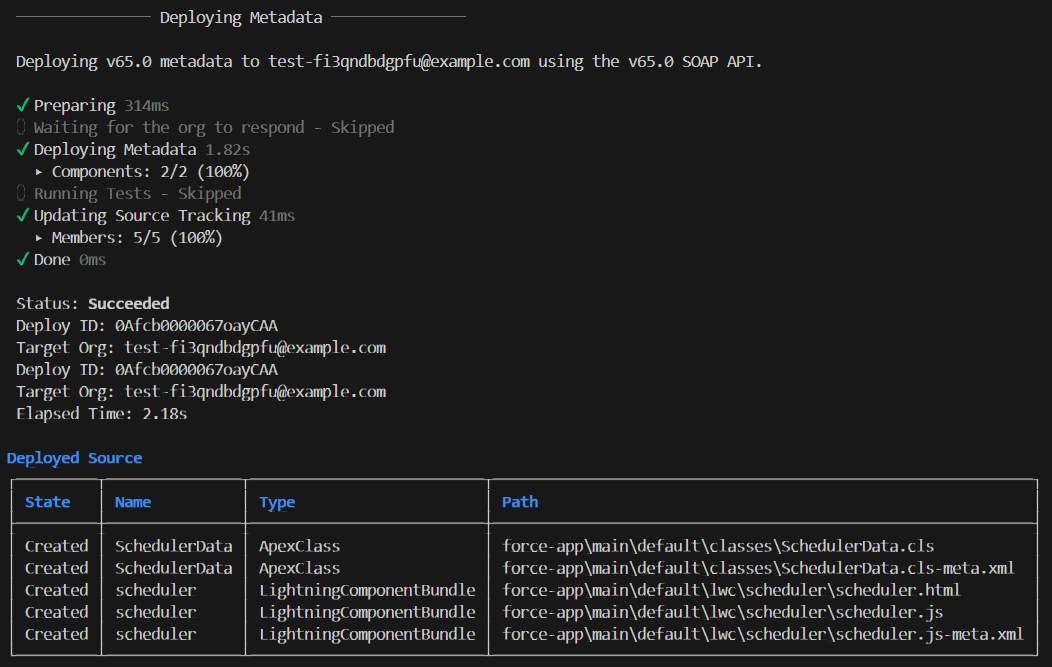

Push scratch organization

To push the changes made in your local Salesforce project to the scratch organization, use the following command.

sf project:deploy:start -o <scratch org use name>

Replace with the username of your scratch organization.

Creating lightning page

To display the JavaScript Scheduler on a Lightning page, follow these steps.

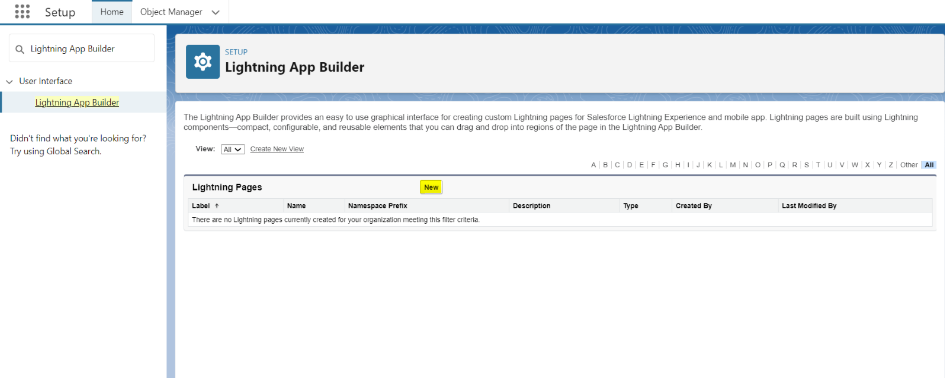

1. In your scratch organization, search for Lightning App Builder in the quick find setup, select Lightning App Builder and click New button.

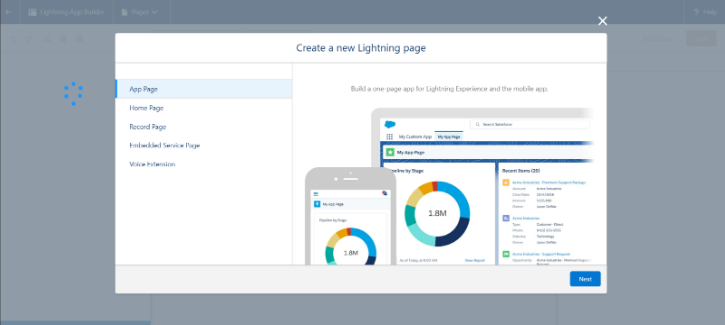

1. Choose App Page and click Next button.

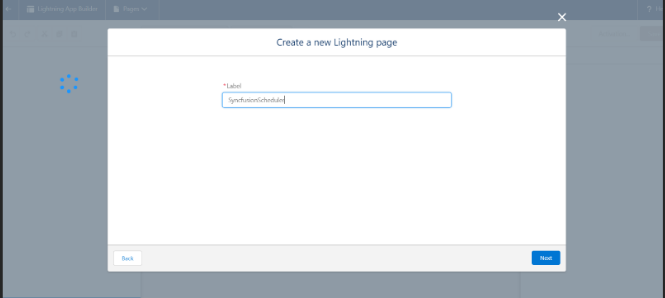

1. Provide a label name for the app page and click Next button. For example, here you can name it SyncfusionScheduler.

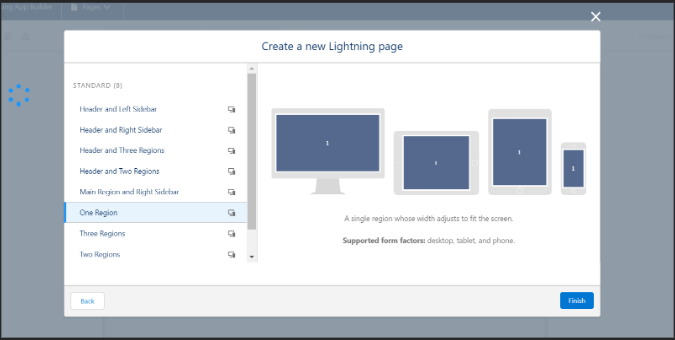

1. Choose One Region and click Finish button.

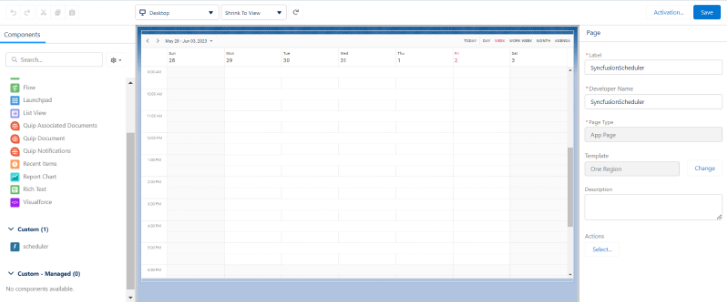

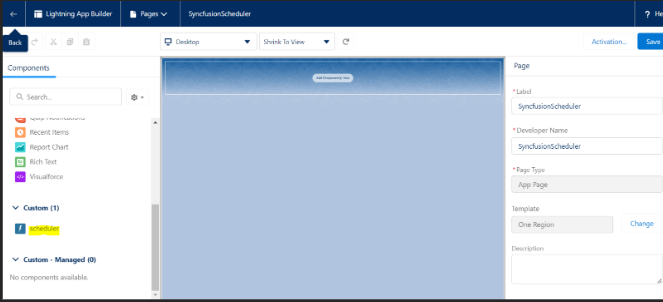

1. In the Lightning App Builder, under the Add Components Here section, drag and drop the scheduler component. The scheduler will be
   rendered inside the content body. Click Save to activate the custom component.

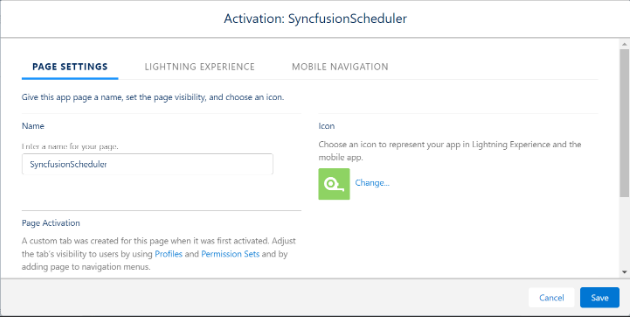

1. Activate the custom component with name SyncfusionScheduler and click the Save button.

Launching scheduler in home page

To access the integrated JavaScript Scheduler on the home page, follow these steps.

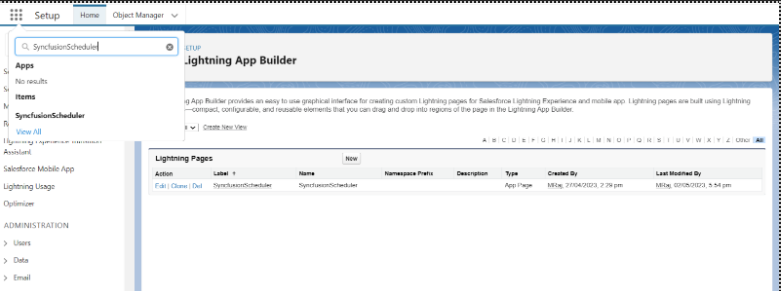

Click on the app launcher icon in Salesforce and Search for SyncfusionScheduler, which was registered earlier in the Lightning App Builder.

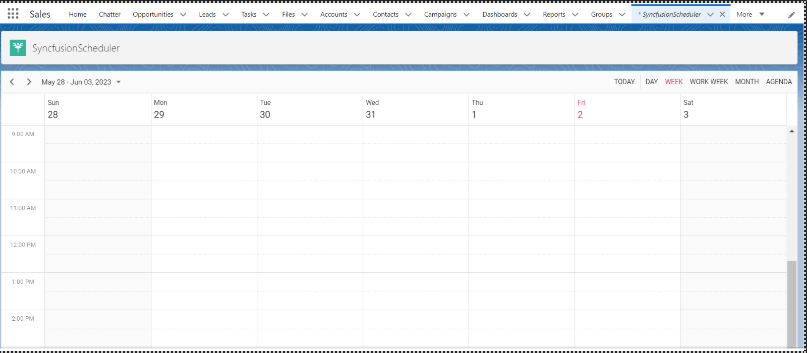

Click on the SyncfusionScheduler app, and the scheduler will load on the home page.

NOTE

You can also explore our JavaScript Scheduler example to knows about the Salesforce integration.
