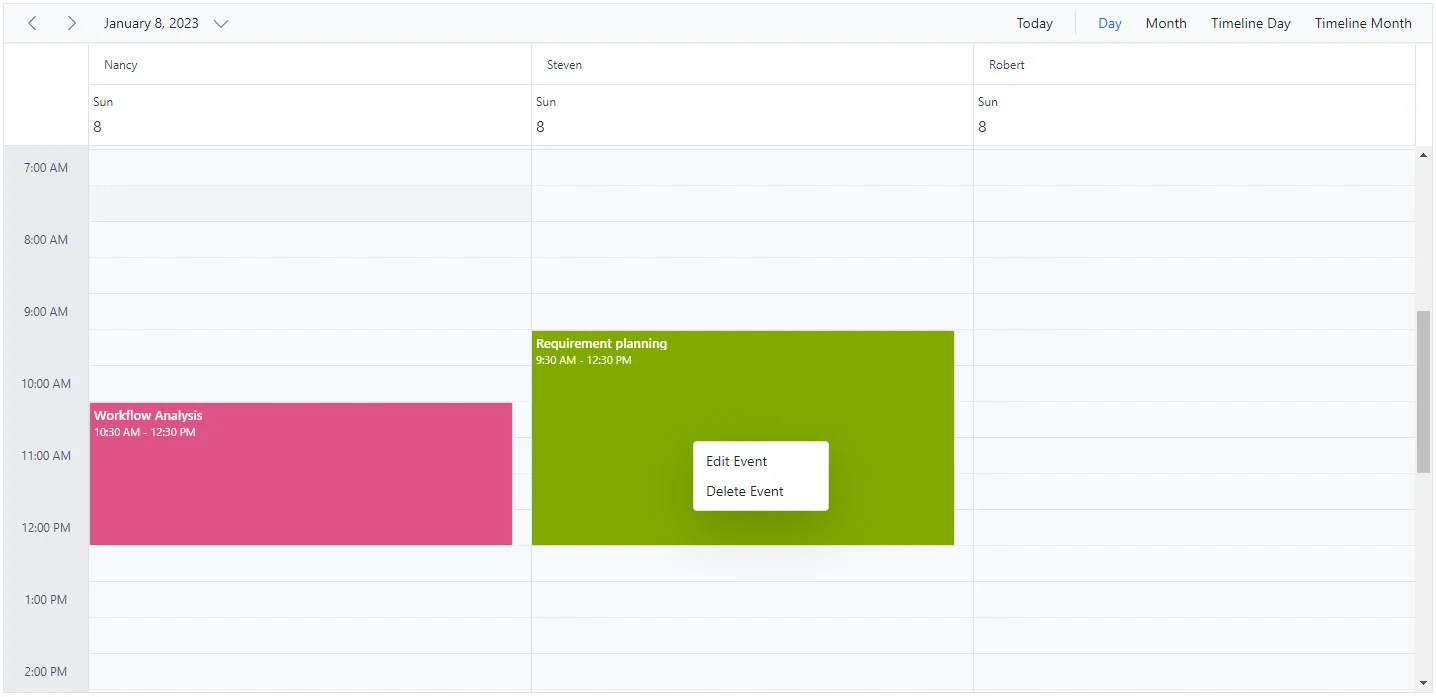

Context Menu in Blazor Scheduler
The context menu can be displayed on work cells, resource cells, and appointments in the Scheduler by using the ContextMenu control from the application. In the following code example, the context menu control is added in the sample and its target is set to the Scheduler, while the target element is obtained by using the GetElementInfoAsync public method in Blazor.
On Scheduler cells, menu items such as New Event, New Recurring Event, and Today can be displayed. For appointments, related options such as Edit Event and Delete Event can be displayed. For resource cells, the related resource information can be displayed. The default event window can be opened for appointment creation and editing by using the OpenEditorAsync method of the Scheduler.
Appointments can be deleted by using the DeleteEventAsync public method. Also, the SelectedDate property can be used to navigate between different dates.
Note: You can also display custom menu options on Scheduler cells and appointments. The context menu opens on tap-and-hold in responsive mode.
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Navigations
<SfSchedule TValue="AppointmentData" @ref="ScheduleRef" Height="650px" @bind-SelectedDate="@SelectedDate">
<ScheduleGroup Resources="@groupData"></ScheduleGroup>
<ScheduleResources>
<ScheduleResource TItem="ResourceData" TValue="int[]" DataSource="@Resources" Field="TaskId" Title="Category" Name="Categories" TextField="Name" IdField="Id" GroupIDField="GroupId" ColorField="Color" AllowMultiple="true"></ScheduleResource>
</ScheduleResources>
<ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
<ScheduleViews>
<ScheduleView Option="View.Day"></ScheduleView>
<ScheduleView Option="View.Month"></ScheduleView>
<ScheduleView Option="View.TimelineDay"></ScheduleView>
<ScheduleView Option="View.TimelineMonth"></ScheduleView>
</ScheduleViews>
</SfSchedule>
<SfContextMenu TValue="MenuItem" Target=".e-schedule">
<MenuItems>
<MenuItem Text="New Event" Id="Add" Hidden="@isCell"></MenuItem>
<MenuItem Text="New Recurring Event" Hidden="@isCell" Id="AddRecurrence"></MenuItem>
<MenuItem Text="Today" Id="Today" Hidden="@isCell"></MenuItem>
<MenuItem Text="Edit Event" Id="Save" Hidden="@isEvent"></MenuItem>
<MenuItem Text="Edit Event" Id="EditRecurrenceEvent" Hidden="@isRecurrence">
<MenuItems>
<MenuItem Text="Edit Occurrence" Id="EditOccurrence" Hidden="@isRecurrence"></MenuItem>
<MenuItem Text="Edit Series" Id="EditSeries" Hidden="@isRecurrence"></MenuItem>
</MenuItems>
</MenuItem>
<MenuItem Text="Delete Event" Id="Delete" Hidden="@isEvent"></MenuItem>
<MenuItem Text="Delete Event" Id="DeleteRecurrenceEvent" Hidden="@isRecurrence">
<MenuItems>
<MenuItem Text="Delete Occurrence" Id="DeleteOccurrence" Hidden="@isRecurrence"></MenuItem>
<MenuItem Text="Delete Series" Id="DeleteSeries" Hidden="@isRecurrence"></MenuItem>
</MenuItems>
</MenuItem>
<MenuItem Text="Rename" Id="Rename" Hidden="@isResource"></MenuItem>
</MenuItems>
<MenuEvents TValue="MenuItem" OnOpen="OnOpen" ItemSelected="OnItemSelected"></MenuEvents>
</SfContextMenu>
@code{
private DateTime SelectedDate { get; set; } = new DateTime(2023, 1, 8);
private bool isCell;
private bool isEvent;
private bool isRecurrence;
private bool isResource;
SfSchedule<AppointmentData> ScheduleRef;
private AppointmentData EventData { get; set; }
private CellClickEventArgs CellData { get; set; }
private ElementInfo<AppointmentData> ElementData { get; set; }
private string[] groupData = new string[] { "Projects", "Categories" };
private List<ResourceData> Resources { get; set; } = new List<ResourceData> {
new ResourceData { Name = "Nancy", Id= 1, GroupId = 1, Color = "#df5286" },
new ResourceData { Name = "Steven", Id= 2, GroupId = 1, Color = "#7fa900" },
new ResourceData { Name = "Robert", Id= 3, GroupId = 2, Color = "#ea7a57" },
};
public class ResourceData
{
public string Name { get; set; }
public int Id { get; set; }
public int GroupId { get; set; }
public string Color { get; set; }
}
public List<AppointmentData> DataSource = new List<AppointmentData>
{
new AppointmentData { Id = 1, Subject = "Workflow Analysis", StartTime = new DateTime(2023, 1, 8, 10, 30, 0) , EndTime = new DateTime(2023, 1, 8, 12, 30, 0) , IsAllDay = false, TaskId = 1},
new AppointmentData { Id = 2, Subject = "Requirement planning", StartTime = new DateTime(2023, 1, 8, 9, 30, 0) , EndTime = new DateTime(2023, 1, 8, 12, 30, 0) , IsAllDay = false, TaskId = 2},
};
public async Task OnOpen(BeforeOpenCloseMenuEventArgs<MenuItem> args)
{
if (args.ParentItem == null)
{
isResource = true;
ElementData = await ScheduleRef.GetElementInfoAsync((int)args.Left, (int)args.Top);
if (ElementData.ElementType == ElementType.Event)
{
EventData = ElementData.EventData;
if (EventData.Id == 0)
{
args.Cancel = true;
}
if (EventData.RecurrenceRule != null)
{
isCell = isEvent = true;
isRecurrence = false;
}
else
{
isCell = isRecurrence = true;
isEvent = false;
}
}
else
{
isCell = false;
isEvent = isRecurrence = true;
}
if (ElementData.ElementType == ElementType.WorkCells)
{
var groupIndex = this.ScheduleRef.GetGroupIndex((ElementData.ResourceData.Last() as ResourceData).Id, "Categories");
CellClickEventArgs cellData = new CellClickEventArgs
{
StartTime = ElementData.StartTime,
EndTime = ElementData.EndTime,
IsAllDay = ElementData.IsAllDay,
GroupIndex = groupIndex,
};
CellData = cellData;
isCell = false;
isEvent = isRecurrence = true;
}
if (ElementData.ElementType == ElementType.ResourceHeader)
{
isResource = false;
Console.WriteLine(ElementData.ResourceData);
}
}
}
public async Task OnItemSelected(MenuEventArgs<MenuItem> args)
{
var SelectedMenuItem = args.Item.Id;
var ActiveCellsData = await ScheduleRef.GetSelectedCellsAsync();
if (ActiveCellsData == null)
{
ActiveCellsData = CellData;
}
switch (SelectedMenuItem)
{
case "Today":
SelectedDate = DateTime.Now;
break;
case "Add":
await ScheduleRef.OpenEditorAsync(ActiveCellsData, CurrentAction.Add);
break;
case "AddRecurrence":
await ScheduleRef.OpenEditorAsync(ActiveCellsData, CurrentAction.Add, RepeatType.Daily);
break;
case "Save":
await ScheduleRef.OpenEditorAsync(EventData, CurrentAction.Save);
break;
case "EditOccurrence":
await ScheduleRef.OpenEditorAsync(EventData, CurrentAction.EditOccurrence);
break;
case "EditSeries":
List<AppointmentData> Events = await ScheduleRef.GetEventsAsync();
EventData = (AppointmentData)Events.Where(data => data.Id == EventData.RecurrenceID).FirstOrDefault();
await ScheduleRef.OpenEditorAsync(EventData, CurrentAction.EditSeries);
break;
case "Delete":
await ScheduleRef.DeleteEventAsync(EventData);
break;
case "DeleteOccurrence":
await ScheduleRef.DeleteEventAsync(EventData, CurrentAction.DeleteOccurrence);
break;
case "DeleteSeries":
await ScheduleRef.DeleteEventAsync(EventData, CurrentAction.DeleteSeries);
break;
}
}
public class AppointmentData
{
public int Id { get; set; }
public string Subject { get; set; }
public string Location { get; set; }
public DateTime StartTime { get; set; }
public DateTime EndTime { get; set; }
public string Description { get; set; }
public bool IsAllDay { get; set; }
public string RecurrenceRule { get; set; }
public string RecurrenceException { get; set; }
public Nullable<int> RecurrenceID { get; set; }
public int TaskId { get; set; }
}
}
