Liquid Glass Effect in .NET MAUI Expander (SfExpander)
16 Jul 202624 minutes to read
The Liquid Glass Effect introduces a modern, translucent design with adaptive color tinting and light refraction, creating a sleek, glass-like user experience that remains clear and accessible. This section explains how to enable and customize the effect in the Syncfusion® .NET MAUI Expander (SfExpander) control.
Apply liquid glass effect
Follow these steps to enable and configure the Liquid Glass Effect in the Expander control:
Step 1: Wrap the control inside glass effect view
To apply the Liquid Glass Effect to Syncfusion® .NET MAUI SfExpander, wrap it inside the SfGlassEffectView.
For more details, refer to the Liquid Glass Getting Started documentation.
Make sure the SfExpander is placed inside the SfGlassEffectView so the effect can tint both the header and the content.
Step 2: Enable the liquid glass effect on Expander
Set the EnableLiquidGlassEffect property to true in the SfExpander control. When enabled, the effect is applied to the header and content, providing a smooth and engaging user experience.
EnableLiquidGlassEffect works whether the expander is expanded or collapsed.
Step 3: Customize the background
To achieve a glass-like background, set the Background property to Transparent. The background will then be treated as a tinted color, ensuring a consistent glass effect across the controls.
If you use a non-transparent background, the glass effect may appear less translucent.

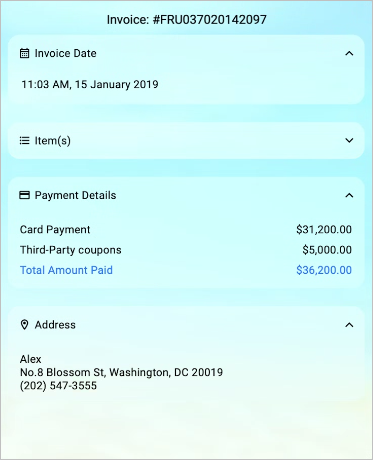

The following code snippet demonstrates how to apply the Liquid Glass Effect to the SfExpander control:
<Grid>
<Grid.Background>
<LinearGradientBrush StartPoint="0,0"
EndPoint="0,1">
<GradientStop Color="#0F4C75" Offset="0.0"/>
<GradientStop Color="#3282B8" Offset="0.5"/>
<GradientStop Color="#1B262C" Offset="1.0"/>
</LinearGradientBrush>
</Grid.Background>
<core:SfGlassEffectView EffectType="Regular"
CornerRadius="20">
<ScrollView>
<StackLayout HorizontalOptions="{OnPlatform MacCatalyst=Center,WinUI=Center}">
<Label Text="Invoice: #FRU037020142097"
HeightRequest="40"
FontSize="16"
FontFamily="Roboto-Regular"
Opacity="1.0"
VerticalTextAlignment="Center"
FontAttributes="Bold"
VerticalOptions="Center"
HorizontalOptions="Center"
Margin="{OnPlatform Default='8,12,8,8',WinUI='8,12,6,8',MacCatalyst='8,12,6,8'}"/>
<!-- Expander 1: Invoice Date -->
<syncfusion:SfExpander AnimationDuration="200"
IsExpanded="True"
Background="Transparent"
EnableLiquidGlassEffect="True"
Margin="{OnPlatform Default='8,0,8,8',WinUI='8,0,8,8',MacCatalyst='8,0,8,8'}">
<syncfusion:SfExpander.Header>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="48"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="35"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Label Text="" FontSize="16" Margin="14,2,2,2"
FontFamily="AccordionFontIcons.ttf#"
VerticalOptions="Center" VerticalTextAlignment="Center"/>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="Invoice Date" FontSize="14" Grid.Column="1" VerticalOptions="Center"/>
</Grid>
</syncfusion:SfExpander.Header>
<syncfusion:SfExpander.Content>
<Grid Padding="18,8,0,18">
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="11:03 AM, 15 January 2019" FontSize="14" VerticalOptions="Center"/>
</Grid>
</syncfusion:SfExpander.Content>
</syncfusion:SfExpander>
<!-- Expander 2: Items -->
<syncfusion:SfExpander AnimationDuration="200"
IsExpanded="False"
Background="Transparent"
EnableLiquidGlassEffect="True"
Margin="{OnPlatform Default='8,12,8,8',WinUI='8,12,8,8',MacCatalyst='8,12,8,8'}">
<syncfusion:SfExpander.Header>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="48"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="35"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Label Text="" FontSize="16" Margin="14,2,2,2"
FontFamily="AccordionFontIcons.ttf#"
VerticalOptions="Center" VerticalTextAlignment="Center"/>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="Item(s)" FontSize="14" Grid.Column="1" VerticalOptions="Center"/>
</Grid>
</syncfusion:SfExpander.Header>
<syncfusion:SfExpander.Content>
<Grid Padding="16,12,16,12">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<Grid Grid.Row="1">
<Grid.RowDefinitions>
<RowDefinition Height="20"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="*"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Label Text="Total Amount" CharacterSpacing="0.25" VerticalTextAlignment="Center" FontSize="14"/>
<Label Text="$36,220.00" CharacterSpacing="0.25" HorizontalTextAlignment="End" VerticalTextAlignment="Center" FontSize="14" Grid.Column="1"/>
</Grid>
</Grid>
</syncfusion:SfExpander.Content>
</syncfusion:SfExpander>
<!-- Expander 3: Payment Details -->
<syncfusion:SfExpander AnimationDuration="200"
IsExpanded="False"
Background="Transparent"
EnableLiquidGlassEffect="True"
Margin="{OnPlatform Default='8,12,8,8',WinUI='8,12,8,8',MacCatalyst='8,12,8,8'}">
<syncfusion:SfExpander.Header>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="48"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="35"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Label Text="" FontSize="16" Margin="14,2,2,2"
FontFamily="AccordionFontIcons.ttf#"
VerticalOptions="Center" VerticalTextAlignment="Center"/>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="Payment Details" FontSize="14" Grid.Column="1" VerticalOptions="Center"/>
</Grid>
</syncfusion:SfExpander.Header>
<syncfusion:SfExpander.Content>
<Grid Padding="16,12,16,12" RowSpacing="6">
<Grid.RowDefinitions>
<RowDefinition Height="20"/>
<RowDefinition Height="20"/>
<RowDefinition Height="20"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="*"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Label FontSize="14" CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="Card Payment"/>
<Label FontSize="14" CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="Third-Party coupons" Grid.Row="1"/>
<Label FontSize="14" CharacterSpacing="0.25" FontFamily="Roboto-Regular" Text="Total Amount Paid" Grid.Row="2"/>
<Label FontSize="14" CharacterSpacing="0.25" FontFamily="Roboto-Regular" HorizontalOptions="End" Text="$31,200.00" Grid.Column="1"/>
<Label FontSize="14" CharacterSpacing="0.25" FontFamily="Roboto-Regular" HorizontalOptions="End" Text="$5,000.00" Grid.Row="1" Grid.Column="1"/>
<Label FontSize="14" CharacterSpacing="0.25" FontFamily="Roboto-Regular" HorizontalOptions="End" Text="$36,200.00" Grid.Row="2" Grid.Column="1"/>
</Grid>
</syncfusion:SfExpander.Content>
</syncfusion:SfExpander>
<!-- Expander 4: Address -->
<syncfusion:SfExpander AnimationDuration="200"
IsExpanded="True"
Background="Transparent"
EnableLiquidGlassEffect="True"
Margin="{OnPlatform Default='8,12,8,8',WinUI='8,12,8,8',MacCatalyst='8,12,8,8'}">
<syncfusion:SfExpander.Header>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="48"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="35"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Label Text="" FontSize="16" Margin="14,2,2,2"
FontFamily="AccordionFontIcons.ttf#"
VerticalOptions="Center" VerticalTextAlignment="Center"/>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" FontSize="14" Text="Address" Grid.Column="1" VerticalOptions="Center"/>
</Grid>
</syncfusion:SfExpander.Header>
<syncfusion:SfExpander.Content>
<Grid Padding="16,12,16,12" RowSpacing="1">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" FontSize="14" Text="Alex" FontAttributes="Bold"/>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" FontSize="14" Text="No.8 Blossom St, Washington, DC 20019" Grid.Row="1"/>
<Label CharacterSpacing="0.25" FontFamily="Roboto-Regular" FontSize="14" Text="(202) 547-3555" Grid.Row="2"/>
</Grid>
</syncfusion:SfExpander.Content>
</syncfusion:SfExpander>
</StackLayout>
</ScrollView>
</core:SfGlassEffectView>
</Grid>using Syncfusion.Maui.Core;
using Syncfusion.Maui.Expander;
var gradientBrush = new LinearGradientBrush
{
StartPoint = new Point(0, 0),
EndPoint = new Point(0, 1),
GradientStops = new GradientStopCollection
{
new GradientStop { Color = Color.FromArgb("#0F4C75"), Offset = 0.0f },
new GradientStop { Color = Color.FromArgb("#3282B8"), Offset = 0.5f },
new GradientStop { Color = Color.FromArgb("#1B262C"), Offset = 1.0f }
}
};
var root = new Grid { Background = gradientBrush };
var glass = new SfGlassEffectView
{
CornerRadius = 20,
EffectType = LiquidGlassEffectType.Regular
};
var scroll = new ScrollView();
var stack = new VerticalStackLayout
{
HorizontalOptions = DeviceInfo.Platform == DevicePlatform.WinUI || DeviceInfo.Platform == DevicePlatform.MacCatalyst ? LayoutOptions.Center : LayoutOptions.Fill
};
stack.Add(new Label
{
Text = "Invoice: #FRU037020142097",
HeightRequest = 40,
FontSize = 16,
FontFamily = "Roboto-Regular",
Opacity = 1.0,
VerticalTextAlignment = TextAlignment.Center,
FontAttributes = FontAttributes.Bold,
VerticalOptions = LayoutOptions.Center,
HorizontalOptions = LayoutOptions.Center,
Margin = new Thickness(8, 12, 8, 8)
});
// Expander 1: Invoice Date
var header1 = new Grid();
header1.RowDefinitions.Add(new RowDefinition { Height = 48 });
header1.ColumnDefinitions.Add(new ColumnDefinition { Width = 35 });
header1.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
var icon1 = new Label
{
Text = "\uE703",
FontSize = 16,
Margin = new Thickness(14, 2, 2, 2),
FontFamily = "AccordionFontIcons.ttf#",
VerticalOptions = LayoutOptions.Center,
VerticalTextAlignment = TextAlignment.Center
};
header1.Children.Add(icon1);
var label1 = new Label
{
Text = "Invoice Date",
FontSize = 14,
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
VerticalOptions = LayoutOptions.Center
};
Grid.SetColumn(label1, 1);
header1.Children.Add(label1);
var content1 = new Grid { Padding = new Thickness(18, 8, 0, 18) };
content1.Children.Add(new Label
{
Text = "11:03 AM, 15 January 2019",
FontSize = 14,
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
VerticalOptions = LayoutOptions.Center
});
stack.Add(new SfExpander
{
AnimationDuration = 200,
IsExpanded = true,
Background = Colors.Transparent,
EnableLiquidGlassEffect = true,
Margin = new Thickness(8, 0, 8, 8),
Header = header1,
Content = content1
});
// Expander 2: Items
var header2 = new Grid();
header2.RowDefinitions.Add(new RowDefinition { Height = 48 });
header2.ColumnDefinitions.Add(new ColumnDefinition { Width = 35 });
header2.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
var icon2 = new Label
{
Text = "\uE701",
FontSize = 16,
Margin = new Thickness(14, 2, 2, 2),
FontFamily = "AccordionFontIcons.ttf#",
VerticalOptions = LayoutOptions.Center,
VerticalTextAlignment = TextAlignment.Center
};
header2.Children.Add(icon2);
var label2 = new Label
{
Text = "Item(s)",
FontSize = 14,
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
VerticalOptions = LayoutOptions.Center
};
Grid.SetColumn(label2, 1);
header2.Children.Add(label2);
var content2 = new Grid { Padding = new Thickness(16, 12, 16, 12) };
content2.RowDefinitions.Add(new RowDefinition { Height = GridLength.Auto });
content2.RowDefinitions.Add(new RowDefinition { Height = GridLength.Auto });
var itemsGrid = new Grid();
itemsGrid.RowDefinitions.Add(new RowDefinition { Height = 20 });
itemsGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
itemsGrid.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
var totalLabel = new Label
{
Text = "Total Amount",
CharacterSpacing = 0.25,
VerticalTextAlignment = TextAlignment.Center,
FontSize = 14
};
itemsGrid.Children.Add(totalLabel);
var amountLabel = new Label
{
Text = "$36,220.00",
CharacterSpacing = 0.25,
HorizontalTextAlignment = TextAlignment.End,
VerticalTextAlignment = TextAlignment.Center,
FontSize = 14
};
Grid.SetColumn(amountLabel, 1);
itemsGrid.Children.Add(amountLabel);
Grid.SetRow(itemsGrid, 1);
content2.Children.Add(itemsGrid);
stack.Add(new SfExpander
{
AnimationDuration = 200,
IsExpanded = false,
Background = Colors.Transparent,
EnableLiquidGlassEffect = true,
Margin = new Thickness(8, 12, 8, 8),
Header = header2,
Content = content2
});
// Expander 3: Payment Details
var header3 = new Grid();
header3.RowDefinitions.Add(new RowDefinition { Height = 48 });
header3.ColumnDefinitions.Add(new ColumnDefinition { Width = 35 });
header3.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
var icon3 = new Label
{
Text = "\uE702",
FontSize = 16,
Margin = new Thickness(14, 2, 2, 2),
FontFamily = "AccordionFontIcons.ttf#",
VerticalOptions = LayoutOptions.Center,
VerticalTextAlignment = TextAlignment.Center
};
header3.Children.Add(icon3);
var label3 = new Label
{
Text = "Payment Details",
FontSize = 14,
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
VerticalOptions = LayoutOptions.Center
};
Grid.SetColumn(label3, 1);
header3.Children.Add(label3);
var content3 = new Grid { Padding = new Thickness(16, 12, 16, 12), RowSpacing = 6 };
content3.RowDefinitions.Add(new RowDefinition { Height = 20 });
content3.RowDefinitions.Add(new RowDefinition { Height = 20 });
content3.RowDefinitions.Add(new RowDefinition { Height = 20 });
content3.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
content3.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
content3.Children.Add(new Label { FontSize = 14, CharacterSpacing = 0.25, FontFamily = "Roboto-Regular", Text = "Card Payment" });
var couponLabel = new Label { FontSize = 14, CharacterSpacing = 0.25, FontFamily = "Roboto-Regular", Text = "Third-Party coupons" };
Grid.SetRow(couponLabel, 1);
content3.Children.Add(couponLabel);
var totalPaidLabel = new Label { FontSize = 14, CharacterSpacing = 0.25, FontFamily = "Roboto-Regular", Text = "Total Amount Paid" };
Grid.SetRow(totalPaidLabel, 2);
content3.Children.Add(totalPaidLabel);
var cardAmount = new Label { FontSize = 14, CharacterSpacing = 0.25, FontFamily = "Roboto-Regular", HorizontalOptions = LayoutOptions.End, Text = "$31,200.00" };
Grid.SetColumn(cardAmount, 1);
content3.Children.Add(cardAmount);
var couponAmount = new Label { FontSize = 14, CharacterSpacing = 0.25, FontFamily = "Roboto-Regular", HorizontalOptions = LayoutOptions.End, Text = "$5,000.00" };
Grid.SetRow(couponAmount, 1);
Grid.SetColumn(couponAmount, 1);
content3.Children.Add(couponAmount);
var totalAmount = new Label { FontSize = 14, CharacterSpacing = 0.25, FontFamily = "Roboto-Regular", HorizontalOptions = LayoutOptions.End, Text = "$36,200.00" };
Grid.SetRow(totalAmount, 2);
Grid.SetColumn(totalAmount, 1);
content3.Children.Add(totalAmount);
stack.Add(new SfExpander
{
AnimationDuration = 200,
IsExpanded = false,
Background = Colors.Transparent,
EnableLiquidGlassEffect = true,
Margin = new Thickness(8, 12, 8, 8),
Header = header3,
Content = content3
});
// Expander 4: Address
var header4 = new Grid();
header4.RowDefinitions.Add(new RowDefinition { Height = 48 });
header4.ColumnDefinitions.Add(new ColumnDefinition { Width = 35 });
header4.ColumnDefinitions.Add(new ColumnDefinition { Width = GridLength.Star });
var icon4 = new Label
{
Text = "\uE704",
FontSize = 16,
Margin = new Thickness(14, 2, 2, 2),
FontFamily = "AccordionFontIcons.ttf#",
VerticalOptions = LayoutOptions.Center,
VerticalTextAlignment = TextAlignment.Center
};
header4.Children.Add(icon4);
var label4 = new Label
{
Text = "Address",
FontSize = 14,
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
VerticalOptions = LayoutOptions.Center
};
Grid.SetColumn(label4, 1);
header4.Children.Add(label4);
var content4 = new Grid { Padding = new Thickness(16, 12, 16, 12), RowSpacing = 1 };
content4.RowDefinitions.Add(new RowDefinition { Height = GridLength.Auto });
content4.RowDefinitions.Add(new RowDefinition { Height = GridLength.Auto });
content4.RowDefinitions.Add(new RowDefinition { Height = GridLength.Auto });
content4.Children.Add(new Label
{
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
FontSize = 14,
Text = "Alex",
FontAttributes = FontAttributes.Bold
});
var addressLabel = new Label
{
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
FontSize = 14,
Text = "No.8 Blossom St, Washington, DC 20019"
};
Grid.SetRow(addressLabel, 1);
content4.Children.Add(addressLabel);
var phoneLabel = new Label
{
CharacterSpacing = 0.25,
FontFamily = "Roboto-Regular",
FontSize = 14,
Text = "(202) 547-3555"
};
Grid.SetRow(phoneLabel, 2);
content4.Children.Add(phoneLabel);
stack.Add(new SfExpander
{
AnimationDuration = 200,
IsExpanded = true,
Background = Colors.Transparent,
EnableLiquidGlassEffect = true,
Margin = new Thickness(8, 12, 8, 8),
Header = header4,
Content = content4
});
scroll.Content = stack;
glass.Content = scroll;
root.Children.Add(glass);
this.Content = root;The following screenshot illustrates SfExpander within SfGlassEffectView.
NOTE
- Supported on
macOS 26 or higherandiOS 26 or higher.- This feature is available only in
.NET 10.
