Liquid Glass Effect in .NET MAUI ComboBox

21 Jul 20266 minutes to read

The Liquid Glass Effect introduces a modern, translucent design with adaptive color tinting and light refraction, creating a sleek, glass-like user experience that remains clear and accessible. This section explains how to enable and customize the effect in the .NET MAUI ComboBox control.

Prerequisites

Before using the SfComboBox, Install the Syncfusion.Maui.Inputs and Syncfusion.Maui.Core NuGet packages in your .NET MAUI project. The Syncfusion.Maui.Core package is required for the SfGlassEffectView container used to host the Liquid Glass Effect.

For a step-by-step setup, refer to the Getting Started documentation.

NOTE

  • The Liquid Glass Effect is supported only on .NET 10 targeting macOS 26 or higher and iOS 26 or higher.
  • It is not supported on Android or Windows.

Apply Liquid Glass Effect

Follow these steps to enable and configure the Liquid Glass Effect in the ComboBox control.

Step 1: Wrap the control inside SfGlassEffectView

To apply the Liquid Glass Effect to the SfComboBox control, wrap it inside the SfGlassEffectView class. The glass effect is applied to the wrapped content and any popups it opens (such as the drop-down).

Step 2: Enable the Liquid Glass Effect on the ComboBox

Set the EnableLiquidGlassEffect property to true on the ComboBox control. The default value is false. When enabled, the effect is also applied to the drop-down popup for a consistent glass-like appearance.

Step 3: Customize the background

To achieve a glass-like background, set the Background and DropDownBackground properties of the ComboBox to Transparent. The background is then treated as a tinted color, ensuring a consistent glass effect across the editor and the drop-down.

The following code snippet demonstrates how to apply the Liquid Glass Effect to the ComboBox control.

<Grid BackgroundColor="Transparent">
    <Image Source="Wallpaper.png"
           Aspect="AspectFill" />

    <core:SfGlassEffectView EffectType="Regular"
                            CornerRadius="20">
        <editors:SfComboBox x:Name="comboBox"
                            Background="Transparent"
                            DropDownBackground="Transparent"
                            EnableLiquidGlassEffect="True"
                            ItemsSource="{Binding SocialMedias}">
            <editors:SfComboBox.BindingContext>
                <local:SocialMediaViewModel />
            </editors:SfComboBox.BindingContext>
        </editors:SfComboBox>
    </core:SfGlassEffectView>
</Grid>
// Run this code in a ContentPage code-behind file.
SocialMediaViewModel socialMediaViewModel = new SocialMediaViewModel();

var grid = new Grid
{
    BackgroundColor = Colors.Transparent,
};

var image = new Image
{
    Source = "Wallpaper.png",
    Aspect = Aspect.AspectFill,
};
grid.Children.Add(image);

var glass = new SfGlassEffectView
{
    EffectType = LiquidGlassEffectType.Regular,
    CornerRadius = 20,
};

var comboBox = new SfComboBox
{
    Background = Colors.Transparent,
    DropDownBackground = Colors.Transparent,
    EnableLiquidGlassEffect = true,
    ItemsSource = socialMediaViewModel.SocialMedias,
    BindingContext = socialMediaViewModel,
};

glass.Content = comboBox;
grid.Children.Add(glass);
Content = grid;
// ViewModel
public class SocialMediaViewModel
{
    public ObservableCollection<SocialMedia> SocialMedias { get; set; }

    public SocialMediaViewModel()
    {
        this.SocialMedias = new ObservableCollection<SocialMedia>
        {
            new SocialMedia { Name = "Facebook", ID = 0 },
            new SocialMedia { Name = "Google Plus", ID = 1 },
            new SocialMedia { Name = "Instagram", ID = 2 },
            new SocialMedia { Name = "LinkedIn", ID = 3 },
            new SocialMedia { Name = "Skype", ID = 4 },
            new SocialMedia { Name = "Telegram", ID = 5 },
            new SocialMedia { Name = "Twitter", ID = 6 },
            new SocialMedia { Name = "WhatsApp", ID = 7 },
            new SocialMedia { Name = "YouTube", ID = 8 }
        };
    }
}

public class SocialMedia
{
    public string Name { get; set; }
    public int ID { get; set; }
}

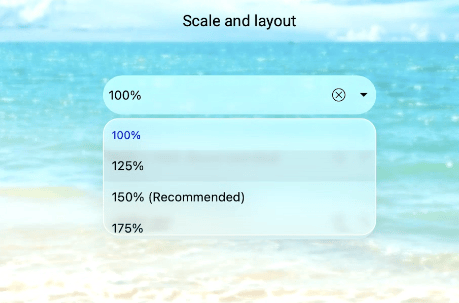

The following image illustrates the ComboBox inside an acrylic container, with the drop-down using the glass effect.

.NET MAUI ComboBox with Liquid Glass Effect

NOTE

If Background or DropDownBackground is not set to Transparent, the glass effect may not render correctly. Both must be Transparent for the underlying content to show through the tinted glass.
