Stacked Area Chart

The stacked area chart enables users to visually represent data points on top of each other to indicate the cumulative value of the data points.

To render a stacked area chart, create an instance of the StackingAreaSeries and add it to the Series collection property of the SfCartesianChart.

NOTE

Prerequisite: Ensure that the required NuGet package is installed, the necessary namespaces are imported, and the SfCartesianChart control is properly configured in your application. For detailed setup and configuration instructions, refer to the Getting Started guide.

NOTE

The Cartesian chart has a Series as its default content.

<chart:SfCartesianChart>
    <!-- code omitted for brevity -->
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>

    <chart:StackingAreaSeries ItemsSource="{Binding Data1}"
                              XBindingPath="Year"
                              YBindingPath="Value"/>

    <chart:StackingAreaSeries ItemsSource="{Binding Data2}"
                              XBindingPath="Year"
                              YBindingPath="Value"/>

    <chart:StackingAreaSeries ItemsSource="{Binding Data3}"
                              XBindingPath="Year"
                              YBindingPath="Value"/>

    <chart:StackingAreaSeries ItemsSource="{Binding Data4}"
                              XBindingPath="Year"
                              YBindingPath="Value"/>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();

CategoryAxis primaryAxis = new CategoryAxis();
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

ViewModel viewModel = new ViewModel();

StackingAreaSeries series1 = new StackingAreaSeries()
{
    ItemsSource = viewModel.Data1,
    XBindingPath = "Year",
    YBindingPath = "Value",
};

StackingAreaSeries series2 = new StackingAreaSeries()
{
    ItemsSource = viewModel.Data2,
    XBindingPath = "Year",
    YBindingPath = "Value",
};

StackingAreaSeries series3 = new StackingAreaSeries()
{
    ItemsSource = viewModel.Data3,
    XBindingPath = "Year",
    YBindingPath = "Value",
};

StackingAreaSeries series4 = new StackingAreaSeries()
{
    ItemsSource = viewModel.Data4,
    XBindingPath = "Year",
    YBindingPath = "Value",
};

chart.Series.Add(series1);
chart.Series.Add(series2);
chart.Series.Add(series3);
chart.Series.Add(series4);
this.Content = chart;

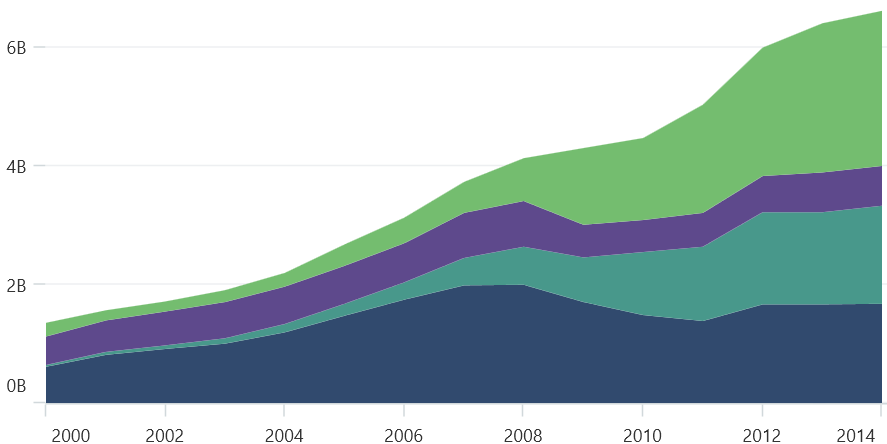

Stacking Area Chart in .NET MAUI Cartesian Chart

Enable Marker

A marker, also known as a symbol, is used to determine or highlight the position of the data point. To enable markers in the series, set the ShowMarkers property to true.

<chart:SfCartesianChart>
    <!-- code omitted for brevity -->
    <chart:StackingAreaSeries ItemsSource="{Binding StackData}"
                              XBindingPath="Year"
                              YBindingPath="Value"
                              ShowMarkers="True"/>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
// code omitted for brevity
StackingAreaSeries series = new StackingAreaSeries()
{
    ItemsSource = new ViewModel().StackData,
    XBindingPath = "Year",
    YBindingPath = "Value",
    ShowMarkers = true
};

chart.Series.Add(series);
this.Content = chart;

Marker customization

To change the series markers appearance, create an instance of the MarkerSettings property. The following properties are used to customize marker appearance.

  • Type, of type ShapeType, describes the shape of the series marker. The default value of this property is the ShapeType.Circle.
  • Stroke, of type Brush, indicates the brush used to paint the marker border.
  • StrokeWidth, of type double, indicates the width of the marker border.
  • Fill, of type Brush, indicates the color of the marker.
  • Width, of type double, indicates the width of the marker.
  • Height, of type double, indicates the height of the marker.
<chart:SfCartesianChart>
    <!-- code omitted for brevity -->
    <chart:StackingAreaSeries ItemsSource="{Binding StackData}"
                              XBindingPath="Year"
                              YBindingPath="Value"
                              ShowMarkers="True">
        <chart:StackingAreaSeries.MarkerSettings>
            <chart:ChartMarkerSettings Type="Diamond"
                                       Fill="LightBlue"
                                       Stroke="Blue"
                                       StrokeWidth="1"
                                       Height="8"
                                       Width="8"/>
        </chart:StackingAreaSeries.MarkerSettings>
    </chart:StackingAreaSeries>
</chart:SfCartesianChart>
SfCartesianChart chart = new SfCartesianChart();
// code omitted for brevity
ChartMarkerSettings chartMarker= new ChartMarkerSettings()
{
    Type = ShapeType.Diamond,
    Fill = Colors.Brown,
    Stroke = Colors.Black,
    StrokeWidth = 1,
    Height = 8,
    Width = 8
};

StackingAreaSeries series = new StackingAreaSeries()
{
    ItemsSource = new ViewModel().StackData,
    XBindingPath = "Year",
    YBindingPath = "Value",
    ShowMarkers = true,
    MarkerSettings = chartMarker
};

chart.Series.Add(series);
this.Content = chart;
