Getting Started with the Tree Grid Component in the Quasar Framework

18 Nov 20188 minutes to read

This article provides a step-by-step guide for setting up a Quasar project and integrating the Syncfusion^® Vue Tree Grid component using the Composition API.

The Quasar Framework is a Vue.js-based open-source framework that empowers developers to create high-performance and responsive applications across various platforms, such as web, mobile, and desktop.

Prerequisites

System requirements for Syncfusion^® Vue UI components

Set up the Quasar project

To initiate the creation of a new Quasar project, use the following commands:

npm init quasar

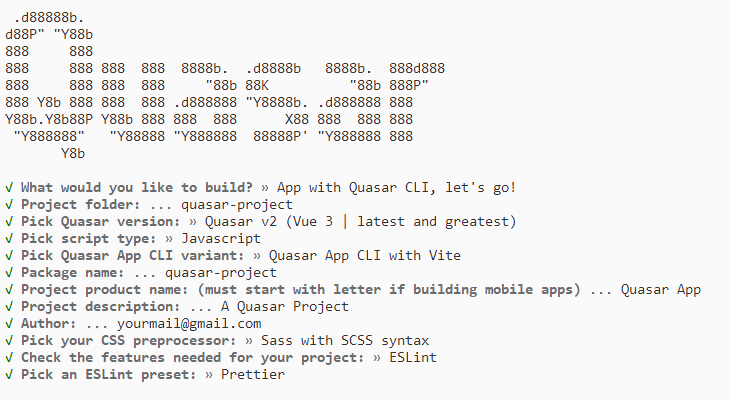

This command prompts additional configurations. Follow the steps outlined in the images below:

This generates the necessary files and prompts for project dependency installation. Respond with ‘yes’ to proceed with npm install, as shown in the image below:

Navigate to your project directory:

cd quasar-project

Now that quasar-project is ready to run with default settings, let’s add Syncfusion^® components to the project.

Add the Syncfusion^® Vue Tree Grid packages

To install the Tree Grid component, use the following command:

npm install @syncfusion/ej2-vue-treegrid --save

Adding CSS reference

You can add the CSS files required for the Syncfusion Vue Tree Grid component using one of the following methods.

Option 1: Add CSS References from a theme package

Themes for Syncfusion^® Tree Grid components can be applied using CSS files provided through npm theme packages. For available themes, refer to the Themes documentation.

Install the Material 3 theme package using the following command:

npm

npm install @syncfusion/ej2-material3-theme --save

Then add the following CSS reference to the src/App.vue file:

~/src/App.vue

<style>
    @import "../node_modules/@syncfusion/ej2-material3-theme/treegrid/treegrid/index.css";
</style>

Option 2: Add CSS References from component packages

After installing the treegrid package, the required CSS files are available in the corresponding Syncfusion packages under the node_modules/@syncfusion directory. Add the following CSS references to the src/App.vue file:

<style>
    @import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-calendars/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material3.css";
    @import '../node_modules/@syncfusion/ej2-notifications/styles/material3.css';
    @import "../node_modules/@syncfusion/ej2-vue-treegrid/styles/material3.css";
</style>

Adding Tree Grid component

The tree grid code should be added in the src/App.vue file.

~/src/app.vue

<template>
  <ejs-treegrid :dataSource='data' :treeColumnIndex='1' childMapping='subtasks'>
      <e-columns>
          <e-column field='taskID' headerText='Task ID' textAlign='Right' width=70></e-column>
          <e-column field='taskName' headerText='Task Name' textAlign='Left' width=200></e-column>
          <e-column field='startDate' headerText='Start Date' textAlign='Right' format='yMd' width=90></e-column>
          <e-column field='duration' headerText='Duration' textAlign='Right' width=80></e-column>
      </e-columns>
  </ejs-treegrid>
</template>

<script setup>
import { TreeGridComponent as EjsTreegrid, ColumnsDirective as EColumns, ColumnDirective as EColumn } from '@syncfusion/ej2-vue-treegrid';
const data = [
{
          taskID: 1,
          taskName: 'Planning', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'),      progress: 100, duration: 5, priority: 'Normal', approved: false,
          subtasks: [
              { taskID: 2, taskName: 'Plan timeline', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Normal', approved: false },
              { taskID: 3, taskName: 'Plan budget', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, approved: true },
              { taskID: 4, taskName: 'Allocate resources', startDate: new Date('02/03/2017'), endDate: new Date('02/07/2017'), duration: 5, progress: 100, priority: 'Critical', approved: false },
              { taskID: 5, taskName: 'Planning complete', startDate: new Date('02/07/2017'), endDate: new Date('02/07/2017'), duration: 0, progress: 0, priority: 'Low', approved: true }
          ]
      },
      {
          taskID: 6, taskName: 'Design', startDate: new Date('02/10/2017'), endDate: new Date('02/14/2017'), duration: 3, progress: 86, priority: 'High', approved: false,
          subtasks: [
              { taskID: 7, taskName: 'Software Specification', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 60, priority: 'Normal', approved: false },
              { taskID: 8, taskName: 'Develop prototype', startDate: new Date('02/10/2017'), endDate: new Date('02/12/2017'), duration: 3, progress: 100, priority: 'Critical', approved: false },
              { taskID: 9, taskName: 'Get approval from customer', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
              { taskID: 10, taskName: 'Design Documentation', startDate: new Date('02/13/2017'), endDate: new Date('02/14/2017'), duration: 2, progress: 100, approved: true },
              { taskID: 11, taskName: 'Design complete', startDate: new Date('02/14/2017'), endDate: new Date('02/14/2017'), duration: 0, progress: 0, priority: 'Normal', approved: true }
          ]
      },
];
</script>

<style>
@import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-calendars/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-grids/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-vue-treegrid/styles/material3.css";
</style>

Run the application

npm run dev

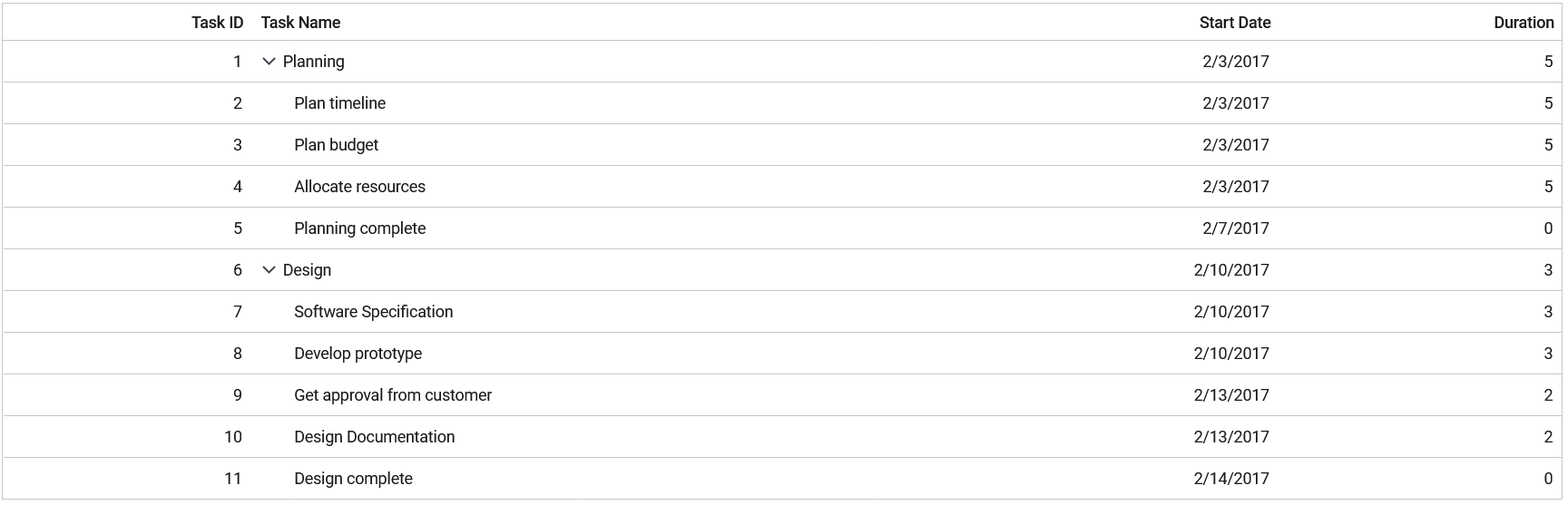

The output will appear as follows:
