Getting Started with Vue Data Grid Component in Quasar Framework

18 Nov 20184 minutes to read

A step-by-step guide for setting up a Quasar project and integrating the Vue Data Grid component using the Composition API.

The Quasar Framework is a Vue.js-based open-source framework that empowers developers to create high-performance and responsive applications across various platforms, such as web, mobile, and desktop.

Prerequisites

System requirements for Vue Data Grid components

Setup the Quasar project

To initiate the creation of a new Quasar project, use the following commands:

npm init quasar

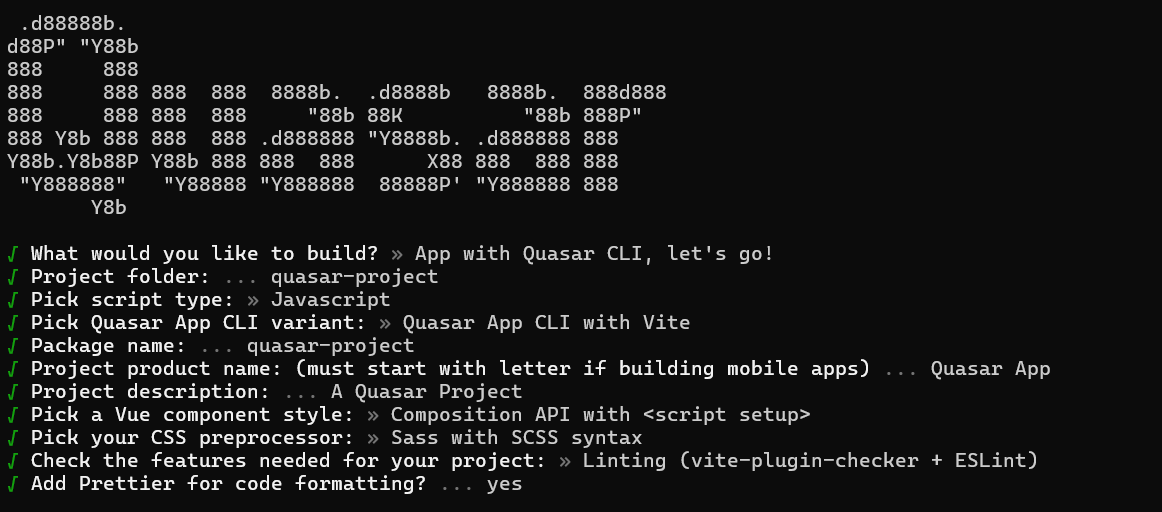

This command prompts additional configurations. The following steps are outlined in the images below:

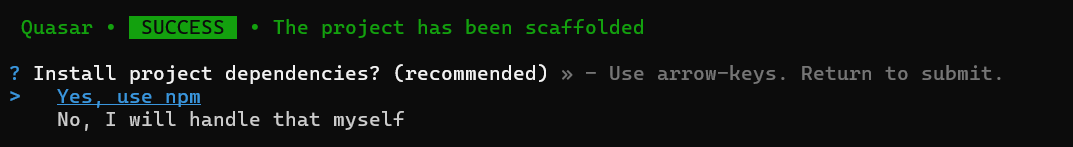

This generates the necessary files and prompts for project dependency installation. Responding with “yes” proceeds with npm install, as shown in the image below:

Navigate to the project directory:

cd quasar-project

The quasar-project is now ready to run with default settings. Next, the Vue Data Grid component is added to the project.

Add Vue Data Grids package

To install the Grids package, use the following command:

npm install @syncfusion/ej2-vue-grids --save

Adding CSS reference

You can add the CSS files required for the Syncfusion Vue DataGrid component using one of the following methods.

Option 1: Add CSS References from a theme package

Themes for Syncfusion^® DataGrid components can be applied using CSS files provided through npm theme packages. For available themes, refer to the Themes documentation.

Install the Material 3 theme package using the following command:

npm

npm install @syncfusion/ej2-material3-theme --save

Then add the following CSS reference to the src/App.vue file:

~/src/App.vue

<style>
    @import "../node_modules/@syncfusion/ej2-material3-theme/grids/grid/index.css";
</style>

Option 2: Add CSS References from component packages

After installing the grid package, the required CSS files are available in the corresponding Syncfusion packages under the node_modules/@syncfusion directory. Add the following CSS references to the src/App.vue file:

<style>
    @import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-calendars/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
    @import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material3.css";
    @import '../node_modules/@syncfusion/ej2-notifications/styles/material3.css';
    @import "../node_modules/@syncfusion/ej2-vue-grids/styles/material3.css";
</style>

Adding DataGrid component

The DataGrid code should be added in the src/App.vue file.

~/src/app.vue

<template>
  <ejs-grid :dataSource='data' :width="1000">
    <e-columns>
      <e-column field='OrderID' textAlign="Center"></e-column>
      <e-column field='CustomerID' textAlign="Center"></e-column>
      <e-column field='EmployeeID' textAlign="Center"></e-column>
      <e-column field='Freight' format="C2" textAlign="Center"></e-column>
      <e-column field='ShipCountry' textAlign="Center"></e-column>
    </e-columns>
  </ejs-grid>
</template>

<script setup>
import { GridComponent as EjsGrid, ColumnsDirective as EColumns, ColumnDirective as EColumn } from '@syncfusion/ej2-vue-grids';
const data = [
  {
    OrderID: 10248, CustomerID: 'VINET', EmployeeID: 5, ShipCountry: 'France', Freight: 32.38
  },
  {
    OrderID: 10249, CustomerID: 'TOMSP', EmployeeID: 6, ShipCountry: 'Germany', Freight: 11.61
  },
  {
    OrderID: 10250, CustomerID: 'HANAR', EmployeeID: 4, ShipCountry: 'Brazil', Freight: 65.83
  }
];
</script>

<style>
@import "../node_modules/@syncfusion/ej2-base/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-buttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-calendars/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-dropdowns/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-inputs/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/material3.css";
@import "../node_modules/@syncfusion/ej2-vue-grids/styles/material3.css";
</style>

Run the application

npm run dev

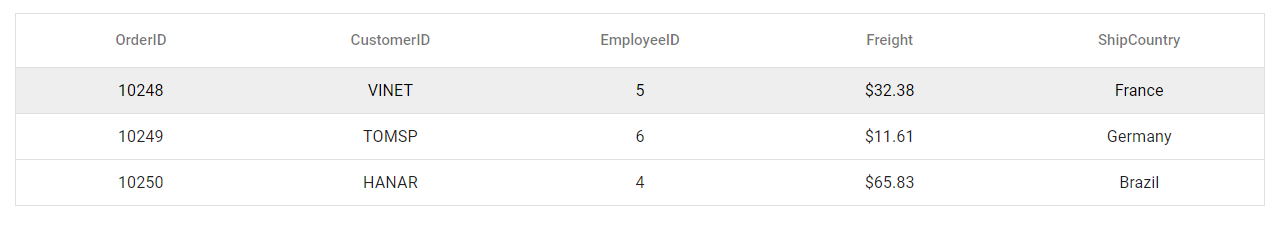

The output will appear as follows:
