Row Resizing in MAUI DataGrid (SfDataGrid)

18 Nov 20185 minutes to read

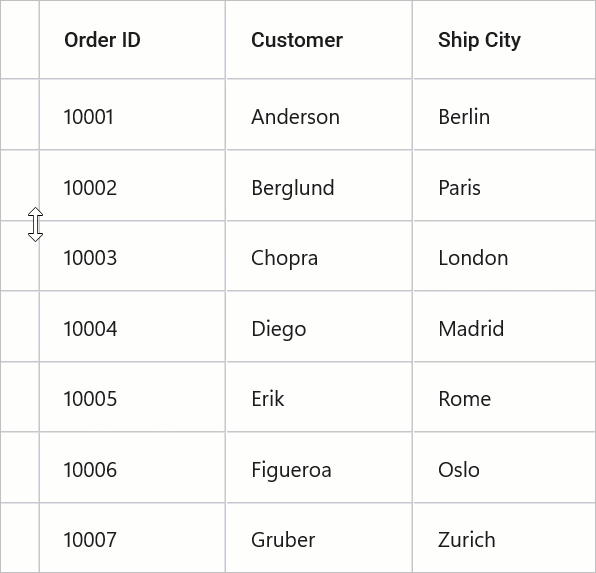

The SfDataGrid supports interactive row resizing. When enabled, users can long-press the bottom edge of a row header to change that row’s height. Resized heights are cached and preserved during scrolling.

Note: Row resizing requires ShowRowHeader to be set to true, and defaults to false.

Enable Row Resizing

Set the SfDataGrid.AllowResizingRows property to true to enable interactive resizing.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding Orders}"
                       ShowRowHeader="True"
                       AllowResizingRows="True" />

C#

SfDataGrid dataGrid = new SfDataGrid();
dataGrid.ItemsSource = viewModel.Orders;
dataGrid.ShowRowHeader = true;
dataGrid.AllowResizingRows = true;
this.Content = dataGrid;

Row Resize Mode

The RowResizeMode determines when the requested height is applied during an interactive resize:

• OnTouchUp - New height is applied when the user releases the pointer (touch-up or mouse-up).
• OnMoved - New height is applied continuously as the resize indicator moves (live update).

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding Orders}"
                       ShowRowHeader="True"
                       AllowResizingRows="True"
                       RowResizeMode="OnMoved" />

C#

SfDataGrid dataGrid = new SfDataGrid();
dataGrid.ItemsSource = viewModel.Orders;
dataGrid.ShowRowHeader = true;
dataGrid.AllowResizingRows = true;
dataGrid.RowResizeMode = DataGridRowResizeMode.OnMoved;
this.Content = dataGrid;

RowResizing Event

Use SfDataGrid.RowResizing to validate or cancel resizes. The event provides DataGridRowResizingEventArgs with the following properties:

• RowIndex - Index of the row being resized.
• RowData - The underlying data item for the row.
• NewValue - The requested height of the row.
• Cancel - Set to true to cancel the operation.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding Orders}"
                       ShowRowHeader="True"
                       AllowResizingRows="True"
                       RowResizing="DataGrid_RowResizing" />

C#

SfDataGrid dataGrid = new SfDataGrid();
dataGrid.ItemsSource = viewModel.Orders;
dataGrid.ShowRowHeader = true;
dataGrid.AllowResizingRows = true;
this.Content = dataGrid;

public MainPage()
{
    InitializeComponent();
    SfDataGrid dataGrid = new SfDataGrid();
    OrderInfoViewModel viewModel = new OrderInfoViewModel();
    dataGrid.ItemsSource = viewModel.Orders;
    dataGrid.ShowRowHeader = true;
    dataGrid.AllowResizingRows = true;
    dataGrid.RowResizing += DataGrid_RowResizing;
    this.Content = dataGrid;
}

private void DataGrid_RowResizing(object? sender, DataGridRowResizingEventArgs e)
{
    if (e.NewValue < 20 || e.NewValue > 400)
        e.Cancel = true;
}

Customize Appearance

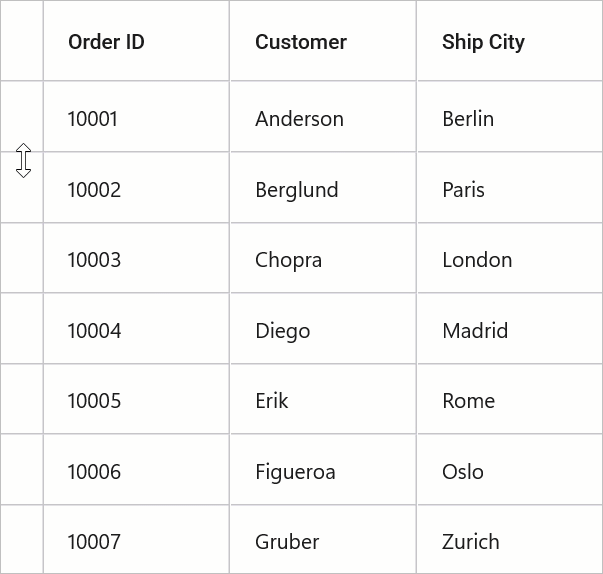

Change the indicator color using DataGridStyle.RowResizingIndicatorColor.

XAML

<syncfusion:SfDataGrid x:Name="dataGrid"
                       ItemsSource="{Binding Orders}"
                       ShowRowHeader="True"
                       AllowResizingRows="True">

    <syncfusion:SfDataGrid.DefaultStyle>
        <syncfusion:DataGridStyle RowResizingIndicatorColor="Red"/>
    </syncfusion:SfDataGrid.DefaultStyle>

</syncfusion:SfDataGrid>

C#

SfDataGrid dataGrid = new SfDataGrid();
dataGrid.ItemsSource = viewModel.Orders;
dataGrid.ShowRowHeader = true;
dataGrid.AllowResizingRows = true;
dataGrid.DefaultStyle = new DataGridStyle { RowResizingIndicatorColor = Colors.Red };
this.Content = dataGrid;
