Sorting customization in Blazor TreeGrid
18 Nov 20186 minutes to read
The appearance of sorting indicators in the Blazor TreeGrid can be customized using CSS. Styling options are available for:
- Ascending and descending sort icons: Show the current sort direction in column headers.
- Multi-sorting order indicators: Display the order of sorting when multiple columns are sorted.

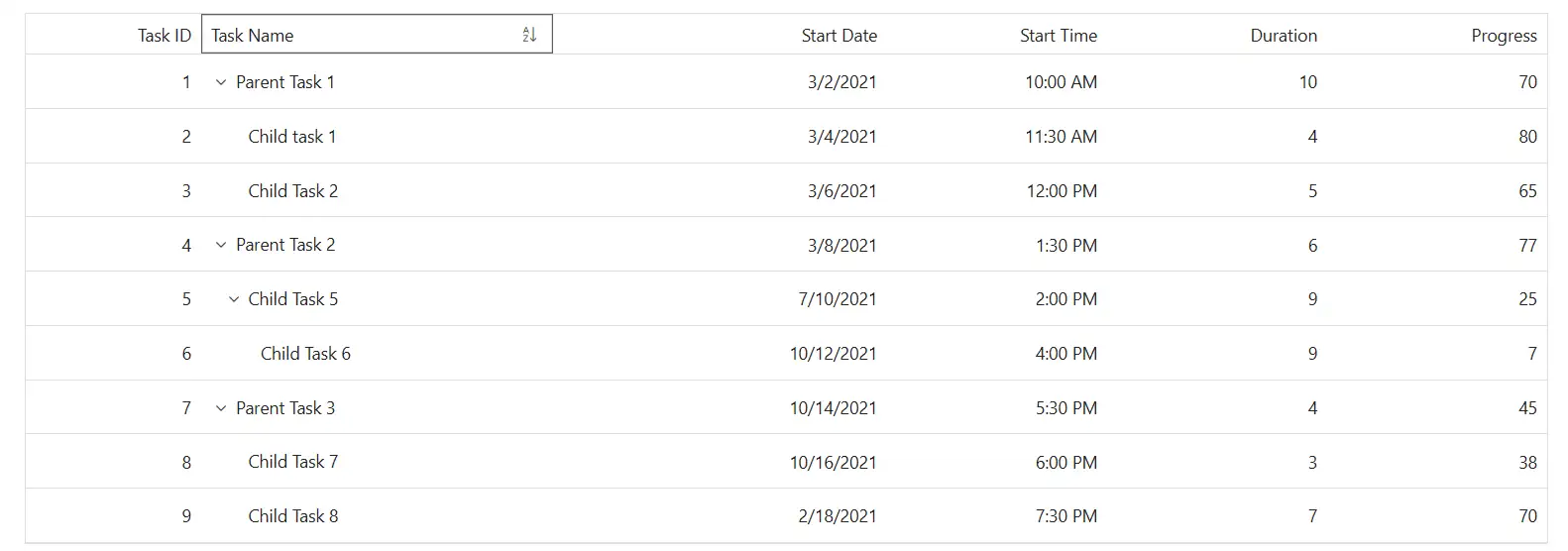

Customize sorting icons
The .e-icon-ascending and .e-icon-descending classes define the icons shown in the TreeGrid header when a column is sorted in ascending or descending order. Use CSS to adjust its appearance:
.e-treegrid .e-gridheader .e-icon-ascending::before {
content: '\e7a3'; /* Ascending icon code */
}
.e-treegrid .e-gridheader .e-icon-descending::before {
content: '\e7b6'; /* Descending icon code */
}Adjust properties such as content, color, font-size, and margin to match the TreeGrid design. Ensure the correct icon font family is loaded to display the icons properly.

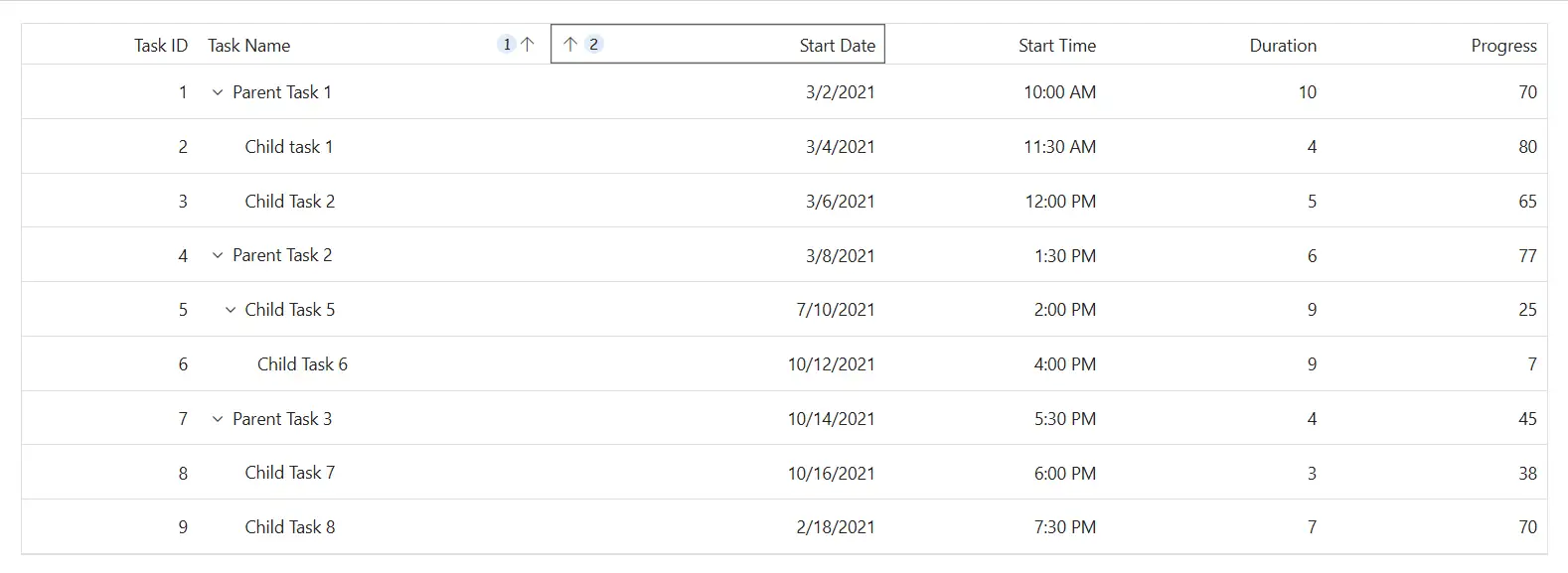

Customize multi-sorting indicators
The .e-sortnumber class styles the numeric indicator shown when multiple columns are sorted. Apply CSS to change their appearance:
.e-treegrid .e-gridheader .e-sortnumber {
background-color: #deecf9;
font-family: cursive;
}Modify properties such as background-color, font-family, font-size, and border-radius to align with the TreeGrid layout. Ensure accessibility by maintaining clear contrast and focus styles.
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowSorting AllowMultiSorting>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="StartDate" HeaderText="Start Date" Format="d" Type="Syncfusion.Blazor.Grids.ColumnType.DateOnly" Width="152" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="StartTime" HeaderText="Start Time" Type="Syncfusion.Blazor.Grids.ColumnType.TimeOnly" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
<style>
/* Multi-sorting order badge (e.g., 1, 2, 3) */
.e-treegrid .e-gridheader .e-sortnumber {
background-color: #deecf9;
color: #0b6aa2;
font-family: cursive;
border-radius: 10px;
padding: 0 6px;
min-width: 18px;
text-align: center;
line-height: 18px;
height: 18px;
display: inline-block;
margin-left: 4px;
}
/* Override sorting icons (ensure correct icon font family) */
..e-treegrid .e-gridheader .e-icon-ascending::before,
.e-treegrid .e-gridheader .e-icon-descending::before {
font-family: 'e-icons' !important; /* required for glyphs to render */
font-weight: normal;
speak: none;
}
.e-treegrid .e-gridheader .e-icon-ascending::before {
content: '\e7a3'; /* Ascending icon code (verify for your theme/version) */
}
.e-treegrid .e-gridheader .e-icon-descending::before {
content: '\e7b6'; /* Descending icon code (verify for your theme/version) */
}
/* Optional: emphasize sorted header and provide better focus visibility */
.e-treegrid .e-headercell[aria-sort] {
background-color: #f3f9ff;
}
.e-treegrid .e-headercell:focus-visible {
outline: 2px solid #005a9e;
outline-offset: -2px;
}
</style>
@code {
public class BusinessObject
{
public int TaskId { get; set; }
public string TaskName { get; set; }
public DateOnly? StartDate { get; set; }
public TimeOnly? StartTime { get; set; }
public int Duration { get; set; }
public int Progress { get; set; }
public string Priority { get; set; }
public int? ParentId { get; set; }
}
public List<BusinessObject> TreeData = new List<BusinessObject>();
protected override void OnInitialized()
{
TreeData.Add(new BusinessObject() { TaskId = 1, TaskName = "Parent Task 1", StartDate = new DateOnly(2021, 03, 02), StartTime = new TimeOnly(10, 00, 00), Duration = 10, Progress = 70, ParentId = null, Priority = "High" });
TreeData.Add(new BusinessObject() { TaskId = 2, TaskName = "Child task 1", StartDate = new DateOnly(2021, 03, 04), StartTime = new TimeOnly(11, 30, 00), Duration = 4, Progress = 80, ParentId = 1, Priority = "Normal" });
TreeData.Add(new BusinessObject() { TaskId = 3, TaskName = "Child Task 2", StartDate = new DateOnly(2021, 03, 06), StartTime = new TimeOnly(12, 00, 00), Duration = 5, Progress = 65, ParentId = 1, Priority = "Critical" });
TreeData.Add(new BusinessObject() { TaskId = 4, TaskName = "Parent Task 2", StartDate = new DateOnly(2021, 03, 08), StartTime = new TimeOnly(13, 30, 00), Duration = 6, Progress = 77, ParentId = null, Priority = "Low" });
TreeData.Add(new BusinessObject() { TaskId = 5, TaskName = "Child Task 5", StartDate = new DateOnly(2021, 07, 10), StartTime = new TimeOnly(14, 00, 00), Duration = 9, Progress = 25, ParentId = 4, Priority = "Normal" });
TreeData.Add(new BusinessObject() { TaskId = 6, TaskName = "Child Task 6", StartDate = new DateOnly(2021, 10, 12), StartTime = new TimeOnly(16, 00, 00), Duration = 9, Progress = 7, ParentId = 5, Priority = "Normal" });
TreeData.Add(new BusinessObject() { TaskId = 7, TaskName = "Parent Task 3", StartDate = new DateOnly(2021, 10, 14), StartTime = new TimeOnly(17, 30, 00), Duration = 4, Progress = 45, ParentId = null, Priority = "High" });
TreeData.Add(new BusinessObject() { TaskId = 8, TaskName = "Child Task 7", StartDate = new DateOnly(2021, 10, 16), StartTime = new TimeOnly(18, 00, 00), Duration = 3, Progress = 38, ParentId = 7, Priority = "Critical" });
TreeData.Add(new BusinessObject() { TaskId = 9, TaskName = "Child Task 8", StartDate = new DateOnly(2021, 02, 18), StartTime = new TimeOnly(19, 30, 00), Duration = 7, Progress = 70, ParentId = 7, Priority = "Low" });
}
}
