Paging customization in Blazor TreeGrid

18 Nov 201816 minutes to read

The appearance of paging elements in the Blazor TreeGrid can be customized using CSS. Styling options are available for different parts of the pager interface:

  • Root container: The outermost wrapper that holds all pager content.
  • Pager container: The inner layout that positions the controls.
  • Navigation buttons: Commands for first, previous, next, and last page navigation.
  • Numeric page indicators: Indicators that jump directly to specific pages.
  • Current page indicator: The highlight that marks the active numeric page button.

Customize the pager root element

The .e-gridpager class styles the pager root element in the Blazor TreeGrid. Use CSS to adjust its appearance:

.e-treegrid .e-gridpager {
    font-family: cursive;
    background-color: #deecf9;
}

Properties like font-family, background-color, and spacing-related styles can be changed to fit the TreeGrid layout design.

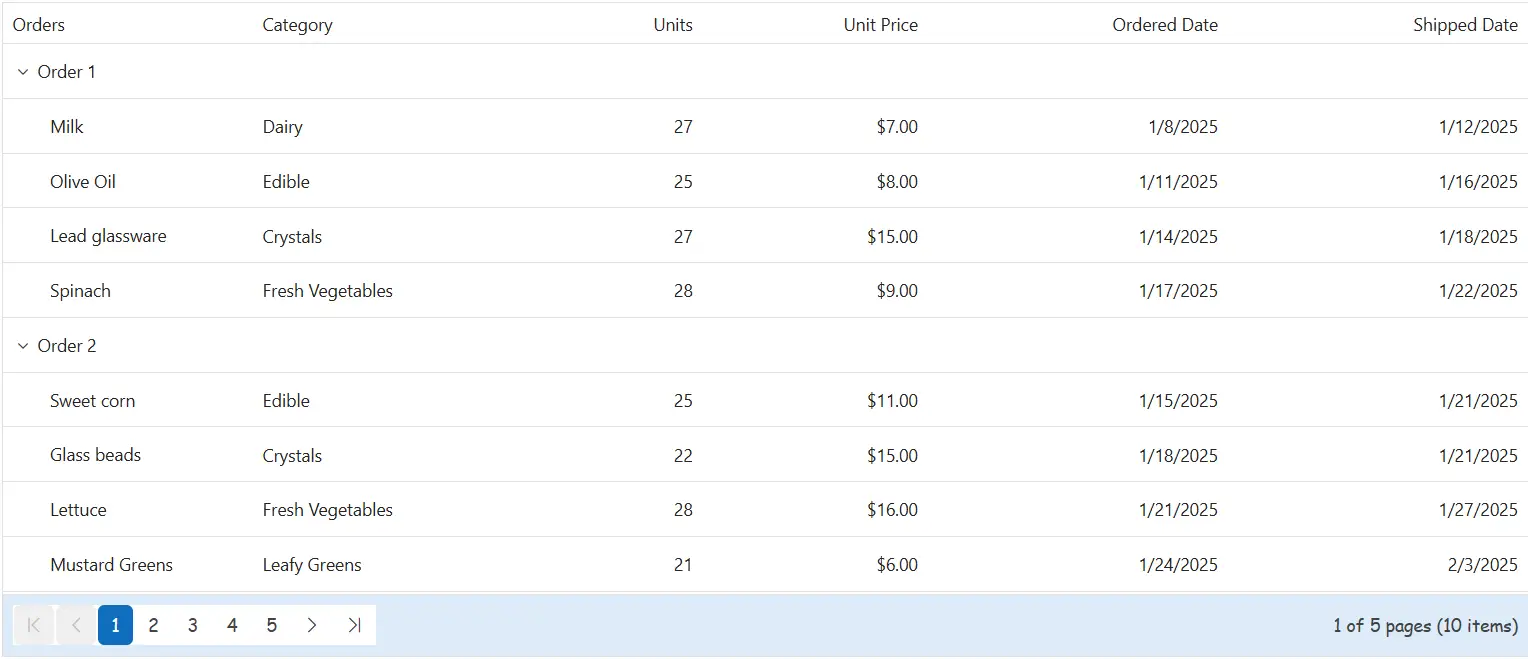

Pager root element

Customize the pager container element

The .e-pagercontainer class styles the pager container in the Blazor TreeGrid. Apply CSS to modify its look:

.e-treegrid .e-pagercontainer {
    border: 2px solid #00b5ff;
    font-family: cursive;
}

Properties such as font-family, background-color, and spacing-related styles can be adjusted to align with the TreeGrid design.

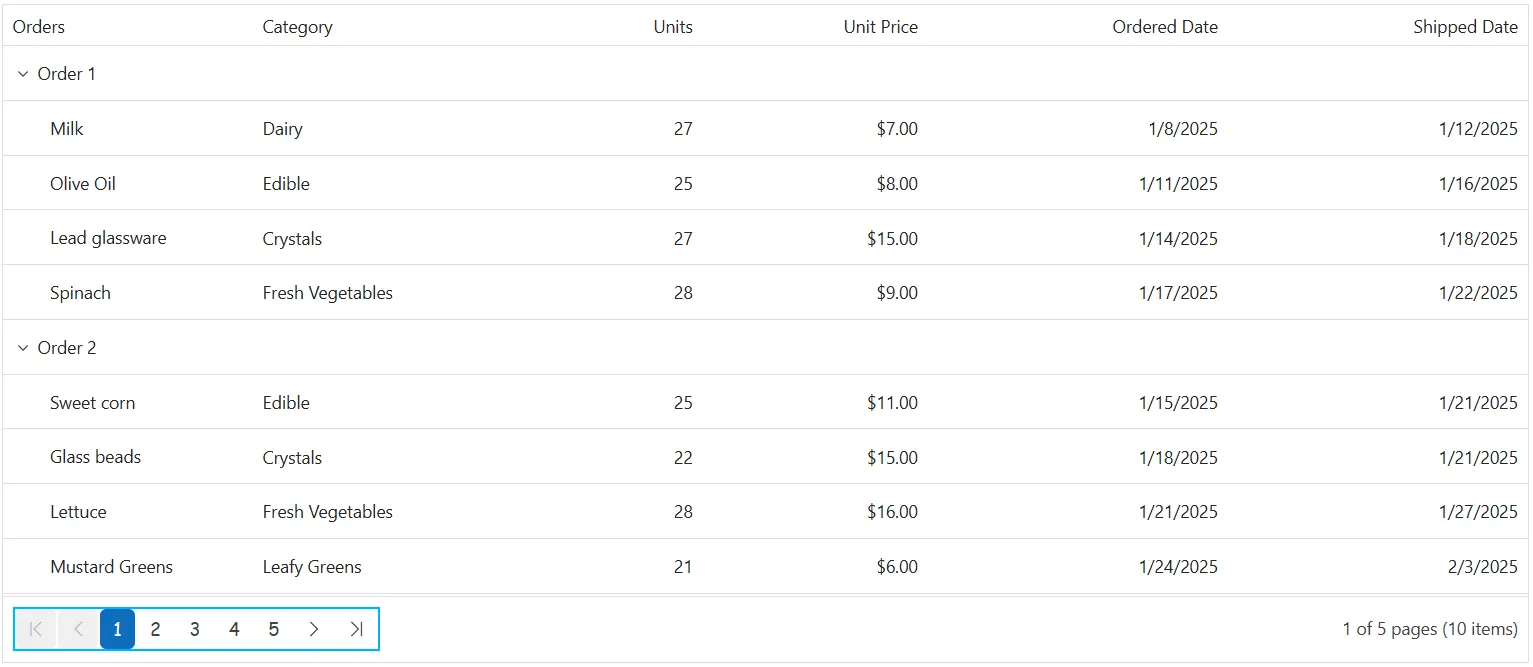

Pager container element

Customize the pager navigation elements

The .e-prevpagedisabled, .e-prevpage, .e-nextpage, .e-nextpagedisabled, .e-lastpagedisabled, .e-lastpage, .e-firstpage, and .e-firstpagedisabled classes define the appearance of the pager navigation buttons in the Blazor TreeGrid. Apply CSS to customize their styling:

.e-treegrid .e-gridpager .e-prevpagedisabled,
.e-treegrid .e-gridpager .e-prevpage,
.e-treegrid .e-gridpager .e-nextpage,
.e-treegrid .e-gridpager .e-nextpagedisabled,
.e-treegrid .e-gridpager .e-lastpagedisabled,
.e-treegrid .e-gridpager .e-lastpage,
.e-treegrid .e-gridpager .e-firstpage,
.e-treegrid .e-gridpager .e-firstpagedisabled {
    background-color: #deecf9;
}

Adjust properties like background-color to match the design, while keeping clear focus styles for accessibility.

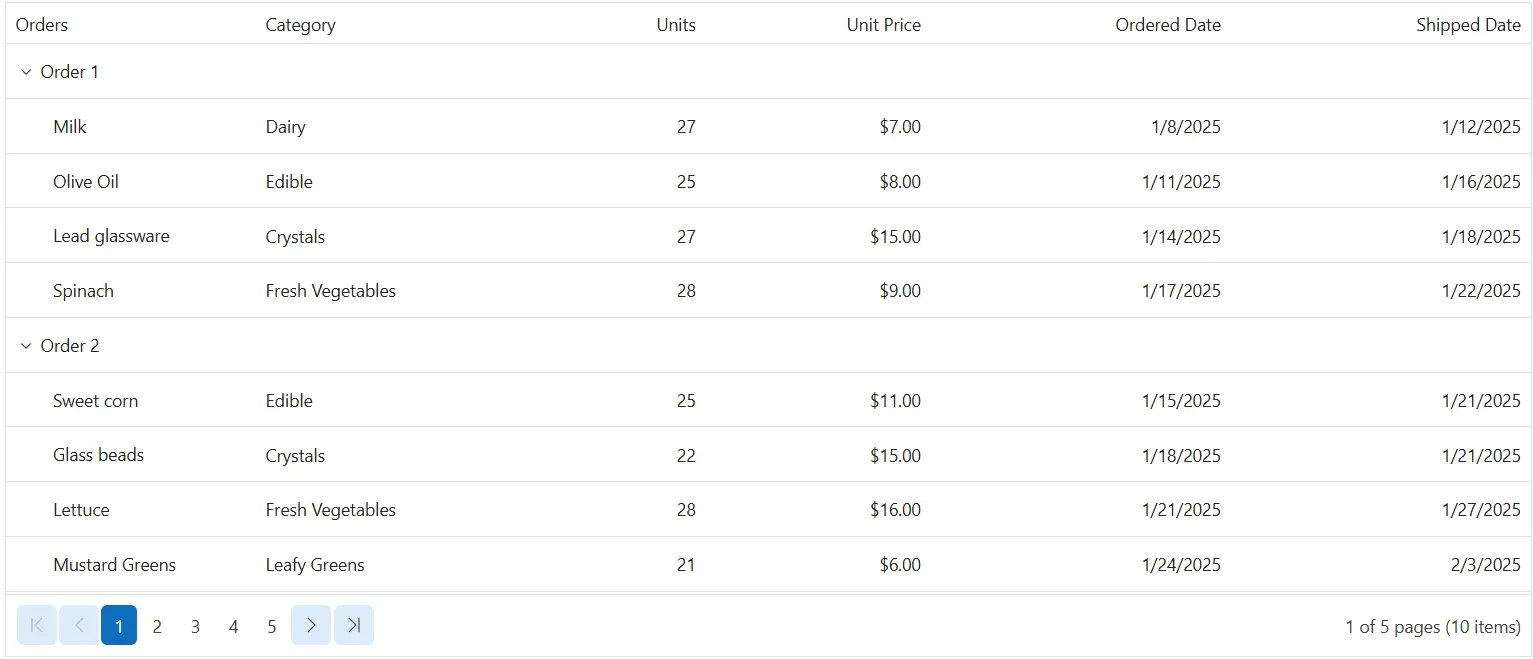

Pager navigation elements

Customize the pager numeric button elements

The .e-numericitem class styles the numeric page buttons in the Blazor TreeGrid. Apply CSS to change their appearance:

.e-treegrid .e-gridpager .e-numericitem {
    background-color: #5290cb;
    color: #ffffff;
    cursor: pointer;
}

.e-treegrid .e-gridpager .e-numericitem:hover {
    background-color: white;
    color: #007bff;
}

Modify properties such as background-color, color, and hover effects to improve clarity and interaction.

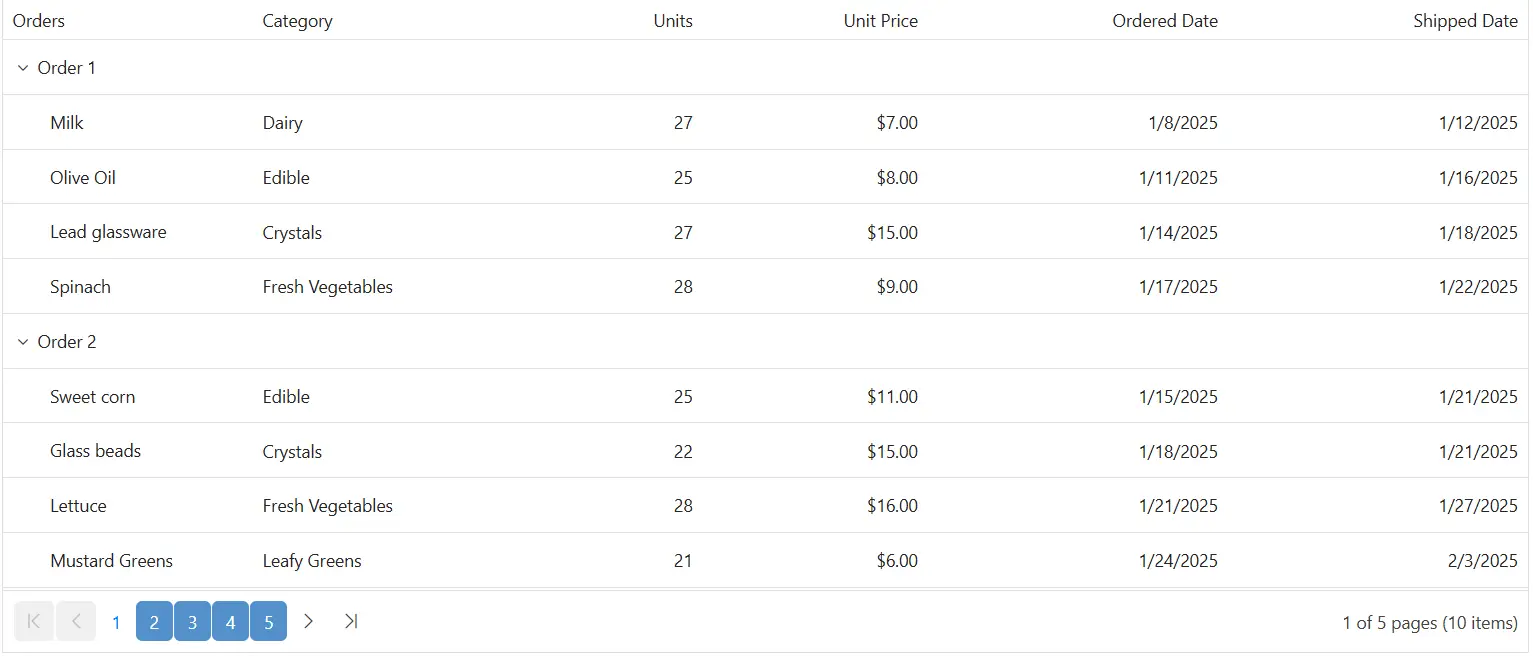

Pager numeric button elements

Customize the current page numeric element

The .e-currentitem class styles the current page indicator in the Blazor TreeGrid pager. Use CSS to adjust it:

.e-treegrid .e-gridpager .e-currentitem {
    background-color: #0078d7;
    color: #fff;
}

Change properties like background-color and color to highlight the active page.

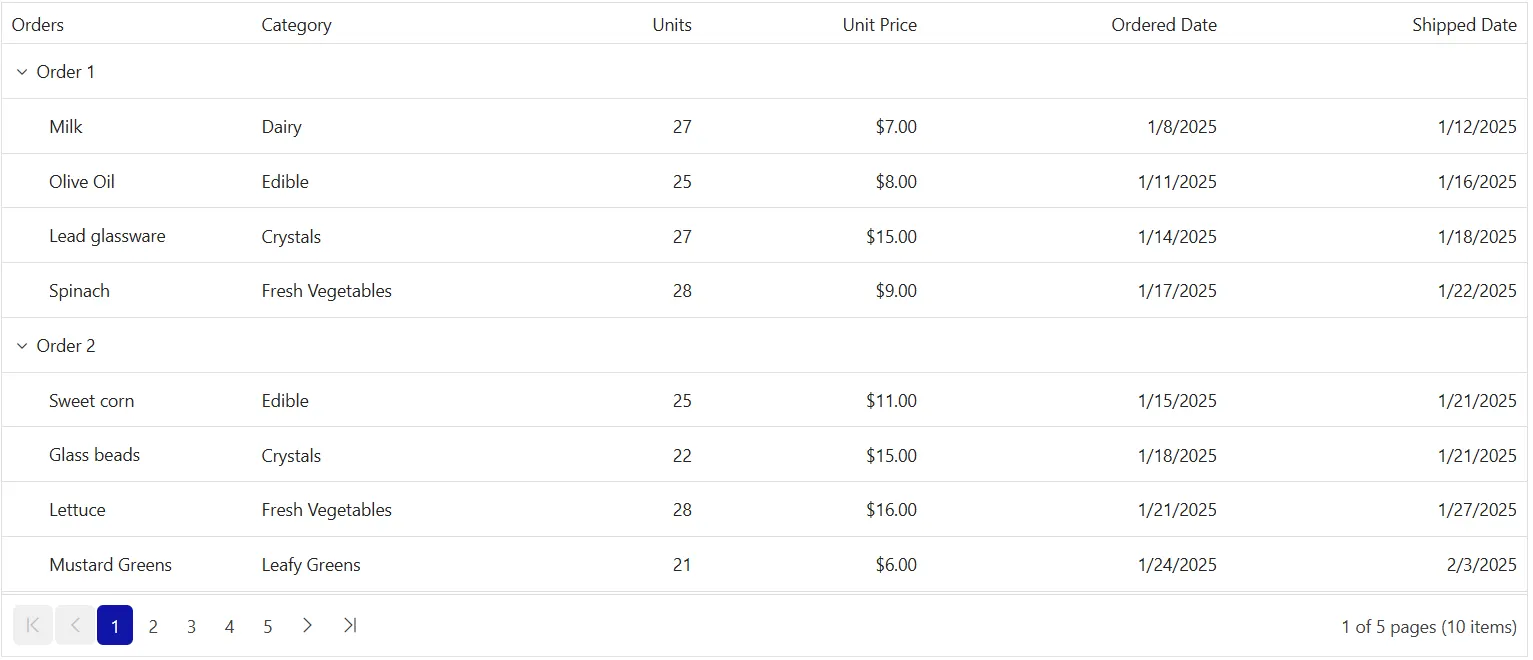

Current page numeric element

@using Syncfusion.Blazor.TreeGrid
@using Syncfusion.Blazor.Grids
<SfTreeGrid DataSource="@TreeGridData" IdMapping="ID" ParentIdMapping="ParentID" Height="440" TreeColumnIndex="1" AllowPaging="true">
    <TreeGridPageSettings PageCount="5" PageSize="2" PageSizeMode="PageSizeMode.Root"></TreeGridPageSettings>
    <TreeGridEditSettings AllowEditing="true"></TreeGridEditSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="ShipID" HeaderText="Ship ID" Width="80" Visible="false" IsPrimaryKey="true" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Name" ClipMode="ClipMode.EllipsisWithTooltip" HeaderText="Orders" Width="100"></TreeGridColumn>
        <TreeGridColumn Field="ShipmentCategory" HeaderText="Category" Width="100"></TreeGridColumn>
        <TreeGridColumn Field="Units" HeaderText="Units" Width="80" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="UnitPrice" ClipMode="ClipMode.EllipsisWithTooltip" HeaderText="Unit Price" Format="c2" Width="90" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="OrderDate" HeaderText="Ordered Date" ClipMode="ClipMode.EllipsisWithTooltip" Format="d" Type="ColumnType.Date" Width="120" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="ShippedDate" HeaderText="Shipped Date" ClipMode="ClipMode.EllipsisWithTooltip" Format="d" Type="ColumnType.Date" Width="120" TextAlign="TextAlign.Right"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

<style>
    .e-treegrid .e-gridpager .e-currentitem {
        background-color: #1114a7;
        color: #fff;
    }
</style>

@code {
    private List<ShipmentData> TreeGridData { get; set; } = new List<ShipmentData>();
    private List<string> PageSizes { get; set; } = new List<string>();
    protected override void OnInitialized()
    {
        TreeGridData = ShipmentData.GetData();
        PageSizes = new List<string>() { "2", "4", "5", "10", "15", "20", "All" };
    }
}
public class ShipmentData
{
    public int? ID { get; set; }
    public int? ShipID { get; set; }
    public string? Name { get; set; }
    public int? Units { get; set; }
    public string? Category { get; set; }
    public int? UnitPrice { get; set; }
    public int? Price { get; set; }
    public int? TotalPrice { get; set; } // Added for total price calculation (sum for parents, individual for items)
    public string? ShipmentCategory { get; set; }
    public DateTime? ShippedDate { get; set; } = null;
    public DateTime? OrderDate { get; set; } = null;
    public string? OrderReached { get; set; } = null;
    public int? ParentID { get; set; }
    private static void CalculateTotalPrices(List<ShipmentData> data)
    {
        // For items (non-parents), TotalPrice = Price
        // For parents, TotalPrice = sum of children's TotalPrice
        var parents = data.Where(d => d.ParentID == null).ToList();
        foreach (var parent in parents)
        {
            var children = data.Where(d => d.ParentID == parent.ID).ToList();
            parent.TotalPrice = children.Sum(c => c.Price ?? 0);
            // Recursively set for children if nested, but here it's flat tree
        }
        // Set for items
        foreach (var item in data.Where(d => d.ParentID != null))
        {
            item.TotalPrice = item.Price;
        }
    }
    public static List<ShipmentData> GetData()
    {
        var data = new List<ShipmentData>(capacity: 150);
        var rnd = new Random(42); // deterministic
        var baseOrderDate = new DateTime(2025, 1, 1);
        // pools for categories/items - standardized to Title Case
        var categories = new[]
        {
            ("Seafood", new[] { "Mackerel", "Herrings", "Tilapias", "White Shrimp", "Yellowfin Tuna" }),
            ("Dairy", new[] { "Fresh Cheese", "Blue Veined Cheese", "Butter", "Milk", "Yogurt" }),
            ("Edible", new[] { "Preserved Olives", "Sweet corn", "Pickles", "Tomato Puree", "Olive Oil" }),
            ("Crystals", new[] { "Lead glassware", "Pharmaceutical glass", "Glass beads", "Crystal vials", "Borosilicate glass" }),
            ("Fresh Vegetables", new[] { "Broccoli", "Spinach", "Carrots", "Lettuce", "Cabbage" }),
            ("Leafy Greens", new[] { "Kale", "Arugula", "Chard", "Collards", "Mustard Greens" }),
            ("Root Vegetables", new[] { "Beets", "Radish", "Parsnip", "Turnip", "Rutabaga" }),
            ("Paper", new[] { "Printer Paper", "Photo Paper", "Sticky Notes", "Card Stock", "Plotter Rolls" }),
            ("Consumables", new[] { "Ink Cartridges", "Toner", "Markers", "Glue Sticks", "Tape Rolls" }),
            ("Tools", new[] { "Staplers", "Hole Punch", "Cutters", "Rulers", "Scissors" }),
            ("Stationery", new[] { "Notebooks", "Pens", "Pencils", "Folders", "Envelopes" })
        };
        int id = 0;
        int shipSeed = 4500;
        for (int p = 1; p <= 10; p++)
        {
            int parentId = id++;
            data.Add(new ShipmentData
            {
                ID = parentId,
                Name = $"Order {p}",
                ParentID = null
            });
            for (int c = 0; c < 4; c++)
            {
                // pick a category and item name
                var (cat, items) = categories[(p + c) % categories.Length];
                var itemName = items[(p * 3 + c) % items.Length];
                // numbers
                int units = 20 + rnd.Next(11); // 20..30
                int unitPrice = 5 + rnd.Next(20); // 5..24
                int price = units * unitPrice;
                // dates
                var orderDate = baseOrderDate.AddDays(p * 7 + c * 3);
                var shipLag = 3 + rnd.Next(10); // 3..12 days
                var shippedDate = orderDate.AddDays(shipLag);
                // reached?
                var reached = shippedDate >= orderDate.AddDays(7) && rnd.Next(100) > 30 ? "Yes" : "No";
                data.Add(new ShipmentData
                {
                    ID = id,
                    ShipID = shipSeed + id,
                    Name = itemName,
                    Category = cat,
                    Units = units,
                    UnitPrice = unitPrice,
                    Price = price,
                    OrderDate = orderDate,
                    ShippedDate = shippedDate,
                    ShipmentCategory = cat,
                    OrderReached = reached,
                    ParentID = parentId
                });
                id++;
            }
        }
        CalculateTotalPrices(data);
        return data;
    }
}
