Connecting the Angular Grid with Flask API

18 Nov 201824 minutes to read

Flask is a lightweight and flexible Python web application framework that provides a simple set of features for building REST APIs quickly. Flask follows a traditional REST API approach with multiple endpoints for different data operations.

Application architecture:

  • Backend: Flask server (Python) - Handles REST API endpoints, task data CRUD operations, and business logic.
  • Frontend: Angular application - Displays the Syncfusion® Grid UI with custom data binding for seamless data binding.
  • Data Model: Task Management System with comprehensive task information.

Prerequisites

Software / Package Recommended version Purpose
Python 3.8 or later Runtime for Flask server
Flask 2.0 or later REST API framework
Flask-CORS 3.0 or later Enable cross-origin requests
Node.js 20.x LTS or later Runtime for Angular client
npm / yarn / pnpm 11.x or later Package manager
TypeScript 5.x or later Client-side type safety
Angular CLI 18.x or later Angular development tool

Key topcis

# Topics Link
1 Setting up and configuring the Flask backend using Python View
2 Performing data operations in server with filtering, searching, sorting, and paging for efficient data processing View
3 Performing CRUD operations in server with REST endpoints View
4 Connecting Syncfusion® Angular Grid with Flask API and configuring Syncfusion® Grid with custom binding View
5 Running the application by starting servers locally and accessing the frontend View
6 Exploring a complete working sample in the complete sample repository on GitHub View

Setting up the Flask backend using Python

The Flask backend acts as the central REST API service, handling HTTP requests and responses that power the Angular Data Grid.

Step 1: Create the Flask server and install required packages

Before configuring the Flask API, a proper project structure must be created to host the backend server. This folder will contain the server configuration, required dependencies, and sample data used for processing API requests.

For this implementation, a Flask server is created to manage a Task Management System with comprehensive task data including task names, assignments, due dates, status, priority, and estimated hours.

Create project root folder:

Open a terminal (for example, an integrated terminal in Visual Studio Code, Windows Command Prompt opened with Win+R or macOS Terminal launched with Cmd+Space) and run the following commands.

mkdir angular-grid-flask-api
cd angular-grid-flask-api

Create backend server folder:

Create a new server folder for organizing the Flask application.

mkdir server
cd server

Create a virtual environment (recommended):

python -m venv venv
# On Windows
venv\Scripts\activate
# On macOS/Linux
source venv/bin/activate

Install required packages:

Run the following commands in the terminal window (ensure it is in the server directory) to install the required packages.

pip install flask flask-cors

Package descriptions:

  • flask – Web framework for building REST APIs and defining HTTP routes.
  • flask-cors – Enables cross-origin requests from the Angular client to the Flask server.

The server folder is now created with all required dependencies installed. The project is ready for setting up API routes and implementing handler logic.

Current folder structure:

angular-grid-flask-api/
├── server/
│   └── venv/

Step 2: Create the Flask application configuration

Create a new Flask application file at (server/app.py) that initializes Flask, sets up middleware, and defines routes.

from flask import Flask, request, jsonify
from flask_cors import CORS
import json, os

app = Flask(__name__)
CORS(app)

# Run Flask development server
if __name__ == "__main__":
    app.run(host="localhost", port=5000, debug=True)

The Flask server will start on http://localhost:5000.

Step 3: Create sample data file

Create a new file at (server/task_data.json) with sample task data. This file stores task records in JSON format.

[
  {
    "TaskId": 1,
    "TaskName": "Design Database Schema",
    "AssignedTo": "John Smith",
    "DueDate": "2024-02-15",
    "Status": "In Progress",
    "Priority": "High",
    "EstimatedHours": 8,
    "IsActive": true
  },
  {
    "TaskId": 2,
    "TaskName": "Implement API Endpoints",
    "AssignedTo": "Sarah Johnson",
    "DueDate": "2024-02-20",
    "Status": "Open",
    "Priority": "Critical",
    "EstimatedHours": 16,
    "IsActive": true
  },
  . . .
  . . .
  . . .
]

Perform data operations in server

The Flask backend handles all data operations such as filtering, searching, sorting, and paging. These operations are applied to the dataset based on the grid state received from the client. Each operation transforms the data progressively to provide the exact result set needed for display in the Grid.

Open the Flask app.py file and define helper functions to manage individual data operations. These functions collectively handle Grid requests and return the corresponding data responses

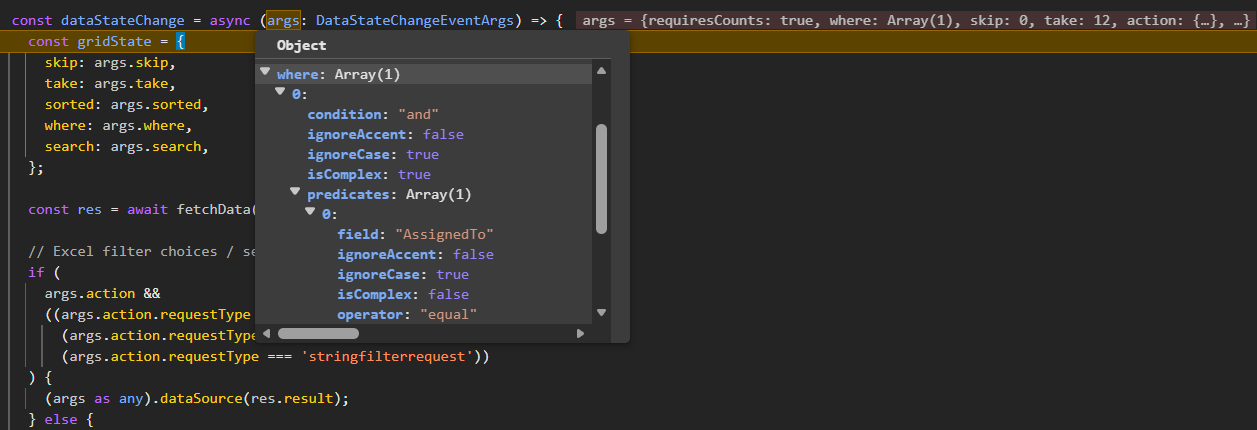

Filtering

Filtering allows to narrow down the data based on certain conditions. It is done by applying specific rules or criteria to include only the records that match those rules while excluding all others.

The Flask backend evaluates filter predicates received from the Grid. Predicates support comparison operators like equal, notequal, greaterthan, lessthan, startswith, endswith, and contains. Complex filtering allows combining multiple predicates with logical operators (and/or).

Simple predicate evaluation:

A simple predicate consists of a single condition that compares a field value against a specified value using an operator:

def eval_simple_predicate(item, predicate):
    field = predicate.get("field")
    op = (predicate.get("operator") or "equal").lower()
    value = predicate.get("value")
    ignore_case = predicate.get("ignoreCase", True)
    ignore_accent = predicate.get("ignoreAccent", False)
    left = item.get(field)
    left_t = coerce_value(field, left)
    right_t = coerce_value(field, value)
    return compare(op, left_t, right_t, ignore_case, ignore_accent)

Complex predicate evaluation:

Complex predicates contain nested predicates combined with a condition (and/or). They enable sophisticated filtering scenarios:

def eval_complex_predicate(item, predicate):
    condition = (predicate.get("condition") or "and").lower()
    nested_predicates = predicate.get("predicates", [])
    results = []
    for p in nested_predicates:
        if p.get("isComplex"):
            results.append(eval_complex_predicate(item, p))
        else:
            results.append(eval_simple_predicate(item, p))
    return all(results) if condition == "and" else any(results)

Apply filtering to dataset:

Iterates through all rows and evaluates each predicate (simple or complex) to determine which records match the filter criteria:

def apply_filter(rows, where):
    if not where:
        return rows
    def match(item):
        if len(where) == 1 and where[0].get("isComplex"):
            return eval_complex_predicate(item, where[0])
        checks = []
        for predicate in where:
            if predicate.get("isComplex"):
                checks.append(eval_complex_predicate(item, predicate))
            else:
                checks.append(eval_simple_predicate(item, predicate))
        return all(checks)
    return [r for r in rows if match(r)]

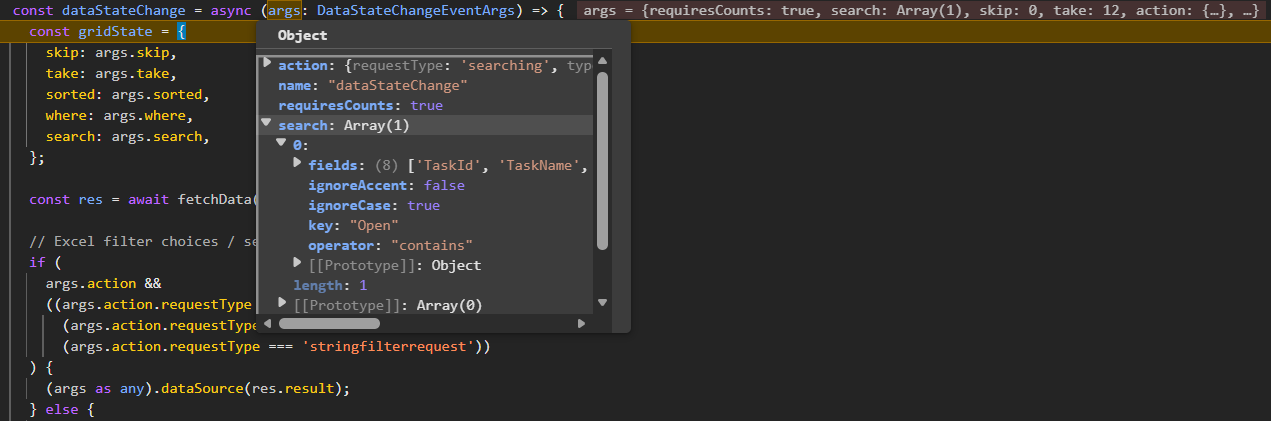

Searching

Searching allows to find records that contain specific keywords. It scans across specified fields and displays only the matching rows, making it easier to locate specific information within large datasets.

def apply_search(rows, search):
    if not search:
        return rows
    result = rows
    for s in search:
        key = str(s.get("key", ""))
        fields = s.get("fields", [])
        operator = (s.get("operator") or "contains").lower()
        ignore_case = s.get("ignoreCase", True)
        ignore_accent = s.get("ignoreAccent", False)

        norm_key = key.lower() if ignore_case else key
        if ignore_accent:
            norm_key = _strip_accents(norm_key)

        filtered = []
        for item in result:
            found = False
            for field in fields:
                val = item.get(field)
                if val is None:
                    continue
                sval = str(val)
                if ignore_case:
                    sval = sval.lower()
                if ignore_accent:
                    sval = _strip_accents(sval)

                if operator == "contains" and norm_key in sval:
                    found = True
                    break
                if operator == "startswith" and sval.startswith(norm_key):
                    found = True
                    break
                if operator == "endswith" and sval.endswith(norm_key):
                    found = True
                    break
                if operator == "equal" and sval == norm_key:
                    found = True
                    break
            if found:
                filtered.append(item)
        result = filtered
    return result

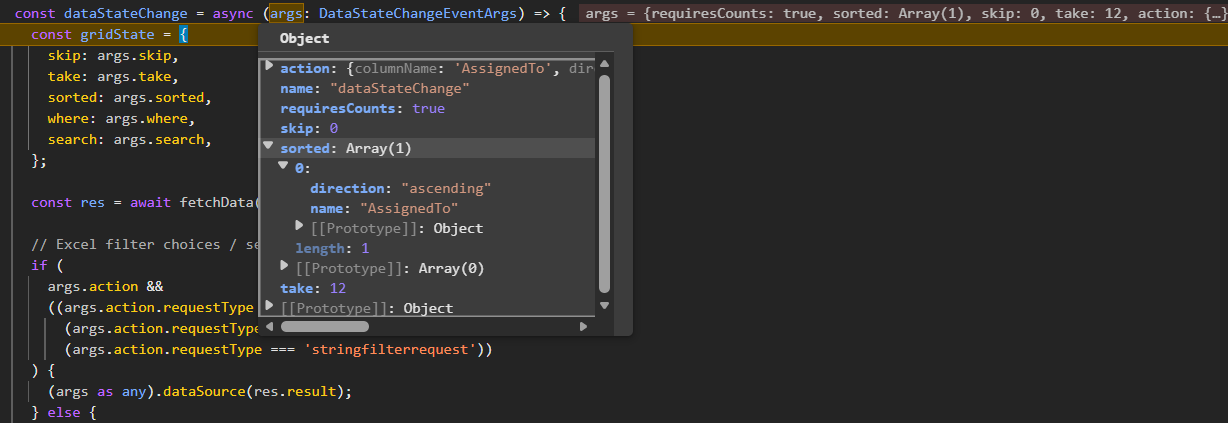

Sorting

Sorting allows to arrange records by one or more columns in ascending or descending order. Multi-column sorting is supported, where records are first sorted by the primary column, then by secondary columns for equal values.

def apply_sort(rows, sorted_rules):
    if not sorted_rules:
        return rows
    result = rows[:]
    for rule in reversed(sorted_rules):
        name = rule.get("name")
        direction = (rule.get("direction") or "ascending").lower()
        reverse = direction == "descending"
        def key_fn(x):
            return coerce_value(name, x.get(name))
        result.sort(key=key_fn, reverse=reverse)
    return result

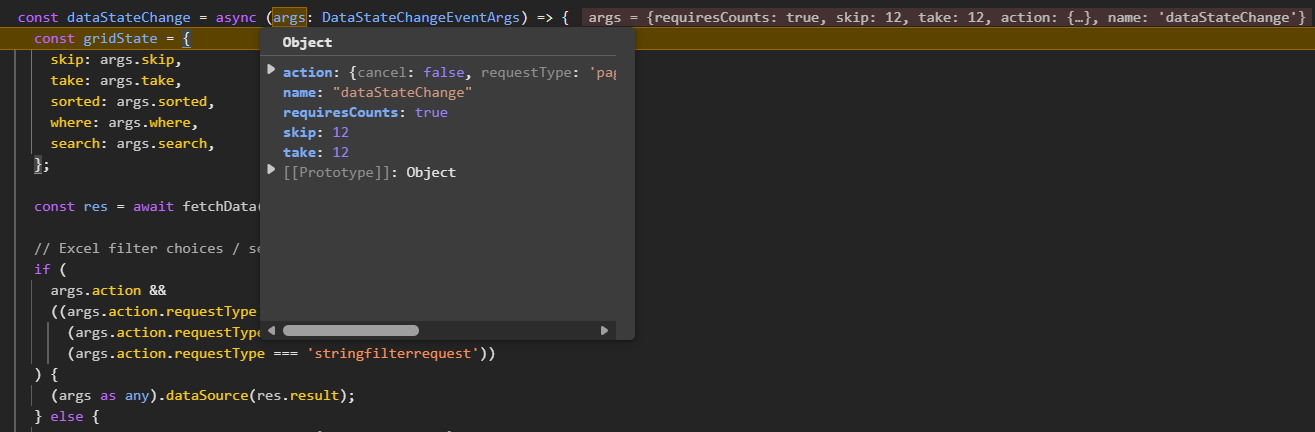

Paging

Paging divides large datasets into smaller, manageable pages based on offset and page size. This allows to display data efficiently without loading all records at once, significantly improving performance when handling large datasets.

def apply_paging(rows, skip, take):
    skip = int(skip or 0)
    if take in (None, "", 0):
        return rows
    return rows[skip: skip + int(take)]

GET request endpoint:

The Flask GET endpoint retrieves task data with applied filtering, searching, sorting, and paging operations. The endpoint accepts a grid state parameter containing all operation details and returns the result in the standardized format.

Ensure the response follows a structured format that includes both the current view dataset and the total data count. This approach supports on-demand data loading and enables the client to handle operations such as paging or filtering effectively when using Syncfusion® custom data binding.

The required response format includes:

  • result: The list of data displayed in the current view, supporting on-demand loading for large datasets.
  • count: The total count of records in the dataset before paging is applied.
@app.get("/tasks")
def list_tasks():
    grid_state_raw = request.args.get("gridState")
    try:
        grid_state = json.loads(grid_state_raw) if grid_state_raw else {}
    except Exception:
        grid_state = {}

    filter_predicates = grid_state.get("where") or []
    search_queries = grid_state.get("search") or []
    sort_descriptors = grid_state.get("sorted") or []
    skip = grid_state.get("skip", 0)
    take = grid_state.get("take", 0)
    requires_counts = bool(grid_state.get("requiresCounts"))

    result = tasks
    result = apply_filter(result, filter_predicates)
    result = apply_search(result, search_queries)
    total_count = len(result)
    result = apply_sort(result, sort_descriptors)
    result = apply_paging(result, skip, take)

    if requires_counts:
        return jsonify({"result": result, "count": total_count})
    return jsonify(result)

This endpoint processes all Grid operations in sequence:

  1. Filter: Apply filter predicates to exclude non-matching records.
  2. Search: Apply search queries across specified fields.
  3. Count: Calculate total count before paging (for pagination info).
  4. Sort: Arrange records by sort descriptors.
  5. Page: Extract the specific page using skip and take parameters.

Perform CRUD operations in server

CRUD operations are handled by the controllers and routed through corresponding API endpoints. These operations allow the frontend to manipulate data stored on the server through dedicated REST API endpoints.

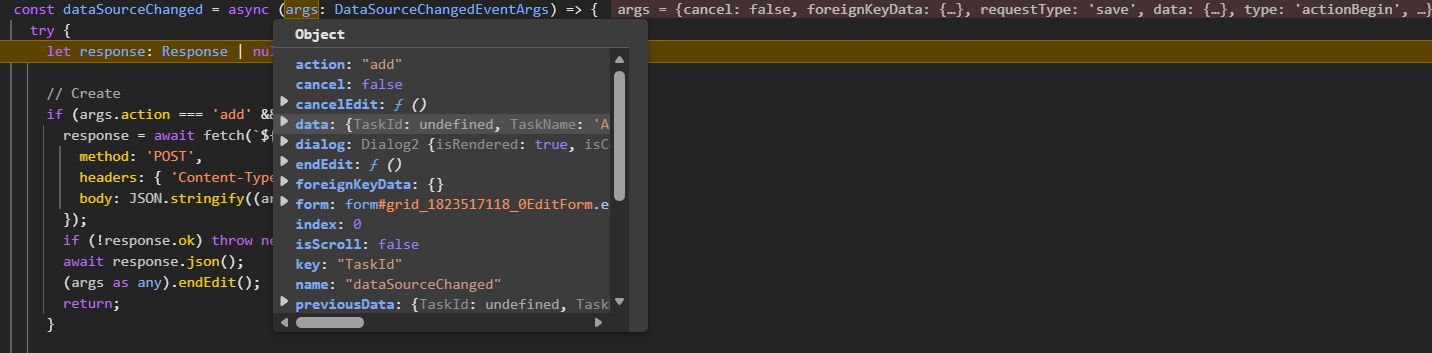

Insert

The insert operation creates a new task record in the dataset. When the Add button is clicked and the record is submitted, the endpoint receives the data and persists it.

@app.post("/tasks")
def create_task():
    row = request.get_json(silent=True) or {}
    if not row.get(PRIMARY_KEY):
        max_id = max((r.get(PRIMARY_KEY, 0) for r in tasks), default=0)
        row[PRIMARY_KEY] = int(max_id) + 1
    tasks.append(row)
    save_tasks(tasks)
    return jsonify(row), 201

The “create_task” function receives the new task data from the client, generates a unique primary key if not provided, appends it to the tasks list, persists the data to the JSON file, and returns the created record with HTTP status 201 (Created).

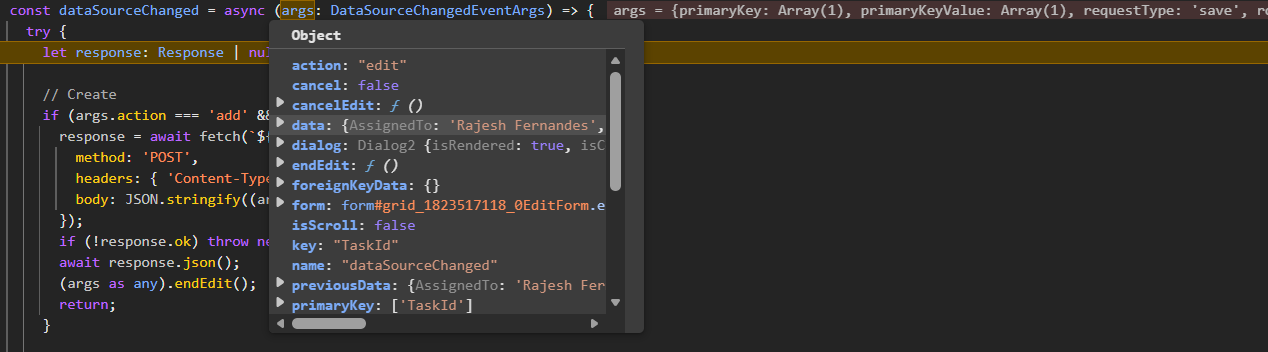

Update

The update operation modifies an existing task record in the dataset. When the Edit button is clicked, the record is changed and submitted, and the endpoint receives the updated data to apply the modifications.

@app.put("/tasks/<int:item_id>")
def update_task(item_id: int):
    row = request.get_json(silent=True) or {}
    for i, current in enumerate(tasks):
        if int(current.get(PRIMARY_KEY)) == int(item_id):
            row[PRIMARY_KEY] = item_id
            tasks[i] = row
            save_tasks(tasks)
            return jsonify(row)
    return jsonify({"message": "not found"}), 404

The “update_task” function locates the existing record by its primary key, replaces it with the updated data, persists the changes to the JSON file, and returns the updated record. If the record is not found, it returns a “404” error.

Delete

The delete operation removes a task record from the dataset. When a record is selected and the Delete button is clicked, the endpoint receives the primary key and deletes the corresponding record.

@app.delete("/tasks/<int:item_id>")
def delete_task(item_id: int):
    for i, current in enumerate(tasks):
        if int(current.get(PRIMARY_KEY)) == int(item_id):
            deleted = tasks.pop(i)
            save_tasks(tasks)
            return jsonify(deleted)
    return jsonify({"message": "not found"}), 404

The “delete_task” function finds the record by its primary key, removes it from the tasks list, persists the changes to the JSON file, and returns the deleted record. If the record is not found, it returns a 404 error.

Running the Flask server

To run the Flask application, execute the following command in the server directory:

python app.py

The server will start on http://localhost:5000 and the tasks endpoint is http://localhost:5000/tasks.

Connecting Syncfusion Angular Grid with Flask API

Create a new Angular application using Angular CLI, which provides a complete development environment with built-in tools and best practices.

Step 1: Create Angular application

Create a new Angular application using Angular CLI:

ng new client
cd client

Step 2: Install Syncfusion packages

Install the Angular Data Grid and DataManager packages:

npm install @syncfusion/ej2-angular-grids --save
npm install @syncfusion/ej2-data --save

Step 3: Include Syncfusion styles

Include the required CSS files in the (src/styles.css) file:

@import '../node_modules/@syncfusion/ej2-base/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-buttons/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-calendars/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-dropdowns/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-inputs/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-navigations/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-popups/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-splitbuttons/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-notifications/styles/bootstrap5.3.css';
@import '../node_modules/@syncfusion/ej2-angular-grids/styles/bootstrap5.3.css';

For this project, the “Bootstrap 5.3” theme is applied. Other themes can be selected, or the existing theme can be customized to meet specific project requirements. For detailed guidance on theming and customization, refer to the Syncfusion® Angular Components Appearance documentation.

Step 4: Create the Grid component

Create a new Angular component in (client/src/app/app.component.ts) and (client/src/app/app.component.html) that renders the Syncfusion® Grid. This component will serve as the base for integrating custom data binding and data operations.

app.component.ts:

import { Component, ViewChild, AfterViewInit } from '@angular/core';
import { CommonModule } from '@angular/common';
import { GridComponent, GridModule } from '@syncfusion/ej2-angular-grids';
import { Query } from '@syncfusion/ej2-data';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [CommonModule, GridModule],
})
export class AppComponent implements AfterViewInit {
  @ViewChild('grid', { static: false }) public grid!: GridComponent;

  public readonly API_BASE = 'http://localhost:5000';
}

app.component.html:

<ejs-grid
  #grid
  [dataSource]="[]">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

Step 5: Integrate Syncfusion Angular Grid with custom data binding

The Angular Data Grid custom data binding feature seamlessly integrates with external API services. When Grid actions such as paging, sorting, filtering, or CRUD operations are performed, requests are sent to the API. The API processes these operations and returns the results in the required format, giving complete control over application-specific workflows and enabling efficient handling of large datasets. The custom data binding feature interacts with backend APIs through two key events.

  • dataStateChange: Triggered when the Grid performs actions such as paging, sorting, or filtering. It provides the current state details (skip, take, sorted, where, search), which are sent to the API so the request can be processed and data returned in the required { result:[], count:100 } format.

  • dataSourceChanged: Triggered during CRUD operations (Create, Update, Delete). It provides the affected record along with the action type, which is sent to the API to execute the corresponding insert, update, or delete operation.

Since the dataStateChange event does not fire on the first render, use the ngAfterViewInit lifecycle hook to load the initial dataset when the component initializes. In the Grid component, define a “fetchData” function to send the grid state to the Flask API and bind the returned data.

Here’s an example of implementing the initial data load with ngAfterViewInit:

app.component.ts:

import { Component, ViewChild, AfterViewInit } from '@angular/core';
import { GridComponent } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
})
export class AppComponent implements AfterViewInit {
  @ViewChild('grid', { static: false }) public grid!: GridComponent;

  public readonly API_BASE = 'http://localhost:5000';

  public fetchData = async (gridState: any) => {
    const stateWithCount = { requiresCounts: true, ...gridState };
    const url = `${this.API_BASE}/tasks?gridState=${encodeURIComponent(JSON.stringify(stateWithCount))}`;

    const response = await fetch(url, { method: 'GET', headers: { 'Content-Type': 'application/json' } });

    if (!response.ok) {
      const text = await response.text();
      throw new Error(`HTTP ${response.status}: ${text}`);
    }

    return (await response.json()) as { result: any[]; count: number };
  };

  public async ngAfterViewInit(): Promise<void> {
    const initialState = { skip: 0, take: 12, sorted: [], where: [], search: [] };
    try {
      const res = await this.fetchData(initialState);
      if (this.grid) {
        this.grid.dataSource = res;
      }
    } catch (e) {
      console.error(e);
    }
  }
}

This component includes the ngAfterViewInit lifecycle hook that loads the initial data when the component initializes. The “initialState” object defines the starting grid state with default values for skip (0), take (12), and empty arrays for sorting, filtering, and searching. The “fetchData” function sends the grid state to the Flask API via a GET request and retrieves the data in the required format.

API response format:

The Grid custom data binding feature expects the following response from the backend:

{ "result": [ /* records to display */ ], "count": 100 }

This format has already been implemented in the Flask server during the backend setup.

Step 6: Configure data operations with custom data binding

The dataStateChange event is the primary mechanism for handling Grid state changes like paging, sorting, filtering, and searching. This event is triggered whenever the Grid state changes and provides the current state details that need to be sent to the server.

The event handler is responsible for:

  1. Collecting the current grid state (skip, take, sorted, where, search).
  2. Sending this state to the Flask API via a GET request.
  3. Processing the response and binding data to the Grid.
  4. Handling special cases like filter dropdown requests.

Configure the Grid to use the dataStateChange event handler by adding it as a property:

app.component.ts:

import { Component, ViewChild, AfterViewInit } from '@angular/core';
import { GridComponent, DataStateChangeEventArgs } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
})
export class AppComponent implements AfterViewInit {
  @ViewChild('grid', { static: false }) public grid!: GridComponent;

  public readonly API_BASE = 'http://localhost:5000';

  public async dataStateChange(args: DataStateChangeEventArgs): Promise<void> {
    const gridState = {
      skip: args.skip,
      take: args.take,
      sorted: args.sorted,
      where: args.where,
      search: args.search,
    };

    const res = await this.fetchData(gridState);

    // Excel filter choices / search in popup
    const action: any = (args as any).action;
    if (
      action &&
      (
        action.requestType === 'filterchoicerequest' ||
        action.requestType === 'filterSearchBegin' ||
        action.requestType === 'stringfilterrequest'
      )
    ) {
      (args as any).dataSource(res.result);
    } else {
      // Bind main grid data: expects { result, count }
      if (this.grid) {
        this.grid.dataSource = res;
      }
    }
  }
}

app.component.html:

<ejs-grid
  #grid
  [allowPaging]="true"
  (dataStateChange)="dataStateChange($event)">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

The dataStateChange event handler collects the current grid state parameters (skip, take, sorted, where, search) from the event arguments and passes them to the “fetchData” function. The response is then bound to the Grid’s dataSource. The handler also checks if the request is for filter dropdown choices or search popup data and handles those cases separately by calling the dataSource callback.

Step 7: Configure CRUD operations with custom data binding

The dataSourceChanged event is triggered during CRUD operations. This event provides the affected record along with the action type, which is sent to the Flask API to execute the corresponding operation.

The event handler is responsible for:

  1. Identifying the type of operation (add, edit, or delete).
  2. Extracting the record data from the event arguments.
  3. Sending the appropriate HTTP request (POST for insert, PUT for update, DELETE for delete).
  4. Calling endEdit() to notify the Grid that the operation is complete.

Configure the Grid to use the dataSourceChanged event handler by adding it as a property:

app.component.ts:

import { Component, ViewChild, AfterViewInit } from '@angular/core';
import { GridComponent, DataSourceChangedEventArgs } from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
})
export class AppComponent implements AfterViewInit {
  @ViewChild('grid', { static: false }) public grid!: GridComponent;

  public readonly API_BASE = 'http://localhost:5000';

  public async dataSourceChanged(args: DataSourceChangedEventArgs): Promise<void> {
    try {
      let response: Response | null = null;

      // Create
      if (args.action === 'add' && args.requestType === 'save') {
        response = await fetch(`${this.API_BASE}/tasks`, {
          method: 'POST',
          headers: { 'Content-Type': 'application/json' },
          body: JSON.stringify(args.data),
        });
        if (!response.ok) throw new Error('Create failed');
        await response.json();
        (args as any).endEdit();
        return;
      }

      // Update
      if (args.action === 'edit' && args.requestType === 'save') {
        const data: any = args.data;
        const id = data?.TaskId;
        response = await fetch(`${this.API_BASE}/tasks/${id}`, {
          method: 'PUT',
          headers: { 'Content-Type': 'application/json' },
          body: JSON.stringify(data),
        });
        if (!response.ok) throw new Error('Update failed');
        await response.json();
        (args as any).endEdit();
        return;
      }

      // Delete
      if (args.requestType === 'delete') {
        const payload: any = args.data;
        const id = Array.isArray(payload) ? payload[0]?.TaskId : payload?.TaskId;
        response = await fetch(`${this.API_BASE}/tasks/${id}`, { method: 'DELETE' });
        if (!response.ok) throw new Error('Delete failed');
        await response.json();
        (args as any).endEdit();
        return;
      }
    } catch (err) {
      console.error(err);
    }
  }
}

app.component.html:

<ejs-grid
  #grid
  [allowPaging]="true"
  (dataStateChange)="dataStateChange($event)"
  (dataSourceChanged)="dataSourceChanged($event)">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

The dataSourceChanged event handler checks the action type from the event arguments to determine whether a create, update, or delete operation is being performed. For insert operations, a POST request is sent to the “/tasks” endpoint with the new record data. For update operations, a PUT request is sent to “/tasks/{id}” with the modified data. For delete operations, a DELETE request is sent to “/tasks/{id}” to remove the record. After each operation completes successfully, the endEdit() method is called to notify the Grid that the operation is complete.

Step 8: Enable paging

The paging feature divides Grid records into multiple pages, improving performance and usability when handling large datasets. Enable paging by setting the allowPaging property to true and injecting the PageService module into the providers property. Customize pager behavior using the pageSettings property.

app.component.ts:

import { Component, ViewChild, AfterViewInit } from '@angular/core';
import {
  GridComponent,
  GridModule,
  PageSettingsModel,
  PageService,
} from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [PageService],
})
export class AppComponent implements AfterViewInit {
  public pageSettings: PageSettingsModel = {
    pageSize: 12,
    pageSizes: [12, 25, 50, 100]
  };
}

app.component.html:

<ejs-grid
  [allowPaging]="true"
  [pageSettings]="pageSettings">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

The image illustrates that the page state is passed to the skip and take property of the dataStateChange event arguments.

flaskapi_page

Step 9: Enable filtering

The filtering feature enables searching and refining Grid records based on column values. Enable filtering by setting the allowFiltering property to true and injecting the FilterService module into the providers property. Customize filtering options using the filterSettings property.

app.component.ts:

import { Component } from '@angular/core';
import {
  GridComponent,
  GridModule,
  FilterSettingsModel,
  FilterService,
} from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [FilterService],
})
export class AppComponent {
  public filterSettings: FilterSettingsModel = { type: 'Excel' };
}

app.component.html:

<ejs-grid
  [allowFiltering]="true"
  [filterSettings]="filterSettings">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

The image below illustrates that the filter state is passed to the where property of the dataStateChange event arguments.

flaskapi_filter

Step 10: Enable searching

The search feature in the Grid allows records to be located and filtered using keywords. Enable searching by adding Search to the Grid’s toolbar items and injecting the ToolbarService module into the providers property.

app.component.ts:

import { Component } from '@angular/core';
import {
  GridComponent,
  GridModule,
  ToolbarItems,
  ToolbarService,
} from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [ToolbarService],
})
export class AppComponent {
  public toolbar: ToolbarItems[] = ['Search'];
}

app.component.html:

<ejs-grid
  [toolbar]="toolbar">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

The image illustrates that the search state is passed to the search property of the dataStateChange event arguments.

flaskapi_search

Step 11: Enable sorting

The sorting feature allows ordering Grid records by clicking column headers. Enable sorting by setting the allowSorting property to true and injecting the SortService module into the providers property.

app.component.ts:

import { Component } from '@angular/core';
import {
  GridComponent,
  GridModule,
  SortService,
} from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [SortService],
})
export class AppComponent {
  // Sorting is enabled
}

app.component.html:

<ejs-grid
  [allowSorting]="true">
  <e-columns>
    <!-- Include columns here -->
  </e-columns>
</ejs-grid>

The image illustrates that the sort state is passed to the sorted property of the dataStateChange event arguments.

flaskapi_sort

Step 12: Enable CRUD actions

To enable editing functionality directly within the grid, configure the allowEditing, allowAdding, and allowDeleting properties within the editSettings. Define a primary key column using isPrimaryKey, and enable edit actions in the toolbar.

app.component.ts:

import { Component } from '@angular/core';
import {
  GridComponent,
  GridModule,
  ToolbarItems,
  EditSettingsModel,
  EditService,
  ToolbarService,
} from '@syncfusion/ej2-angular-grids';

@Component({
  selector: 'app-root',
  standalone: true,
  templateUrl: './app.component.html',
  styleUrls: ['./app.component.css'],
  imports: [GridModule],
  providers: [EditService, ToolbarService],
})
export class AppComponent {
  public toolbar: ToolbarItems[] = ['Add', 'Edit', 'Delete', 'Update', 'Cancel', 'Search'];

  public editSettings: EditSettingsModel = {
    allowAdding: true,
    allowEditing: true,
    allowDeleting: true,
    mode: 'Dialog',
  };
}

app.component.html:

<ejs-grid
  [toolbar]="toolbar"
  [editSettings]="editSettings">
  <e-columns>
    <e-column
      field="TaskId"
      headerText="ID"
      [isPrimaryKey]="true"
      [visible]="false">
    </e-column>
    <e-column
      field="TaskName"
      headerText="Task"
      width="200">
    </e-column>
  </e-columns>
</ejs-grid>

Inserted data passed to the server through the dataSourceChanged event arguments in the Grid:

flaskapi_add

Updated data passed to the server through the dataSourceChanged event arguments in the Grid:

flaskapi_edit

Deleted data passed to the server through the dataSourceChanged event arguments in the Grid:

flaskapi_delete

Run the application

Both the backend Flask server and the frontend Angular application need to run simultaneously for the Grid to function properly.

Prerequisites for running

Before starting the servers, the following must be available:

  • Two terminal windows or tabs open (one for backend, one for frontend).
  • Both server and client directories created and configured.
  • All pip packages installed in the server directory.
  • All npm packages installed in the client directory.

Step 1: Start the Flask backend server

Open the first terminal and navigate to the server folder from the project root:

cd angular-grid-flask-api/server
python app.py

The server will start on http://localhost:5000 and the tasks endpoint is http://localhost:5000/tasks.

Step 2: Start the Angular frontend application

Open a new terminal and navigate to the client folder from the project root:

cd angular-grid-flask-api/client
ng serve

The Angular application will start on http://localhost:4200.

The complete folder structure looks like below:

angular-grid-flask-api/
├── server/
│   ├── venv/
│   ├── app.py
│   ├── task_data.json
│   └── requirements.txt
│
└── client/
    ├── src/
    │   ├── app/
    │   │   ├── app.component.ts
    │   │   ├── app.component.html
    │   │   └── app.component.css
    │   ├── main.ts
    │   ├── styles.css
    │   └── index.html
    ├── node_modules/
    ├── package.json
    ├── angular.json
    ├── tsconfig.json
    ├── tsconfig.app.json
    ├── tsconfig.spec.json
    └── README.md

Complete sample repository

For a complete working implementation, refer to the GitHub repository.

The repository contains the complete Flask backend implementation with all API endpoints, business logic, data models, and a ready-to-run Angular frontend application.

The application now provides a complete solution for integrating the Angular Data Grid with Flask API backend, enabling seamless data operations with a modern, user-friendly interface.

See also
