Modify Form Fields in JavaScript (ES6) PDF Viewer
13 Nov 202620 minutes to read
Form fields can be modified using the UI or API.
Modify Form Fields in JavaScript (ES6) PDF Viewer using the UI
- Right-click a field → Properties to update settings.
- Drag to move; use handles to resize.
- Use the toolbar to toggle field mode or add new fields.
Modify Form Fields in JavaScript (ES6) PDF Viewer programmatically
Use updateFormField() to change behavior/data (including position and size):
<button id="modifyTextbox">Apply Textbox Changes</button>(document.getElementById('modifyTextbox') as HTMLButtonElement)?.addEventListener('click', () => {
// Retrieve form fields collection
const fields = pdfviewer.retrieveFormFields();
// Find the textbox field by name (Here field name is First Name)
const field = fields.find((f: any) => f.name === 'First Name') || fields[0]; //Update Name accordingly
if (field) {
// Update textbox field styling and value
pdfviewer.formDesignerModule.updateFormField(field, {
value: 'John',
fontFamily: 'Courier',
fontSize: 12,
fontStyle: FontStyle.None,
color: 'black',
backgroundColor: 'white',
borderColor: 'black',
thickness: 2,
alignment: 'Left',
maxLength: 50
} as TextFieldSettings);
}
});Modify Form Fields in JavaScript (ES6) PDF Viewer by field type
Textbox
- UI: Update value, font, size, colors, border thickness, alignment, max length, multiline.
- API:
updateFormField()for value, typography, alignment, colors, borders.
<button id="modifyTextbox">Apply Textbox Changes</button>(document.getElementById('modifyTextbox') as HTMLButtonElement)?.addEventListener('click', () => {
// Retrieve form fields collection
const fields = pdfviewer.retrieveFormFields();
// Find the textbox field by name (Here field name is First Name)
const field = fields.find((f: any) => f.name === 'First Name') || fields[0]; //Update Name accordingly
if (field) {
// Update textbox field styling and value
pdfviewer.formDesignerModule.updateFormField(field, {
value: 'John',
fontFamily: 'Courier',
fontSize: 12,
fontStyle: FontStyle.None,
color: 'black',
backgroundColor: 'white',
borderColor: 'black',
thickness: 2,
alignment: 'Left',
maxLength: 50
} as TextFieldSettings);
}
});Password
- UI: Tooltip, required, max length, font, appearance.
- API:
updateFormField()for tooltip, validation flags, typography, colors, alignment, borders.<button id="modifyPasswordBox">Edit PasswordBox</button>(document.getElementById('modifyPasswordBox') as HTMLButtonElement)?.addEventListener('click', () => { // Retrieve form fields collection const fields = pdfviewer.retrieveFormFields(); // Find the password field by name (Here field name is Password) const field = fields.find((f: any) => f.name === 'Password'); if (field) { // Update password field properties pdfviewer.formDesignerModule.updateFormField(field, { tooltip: 'Enter your password', isReadOnly: false, isRequired: true, isPrint: true, fontFamily: 'Courier', fontSize: 10, color: 'black', borderColor: 'black', backgroundColor: 'white', alignment: 'Left', maxLength: 20, thickness: 1 } as PasswordFieldSettings); } });
CheckBox
- UI: Toggle checked state.
- API:
updateFormField()for isChecked, tooltip, colors, borders.<button id="modifyCheckbox">Modify CheckBox</button>(document.getElementById('modifyCheckbox') as HTMLButtonElement)?.addEventListener('click', () => { // Retrieve form fields collection const fields = pdfviewer.retrieveFormFields(); // Find the checkbox field by name (Here field name is Subscribe) const cb = fields.find((f: any) => f.name === 'Subscribe'); if (cb) { // Update checkbox field properties and state pdfviewer.formDesignerModule.updateFormField(cb, { isChecked: true, backgroundColor: 'white', borderColor: 'black', thickness: 2, tooltip: 'Subscribe to newsletter' } as CheckBoxFieldSettings); } });
RadioButton
- UI: Set selected item in a group (same Name).
- API:
updateFormField()to set selected value and border appearance.<button id="editRadio">Modify RadioButton</button>(document.getElementById('editRadio') as HTMLButtonElement)?.addEventListener('click', () => { // Retrieve form fields collection const fields = pdfviewer.retrieveFormFields(); // Filter the radio button group by name (Here group name is Gender) const genderRadios = fields.filter((f: any) => f.name === 'Gender'); if (genderRadios[1]) { // Update radio button selection and appearance pdfviewer.formDesignerModule.updateFormField(genderRadios[0], { isSelected: false } as RadioButtonFieldSettings); pdfviewer.formDesignerModule.updateFormField(genderRadios[1], { isSelected: true, thickness: 2, borderColor: 'black' } as RadioButtonFieldSettings); } });
ListBox
- UI: Add/remove items, set selection, adjust fonts/colors.
- API:
updateFormField()for items, selection, borders.<button id="editListBox">Edit ListBox</button>```ts
(document.getElementById(‘editListBox’) as HTMLButtonElement)?.addEventListener(
‘click’,
() => {
// Retrieve form fields collection
const fields = pdfviewer.retrieveFormFields();
// Find the listbox field by name (Here field name is States)
const lb = fields.find((f: any) => f.name === ‘States’);
if (lb) {
// Update listbox options, selection, and appearance
let option = [
{ itemName: ‘Alabama’, itemValue: ‘AL’ },
{ itemName: ‘Alaska’, itemValue: ‘AK’ },
{ itemName: ‘Arizona’, itemValue: ‘AZ’ },
];
pdfviewer.formDesignerModule.updateFormField(lb, {
fontFamily: ‘Courier’,
fontSize: 5,
color: ‘black’,
backgroundColor: ‘white’,
tooltip: ‘listbox’,
options: option,
} as ListBoxFieldSettings);
}
});
### DropDown
- UI: Add/remove items, default value, appearance.

- API: [`updateFormField()`](https://ej2.syncfusion.com/documentation/api/pdfviewer/index-default#updateformfields) for items, value, borders.
```html
<button id="editDropDown">Edit DropDown</button>
(document.getElementById('editDropDown') as HTMLButtonElement)?.addEventListener('click', () => {
// Retrieve form fields collection
const fields = pdfviewer.retrieveFormFields();
// Find the dropdown field by name (Here field name is Country)
const dd = fields.find((f: any) => f.name === 'Country');
if (dd) {
// Update dropdown items, value, and appearance
pdfviewer.formDesignerModule.updateFormField(dd, {
options: [
{ itemName: 'USA', itemValue: 'US' },
{ itemName: 'Canada', itemValue: 'CA' },
{ itemName: 'Mexico', itemValue: 'MX' }
],
value: 'US',
fontFamily: 'Courier',
fontSize: 10,
color: 'black',
borderColor: 'black',
backgroundColor: 'white'
} as DropdownFieldSettings);
}
});Signature Field
- UI: Tooltip, thickness, indicator text, required/visibility.
- API:
updateFormField()for tooltip, required, colors, borders.<button id="editSignature">Edit Signature</button>(document.getElementById('editSignature') as HTMLButtonElement)?.addEventListener('click', () => { // Retrieve form fields collection const fields = pdfviewer.retrieveFormFields(); // Find the signature field by name (Here field name is Sign) const sig = fields.find((f: any) => f.name === 'Sign'); if (sig) { // Update signature field properties pdfviewer.formDesignerModule.updateFormField(sig, { tooltip: 'Please sign here', thickness: 3, isRequired: true, isPrint: true, backgroundColor: 'white', borderColor: 'black' } as SignatureFieldSettings); } });
Initial Field
- UI: Tooltip, indicator text, thickness, required/visibility.
- API:
updateFormField()for tooltip, required, colors, borders.<button id="editInitial">Edit Initial</button>(document.getElementById('editInitial') as HTMLButtonElement)?.addEventListener('click', () => { // Retrieve form fields collection const fields = pdfviewer.retrieveFormFields(); // Find the initial field by name (Here field name is Initial) const init = fields.find((f: any) => f.name === 'Initial'); if (init) { // Update initial field properties pdfviewer.formDesignerModule.updateFormField(init, { tooltip: 'Add your initials', thickness: 2, isRequired: true, isPrint: true, backgroundColor: 'white', borderColor: 'black' } as InitialFieldSettings); } });
DateTime Picker

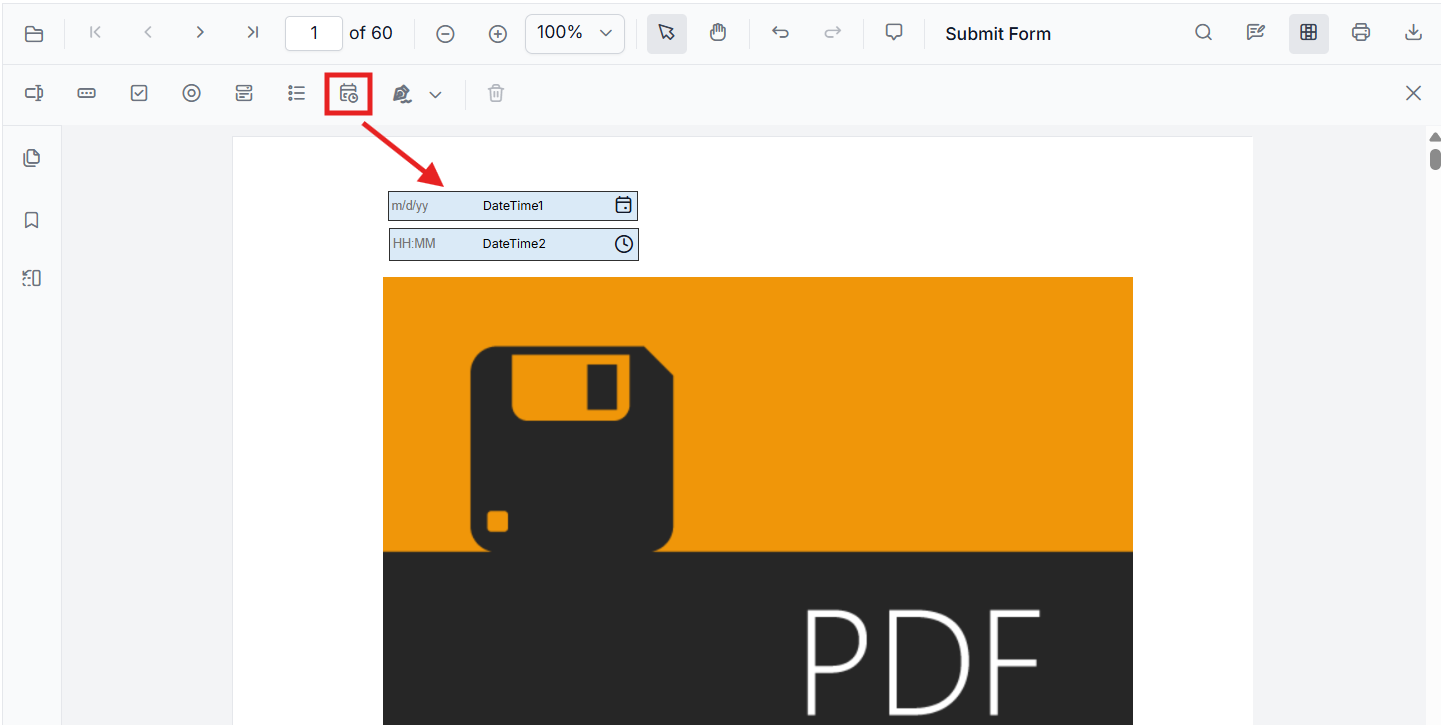

Select a DateTime Picker field in Form Designer to review or change its settings. The toolbar includes the DateTime Picker tool, and the page displays date and time fields.

Date and time fields can also be used to enter values directly or choose a value from the picker:
-

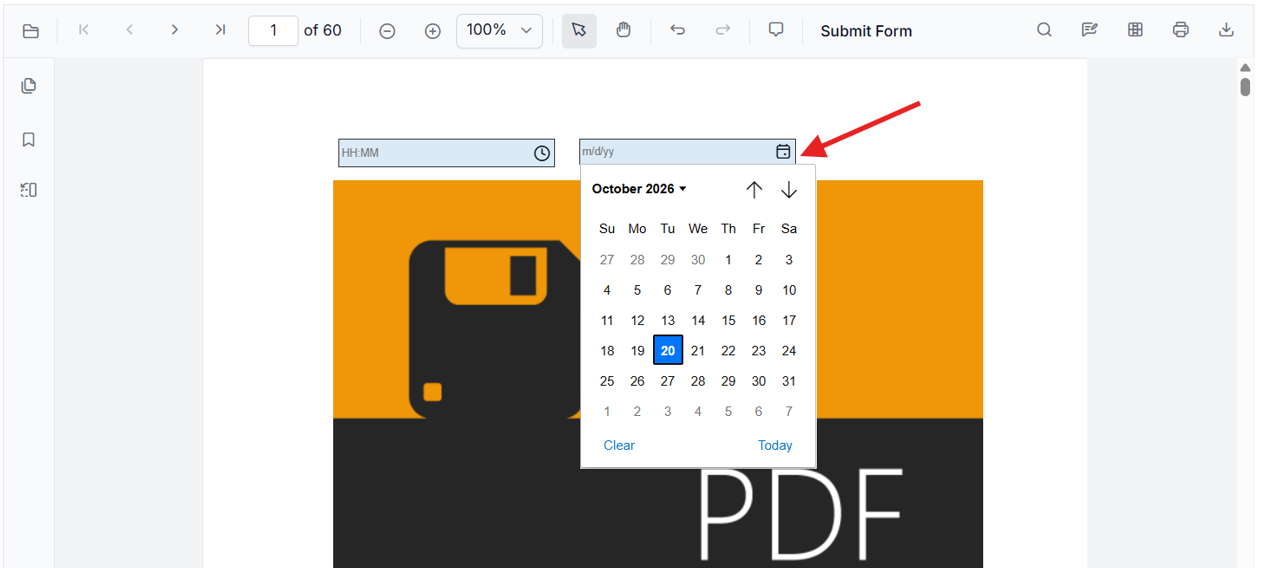

For a date field, type a date or open the calendar picker.

-

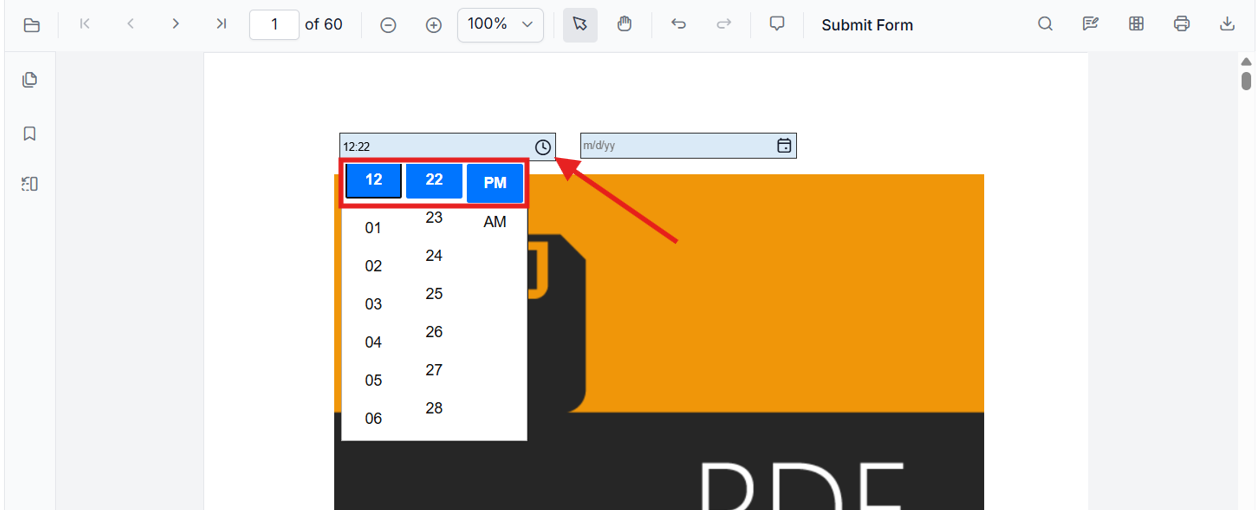

For a time field, type a time or open the time picker.

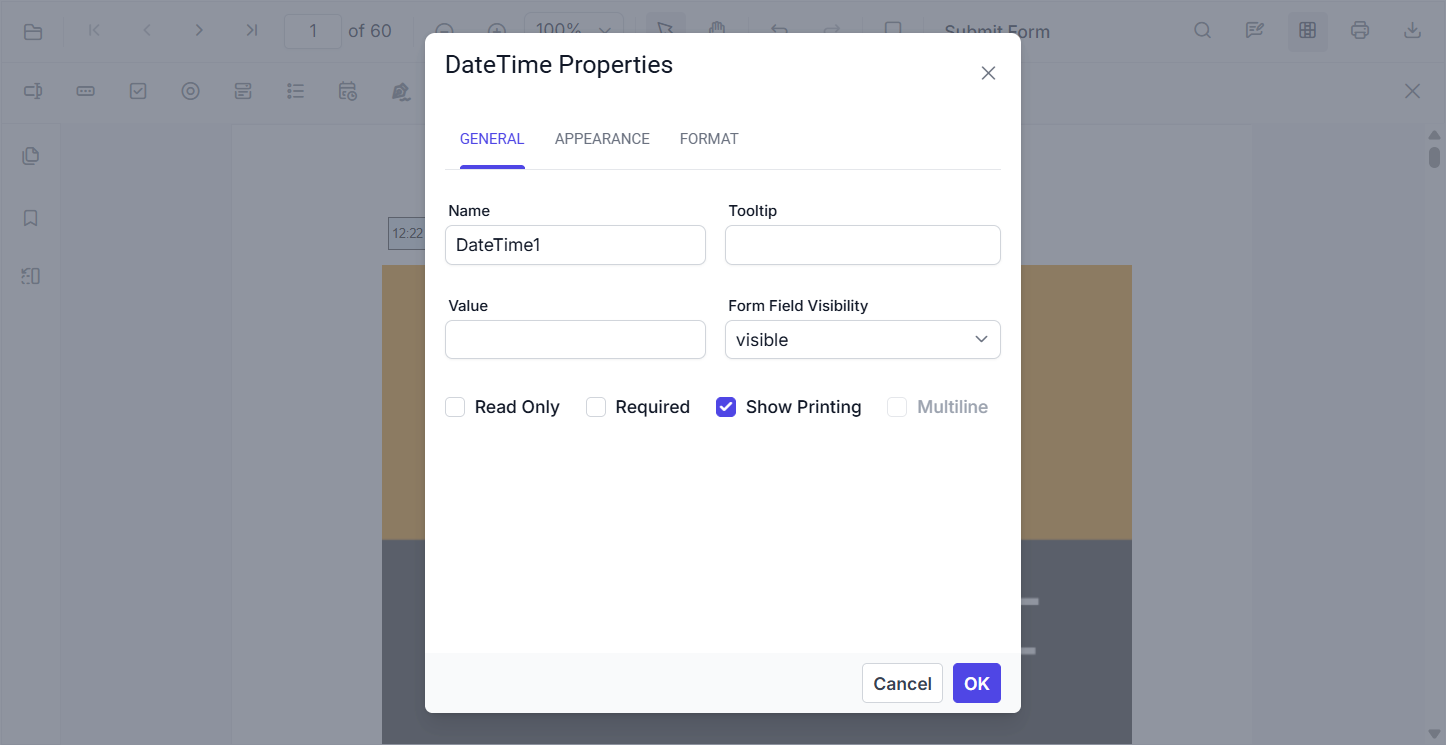

Use the field’s General properties to review or edit its name, value, tooltip, visibility, read-only and required settings, and print visibility.

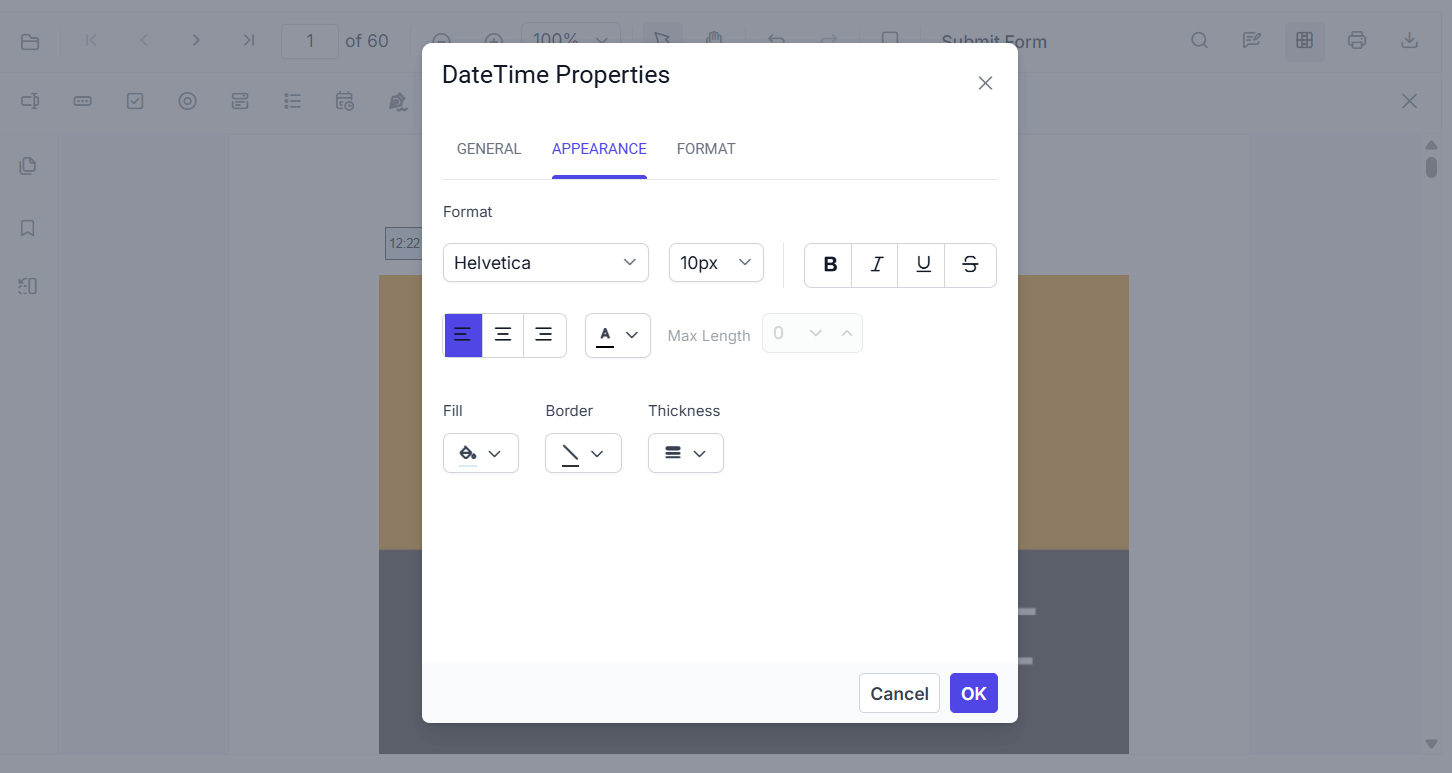

The Appearance properties include font, colors, border, and alignment.

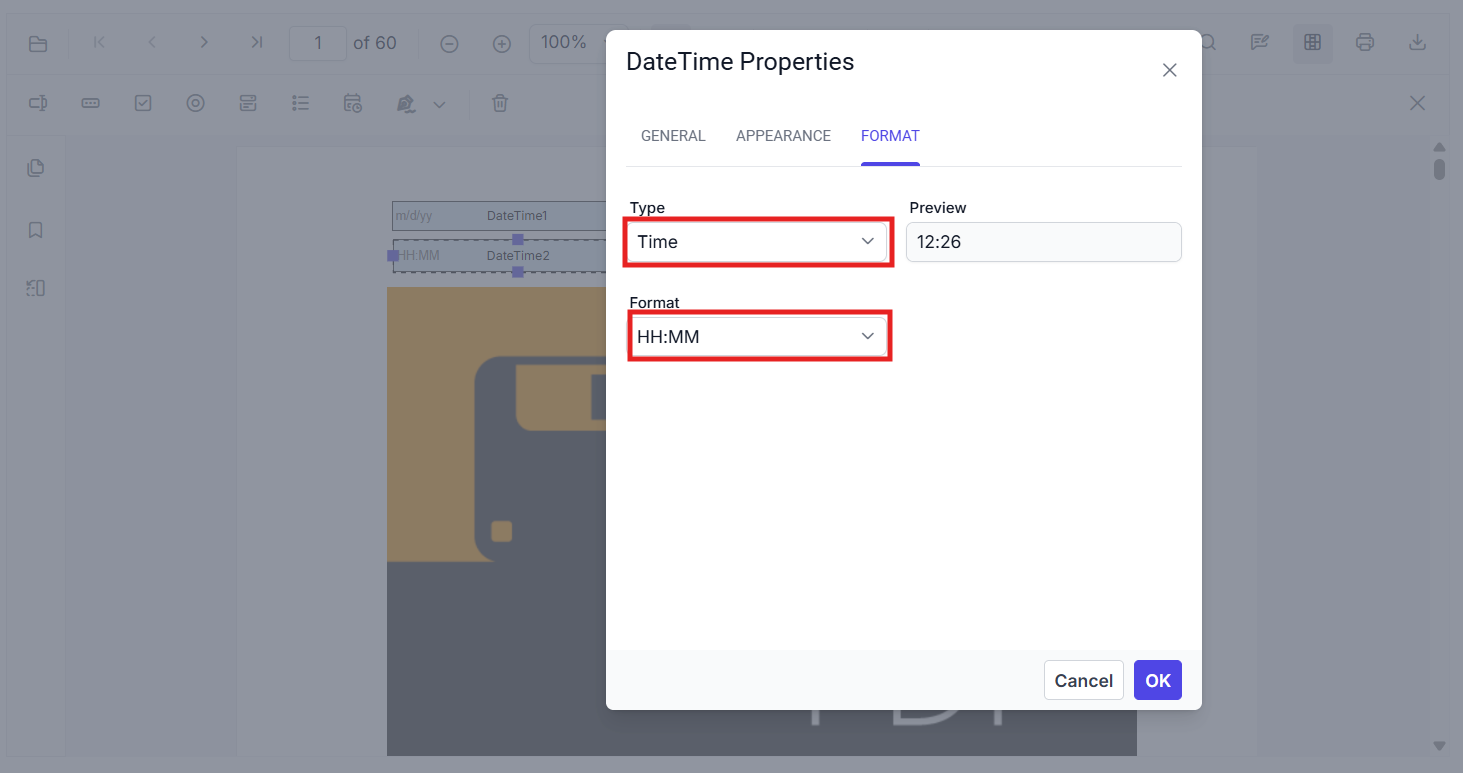

Use the Format tab to change the field type (Date or Time), select a display format, and review the preview.

- API:
updateFormField()for value, format script, typography, colors, borders.
Button
Select a Button field in Form Designer to review or change its settings. The toolbar includes the Button tool, and the page displays the button field.

Use the field’s General properties to review or edit its name, value, tooltip, visibility, read-only and required settings, and print visibility.
The Appearance properties include font, colors, border, and alignment of the button caption.
Button Actions
Use the Actions tab to associate an action with the button field. The action is executed when the corresponding event occurs.
| Action | Description |
|---|---|
mouseUp |
Executes the action when the mouse button is released over the button field. |
mouseDown |
Executes the action when the mouse button is pressed over the button field. |
mouseEnter |
Executes the action when the pointer enters the button field area. |
mouseLeave |
Executes the action when the pointer leaves the button field area. |
gotFocus |
Executes the action when the button field receives focus. |
lostFocus |
Executes the action when the button field loses focus. |

The Go To Action navigates the viewer to a specific page, position, and zoom level in the document when the action is triggered.
| Property | Description |
|---|---|
destinationPageNumber |
The page number to navigate to. |
destinationLocation |
The position (x and y) within the destination page. |
zoomValue |
The zoom level applied when navigating to the destination. A value of 0 retains the current zoom level. |
- API:
updateFormField()for the button text, value, tooltip, alignment, typography, colors, borders, and actions.
<button id="editButton">Edit Button</button>(document.getElementById('editButton') as HTMLButtonElement)?.addEventListener('click', () => {
// Retrieve form fields collection
const fields = pdfviewer.retrieveFormFields();
// Find the button field by name
const button = fields.find((f: any) => f.name === 'Submit1');
if (button) {
pdfviewer.formDesignerModule.updateFormField(button, {
value: 'Submit Button',
text: 'Submit Button',
alignment: 'Left',
tooltip: 'Updated Submit Button',
actions: {
mouseUp: {
action: ActionType.GoTo,
destinationPageNumber: 7,
destinationLocation: { x: 100, y: 100 },
zoomValue: 1
} as GoToActionModel
}
});
}
});Barcode
Select a Barcode field in Form Designer to review or change its settings. The toolbar includes the Barcode tool, and the page displays the generated barcode.

Use the field’s General properties to review or edit its name, value, caption, tooltip, visibility, read-only and required settings, and print visibility.
The Options properties include the barcode type, X dimension, error correction level, and the option to compress the data before encoding it to the barcode.
Symbology
The barcode type is referred to as the symbology. The following symbologies are supported, and PDF417 is used by default.
| Symbology | Description |
|---|---|
PDF417 |
A stacked, linear barcode that supports alphanumeric data. This is the default symbology. |
QRCode |
A two-dimensional matrix barcode that supports numeric, alphanumeric, and binary data. |
DataMatrix |
A two-dimensional matrix barcode that is used to encode a small amount of data in a compact area. |

Value Format
The value that is encoded in the barcode can be supplied in three ways.
| Value format | Description |
|---|---|
TabDelimited |
Carries the values in the barcode separated by a tab character, so the values appear at a tab space distance from each other. |
XML |
Stores the values pairwise in an XML structure. |
CustomValue |
Stores the value as a string, and any string can be assigned to it. |

Complete support for executing custom scripts is not available. Instead, the PDF Viewer parses the final value assigned to the barcode field in the PDF document.
Static Barcode Value
The barcode value can be set to a fixed value from the Value tab of the Barcode Properties dialog.
Select Custom Value in the Encode dropdown, and then enter the text to be encoded in the Custom Value text box.

Dynamic Barcode Value
The barcode value can also be calculated from the other form fields that are present in the PDF document.
In the Form Designer, open the Value tab of the Barcode Properties dialog and use the Select Field for Calculation option to bind one or more fields to the barcode field.

When a value is entered in a bound field, the barcode value is updated automatically.
By default, the barcode stores the field name along with its value. To store only the field values, clear the Include Field Names option. This option is available only for the
TabDelimitedformat and does not apply to theXMLformat, which always stores data as name-value pairs.
Barcode Caption
By default, the name of the loaded PDF document is displayed below the generated barcode field. Use the caption property to change this text, either from the UI or programmatically.
Error Correction Level
The error correction level determines how much damage the generated barcode can tolerate before it can no longer be read. The available levels depend on the selected symbology.
| Symbology | Supported values |
|---|---|
PDF417 |
Level0 to Level8
|
QRCode |
Low, Medium, Quartile, High
|
DataMatrix |
Not applicable, since Data Matrix does not use this setting. |
The default error correction level is Level5.

- API: updateFormField() for caption, symbology, value format, and error correction level.
// Update the caption, symbology, value format and error correction level of a barcode field
const fields = pdfviewer.formFieldCollections;
const barcode = fields.filter((field: any) => field.type === 'Barcode')[0];
if (barcode) {
pdfviewer.formDesignerModule.updateFormField(barcode, {
caption: 'Updated Barcode Caption',
symbology: 'QRCode',
valueFormat: 'CustomValue',
errorCorrectionLevel: 'High'
} as BarcodeFieldSettings);
}
