Syncfusion® WPF UI Builder Skill for AI Assistants

20 May 20268 minutes to read

Syncfusion® WPF UI Builder is an AI-powered skill and companion agent that accelerates WPF application development by transforming natural-language UI requirements into production-ready controls using Syncfusion® WPF libraries.

Integrated with your AI-powered IDE, it leverages deep knowledge of Syncfusion® controls to deliver accurate and ready-to-use code.
By combining intelligent code generation with best practices, accessibility standards, and design-system consistency, WPF UI Builder helps you rapidly build scalable dashboards and user interfaces without leaving your development workflow.

Prerequisites

Before installing WPF UI Builder, ensure the following:

Key Benefits

AI-Driven UI Generation

  • Converts prompts into complete WPF components—not just snippets
  • Automatically selects appropriate Syncfusion® controls and features
  • Produces structured, maintainable code

Control Usage & API Accuracy

  • Uses correct Syncfusion® control APIs
  • Injects required feature modules (paging, sorting, filtering, etc.)
  • Avoids unsupported or deprecated patterns

Patterns & Best Practices

  • Recommended control composition and state management
  • Event handling aligned with WPF standards
  • Secure and scalable coding patterns

Accessibility & Responsiveness

  • Windows accessibility guidelines (UIA) and narrator support
  • Well-structured XAML markup with proper control hierarchy
  • DPI awareness and high-resolution display support

Design-System Integration

  • Supports Syncfusion® WPF themes including FluentLight/Dark, Material3Light/Dark, Windows11Light/Dark, and Office2019 variants
  • Ensures consistent Syncfusion® styling, theme usage, and ResourceDictionary configuration

Installation

Before installing WPF UI Builder, ensure that APM (Agent Package Manager) is installed and available in your environment.

Verify APM Installation

Run the following command to confirm APM is installed:

apm --version

Install the Syncfusion® WPF UI Builder package using APM

Use the APM CLI to install the WPF UI Builder skill for your preferred environment:

apm install syncfusion/wpf-ui-builder -t copilot
apm install syncfusion/wpf-ui-builder -t cursor
apm install syncfusion/wpf-ui-builder -t copilot
apm install syncfusion/wpf-ui-builder -t claude

After installation, the following artifacts are added to your project for the GitHub Copilot target:

  • .agent/skills/ – contains the skill files
  • .github/agents/ – contains the agent configuration

Refer to the documentation for details about supported deployment targets.

For Syncfusion® Code Studio, use the Copilot command above to install the WPF UI Builder.

How the Syncfusion® WPF UI Builder Skill Works

  1. Intent Analysis — Parse the user’s prompt to identify control types and high-level layout intent.
  2. Project Detection — Automatically detects project framework and existing themes.
  3. Control Mapping — Map intent to Syncfusion® controls and required feature modules.
  4. Theming & Design System
    Load required theming guidelines and confirm key design choices:
    • Syncfusion® WPF theme (FluentLight, FluentDark, Material3Light, Material3Dark, Windows11Light, Windows11Dark, Office2019 variants)
    • Core design basics (colors, spacing, typography, accessibility)
  5. Code Generation — Produce WPF XAML controls, data bindings, and styling.
  6. Dependency Management — Recommend or install required Syncfusion® packages and peer dependencies.
  7. Validation — Run accessibility and basic security checks, request confirmation for changes.
  8. Code Insertion — Create files or patch existing files following project structure and conventions.

Key enforcement points:

  • Adds correct theme resources and ResourceDictionary configuration for chosen Syncfusion® themes
  • Injects only the feature modules required by generated controls
  • Generates well-structured XAML with proper accessibility support (UIA and narrator)
  • Avoids unsupported or deprecated API usages for Syncfusion® controls

The assistant handles most stages automatically and may request confirmation where required.

Using the AI Assistant

After installing WPF UI Builder with APM, the relevant agent and skill files are added to your project under:

  • .agent/skills/ (skill files)
  • .github/agents/ (WPF UI builder agent configuration, based on the selected target)

To start using the skill:

  1. Open your supported IDE.

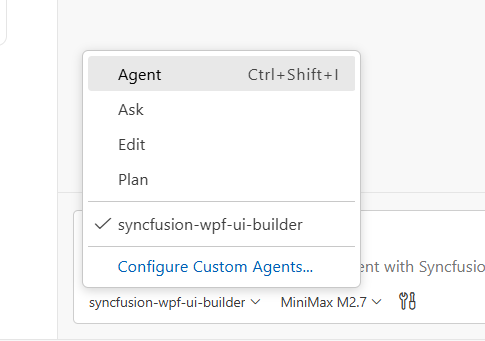

  2. In the chat panel, select the syncfusion-wpf-ui-builder agent from the Agent dropdown.

Set Agent

  1. Start prompting the agent with a clear description of your UI requirements.

Examples Prompts:

Authentication

Create a login window with the FluentLight theme using a centered StackPanel containing TextBox controls for email and password with validation. Include a CheckBox for “Remember Me”, a Hyperlink for “Forgot Password?”, and a primary Button for login. Add a secondary Button for “Create Account” below. Use proper XAML binding and command patterns.

Admin Dashboard

Create a CMS Admin Dashboard UI featuring a collapsible NavigationView with items for Dashboard, Content, Users, Analytics, and Settings; a CommandBar header showing the title “CMS Admin Dashboard” with a user profile section; and a main content area with a Grid layout including three compact summary cards displaying Total Content, Total Users, and Active Sessions (each with label, icon, count value, and percentage change), followed by a “Content Management” section with a DataGrid with columns for Title, Author, Status, Date, and Actions (with Edit and Delete buttons), and finally two charts displayed side by side—a Bar chart titled “Content Over Time” and a Pie chart titled “Content by Category”—using realistic sample data.

Generated code follows best practices with well-structured XAML markup, proper event wiring and binding setup, strong C# typing, DPI awareness, and built-in security measures such as input validation and safe data handling.

Best Practices

Follow these guidelines to get the most out of UI Builder and ensure high-quality production-ready result:

  • Stay consistent — Maintain consistent naming conventions (PascalCase for classes, camelCase for variables), control hierarchies, and XAML patterns throughout your project.
  • Use advanced AI models — For best results, use Claude Sonnet 4.6 or higher capability models to produce better code quality and more accurate implementations.
  • Visual Studio designer testing — Generated XAML code should be compatible with Visual Studio designer; validate layouts visually and ensure proper control initialization.
  • Accessibility validation — Test generated controls with Windows Narrator and Inspect tool (UIA) to ensure full accessibility support for keyboard navigation and screen readers.
  • DPI awareness — Test on high-resolution displays and ensure all controls scale properly and maintain visual fidelity.
  • Review all content and assets before production — Validate the logic, security, and compatibility with your existing code and Syncfusion® licensing before deployment.

Troubleshooting

  • APM installation failure: Refer to this documentation

  • Skills not loading: Ensure the .agent/ and .github/agents/ folders exist in your project and that the skill was installed successfully using APM. Verify that the correct agent is selected from the Agent dropdown in your IDE.

  • Control not rendering: Retry generation using the specific control skill to resolve the issue, and ensure required Syncfusion® packages and themes are properly configured.

  • Syncfusion license banner appears: Use the licensing skill to correctly register and validate your Syncfusion® license key in the application.

FAQ

Which agents/IDEs are supported?
Any Skills-compatible agent that reads local skill files (Code Studio, VS Code, Cursor, etc.).

Are skills loaded automatically?
Yes. Supported agents automatically load relevant skills based on your query.

Can I customize the generated styles?
Yes — the generated WPF controls include clear integration points for style adjustments.

Does it modify files automatically?
The skill proposes changes and requires confirmation for insertion; automatic dependency installation may be offered depending on agent permissions.
