Application Menu in WPF Ribbon
8 Jun 202124 minutes to read

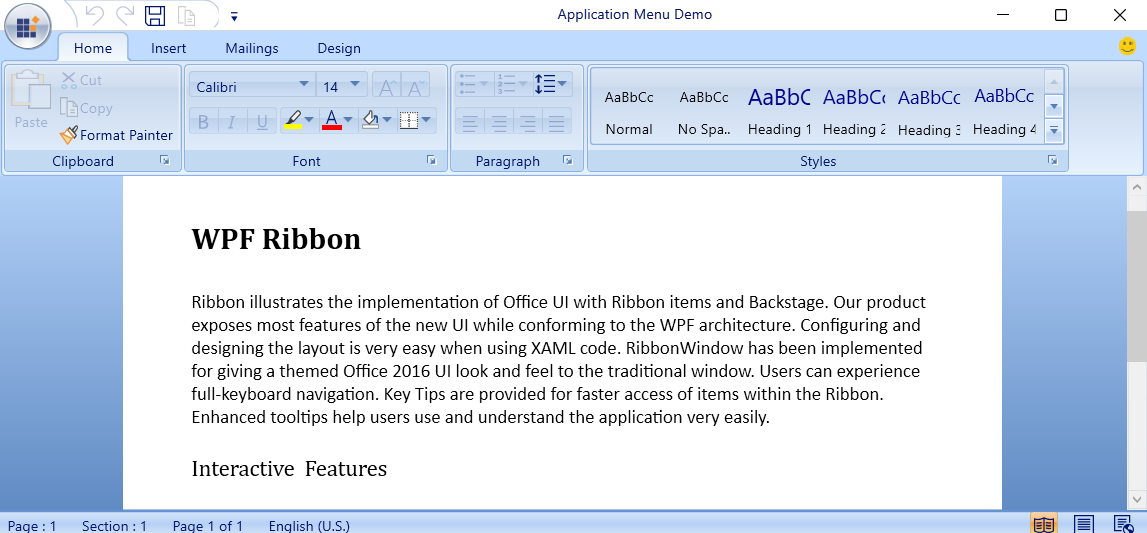

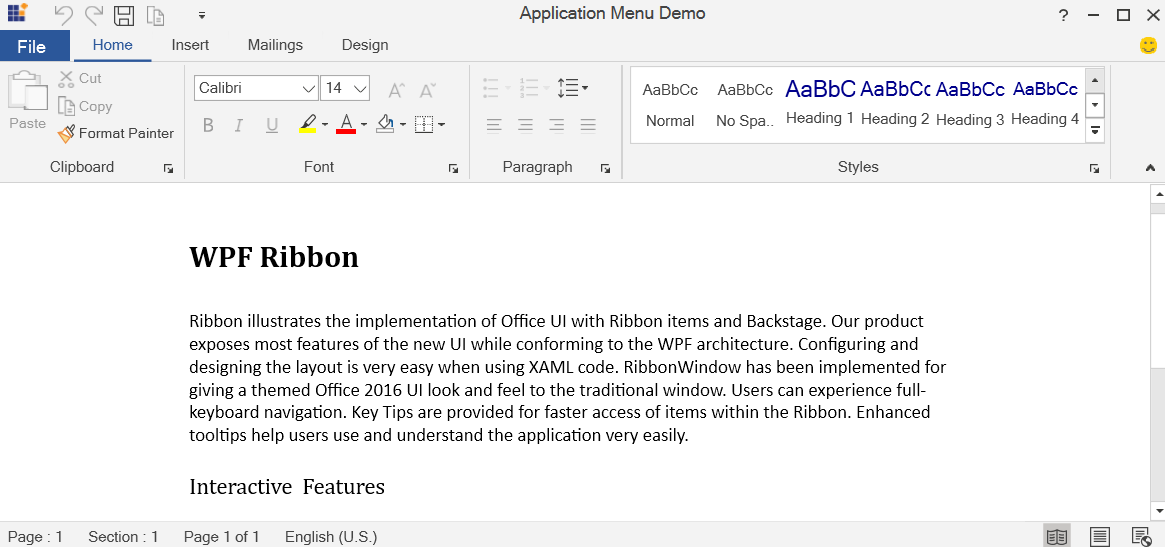

The ApplicationMenu can be added by using ApplicationMenu property of Ribbon. To show the ApplicationMenu, click the FILE button in Ribbon like in Microsoft Outlook.
The IsPopupOpen boolean property is used to show the ApplicationMenu while launching itself.
NOTE
The
BackStageis not applicable when the ApplicationMenu is needed.
Adding MenuItems in ApplicationMenu
MenuItems are displayed in right of the ApplicationMenu. Different MenuItems are added to an application menu using its MenuItems property.
<syncfusion:RibbonWindow
x:Class="ApplicationMenu.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:interactivity="http://schemas.microsoft.com/xaml/behaviors"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:syncfusionskin="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
xmlns:system="clr-namespace:System;assembly=mscorlib"
xmlns:local="clr-namespace:ApplicationMenu"
xmlns:tools="clr-namespace:Syncfusion.Windows.Tools;assembly=Syncfusion.Tools.Wpf"
Width="1100" Height="700"
Title="Application Menu Demo"
syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Office2019Colorful}"
WindowStartupLocation="CenterScreen">
<syncfusion:RibbonWindow.DataContext>
<local:ViewModel />
</syncfusion:RibbonWindow.DataContext>
<syncfusion:RibbonWindow.Resources>
<syncfusion:ColorToBrushConverter x:Key="ColorToBrushConverter" />
<syncfusion:RibbonContextMenu
x:Key="GalleryContextMenu"
x:Name="contextMenu"
ItemsSource="{Binding}">
<syncfusion:RibbonMenuItem
Command="{Binding ButtonCommand}"
Header="Apply Style"
IconBarEnabled="True" />
<syncfusion:RibbonMenuItem
Command="{Binding RemoveStyleCommand}"
Header="Remove from Style Gallery"
IconBarEnabled="True" />
<Separator />
<syncfusion:RibbonMenuItem
Command="{Binding MinimizeRibbonCommand}"
Header="Minimize Ribbon"
IconBarEnabled="True" />
</syncfusion:RibbonContextMenu>
</syncfusion:RibbonWindow.Resources>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<Grid.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="/ApplicationMenu;component/Assets/Ribbon/PathIcon.xaml"/>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Grid.Resources>
<Grid x:Name="ribbonGrid">
<syncfusion:Ribbon
Name="mainRibbon"
local:ViewModel.Ribbon="{Binding ElementName=mainRibbon}"
syncfusion:Ribbon.IsAutoSizeFormEnabled="True"
BackStageCornerImageVisibility="Collapsed"
BackStageHeader="File" EnableMoreCommands="True" ShowCustomizeRibbon="True">
<syncfusion:Ribbon.ApplicationMenu>
<syncfusion:ApplicationMenu
Name="_applicationMenu"
Width="38"
Height="38"
IsBelowAppButton="True"
syncfusion:Ribbon.KeyTip="F"
ApplicationButtonImage="/ApplicationMenu;component/Assets/Ribbon/App.ico"
IsPopupOpen="False">
<syncfusion:RibbonButton
Width="200" Height="30" Label="New"
SizeForm="Small" Command="local:RibbonCommand.ButtonCommand"
IconTemplate="{StaticResource New}"/>
<syncfusion:RibbonButton
Width="200" Height="30" Command="local:RibbonCommand.OpenCommand"
Label="Open" SizeForm="Small" SmallIcon="/ApplicationMenu;component/Assets/Ribbon/Open32.png"/>
<syncfusion:SplitMenuButton
Width="200" Height="30" Label="Save As"
Icon="/ApplicationMenu;component/Assets/Ribbon/Save_20.png">
<syncfusion:ApplicationMenuGroup Header="Save in another format" IconBarEnabled="False">
<syncfusion:RibbonButton
Height="30" Label="DOC Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource DOC}"/>
<syncfusion:RibbonButton
Height="30" Label="PDF Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource PDF}"/>
<syncfusion:RibbonButton
Height="30" Label="XLS Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource XLS}"/>
<syncfusion:RibbonButton
Height="30" Label="ZIP Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource ZIP}"/>
</syncfusion:ApplicationMenuGroup>
</syncfusion:SplitMenuButton>
<syncfusion:RibbonButton
Width="200" Height="30" Label="Security" SizeForm="Small"
Command="local:RibbonCommand.ButtonCommand" IconTemplate="{StaticResource Security}"/>
<Separator />
<syncfusion:RibbonButton
Width="200" Height="30" Label="Share" Command="local:RibbonCommand.ButtonCommand"
SizeForm="Small" IconTemplate="{StaticResource Sharing}"/>
<syncfusion:ApplicationMenu.MenuItems>
<TextBlock MinWidth="300" FontWeight="Bold">Create New Outlook Item</TextBlock>
<Separator />
<syncfusion:SimpleMenuButton Label="Recent Document lists" Command="local:RibbonCommand.ButtonCommand" IconTemplate="{StaticResource Copy}"/>
<syncfusion:SimpleMenuButton Label="Document lists" Command="local:RibbonCommand.ButtonCommand" IconTemplate="{StaticResource OnePage}"/>
</syncfusion:ApplicationMenu.MenuItems>
</syncfusion:ApplicationMenu>
</syncfusion:Ribbon.ApplicationMenu>
<syncfusion:Ribbon.TabPanelItem>
<syncfusion:RibbonButton SizeForm="ExtraSmall" SmallIcon="/ApplicationMenu;component/Assets/Ribbon/Smile16.png" />
</syncfusion:Ribbon.TabPanelItem>
<syncfusion:Ribbon.QuickAccessToolBar>
<syncfusion:QuickAccessToolBar>
<syncfusion:QuickAccessToolBar.QATMenuItems>
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Save" Label="Save" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Quick Print" Label="Quick Print" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Print Preview" Label="Print Preview" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Undo" Label="Undo" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Redo" Label="Redo" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Paste" Label="Paste" />
</syncfusion:QuickAccessToolBar.QATMenuItems>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Undo"
Command="ApplicationCommands.Undo"
Label="Undo"
SizeForm="ExtraSmall"
IconTemplate="{StaticResource Undo}"
ToolTip="Undo">
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Redo"
Command="ApplicationCommands.Redo"
IconTemplate="{StaticResource Redo}"
Label="Redo"
SizeForm="ExtraSmall"
ToolTip="Redo"/>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Save"
Command="{Binding ButtonCommand}"
Label="Save"
IconTemplate="{StaticResource Save}"
SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Copy"
Label="Copy"
Command="ApplicationCommands.Copy"
SizeForm="ExtraSmall"
ToolTip="Copy"
IconTemplate="{StaticResource Copy}">
</syncfusion:RibbonButton>
</syncfusion:QuickAccessToolBar>
</syncfusion:Ribbon.QuickAccessToolBar>
<syncfusion:RibbonTab
syncfusion:Ribbon.KeyTip="H"
Caption="Home"
IsChecked="True">
<syncfusion:RibbonBar
Name="formatBarClipBoard" syncfusion:Ribbon.KeyTip="FN"
syncfusion:Ribbon.ShowInMoreCommands="True" Header="Clipboard">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:RibbonButton
syncfusion:Ribbon.KeyTip="CP" syncfusion:RibbonCommandManager.SynchronizedItem="Paste"
Command="ApplicationCommands.Paste" IconTemplate="{StaticResource Paste}" Label="Paste" SizeForm="Large">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Content="Paste the contents of clipboard." Description="Paste (Ctrl+V)" />
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
x:Name="cut" HorizontalAlignment="Left" syncfusion:Ribbon.KeyTip="CT" Command="ApplicationCommands.Cut"
IconTemplate="{StaticResource Cut}" Label="Cut" SizeForm="Small">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Description="Cut (Ctrl+X)">
<TextBlock
Width="130" HorizontalAlignment="Left" Text="Cut the selection and put it on the clipboard."
TextWrapping="Wrap" />
</syncfusion:ScreenTip>
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
x:Name="copy" HorizontalAlignment="Left" syncfusion:Ribbon.KeyTip="CY" Command="ApplicationCommands.Copy"
IconTemplate="{StaticResource Copy}" Label="Copy" SizeForm="Small">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Description="Copy (Ctrl+C)">
<TextBlock Width="130" HorizontalAlignment="Left" Foreground="#FF4C4C4C"
Text="Copy the selection and put it on the clipboard." TextWrapping="Wrap" />
</syncfusion:ScreenTip>
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
x:Name="formatPainter" syncfusion:Ribbon.KeyTip="CR" Command="{Binding ButtonCommand}"
IconType="VectorImage" Label="Format Painter" SizeForm="Small" IconTemplate="{StaticResource FormatPainter}">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Description="Format painter (Ctrl+Shift+C)" HelpText="Press F1 for more help.">
<TextBlock Width="175" HorizontalAlignment="Left" Foreground="#FF4C4C4C" TextWrapping="Wrap">
<Run Text="Copy formatting from one place and apply it to another." />
<LineBreak />
<LineBreak />
<Run Text="Double-click this button to apply the same formatting to multiple places in the document." />
</TextBlock>
</syncfusion:ScreenTip>
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
</syncfusion:RibbonBar>
<syncfusion:RibbonBar
Name="barFont" syncfusion:Ribbon.KeyTip="HF" Header="Font"
IsLargeButtonPanel="False" KeyTipOnCollapsed="ZF">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonComboBox
Name="fontFamilyComboBox" Width="100" syncfusion:Ribbon.KeyTip="FF" syncfusion:Ribbon.ShowInMoreCommands="False"
DisplayMemberPath="FontFamily" IsEditable="True" ItemsSource="{Binding FontFamilyList}" SelectedIndex="2">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=RibbonComboBoxCommand}" CommandParameter="{Binding ElementName=fontFamilyComboBox, Path=SelectedItem}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
</syncfusion:RibbonComboBox>
<syncfusion:RibbonComboBox
Name="fontSizeComboBox"
Width="40"
syncfusion:Ribbon.KeyTip="FZ"
syncfusion:Ribbon.ShowInMoreCommands="False"
syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
DisplayMemberPath="FontSize"
IsEditable="True"
ItemsSource="{Binding FontSizeList}"
SelectedIndex="5">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=RibbonComboBoxCommand}" CommandParameter="{Binding ElementName=fontSizeComboBox, Path=SelectedItem}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
</syncfusion:RibbonComboBox>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonButton
Name="increaseFontSize" syncfusion:Ribbon.KeyTip="IF" Command="EditingCommands.IncreaseFontSize"
IconTemplate="{StaticResource IncreaseFontSize}" Label="Increase Font Size" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="decreaseFontSize" syncfusion:Ribbon.KeyTip="DF" Command="EditingCommands.DecreaseFontSize"
IconTemplate="{StaticResource DecreaseFontSize}" Label="Decrease Font Size" SizeForm="ExtraSmall"/>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonButton
Name="formatBold" syncfusion:Ribbon.KeyTip="B" Command="EditingCommands.ToggleBold"
IconTemplate="{StaticResource Bold}" IsSelected="{Binding FormatBoldIsSelectedProperty}"
IsToggle="True" Label="Bold" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatItalic" syncfusion:Ribbon.KeyTip="I" Command="EditingCommands.ToggleItalic"
IconTemplate="{StaticResource Italics}" IsSelected="{Binding FormatItalicIsSelectedProperty}"
IsToggle="True" Label="Italic" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatUnderLine" syncfusion:Ribbon.KeyTip="U" Command="EditingCommands.ToggleUnderline" IconTemplate="{StaticResource Underline}"
IsSelected="{Binding FormatUnderLineIsSelectedProperty}" Label="Underline" SizeForm="ExtraSmall"/>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal" SeparatorVisibility="Collapsed">
<syncfusion:SplitButton
x:Name="textHighlight" syncfusion:Ribbon.KeyTip="TH" IconTemplate="{StaticResource TextHighlight}"
Label="Text Highlight Color" SizeForm="ExtraSmall">
<syncfusion:ColorPickerPalette
x:Name="highlightColorPicker" IsExpanded="True" Color="#5B99EE" />
</syncfusion:SplitButton>
<syncfusion:SplitButton
x:Name="fontColor" syncfusion:Ribbon.KeyTip="FC" IconTemplate="{StaticResource FontColor}"
Label="Font Color" SizeForm="ExtraSmall">
<syncfusion:ColorPickerPalette
x:Name="fontColoPicker" IsExpanded="True" Color="Black" />
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatShading" syncfusion:Ribbon.KeyTip="FS" IconTemplate="{StaticResource Shading}"
Label="Shading" SizeForm="ExtraSmall">
<syncfusion:ColorPickerPalette
x:Name="shadingColorPicker" Margin="3" IsExpanded="True" Color="White" />
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatBorder" syncfusion:Ribbon.KeyTip="BF" IconTemplate="{StaticResource FormatBorder}"
Label="Borders" SizeForm="ExtraSmall">
<ListBox BorderThickness="0">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=DropDownCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<ListBoxItem Margin="5">Full Border</ListBoxItem>
<ListBoxItem Margin="5">Half Border</ListBoxItem>
<ListBoxItem Margin="5">Inside Border</ListBoxItem>
<ListBoxItem Margin="5">Outside Border</ListBoxItem>
</ListBox>
</syncfusion:SplitButton>
</syncfusion:ButtonPanel>
</syncfusion:RibbonBar>
<syncfusion:RibbonBar
Name="formatParagraph" syncfusion:Ribbon.KeyTip="HP" Header="Paragraph"
IsLargeButtonPanel="False" KeyTipOnCollapsed="ZP">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:ButtonPanel syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal" SeparatorVisibility="Collapsed">
<syncfusion:SplitButton
Name="formatBullet" syncfusion:Ribbon.KeyTip="FN" syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
Command="EditingCommands.ToggleBullets" IconTemplate="{StaticResource Bullets}" Label="Bullets" SizeForm="ExtraSmall">
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatNumbering" syncfusion:Ribbon.KeyTip="FB" syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
Command="EditingCommands.ToggleNumbering" IconTemplate="{StaticResource Numbering}"
Label="Numbering" SizeForm="ExtraSmall">
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatLineSpacing" syncfusion:Ribbon.KeyTip="FA" syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
Command="{Binding ButtonCommand}" IconTemplate="{StaticResource LineSpacing}"
Label="Line Spacing" SizeForm="ExtraSmall">
</syncfusion:SplitButton>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonButton
Name="formatLeftAlign" syncfusion:Ribbon.KeyTip="LA" Command="EditingCommands.AlignLeft"
IconTemplate="{StaticResource AlignLeft}" Label="Align Left" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatCenterAlign" syncfusion:Ribbon.KeyTip="CA" Command="EditingCommands.AlignCenter"
IconTemplate="{StaticResource AlignCenter}" Label="Align Center" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatRightAlign" syncfusion:Ribbon.KeyTip="RA" Command="EditingCommands.AlignRight"
IconTemplate="{StaticResource AlignRight}" Label="Align Right" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatJustify" syncfusion:Ribbon.KeyTip="JA" Command="EditingCommands.AlignJustify"
IconTemplate="{StaticResource AlignJustify}" Label="Align Justify" SizeForm="ExtraSmall"/>
</syncfusion:ButtonPanel>
</syncfusion:RibbonBar>
<syncfusion:RibbonBar IconTemplate="{StaticResource IncreaseFontSize}" Header="Styles">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:RibbonGallery
x:Name="gallery" Width="380" ContextMenu="{DynamicResource GalleryContextMenu}"
IconTemplate="{StaticResource Styling}" ItemHeight="60" ItemWidth="60" Label="Styles"
MenuIconBarEnabled="True" SelectedItem="{Binding RibbonGallerySelectedItem}" SizeForm="Large">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectedItemChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=DropDownCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:RibbonGalleryItem
x:Name="firstItem" CheckOnClick="True" Command="{Binding GalleryItemOneCommand}" Tag="firstItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0" Text="AaBbCc" TextAlignment="Center" />
<TextBlock
Margin="0,11,0,0" Text="Normal" TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="secondItem"
CheckOnClick="True"
Command="{Binding GalleryItemTwoCommand}"
Tag="secondItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,11,0,0"
Text="No Spa.."
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="thirdItem"
CheckOnClick="True"
Command="{Binding GalleryItemThreeCommand}"
Tag="thirdItem">
<StackPanel>
<TextBlock
Margin="0,5,0,0"
FontSize="18"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,6,0,0"
Text="Heading 1"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="fourthItem"
CheckOnClick="True"
Command="{Binding GalleryItemFourCommand}"
Tag="fourthItem">
<StackPanel>
<TextBlock
Margin="0,6,0,0"
FontSize="16"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,8,0,0"
Text="Heading 2"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="fifthItem"
CheckOnClick="True"
Command="{Binding GalleryItemFiveCommand}"
Tag="fifthItem">
<StackPanel>
<TextBlock
Margin="0,7,0,0"
FontSize="15"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,9,0,0"
Text="Heading 3"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="sixthItem"
CheckOnClick="True"
Command="{Binding GalleryItemSixCommand}"
Tag="sixthItem">
<StackPanel>
<TextBlock
Margin="0,7,0,0"
FontSize="14"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,9,0,0"
Text="Heading 4"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="seventhItem"
CheckOnClick="True"
Command="{Binding GalleryItemSevenCommand}"
Tag="seventhItem">
<StackPanel>
<TextBlock
FontSize="24"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,5,0,0"
Text="Title"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="eighthItem"
CheckOnClick="True"
Command="{Binding GalleryItemEightCommand}"
Tag="eighthItem">
<StackPanel>
<TextBlock
Margin="0,7,0,0"
FontStyle="Italic"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,13,0,0"
Text="Emphasis"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="ninthItem"
CheckOnClick="True"
Command="{Binding GalleryItemNineCommand}"
Tag="ninthItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
FontWeight="Bold"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Strong"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="tenthItem"
CheckOnClick="True"
Command="{Binding GalleryItemTenCommand}"
Tag="tenthItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
Text="AaBbCc"
TextAlignment="Center"
TextDecorations="Underline" />
<TextBlock
Margin="0,10,0,0"
Text="Underline"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="eleventhItem"
CheckOnClick="True"
Command="{Binding GalleryItemElevenCommand}"
Tag="eleventhItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
Foreground="Red"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Important"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="italicItem"
CheckOnClick="True"
Command="{Binding GalleryItemTwelveCommand}"
Tag="italicItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
FontStyle="Italic"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Italic"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="superString"
CheckOnClick="True"
Command="{Binding GalleryItemThirteenCommand}"
Tag="superString">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
FontWeight="ExtraBold"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Super Str.."
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGallery.MenuItems>
<syncfusion:RibbonButton
Label="Create a style" IconTemplate="{StaticResource IncreaseFontSize}" />
<syncfusion:RibbonButton
Command="{Binding ClearFormattingCommand}"
IconTemplate="{StaticResource ClearFormatting}"
Label="Clear Formatting"/>
</syncfusion:RibbonGallery.MenuItems>
</syncfusion:RibbonGallery>
</syncfusion:RibbonBar>
</syncfusion:RibbonTab>
<syncfusion:RibbonTab
syncfusion:Ribbon.KeyTip="I"
Caption="Insert"
IsChecked="False">
</syncfusion:RibbonTab>
<syncfusion:RibbonTab syncfusion:Ribbon.KeyTip="M" Caption="Mailings">
</syncfusion:RibbonTab>
<syncfusion:RibbonTab
syncfusion:Ribbon.KeyTip="D"
Caption="Design"
IsChecked="False">
</syncfusion:RibbonTab>
</syncfusion:Ribbon>
</Grid>
<ScrollViewer
x:Name="scrollViewer"
Grid.Row="1"
Grid.ColumnSpan="2"
VerticalScrollBarVisibility="Auto">
<Grid>
<RichTextBox
Name="editor"
Margin="100,10"
Padding="50"
local:ViewModel.RichTextBox="richTextBoxText"
AcceptsTab="True"
Background="{Binding ElementName=shadingColorPicker, Path=Color, Mode=OneWay, Converter={StaticResource ColorToBrushConverter}}"
BorderBrush="Transparent"
BorderThickness="0">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=RichTextBoxSelectionChangedCommand}" />
</interactivity:EventTrigger>
<interactivity:EventTrigger EventName="PreviewMouseLeftButtonUp">
<interactivity:InvokeCommandAction Command="{Binding Path=RichTextBoxPreviewMouseLeftButtonUpCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<FlowDocument
Name="flowDocumentName"
Background="{Binding ElementName=shadingColorPicker, Path=Color, Mode=OneWay, Converter={StaticResource ColorToBrushConverter}}"
FontFamily="Calibri"
FontSize="14"
Foreground="{Binding ElementName=fontColoPicker, Path=Color, Mode=OneWay, Converter={StaticResource ColorToBrushConverter}}"
TextAlignment="Left">
<Paragraph
FontFamily="Cambria"
FontSize="24"
FontWeight="Bold">
<Run Text="{Binding TitleText}" />
</Paragraph>
<Paragraph
x:Name="firstPara"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding FirstParagraphText}" />
</Paragraph>
<Paragraph
x:Name="secondPara"
FontFamily="Cambria"
FontSize="18">
<Run Text="{Binding SecondTitleText}" />
</Paragraph>
<List MarkerStyle="Square">
<ListItem>
<Paragraph
x:Name="pointOne"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointOne}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointTwo"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointTwo}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointThree"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointThree}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointFour"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointFour}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointFive"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointFive}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointSix"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointSix}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointSeven"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointSeven}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointEight"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointEight}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointNine"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointNine}" />
</Paragraph>
</ListItem>
</List>
</FlowDocument>
</RichTextBox>
</Grid>
</ScrollViewer>
</Grid>
</syncfusion:RibbonWindow>
Adding ApplicationItems in ApplicationMenu
ApplicationItems are displayed in bottom of the ApplicationMenu. Different ApplicationItems are added to an application menu using its ApplicationItems property.
<syncfusion:RibbonWindow
x:Class="ApplicationMenu.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:interactivity="http://schemas.microsoft.com/xaml/behaviors"
xmlns:syncfusion="http://schemas.syncfusion.com/wpf"
xmlns:syncfusionskin="clr-namespace:Syncfusion.SfSkinManager;assembly=Syncfusion.SfSkinManager.WPF"
xmlns:system="clr-namespace:System;assembly=mscorlib"
xmlns:local="clr-namespace:ApplicationMenu"
xmlns:tools="clr-namespace:Syncfusion.Windows.Tools;assembly=Syncfusion.Tools.Wpf"
Width="1100" Height="700"
Title="Application Menu Demo"
syncfusionskin:SfSkinManager.Theme="{syncfusionskin:SkinManagerExtension ThemeName=Office2019Colorful}"
WindowStartupLocation="CenterScreen">
<syncfusion:RibbonWindow.DataContext>
<local:ViewModel />
</syncfusion:RibbonWindow.DataContext>
<syncfusion:RibbonWindow.Resources>
<syncfusion:ColorToBrushConverter x:Key="ColorToBrushConverter" />
<syncfusion:RibbonContextMenu
x:Key="GalleryContextMenu"
x:Name="contextMenu"
ItemsSource="{Binding}">
<syncfusion:RibbonMenuItem
Command="{Binding ButtonCommand}"
Header="Apply Style"
IconBarEnabled="True" />
<syncfusion:RibbonMenuItem
Command="{Binding RemoveStyleCommand}"
Header="Remove from Style Gallery"
IconBarEnabled="True" />
<Separator />
<syncfusion:RibbonMenuItem
Command="{Binding MinimizeRibbonCommand}"
Header="Minimize Ribbon"
IconBarEnabled="True" />
</syncfusion:RibbonContextMenu>
</syncfusion:RibbonWindow.Resources>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto" />
<RowDefinition Height="*" />
</Grid.RowDefinitions>
<Grid.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="/ApplicationMenu;component/Assets/Ribbon/PathIcon.xaml"/>
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Grid.Resources>
<Grid x:Name="ribbonGrid">
<syncfusion:Ribbon
Name="mainRibbon"
local:ViewModel.Ribbon="{Binding ElementName=mainRibbon}"
syncfusion:Ribbon.IsAutoSizeFormEnabled="True"
BackStageCornerImageVisibility="Collapsed"
BackStageHeader="File" EnableMoreCommands="True" ShowCustomizeRibbon="True">
<syncfusion:Ribbon.ApplicationMenu>
<syncfusion:ApplicationMenu
Name="_applicationMenu"
Width="38"
Height="38"
IsBelowAppButton="True"
syncfusion:Ribbon.KeyTip="F"
ApplicationButtonImage="/ApplicationMenu;component/Assets/Ribbon/App.ico"
IsPopupOpen="False">
<syncfusion:RibbonButton
Width="200" Height="30" Label="New"
SizeForm="Small" Command="local:RibbonCommand.ButtonCommand"
IconTemplate="{StaticResource New}"/>
<syncfusion:RibbonButton
Width="200" Height="30" Command="local:RibbonCommand.OpenCommand"
Label="Open" SizeForm="Small" SmallIcon="/ApplicationMenu;component/Assets/Ribbon/Open32.png"/>
<syncfusion:SplitMenuButton
Width="200" Height="30" Label="Save As"
Icon="/ApplicationMenu;component/Assets/Ribbon/Save_20.png">
<syncfusion:ApplicationMenuGroup Header="Save in another format" IconBarEnabled="False">
<syncfusion:RibbonButton
Height="30" Label="DOC Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource DOC}"/>
<syncfusion:RibbonButton
Height="30" Label="PDF Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource PDF}"/>
<syncfusion:RibbonButton
Height="30" Label="XLS Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource XLS}"/>
<syncfusion:RibbonButton
Height="30" Label="ZIP Files" SizeForm="Small"
Command="local:RibbonCommand.SaveAsCommand" IconTemplate="{StaticResource ZIP}"/>
</syncfusion:ApplicationMenuGroup>
</syncfusion:SplitMenuButton>
<syncfusion:RibbonButton
Width="200" Height="30" Label="Security" SizeForm="Small"
Command="local:RibbonCommand.ButtonCommand" IconTemplate="{StaticResource Security}"/>
<Separator />
<syncfusion:RibbonButton
Width="200" Height="30" Label="Share" Command="local:RibbonCommand.ButtonCommand"
SizeForm="Small" IconTemplate="{StaticResource Sharing}"/>
<syncfusion:ApplicationMenu.MenuItems>
<TextBlock MinWidth="300" FontWeight="Bold">Create New Outlook Item</TextBlock>
<Separator />
<syncfusion:SimpleMenuButton Label="Recent Document lists" Command="local:RibbonCommand.ButtonCommand" IconTemplate="{StaticResource Copy}"/>
<syncfusion:SimpleMenuButton Label="Document lists" Command="local:RibbonCommand.ButtonCommand" IconTemplate="{StaticResource OnePage}"/>
</syncfusion:ApplicationMenu.MenuItems>
<syncfusion:ApplicationMenu.ApplicationItems>
<syncfusion:ButtonAdv
Background="Transparent"
Label="Options"
SizeMode="Normal"
Command="local:RibbonCommand.ButtonCommand"
SmallIcon="/ApplicationMenu;component/Assets/Ribbon/Display.png"/>
<syncfusion:ButtonAdv
Background="Transparent"
Label="Close"
SizeMode="Normal"
Command="{Binding ApplicationMenuCommand}"
IconTemplate="{StaticResource CloseTab}"/>
</syncfusion:ApplicationMenu.ApplicationItems>
</syncfusion:ApplicationMenu>
</syncfusion:Ribbon.ApplicationMenu>
<syncfusion:Ribbon.TabPanelItem>
<syncfusion:RibbonButton SizeForm="ExtraSmall" SmallIcon="/ApplicationMenu;component/Assets/Ribbon/Smile16.png" />
</syncfusion:Ribbon.TabPanelItem>
<syncfusion:Ribbon.QuickAccessToolBar>
<syncfusion:QuickAccessToolBar>
<syncfusion:QuickAccessToolBar.QATMenuItems>
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Save" Label="Save" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Quick Print" Label="Quick Print" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Print Preview" Label="Print Preview" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Undo" Label="Undo" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Redo" Label="Redo" />
<syncfusion:RibbonButton syncfusion:RibbonCommandManager.SynchronizedItem="Paste" Label="Paste" />
</syncfusion:QuickAccessToolBar.QATMenuItems>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Undo"
Command="ApplicationCommands.Undo"
Label="Undo"
SizeForm="ExtraSmall"
IconTemplate="{StaticResource Undo}"
ToolTip="Undo">
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Redo"
Command="ApplicationCommands.Redo"
IconTemplate="{StaticResource Redo}"
Label="Redo"
SizeForm="ExtraSmall"
ToolTip="Redo"/>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Save"
Command="{Binding ButtonCommand}"
Label="Save"
IconTemplate="{StaticResource Save}"
SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Width="24"
Height="24"
syncfusion:RibbonCommandManager.SynchronizedItem="Copy"
Label="Copy"
Command="ApplicationCommands.Copy"
SizeForm="ExtraSmall"
ToolTip="Copy"
IconTemplate="{StaticResource Copy}">
</syncfusion:RibbonButton>
</syncfusion:QuickAccessToolBar>
</syncfusion:Ribbon.QuickAccessToolBar>
<syncfusion:RibbonTab
syncfusion:Ribbon.KeyTip="H"
Caption="Home"
IsChecked="True">
<syncfusion:RibbonBar
Name="formatBarClipBoard" syncfusion:Ribbon.KeyTip="FN"
syncfusion:Ribbon.ShowInMoreCommands="True" Header="Clipboard">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:RibbonButton
syncfusion:Ribbon.KeyTip="CP" syncfusion:RibbonCommandManager.SynchronizedItem="Paste"
Command="ApplicationCommands.Paste" IconTemplate="{StaticResource Paste}" Label="Paste" SizeForm="Large">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Content="Paste the contents of clipboard." Description="Paste (Ctrl+V)" />
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
x:Name="cut" HorizontalAlignment="Left" syncfusion:Ribbon.KeyTip="CT" Command="ApplicationCommands.Cut"
IconTemplate="{StaticResource Cut}" Label="Cut" SizeForm="Small">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Description="Cut (Ctrl+X)">
<TextBlock
Width="130" HorizontalAlignment="Left" Text="Cut the selection and put it on the clipboard."
TextWrapping="Wrap" />
</syncfusion:ScreenTip>
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
x:Name="copy" HorizontalAlignment="Left" syncfusion:Ribbon.KeyTip="CY" Command="ApplicationCommands.Copy"
IconTemplate="{StaticResource Copy}" Label="Copy" SizeForm="Small">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Description="Copy (Ctrl+C)">
<TextBlock Width="130" HorizontalAlignment="Left" Foreground="#FF4C4C4C"
Text="Copy the selection and put it on the clipboard." TextWrapping="Wrap" />
</syncfusion:ScreenTip>
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
<syncfusion:RibbonButton
x:Name="formatPainter" syncfusion:Ribbon.KeyTip="CR" Command="{Binding ButtonCommand}"
IconType="VectorImage" Label="Format Painter" SizeForm="Small" IconTemplate="{StaticResource FormatPainter}">
<syncfusion:RibbonButton.ToolTip>
<syncfusion:ScreenTip Description="Format painter (Ctrl+Shift+C)" HelpText="Press F1 for more help.">
<TextBlock Width="175" HorizontalAlignment="Left" Foreground="#FF4C4C4C" TextWrapping="Wrap">
<Run Text="Copy formatting from one place and apply it to another." />
<LineBreak />
<LineBreak />
<Run Text="Double-click this button to apply the same formatting to multiple places in the document." />
</TextBlock>
</syncfusion:ScreenTip>
</syncfusion:RibbonButton.ToolTip>
</syncfusion:RibbonButton>
</syncfusion:RibbonBar>
<syncfusion:RibbonBar
Name="barFont" syncfusion:Ribbon.KeyTip="HF" Header="Font"
IsLargeButtonPanel="False" KeyTipOnCollapsed="ZF">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonComboBox
Name="fontFamilyComboBox" Width="100" syncfusion:Ribbon.KeyTip="FF" syncfusion:Ribbon.ShowInMoreCommands="False"
DisplayMemberPath="FontFamily" IsEditable="True" ItemsSource="{Binding FontFamilyList}" SelectedIndex="2">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=RibbonComboBoxCommand}" CommandParameter="{Binding ElementName=fontFamilyComboBox, Path=SelectedItem}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
</syncfusion:RibbonComboBox>
<syncfusion:RibbonComboBox
Name="fontSizeComboBox"
Width="40"
syncfusion:Ribbon.KeyTip="FZ"
syncfusion:Ribbon.ShowInMoreCommands="False"
syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
DisplayMemberPath="FontSize"
IsEditable="True"
ItemsSource="{Binding FontSizeList}"
SelectedIndex="5">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=RibbonComboBoxCommand}" CommandParameter="{Binding ElementName=fontSizeComboBox, Path=SelectedItem}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
</syncfusion:RibbonComboBox>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonButton
Name="increaseFontSize" syncfusion:Ribbon.KeyTip="IF" Command="EditingCommands.IncreaseFontSize"
IconTemplate="{StaticResource IncreaseFontSize}" Label="Increase Font Size" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="decreaseFontSize" syncfusion:Ribbon.KeyTip="DF" Command="EditingCommands.DecreaseFontSize"
IconTemplate="{StaticResource DecreaseFontSize}" Label="Decrease Font Size" SizeForm="ExtraSmall"/>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonButton
Name="formatBold" syncfusion:Ribbon.KeyTip="B" Command="EditingCommands.ToggleBold"
IconTemplate="{StaticResource Bold}" IsSelected="{Binding FormatBoldIsSelectedProperty}"
IsToggle="True" Label="Bold" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatItalic" syncfusion:Ribbon.KeyTip="I" Command="EditingCommands.ToggleItalic"
IconTemplate="{StaticResource Italics}" IsSelected="{Binding FormatItalicIsSelectedProperty}"
IsToggle="True" Label="Italic" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatUnderLine" syncfusion:Ribbon.KeyTip="U" Command="EditingCommands.ToggleUnderline" IconTemplate="{StaticResource Underline}"
IsSelected="{Binding FormatUnderLineIsSelectedProperty}" Label="Underline" SizeForm="ExtraSmall"/>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal" SeparatorVisibility="Collapsed">
<syncfusion:SplitButton
x:Name="textHighlight" syncfusion:Ribbon.KeyTip="TH" IconTemplate="{StaticResource TextHighlight}"
Label="Text Highlight Color" SizeForm="ExtraSmall">
<syncfusion:ColorPickerPalette
x:Name="highlightColorPicker" IsExpanded="True" Color="#5B99EE" />
</syncfusion:SplitButton>
<syncfusion:SplitButton
x:Name="fontColor" syncfusion:Ribbon.KeyTip="FC" IconTemplate="{StaticResource FontColor}"
Label="Font Color" SizeForm="ExtraSmall">
<syncfusion:ColorPickerPalette
x:Name="fontColoPicker" IsExpanded="True" Color="Black" />
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatShading" syncfusion:Ribbon.KeyTip="FS" IconTemplate="{StaticResource Shading}"
Label="Shading" SizeForm="ExtraSmall">
<syncfusion:ColorPickerPalette
x:Name="shadingColorPicker" Margin="3" IsExpanded="True" Color="White" />
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatBorder" syncfusion:Ribbon.KeyTip="BF" IconTemplate="{StaticResource FormatBorder}"
Label="Borders" SizeForm="ExtraSmall">
<ListBox BorderThickness="0">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=DropDownCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<ListBoxItem Margin="5">Full Border</ListBoxItem>
<ListBoxItem Margin="5">Half Border</ListBoxItem>
<ListBoxItem Margin="5">Inside Border</ListBoxItem>
<ListBoxItem Margin="5">Outside Border</ListBoxItem>
</ListBox>
</syncfusion:SplitButton>
</syncfusion:ButtonPanel>
</syncfusion:RibbonBar>
<syncfusion:RibbonBar
Name="formatParagraph" syncfusion:Ribbon.KeyTip="HP" Header="Paragraph"
IsLargeButtonPanel="False" KeyTipOnCollapsed="ZP">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:ButtonPanel syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal" SeparatorVisibility="Collapsed">
<syncfusion:SplitButton
Name="formatBullet" syncfusion:Ribbon.KeyTip="FN" syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
Command="EditingCommands.ToggleBullets" IconTemplate="{StaticResource Bullets}" Label="Bullets" SizeForm="ExtraSmall">
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatNumbering" syncfusion:Ribbon.KeyTip="FB" syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
Command="EditingCommands.ToggleNumbering" IconTemplate="{StaticResource Numbering}"
Label="Numbering" SizeForm="ExtraSmall">
</syncfusion:SplitButton>
<syncfusion:SplitButton
Name="formatLineSpacing" syncfusion:Ribbon.KeyTip="FA" syncfusion:SimplifiedLayoutSettings.DisplayMode="Normal"
Command="{Binding ButtonCommand}" IconTemplate="{StaticResource LineSpacing}"
Label="Line Spacing" SizeForm="ExtraSmall">
</syncfusion:SplitButton>
</syncfusion:ButtonPanel>
<syncfusion:ButtonPanel SeparatorVisibility="Collapsed">
<syncfusion:RibbonButton
Name="formatLeftAlign" syncfusion:Ribbon.KeyTip="LA" Command="EditingCommands.AlignLeft"
IconTemplate="{StaticResource AlignLeft}" Label="Align Left" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatCenterAlign" syncfusion:Ribbon.KeyTip="CA" Command="EditingCommands.AlignCenter"
IconTemplate="{StaticResource AlignCenter}" Label="Align Center" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatRightAlign" syncfusion:Ribbon.KeyTip="RA" Command="EditingCommands.AlignRight"
IconTemplate="{StaticResource AlignRight}" Label="Align Right" SizeForm="ExtraSmall"/>
<syncfusion:RibbonButton
Name="formatJustify" syncfusion:Ribbon.KeyTip="JA" Command="EditingCommands.AlignJustify"
IconTemplate="{StaticResource AlignJustify}" Label="Align Justify" SizeForm="ExtraSmall"/>
</syncfusion:ButtonPanel>
</syncfusion:RibbonBar>
<syncfusion:RibbonBar IconTemplate="{StaticResource IncreaseFontSize}" Header="Styles">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="LauncherClick">
<interactivity:InvokeCommandAction Command="{Binding Path=ButtonCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:RibbonGallery
x:Name="gallery" Width="380" ContextMenu="{DynamicResource GalleryContextMenu}"
IconTemplate="{StaticResource Styling}" ItemHeight="60" ItemWidth="60" Label="Styles"
MenuIconBarEnabled="True" SelectedItem="{Binding RibbonGallerySelectedItem}" SizeForm="Large">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectedItemChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=DropDownCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<syncfusion:RibbonGalleryItem
x:Name="firstItem" CheckOnClick="True" Command="{Binding GalleryItemOneCommand}" Tag="firstItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0" Text="AaBbCc" TextAlignment="Center" />
<TextBlock
Margin="0,11,0,0" Text="Normal" TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="secondItem"
CheckOnClick="True"
Command="{Binding GalleryItemTwoCommand}"
Tag="secondItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,11,0,0"
Text="No Spa.."
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="thirdItem"
CheckOnClick="True"
Command="{Binding GalleryItemThreeCommand}"
Tag="thirdItem">
<StackPanel>
<TextBlock
Margin="0,5,0,0"
FontSize="18"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,6,0,0"
Text="Heading 1"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="fourthItem"
CheckOnClick="True"
Command="{Binding GalleryItemFourCommand}"
Tag="fourthItem">
<StackPanel>
<TextBlock
Margin="0,6,0,0"
FontSize="16"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,8,0,0"
Text="Heading 2"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="fifthItem"
CheckOnClick="True"
Command="{Binding GalleryItemFiveCommand}"
Tag="fifthItem">
<StackPanel>
<TextBlock
Margin="0,7,0,0"
FontSize="15"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,9,0,0"
Text="Heading 3"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="sixthItem"
CheckOnClick="True"
Command="{Binding GalleryItemSixCommand}"
Tag="sixthItem">
<StackPanel>
<TextBlock
Margin="0,7,0,0"
FontSize="14"
Foreground="DarkBlue"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,9,0,0"
Text="Heading 4"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="seventhItem"
CheckOnClick="True"
Command="{Binding GalleryItemSevenCommand}"
Tag="seventhItem">
<StackPanel>
<TextBlock
FontSize="24"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,5,0,0"
Text="Title"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="eighthItem"
CheckOnClick="True"
Command="{Binding GalleryItemEightCommand}"
Tag="eighthItem">
<StackPanel>
<TextBlock
Margin="0,7,0,0"
FontStyle="Italic"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,13,0,0"
Text="Emphasis"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="ninthItem"
CheckOnClick="True"
Command="{Binding GalleryItemNineCommand}"
Tag="ninthItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
FontWeight="Bold"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Strong"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="tenthItem"
CheckOnClick="True"
Command="{Binding GalleryItemTenCommand}"
Tag="tenthItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
Text="AaBbCc"
TextAlignment="Center"
TextDecorations="Underline" />
<TextBlock
Margin="0,10,0,0"
Text="Underline"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="eleventhItem"
CheckOnClick="True"
Command="{Binding GalleryItemElevenCommand}"
Tag="eleventhItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
Foreground="Red"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Important"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="italicItem"
CheckOnClick="True"
Command="{Binding GalleryItemTwelveCommand}"
Tag="italicItem">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
FontStyle="Italic"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Italic"
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGalleryItem
x:Name="superString"
CheckOnClick="True"
Command="{Binding GalleryItemThirteenCommand}"
Tag="superString">
<StackPanel>
<TextBlock
Margin="0,9,0,0"
FontWeight="ExtraBold"
Text="AaBbCc"
TextAlignment="Center" />
<TextBlock
Margin="0,10,0,0"
Text="Super Str.."
TextAlignment="Center" />
</StackPanel>
</syncfusion:RibbonGalleryItem>
<syncfusion:RibbonGallery.MenuItems>
<syncfusion:RibbonButton
Label="Create a style" IconTemplate="{StaticResource IncreaseFontSize}" />
<syncfusion:RibbonButton
Command="{Binding ClearFormattingCommand}"
IconTemplate="{StaticResource ClearFormatting}"
Label="Clear Formatting"/>
</syncfusion:RibbonGallery.MenuItems>
</syncfusion:RibbonGallery>
</syncfusion:RibbonBar>
</syncfusion:RibbonTab>
<syncfusion:RibbonTab
syncfusion:Ribbon.KeyTip="I"
Caption="Insert"
IsChecked="False">
</syncfusion:RibbonTab>
<syncfusion:RibbonTab syncfusion:Ribbon.KeyTip="M" Caption="Mailings">
</syncfusion:RibbonTab>
<syncfusion:RibbonTab
syncfusion:Ribbon.KeyTip="D"
Caption="Design"
IsChecked="False">
</syncfusion:RibbonTab>
</syncfusion:Ribbon>
</Grid>
<ScrollViewer
x:Name="scrollViewer"
Grid.Row="1"
Grid.ColumnSpan="2"
VerticalScrollBarVisibility="Auto">
<Grid>
<RichTextBox
Name="editor"
Margin="100,10"
Padding="50"
local:ViewModel.RichTextBox="richTextBoxText"
AcceptsTab="True"
Background="{Binding ElementName=shadingColorPicker, Path=Color, Mode=OneWay, Converter={StaticResource ColorToBrushConverter}}"
BorderBrush="Transparent"
BorderThickness="0">
<interactivity:Interaction.Triggers>
<interactivity:EventTrigger EventName="SelectionChanged">
<interactivity:InvokeCommandAction Command="{Binding Path=RichTextBoxSelectionChangedCommand}" />
</interactivity:EventTrigger>
<interactivity:EventTrigger EventName="PreviewMouseLeftButtonUp">
<interactivity:InvokeCommandAction Command="{Binding Path=RichTextBoxPreviewMouseLeftButtonUpCommand}" />
</interactivity:EventTrigger>
</interactivity:Interaction.Triggers>
<FlowDocument
Name="flowDocumentName"
Background="{Binding ElementName=shadingColorPicker, Path=Color, Mode=OneWay, Converter={StaticResource ColorToBrushConverter}}"
FontFamily="Calibri"
FontSize="14"
Foreground="{Binding ElementName=fontColoPicker, Path=Color, Mode=OneWay, Converter={StaticResource ColorToBrushConverter}}"
TextAlignment="Left">
<Paragraph
FontFamily="Cambria"
FontSize="24"
FontWeight="Bold">
<Run Text="{Binding TitleText}" />
</Paragraph>
<Paragraph
x:Name="firstPara"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding FirstParagraphText}" />
</Paragraph>
<Paragraph
x:Name="secondPara"
FontFamily="Cambria"
FontSize="18">
<Run Text="{Binding SecondTitleText}" />
</Paragraph>
<List MarkerStyle="Square">
<ListItem>
<Paragraph
x:Name="pointOne"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointOne}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointTwo"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointTwo}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointThree"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointThree}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointFour"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointFour}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointFive"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointFive}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointSix"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointSix}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointSeven"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointSeven}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointEight"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointEight}" />
</Paragraph>
</ListItem>
<ListItem>
<Paragraph
x:Name="pointNine"
FontFamily="Calibri"
FontSize="15">
<Run Text="{Binding PointNine}" />
</Paragraph>
</ListItem>
</List>
</FlowDocument>
</RichTextBox>
</Grid>
</ScrollViewer>
</Grid>
</syncfusion:RibbonWindow>
NOTE
View sample in GitHub.
