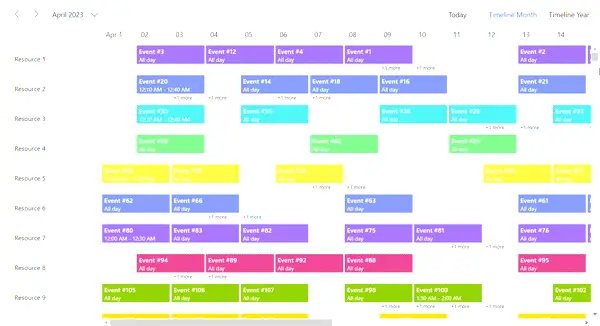

Virtual Scrolling in Blazor Scheduler
To improve performance when loading a large number of resources and events, Scheduler supports virtual scrolling in timeline views. It loads large sets of resources and events as you scroll. You can dynamically load large numbers of resources and events in timeline views by setting the AllowVirtualScrolling property to true in the view-specific settings. Virtual loading of events is also available in Agenda view by setting the same property to true in the Agenda view-specific settings.
To get started quickly with virtual scrolling in Scheduler, watch this video:
@using Syncfusion.Blazor.Schedule
<SfSchedule TValue="EventData" Width="100%" Height="650px" @bind-SelectedDate="@CurrentDate">
<ScheduleGroup EnableCompactView="false" Resources="@GroupData"></ScheduleGroup>
<ScheduleResources>
<ScheduleResource TItem="ResourceData" TValue="int" DataSource="@ResourceDatasource" Field="ResourceId" Title="Resource" Name="Resources" TextField="Text" IdField="Id" ColorField="Color" AllowMultiple="true"></ScheduleResource>
</ScheduleResources>
<ScheduleEventSettings DataSource="@AppointmentData"></ScheduleEventSettings>
<ScheduleViews>
<ScheduleView Option="View.TimelineMonth" AllowVirtualScrolling="true" IsSelected="true"></ScheduleView>
<ScheduleView Option="View.TimelineYear" Orientation="Syncfusion.Blazor.Schedule.Orientation.Vertical" AllowVirtualScrolling="true"></ScheduleView>
</ScheduleViews>
</SfSchedule>
@code{
DateTime CurrentDate = new DateTime(2023, 4, 1);
static EventData data = new EventData();
public static List<ResourceData> ResourceDatasource = GenerateResourceData();
public static List<EventData> AppointmentData = GenerateStaticEvents();
public string[] GroupData { get; set; } = { "Resources" };
static public List<ResourceData> GenerateResourceData()
{
List<ResourceData> resources = new List<ResourceData>(300);
var colors = new string[] { "#ff8787", "#9775fa", "#748ffc", "#3bc9db", "#69db7c",
"#fdd835", "#748ffc", "#9775fa", "#df5286", "#7fa900",
"#fec200", "#5978ee", "#00bdae", "#ea80fc"};
for (int a = 1; a <= 300; a++)
{
int index = a % colors.Length;
index = index == 0 ? (colors.Length / a) : index;
resources.Add(new ResourceData
{
Id = a,
Text = "Resource " + a,
Color = colors[index]
});
}
return resources;
}
public static List<EventData> GenerateStaticEvents()
{
DateTime date = new DateTime(2023, 4, 1);
List<EventData> data = new List<EventData>(3600);
var id = 1;
for (var i = 0; i < 300; i++)
{
Random random = new Random();
List<int> listNumbers = new List<int>();
int[] randomCollection = new int[24];
int number;
int max = 30;
for (int a = 0; a < 12; a++)
{
do
{
number = random.Next(max);
} while (listNumbers.Contains(number));
listNumbers.Add(number);
var startDate = date.AddDays(number);
startDate = startDate.AddMilliseconds((((number % 10) * 10) * (1000 * 60)));
var endDate = startDate.AddMilliseconds(((1440 + 30) * (1000 * 60)));
data.Add(new EventData
{
Id = id,
Subject = "Event #" + id,
StartTime = startDate,
EndTime = endDate,
IsAllDay = (id % 10 == 0) ? false : true,
ResourceId = i + 1
});
id++;
}
}
return data;
}
public class EventData
{
public int Id { get; set; }
public string Subject { get; set; }
public DateTime StartTime { get; set; }
public DateTime EndTime { get; set; }
public bool IsAllDay { get; set; }
public int ResourceId { get; set; }
}
public class ResourceData
{
public int Id { get; set; }
public string Text { get; set; }
public string Color { get; set; }
}
}
Virtual scrolling with templates
In Blazor Scheduler, templates can be applied when AllowVirtualScrolling property is enabled. In the following code, templates were applied to resources and appointments.
@using Syncfusion.Blazor.Schedule
<SfSchedule TValue="EventData" Width="100%" Height="650px" @bind-SelectedDate="@CurrentDate">
<ScheduleTemplates>
<ResourceHeaderTemplate>
<div class='template-wrap'>
<div class="resource-details">
<div class="resource-name">@(((context as TemplateContext).ResourceData as ResourceData).Text)</div>
<div class="resource-designation">@(((context as TemplateContext).ResourceData as ResourceData).Designation)</div>
</div>
</div>
</ResourceHeaderTemplate>
</ScheduleTemplates>
<ScheduleGroup EnableCompactView="false" Resources="@GroupData"></ScheduleGroup>
<ScheduleResources>
<ScheduleResource TValue="int[]" TItem="ResourceData" DataSource="@ResourceDatasource" Field="ResourceId" Title="Resource" Name="Resources" TextField="Text" IdField="Id" ColorField="Color" AllowMultiple="true"></ScheduleResource>
</ScheduleResources>
<ScheduleEventSettings DataSource="@AppointmentData">
<Template>
<div>Subject: @((context as EventData).Subject)</div>
<div>StartTime: @((context as EventData).StartTime.ToUniversalTime())</div>
<div>EndTime: @((context as EventData).EndTime.ToUniversalTime())</div>
</Template>
</ScheduleEventSettings>
<ScheduleViews>
<ScheduleView Option="View.TimelineMonth" AllowVirtualScrolling="true" IsSelected="true"></ScheduleView>
<ScheduleView Option="View.TimelineYear" Orientation="Syncfusion.Blazor.Schedule.Orientation.Vertical" AllowVirtualScrolling="true"></ScheduleView>
</ScheduleViews>
</SfSchedule>
@code{
DateTime CurrentDate = new DateTime(2023, 4, 1);
static EventData data = new EventData();
public static List<ResourceData> ResourceDatasource = GenerateResourceData();
public static List<EventData> AppointmentData = GenerateStaticEvents();
public string[] GroupData { get; set; } = { "Resources" };
static public List<ResourceData> GenerateResourceData()
{
List<ResourceData> resources = new List<ResourceData>(300);
var colors = new string[] { "#ff8787", "#9775fa", "#748ffc", "#3bc9db", "#69db7c",
"#fdd835", "#748ffc", "#9775fa", "#df5286", "#7fa900",
"#fec200", "#5978ee", "#00bdae", "#ea80fc"};
var designation = new string[] { "Developer", "Lead", "Product Manager", "QA", "Newbie"};
for (int a = 1; a <= 300; a++)
{
int index = a % colors.Length;
int designationIndex = a % designation.Length;
index = index == 0 ? (colors.Length / a) : index;
designationIndex = designationIndex == 0 ? (designation.Length / a) : designationIndex;
resources.Add(new ResourceData
{
Id = a,
Text = "Resource " + a,
Color = colors[index],
Designation = designation[designationIndex]
});
}
return resources;
}
public static List<EventData> GenerateStaticEvents()
{
DateTime date = new DateTime(2023, 4, 1);
List<EventData> data = new List<EventData>(3600);
var id = 1;
for (var i = 0; i < 300; i++)
{
Random random = new Random();
List<int> listNumbers = new List<int>();
int[] randomCollection = new int[24];
int number;
int max = 30;
for (int a = 0; a < 12; a++)
{
do
{
number = random.Next(max);
} while (listNumbers.Contains(number));
listNumbers.Add(number);
var startDate = date.AddDays(number);
startDate = startDate.AddMilliseconds((((number % 10) * 10) * (1000 * 60)));
var endDate = startDate.AddMilliseconds(((1440 + 30) * (1000 * 60)));
data.Add(new EventData
{
Id = id,
Subject = "Event #" + id,
StartTime = startDate,
EndTime = endDate,
IsAllDay = (id % 10 == 0) ? false : true,
ResourceId = i + 1
});
id++;
}
}
return data;
}
public class EventData
{
public int Id { get; set; }
public string Subject { get; set; }
public DateTime StartTime { get; set; }
public DateTime EndTime { get; set; }
public bool IsAllDay { get; set; }
public int ResourceId { get; set; }
public ResourceData ResourceData { get; set; }
}
public class ResourceData
{
public int Id { get; set; }
public string Text { get; set; }
public string Color { get; set; }
public string Designation { get; set; }
}
}NOTE
For now, virtual loading of resources and events is not supported in
Month Agenda,Year, andTimelineYear(horizontal orientation) views.
By default, virtual scrolling displays only 30 resources. You can increase or decrease the number of resources by using the VirtualResourceCount property.
Enabling lazy loading for appointments
The lazy loading feature provides a convenient way to load resource appointments into Scheduler on demand. With this feature, you can load a large volume of appointment data without affecting performance.
By default, Scheduler fetches all relevant appointments from the server within the current date range. When this feature is enabled, Scheduler sends query requests to the server for appointment retrieval whenever new resources are rendered during scroll actions. These queries contain the resource IDs of the currently displayed resources along with the current date range, which can be passed as a comma-separated string. In the server controller, these resource IDs are parsed to filter the appointments needed for rendering.
When you enable this feature, Scheduler fetches events from remote services only for the current viewport to optimize data retrieval. The remaining appointment data is fetched from the server on demand based on the currently rendered viewport resources as you scroll through Scheduler content.
To enable this feature, set the EnableLazyLoading property to true in the view-specific settings.
@using Syncfusion.Blazor
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Schedule
<SfSchedule TValue="AppointmentData" Width="100%" Height="650px" @bind-SelectedDate="@currentDate" Readonly="true">
<ScheduleGroup EnableCompactView="false" Resources="@groupData"></ScheduleGroup>
<ScheduleResources>
<ScheduleResource TItem="ResourceData" TValue="int" DataSource="@resourceDatasource" Field="ResourceId" Title="Resource" Name="Resources" TextField="Text" IdField="Id" ColorField="Color"></ScheduleResource>
</ScheduleResources>
<ScheduleEventSettings TValue="AppointmentData">
<SfDataManager Url="https://blazor.syncfusion.com/services/production/api/VirtualEventData" Adaptor="Adaptors.WebApiAdaptor" CrossDomain="true"></SfDataManager>
</ScheduleEventSettings>
<ScheduleViews>
<ScheduleView Option="View.TimelineMonth" EnableLazyLoading="true" IsSelected="true"></ScheduleView>
</ScheduleViews>
</SfSchedule>
@code{
List<ResourceData> resourceDatasource = new List<ResourceData>();
DateTime currentDate = new DateTime(2023, 4, 1);
string[] groupData { get; set; } = { "Resources" };
protected override void OnInitialized()
{
base.OnInitialized();
resourceDatasource = GenerateResourceData();
}
private List<ResourceData> GenerateResourceData()
{
List<ResourceData> resources = new List<ResourceData>(1000);
var colors = new string[] { "#ff8787", "#9775fa", "#748ffc", "#3bc9db", "#69db7c",
"#fdd835", "#748ffc", "#9775fa", "#df5286", "#7fa900",
"#fec200", "#5978ee", "#00bdae", "#ea80fc"};
for (int a = 1; a <= 1000; a++)
{
int index = a % colors.Length;
index = index == 0 ? (colors.Length / a) : index;
resources.Add(new ResourceData
{
Id = a,
Text = "Resource " + a,
Color = colors[index]
});
}
return resources;
}
public class AppointmentData
{
public int Id { get; set; }
public string Subject { get; set; }
public DateTime StartTime { get; set; }
public DateTime EndTime { get; set; }
public string Location { get; set; }
public string Description { get; set; }
public bool? IsAllDay { get; set; }
public int? RecurrenceID { get; set; }
public string RecurrenceRule { get; set; }
public string RecurrenceException { get; set; }
public int ResourceId { get; set; }
}
public class ResourceData
{
public int Id { get; set; }
public string Text { get; set; }
public string Color { get; set; }
}
}The following server-side controller code retrieves appointment data based on the resource IDs provided as query parameters:
using Microsoft.AspNetCore.Mvc;
using System.Collections.Generic;
using System;
using Microsoft.EntityFrameworkCore;
using System.Linq;
using System.ComponentModel.DataAnnotations;
using Microsoft.AspNetCore.OData.Query;
namespace LazyLoadingServices.Controllers
{
public class VirtualEventDataController : Controller
{
private readonly EventsContext dbContext;
[HttpGet]
[EnableQuery]
[Route("api/VirtualEventData")]
public IActionResult GetData([FromQuery] Params param)
{
IQueryable<EventData> query = dbContext.Events;
// Filter the appointment data based on the ResourceId query parameters.
if (!string.IsNullOrEmpty(param.ResourceId))
{
string[] resourceId = param.ResourceId.Split(',');
query = query.Where(data => resourceId.Contains(data.ResourceId.ToString()));
}
return Ok(query.ToList());
}
}
public class Params
{
public DateTime? StartDate { get; set; }
public DateTime? EndDate { get; set; }
public string ResourceId { get; set; }
}
}Note:
- This property is effective when a large number of resources and appointments are bound to Scheduler.
- This property applies only when resource grouping is enabled in Scheduler.
