Views in ASP.NET Core Scheduler

The Scheduler includes a wide variety of view modes with unique configuration options for each view. The available view modes are Day, Week, Work Week, Month, Year, Agenda, Month Agenda, Timeline Day, Timeline Week, Timeline Work Week, Timeline Month, and Timeline Year, out of which the Week view is set as the active view by default.

To navigate between different views and dates, the navigation options are available in the Scheduler header bar. The active view option is usually highlighted by default. The date range of the active view is also displayed at the left corner of the header bar; clicking it opens a calendar popup to select the desired date.

NOTE

By default, the Scheduler displays the calendar views such as Day, Week, Work Week, Month, and Agenda.

Setting specific view on scheduler

As the Scheduler displays the Week view by default, to change the active view, set the currentView property to the desired view name. The applicable view names that the Scheduler accepts are as follows:

  • Day
  • Week
  • WorkWeek
  • Month
  • Year
  • Agenda
  • MonthAgenda
  • TimelineDay
  • TimelineWeek
  • TimelineWorkWeek
  • TimelineMonth
  • TimelineYear

It is possible to display only the desired views on the Scheduler using the e-schedule-views property.

In the following example, the Scheduler displays two views, namely Week and TimelineDay.

To configure the Scheduler with different configurations on each view, refer to the following code example. Here, the Week view displays the dates in dd-MM-yyyy format, whereas the Month view hides the weekend days and also displays it in read-only mode.

View specific configuration

There are scenarios where each view may need to have different configurations. For such cases, you can define the applicable Scheduler properties within the views property for each view option, as depicted in the following examples. The fields available to be used within each view option are as follows.

Property Type Description Applicable views
option View It accepts the Scheduler view name, based on which we can define its related properties. The view names can be Day, Week and so on. All views.
isSelected Boolean It acts similar to the currentView property and defines the active view of the Scheduler. All views.
dateFormat Date By default, the Scheduler follows the date format as per the default culture assigned to it. When it is defined under a specific view, only those assigned views follow this date format. All views.
readonly Boolean When set to true, prevents the CRUD actions on the respective view under which it is defined. All views.
resourceHeaderTemplate String The template option which is used to customize the resource header cells on the Scheduler. It gets applied only on the views, wherever it is defined. All views.
dateHeaderTemplate String The template option which is used to customize the date header cells and is applied only on the views, wherever it is defined. All views.
eventTemplate String The template option to customize the events background. It is applied to the events of the view on which it is currently defined. All views.
showWeekend Boolean When set to false, it hides the weekend days of a week from the views on which it is defined. All views.
group GroupModel Allows setting different resource grouping options on all available Scheduler view modes. All views.
cellTemplate String The template option to customize the work cells of the Scheduler and is applied only on the views, on which it is defined. Applicable on all views except Agenda view.
workDays Number[] It is used to set the working days on the Scheduler views. Applicable on all views except Agenda view.
displayName String When a particular view is customized to display with different intervals, this property allows the user to set a different display name for each of the views. Applicable on all views except Agenda and Month Agenda.
interval Number It allows customizing the default Scheduler views with a different set of days, weeks, work weeks, or months on the applicable view type. Applicable on all views except Agenda and Month Agenda.
startHour String It is used to specify the start hour from which the Scheduler should be displayed. It accepts the time string in a short skeleton format and also hides the time beyond the specified start time. Applicable on Day, Week, Work Week, Timeline Day, Timeline Week, and Timeline Work Week views.
endHour String It is used to specify the end hour at which the Scheduler ends. It accepts the time string in a short skeleton format. Applicable on Day, Week, Work Week, Timeline Day, Timeline Week, and Timeline Work Week views.
timeScale TimeScaleModel Allows setting different timescale configurations on each applicable view mode. Applicable on Day, Week, Work Week, Timeline Day, Timeline Week, and Timeline Work Week views.
showWeekNumber Boolean When set to true, shows the week number on the respective weeks. Applicable on Day, Week, Work Week, and Month views.
allowVirtualScrolling Boolean It is used to enable or disable the virtual scrolling functionality. Applicable on Agenda and Timeline views.
headerRows HeaderRowsModel Allows defining the custom header rows on the timeline views of the Scheduler to display the year, month, week, date, and hour label as individual rows. Applicable only on all timeline views.

Day view

Usually a Day view displays a single day with all its related appointments. It is possible to customize the Day view to display more number of days by extending the e-schedule-views property with the interval option. You can also define any of the above-defined properties within the e-schedule-views object definition, as depicted in the following code example.

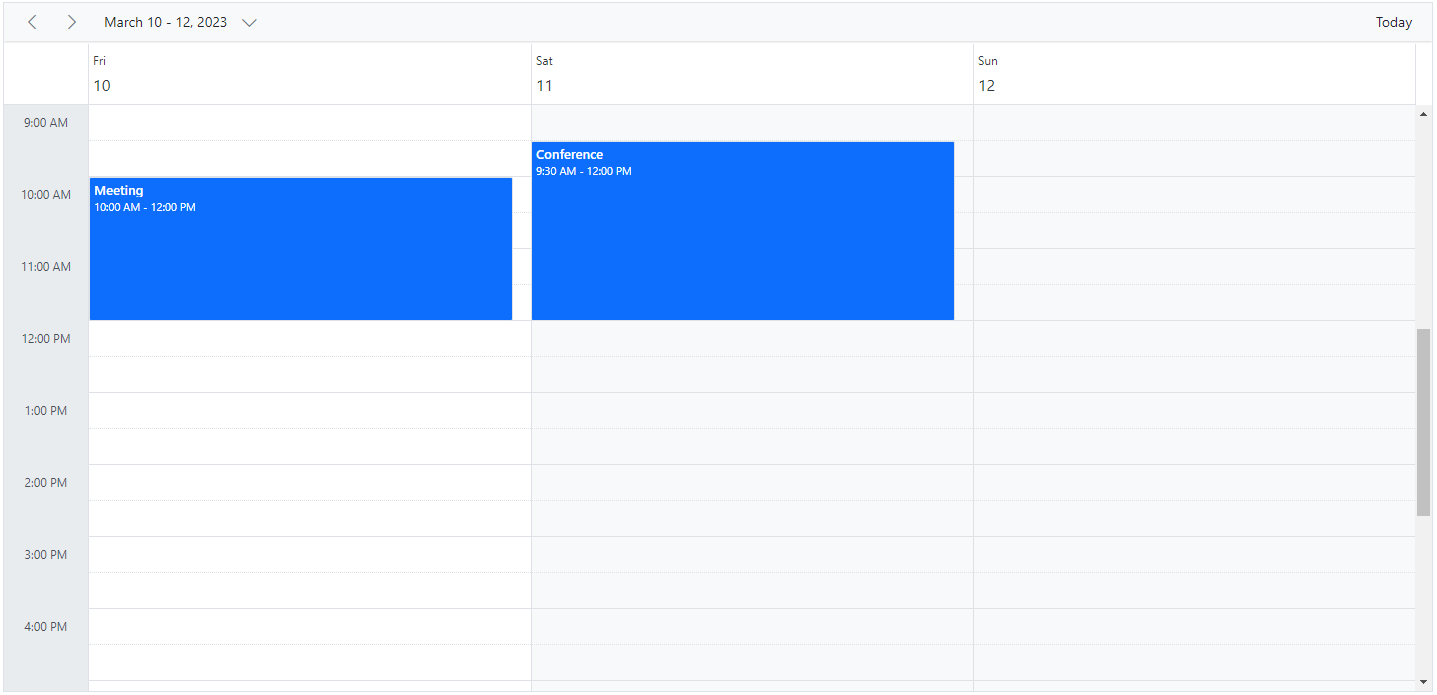

Displaying Day View in ASP.NET Core Scheduler

NOTE

All the above-defined properties can be accessed within the Day view, except allowVirtualScrolling and headerRows.

Week view

The Week view displays a count of 7 days (from Sunday to Saturday) with all its related appointments. The first day of the week can be changed using the firstDayOfWeek property, which accepts an integer value (Sunday=0, Monday=1, Tuesday=2, and so on). You can navigate to a particular date in the Day view from the Week view by clicking on the appropriate dates on the date header bar.

Displaying Week View in ASP.NET Core Scheduler

NOTE

All the above-defined properties in the table can be accessed within the Week and Work Week views, except allowVirtualScrolling and headerRows.

Work Week view

The Work Week view displays only the working days of a week (count of 5 days) and its associated appointments. It is possible to customize the working days on the Work Week view by using the workDays property, which accepts an array of integer values (such as Sunday=0, Monday=1, Tuesday=2, and so on). By default, it displays from Monday to Friday (5 days). You can also navigate to a particular date in the Day view from the Work Week view by clicking on the appropriate dates in the date header bar.

The following code example depicts how to change the working days only on the Work Week view of the Scheduler.

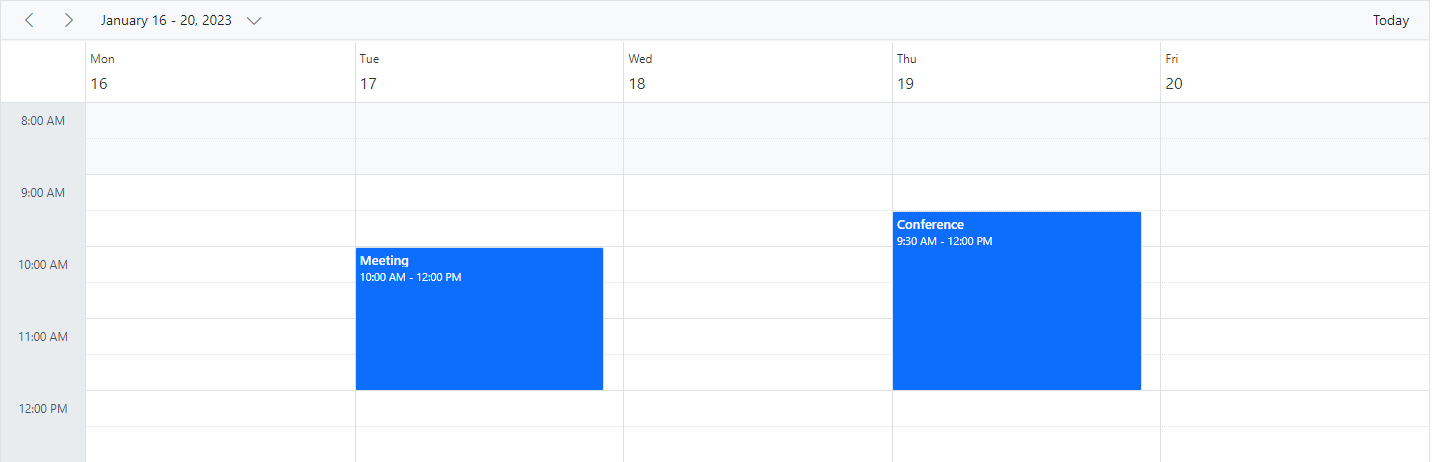

Displaying Work Week View in ASP.NET Core Scheduler

NOTE

The Week, Work Week, and Day views can display the all-day row appointments in a separate all-day row with an expand/collapse option to view it.

Month view

A Month view displays the entire days of a particular month and all its related appointments. You can navigate to a particular date in the Day view by clicking on the appropriate date text on the month cells.

By default, when you try to create an appointment through the Month view, it is considered as created for an entire day. You can explicitly change this behavior by unchecking the All-day option from the editor window, so that it defaults to a start time of 9:00 AM and an end time of 9:30 AM.

You can also have the + more text indicator on each day cell of a Month view; clicking it allows you to view the hidden appointments of a day.

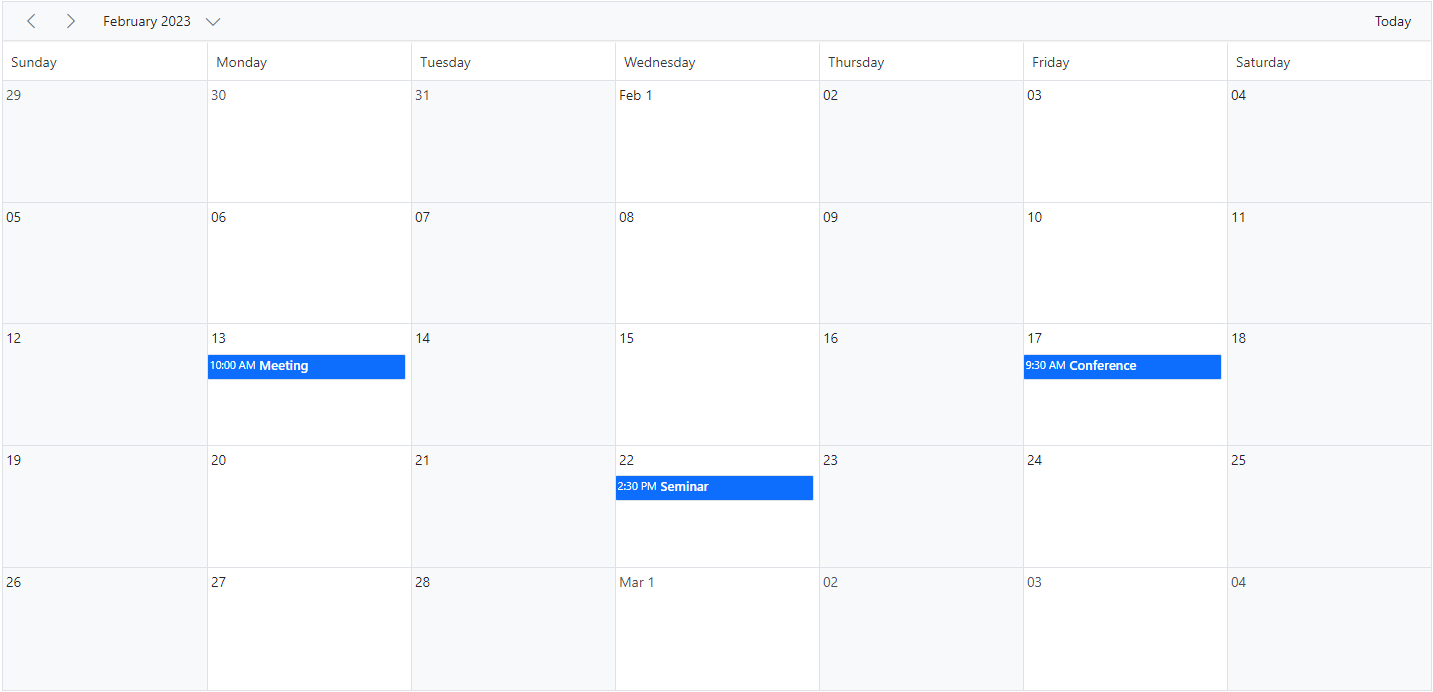

Displaying Month View in ASP.NET Core Scheduler

Year view

A Year view displays all the days of a particular year with months and all its related appointments. You can navigate to a particular date in the Day view by clicking on the appropriate date text on the year cells.

Year view is available in both the Horizontal and Vertical orientations. You can manage the orientation of the Year view through the views property.

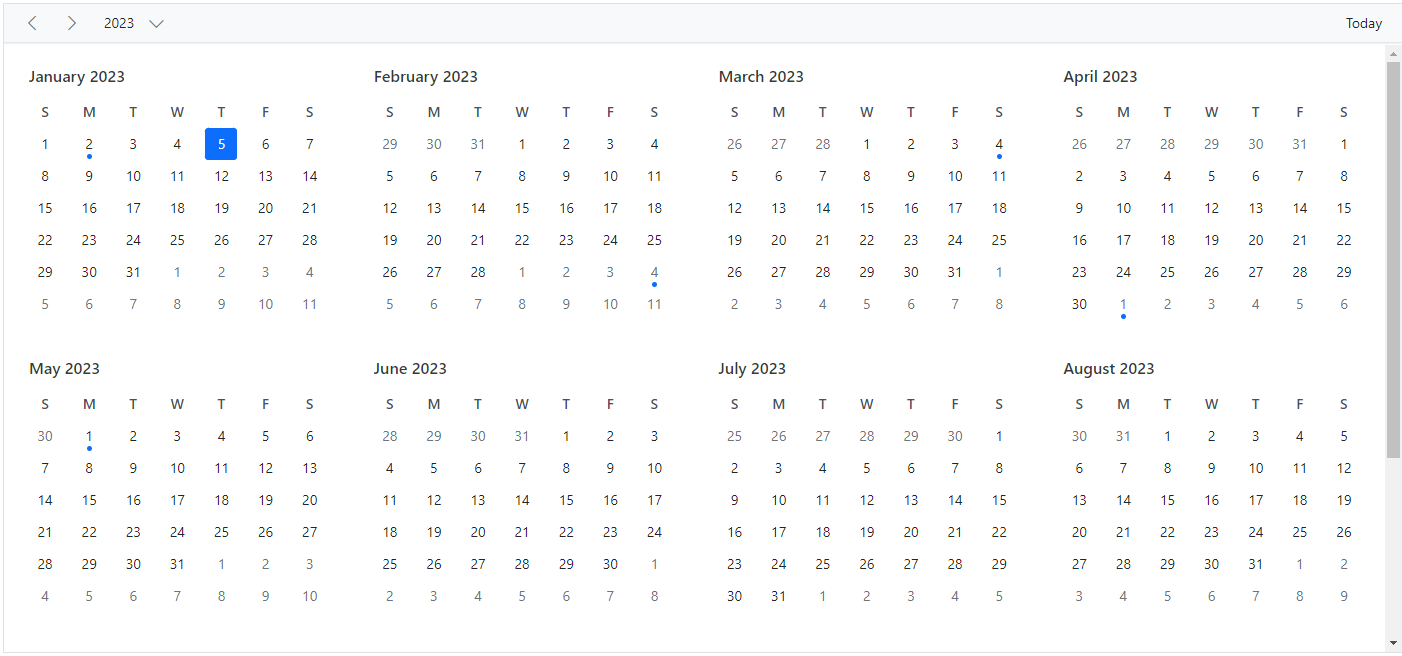

Displaying Year View in ASP.NET Core Scheduler

NOTE

The Year view also has module support. In that, you can get all the months of a particular year in a calendar view format. In that calendar view, appointment-containing dates are highlighted with dots placed under the individual date. When you click on a date, the event popup is displayed and the events are listed.

Agenda view

The Agenda view lists out the appointments in a grid-like view for the next 7 days by default from the current date. The count of the days can be changed using the API agendaDaysCount. It allows virtual scrolling of dates by enabling the allowVirtualScrolling property. You can also enable or disable the display of days on the Scheduler that have no appointments by setting the hideEmptyAgendaDays property to true or false.

The following code example depicts how to customize the display of events within Agenda view alone.

NOTE

Schedule Height is mandatory to set in pixels for Agenda view alone.

Displaying Agenda View in ASP.NET Core Scheduler

Month Agenda view

A Month Agenda view shows a month calendar, where clicking on a particular day displays the appointments present on that date below the calendar. Days with appointments are differentiated with a circular dot below the date of the calendar.

The following code example shows how to hide the weekend days on the MonthAgenda view, as well as modify the working days list on the Month Agenda view alone.

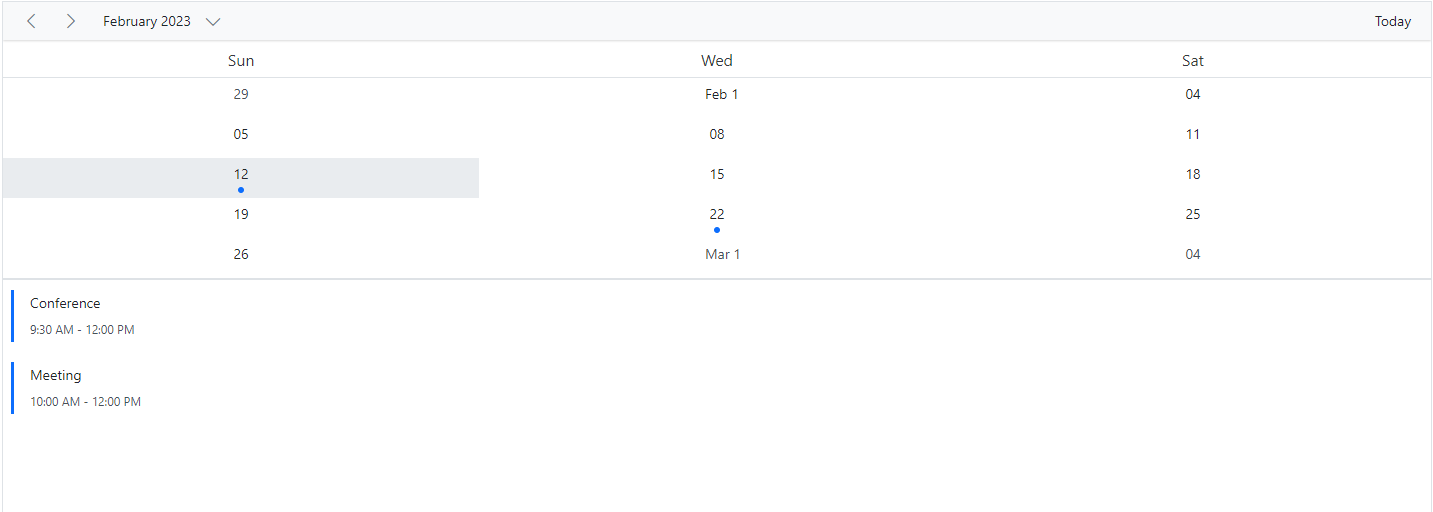

Displaying Month Agenda View in ASP.NET Core Scheduler

Timeline views – Day, Week, Work Week

Similar to the Day view, the Timeline Day view shows a single day with all its appointments where the time slots are displayed horizontally. By default, the cell height adjusts as per the height set to the Scheduler. When the number of appointments exceeds the visible area of the cells, the + more text indicator is displayed at the bottom to denote the presence of a few more appointments in that time range.

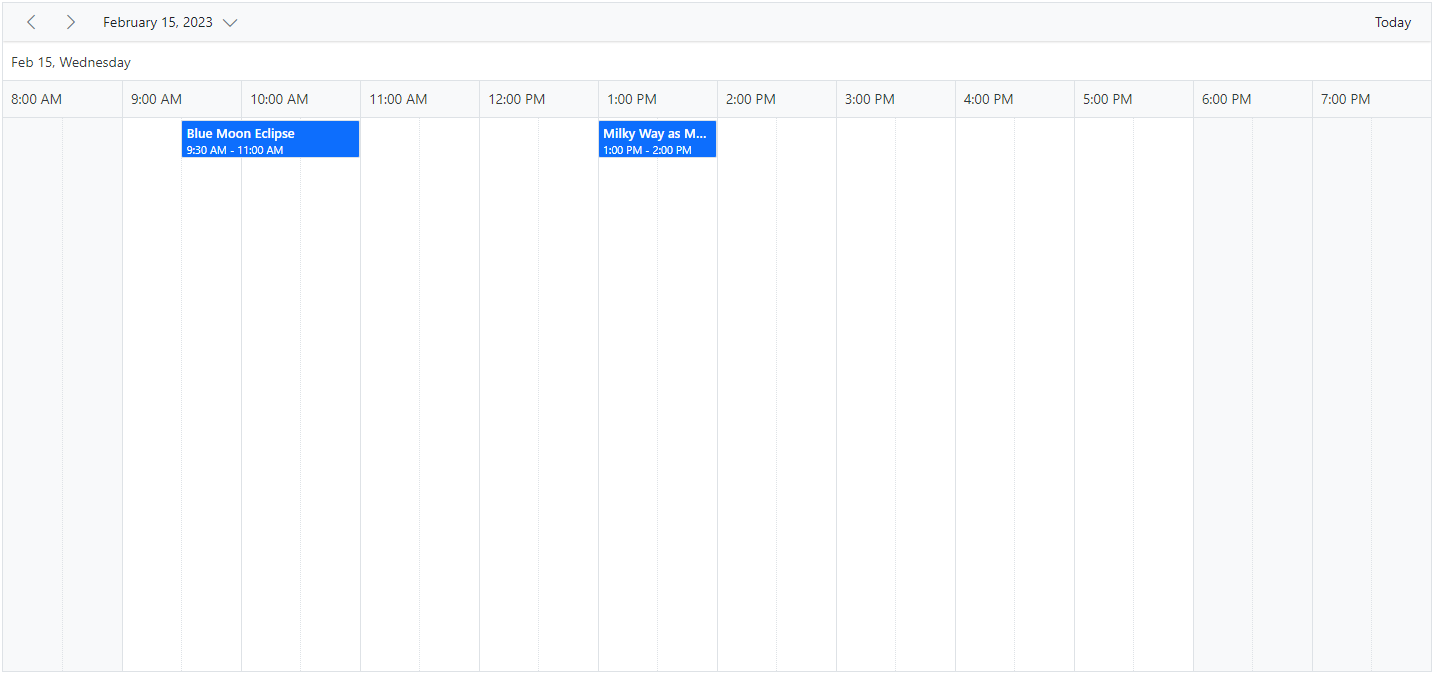

Displaying timeline Day View in ASP.NET Core Scheduler

Similar to the Week view, the Timeline Week view shows 7 days with their associated appointments, with the time slots displayed horizontally.

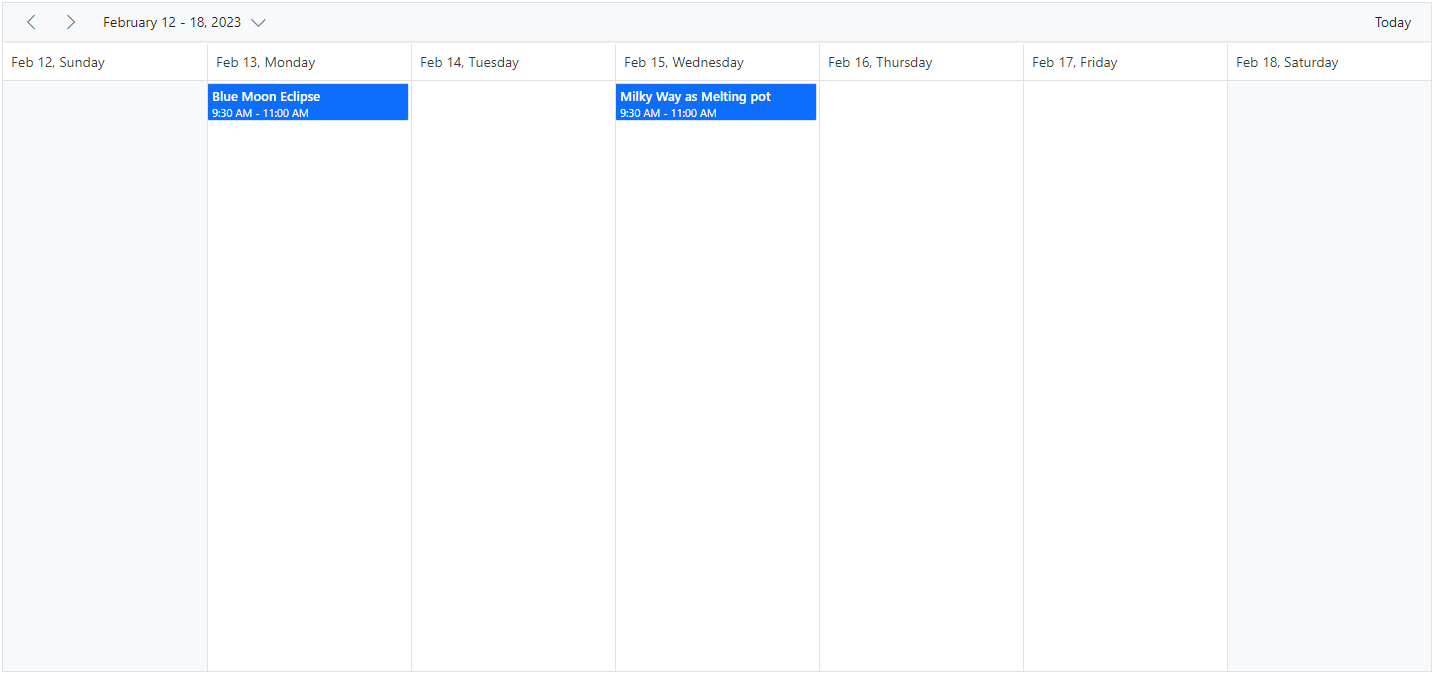

Displaying timeline Week View in ASP.NET Core Scheduler

The following code example depicts how to display the Timeline Work Week view on the Scheduler.

NOTE

Clicking on the dates in the date header bar of Timeline Day, Timeline Week, and Timeline Work Week allows you to navigate to the Agenda view.

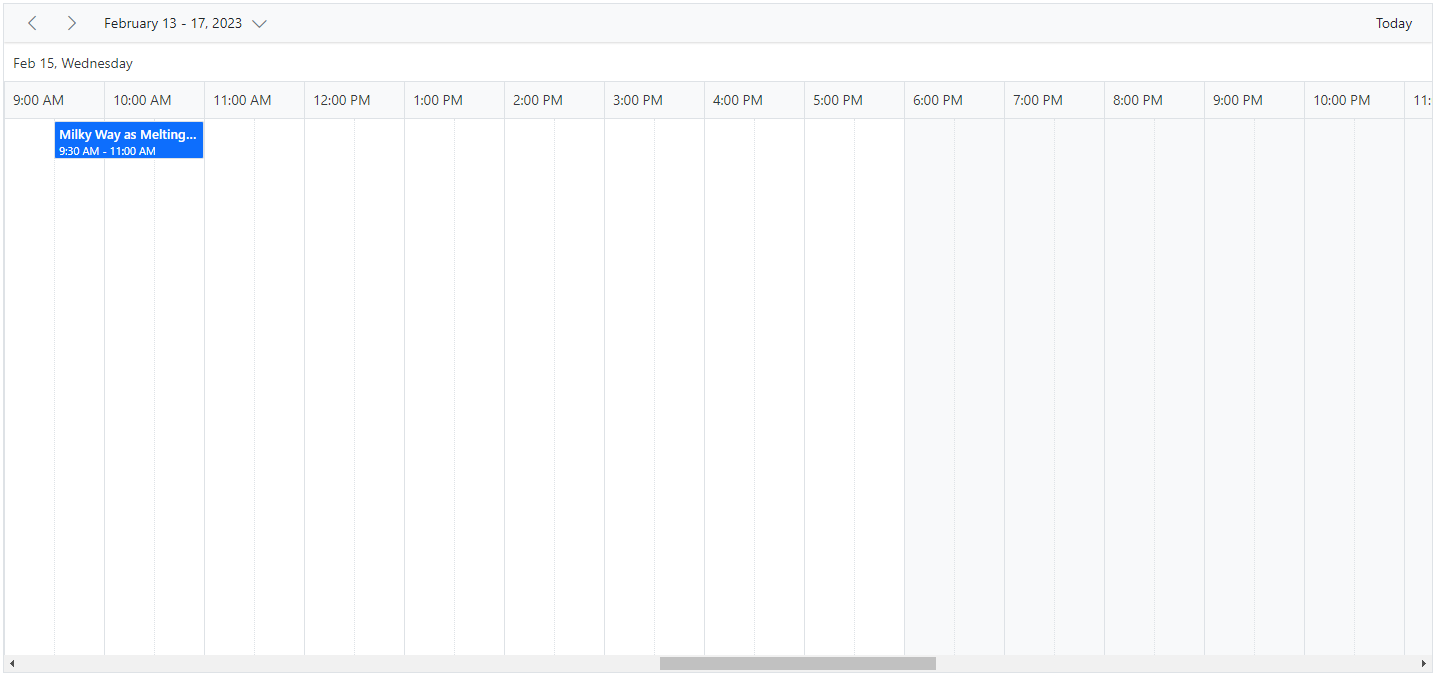

Displaying timeline Work Week View in ASP.NET Core Scheduler

Timeline Month view

A Timeline Month view displays the current month days along with its appointments.

NOTE

Clicking on the dates in the date header bar of Timeline Month allows you to navigate to the Timeline Day view.

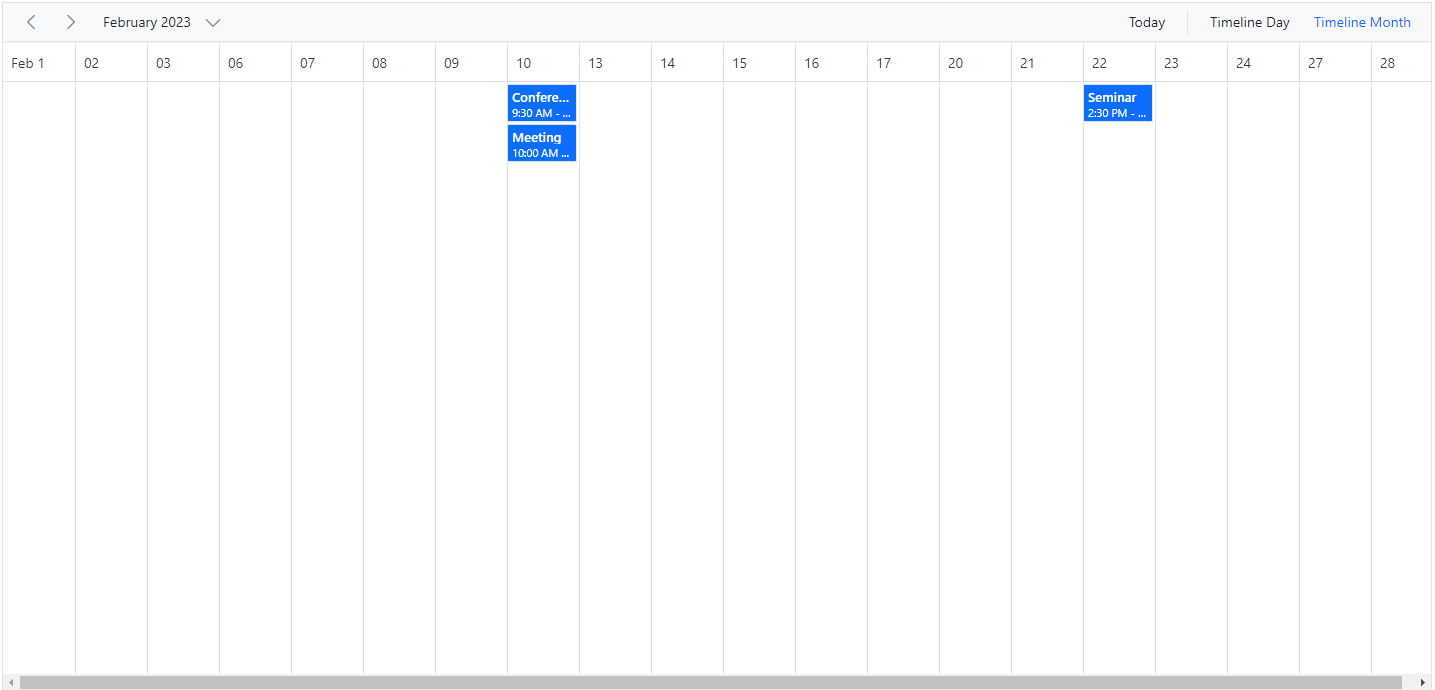

Displaying Timeline Month View in ASP.NET Core Scheduler

Timeline Year view

In Timeline Year view, each row depicts a single resource. Whereas in the vertical view, each resource is grouped in parallel as columns. Here, the resource grouping follows a tree-view-like hierarchical grouping structure and can contain any level of child resources.

To make use of the Timeline Year view on the Scheduler, import and inject the TimelineYear module from the ej2-schedule package.

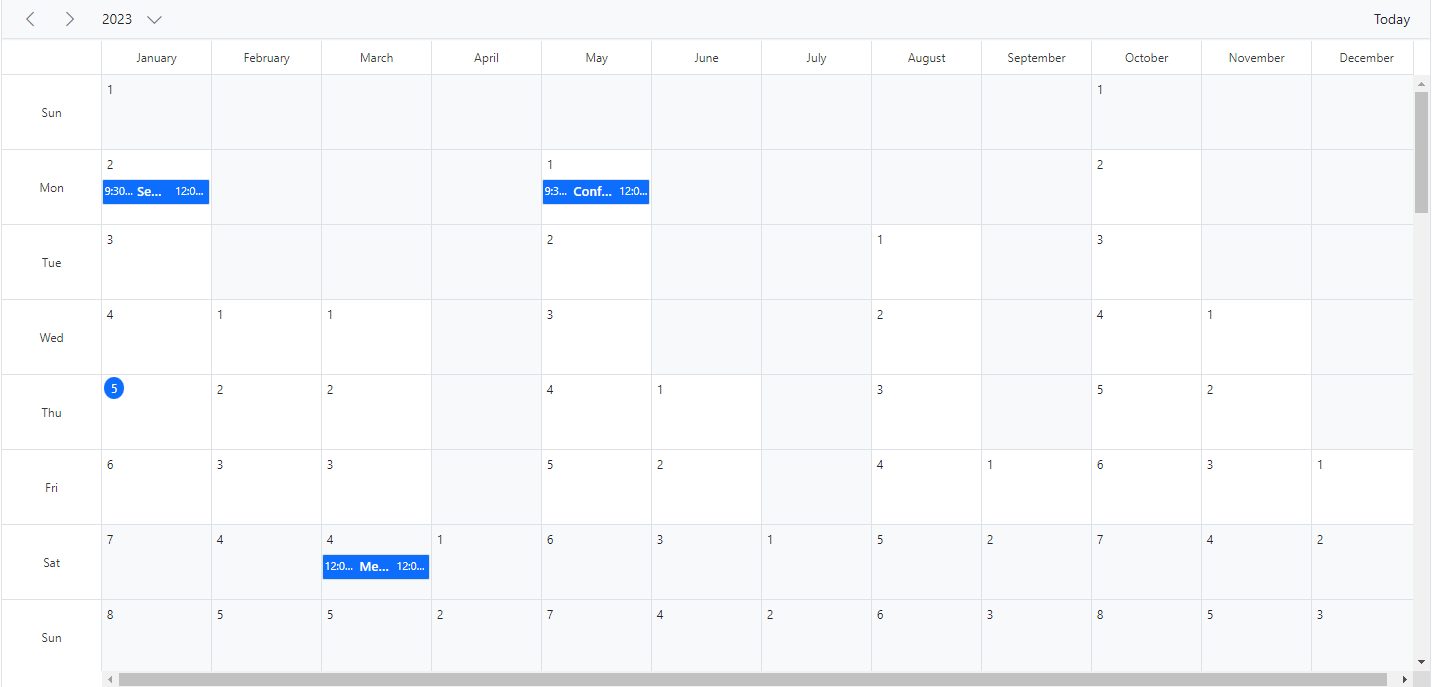

Displaying Timeline Year View in ASP.NET Core Scheduler

Resource grouping

The following code example depicts how to group multiple resources on the Timeline Year view, and its relevant events are displayed accordingly under those resources.

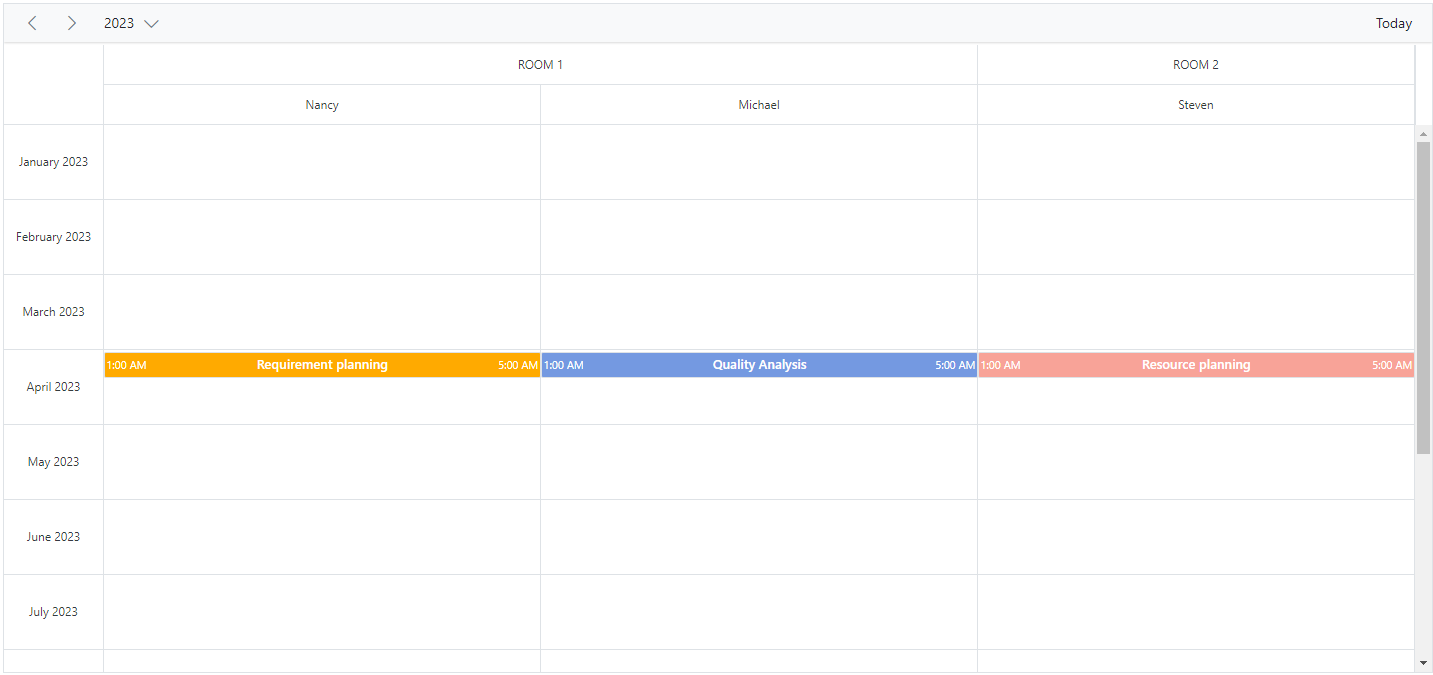

Displaying Resource Grouping in ASP.NET Core Scheduler

Auto row height

The Timeline Year view supports Auto row height. When the feature rowAutoHeight is enabled, the row height is auto-adjusted based on the number of overlapping events occupying the same time range. If you disable the Auto row height, you have the + more text indicator on each day cell of a Timeline Year view; clicking it allows you to view the hidden appointments of a day.

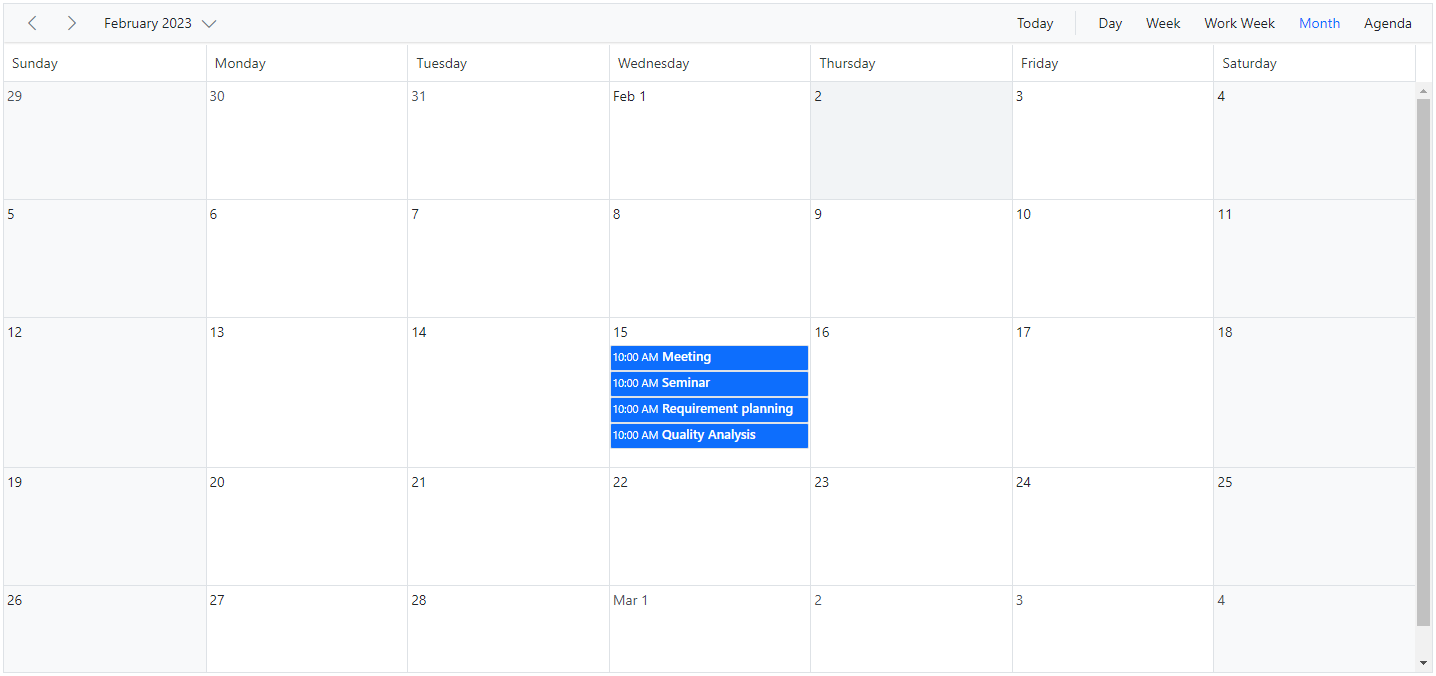

Displaying Auto Row Height in ASP.NET Core Scheduler

Extending view intervals

It is possible to customize the display of the default number of days on different Scheduler view modes. For example, a Day view can be extended to display 3 days by setting the interval option to 3 for the Day option within the e-schedule-views property, as depicted in the following code example. In the same way, you can also display 2 weeks by setting interval to 2 for the Week option.

You can provide an alternative display name for such customized views on the Scheduler header bar by setting the appropriate displayName property.

NOTE

The view intervals can be extended on all the Scheduler view modes except Agenda and Month-Agenda views.

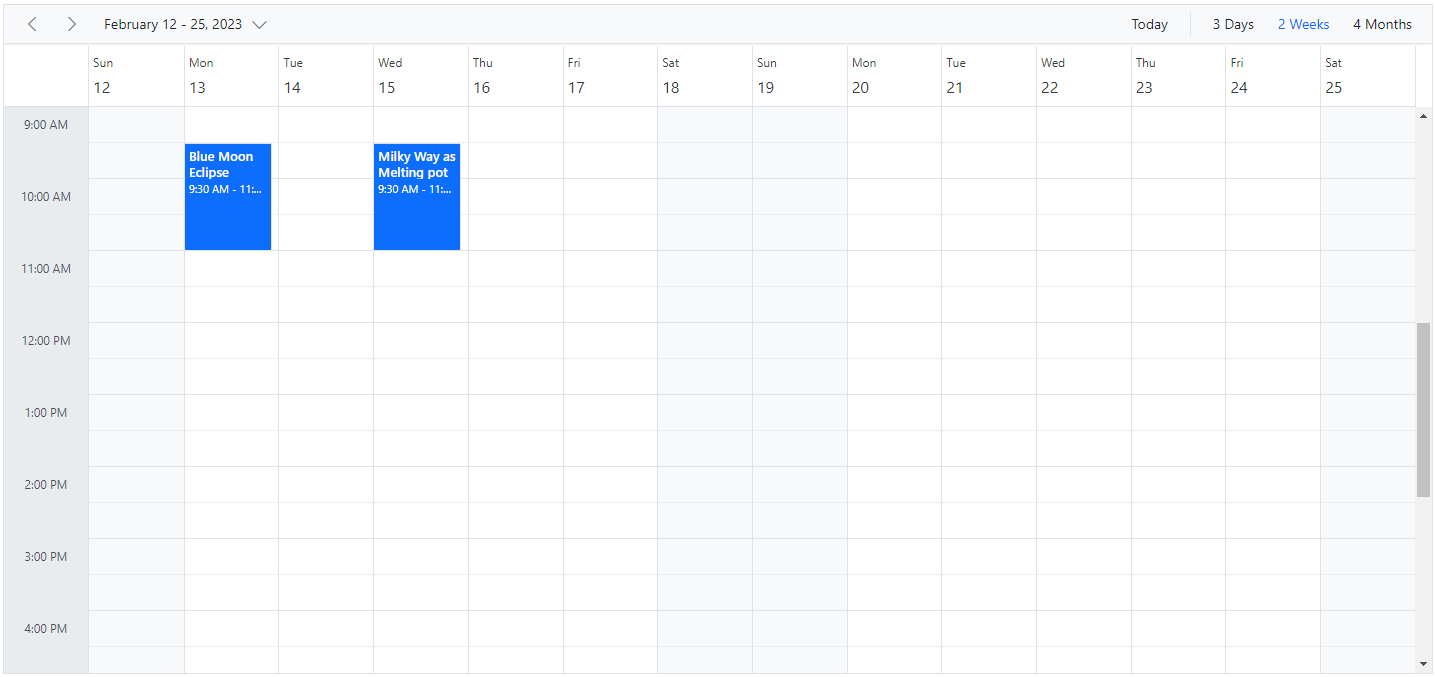

Displaying Extended Views in ASP.NET Core Scheduler
