CRUD Actions in ASP.NET Core Scheduler

Events, a.k.a. Appointments, play an important role in Scheduler with which the users mostly interact. You can easily manipulate (add/edit/delete) the desired appointments as and when required either using the editor window or through the drag and resize action.

Add

Any kind of appointments such as normal, all-day, spanned or recurring events can be easily added on Scheduler using any one of the following ways.

Creation using editor window

The default editor window opens when you double click on the Scheduler cells. It provides you with event related options such as Subject, Location, Start and End time, All-day, Timezone, Description and other recurrence options. With these available fields, you can choose to provide detailed information to the events. Once the fields are filled with proper values, enter the Save button to add an event.

In case, if you want to simply provide the Subject alone for appointments, just single click on the required cells which will open the quick popup expecting you to enter subject alone and save it. You can also select multiple cells and press Enter key to open the quick popup for selected time range and save the appointment for that time range.

In case, if you need to add some other additional fields to the editor window, then you can opt for custom editor window which allows you to include fields as per your application needs. If you need to add just one or two additional fields to the existing default editor window, you can do so by defining it manually and then appending it to the editor window.

Creation using addEvent method

The appointments can be created dynamically by using addEvent method. Either you can add a single or a collection of appointment objects using addEvent method. The following code example let you know how to use the addEvent method to create multiple appointments simultaneously.

Inserting events into database at server-side

While adding the normal or recurring events to the Scheduler, insert action takes place and the following code example describes how to add a new event into database at server side.

if (param.action == "insert" || (param.action == "batch" && param.added != null)) // this block of code will execute while inserting the appointments
{
    var value = (param.action == "insert") ? param.value : param.added[0];
    int intMax = db.ScheduleEventDatas.ToList().Count > 0 ? db.ScheduleEventDatas.ToList().Max(p => p.Id) : 1;
    DateTime startTime = Convert.ToDateTime(value.StartTime);
    DateTime endTime = Convert.ToDateTime(value.EndTime);
    ScheduleEventData appointment = new ScheduleEventData()
    {
        Id = intMax + 1,
        StartTime = startTime,
        EndTime = endTime,
        Subject = value.Subject,
        IsAllDay = value.IsAllDay,
        StartTimezone = value.StartTimezone,
        EndTimezone = value.EndTimezone,
        RecurrenceRule = value.RecurrenceRule,
        RecurrenceID = value.RecurrenceID,
        RecurrenceException = value.RecurrenceException
    };
    db.ScheduleEventDatas.InsertOnSubmit(appointment);
    db.SubmitChanges();
}

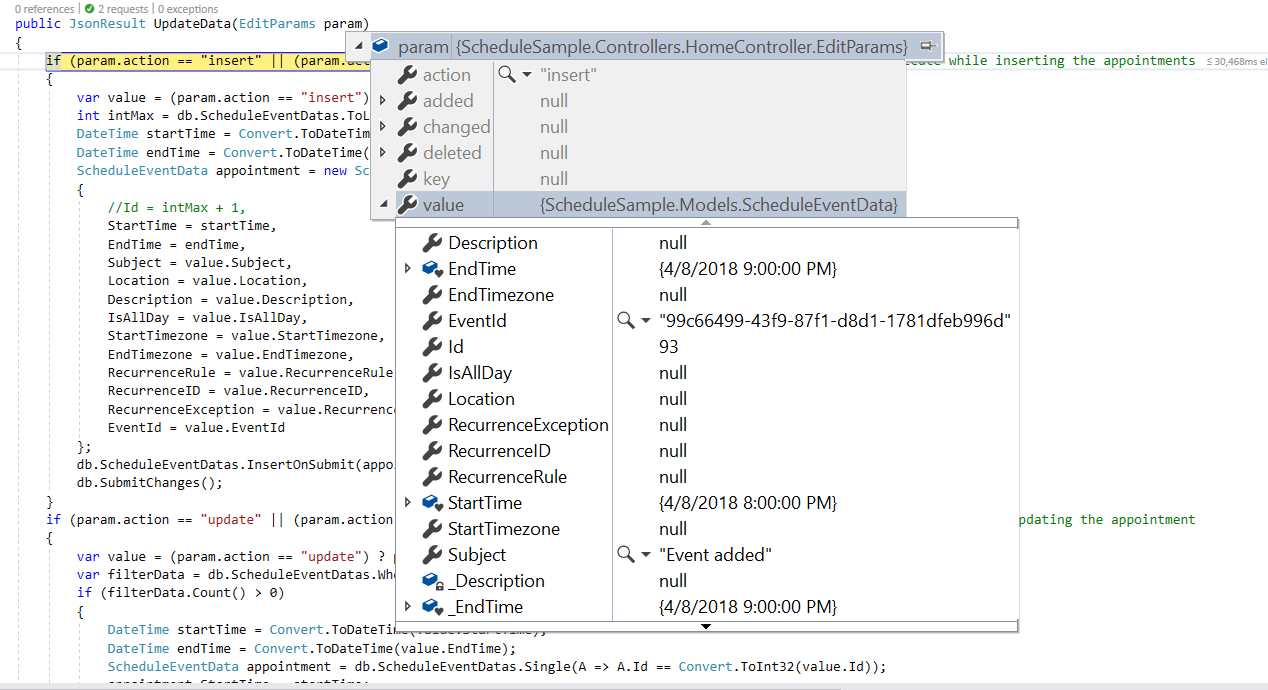

adding event

Restricting add action based on specific criteria

In the following example, the specific fields of Scheduler editor window such as Subject and Location are made to undergo validation such that if it is left as blank, then the default required validation message will be displayed, while clicking on a save button.

Additionally, the regex condition has been added to the Location field, so that if any special characters are typed into it, then the custom validation message will be displayed.

You can also dynamically prevent the creation of appointments on Scheduler. For example, say if you want to decline the creation of appointments on weekend days, you can check for its appropriate condition within the actionBegin event.

Edit

The same way the appointments such as normal, all-day, spanned or recurring events are created, it can be easily edited using any of the following ways.

Update using editor window

You can open the default editor window filled with appointment details by double clicking on the required events. It gets pre-filled with event options such as Subject, Location, Start and End time, All-day, timezone, description and other recurrence options, from which you can edit the desired field values and, then enter the Save button to update it.

NOTE

You can also single click on appointments, which opens the quick info popup with edit and delete options. Clicking on the edit option will open the default editor filled with event details and delete option will prompt for delete confirmation.

Update using saveEvent method

The appointments can be edited and updated manually using the saveEvent method. The following code examples shows how to edit the normal and recurring events.

Normal event - Here, an event with ID 3 is edited and its subject is changed with a new text. When the modified data object is passed onto the saveEvent method, the changes gets reflected onto the original event. The Id field is mandatory in this edit process, where the modified event object should hold the valid Id value that exists in the Scheduler data source.

Recurring event - The following code example shows how to edit a single occurrence of a recurring event. In this case, the modified data should hold an additional field namely recurrenceID mapping to its parent recurring event’s Id value. Also, this modified occurrence will be considered as a new event in the Scheduler dataSource, where it is linked with its parent event through the recurrenceID field value. The saveEvent method takes 2 arguments, first one accepting the modified event data object and second argument accepting either of the 2 text values - EditOccurrence or EditSeries.

When the second argument is passed as EditOccurrence, which means that the passed event data is a single modified occurrence - whereas if the second argument is passed as EditSeries, it means that the modified data needs to be edited as a whole series and therefore no new event object will be maintained in the Scheduler dataSource.

In case of modifying the single occurrence, it is also necessary to update the recurrenceException field of parent event altogether with the occurrence editing. To know more about how to set recurrenceException values, refer the recurring events topic.

Updating events in database at server-side

While editing the normal events in the Scheduler, update action takes place and the following code example describes how to update event into database at server side.

if (param.action == "update" || (param.action == "batch" && param.changed != null)) // this block of code will execute while updating the appointment
{
    var value = (param.action == "update") ? param.value : param.changed[0];
    var filterData = db.ScheduleEventDatas.Where(c => c.Id == Convert.ToInt32(value.Id));
    if (filterData.Count() > 0)
    {
        DateTime startTime = Convert.ToDateTime(value.StartTime);
        DateTime endTime = Convert.ToDateTime(value.EndTime);
        ScheduleEventData appointment = db.ScheduleEventDatas.Single(A => A.Id == Convert.ToInt32(value.Id));
        appointment.StartTime = startTime;
        appointment.EndTime = endTime;
        appointment.StartTimezone = value.StartTimezone;
        appointment.EndTimezone = value.EndTimezone;
        appointment.Subject = value.Subject;
        appointment.IsAllDay = value.IsAllDay;
        appointment.RecurrenceRule = value.RecurrenceRule;
        appointment.RecurrenceID = value.RecurrenceID;
        appointment.RecurrenceException = value.RecurrenceException;
    }
    db.SubmitChanges();
}

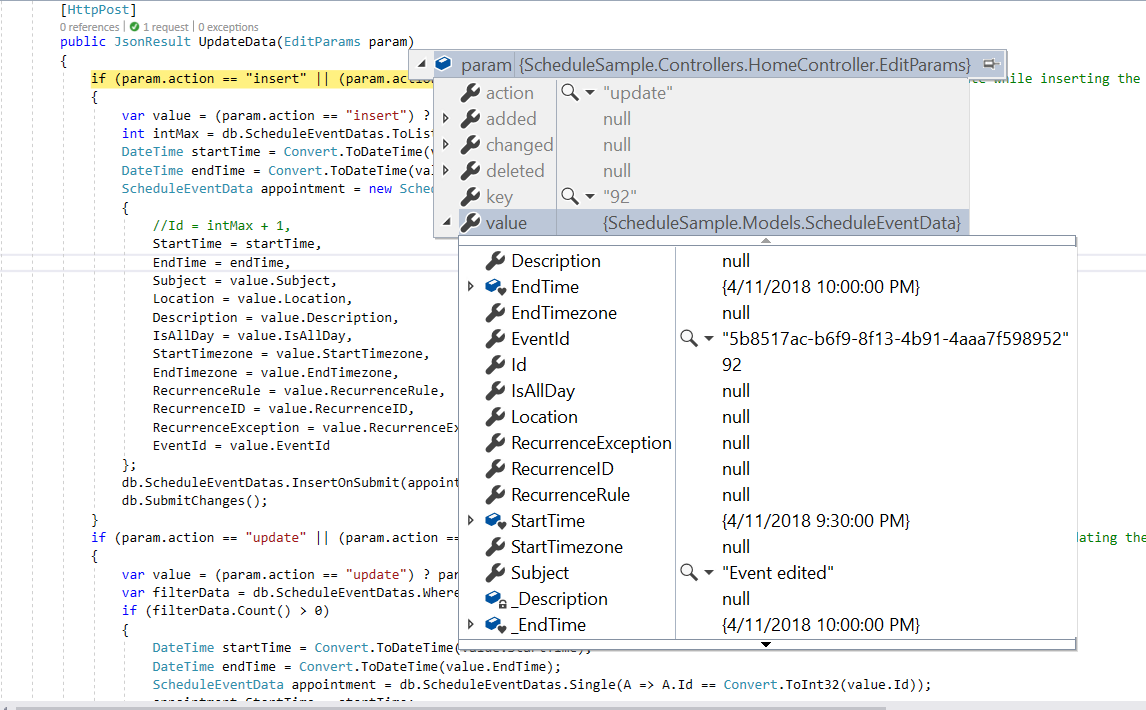

updating event

How to edit a single occurrence or entire series and update it in database at server-side

The recurring appointments can be edited in either of the following two ways.

  • Single occurrence
  • Entire series

Editing single occurrence - When you double click on a recurring event, a popup prompts you to choose either to edit the single event or entire series. From this, if you choose to select EDIT EVENT option, a single occurrence of the recurring appointment alone will be edited. The following process takes place while editing a single occurrence,

  • A new event will be created from the parent event data and added to the Scheduler dataSource, with all its default field values overwritten with the newly modified data and additionally, the recurrenceID field will be added to it, that holds the id value of the parent recurring event. Also, a new Id will be generated for this event in the dataSource.

  • The parent recurring event needs to be updated with appropriate recurrenceException field to hold the edited occurrence appointment’s date collection.

Therefore, when a single occurrence is edited from a recurring event, the batch action takes place by allowing both the Add and Edit action requests to take place together.

NOTE

In case, if you edit an existing edited occurrence of a recurring event, only those edited occurrence which present in the database as an individual event object will get updated. In this case, update action alone takes place on the edited occurrence object on the database.

if (param.action == "insert" || (param.action == "batch" && param.added != null)) // this block of code will execute while inserting the appointments
{
    var value = (param.action == "insert") ? param.value : param.added[0];
    int intMax = db.ScheduleEventDatas.ToList().Count > 0 ? db.ScheduleEventDatas.ToList().Max(p => p.Id) : 1;
    DateTime startTime = Convert.ToDateTime(value.StartTime);
    DateTime endTime = Convert.ToDateTime(value.EndTime);
    ScheduleEventData appointment = new ScheduleEventData()
    {
        Id = intMax + 1,
        StartTime = startTime,
        EndTime = endTime,
        Subject = value.Subject,
        IsAllDay = value.IsAllDay,
        StartTimezone = value.StartTimezone,
        EndTimezone = value.EndTimezone,
        RecurrenceRule = value.RecurrenceRule,
        RecurrenceID = value.RecurrenceID,
        RecurrenceException = value.RecurrenceException
    };
    db.ScheduleEventDatas.InsertOnSubmit(appointment);
    db.SubmitChanges();
}
if (param.action == "update" || (param.action == "batch" && param.changed != null)) // this block of code will execute while updating the appointment
{
    var value = (param.action == "update") ? param.value : param.changed[0];
    var filterData = db.ScheduleEventDatas.Where(c => c.Id == Convert.ToInt32(value.Id));
    if (filterData.Count() > 0)
    {
        DateTime startTime = Convert.ToDateTime(value.StartTime);
        DateTime endTime = Convert.ToDateTime(value.EndTime);
        ScheduleEventData appointment = db.ScheduleEventDatas.Single(A => A.Id == Convert.ToInt32(value.Id));
        appointment.StartTime = startTime;
        appointment.EndTime = endTime;
        appointment.StartTimezone = value.StartTimezone;
        appointment.EndTimezone = value.EndTimezone;
        appointment.Subject = value.Subject;
        appointment.IsAllDay = value.IsAllDay;
        appointment.RecurrenceRule = value.RecurrenceRule;
        appointment.RecurrenceID = value.RecurrenceID;
        appointment.RecurrenceException = value.RecurrenceException;
    }
    db.SubmitChanges();
}

Editing entire series - When you select an option EDIT SERIES from the popup that opens on double clicking the recurring event, the whole recurring series will be updated with the newly provided value. When this option is chosen explicitly, if a parent event holds any edited occurrences - then all its child occurrences will be removed from the dataSource and simply the single parent data will be updated.

This action of editing entire series also leads to the batch process, as both the Delete and Edit action takes place together.

if (param.action == "update" || (param.action == "batch" && param.changed != null)) // this block of code will execute while updating the appointment
{
    var value = (param.action == "update") ? param.value : param.changed[0];
    var filterData = db.ScheduleEventDatas.Where(c => c.Id == Convert.ToInt32(value.Id));
    if (filterData.Count() > 0)
    {
        DateTime startTime = Convert.ToDateTime(value.StartTime);
        DateTime endTime = Convert.ToDateTime(value.EndTime);
        ScheduleEventData appointment = db.ScheduleEventDatas.Single(A => A.Id == Convert.ToInt32(value.Id));
        appointment.StartTime = startTime;
        appointment.EndTime = endTime;
        appointment.StartTimezone = value.StartTimezone;
        appointment.EndTimezone = value.EndTimezone;
        appointment.Subject = value.Subject;
        appointment.IsAllDay = value.IsAllDay;
        appointment.RecurrenceRule = value.RecurrenceRule;
        appointment.RecurrenceID = value.RecurrenceID;
        appointment.RecurrenceException = value.RecurrenceException;
    }
    db.SubmitChanges();
}
if (param.action == "remove" || (param.action == "batch" && param.deleted != null)) // this block of code will execute while removing the appointment
{
    if (param.action == "remove")
    {
        int key = Convert.ToInt32(param.key);
        ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == key).FirstOrDefault();
        if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
    }
    else
    {
        foreach (var apps in param.deleted)
        {
            ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == apps.Id).FirstOrDefault();
            if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
        }
    }
    db.SubmitChanges();
}

NOTE

To know more about handling recurrence exceptions, refer the Adding exceptions topic.

How to edit from the current and following events of a series

The recurring appointments can be edited from current and following events when enable the property editFollowingEvents.

Editing Following Events - When you double click on a recurring event, a popup prompts you to choose either to edit the single event or Edit Following Events or entire series. From this, if you choose to select EDIT FOLLOWING EVENTS option, a current and following events of the recurring appointment will be edited. The following process takes place while editing a following events,

  • A new event will be created from the parent event data and added to the Scheduler dataSource, with all its default field values overwritten with the newly modified data and additionally, the followingID field will be added to it, that holds the id value of the immediate parent recurring event. Also, a new Id will be generated for this event in the dataSource.

  • The parent recurring event needs to be updated with appropriate recurrenceRule field to hold the modified occurrence appointment’s end date.

Therefore, when a following events are edited from a recurring event, the batch action takes place by allowing the Add, Edit and Delete action requests to take place together.

if (param.action == "insert" || (param.action == "batch" && param.added != null)) // this block of code will execute while inserting the appointments
{
    var value = (param.action == "insert") ? param.value : param.added[0];
    int intMax = db.ScheduleEventDatas.ToList().Count > 0 ? db.ScheduleEventDatas.ToList().Max(p => p.Id) : 1;
    DateTime startTime = Convert.ToDateTime(value.StartTime);
    DateTime endTime = Convert.ToDateTime(value.EndTime);
    ScheduleEventData appointment = new ScheduleEventData()
    {
        Id = intMax + 1,
        StartTime = startTime,
        EndTime = endTime,
        Subject = value.Subject,
        IsAllDay = value.IsAllDay,
        StartTimezone = value.StartTimezone,
        EndTimezone = value.EndTimezone,
        RecurrenceRule = value.RecurrenceRule,
        RecurrenceID = value.RecurrenceID,
        FollowingID = value.FollowingID,
        RecurrenceException = value.RecurrenceException
    };
    db.ScheduleEventDatas.InsertOnSubmit(appointment);
    db.SubmitChanges();
}
if (param.action == "update" || (param.action == "batch" && param.changed != null)) // this block of code will execute while updating the appointment
{
    var value = (param.action == "update") ? param.value : param.changed[0];
    var filterData = db.ScheduleEventDatas.Where(c => c.Id == Convert.ToInt32(value.Id));
    if (filterData.Count() > 0)
    {
        DateTime startTime = Convert.ToDateTime(value.StartTime);
        DateTime endTime = Convert.ToDateTime(value.EndTime);
        ScheduleEventData appointment = db.ScheduleEventDatas.Single(A => A.Id == Convert.ToInt32(value.Id));
        appointment.StartTime = startTime;
        appointment.EndTime = endTime;
        appointment.StartTimezone = value.StartTimezone;
        appointment.EndTimezone = value.EndTimezone;
        appointment.Subject = value.Subject;
        appointment.IsAllDay = value.IsAllDay;
        appointment.RecurrenceRule = value.RecurrenceRule;
        appointment.RecurrenceID = value.RecurrenceID;
        appointment.FollowingID = value.FollowingID;
        appointment.RecurrenceException = value.RecurrenceException;
    }
    db.SubmitChanges();
}
if (param.action == "remove" || (param.action == "batch" && param.deleted != null)) // this block of code will execute while removing the appointment
{
    if (param.action == "remove")
    {
        int key = Convert.ToInt32(param.key);
        ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == key).FirstOrDefault();
        if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
    }
    else
    {
        foreach (var apps in param.deleted)
        {
            ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == apps.Id).FirstOrDefault();
            if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
        }
    }
    db.SubmitChanges();
}

Restricting edit action based on specific criteria

You can also dynamically prevent appointment editing in the Scheduler. For example, if you want to prevent updating appointments during non-working hours, you can check the appropriate condition in the actionBegin event.

Delete

Appointments can be deleted in either of the following ways:

  • Select an appointment and click the delete icon in the quick popup that appears.
  • Select an appointment and press the Delete key.
  • Select multiple appointments by tap-holding an event, then single-clicking consecutive events, and then pressing the Delete key.
  • Double-click an event to open the default event editor prefilled with event details, and then choose the Delete button.

While performing any of these actions, a delete confirmation popup appears before the appointment is deleted.

Deletion using editor window

When you double-click an event, the default editor window opens and includes a Delete button at the bottom left to allow you to delete that appointment. When deleting an appointment through this editor window, the delete confirmation does not appear, and the event is deleted immediately.

Deletion using deleteEvent method

Appointments can be removed manually using the deleteEvent method. The following code examples show how to delete normal and recurring events.

Normal event - You can delete a normal Scheduler appointment by passing its id value or the entire event object collection to the deleteEvent method.

Recurring Event - Recurring events can be removed as an entire series or by removing a single occurrence using the deleteEvent method, which takes either the DeleteSeries or DeleteOccurrence parameter. The following code example shows how to delete an entire series.

Removing events from database at server-side

When an event is deleted from the Scheduler, the remove action occurs. The following code example shows how to delete events from the database on the server side.

if (param.action == "remove" || (param.action == "batch" && param.deleted != null)) // this block of code will execute while removing the appointment
{
    if (param.action == "remove")
    {
        int key = Convert.ToInt32(param.key);
        ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == key).FirstOrDefault();
        if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
    }
    else
    {
        foreach (var apps in param.deleted)
        {
            ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == apps.Id).FirstOrDefault();
            if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
        }
    }
    db.SubmitChanges();
}

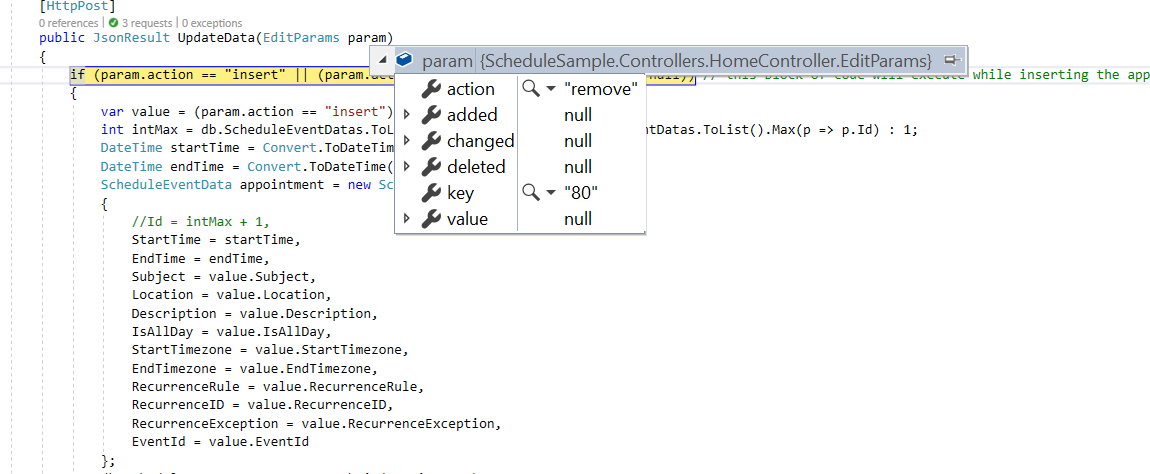

removing event

How to delete a single occurrence or entire series from Scheduler and update it in database at server-side

Recurring events can be deleted in either of the following two ways:

  • Single occurrence
  • Entire series

Single occurrence - When you try to delete a recurring event, a popup prompts you to choose whether to delete the single event or the entire series. If you select the DELETE EVENT option, only a single occurrence of the recurring appointment is removed. The following process takes place while removing a single occurrence:

  • The selected occurrence is deleted from the Scheduler user interface.
  • In code, the parent recurring event object is updated with the appropriate recurrenceException field to hold the deleted occurrence date collection.

Therefore, when a single occurrence is deleted from a recurring event, the update action takes place on the parent recurring event as shown in the following code example.

NOTE

If you delete an existing edited occurrence of a recurring event, only the edited occurrence that exists in the database as an individual event object is removed. In this case, the delete action takes place instead of the update action, and the parent recurring event object remains unchanged.

if (param.action == "update" || (param.action == "batch" && param.changed != null)) // this block of code will execute while updating the appointment
{
    var value = (param.action == "update") ? param.value : param.changed[0];
    var filterData = db.ScheduleEventDatas.Where(c => c.Id == Convert.ToInt32(value.Id));
    if (filterData.Count() > 0)
    {
        DateTime startTime = Convert.ToDateTime(value.StartTime);
        DateTime endTime = Convert.ToDateTime(value.EndTime);
        ScheduleEventData appointment = db.ScheduleEventDatas.Single(A => A.Id == Convert.ToInt32(value.Id));
        appointment.StartTime = startTime;
        appointment.EndTime = endTime;
        appointment.StartTimezone = value.StartTimezone;
        appointment.EndTimezone = value.EndTimezone;
        appointment.Subject = value.Subject;
        appointment.IsAllDay = value.IsAllDay;
        appointment.RecurrenceRule = value.RecurrenceRule;
        appointment.RecurrenceID = value.RecurrenceID;
        appointment.RecurrenceException = value.RecurrenceException;
    }
    db.SubmitChanges();
}

Entire series - When you select the DELETE SERIES option from the popup, the entire recurring series is deleted. If the parent event contains any edited occurrences, all child occurrences that are maintained as separate event objects are also removed from the data source. Deleting the entire series triggers the remove action and removes one or more event objects at the same time.

if (param.action == "remove" || (param.action == "batch" && param.deleted != null)) // this block of code will execute while removing the appointment
{
    if (param.action == "remove")
    {
        int key = Convert.ToInt32(param.key);
        ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == key).FirstOrDefault();
        if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
    }
    else
    {
        foreach (var apps in param.deleted)
        {
            ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == apps.Id).FirstOrDefault();
            if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
        }
    }
    db.SubmitChanges();
}

How to delete only the current and following events of a series

Recurring events can be deleted from the current event and following events only when the editFollowingEvents property is enabled.

Delete Following Events - When you attempt to delete a recurring event, a popup prompts you to choose whether to delete the single event, the following events, or the entire series. If you choose the FOLLOWING EVENT option, only the current event and the following events in the series are removed. The following process takes place while removing the event:

  • The selected occurrence and the following events in the same series are deleted from the Scheduler user interface.
  • In code, the parent recurring event object is updated with the appropriate recurrenceRule field to update the end date of the recurring events.

Therefore, when following events are deleted from a recurring event, the remove and update actions take place on the immediate parent recurring event as shown in the following code example.

if (param.action == "update" || (param.action == "batch" && param.changed != null)) // this block of code will execute while updating the appointment
{
    var value = (param.action == "update") ? param.value : param.changed[0];
    var filterData = db.ScheduleEventDatas.Where(c => c.Id == Convert.ToInt32(value.Id));
    if (filterData.Count() > 0)
    {
        DateTime startTime = Convert.ToDateTime(value.StartTime);
        DateTime endTime = Convert.ToDateTime(value.EndTime);
        ScheduleEventData appointment = db.ScheduleEventDatas.Single(A => A.Id == Convert.ToInt32(value.Id));
        appointment.StartTime = startTime;
        appointment.EndTime = endTime;
        appointment.StartTimezone = value.StartTimezone;
        appointment.EndTimezone = value.EndTimezone;
        appointment.Subject = value.Subject;
        appointment.IsAllDay = value.IsAllDay;
        appointment.RecurrenceRule = value.RecurrenceRule;
        appointment.RecurrenceID = value.RecurrenceID;
        appointment.FollowingID = value.FollowingID;
        appointment.RecurrenceException = value.RecurrenceException;
    }
    db.SubmitChanges();
}
if (param.action == "remove" || (param.action == "batch" && param.deleted != null)) // this block of code will execute while removing the appointment
{
    if (param.action == "remove")
    {
        int key = Convert.ToInt32(param.key);
        ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == key).FirstOrDefault();
        if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
    }
    else
    {
        foreach (var apps in param.deleted)
        {
            ScheduleEventData appointment = db.ScheduleEventDatas.Where(c => c.Id == apps.Id).FirstOrDefault();
            if (appointment != null) db.ScheduleEventDatas.DeleteOnSubmit(appointment);
        }
    }
    db.SubmitChanges();
}

Drag and drop

When you drag and drop a normal event on the Scheduler, the event editing action takes place. When you drag and drop a recurring event to a new time range, the batch action explained in the Editing a single occurrence process takes place, allowing both the Add and Edit actions to occur together.

NOTE

By default, when you drag a recurring instance, only that occurrence is edited, not the entire series.

Resize

When you resize a normal event on the Scheduler, the event editing action takes place. When you resize a recurring event to a new time, the batch action explained in the Editing a single occurrence process takes place, allowing both the Add and Edit actions to occur together.

NOTE

By default, when you resize a recurring instance, only that occurrence is edited, not the entire series.

NOTE

You can refer to our ASP.NET Core Scheduler feature tour page for more details. You can also explore our ASP.NET Core Scheduler example to learn how to present and manipulate data.
