Cell Customization in ASP.NET Core Schedule Component

18 Nov 20186 minutes to read

The cells of the Scheduler can be easily customized either using the cell template or renderCell event.

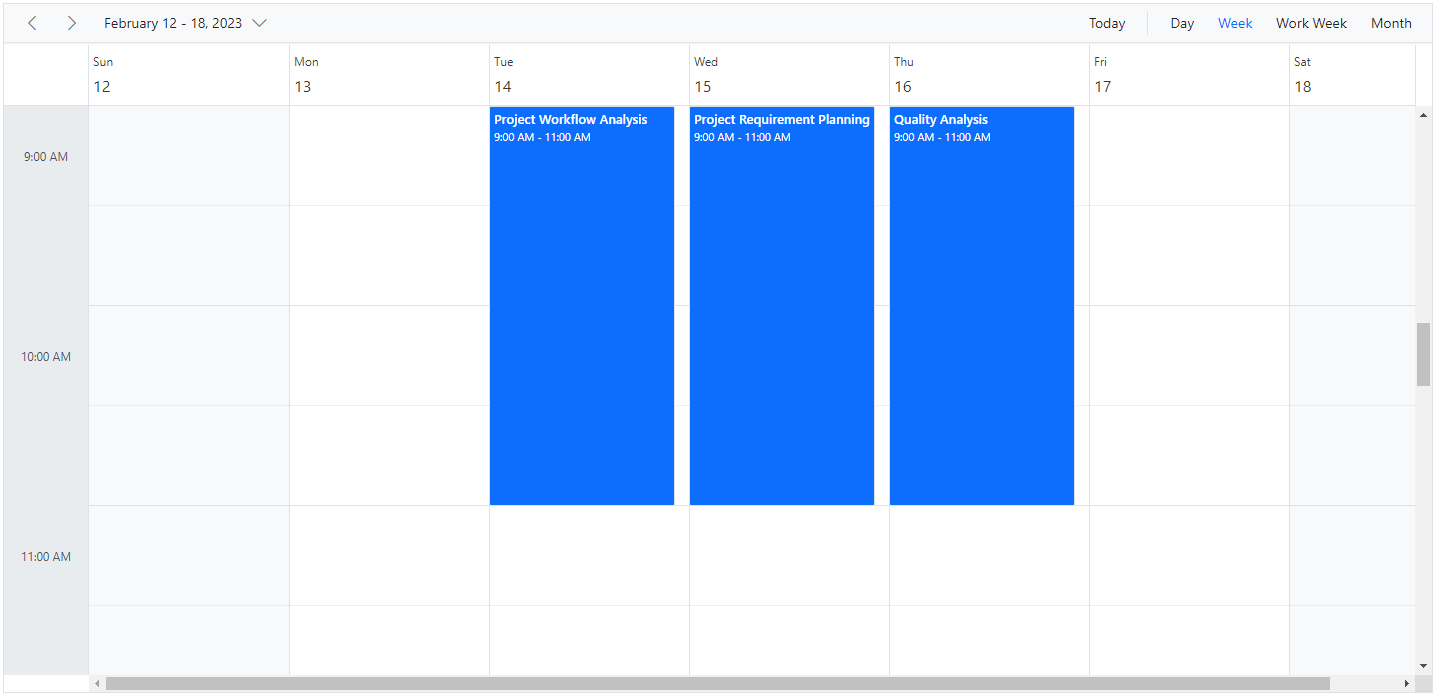

Setting cell dimensions in all views

The height and width of the Scheduler cells can be customized either to increase or reduce its size through thecssClass property, which overrides the default CSS applied on cells.

Check for cell availability

You can check whether the given time range slots are available for event creation or already occupied by other events using the isSlotAvailable method. In the following code example, if a specific time slot already contains an appointment, then no more appointments can be added to that cell.

Customizing cells in all the views

It is possible to customize the appearance of the cells using both template options and renderCell event on all the views.

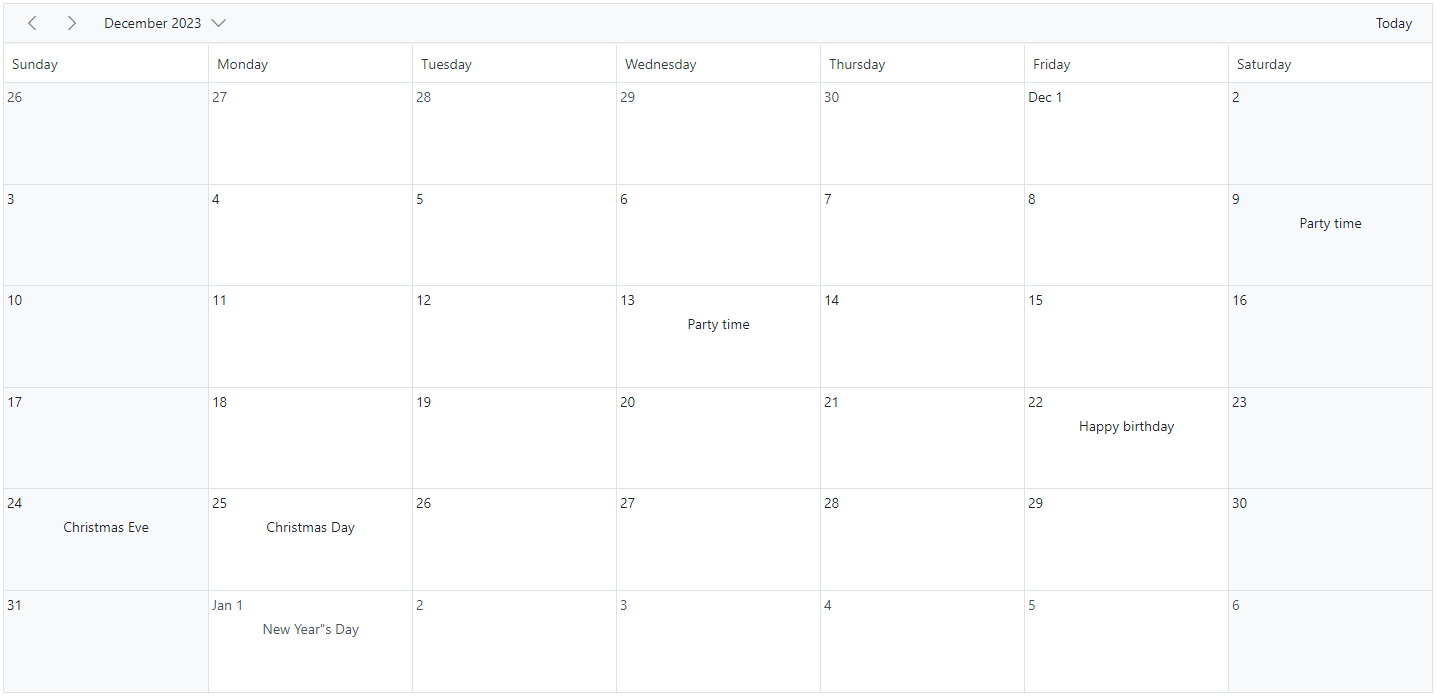

Using template

The cellTemplate option accepts the template string and is used to customize the cell background with specific images or appropriate text on the given date values.

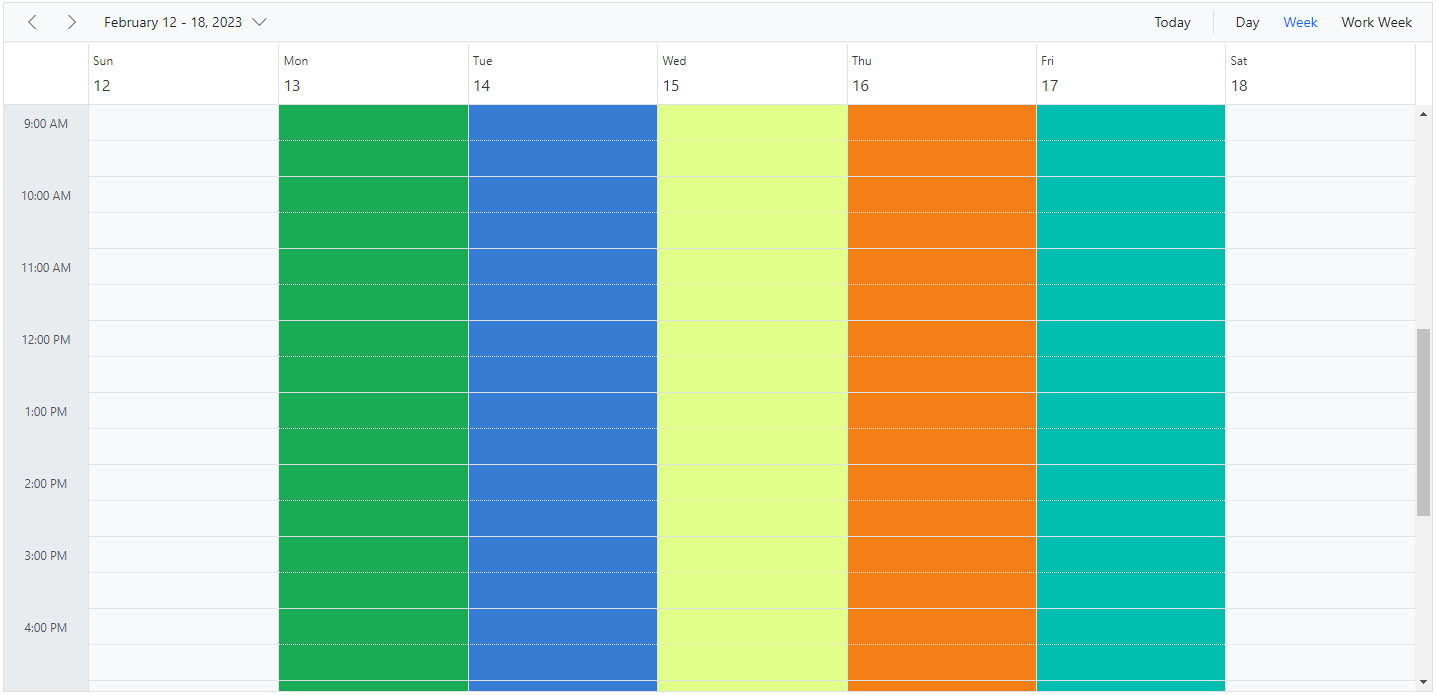

Using renderCell event

An alternative to cellTemplate is the renderCell event, which can also be used to customize the cells with appropriate images or formatted text values.

You can customize cells such as work cells, month cells, all-day cells, header cells, resource header cells using renderCell event by checking the elementType option within the event. You can check elementType with any of the following.

Element type	Description
dateHeader	triggers on header cell rendering.
monthDay	triggers on header cell in month view rendering.
resourceHeader	triggers on resource header cell rendering.
alldayCells	triggers on all day cell rendering.
emptyCells	triggers on empty cell rendering on header bar.
resourceGroupCells	triggers on rendering of work cells for parent resource.
workCells	triggers on work cell rendering.
monthCells	triggers on month cell rendering.
majorSlot	triggers on major time slot cell rendering.
minorSlot	triggers on minor time slot cell rendering.
weekNumberCell	triggers on cell displaying week number.

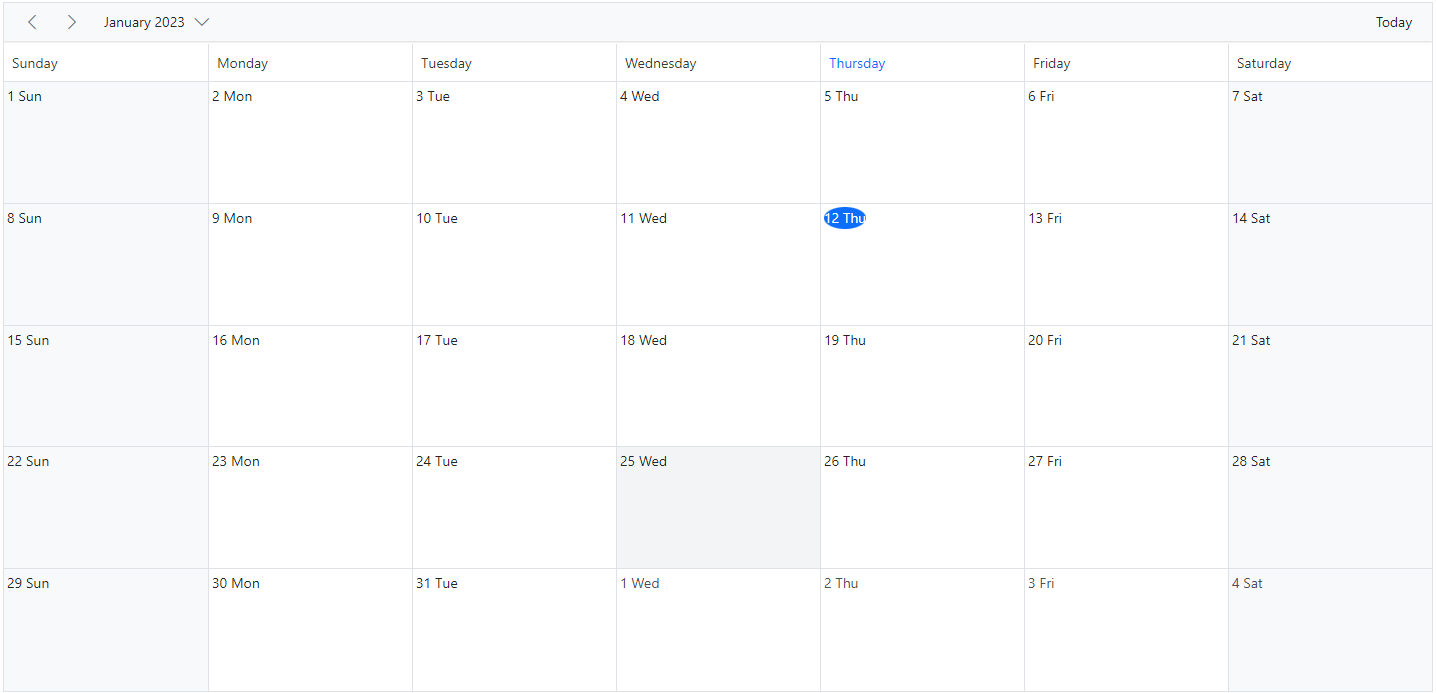

Customizing cell header in month view

The month header of each date cell in the month view can be customized using the The month header of each date cell in the month view can be customized using the cellHeaderTemplate option which accepts the string or HTMLElement. The corresponding date can be accessed with the template.
option which accepts the string or HTMLElement. The corresponding date can be accessed with the template.

Customizing the minimum and maximum date values

Providing the minDate and maxDate property with some date values, allows the Scheduler to set the minimum and maximum date range. The Scheduler date that lies beyond this minimum and maximum date range will be in a disabled state so that the date navigation will be blocked beyond the specified date range.

NOTE

By default, the minDate property value is set to new Date(1900, 0, 1) and maxDate property value is set to new Date(2099, 11, 31). The user can also set the customized minDate and maxDate property values.

Customizing the weekend cells background color

You can customize the background color of weekend cells by utilizing the renderCell event and checking the elementType option within the event.

function onRendercell(args) {
        if (args.elementType == "workCells") {
            // To change the color of weekend columns in week view
            if (args.date) {
                if (args.date.getDay() === 6) {
                    (args.element).style.background = '#ffdea2';
                }
                if (args.date.getDay() === 0) {
                    (args.element).style.background = '#ffdea2';
                }
            }
        }
    }

And, the background color for weekend cells in the Month view through the cssClass property, which overrides the default CSS applied on cells.

.schedule-cell-customization.e-schedule .e-month-view .e-work-cells:not(.e-work-days) {
    background-color: #f08080;
}

How to disable multiple cell and row selection in Schedule

By default, the allowMultiCellSelection and allowMultiRowSelection properties of the Schedule are set to true. So, the Schedule allows user to select multiple cells and rows. If the user want to disable this multiple cell and row selection. The user can disable this feature by setting up false to these properties.

NOTE

You can refer to our ASP.NET Core Scheduler feature tour page for its groundbreaking feature representations. You can also explore our ASP.NET Core Scheduler example to knows how to present and manipulate data.
