Resources and Grouping in Angular Scheduler

Resources and grouping support allows the Scheduler to be shared by multiple resources. The appointments for each resource are displayed under the relevant resource. Each resource in the Scheduler is arranged in a column/row-wise order, with individual spacing to display all its respective appointments on a single page. It also supports multiple levels of grouping of resources, enabling categorization in a hierarchical structure and showing them either in expandable groups (Timeline views) or as a vertical hierarchy one after the other (Calendar views).

It is also possible to assign one or more resources to the same appointment by allowing multiple selection of resource options available in the event editor window.

The Angular Scheduler groups the resources based on different criteria. It includes grouping appointments based on resources, grouping resources based on dates, and timeline scheduling. Also, the data for resources can be bound to the Scheduler either as a local JSON collection or through a URL, retrieving data from remote data services.

Learn how to add appointments of multiple resources to the Angular Scheduler from this video:

Resource fields

The default options available within the resources collection are as follows,

Field name	Type	Description
`field`	String	A value that binds to the resource field of event object.
`title`	String	It holds the title of the resource field to be displayed on the event editor window.
`name`	String	A unique resource name used for differentiating various resource objects while grouping.
`allowMultiple`	Boolean	When set to `true`, allows multiple selection of resource names, thus creating multiple instances of same appointment for the selected resources.
`dataSource`	Object	Assigns the resource `dataSource`, where data can be passed either as an array of JavaScript objects, or else can create an instance of `DataManager` in case of processing remote data and can be assigned to the `dataSource` property. With the remote data assigned to `dataSource`, check the available adaptors to customize the data processing.
`query`	Query	Defines the external `query` that will be executed along with the data processing.
`idField`	String	Binds the resource ID field name from the resources `dataSource`.
`expandedField`	String	Binds the `expandedField` name from the resources `dataSource`. It usually holds boolean value which decide whether the resource of timeline views is in collapse or expand state on initial load.
`textField`	String	Binds the text field name from the resources `dataSource`. It usually holds the resource names.
`groupIDField`	String	Binds the group ID field name from the resource `dataSource`. It usually holds the value of resource IDs of parent level resources.
`colorField`	String	Binds the color field name from the resource `dataSource`. The color value mapped in this field will be applied to the events of resources.
`startHourField`	String	Binds the start hour field name from the resource `dataSource`. It allows to provide different work start hour for the resources.
`endHourField`	String	Binds the end hour field name from the resource `dataSource`. It allows providing different work end hours for the resources.
`workDaysField`	String	Binds the work days field name from the resources `dataSource`. It allows to provide different working days collection for the resources.
`cssClassField`	String	Binds the custom CSS class field name from the resources `dataSource`. It maps the CSS class written for the specific resources and applies it to the events of those resources.

Resource data binding

The data for resources can be bound to the Scheduler either as a local JSON collection or a service URL, retrieving resource data from remote data services.

Using local JSON data

The following code example depicts how to bind the local JSON data to the dataSource of the resources collection.

import { Component } from '@angular/core';
import {
    WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel
} from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource.ts';

@Component({
    selector: "app-root",
    providers: [WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService],
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings">
      <e-resources>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleOwner"
          textField="OwnerText" idField="Id" colorField="OwnerColor">
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public allowMultipleOwner: Boolean = true;
    public ownerDataSource: Object[] = [
        { OwnerText: 'Nancy', Id: 1, OwnerColor: '#ffaa00' },
        { OwnerText: 'Steven', Id: 2, OwnerColor: '#f8a398' },
        { OwnerText: 'Michael', Id: 3, OwnerColor: '#7499e1' }
    ];
}

Using remote data service

The following code example depicts how to bind remote data to the resources dataSource.

import {
    WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel
} from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource.ts';
import { DataManager, UrlAdaptor } from '@syncfusion/ej2-data';

@Component({
    selector: "app-root",
    providers: [WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService],
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings">
      <e-resources>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="resourceDataManager" [allowMultiple]="allowMultipleOwner"
          textField="OwnerText" idField="Id" colorField="OwnerColor">
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth', 'Agenda'];
    public resourceDataManager: DataManager = new DataManager({
        url: 'Home/GetResourceData',
        adaptor: new UrlAdaptor(),
        crossDomain: true
    });
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public allowMultipleOwner: Boolean = true;
}

Scheduler with multiple resources

It is possible to display the Scheduler in default mode without visually showcasing all the resources in it, but allowing to assign the required resources to the appointments through the event editor resource options.

The appointments belonging to the different resources will be displayed altogether on the default Scheduler, which will be differentiated based on the resource color assigned in the resources (depicting to which resource that particular appointment belongs) collection.

Example: To display the default Scheduler with multiple resource options, define the resources property with all its options without using the group property.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { RadioButtonModule } from '@syncfusion/ej2-angular-buttons'



import { Component } from '@angular/core';
import {
    WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, DayService,
    WorkWeekService,
    MonthAgendaService
} from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        RadioButtonModule
    ],
standalone: true,
    selector: "app-root",
    providers: [WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, DayService,
      WorkWeekService,
      MonthAgendaService],
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings">
      <e-resources>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleOwner"
          textField="OwnerText" idField="Id" colorField="OwnerColor">
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public allowMultipleOwner: Boolean = true;
    public ownerDataSource: Object[] = [
        { OwnerText: 'Nancy', Id: 1, OwnerColor: '#ffaa00' },
        { OwnerText: 'Steven', Id: 2, OwnerColor: '#f8a398' },
        { OwnerText: 'Michael', Id: 3, OwnerColor: '#7499e1' }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

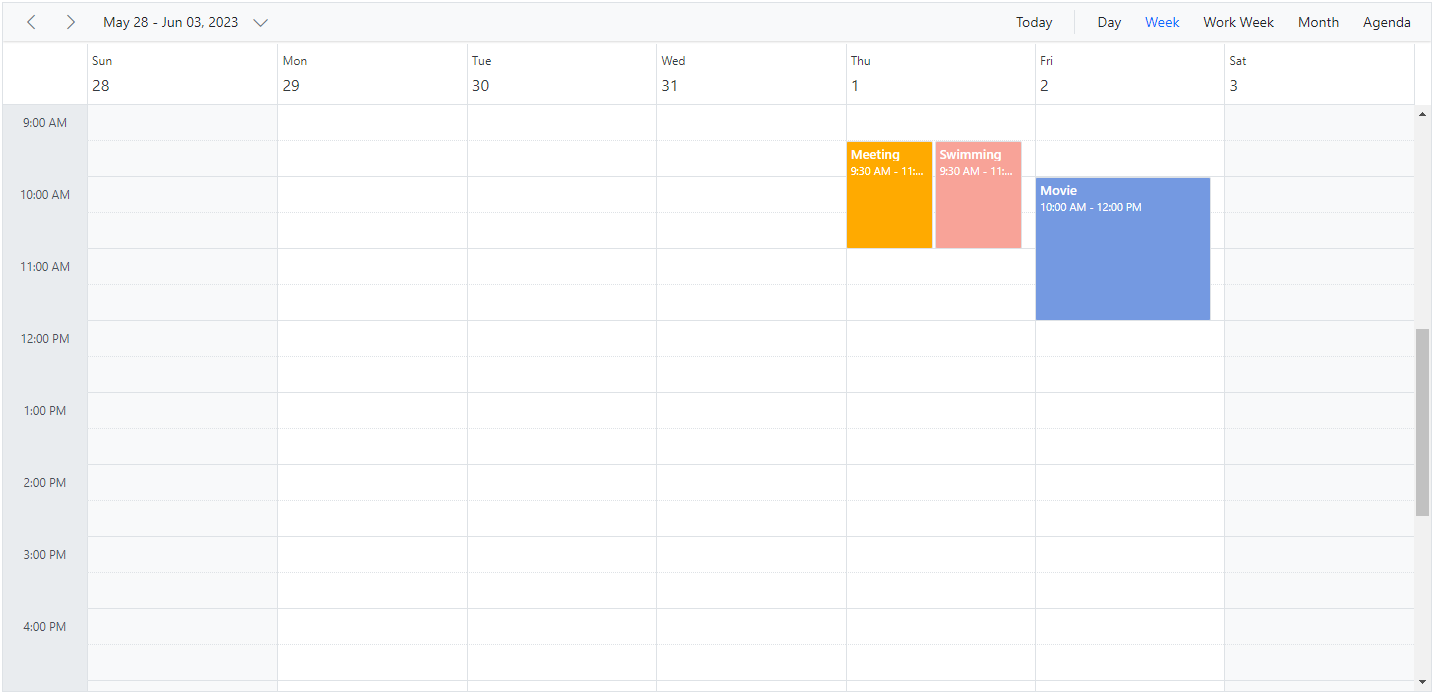

Multiple Resources

Setting allowMultiple to true allows selecting multiple resources in the event editor and creates copies of the same appointment for each selected resource.

Resource grouping

Resource grouping support allows the Scheduler to group the resources in a hierarchical structure both as an expandable groups (Timeline views) and as vertical hierarchy displaying resources one after the other (Resources view).

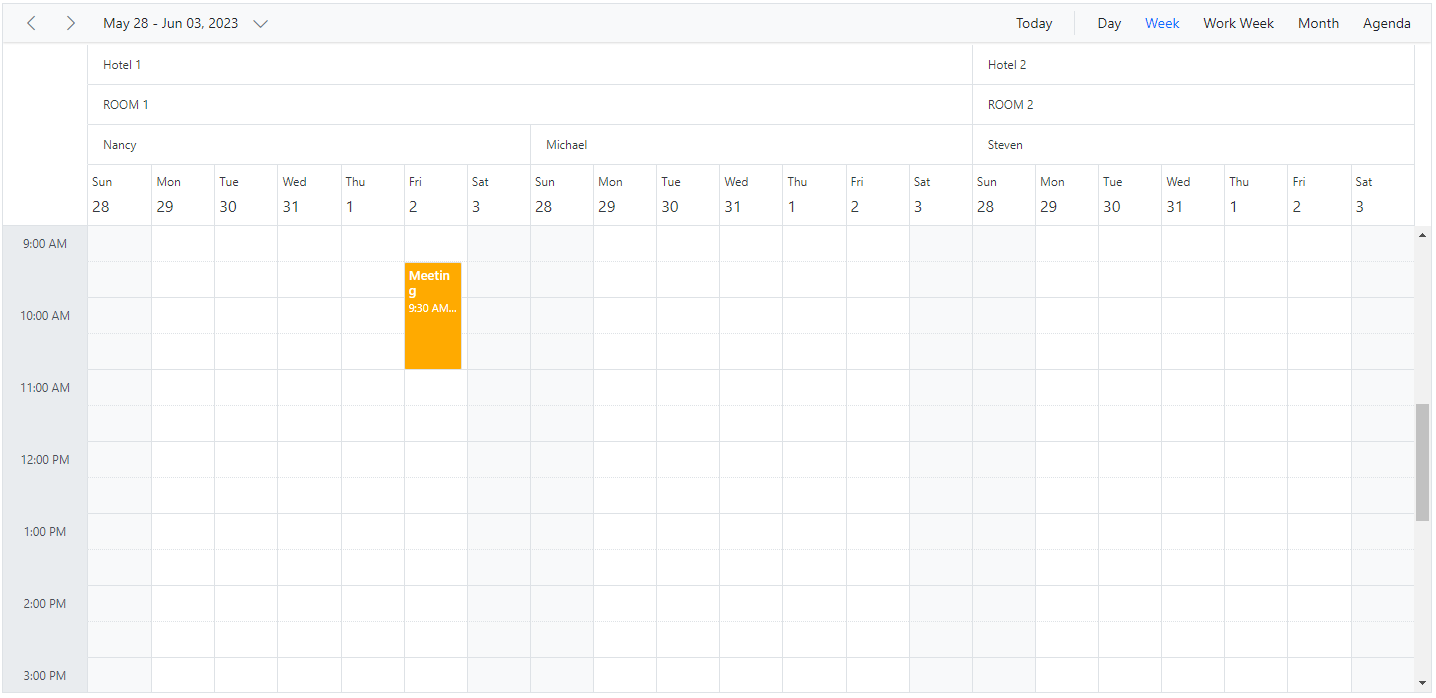

Scheduler supports both single and multiple levels of resource grouping that can be customized both in timeline and vertical Scheduler views.

Explore the advanced options available with the multiple resources and grouping concepts of Angular Scheduler by watching this video:

Vertical resource view

The following code example displays how the multiple resources are grouped and its events are portrayed in the default calendar views.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { resourceConferenceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="ProjectId" title="Choose Project" name="Projects"
            [dataSource]="projectDataSource"
            textField="text" idField="id" colorField="color">
        </e-resource>
        <e-resource field="TaskId" title="Category" name="Categories"
          [dataSource]="categoryDataSource" [allowMultiple]="allowMultipleCategory"
          textField="text" idField="id" colorField="color">
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceConferenceData
    };
    public group: GroupModel = {
        byGroupID: false,
        resources: ['Projects', 'Categories']
    };
    public projectDataSource: Object[] = [
        { text: 'PROJECT 1', id: 1, color: '#cb6bb2' },
        { text: 'PROJECT 2', id: 2, color: '#56ca85' },
        { text: 'PROJECT 3', id: 3, color: '#df5286' }
    ];
    public allowMultipleCategory: Boolean = true;
    public categoryDataSource: Object[] = [
        { text: 'Development', id: 1, color: '#df5286' },
        { text: 'Testing', id: 2, color: '#7fa900' }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

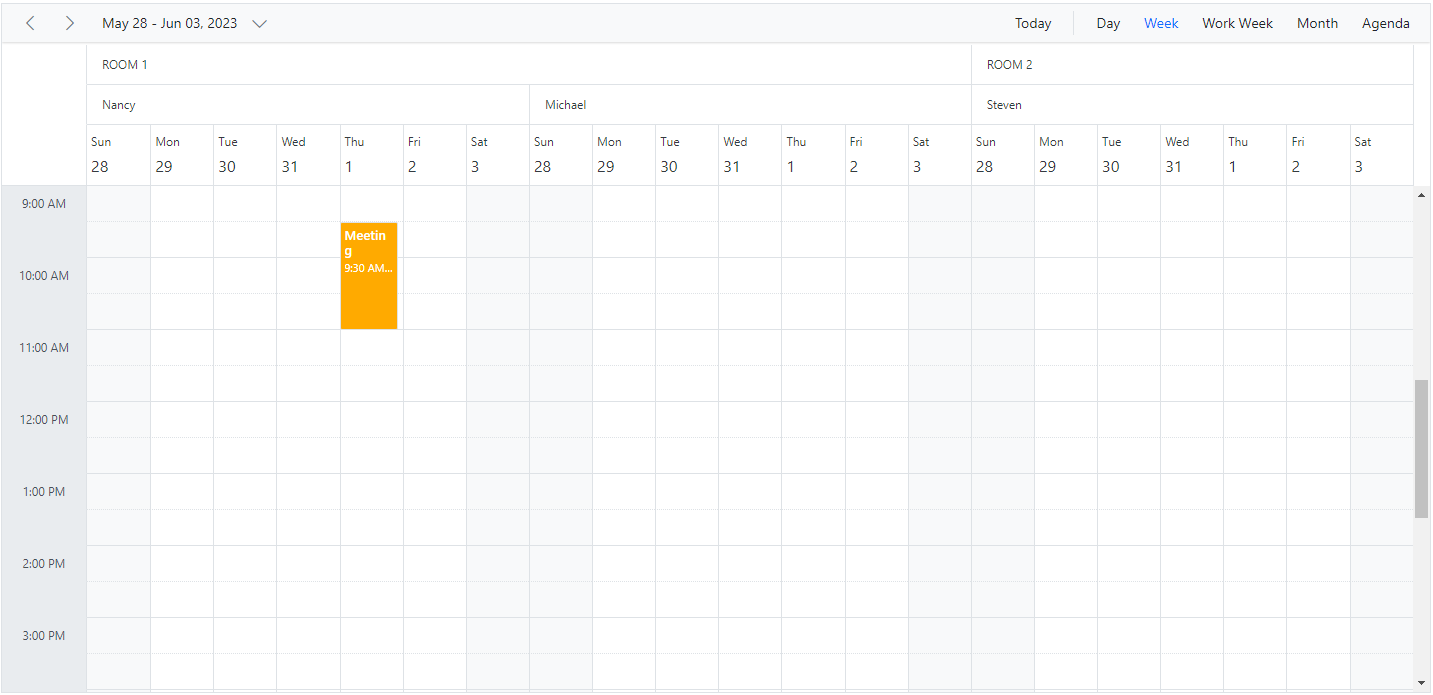

Vertical Resource View

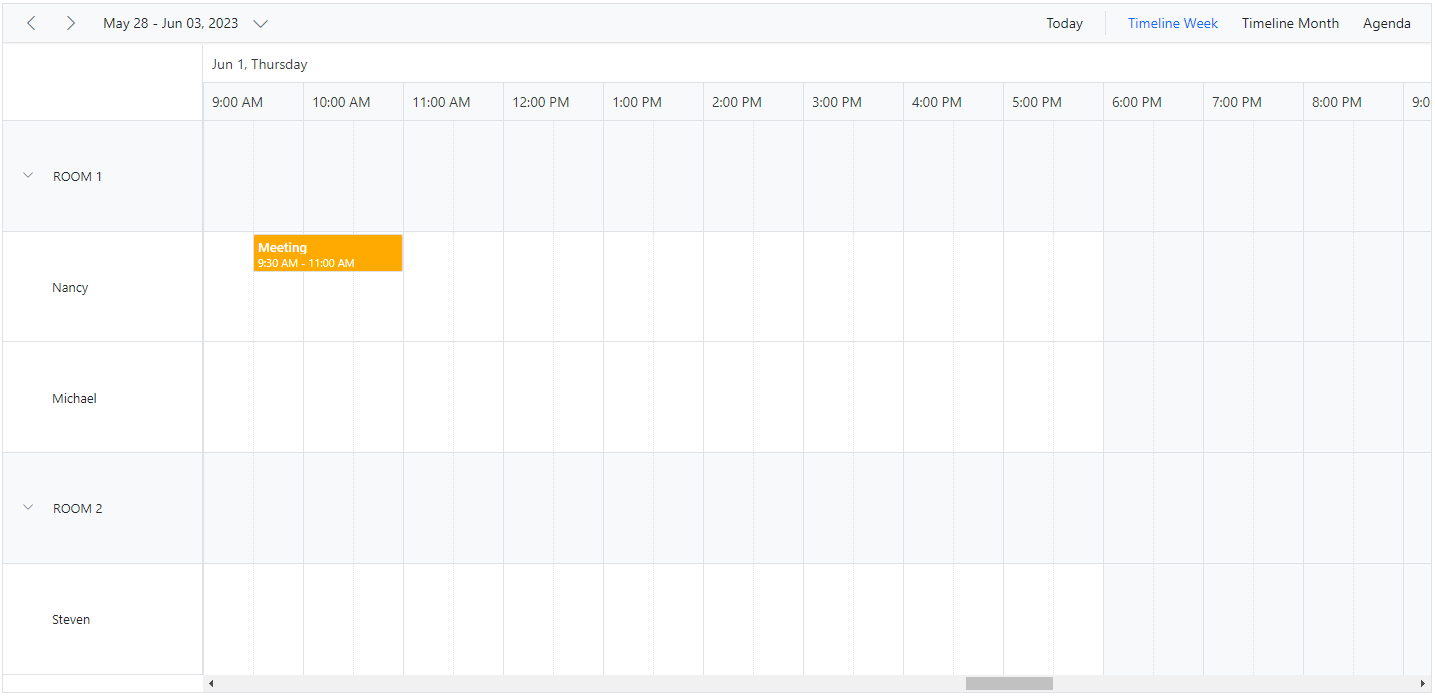

Timeline resource view

The following code example depicts how to group the multiple resources on Timeline Scheduler views and its relevant events are displayed accordingly under those resources.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'



import { Component } from '@angular/core';
import {
    DayService, WeekService, WorkWeekService, MonthService, MonthAgendaService, TimelineViewsService, TimelineMonthService, AgendaService, EventSettingsModel, GroupModel
} from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [currentView]='currentView' [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="RoomId" title="Room" name="Rooms"
            [dataSource]="roomDataSource"
            textField="RoomText" idField="Id" colorField="RoomColor">
        </e-resource>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleCategory"
          textField='OwnerText' idField='Id' groupIDField='OwnerGroupId' colorField='OwnerColor'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 4);
    public currentView: string = 'TimelineWeek';
    public views: Array<string> = ['TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public group: GroupModel = {
        resources: ['Rooms', 'Owners']
    };
    public roomDataSource: Object[] = [
        { RoomText: 'ROOM 1', Id: 1, RoomColor: '#cb6bb2' },
        { RoomText: 'ROOM 2', Id: 2, RoomColor: '#56ca85' }
    ];
    public allowMultipleOwner: Boolean = true;
    public ownerDataSource: Object[] = [
        { OwnerText: 'Nancy', Id: 1, OwnerGroupId: 1, OwnerColor: '#ffaa00' },
        { OwnerText: 'Steven', Id: 2, OwnerGroupId: 2, OwnerColor: '#f8a398' },
        { OwnerText: 'Michael', Id: 3, OwnerGroupId: 1, OwnerColor: '#7499e1' }
    ];
allowMultipleCategory: any;
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Timeline Resource view

Grouping single-level resources

This kind of grouping allows the Scheduler to display all the resources at a single level simultaneously. The appointments mapped under resources will be displayed with the colors as per the colorField defined on the resources collection.

Example: To display the Scheduler with single level resource grouping:

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'



import { Component } from '@angular/core';
import {
    WorkWeekService, WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel, DayService,MonthAgendaService
} from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleCategory"
          textField='OwnerText' idField='Id' colorField='OwnerColor'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public group: GroupModel = {
        resources: ['Owners']
    };
    public allowMultipleOwner: Boolean = true;
    public ownerDataSource: Object[] = [
        { OwnerText: 'Nancy', Id: 1, OwnerColor: '#ffaa00' },
        { OwnerText: 'Steven', Id: 2, OwnerColor: '#f8a398' },
        { OwnerText: 'Michael', Id: 3, OwnerColor: '#7499e1' }
    ];
allowMultipleCategory: any;
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

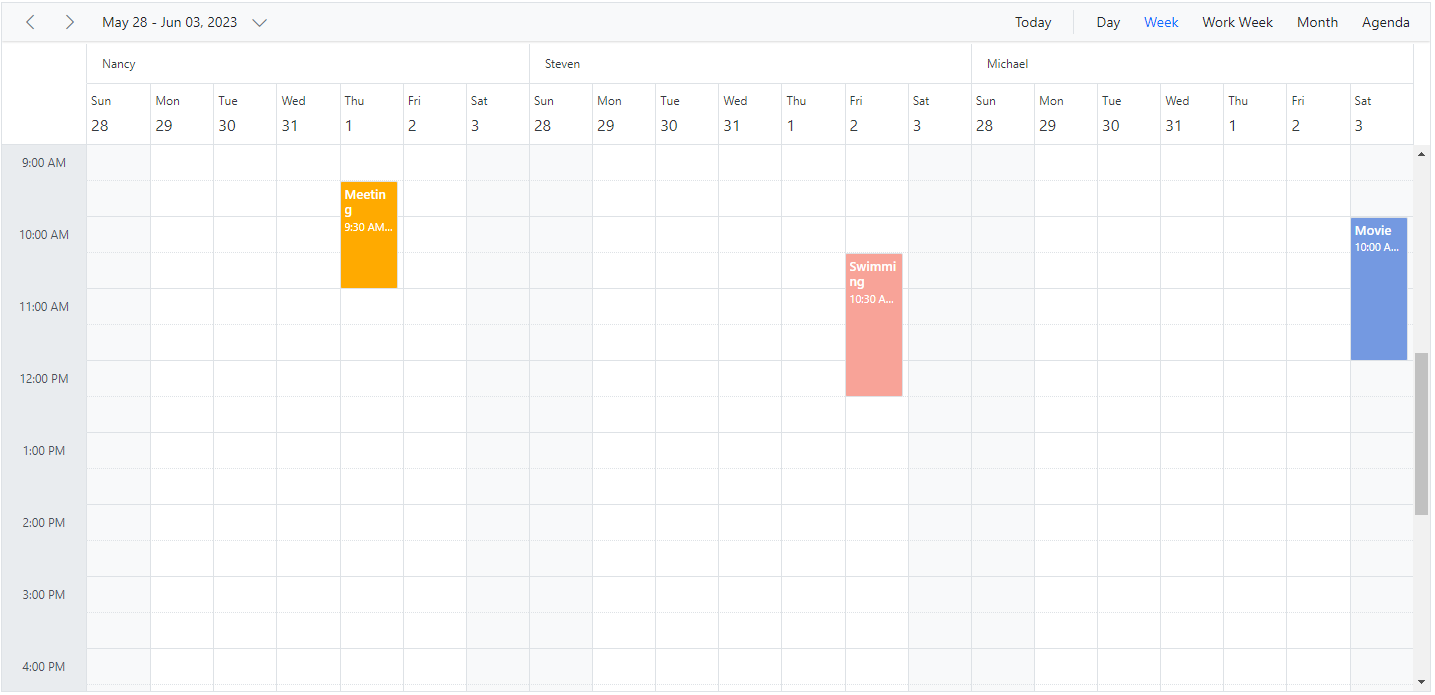

Grouping single-level resources

The name field defined in the resources collection namely Owners will be mapped within the group property, in order to enable the grouping option with those resource levels on the Scheduler.

Grouping multi-level resources

It is possible to group the resources of Scheduler in multiple levels, by mapping the child resources to each parent resource. In the following example, there are 2 levels of resources, on which the second level resources are defined with groupID mapping to the first level resource’s ID so as to establish the parent-child relationship between them.

Example: To display the Scheduler with multiple level resource grouping options:

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'



import { Component } from "@angular/core";
import {
  WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService,DayService,MonthAgendaService,WorkWeekService,
  EventSettingsModel, GroupModel } from "@syncfusion/ej2-angular-schedule";
import { resourceData } from "./datasource";
@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],
standalone: true,
  selector: "app-root",
  providers: [WeekService, WorkWeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService ],
  // specifies the template string for the Schedule component
  template: `<ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate"
      [views]="views" [currentView]="currentView" [eventSettings]="eventSettings" [group]="group">
      <e-resources>
        <e-resource field="RoomId" title="Room" name="Rooms" [dataSource]="roomDataSource"
         textField="RoomText" idField="Id" colorField="RoomColor">
        </e-resource>
        <e-resource field="OwnerId" title="Owner" name="Owners" [dataSource]="ownerDataSource"         [allowMultiple]="allowMultipleCategory" textField="OwnerText"
         idField="Id" groupIDField="OwnerGroupId" colorField="OwnerColor">
        </e-resource>
      </e-resources>
    </ejs-schedule>
  `
})
export class AppComponent {
  public selectedDate: Date = new Date(2018, 3, 1);
  public views: Array<string> = ["Week", "Month", "TimelineWeek", "TimelineMonth", "Agenda"];
  public eventSettings: EventSettingsModel = { dataSource: resourceData };
  public group: GroupModel = {
    resources: ["Rooms", "Owners"]
  };
  public roomDataSource: Object[] = [
    { RoomText: "ROOM 1", Id: 1, RoomColor: "#cb6bb2" },
    { RoomText: "ROOM 2", Id: 2, RoomColor: "#56ca85" }
  ];
  public allowMultipleOwner: Boolean = true;
  public ownerDataSource: Object[] = [
    { OwnerText: "Nancy", Id: 1, OwnerGroupId: 1, OwnerColor: "#ffaa00" },
    { OwnerText: "Steven", Id: 2, OwnerGroupId: 2, OwnerColor: "#f8a398" },
    { OwnerText: "Michael", Id: 3, OwnerGroupId: 1, OwnerColor: "#7499e1" }
  ];
currentView: any;
allowMultipleCategory: any;
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Grouping multi-level resources

One-to-one grouping

In multi-level grouping, Scheduler usually groups the resources on the child level based on the GroupID that maps with the Id field of parent level resources (as byGroupID set to true by default). There is also an option that allows you to group all child resources against each of its parent resource(s). To enable this kind of grouping, set false to the byGroupID option within the group property. In the following code example, there are two levels of resources, on which all the 3 resources at the child level are mapped one to one with each resource on the first level.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'



import { Component } from "@angular/core";
import {
  WorkWeekService, DayService, WeekService,MonthAgendaService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel
} from "@syncfusion/ej2-angular-schedule";
import { resourceData } from "./datasource";
@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
  selector: "app-root",
  // specifies the template string for the Schedule component
  template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [currentView]="currentView" [eventSettings]="eventSettings" [group]="group">
      <e-resources>
        <e-resource field="RoomId" title="Room" name="Rooms" [dataSource]="roomDataSource"
          textField="RoomText" idField="Id" colorField="RoomColor">
        </e-resource>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleOwner"
          textField="OwnerText" idField="Id" colorField="OwnerColor">
        </e-resource>
      </e-resources>
    </ejs-schedule>
  `
})
export class AppComponent {
  public selectedDate: Date = new Date(2018, 3, 1);
  public views: Array<string> = ["Week", "Month", "TimelineWeek", "TimelineMonth", "Agenda"];
  public eventSettings: EventSettingsModel = {
    dataSource: resourceData
  };
  public group: GroupModel = {
    byGroupID: false,
    resources: ['Rooms', 'Owners']
  };
  public roomDataSource: Object[] = [
    { RoomText: 'ROOM 1', Id: 1, RoomColor: '#cb6bb2' },
    { RoomText: 'ROOM 2', Id: 2, RoomColor: '#56ca85' }
  ];
  public allowMultipleOwner: Boolean = true;
  public ownerDataSource: Object[] = [
    { OwnerText: 'Nancy', Id: 1, OwnerColor: '#ffaa00' },
    { OwnerText: 'Steven', Id: 2, OwnerColor: '#f8a398' },
    { OwnerText: 'Michael', Id: 3, OwnerColor: '#7499e1' }
  ];
currentView: any;
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

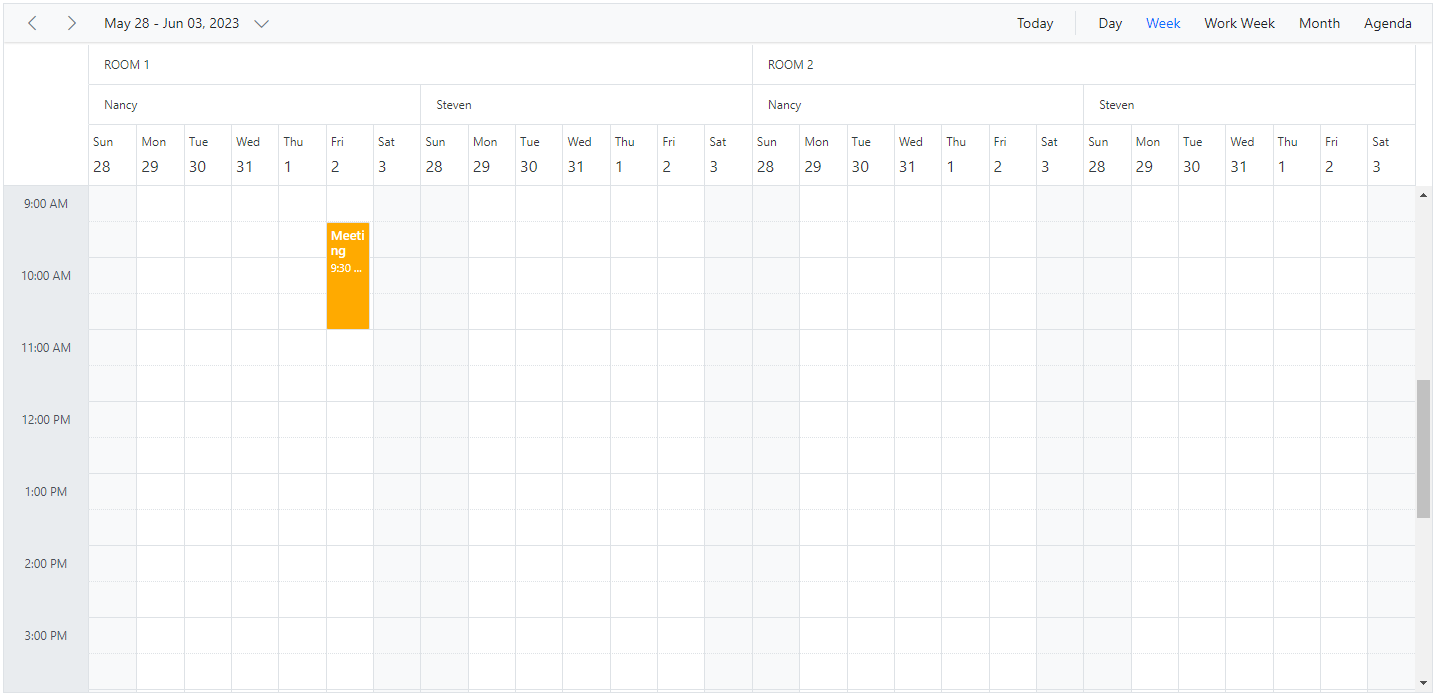

Grouping in Schedule

Grouping resources by date

It groups the number of resources under each date and is applicable only on the calendar views such as Day, Week, Work Week, Month, Agenda and Month-Agenda. To enable such grouping, set byDate option to true within the group property.

Example: To display the Scheduler with resources grouped by date:

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import {EventSettingsModel, GroupModel
} from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleOwner"
          textField='text' idField='id' colorField='color'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public group: GroupModel = {
        byDate: true,
        resources: ['Owners']
    };
    public allowMultipleOwner: Boolean = true;
    public ownerDataSource: Object[] = [
        { text: 'Alice', id: 1, color: '#1aaa55' },
        { text: 'Smith', id: 2, color: '#7fa900' }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

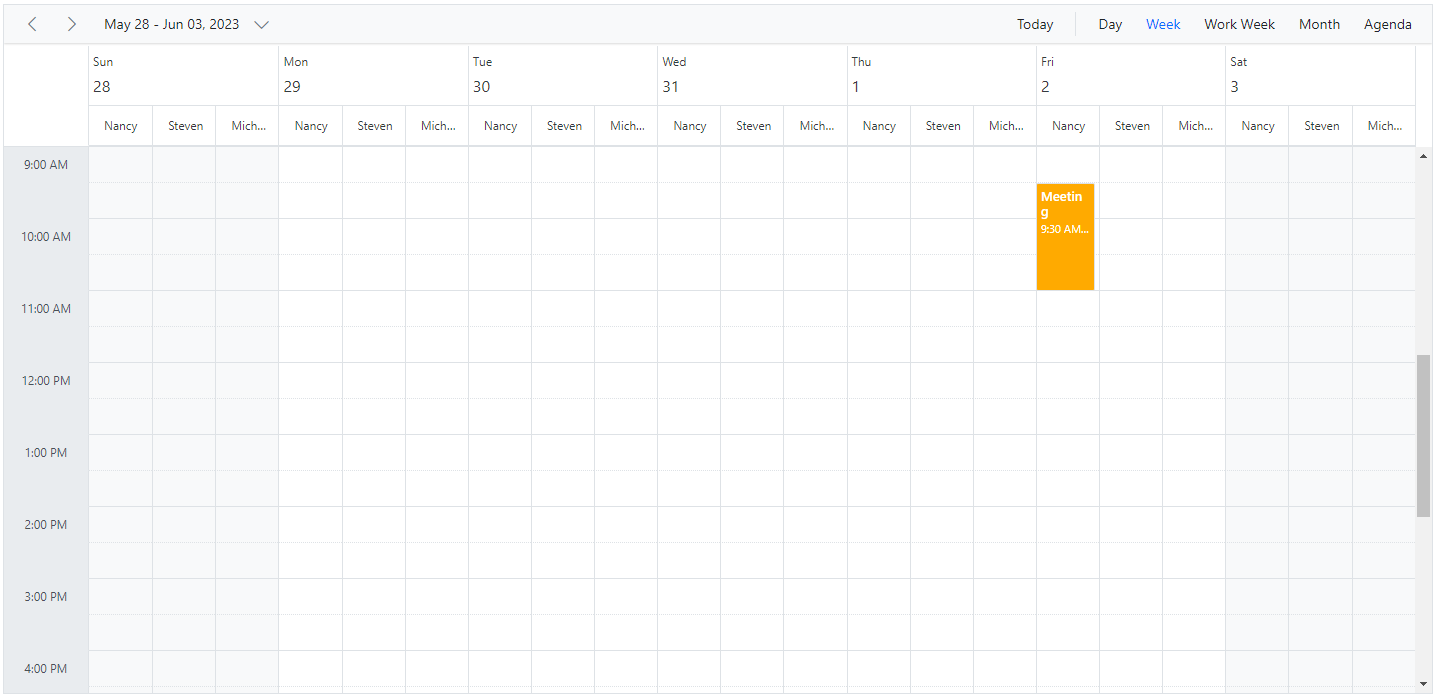

Grouping Resources by Date in Schedule

This kind of grouping by date is not applicable on any of the timeline views.

Customizing parent resource cells

In timeline view, work cells of the parent resource can be customized by checking the elementType as resourceGroupCells in the event renderCell. In the following code example, the background color of the work hours has been changed.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { ButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel, RenderCellEventArgs } from '@syncfusion/ej2-angular-schedule';
import { resourceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        ButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views" currentView='TimelineWeek'
      [eventSettings]="eventSettings" [group]='group' (renderCell)="onRenderCell($event)">
      <e-resources>
        <e-resource field="RoomId" title="Room" name="Rooms"
          [dataSource]="roomDataSource" [allowMultiple]="allowMultipleRoom"
          textField='text' idField='id' colorField='color'></e-resource>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleOwner"
          textField='text' idField='id' colorField='color' groupIDField='groupId'></e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 4);
    public views: Array<string> = ['TimelineDay', 'TimelineWeek', 'TimelineMonth'];
    public eventSettings: EventSettingsModel = { dataSource: resourceData };
    public group: GroupModel = { resources: ['Rooms', 'Owners'] };
    public allowMultipleRoom: Boolean = false;
    public allowMultipleOwner: Boolean = true;
    public roomDataSource: Object[] = [
      { text: 'ROOM 1', id: 1, color: '#cb6bb2' },
      { text: 'ROOM 2', id: 2, color: '#56ca85' }
    ];
    public ownerDataSource: Object[] = [
      { text: 'Nancy', id: 1, groupId: 1, color: '#ffaa00' },
      { text: 'Steven', id: 2, groupId: 2, color: '#f8a398' },
      { text: 'Michael', id: 3, groupId: 1, color: '#7499e1' }
    ];
    public onRenderCell(args: RenderCellEventArgs): void {
      if (args.elementType == 'resourceGroupCells' && args.element.className.indexOf('e-work-hours') > 0) {
        (args.element as any).style.background = "#FAFAE3";
      }
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Working with shared events

Multiple resources can share the same events, thus allowing the CRUD action made on it to reflect on all other shared instances simultaneously. To enable such option, set allowGroupEdit option to true within the group property. With this property enabled, a single appointment
object will be maintained within the appointment collection, even if it is shared by more than one resource – whereas the resource fields of such appointment object will be in array which hold the IDs of the multiple resources.

Any actions such as create, edit or delete performed on any one of the shared event instances will be reflected on all other related instances visible on the UI.

Example: To edit all the resource events simultaneously,

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'



import { Component } from '@angular/core';
import {
    DayService, WorkWeekService, WeekService, MonthAgendaService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, ResizeService, EventSettingsModel, GroupModel
} from '@syncfusion/ej2-angular-schedule';
@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],
standalone: true,
    selector: "app-root",
    providers: [WorkWeekService, WeekService, MonthService, AgendaService, TimelineViewsService, TimelineMonthService, ResizeService, WorkWeekService, MonthAgendaService, DayService],
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="ConferenceId" title="Conference" name="Conferences"
          [dataSource]="conferenceDataSource" [allowMultiple]="allowMultipleCategory"
          textField='Text' idField='Id' colorField='Color'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 5, 5);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: [
            {
                Id: 1,
                Subject: 'Burning Man',
                StartTime: new Date(2018, 5, 1, 15, 0),
                EndTime: new Date(2018, 5, 1, 17, 0),
                ConferenceId: [1, 2, 3]
            }, {
                Id: 2,
                Subject: 'Data-Driven Economy',
                StartTime: new Date(2018, 5, 2, 12, 0),
                EndTime: new Date(2018, 5, 2, 14, 0),
                ConferenceId: [1, 2]
            }, {
                Id: 3,
                Subject: 'Techweek',
                StartTime: new Date(2018, 5, 2, 15, 0),
                EndTime: new Date(2018, 5, 2, 17, 0),
                ConferenceId: [2, 3]
            }, {
                Id: 4,
                Subject: 'Content Marketing World',
                StartTime: new Date(2018, 5, 2, 18, 0),
                EndTime: new Date(2018, 5, 2, 20, 0),
                ConferenceId: [1, 3]
            }, {
                Id: 5,
                Subject: 'B2B Marketing Forum',
                StartTime: new Date(2018, 5, 3, 10, 0),
                EndTime: new Date(2018, 5, 3, 12, 0),
                ConferenceId: [1, 2, 3]
            }]
    };
    public group: GroupModel = {
        allowGroupEdit: true,
        resources: ['Conferences']
    };
    public allowMultipleCategory: Boolean = true;
    public conferenceDataSource: Object[] = [
        { Text: 'Margaret', Id: 1, Color: '#1aaa55' },
        { Text: 'Robert', Id: 2, Color: '#357cd2' },
        { Text: 'Laura', Id: 3, Color: '#7fa900' }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

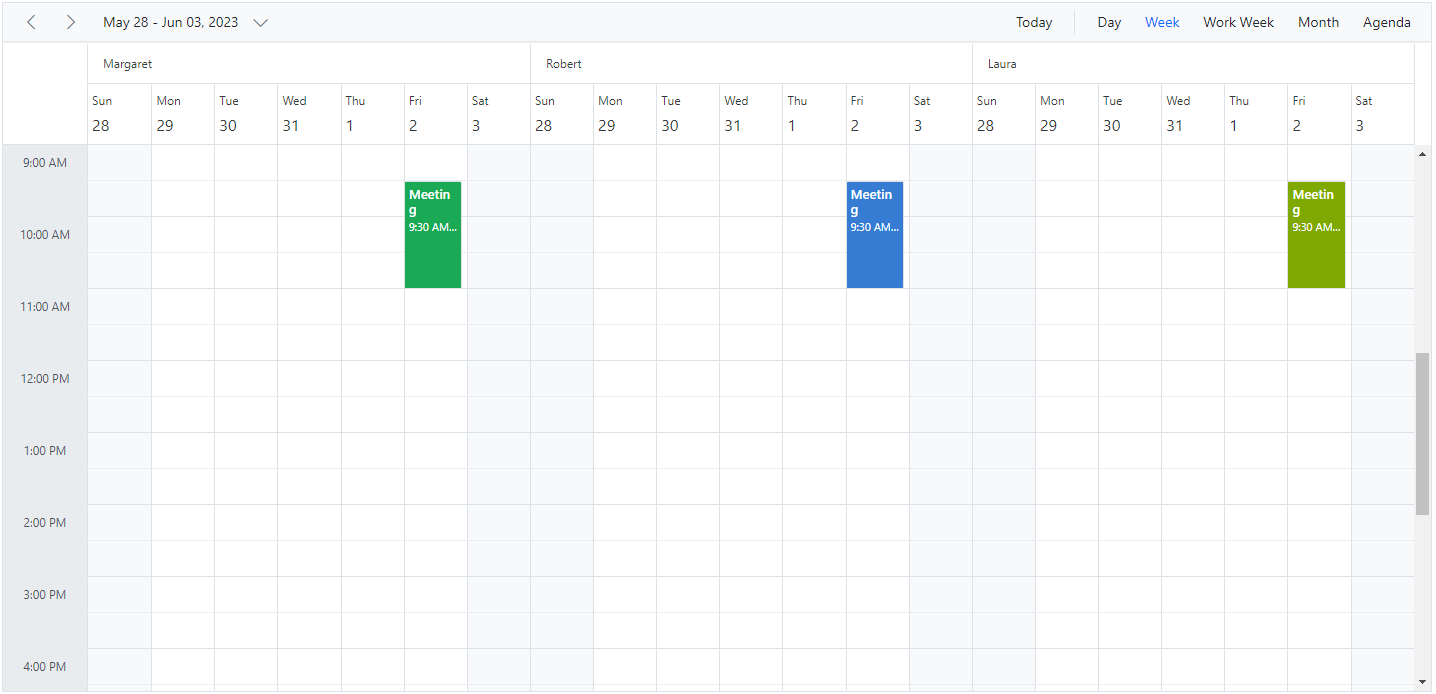

Grouping Resources as shared events

Simple resource header customization

It is possible to customize the resource header cells using a built-in template option and change their look and appearance in both the vertical and timeline view modes. All resource-related fields and other information can be accessed within the resource header template option.

Example: To customize the resource header and display it along with designation resource field, refer the below code example.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { doctorData } from './datasource';
@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
        <e-resources>
            <e-resource field="DoctorId" title="Doctor Name" name="Doctors"
            [dataSource]="doctorDataSource"
            textField='text' idField='id' colorField='color' designationField='designation'>
            </e-resource>
        </e-resources>
        <ng-template #resourceHeaderTemplate let-data>
            <div class='template-wrap'>
                <div class="resource-details">
                    <div class="resource-name"></div>
                    <div class="resource-designation"></div>
                </div>
            </div>
        </ng-template>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 5);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: doctorData
    };
    public group: GroupModel = {
        resources: ['Doctors']
    };
    public allowMultipleDoctors: Boolean = true;
    public doctorDataSource: Object[] = [
        { text: 'Will Smith', id: 1, color: '#ea7a57', designation: 'Cardioligst' },
        { text: 'Alice', id: 2, color: '#7fa900', designation: 'Neurologist' },
        { text: 'Robson', id: 3, color: '#7fa900', designation: 'Orthopedic Surgeon'  }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

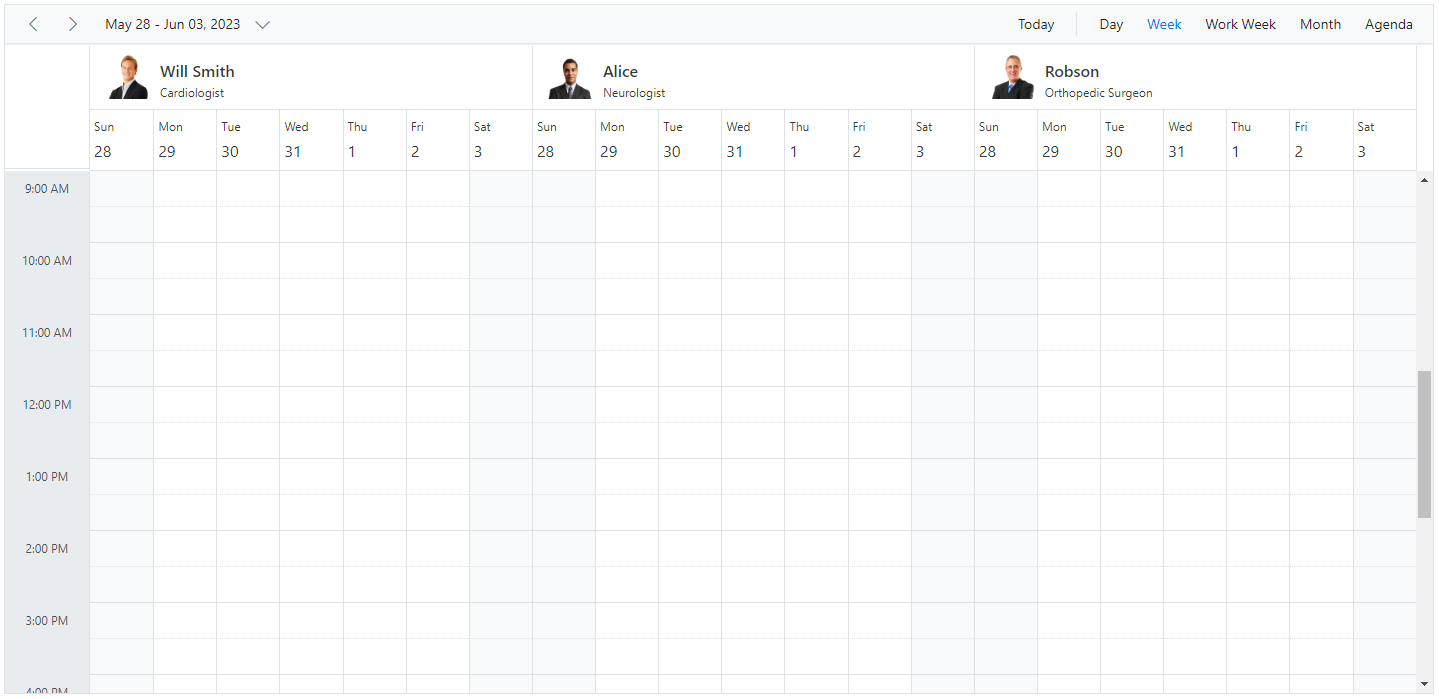

Customizing Resources Header in Desktop

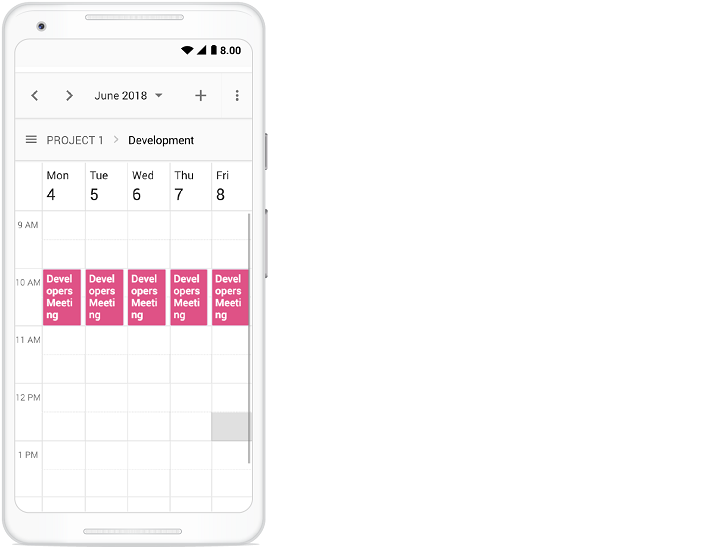

To customize the resource header in compact mode properly make use of the class e-device as in the code example.

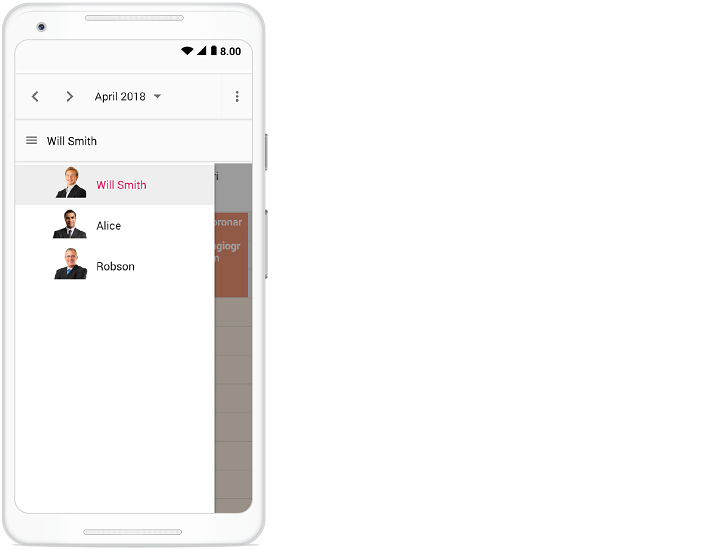

Resource header template in compact mode

Customizing resource header with multiple columns

It is possible to customize the resource headers to display with multiple columns such as Room, Type and Capacity. The following code example depicts the way to achieve it and is applicable only on timeline views.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'




import { Component } from '@angular/core';
import {
    DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel, RenderCellEventArgs
} from '@syncfusion/ej2-angular-schedule';
import { roomData } from './datasource';
@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group' (renderCell)='onRenderCell($event)'>
        <e-resources>
            <e-resource field="RoomId" title="Room Type" name="MeetingRoom"
            [dataSource]="roomDataSource" [allowMultiple]='allowMultipleRoom'
            textField='text' idField='id' colorField='color'>
            </e-resource>
        </e-resources>
        <ng-template #resourceHeaderTemplate let-data>
            <div class='template-wrap'>
                <div class="room-name"></div>
                <div class="room-type"></div>
                <div class="room-capacity"></div>
            </div>
        </ng-template>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 7, 1);
    public views: Array<string> = ['TimelineWeek', 'TimelineMonth'];
    public eventSettings: EventSettingsModel = {
        dataSource: roomData
    };
    public group: GroupModel = {
        resources: ['MeetingRoom']
    };
    public allowMultipleRoom: Boolean = true;
    public roomDataSource: Object[] = [
        { text: 'Jammy', id: 1, color: '#ea7a57', capacity: 20, type: 'Conference' },
        { text: 'Tweety', id: 2, color: '#7fa900', capacity: 7, type: 'Cabin' },
        { text: 'Nestle', id: 3, color: '#5978ee', capacity: 5, type: 'Cabin' },
        { text: 'Phoenix', id: 4, color: '#fec200', capacity: 15, type: 'Conference' },
        { text: 'Mission', id: 5, color: '#df5286', capacity: 25, type: 'Conference' },
        { text: 'Hangout', id: 6, color: '#00bdae', capacity: 10, type: 'Cabin' },
        { text: 'Rick Roll', id: 7, color: '#865fcf', capacity: 20, type: 'Conference' },
        { text: 'Rainbow', id: 8, color: '#1aaa55', capacity: 8, type: 'Cabin' },
        { text: 'Swarm', id: 9, color: '#df5286', capacity: 30, type: 'Conference' },
        { text: 'Photogenic', id: 10, color: '#710193', capacity: 25, type: 'Conference' }
    ];
    onRenderCell(args: RenderCellEventArgs):void {
        if (args.elementType === 'emptyCells' && args.element.classList.contains('e-resource-left-td')) {
            let target: HTMLElement = args.element.children[0] as HTMLElement;
            target.innerHTML = '<div class="name">Rooms</div><div class="type">Type</div><div class="capacity">Capacity</div>';
        }
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

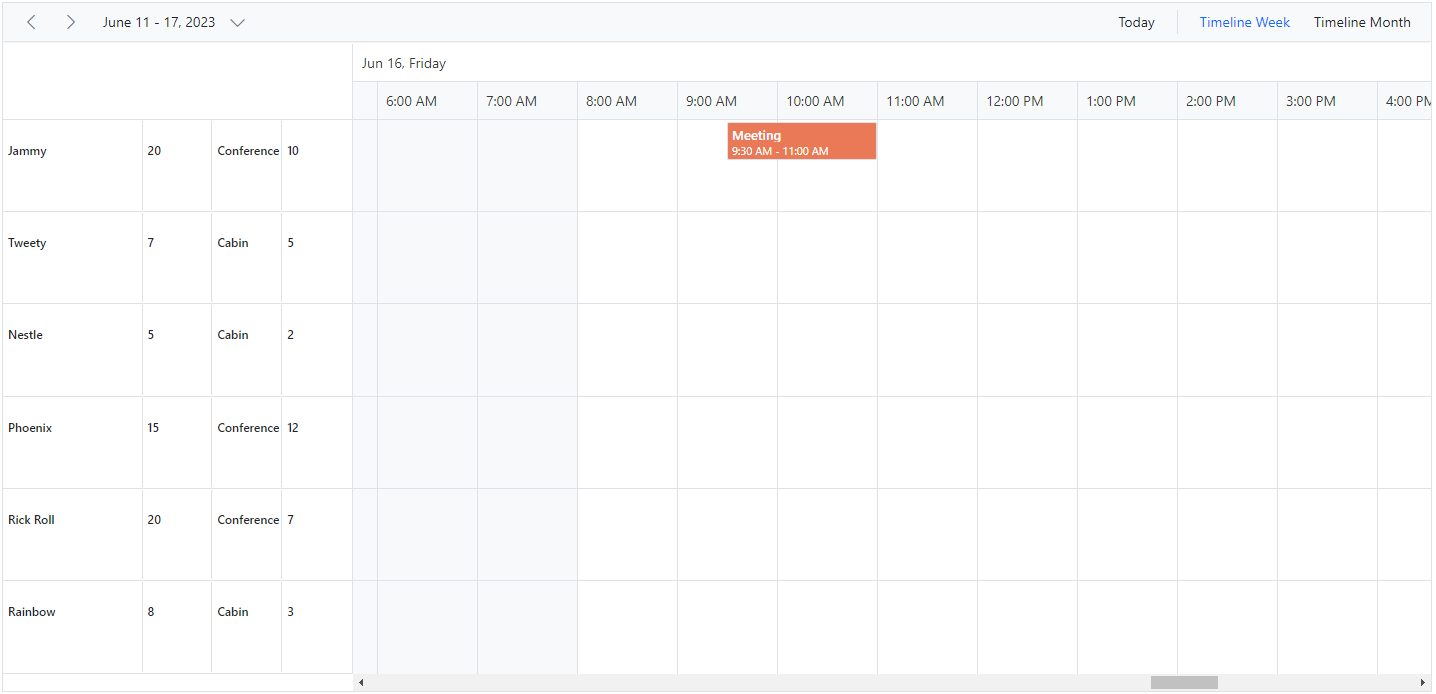

Schedule with Multiple columns

Collapse/Expand child resources in timeline views

It is possible to expand and collapse the resources which have child resource in timeline views dynamically. By default, resources are in expanded state with their child resource. We can collapse and expand the child resources in UI by setting expandedField option as false whereas its default value is true.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService,  TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'

import { Component } from '@angular/core';
import { resourceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [currentView]='currentView' [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="RoomId" title="Room" name="Rooms"
            [dataSource]="roomDataSource"
            textField="RoomText" idField="Id" colorField="RoomColor" expandedField="IsExpand">
        </e-resource>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleCategory"
          textField='OwnerText' idField='Id' groupIDField='OwnerGroupId' colorField='OwnerColor'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 4);
    public currentView: string = 'TimelineWeek';
    public views: Array<string> = ['TimelineWeek', 'TimelineMonth', 'Agenda'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public group: GroupModel = {
        resources: ['Rooms', 'Owners']
    };
    public roomDataSource: Object[] = [
        { RoomText: 'ROOM 1', Id: 1, RoomColor: '#cb6bb2', IsExpand: false },
        { RoomText: 'ROOM 2', Id: 2, RoomColor: '#56ca85' }
    ];
    public allowMultipleOwner: Boolean = true;
    public ownerDataSource: Object[] = [
        { OwnerText: 'Nancy', Id: 1, OwnerGroupId: 1, OwnerColor: '#ffaa00' },
        { OwnerText: 'Steven', Id: 2, OwnerGroupId: 2, OwnerColor: '#f8a398' },
        { OwnerText: 'Michael', Id: 3, OwnerGroupId: 1, OwnerColor: '#7499e1' }
    ];
    allowMultipleCategory: any;
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

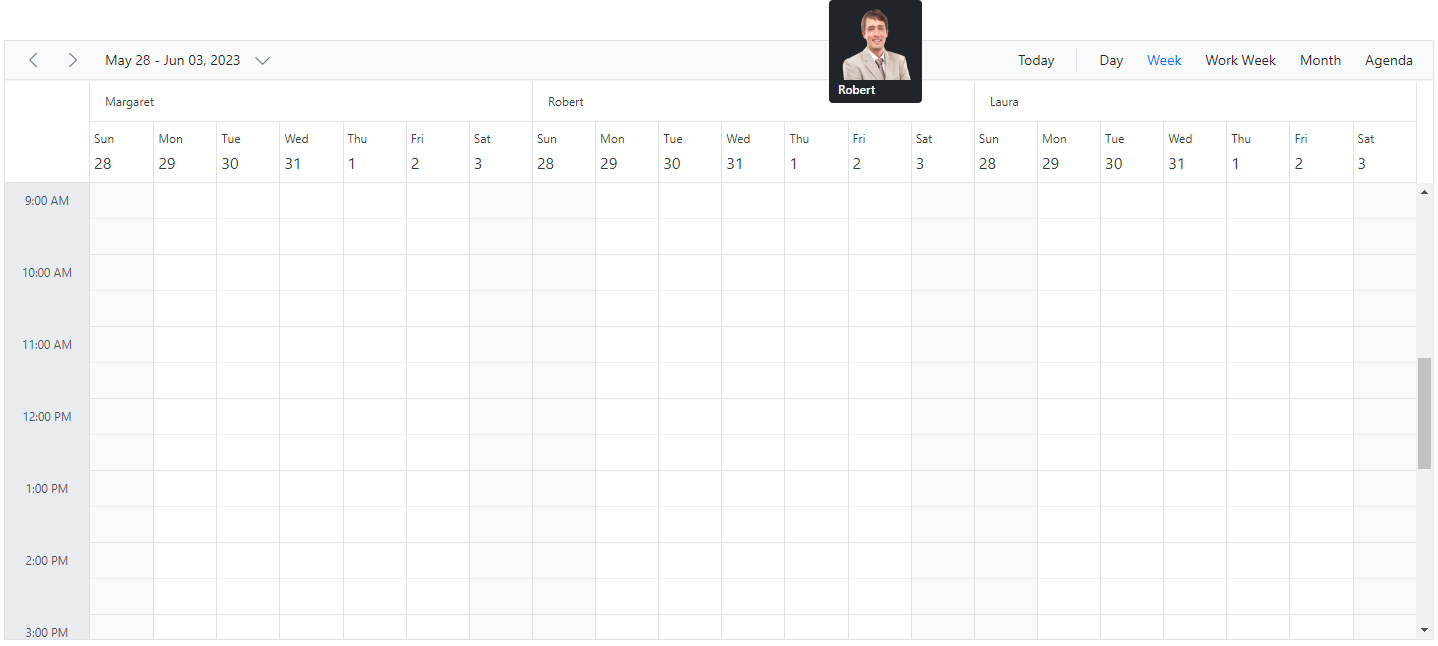

It is possible to display tooltips over the resource headers showing the resource information. By default, there won’t be any tooltips displayed on the resource headers, and to enable it, you need to assign the customized template design to the headerTooltipTemplate option within the group property.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService,  TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { resourceData } from './datasource';
@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService,
                TimelineMonthService    ],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
        <e-resources>
            <e-resource field="OwnerId" title="Owner" name="Owners"
            [dataSource]="roomDataSource" [allowMultiple]='allowMultipleRoom'
            textField='OwnerText' idField='Id' groupIdField='OwnerGroupId' colorField='OwnerColor'>
            </e-resource>
        </e-resources>
        <ng-template #groupHeaderTooltipTemplate let-data>
            <div class='template-wrap'>
                <div class="res-text">Name:   </div>
            </div>
        </ng-template>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth'];
    public eventSettings: EventSettingsModel = {
        dataSource: resourceData
    };
    public group: GroupModel = {
        resources: ['Owners']
    };
    public allowMultipleRoom: Boolean = true;
    public roomDataSource: Object[] = [
        { OwnerText: 'Nancy', Id: 1, OwnerGroupId: 1, OwnerColor: '#ffaa00' },
        { OwnerText: 'Steven', Id: 2, OwnerGroupId: 2, OwnerColor: '#f8a398' },
        { OwnerText: 'Michael', Id: 3, OwnerGroupId: 1, OwnerColor: '#7499e1' }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

tooltip for resource headers

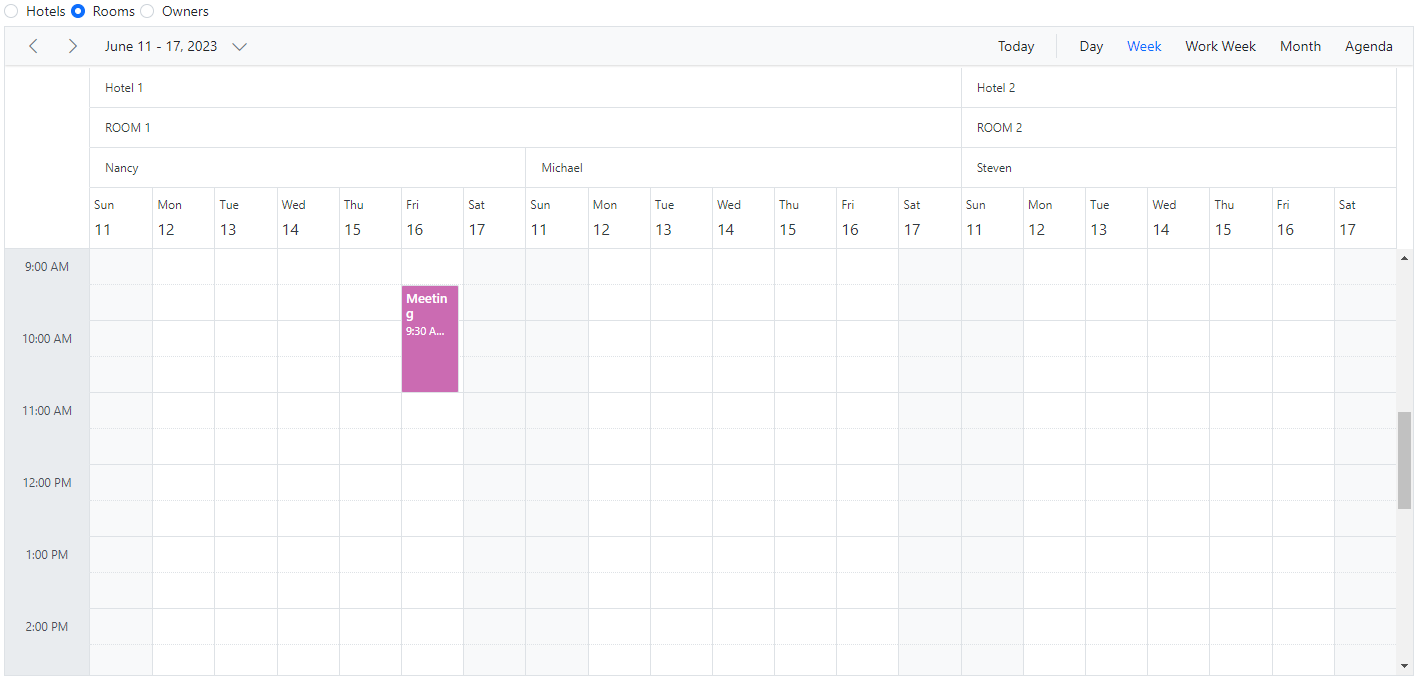

Choosing among resource colors for appointments

By default, the colors defined on the top level resources collection are applied to the events. If you want to apply a specific resource color to events irrespective of top-level parent resource color, define the resourceColorField option within the eventSettings property.

In the following example, the colors mentioned in the second level will get applied over the events.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { RadioButtonModule } from '@syncfusion/ej2-angular-buttons'



import { Component, ViewChild } from "@angular/core";
import {
  DayService, ScheduleComponent, WorkWeekService, WeekService, MonthService, AgendaService, MonthAgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel
} from "@syncfusion/ej2-angular-schedule";
import { ChangeArgs } from "@syncfusion/ej2-buttons";
import { resourceData } from "./datasource";
@Component({
imports: [

        ScheduleModule,
        RadioButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
  selector: "app-root",
  // specifies the template string for the Schedule component
  template: `<div style="padding: 10px;"><ejs-radiobutton label="Rooms" name="default" value="Rooms" checked="true" (change)="onChange($event)"></ejs-radiobutton>
  <ejs-radiobutton label="Owners" name="default" value="Owners" (change)="onChange($event)"></ejs-radiobutton>
  </div>
    <ejs-schedule #scheduleObj width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [currentView]="currentView" [eventSettings]="eventSettings" [group]="group">
      <e-resources>
        <e-resource field="RoomId" title="Room" name="Rooms" [dataSource]="roomDataSource"
          textField="RoomText" idField="Id" colorField="RoomColor">
        </e-resource>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleCategory"
          textField="OwnerText" idField="Id" groupIDField="OwnerGroupId" colorField="OwnerColor">
        </e-resource>
      </e-resources>
    </ejs-schedule>
  `
})
export class AppComponent {
  @ViewChild('scheduleObj')
  public scheduleObj?: ScheduleComponent;
  public selectedDate: Date = new Date(2018, 3, 1);
  public views: Array<string> = ["Week", "Month", "TimelineWeek", "TimelineMonth", "Agenda"];
  public eventSettings: EventSettingsModel = {
    dataSource: resourceData,
    resourceColorField: 'Rooms'
  };
  public group: GroupModel = {
    resources: ["Rooms", "Owners"]
  };
  public roomDataSource: Object[] = [
    { RoomText: "ROOM 1", Id: 1, RoomColor: "#cb6bb2" },
    { RoomText: "ROOM 2", Id: 2, RoomColor: "#56ca85" }
  ];
  public allowMultipleOwner: Boolean = true;
  public ownerDataSource: Object[] = [
    { OwnerText: "Nancy", Id: 1, OwnerGroupId: 1, OwnerColor: "#ffaa00" },
    { OwnerText: "Steven", Id: 2, OwnerGroupId: 2, OwnerColor: "#f8a398" },
    { OwnerText: "Michael", Id: 3, OwnerGroupId: 1, OwnerColor: "#7499e1" }
  ];
currentView: any;
allowMultipleCategory: any;
  public onChange(args: ChangeArgs): void {
    this.scheduleObj!.eventSettings.resourceColorField = args.value;
  }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

tooltip for resource headers

The value of the resourceColorField field should be mapped with the name value given within the resources property.

Dynamically add and remove resources

It is possible to add or remove resources dynamically from the Scheduler. In the following example, when the checkboxes are checked and unchecked, the respective resources are added or removed from the Scheduler layout. To add a new resource dynamically, use the addResource method, which accepts arguments such as the resource object, resource name (for the level in which the resource object should be added), and index (the position where the resource needs to be added).

To remove resources dynamically, use the removeResource method, which accepts the index (position from which the resource should be removed) and the resource name (the level in which the resource object exists) as parameters.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { CheckBoxModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'




import { Component, ViewChild } from '@angular/core';
import { holidayData, birthdayData, companyData, personalData } from './datasource';
import { ChangeEventArgs } from '@syncfusion/ej2-buttons';
import { ScheduleComponent, EventSettingsModel, GroupModel, TimelineViewsService, TimelineMonthService, ResizeService, DragAndDropService } from '@syncfusion/ej2-angular-schedule';

@Component({
imports: [

        ScheduleModule,
        CheckBoxModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService, ResizeService, DragAndDropService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `<div class="control-section">
  <div class="col-lg-12 property-section">
    <table id="property" title="Show / Hide Resource">
        <tbody>
            <tr>
                <td>
                    <ejs-checkbox cssClass="personal" label="My Calender" value="1" [checked]="true" [disabled]="true" (change)="onChange($event)"></ejs-checkbox>
                </td>
                <td>
                    <ejs-checkbox cssClass="company" label="Company" value="2" [checked]="false" (change)="onChange($event)"></ejs-checkbox>
                </td>
                <td>
                    <ejs-checkbox cssClass="birthday" label="Birthday" value="3" [checked]="false" (change)="onChange($event)"></ejs-checkbox>
                </td>
                <td>
                    <ejs-checkbox cssClass="holiday" label="Holiday" value="4" [checked]="false" (change)="onChange($event)"></ejs-checkbox>
                </td>
            </tr>
        </tbody>
    </table>
</div>
  <div>
      <ejs-schedule #scheduleObj cssClass='schedule-add-remove-resources' width='100%' height='650px' [group]="group" [selectedDate]="selectedDate"
          [eventSettings]="eventSettings">
          <e-resources>
              <e-resource field='CalendarId' title='Calendars' [dataSource]='resourceDataSource' [allowMultiple]='allowMultiple' name='Calendars'
                  textField='CalendarText' idField='CalendarId' colorField='CalendarColor'>
              </e-resource>
          </e-resources>
          <e-views>
              <e-view option="Month"></e-view>
              <e-view option="TimelineWeek"></e-view>
              <e-view option="TimelineMonth"></e-view>
          </e-views>
      </ejs-schedule>
  </div>
</div>`
})

export class AppComponent {
    public calendarCollections: Object[] = [
        { CalendarText: 'My Calendar', CalendarId: 1, CalendarColor: '#c43081' },
        { CalendarText: 'Company', CalendarId: 2, CalendarColor: '#ff7f50' },
        { CalendarText: 'Birthday', CalendarId: 3, CalendarColor: '#AF27CD' },
        { CalendarText: 'Holiday', CalendarId: 4, CalendarColor: '#808000' }
    ];
    public group: GroupModel = { resources: ['Calendars'] };
    public resourceDataSource: Object[] = [this.calendarCollections[0]];
    public allowMultiple: Boolean = true;
    public selectedDate: Date = new Date(2018, 3, 1);
    public eventSettings: EventSettingsModel = { dataSource: this.generateCalendarData() };
    @ViewChild('scheduleObj')
    public scheduleObj?: ScheduleComponent;
    generateCalendarData(): Object[] {
        return [...personalData, ...companyData, ...birthdayData, ...holidayData];
    }
    public onChange(args: ChangeEventArgs): void {
        const value: number = parseInt((args.event?.currentTarget as Element)?.querySelector('input')?.getAttribute('value') ?? '0', 10);
        const resourceData: Record<string, any>[] =
          this.calendarCollections.filter((calendar: Record<string, any>) => calendar['CalendarId'] === value);
        if (args.checked) {
          this.scheduleObj?.addResource(resourceData[0], 'Calendars', value );
        } else {
          this.scheduleObj?.removeResource(value, 'Calendars');
        }
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Setting different working days and hours for resources

Each resource in the Scheduler can have different working hours as well as different working days set. There are default options available within the resources collection to customize the working hours and days of the Scheduler.

Using the work day field for different work days

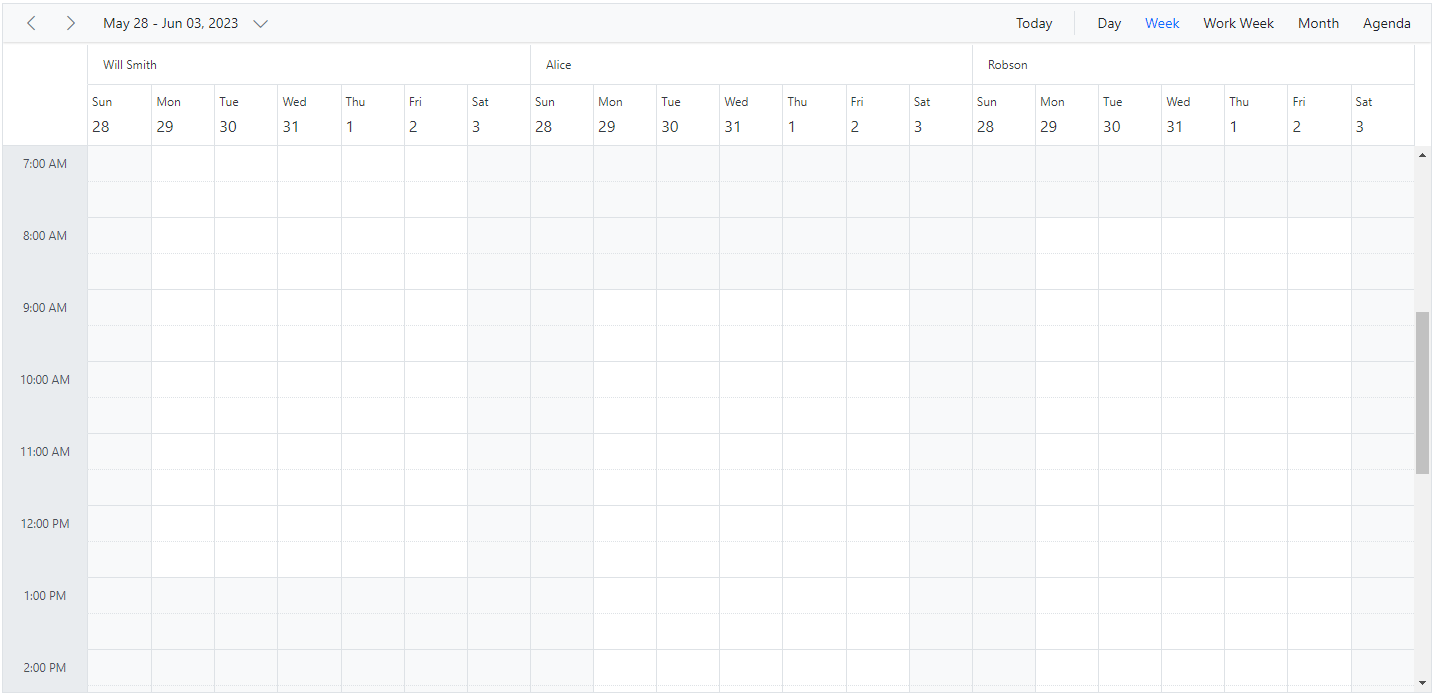

Using the start hour and end hour fields for different work hours

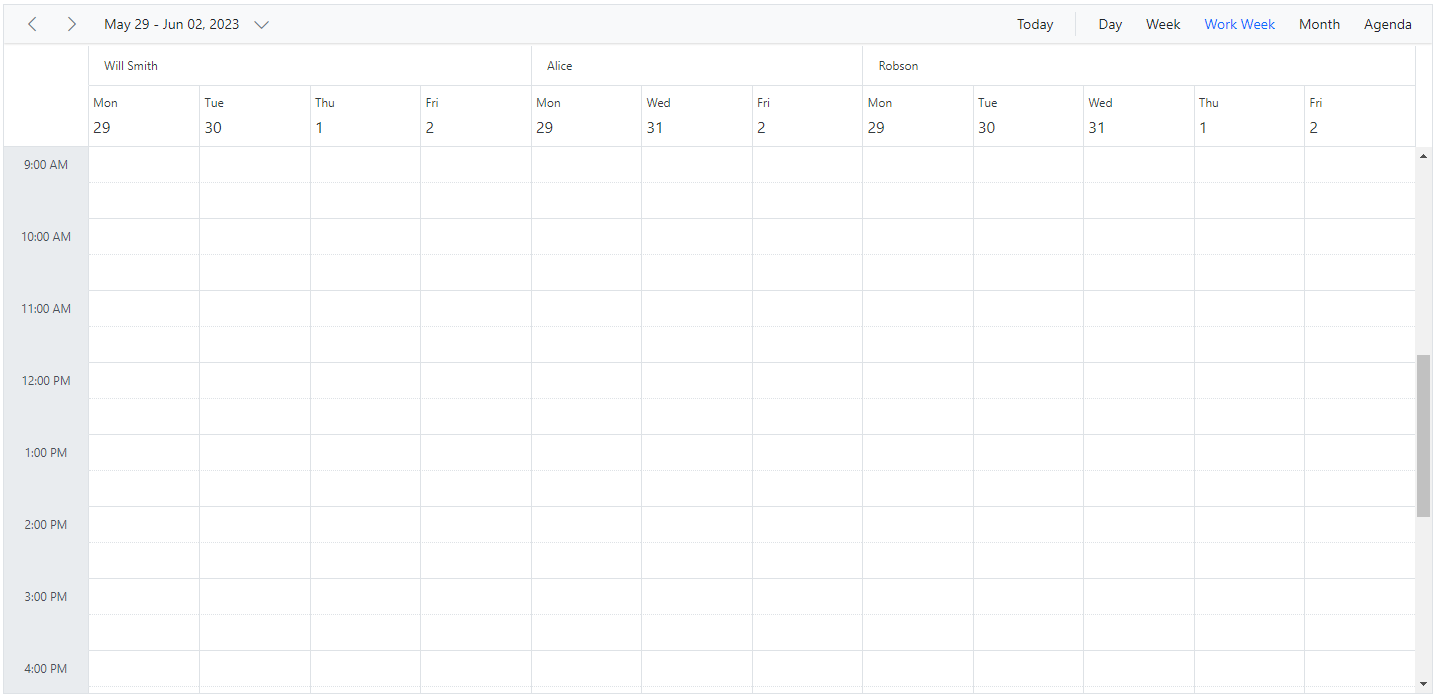

Set different work days

Different working days can be set for Scheduler resources using the workDaysField property, which maps the working days field from the resource dataSource. This field accepts a collection of weekday indexes (0 to 6). By default, it is set to [1, 2, 3, 4, 5], and in the following example, each resource is set with different values so that only those working days are rendered. This option is applicable only on calendar views and is not applicable on timeline views.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { RadioButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { doctorData } from './datasource';
@Component({
imports: [

        ScheduleModule,
        RadioButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [currentView]='currentView' [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="DoctorId" title="Conference" name="Conferences"
          [dataSource]="conferenceDataSource" [allowMultiple]="allowMultipleCategory"
          textField='text' idField='id' colorField='color' workDaysField='workDays'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'WorkWeek', 'Month'];
    public currentView: string = 'WorkWeek';
    public eventSettings: EventSettingsModel = {
        dataSource: doctorData
    };
    public group: GroupModel = {
        resources: ['Conferences']
    };
    public allowMultipleCategory: Boolean = true;
    public conferenceDataSource: Object[] = [
        { text: 'Will Smith', id: 1, color: '#ea7a57', workDays: [1, 2, 4, 5] },
        { text: 'Alice', id: 2, color: 'rgb(53, 124, 210)', workDays: [1, 3, 5] },
        { text: 'Robson', id: 3, color: '#7fa900' , workDays: [2,6]}
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Resources with Different Workdays

Set different work hours

Different working hours can be set for Scheduler resources using the startHourField and endHourField properties, which map the startHourField and endHourField fields from the resource dataSource.

startHourField - Denotes the start time of the working/business hour in a day.
endHourField - Denotes the end time of the working/business hour in a day.

Working hours indicate the work hour duration of a day, which is highlighted visually with active color over the work cells. Each Scheduler resource can be defined with its own set of working hours as depicted in the following example.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { RadioButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService, TimelineViewsService, TimelineMonthService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { doctorData } from './datasource';
@Component({
imports: [

        ScheduleModule,
        RadioButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
    selector: "app-root",
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule width="100%" height="550px" [selectedDate]="selectedDate" [views]="views"
      [eventSettings]="eventSettings" [group]='group'>
      <e-resources>
        <e-resource field="DoctorId" title="Conference" name="Conferences"
          [dataSource]="conferenceDataSource" [allowMultiple]="allowMultipleCategory"
          textField='text' idField='id' colorField='color' startHourField='startHour' endHourField='endHour'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 3, 1);
    public views: Array<string> = ['Week', 'Month', 'TimelineWeek', 'TimelineMonth'];
    public eventSettings: EventSettingsModel = {
        dataSource: doctorData
    };
    public group: GroupModel = {
        resources: ['Conferences']
    };
    public allowMultipleCategory: Boolean = true;
    public conferenceDataSource: Object[] = [
        { text: 'Will Smith', id: 1, color: '#ea7a57', startHour: '08:00', endHour: '15:00' },
        { text: 'Alice', id: 2, color: '#357cd2', startHour: '10:00', endHour: '18:00' },
        { text: 'Robson', id: 3, color: '#7fa900', startHour: '06:00', endHour: '13:00' }
    ];
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Resources with Different Workhours

In this example, a resource named Will Smith is depicted with working hours ranging from 8.00 AM to 3.00 PM and is visually illustrated with active colors, whereas the other two resources have different working hours set.

Hide non-working days when grouped by date

In Scheduler, you can set custom work days for each resource and group the Scheduler by date to display these work days. By default, the Scheduler will show all days when it is grouped by date, even if they are not included in the custom work days for the resources. However, you can use the hideNonWorkingDays property to only display the custom work days in the Scheduler.

To use the hideNonWorkingDays property, you need to include it in the configuration options for your Scheduler component. Set the value of hideNonWorkingDays to true to enable this feature.

Example: To display the Scheduler with resources grouped by date for custom working days,

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService, EventSettingsModel, GroupModel} from '@syncfusion/ej2-angular-schedule'

import { Component } from '@angular/core';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService],
standalone: true,
  selector: "app-root",
  // specifies the template string for the Schedule component
  template: `
    <ejs-schedule width="100%" height="550px" [views]="views" [group]='group'>
      <e-resources>
        <e-resource field="OwnerId" title="Owner" name="Owners"
          [dataSource]="ownerDataSource" [allowMultiple]="allowMultipleOwner"
          textField='text' idField='id' colorField='color' [workDaysField]='workDays'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
  public views: Array<string> = ['Week', 'Month', 'Agenda'];
  public group: GroupModel = {
    byDate: true,
    hideNonWorkingDays: true,
    resources: ['Owners']
  };
  public allowMultipleOwner: Boolean = true;
  public ownerDataSource: Object[] = [
    { text: 'Alice', id: 1, color: '#1aaa55', workDays: [1, 2, 3, 4] },
    { text: 'Smith', id: 2, color: '#7fa900', workDays: [2, 3, 5] }
  ];
workDays: any;
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Hide non-working days when grouped by date

The hideNonWorkingDays property only applies when the Scheduler is grouped byDate.

Compact view in mobile

Although the Scheduler views are designed for responsiveness on mobile devices, when using Scheduler with multiple resources it can be difficult to view all resources and related events at once on mobile. Therefore, a compact mode is provided specifically for multiple resources on mobile devices. By default, this mode is enabled when using Scheduler with multiple resources on mobile devices. To disable this compact mode, set false to the enableCompactView option within the group property. Disabling it will display the desktop Scheduler view mode on mobile devices.

With this compact view enabled on mobile, you can view only single resource at a time and to switch to other resources, there is a treeview at the left listing out all other available resources - clicking on which will display that particular resource and its related appointments.

Resources in compact mode

Clicking on the menu icon before the resource text will show the resources available in the Scheduler as following.

Adaptive UI in desktop

By default, the Scheduler layout adapts automatically on desktop and mobile devices with appropriate UI changes. If a user wants to display the adaptive Scheduler in desktop mode with adaptive enhancements, set the property enableAdaptiveUI to true. Enabling this option will display the mobile Scheduler view mode on desktop devices.

Some of the default changes made for compact Scheduler on desktop devices are:

View options displayed in the navigation drawer.
Plus icon added to the header for new event creation.
Today icon added to the header instead of the Today button.
With multiple resources, only one resource is shown to improve the event detail experience. To switch to other resources, there is a TreeView on the left that lists all other available resources; clicking one displays that resource and its related events.

app.component.ts
main.ts
import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { TimePickerModule } from '@syncfusion/ej2-angular-calendars'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService,  DragAndDropService, View, ScheduleComponent, EventSettingsModel, GroupModel,} from '@syncfusion/ej2-angular-schedule'



import { Component, ViewChild, ViewEncapsulation } from '@angular/core';
import { extend } from '@syncfusion/ej2-base';
import { resourceData,  resourceConferenceData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        TimePickerModule
    ],
standalone: true,
    selector: "app-root",
    providers: [DayService, WeekService, MonthService, DragAndDropService, WorkWeekService, AgendaService,
      MonthAgendaService],
    // specifies the template string for the Schedule component
    template: `
    <ejs-schedule #scheduleObj id="schedule" width='100%' height='650px' [group]="group" [(currentView)]="currentView"
      [selectedDate]="selectedDate" [enableAdaptiveUI]="true" [eventSettings]="eventSettings">
      <e-views>
        <e-view option="Day"></e-view>
        <e-view option="Week"></e-view>
        <e-view option="Month"></e-view>
      </e-views>
      <e-resources>
        <e-resource field='ProjectId' title='Choose Project' [dataSource]='projectDataSource'
          [allowMultiple]='allowMultiple' name='Projects' textField='text' idField='id' colorField='color'>
        </e-resource>
        <e-resource field='TaskId' title='Category' [dataSource]='categoryDataSource' [allowMultiple]='allowMultiple'
          name='Categories' textField='text' idField='id' groupIDField='groupId' colorField='color'>
        </e-resource>
      </e-resources>
    </ejs-schedule>`
})
export class AppComponent {
    @ViewChild('scheduleObj')
    public scheduleObj?: ScheduleComponent;
    public selectedDate: Date = new Date(2018, 3, 4);
    public currentView: View = 'Month';
    public group: GroupModel = {
        resources: ['Projects', 'Categories']
    };
    public projectDataSource: Object[] = [
        { text: 'PROJECT 1', id: 1, color: '#cb6bb2' },
        { text: 'PROJECT 2', id: 2, color: '#56ca85' },
        { text: 'PROJECT 3', id: 3, color: '#df5286' }
    ];
    public categoryDataSource: Object[] = [
        { text: 'Nancy', id: 1, groupId: 1, color: '#df5286' },
        { text: 'Steven', id: 2, groupId: 1, color: '#7fa900' },
        { text: 'Robert', id: 3, groupId: 2, color: '#ea7a57' },
        { text: 'Smith', id: 4, groupId: 2, color: '#5978ee' },
        { text: 'Michael', id: 5, groupId: 3, color: '#df5286' },
        { text: 'Root', id: 6, groupId: 3, color: '#00bdae' }
    ];
    public allowMultiple: Boolean = true;
    public eventSettings: EventSettingsModel = {
        dataSource: <Object[]>extend([], resourceData.concat( resourceConferenceData), undefined, true)
    };
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Resources in Adaptive UI

You can refer to our Angular Scheduler feature tour page for feature representations. You can also explore our Angular Scheduler example to see how to present and manipulate data.

Search docs

Ask Syncfusion AI Assistant

Search docs

Ask Syncfusion AI Assistant

Resources and Grouping in Angular Scheduler

Resource fields

Resource data binding

Using local JSON data

Using remote data service

Scheduler with multiple resources

Resource grouping

Vertical resource view

Timeline resource view

Grouping single-level resources

Grouping multi-level resources

One-to-one grouping

Grouping resources by date

Customizing parent resource cells

Working with shared events

Simple resource header customization

Customizing resource header with multiple columns

Collapse/Expand child resources in timeline views

Displaying tooltip for resource headers

Choosing among resource colors for appointments

Dynamically add and remove resources

Setting different working days and hours for resources

Set different work days

Set different work hours

Hide non-working days when grouped by date

Compact view in mobile

Adaptive UI in desktop
