Timeline Header Rows in Angular Scheduler

The Timeline views can have additional header rows other than their default date and time header rows. It is possible to show individual header rows for displaying year, month, and week separately using the headerRows property. This property is applicable only on the Timeline views. The possible rows that can be added using the headerRows property are:

  • Year
  • Month
  • Week
  • Date
  • Hour

The Hour row is not applicable for the Timeline month view.

See how to add and customize header rows in the Timeline views of the Angular Scheduler in this video:

The example below shows the Scheduler displaying all available header rows in Timeline views.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { ButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { EventSettingsModel, TimelineViewsService } from '@syncfusion/ej2-angular-schedule';
import { scheduleData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        ButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService],
standalone: true,
  selector: 'app-root',
  // specifies the template string for the Schedule component
  template: `<ejs-schedule width='100%' height='550px' [selectedDate]="selectedDate" [eventSettings]="eventSettings" startHour='09:00' endHour='18:00'>
        <e-header-rows>
            <e-header-row option='Year'></e-header-row>
            <e-header-row option='Month'></e-header-row>
            <e-header-row option='Week'></e-header-row>
            <e-header-row option='Date'></e-header-row>
            <e-header-row option='Hour'></e-header-row>
        </e-header-rows>
        <e-views>
            <e-view option='TimelineWeek'></e-view>
        </e-views>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 11, 31);
    public eventSettings: EventSettingsModel = { dataSource: scheduleData };
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

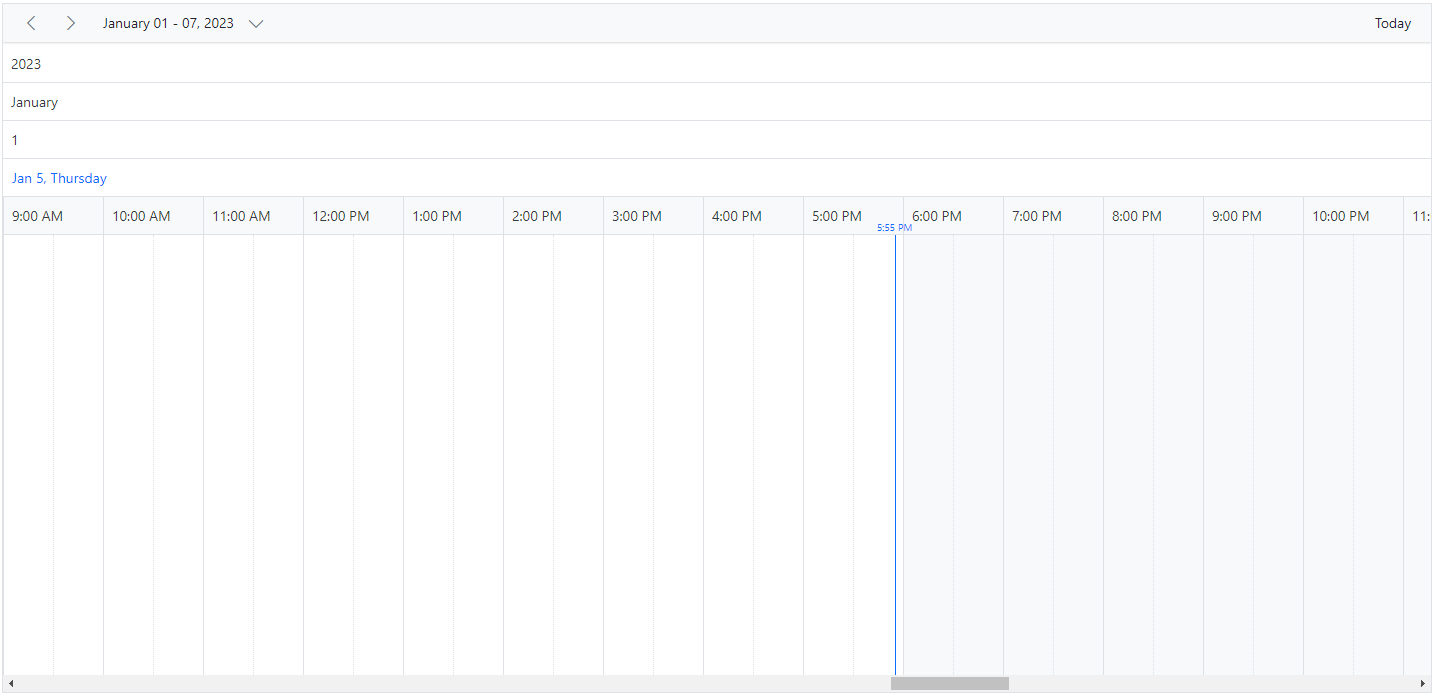

Timeline Header Rows

Display year and month rows in Timeline views

To display only the year and month header rows in the Scheduler, specify Year and Month in the headerRows property.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { ButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { EventSettingsModel, TimelineMonthService } from '@syncfusion/ej2-angular-schedule';
import { scheduleData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        ButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineMonthService],
standalone: true,
  selector: 'app-root',
  // specifies the template string for the Schedule component
  template: `<ejs-schedule width='100%' height='550px' [selectedDate]="selectedDate" [eventSettings]="eventSettings">
        <e-header-rows>
            <e-header-row option='Year'></e-header-row>
            <e-header-row option='Month'></e-header-row>
        </e-header-rows>
        <e-views>
            <e-view option='TimelineMonth' [interval]="viewInterval"></e-view>
        </e-views>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 11, 31);
    public viewInterval: Boolean | Number = 24;
    public eventSettings: EventSettingsModel = { dataSource: scheduleData };
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Display Year and Month rows in timeline views

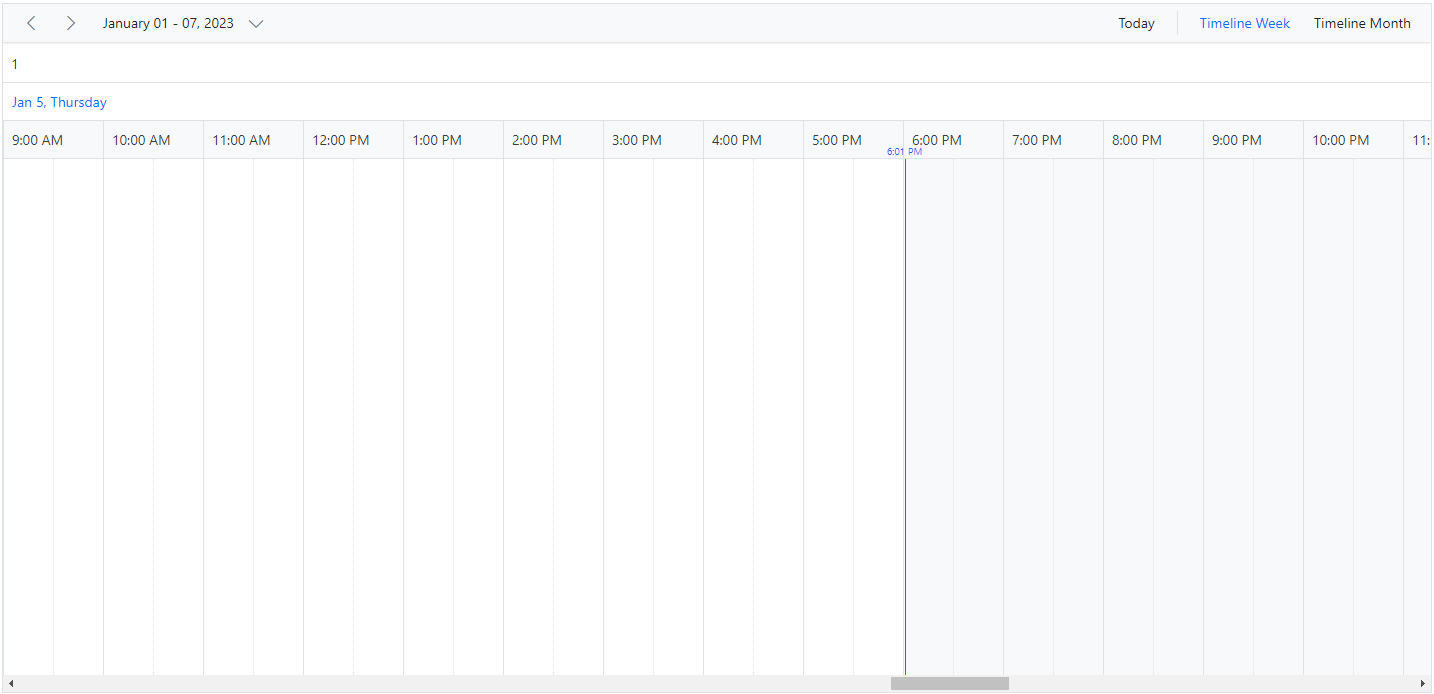

Display week numbers in Timeline views

The week number can be displayed in a separate header row of the Timeline Scheduler by setting the Week option within the headerRows property.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { ButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { EventSettingsModel, TimelineViewsService, TimelineMonthService } from '@syncfusion/ej2-angular-schedule';
import { scheduleData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        ButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineViewsService, TimelineMonthService],
standalone: true,
  selector: 'app-root',
  // specifies the template string for the Schedule component
  template: `<ejs-schedule width='100%' height='550px' [selectedDate]="selectedDate" [eventSettings]="eventSettings">
        <e-header-rows>
            <e-header-row option='Week'></e-header-row>
            <e-header-row option='Date'></e-header-row>
            <e-header-row option='Hour'></e-header-row>
        </e-header-rows>
        <e-views>
            <e-view option='TimelineMonth' [interval]="monthInterval"></e-view>
            <e-view option='TimelineWeek' [interval]="weekInterval"></e-view>
            <e-view option='TimelineDay' [interval]="dayInterval"></e-view>
        </e-views>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 1, 15);
    public monthInterval: Boolean | Number = 24;
    public weekInterval: Boolean | Number = 3;
    public dayInterval: Boolean | Number = 4;
    public eventSettings: EventSettingsModel = { dataSource: scheduleData };
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Display Week numbers in timeline views

Timeline view displaying dates of a complete year

You can display a full year in a Timeline view by setting the interval to 12 and including the TimelineMonth view in the views property.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { ButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { EventSettingsModel, TimelineMonthService } from '@syncfusion/ej2-angular-schedule';
import { scheduleData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        ButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineMonthService],
standalone: true,
  selector: 'app-root',
  // specifies the template string for the Schedule component
  template: `<ejs-schedule width='100%' height='550px' [selectedDate]="selectedDate" [eventSettings]="eventSettings">
        <e-header-rows>
            <e-header-row option='Month'></e-header-row>
            <e-header-row option='Date'></e-header-row>
        </e-header-rows>
        <e-views>
            <e-view option='TimelineMonth' [interval]="viewInterval"></e-view>
        </e-views>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 0, 1);
    public viewInterval: Boolean | Number = 12;
    public eventSettings: EventSettingsModel = { dataSource: scheduleData };
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Display dates of a complete year in timeline views

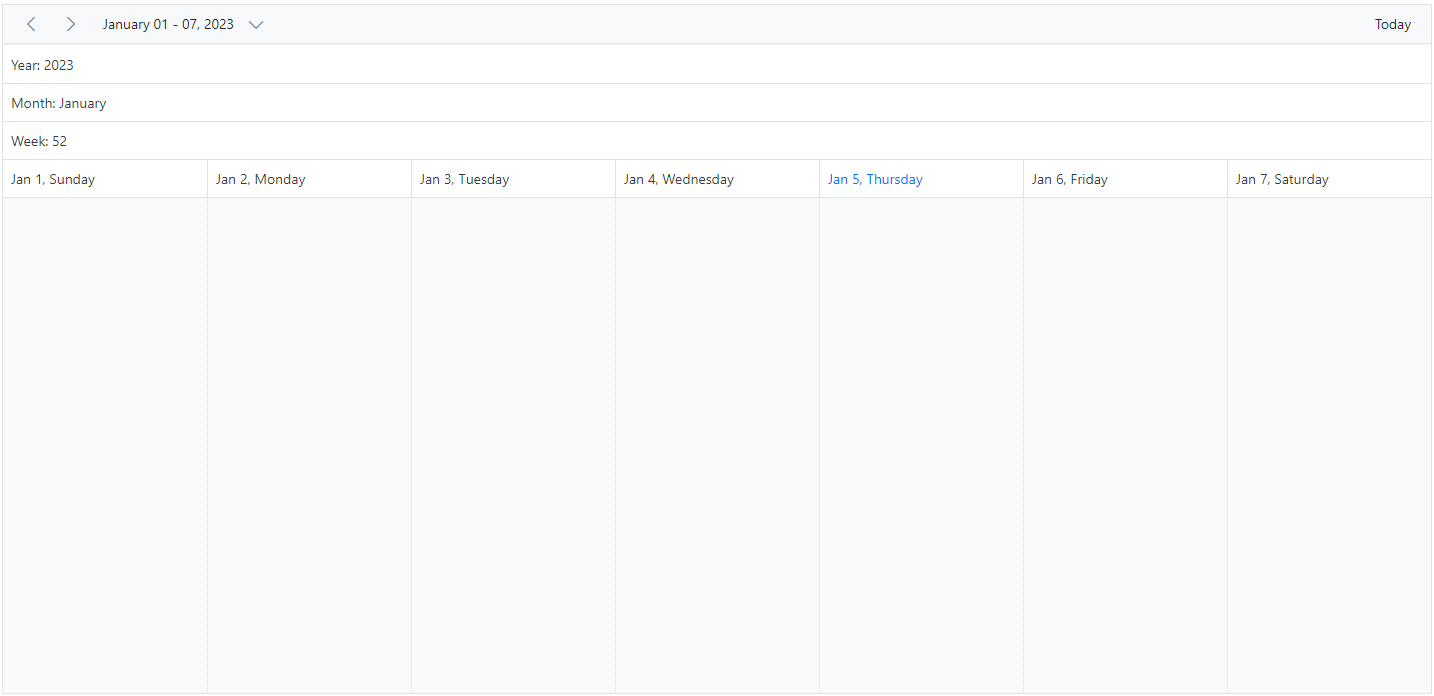

Customizing header rows with templates

You can customize the text of the header rows and display any images or formatted text on each individual header row using the built-in template option available within the headerRows property.

import { NgModule } from '@angular/core'
import { BrowserModule } from '@angular/platform-browser'
import { ScheduleModule } from '@syncfusion/ej2-angular-schedule'
import { ButtonModule } from '@syncfusion/ej2-angular-buttons'
import { DayService, WeekService, WorkWeekService, MonthService, AgendaService, MonthAgendaService} from '@syncfusion/ej2-angular-schedule'



import { Component } from '@angular/core';
import { Internationalization } from '@syncfusion/ej2-base';
import { EventSettingsModel, TimelineMonthService, getWeekNumber, getWeekLastDate, CellTemplateArgs } from '@syncfusion/ej2-angular-schedule';
import { scheduleData } from './datasource';

@Component({
imports: [

        ScheduleModule,
        ButtonModule
    ],

providers: [DayService,
                WeekService,
                WorkWeekService,
                MonthService,
                AgendaService,
                MonthAgendaService,
                TimelineMonthService],
standalone: true,
  selector: 'app-root',
  // specifies the template string for the Schedule component
  template: `<ejs-schedule width='100%' height='550px' [selectedDate]="selectedDate" [eventSettings]="eventSettings">
        <e-header-rows>
            <e-header-row option='Year'>
                <ng-template #template let-data>
                    <span [innerHTML]="getYearDetails(data)"></span>
                </ng-template>
            </e-header-row>
            <e-header-row option='Month'>
                <ng-template #template let-data>
                    <span [innerHTML]="getMonthDetails(data)"></span>
                </ng-template>
            </e-header-row>
            <e-header-row option='Week'>
                <ng-template #template let-data>
                    <span [innerHTML]="getWeekDetails(data)"></span>
                </ng-template>
            </e-header-row>
            <e-header-row option='Date'></e-header-row>
        </e-header-rows>
        <e-views>
            <e-view option='TimelineMonth'></e-view>
        </e-views>
    </ejs-schedule>`
})
export class AppComponent {
    public selectedDate: Date = new Date(2018, 0, 1);
    public instance: Internationalization = new Internationalization();
    public eventSettings: EventSettingsModel = { dataSource: scheduleData };
    public getYearDetails(value: CellTemplateArgs): string {
        return 'Year: ' + this.instance.formatDate((value as CellTemplateArgs).date, { skeleton: 'y' });
    }
    public getMonthDetails(value: CellTemplateArgs): string {
        return 'Month: ' + this.instance.formatDate((value as CellTemplateArgs).date, { skeleton: 'yMMM' });
    }
    public getWeekDetails(value: CellTemplateArgs): string {
        return 'Week: ' + getWeekNumber(getWeekLastDate((value as CellTemplateArgs).date, 0));
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));

Customized header rows using template

You can refer to our Angular Scheduler feature tour page for its groundbreaking feature representations. You can also explore our Angular Scheduler example to know how to present and manipulate data.
