Liquid Glass Effect in .NET MAUI RichTextEditor

18 Nov 20183 minutes to read

The Liquid Glass Effect is a modern design style that provides a sleek, minimalist appearance with clean lines, subtle visual effects, and elegant styling. It features smooth rounded corners, refined color palettes, and sophisticated visual treatments that create a polished, professional look for your RichTextEditor.

NOTE

The liquid glass effect is supported only on .NET 10 and on iOS and macOS versions 26 or later

How it Enhances RichTextEditor UI on macOS and iOS

The Liquid Glass Effect elevates the SfRichTextEditor with a modern, glassy aesthetic and a refined, high-quality editing experience.

  • Toolbar:
    • Font family picker
    • Font size picker
    • Text alignment options
    • Text style pickers
    • Insert link popup
    • Table selection
    • Table context menu popup
    • Inline toolbar for links
  • Editor: Presents a sleek, polished text editing area optimized for clear, focused content creation.

Apply Liquid Glass Effect to SfRichTextEditor

To enable the Cupertino theme’s liquid glass effect, set the EnableLiquidGlassEffect property to True on the SfRichTextEditor. For optimal visual appearance with a sleek and glassy output, set transparent backgrounds for both the editor and toolbar using the EditorBackgroundColor property of SfRichTextEditor and the BackgroundColor property of ToolbarSettings.

<editor:SfRichTextEditor EnableLiquidGlassEffect="True"
                         EditorBackgroundColor="Transparent">
    <editor:SfRichTextEditor.ToolbarSettings>
        <editor:RichTextEditorToolbarSettings BackgroundColor="Transparent" />
    </editor:SfRichTextEditor.ToolbarSettings>
</editor:SfRichTextEditor>
SfRichTextEditor richTextEditor = new SfRichTextEditor()
{
    EnableLiquidGlassEffect = true,
    EditorBackgroundColor = Colors.Transparent
};

richTextEditor.ToolbarSettings = new RichTextEditorToolbarSettings()
{
    BackgroundColor = Colors.Transparent
};

Customize Toolbar and Editor Corner Radius

The toolbar corner radius, toolbar selection corner radius and editor corner radius can be customized using Syncfusion theme keys:

<Application xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:syncTheme="clr-namespace:Syncfusion.Maui.Themes;assembly=Syncfusion.Maui.Core">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <syncTheme:SyncfusionThemeResourceDictionary VisualTheme="CupertinoLight"/>
                <ResourceDictionary>
                    <sys:Double x:Key="SfRichTextEditorToolbarCornerRadius">25</sys:Double>
                    <sys:Double x:Key="SfRichTextEditorToolbarSelectionCornerRadius">25</sys:Double>
                    <sys:Double x:Key="SfRichTextEditorCornerRadius">15</sys:Double>
                </ResourceDictionary>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

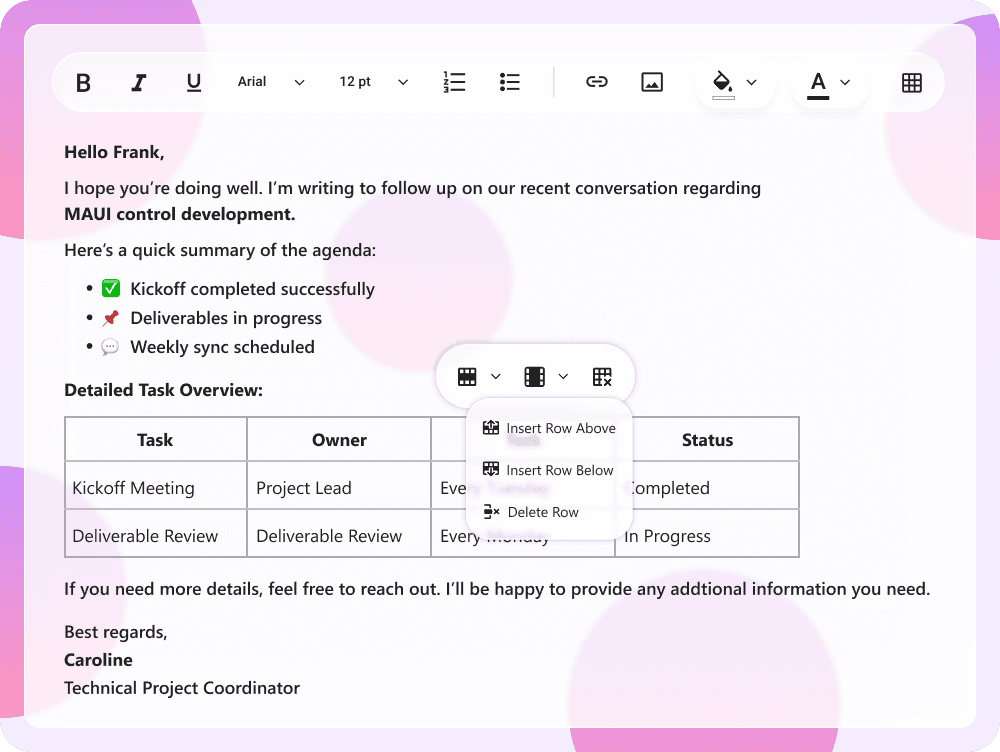

Rich Text Editor with Liquid Glass Effect
