Embed Blocks in ASP.NET Core Block Editor control
18 Nov 201824 minutes to read
Block Editor supports addition of embeds to help you organize, showcase contents and format your content effectively.
Adding an image block
You can use the Image block to showcase an image content within your editor.
Configure image block
You can render an Image block by setting the blockType property to Image in the block model. The properties property allows you to configure the image source, allowed file types, display dimensions, and more.
Global image settings
You can configure global settings for image blocks using the imageBlockSettings property in the Block Editor root configuration. This ensures consistent behavior for image uploads, resizing, and display.
The imageBlockSettings property supports the following options:
| Property | Description | Default Value |
|---|---|---|
| saveUrl | Specifies the server endpoint URL for uploading images. | '' |
| maxFileSize | Specifies the maximum file size allowed for image uploads in bytes. | 30000000 |
| path | Specifies the base path for storing and displaying images on the server. | '' |
| saveFormat | Specifies the format to save the image. | Base64 |
| allowedTypes | Specifies allowed image file types for upload. | ['.jpg', '.jpeg', '.png'] |
| width | Specifies the default display width of the image. | auto |
| height | Specifies the default display height of the image. | auto |
| enableResize | Enables or disables image resizing. | true |
| minWidth | Minimum width allowed for resizing. | '' |
| maxWidth | Maximum width allowed for resizing. | '' |
| minHeight | Minimum height allowed for resizing. | '' |
| maxHeight | Maximum height allowed for resizing. | '' |
Maximum file size restriction
You can restrict the image uploaded from the local machine when the uploaded image file size is greater than the allowed size by using the maxFileSize property. By default, the maximum file size is 30000000 bytes. You can configure this size as follows.
<div id='blockeditor-container'>
<ejs-blockeditor height="300px" id="block-editor">
<e-blockeditor-imagesettings maxFileSize=10000000></e-blockeditor-imagesettings>
</ejs-blockeditor>
</div>
....Configuring allowed image types
You can allow the specific images alone to be uploaded using the the allowedTypes property. By default, the Block Editor allows the JPG, JPEG, and PNG formats. You can configure this formats as follows.
<div id='blockeditor-container'>
<ejs-blockeditor height="300px" id="block-editor">
<e-blockeditor-imagesettings allowedTypes="@ViewBag.AllowedTypes"></e-blockeditor-imagesettings>
</ejs-blockeditor>
</div>
....public string[] AllowedTypes { get; set; }
public ActionResult Index()
{
AllowedTypes = new string[] { ".jpg", ".jpeg", ".png" };
ViewBag.AllowedTypes = AllowedTypes;
return View();
}
....Configure image block properties
The Image block properties property in the block model supports the following options:
| Property | Description | Default Value |
|---|---|---|
| src | Specifies the image path. | '' |
| width | Specifies the display width of the image. | '' |
| height | Specifies the display height of the image. | '' |
| altText | Specifies the alternative text to display when the image cannot be loaded. | '' |
Block type & properties
The following example demonstrates how to pre-configure an Image block in the editor.
// Adding image block
{
blockType = "Image",
properties = new
{
src = "https://cdn.syncfusion.com/ej2/richtexteditor-resources/RTE-Overview.png",
width = '200px',
height = '100px',
altText = '',
}

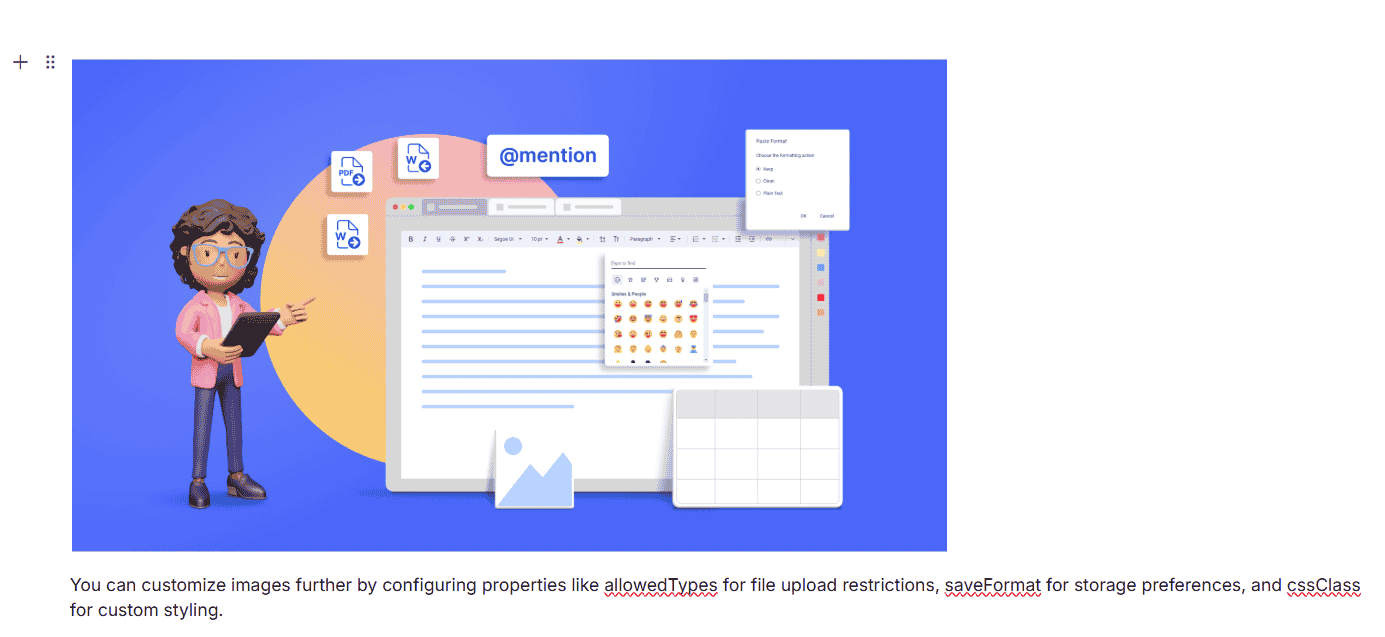

}The below sample demonstrates the configuration of image block in the Block Editor.
@using Syncfusion.EJ2.BlockEditor
<div id='blockeditor-container'>
<ejs-blockeditor id="block-editor" blocks="@ViewBag.BlocksData"></ejs-blockeditor>
</div>
<style>
#blockeditor-container {
margin: 20px auto;
}
</style>using Syncfusion.EJ2.BlockEditor;
public List<BlockModel> BlocksData { get; set; } = new List<BlockModel>();
public class BlockModel
{
public string id { get; set; }
public string blockType { get; set; }
public object properties { get; set; }
public List<object> content { get; set; }
}
public ActionResult Image()
{
BlocksData.Add(new BlockModel
{
blockType = "Image",
properties = new
{
src = "https://cdn.syncfusion.com/ej2/richtexteditor-resources/RTE-Overview.png",
altText = "Sample image"
}
});
BlocksData.Add(new BlockModel
{
blockType = "Paragraph",
content = new List<object>()
{
new
{
contentType = "Text",
content = "You can customize images further by configuring properties like allowedTypes for file upload restrictions, saveFormat for storage preferences, and cssClass for custom styling."
}
}
});
ViewBag.BlocksData = BlocksData;
return View();
}
Uploading images from local machine
To insert an image from your local machine, render the Image block. It opens a popup where you can browse and select an image to insert from your local machine.

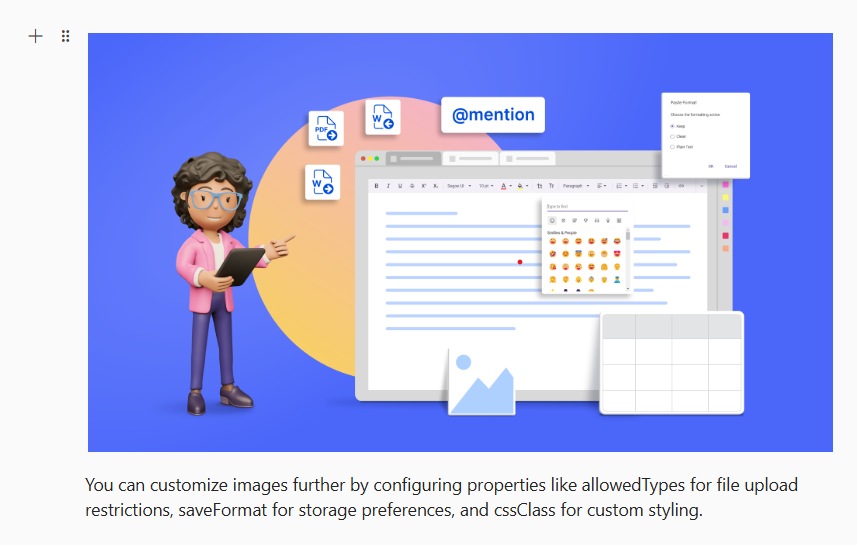

Saving images to server
Upload the selected image to a specified destination using the controller action specified in imageBlockSettings.saveUrl. Ensure to map this method name appropriately and provide the required destination path through the imageBlockSettings.path properties.
Set the imageBlockSettings.saveFormat property to determine whether the image should be saved as Blob or Base64, aligning with your application’s requirements.
@using Syncfusion.EJ2.BlockEditor
<div id='blockeditor-container'>
<ejs-blockeditor blocks="@ViewBag.BlockData" id="block-editor">
<e-blockeditor-imagesettings saveUrl="[SERVICE_HOSTED_PATH]/api/Home/SaveImage" path="[SERVICE_HOSTED_PATH]/Uploads/"></e-blockeditor-imagesettings>
</ejs-blockeditor>
</div>
<style>
#blockeditor-container {
margin: 20px auto;
}
</style>using CoreSample.Models;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.BlockEditor;
using System.Diagnostics;
using System.Net.Http.Headers;
namespace CoreSample.Controllers
{
public class HomeController : Controller
{
private Microsoft.AspNetCore.Hosting.IHostingEnvironment hostingEnv;
public class BlockModel
{
public string id { get; set; }
public string blockType { get; set; }
public object properties { get; set; }
public List<object> content { get; set; }
public List<BlockModel> children { get; set; }
public int indent { get; set; }
}
public ImageBlockSettings ImageBlockSettings { get; set; }
public List<BlockModel> BlockData { get; set; }
public HomeController(Microsoft.AspNetCore.Hosting.IHostingEnvironment env)
{
hostingEnv = env;
}
public IActionResult Index()
{
BlockData = new List<BlockModel>()
{
new BlockModel
{
blockType = "Image",
properties = new { src = "https://cdn.syncfusion.com/ej2/richtexteditor-resources/RTE-Overview.png", altText = "Sample image" }
},
new BlockModel
{
blockType = "Paragraph",
content = new List<object>
{
new { contentType = "Text", content = "You can customize images further by configuring properties like allowedTypes for file upload restrictions, saveFormat for storage preferences, and cssClass for custom styling." }
}
}
};
ImageBlockSettings = new ImageBlockSettings()
{
SaveUrl = "[SERVICE_HOSTED_PATH]/api/Home/SaveImage",
Path = "[SERVICE_HOSTED_PATH]/Uploads/"
};
ViewBag.BlockData = BlockData;
ViewBag.ImageBlockSettings = ImageBlockSettings;
return View();
}
[AcceptVerbs("Post")]
public void SaveImage(IList<IFormFile> UploadFiles)
{
try
{
foreach (IFormFile file in UploadFiles)
{
if (UploadFiles != null)
{
string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
filename = hostingEnv.WebRootPath + "\\Uploads" + $@"\{filename}";
// Create a new directory, if it does not exists
if (!Directory.Exists(hostingEnv.WebRootPath + "\\Uploads"))
{
Directory.CreateDirectory(hostingEnv.WebRootPath + "\\Uploads");
}
if (!System.IO.File.Exists(filename))
{
using (FileStream fs = System.IO.File.Create(filename))
{
file.CopyTo(fs);
fs.Flush();
}
Response.StatusCode = 200;
}
}
}
}
catch (Exception)
{
Response.StatusCode = 204;
}
}
public IActionResult Privacy()
{
return View();
}
[ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
public IActionResult Error()
{
return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
}
}
}
Secure image upload with authentication
You can add additional data with the image uploaded from the Block Editor on the client side, which can even be received on the server side. By using the fileUploading event and it’s arguments you can access the current request and set the request header within these event. On the server side, you can fetch the custom headers by accessing the form collection from the current request, which retrieves the values sent using the POST method.
@using Syncfusion.EJ2.BlockEditor
<div id='blockeditor-container'>
<ejs-blockeditor blocks="@ViewBag.BlockData" id="block-editor" fileUploading="fileUploading">
<e-blockeditor-imagesettings saveUrl="[SERVICE_HOSTED_PATH]/api/Home/SaveImage" path="[SERVICE_HOSTED_PATH]/Uploads/"></e-blockeditor-imagesettings>
</ejs-blockeditor>
</div>
<script>
function fileUploading(args) {
args.currentRequest.setRequestHeader('Authorization', 'Syncfusion');
}
</script>
<style>
#blockeditor-container {
margin: 20px auto;
}
</style>using CoreSample.Models;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.BlockEditor;
using Microsoft.AspNetCore.Hosting;
using System.Diagnostics;
using System.Net.Http.Headers;
namespace CoreSample.Controllers
{
public class HomeController : Controller
{
private Microsoft.AspNetCore.Hosting.IHostingEnvironment hostingEnv;
public class BlockModel
{
public string id { get; set; }
public string blockType { get; set; }
public object properties { get; set; }
public List<object> content { get; set; }
public List<BlockModel> children { get; set; }
public int indent { get; set; }
}
public ImageBlockSettings ImageBlockSettings { get; set; }
public List<BlockModel> BlockData { get; set; }
public HomeController(Microsoft.AspNetCore.Hosting.IHostingEnvironment env)
{
hostingEnv = env;
}
public IActionResult Index()
{
BlockData = new List<BlockModel>()
{
new BlockModel
{
blockType = "Image",
properties = new { src = "https://cdn.syncfusion.com/ej2/richtexteditor-resources/RTE-Overview.png", altText = "Sample image" }
},
new BlockModel
{
blockType = "Paragraph",
content = new List<object>
{
new { contentType = "Text", content = "You can customize images further by configuring properties like allowedTypes for file upload restrictions, saveFormat for storage preferences, and cssClass for custom styling." }
}
}
};
ImageBlockSettings = new ImageBlockSettings()
{
SaveUrl = "[SERVICE_HOSTED_PATH]/api/Home/SaveImage",
Path = "[SERVICE_HOSTED_PATH]/Uploads/"
};
ViewBag.BlockData = BlockData;
ViewBag.ImageBlockSettings = ImageBlockSettings;
return View();
}
[AcceptVerbs("Post")]
public void SaveFiles(IList<IFormFile> UploadFiles)
{
string currentPath = Request.Form["Authorization"].ToString();
try
{
foreach (IFormFile file in UploadFiles)
{
if (UploadFiles != null)
{
string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
filename = hostingEnv.WebRootPath + "\\Files" + $@"\{filename}";
// Create a new directory, if it does not exists
if (!Directory.Exists(hostingEnv.WebRootPath + "\\Files"))
{
Directory.CreateDirectory(hostingEnv.WebRootPath + "\\Files");
}
if (!System.IO.File.Exists(filename))
{
using (FileStream fs = System.IO.File.Create(filename))
{
file.CopyTo(fs);
fs.Flush();
}
Response.StatusCode = 200;
}
}
}
}
catch (Exception)
{
Response.StatusCode = 204;
}
}
public IActionResult Privacy()
{
return View();
}
[ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
public IActionResult Error()
{
return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
}
}
}
Inserting images from web URLs
To insert an image from an online source, render the Image block. Switch to the Embed Link tab containing an input field where you can provide the image URL from the web to insert the image.
Image resizing
Block Editor has a built-in image inserting support. The resize points will be appearing on each corner of image when focus. So, users can resize the image using mouse points or thumb through the resize points easily. Also, the resize calculation will be done based on aspect ratio.
