Cascading Parameter

A list of values for a parameter depends on values chosen for a previous parameter. It helps when the parameter has a long list of values and the parameters can be filtered based on the previous parameter.

Steps to create cascaded parameters in web designer

Create datasource

To create new Datasource, refer Create Datasource.
While creating data source, give the data source Name as AdventureWorks and select AdventureWorks database from the drop-down list.

Create the main dataset with a query and query parameters

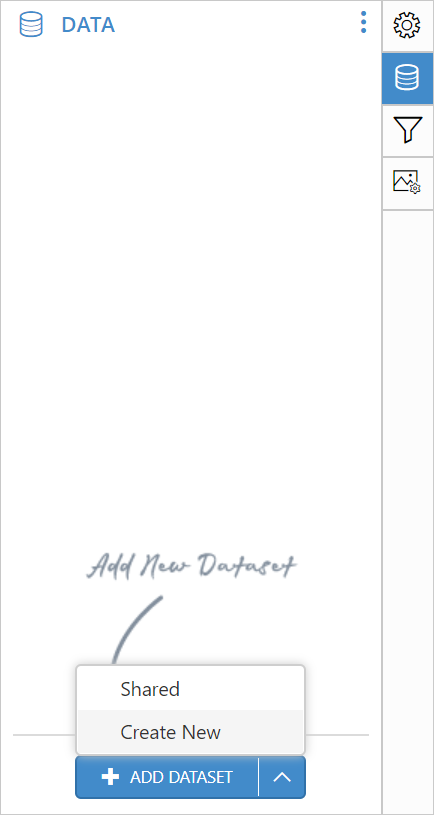

In the configuration panel, click the Data icon and select the Add Dataset. For more details, refer Create Dataset.

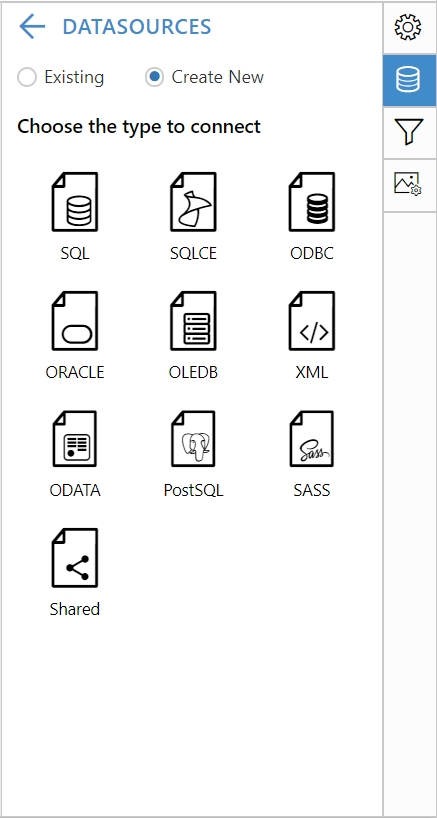

Click Create New, will launch the below wizard.

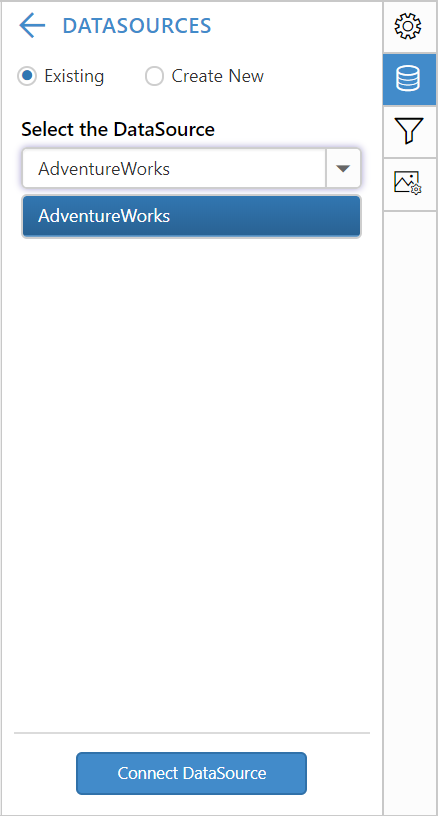

Choose AdventureWorks data source from the drop-down list.
Click Connect Datasource.
In name field, type SalesbyCategory.

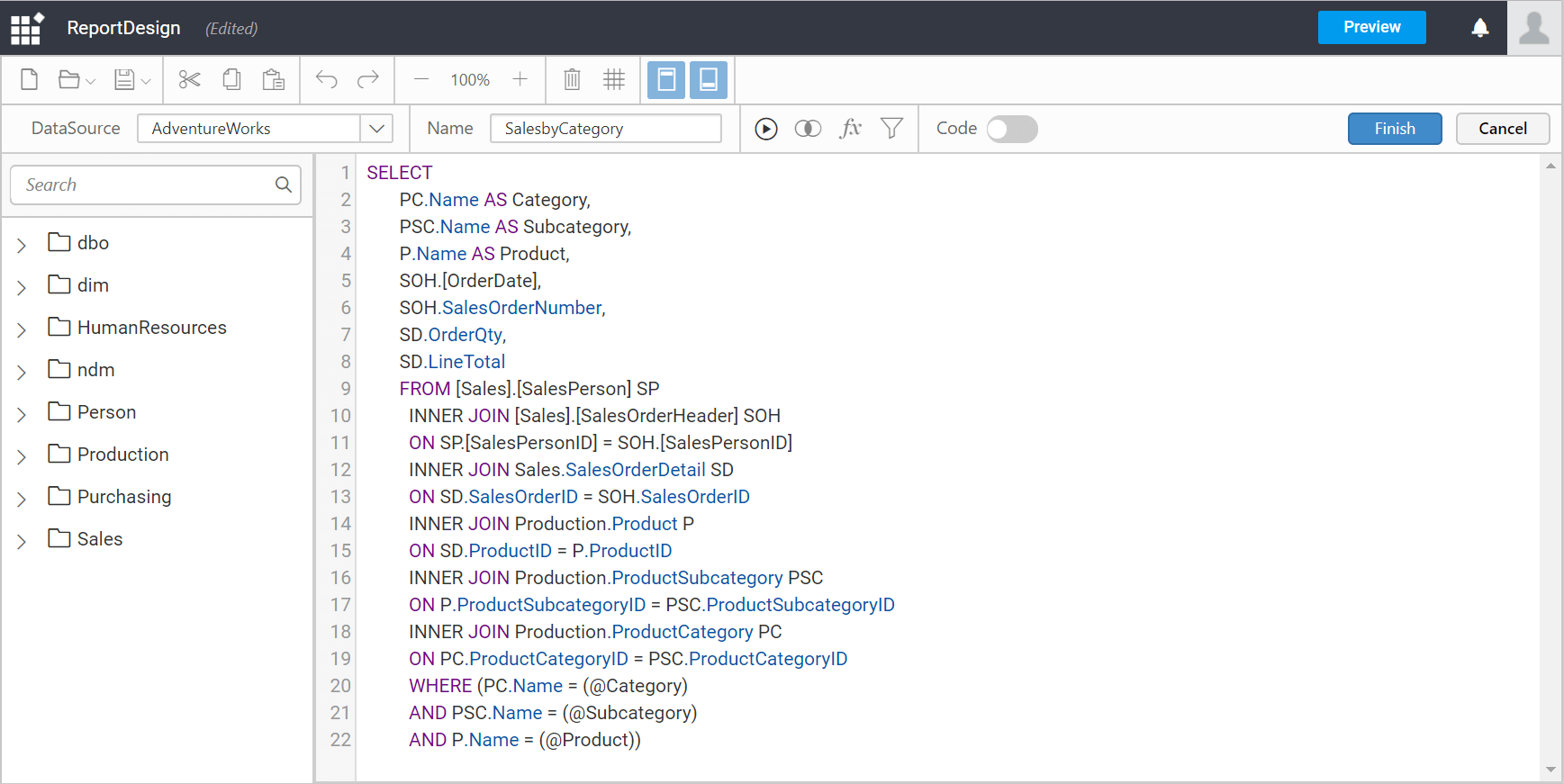

Switch to Query editor by using the switcher icon (highlighted in the below snap).

Paste the following query in the Query editor:

      SELECT
          PC.Name AS Category,
          PSC.Name AS Subcategory,
          P.Name AS Product,
          SOH.[OrderDate],
          SOH.SalesOrderNumber,
          SD.OrderQty,
          SD.LineTotal
          FROM [Sales].[SalesPerson] SP
            INNER JOIN [Sales].[SalesOrderHeader] SOH
            ON SP.[SalesPersonID] = SOH.[SalesPersonID]
            INNER JOIN Sales.SalesOrderDetail SD
            ON SD.SalesOrderID = SOH.SalesOrderID
            INNER JOIN Production.Product P
            ON SD.ProductID = P.ProductID
            INNER JOIN Production.ProductSubcategory PSC
            ON P.ProductSubcategoryID = PSC.ProductSubcategoryID
            INNER JOIN Production.ProductCategory PC
            ON PC.ProductCategoryID = PSC.ProductCategoryID
            WHERE (PC.Name = (@Category)
            AND PSC.Name = (@Subcategory)
            AND P.Name = (@Product))

The query now includes the query parameters @Category, @Subcategory, and @Product.

Click run to see the result set. The Query Parameters dialog box opens.

In the parameter value column, type the value for each query parameter like below.
- Enter Components as value for @Category.
- Enter Brakes as value for @Subcategory.
- Enter Front Brakes as value for @Product.
Click Ok.

The result set contains a list of sales order numbers that are grouped by date for front brakes.
Click Finish. Now, the dataset will be added with the report under the data pane.

In the configuration panel, click the parameters icon and verify the following report parameters appear: category, subcategory, and product.

To provide values for each report parameter at run time, you should create a dataset for each parameter.

Go through the CreateParameter topic to know about how to create parameter, before proceeding with below steps:

Create dataset for `Category` parameter:

Create dataset by following the same procedure described above.
- In name field, type CategoryValues.
- Paste the following query text in the query editor:
```
          SELECT DISTINCT Name AS Category FROM Production.ProductCategory
```
Click run to see the result. The column category appears with four values: accessories, bikes, clothing, and components.
Click finish.

Now, you have to set the properties for the report parameter Category to use values from the query for both its available values and its default values.

Set available values and default values for a `Category` parameter:

Click Parameter icon in the configuration panel to launch a Parameter configuration.
Edit the Category parameter.
- In name field, verify that the name is Category.
Click Assign Value, will launch the Parameter Dialog.
- Click Available value.
- Click Query Value.

  In Dataset, from the drop-down list, select CategoryValues.

  In Value field, choose Category.

  In Label field, choose Category.
- Click Default value.
- Click Query Value.

  In Dataset, select CategoryValues from the drop-down list.

  In Value field, select Category.
Click Ok.
Click Save in the New Parameter wizard.

Now, you can modify the parameter @Subcategory depends on the value selected for @Category.

Create dataset for `Subcategory` parameter

Create dataset by following the same procedure described above.

In name field, type SubcategoryValues.
Paste the following query text in the query editor:

            SELECT DISTINCT PSC.Name AS Subcategory
                  FROM Production.ProductSubcategory AS PSC
                  INNER JOIN Production.ProductCategory AS PC
                  ON PC.ProductCategoryID = PSC.ProductCategoryID
                  WHERE PC.Name = (@Category)

Now, the query includes the query parameters @Category.

Click run to see the result set. The Query Parameters dialog box opens.
Click Ok, the result set displays 14 rows.
Click Finish, now the dataset will be added with the report under the data pane.

Set available values and default values for a `Subcategory` parameter:

Click Parameter icon in the configuration panel to launch a Parameter configuration.
Edit the Subcategory parameter.
- In name field, verify that the name is Subcategory.
Click Assign Value, will launch the Parameter Dialog.

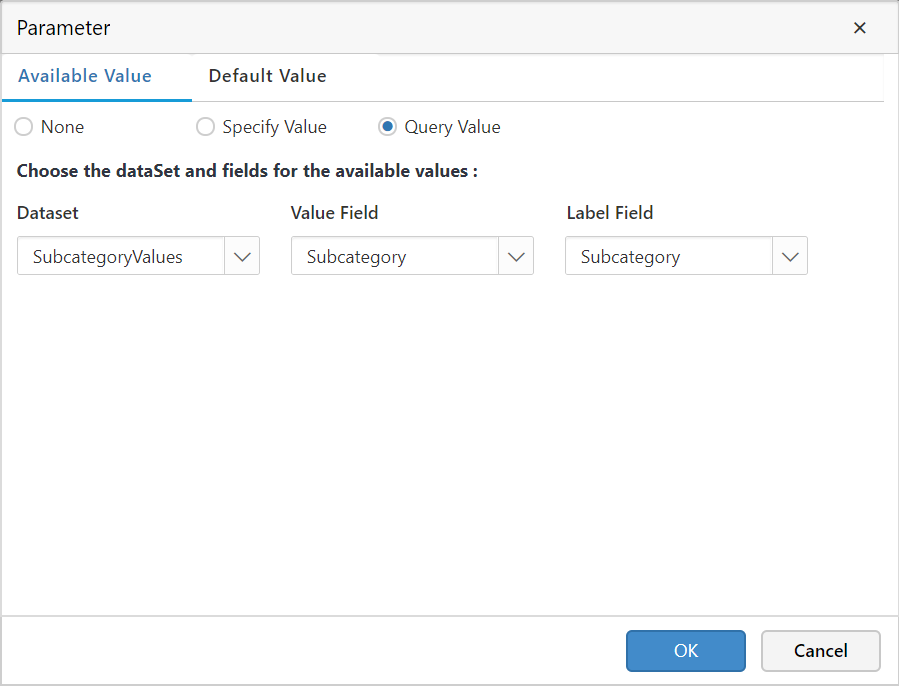

- Click Available value.
- Click Query Value.

  In Dataset, select SubcategoryValues from the drop-down list.

  In Value field, choose Subcategory.

  In Label field, choose Subcategory.

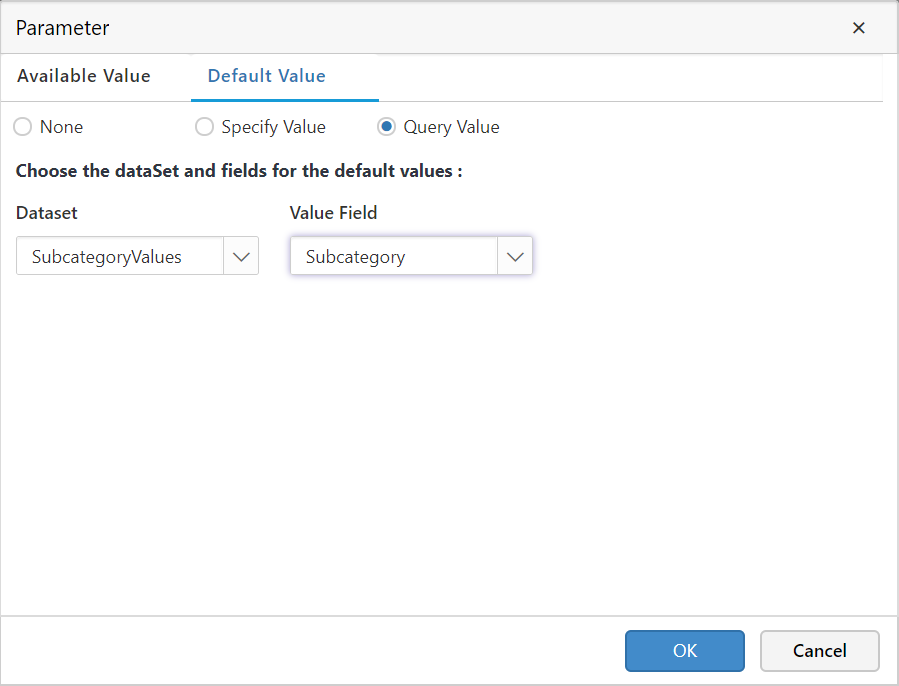

- Click Default value.
- Click Query Value.

  In Dataset, select SubcategoryValues from the drop-down list.

  In Value field, select Subcategory.
Click Ok.
Click Save in the New Parameter wizard.

Now, create a parameter @Product depends on both the value of @Category and the value of @Subcategory.

Create dataset for `Product` parameter:

Create dataset by following the same procedure described above.

In name field, type ProductValues.
Paste the following query text in the query editor:

            SELECT DISTINCT P.Name AS Product
                  FROM Production.Product P
                  INNER JOIN Production.ProductSubcategory AS PSC
                  ON P.ProductSubcategoryID = PSC.ProductSubcategoryID
                  INNER JOIN Production.ProductCategory AS PC
                  ON PC.ProductCategoryID = PSC.ProductCategoryID
                  WHERE (PC.Name = (@Category)
                  AND PSC.Name = (@Subcategory))

Click Finish, now a dataset named ProductValues with one field named Product will be added with the report under the data pane.

Set available values and default values for a `Product` parameter

Click Parameter icon in the configuration panel to launch the Parameter configuration.
Edit the Product parameter
- In name field, verify that the name is Product.
Click Assign Value, will launch the Parameter Dialog.

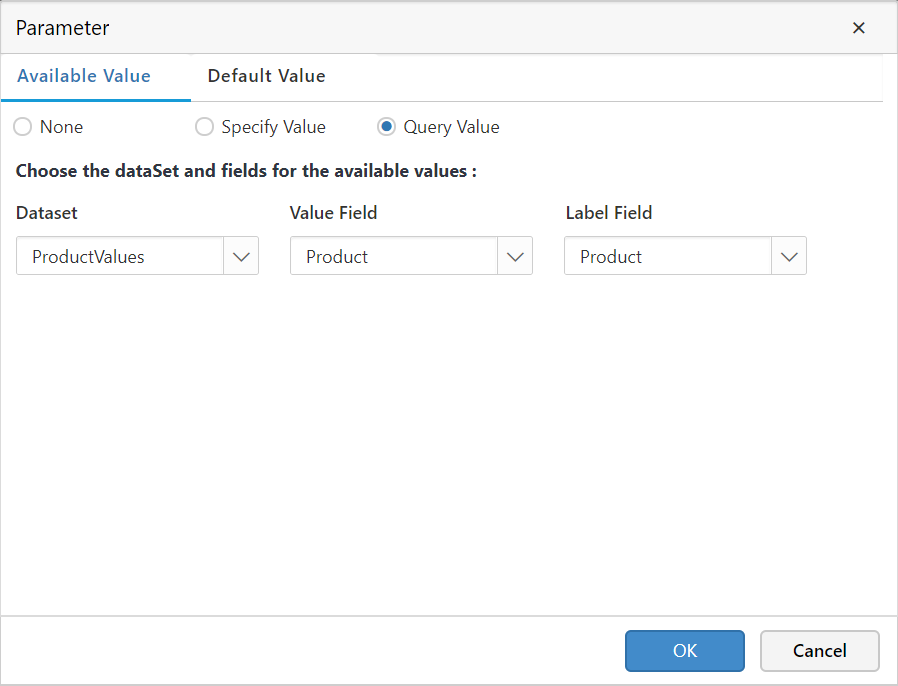

- Click Available value.
- Click Query Value.

  In Dataset, select ProductValues from the drop-down list.

  In Value field, choose Product.

  In Label field, choose Product.
- Click Default value.
- Click Query Value.

  In Dataset, select ProductValues from the drop-down list.

  In Value field, select Product.
Click Ok.
Click Save in the New Parameter wizard.

Add a grid to display the results

In design view, drag and drop the the Grid from the left pane into designer panel.
In the configuration panel, click the Properties icon to assign data to the Grid.

In the properties panel, click the Data Assign tab, and drag the following fields SalesOrderNumber, OrderQty, LineTotal from the SalesbyCategory dataset.

Preview the cascading parameters

Click Preview at top-right corner of the toolbar.
From the Category drop-down list, select Components.
From the Subcategory drop-down list, select Brakes.
From the Product drop-down list, select Front Brakes.

Notice, when you select each successive parameter, the drop-down list for the next parameter shows only the valid values that are based on your previous choices.

On the report viewer toolbar, click the view report.

The report displays sales order numbers with order quantity and line totals for orders that include the “front brakes” product.

Click the Parameter icon in the viewer toolbar to hide the parameter fields.

Now, the preview will be displayed like below:
