Features in .NET MAUI DockLayout Control

30 Jun 20254 minutes to read

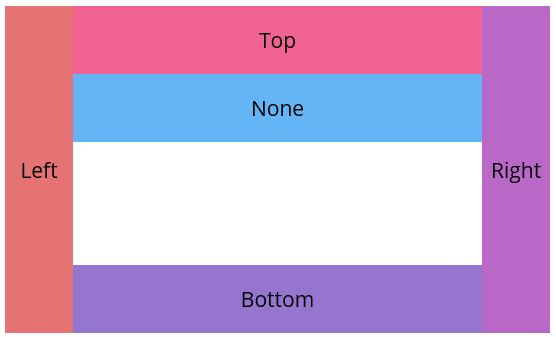

Expand LastChild

The ShouldExpandLastChild property (of type bool) determines whether the last docked child should automatically occupy all remaining space after other docked children have been positioned. By default, this property is set to True. This feature is particularly valuable for ensuring that the last child element fully utilizes available space, resulting in a seamless and gap-free layout.

XAML

<sf:SfDockLayout ShouldExpandLastChild="False">
    <!-- Since ShouldExpandLastChild is False, the last child's size must be defined explicitly -->
    <Label Text="None" HeightRequest="45"/>
</sf:SfDockLayout>

C#

SfDockLayout dockLayout = new SfDockLayout() { ShouldExpandLastChild = false };
dockLayout.Children.Add(new Label() { Text = "None", WidthRequest = 45 });

Spacing

Customize the spacing between child elements using the HorizontalSpacing and VerticalSpacing properties.The default value for both is 0.

• HorizontalSpacing — Specifies the horizontal gap between docked children.
• VerticalSpacing — Specifies the vertical gap between docked children.

XAML

<sf:SfDockLayout HorizontalSpacing="10" VerticalSpacing="10">
    ...
</sf:SfDockLayout>

C#

SfDockLayout dockLayout = new SfDockLayout()
{
    HorizontalSpacing = 10, VerticalSpacing = 10
};

GetDock

The GetDock method retrieves the docking position for a specified view within the layout.

GetDock(BindableObject view)

Parameters

• view: BindableObject - The targeted child view for docking evaluation.

C#

SfDockLayout dockLayout = new SfDockLayout();
var leftLabel = new Label() { Text = "Left", WidthRequest = 80, Background = Color.FromArgb("#CA7842") };
dockLayout.Children.Add(leftLabel, Dock.Left);
Content = dockLayout;

Dock currentPosition = SfDockLayout.GetDock((BindableObject)dockLayout.Children[0]);

SetDock

The SetDock method assigns a specific docking position to a child element within the layout.

SetDock(BindableObject view, Dock position)

Parameters

• view: BindableObject - The targeted child view for docking adjustment.
• position: Dock - The designated docking position to assign.

C#

SfDockLayout dockLayout = new SfDockLayout();

var leftLabel = new Label() { Text = "Left", WidthRequest = 80, Background = Color.FromArgb("#CA7842") };
dockLayout.Children.Add(leftLabel);
SfDockLayout.SetDock((BindableObject)leftLabel, Dock.Left);

var rightLabel = new Label() { Text = "Right", WidthRequest = 80, Background = Color.FromArgb("#71C0BB") };
dockLayout.Children.Add(rightLabel);
SfDockLayout.SetDock((BindableObject)rightLabel, Dock.Right);

var topLabel = new Label() { Text = "Top", HeightRequest = 80, Background = Color.FromArgb("#B2CD9C") };
dockLayout.Children.Add(topLabel);
SfDockLayout.SetDock((BindableObject)topLabel, Dock.Top);

var bottomLabel = new Label() { Text = "Bottom", HeightRequest = 80, Background = Color.FromArgb("#94B4C1") };
dockLayout.Children.Add(bottomLabel);
SfDockLayout.SetDock((BindableObject)bottomLabel, Dock.Bottom);

Content = dockLayout;

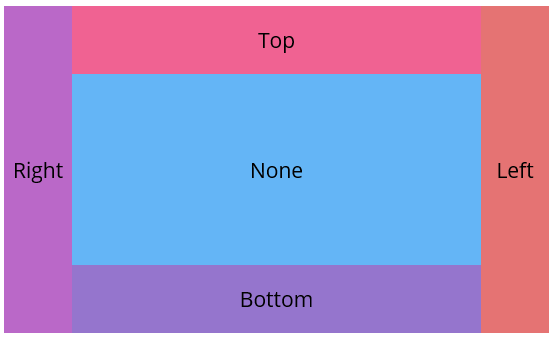

Right To Left (RTL)

The .NET MAUI DockLayout control supports Right-to-Left (RTL) layout direction. When the FlowDirection property is set to RightToLeft, the docking positions are mirrored to align with RTL language standards.

You can enable RTL either by setting FlowDirection directly on the DockLayout, or by changing the device language to one that uses an RTL script.

XAML

<sf:SfDockLayout FlowDirection="RightToLeft">
...
</sf:SfDockLayout>

C#

SfDockLayout dockLayout = new SfDockLayout()
{
    FlowDirection = FlowDirection.RightToLeft,
};
