Ports in .NET MAUI Diagram

18 Nov 201811 minutes to read

Ports define specific connection points on a node. They provide precise control over where connectors begin and terminate, helping users build structured and visually organized diagrams.

Ports are commonly used in workflow designers, flowcharts, process diagrams, and node-based editors where connection locations must be predictable.

Prerequisites

Refer to the Getting started page to create a project, install the package, and register the handler. Port examples assume that the host node has been created in the diagram.

Port creation

A port is created using the PointPort class and added to the Node.Ports collection.

using Syncfusion.Maui.Diagram;

 Node node = new Node
 {
     Id = "node1",
     OffsetX = 500,
     OffsetY = 300,
     Width = 120,
     Height = 60
 };
 ShapeStyle style = new ShapeStyle();
 style.Fill = Colors.CornflowerBlue;
 style.StrokeColor = Colors.Black;
 style.StrokeWidth = 2;
 style.StrokeDashArray = "0,0";

 node.Style = style;
 node.Ports.Add(
 new PointPort
 {
     Id = "TopPort", Visibility = PortVisibility.Visible,
 });

 diagram.Nodes.Add(node);

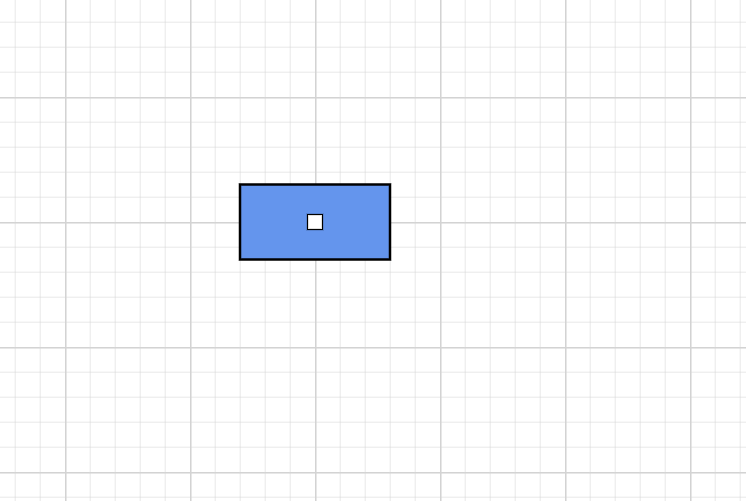

Port_creation

Port properties

Property Description
Id Unique identifier for the port within the host node.
Offset Port position. The accepted coordinate type depends on the package version.
Visibility Controls when the port is visible through the PortVisibility enumeration.
Style Visual style for the port based on the ShapeStyle class.

Note: The Offset type is implemented in a different class than DiagramPoint. Verify the supported type in the API reference for your package version.

Port Position

The Offset property defines the position of a port relative to its host node. The position is specified using normalized coordinates, where the values range from 0 to 1.

  • Offset.X determines the horizontal position.
  • Offset.Y determines the vertical position.

Coordinate reference

Axis 0 1
Offset.X Left edge Right edge
Offset.Y Top edge Bottom edge

Common port positions

Position Offset value
Top center new DiagramPoint(0.5, 0)
Left center new DiagramPoint(0, 0.5)
Right center new DiagramPoint(1, 0.5)
Bottom center new DiagramPoint(0.5, 1)
Center new DiagramPoint(0.5, 0.5)

For example, the following code places a port at the right-center of a node:

 Node node = new Node
 {
     Id = "node",
     OffsetX = 500,
     OffsetY = 300,
     Width = 120,
     Height = 60
 };
 ShapeStyle style = new ShapeStyle();
 style.Fill = Colors.CornflowerBlue;
 style.StrokeColor = Colors.Black;
 style.StrokeWidth = 2;
 style.StrokeDashArray = "0,0";

 node.Style = style;
 node.Ports.Add(
 new PointPort
 {
     Id = "Port", Visibility = PortVisibility.Visible,
     Offset = new DiagramPoint(0, 1),
 });

 diagram.Nodes.Add(node);

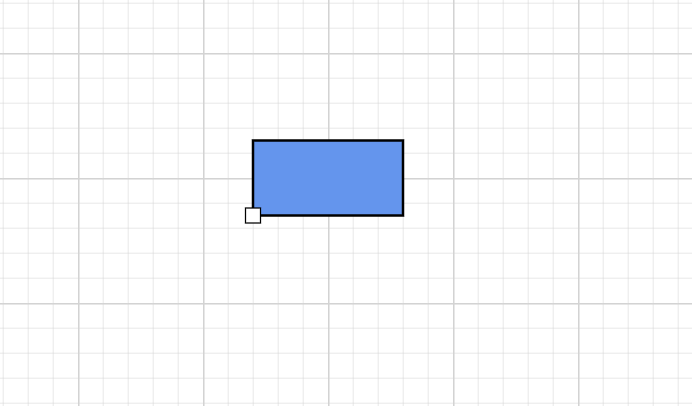

Port_position
—

Port visibility

The Visibility property determines when a port is displayed.

Visibility Description
Visible The port is always visible.
Hidden The port is never displayed.
Hover The port becomes visible when the pointer hovers over the node.
Connect The port becomes visible during connection operations.
Node node = new Node
{
    Id = "node",
    OffsetX = 500,
    OffsetY = 300,
    Width = 120,
    Height = 100
};
ShapeStyle style = new ShapeStyle();
style.Fill = Colors.Red;
style.StrokeColor = Colors.Black;
style.StrokeWidth = 2;
style.StrokeDashArray = "0,0";

node.Style = style;
PointPort port= new PointPort
{
    Id = "Port",
    Offset = new DiagramPoint(0,0.5),
};

port.Visibility = PortVisibility.Visible;

node.Ports(port);

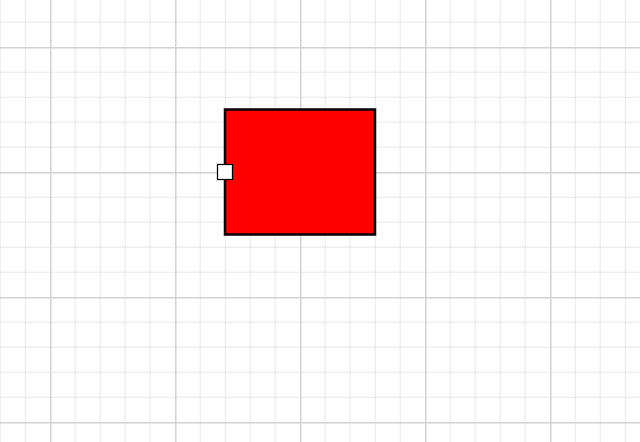

Port_visibility
—

Appearance

Port appearance is customized using the Style property of the Port class.

 PointPort port = new PointPort
 {
     Id = "Port",
 };

 port.Style = new ShapeStyle
 {
     Fill = Colors.Yellow,
     StrokeColor = Colors.DarkBlue,
     StrokeWidth = 2,
     Opacity = 1
 };

Properties

Property Description
Fill Port background color.
StrokeColor Port border color.
StrokeWidth Border thickness.
Opacity Port transparency from 0 to 1.
StrokeDashArray Dash pattern for the border. The accepted value format depends on the package version.

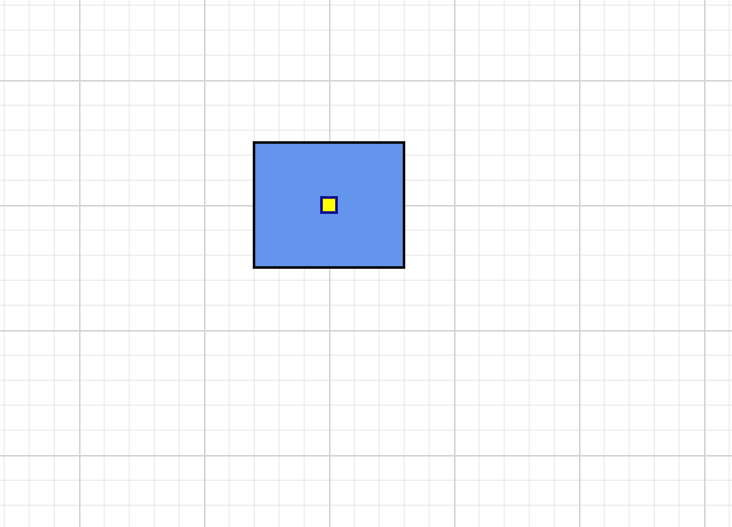

Port_Appearance

Connections with ports

The connection between any specific point of source and target nodes can be achieved with ports. Connectors reference source and target ports through SourcePortID and TargetPortID.

Node node1 = new Node
{
    Id="Node1",
    OffsetX = 200,
    OffsetY = 200,
    Width = 80,
    Height = 80
};
ShapeStyle style = new ShapeStyle();
style.Fill = Colors.CornflowerBlue;
style.StrokeColor = Colors.Black;
style.StrokeWidth = 2;
style.StrokeDashArray = "0,0";

node1.Style = style;
Node node2 = new Node
{
    Id = "Node2",
    OffsetX = 400,
    OffsetY = 400,
    Width = 80,
    Height = 80
};

node2.Style = style;
PointPort RightPort = new PointPort
{
    Id = "RightPort",
    Offset = new DiagramPoint(1, 0.5),
    Visibility = PortVisibility.Visible,
};
PointPort LeftPort = new PointPort
{
    Id = "LeftPort",
    Offset = new DiagramPoint(0.5, 0),
    Visibility = PortVisibility.Visible
};

node1.Ports.Add(RightPort);
node2.Ports.Add(LeftPort);

diagram.Nodes.Add(node1);
diagram.Nodes.Add(node2);

Connector connector = new Connector
{
    Id = "connector1",
    SourceID = "Node1",
    SourcePortID = "RightPort",
    TargetID = "Node2",
    TargetPortID = "LeftPort"
};

diagram.Connectors.Add(connector);

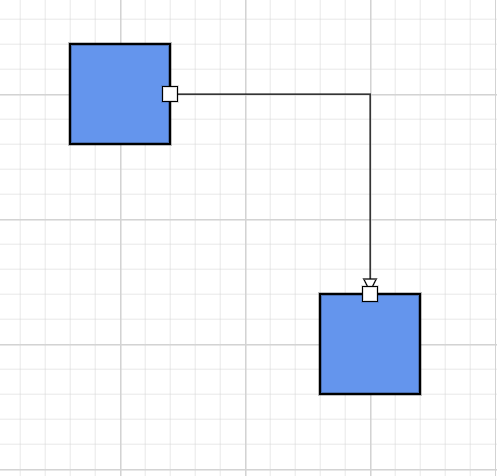

Connections with ports
—

Multiple ports

A node can contain any number of ports, each scoped to the host node by its Id.

 Node node = new Node
 {
     OffsetX = 200,
     OffsetY =200,
     Width = 80,
     Height = 80
 };

node.Ports.Add(new PointPort { Id = "TopPort",    Offset = new DiagramPoint { X = 0.5, Y = 0 }, Visibility = PortVisibility.Visible });
node.Ports.Add(new PointPort { Id = "BottomPort", Offset = new DiagramPoint { X = 0.5, Y = 1 }, Visibility = PortVisibility.Visible });
node.Ports.Add(new PointPort { Id = "LeftPort",   Offset = new DiagramPoint { X = 0,   Y = 0.5 }, Visibility = PortVisibility.Visible });
node.Ports.Add(new PointPort { Id = "RightPort",  Offset = new DiagramPoint { X = 1,   Y = 0.5 }, Visibility = PortVisibility.Visible });

Note: DiagramPoint is not implemented in the current release. Verify the supported coordinate type for port positioning before using this property.

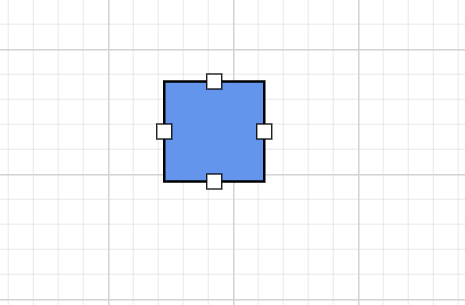

Multiple ports

Best practices

  • Use the same Id scheme (TopPort, BottomPort, LeftPort, RightPort) for ports across similar nodes so that connectors can be reused in symbol palettes.
  • Use PortVisibility.Hover or PortVisibility.Connect to keep the diagram surface clean when ports are not actively used.
  • Combine ports with orthogonal connectors to keep workflow diagrams aligned and predictable.
